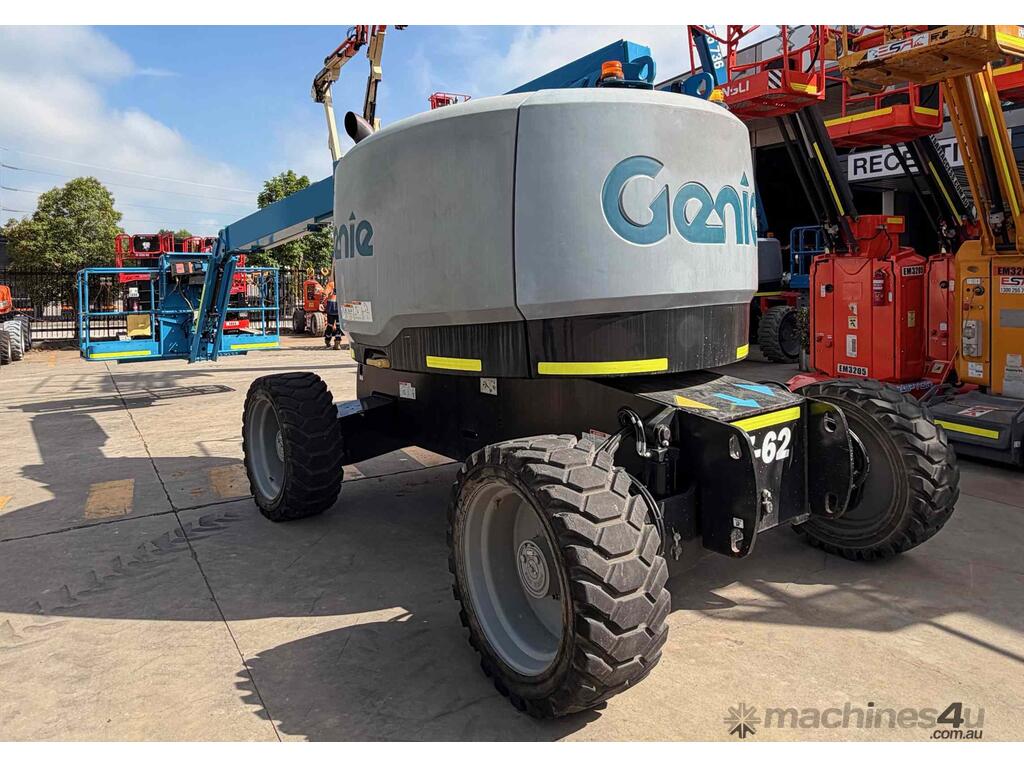

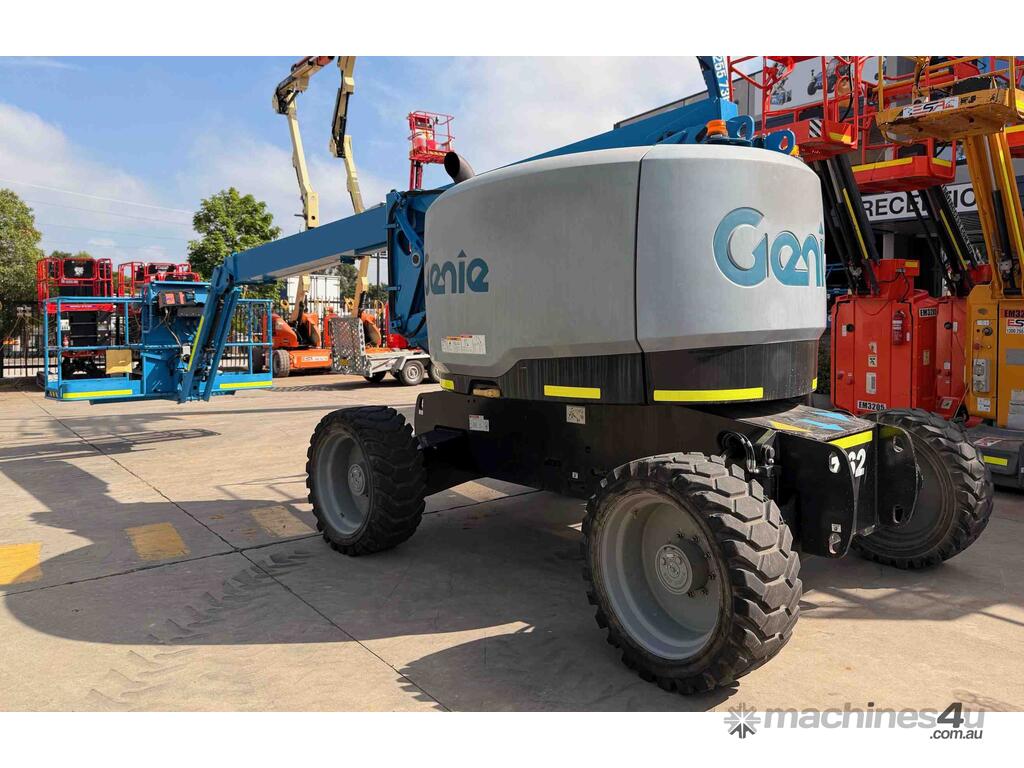

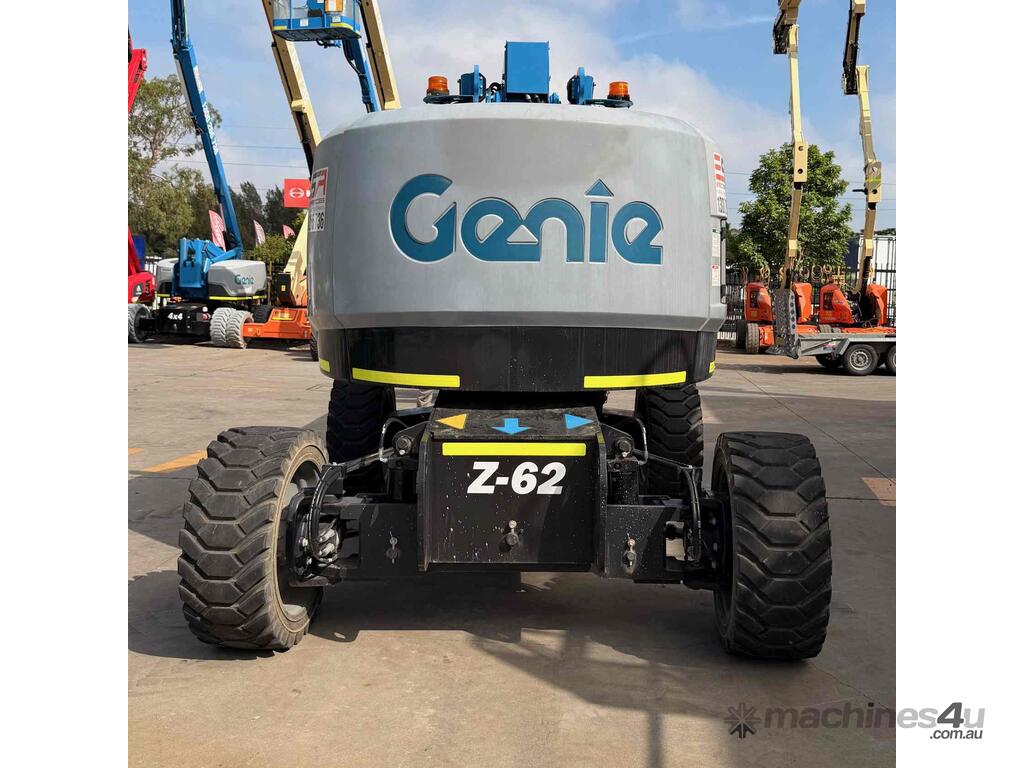

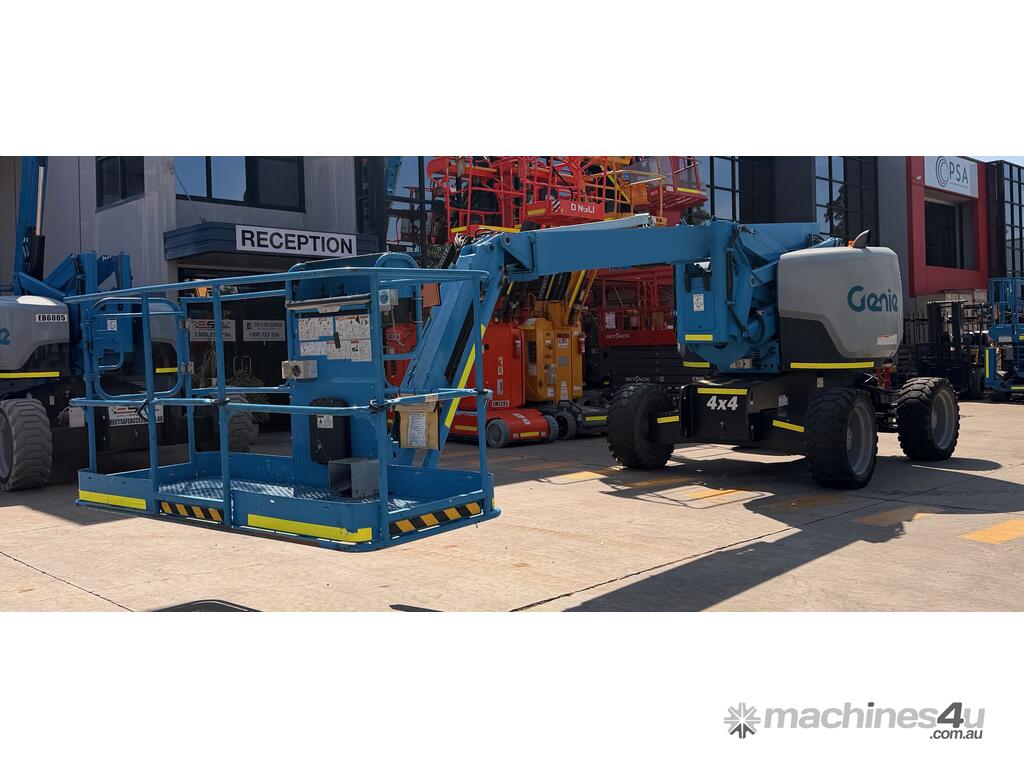

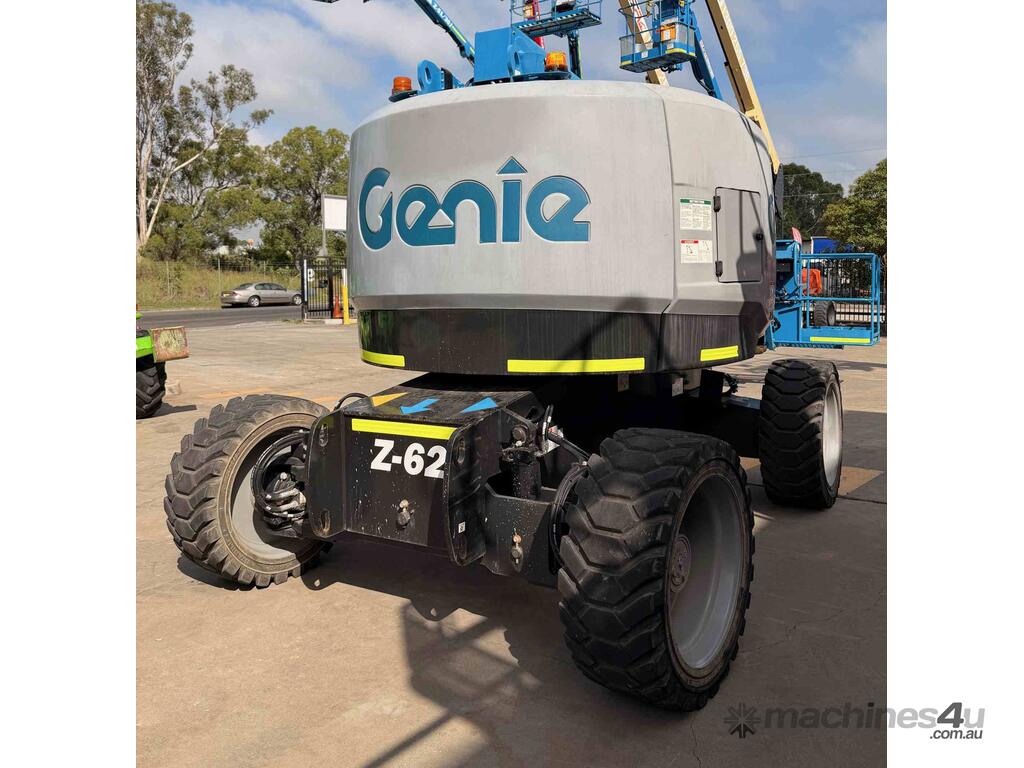

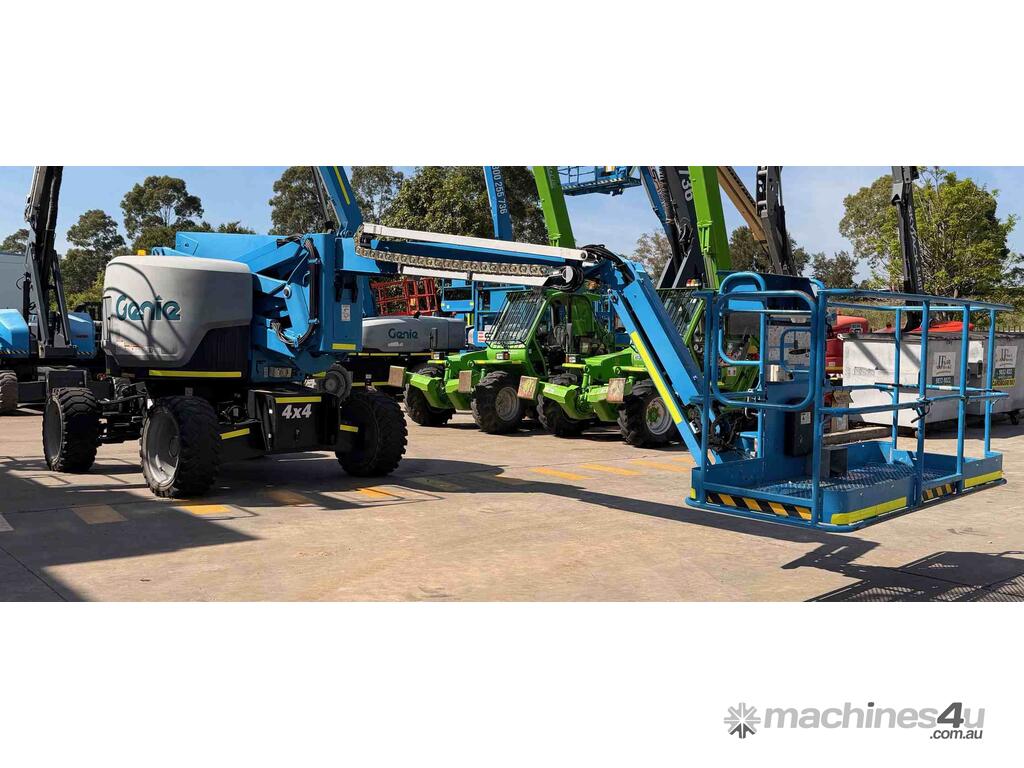

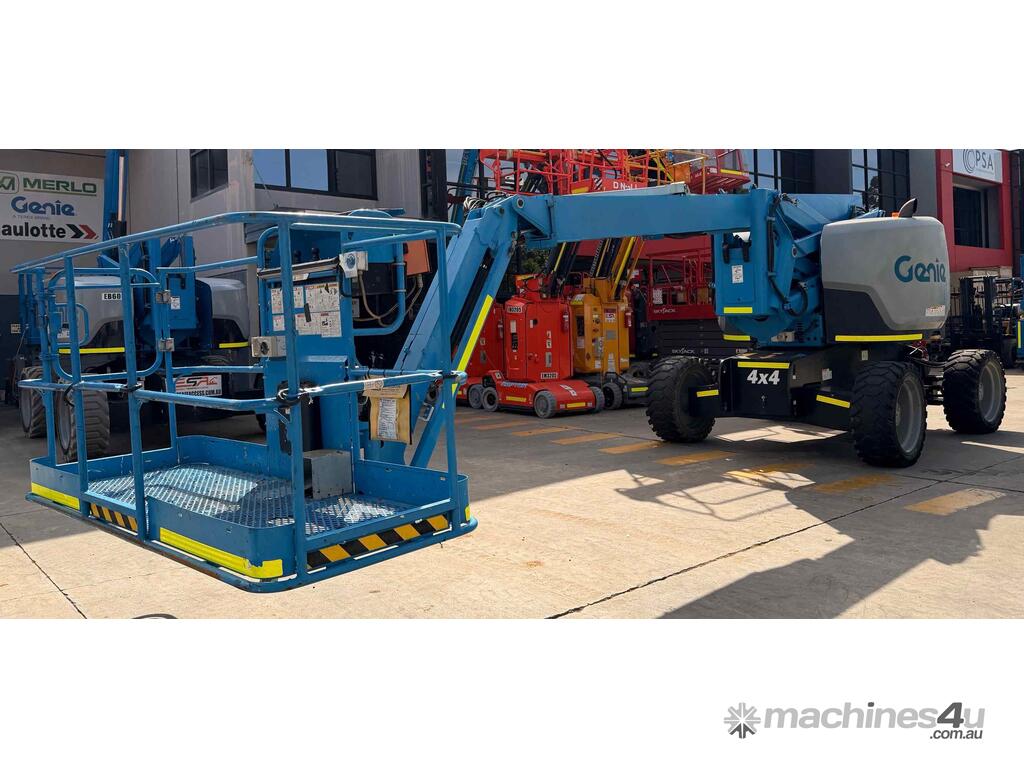

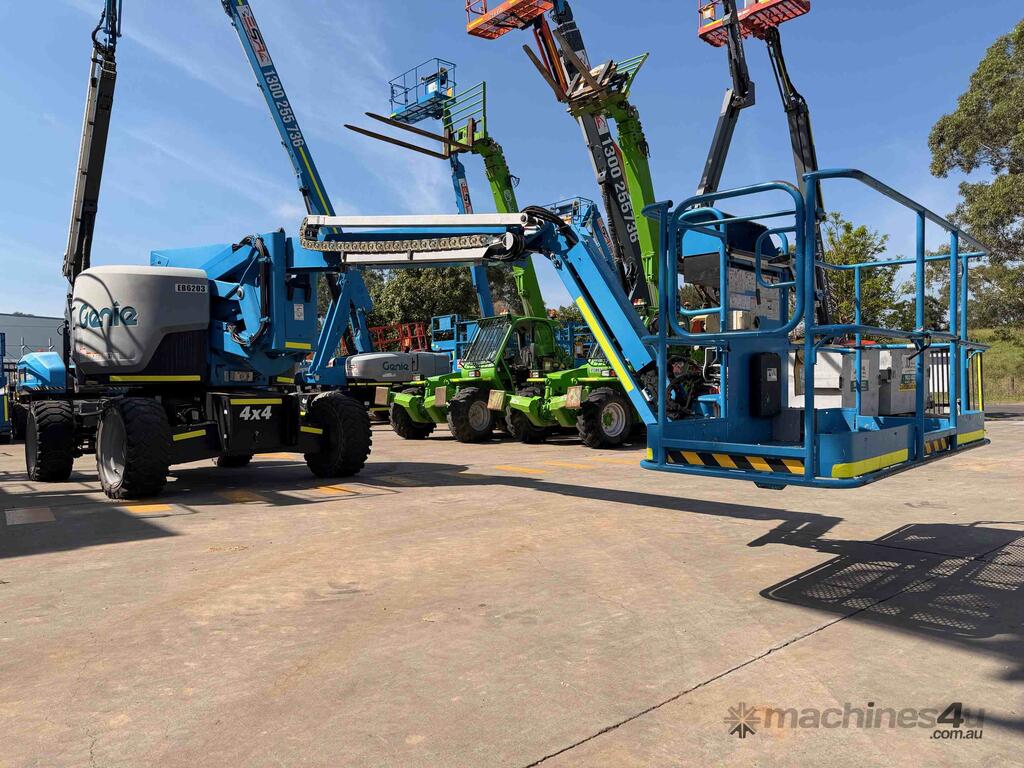

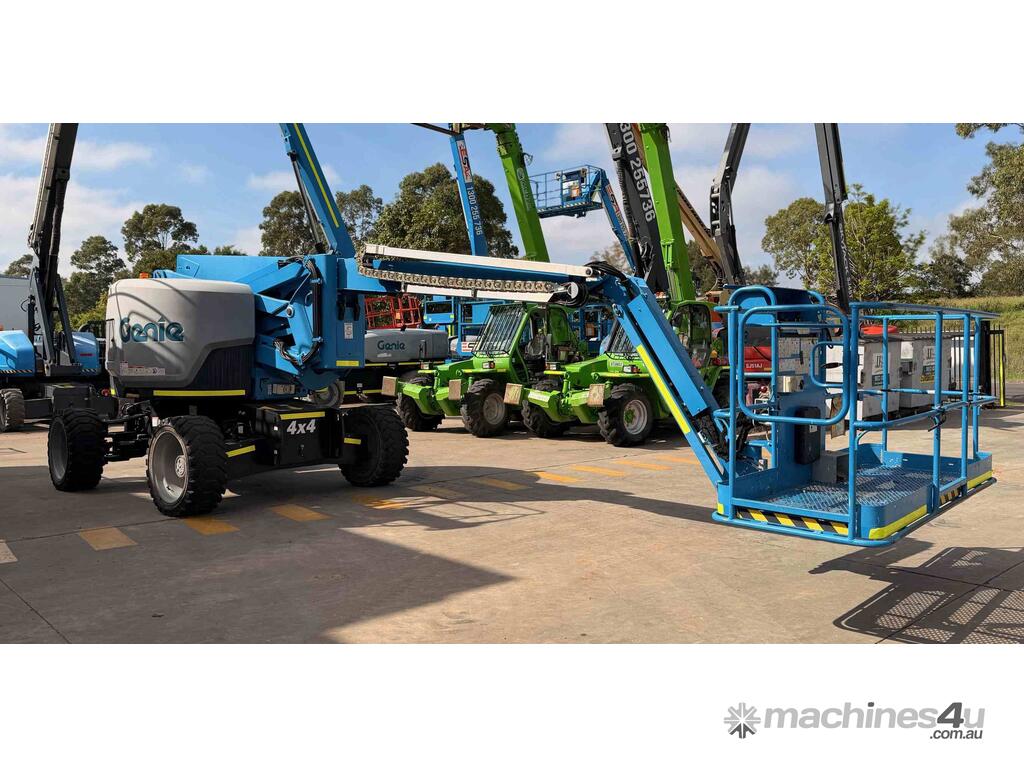

Used Genie 62ft Knuckle Boom Lift – Low Hours – still in time
Model: Z62/40 4WD
Year in Service: September 2017 – intime until 2027.

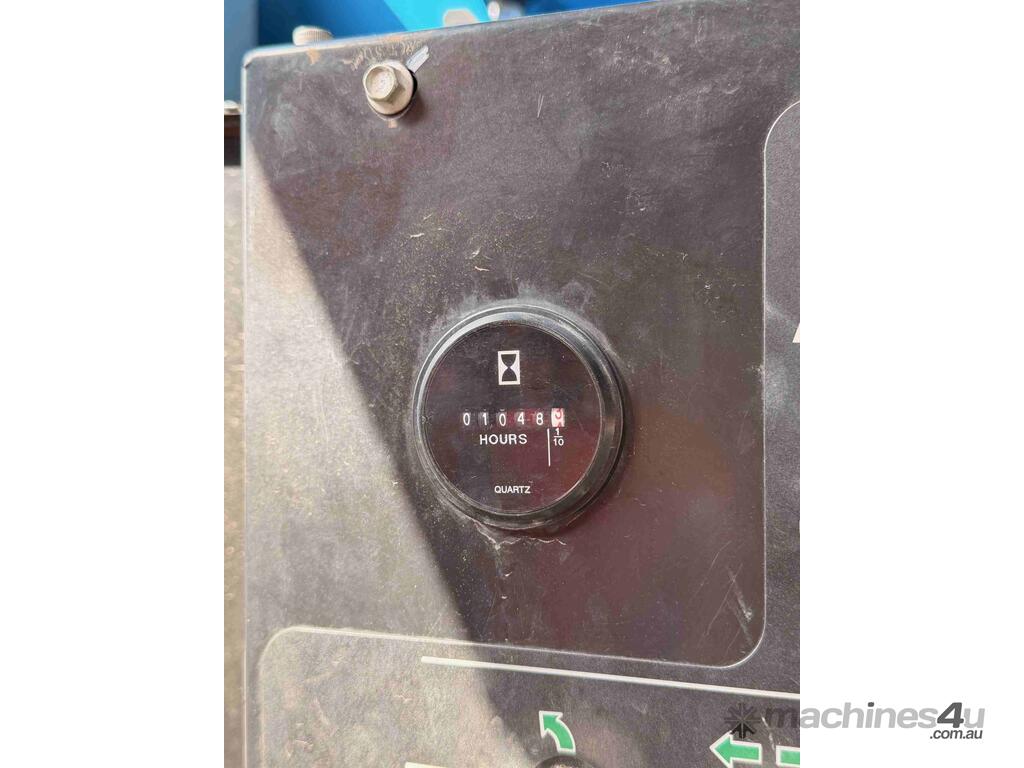

Hours: 1048
Fuel: Diesel
Lifting capacity: 227 kg

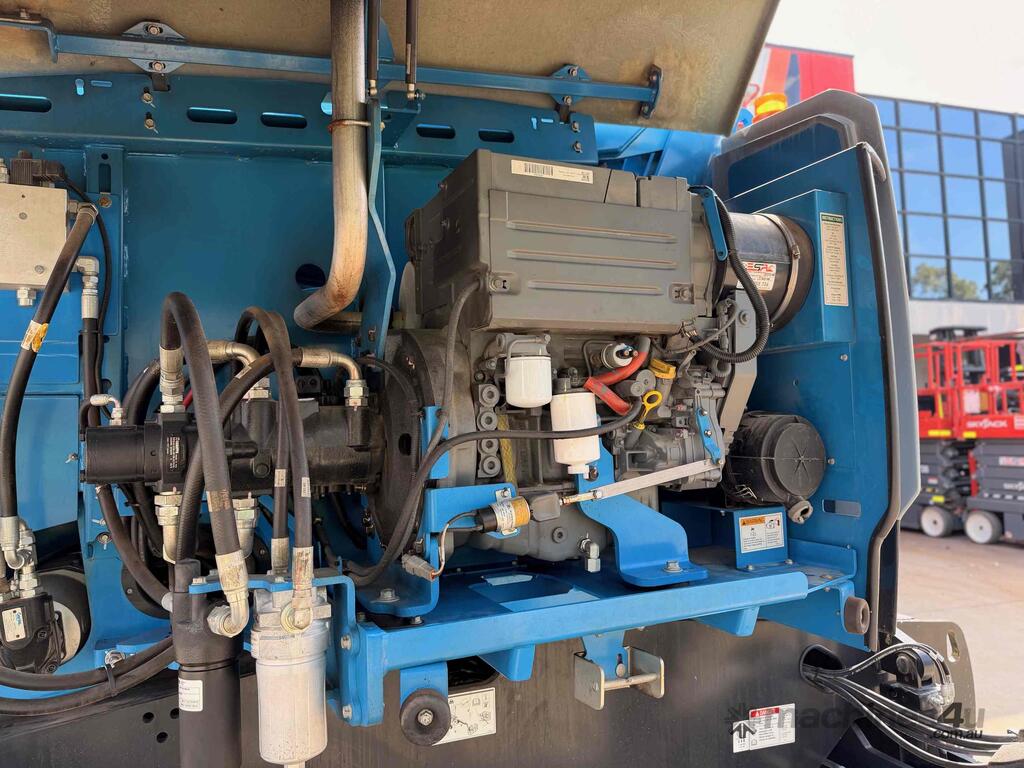

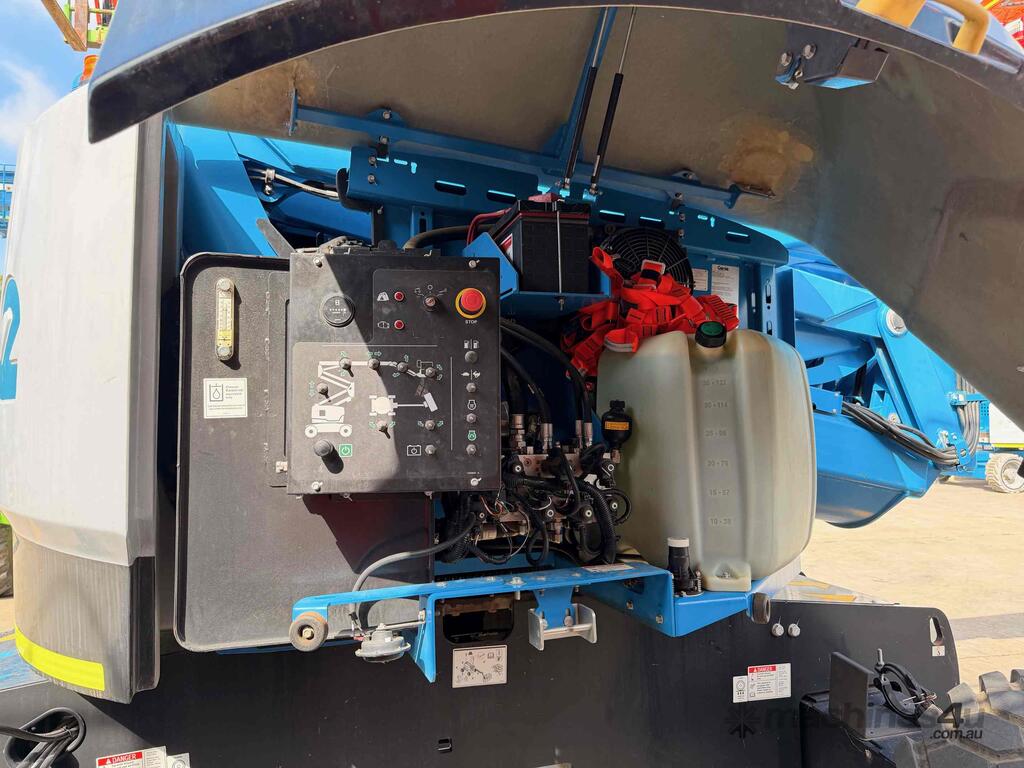

Power: 240V – 7Kva Hydraulic Generator
Working height: 20.9 m
Horizontal reach: 12.5 m
Tyres: Solid Filled tyres in good condition
* Up and over clearance max: 8.13 m

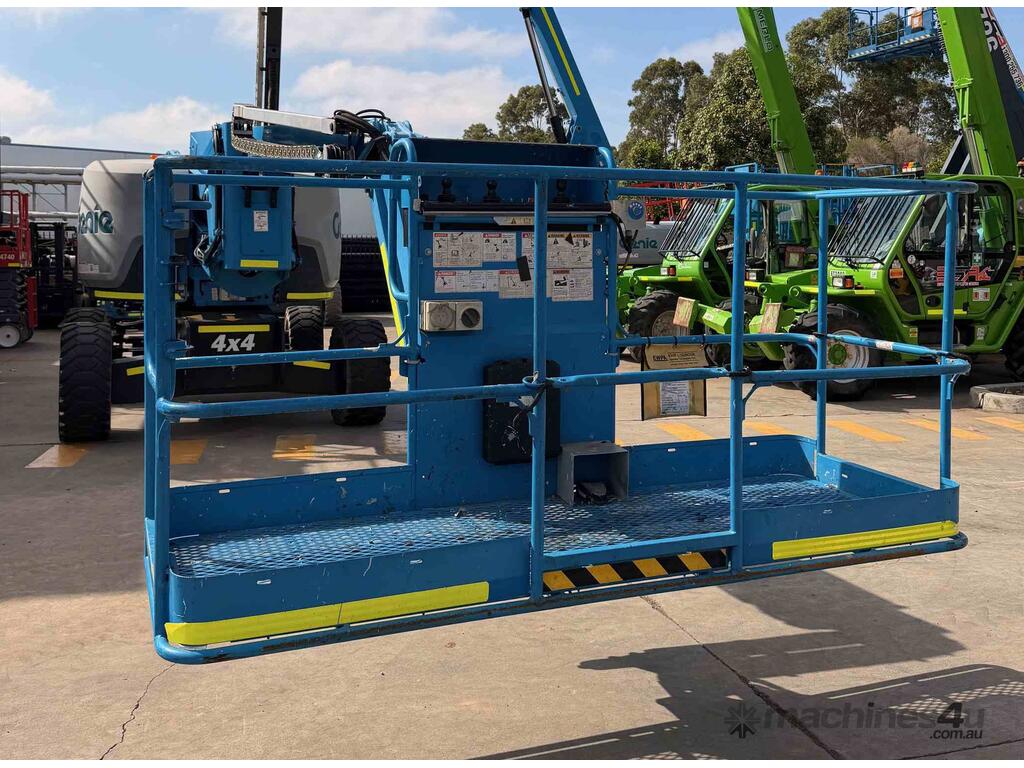

* Platform length: 0.91 m /0.76 m
* Wheelbase: 2.51 m
* Ground clearance: 0.37 m
* Lift capacity: 227 kg
* Platform rotation: 160°
* Vertical jib rotation: 135°
* Turntable rotation: 360° continuous
* Turntable tail swing zero
* Drive speed - stowed: 4.8 km/h
* Drive speed - raised: 1.1 km/h
* Gradeability stowed: 44%
* Turning radius: 3.04 m
* Turning radius - outside: 5.54 m
Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with rough terrain capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
