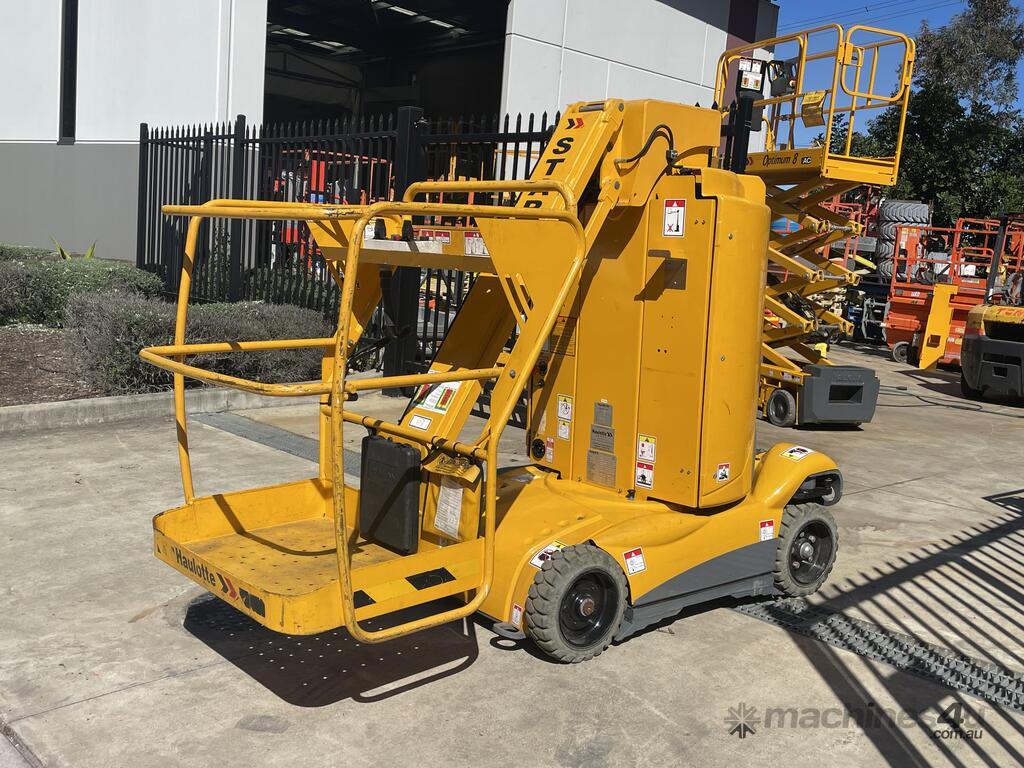

Used Haulotte Star 10 - 10m Reach Mast Boom Lift
Into Service - November 2014
Hours - 351
A very tidy machine
Batteries are fair
Tyres are good
Working height 10 m
Platform height 8 m
Horizontal outreach 3 m
Lift capacity - inside 200 kg (2 pers.)
Lift capacity - outside 200 kg (1 pers.)
Platform size 0.78 x 0,98 m
Length 2.7 m
Width 1 m
Height - stowed 1.99 m
Tailswing 0 cm
Wheelbase 1.2 m
Ground clearance 10 cm
Drive speed proportional 0.6 - 5 km/h
Turning radius - outside 1.88 m
Turntable rotation 345 °
Tilt alarm 3 °
Gradeability 25 %
Max driveable platf. height 8 m
Tyres - non marking 16 x 5 x 10.5
Power source 24 V - 250 Ah
Weight 2 677 kg
Vertical jib rotation 130° (+ 70 ° / - 60 °)
24 V electric drive brushless AC motors
24 V – 250 Ah traction batteries
Battery charge indicator
On-board diagnostic tool Haulotte Activ’Screen
Forklift tyne pockets
Towing hooks and lifting eyes
Passive potholes
2 front steering wheels
2 rear driving wheels
Non-marking tyres
Brake release
Hourmeter
Horn
Emergency stop buttons at platform and ground level
Load controller in the platform
Emergency hand pump
2 control stations at platform and ground level
Drop bar entry
2 safety harness points in the platform
Travel alarm
