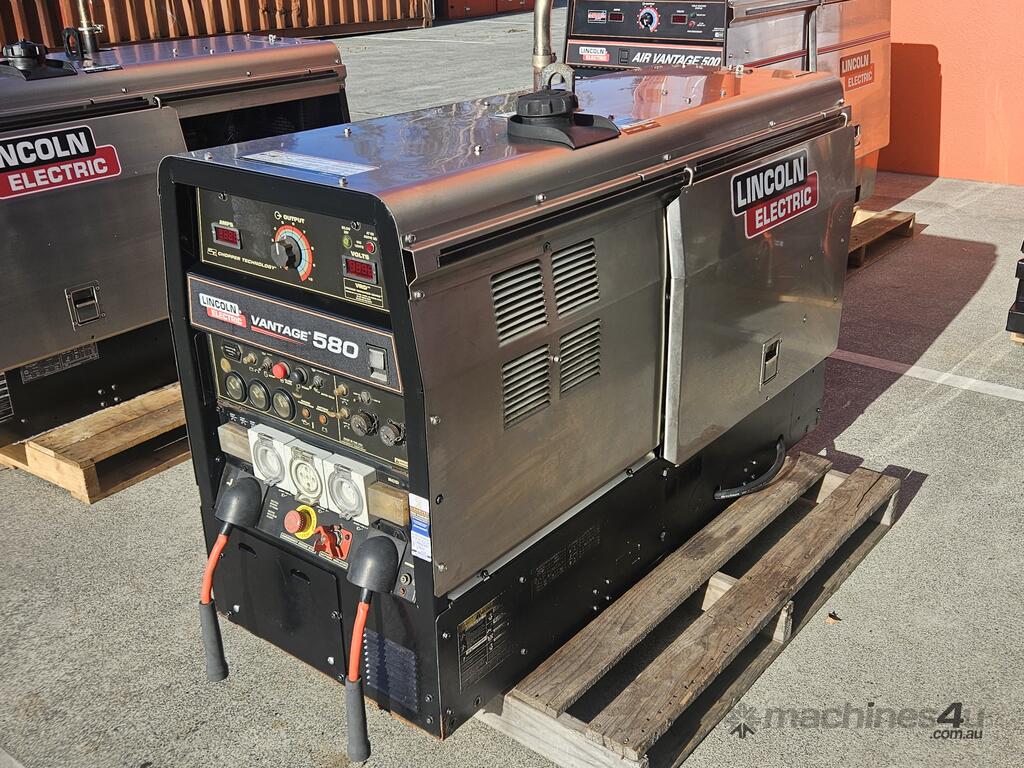

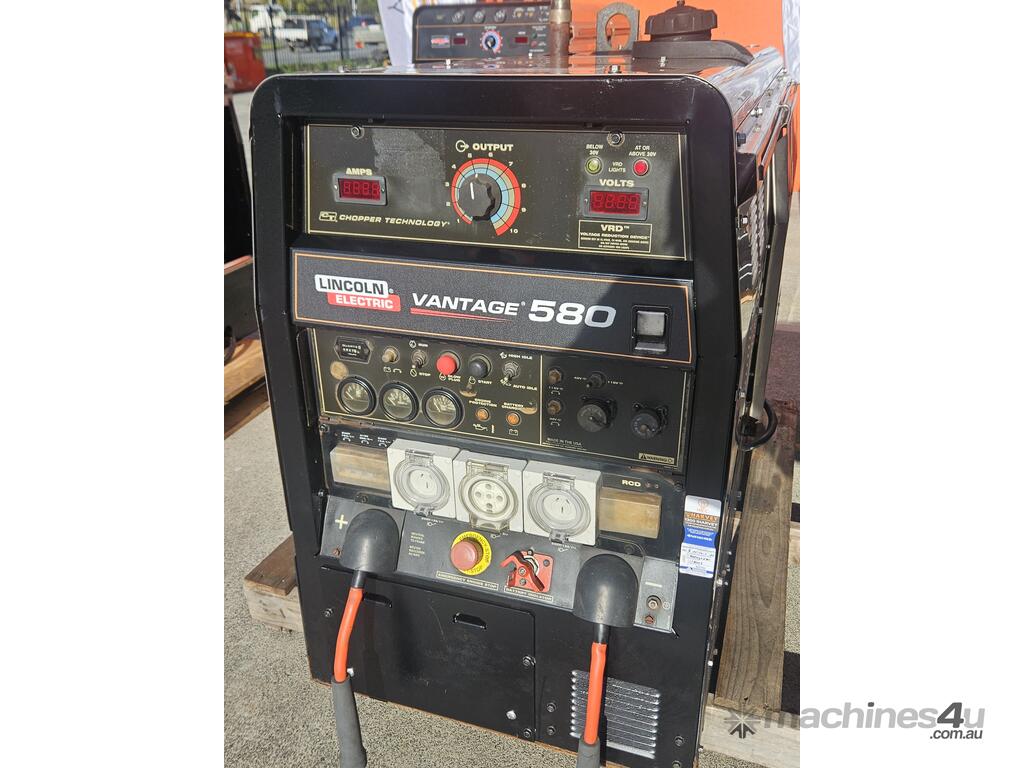

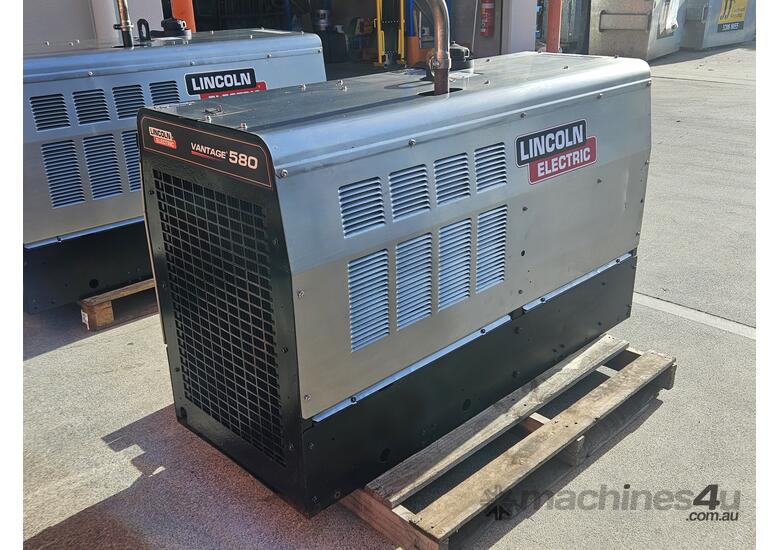

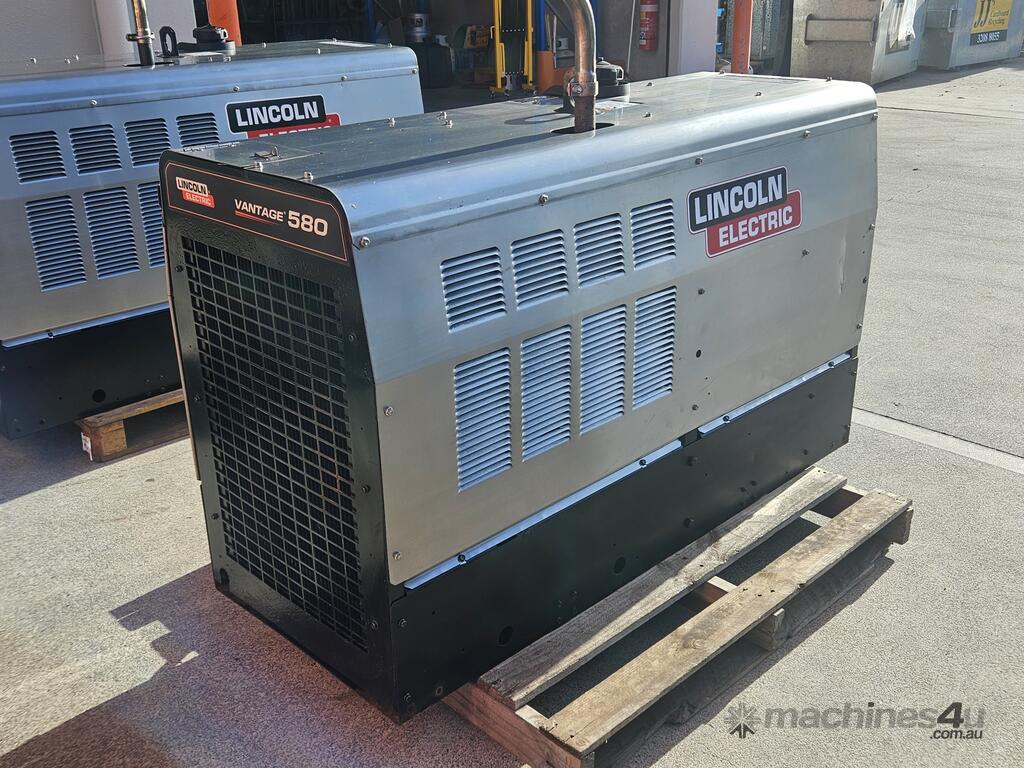

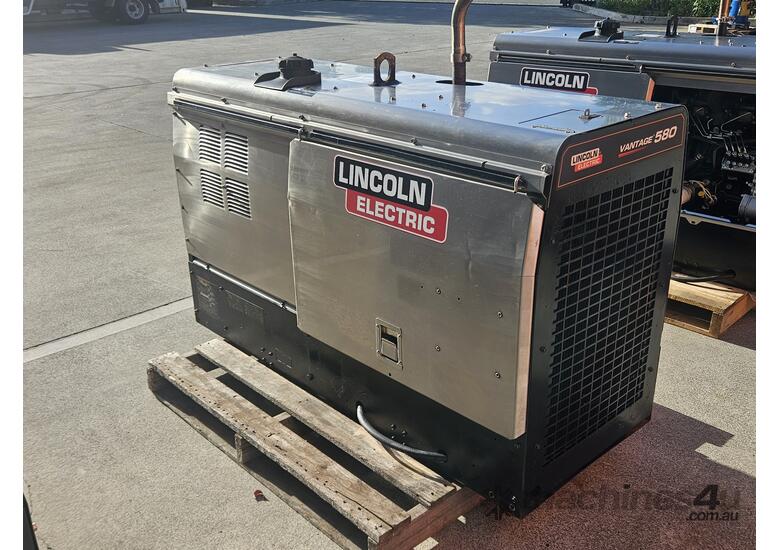

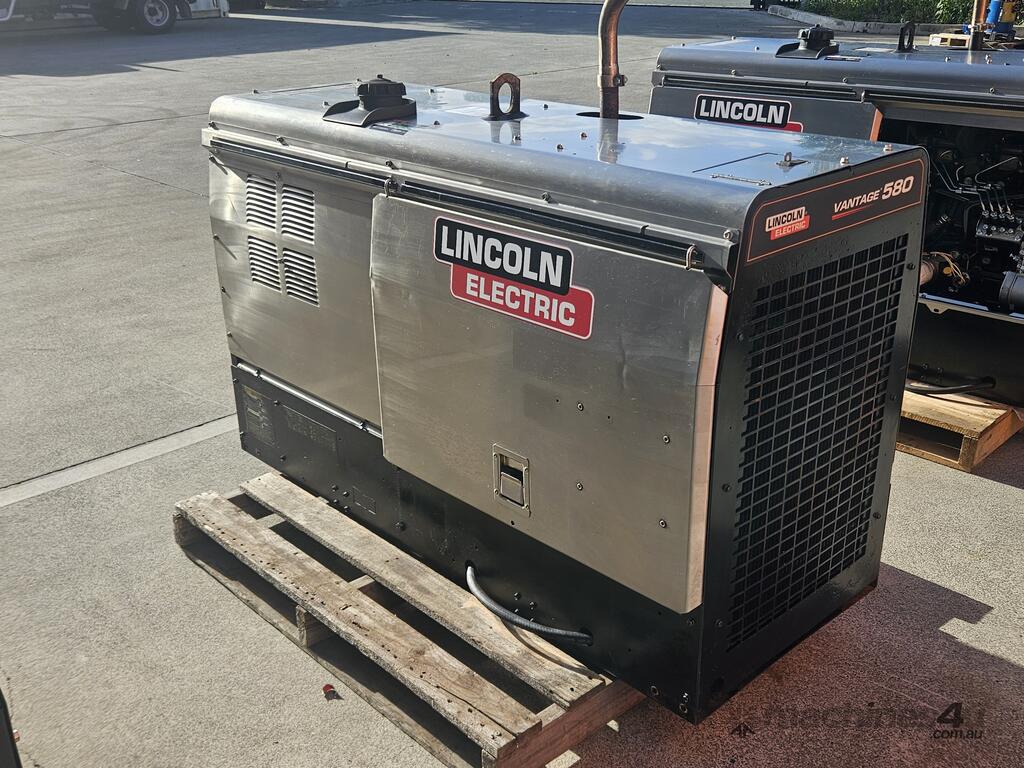

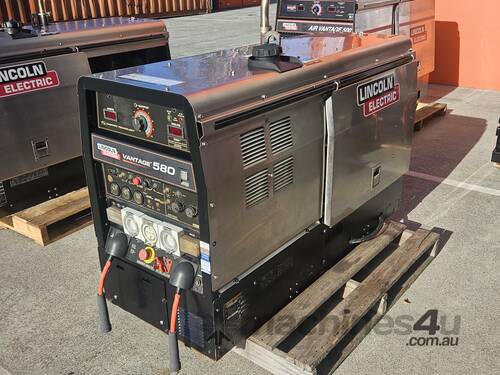

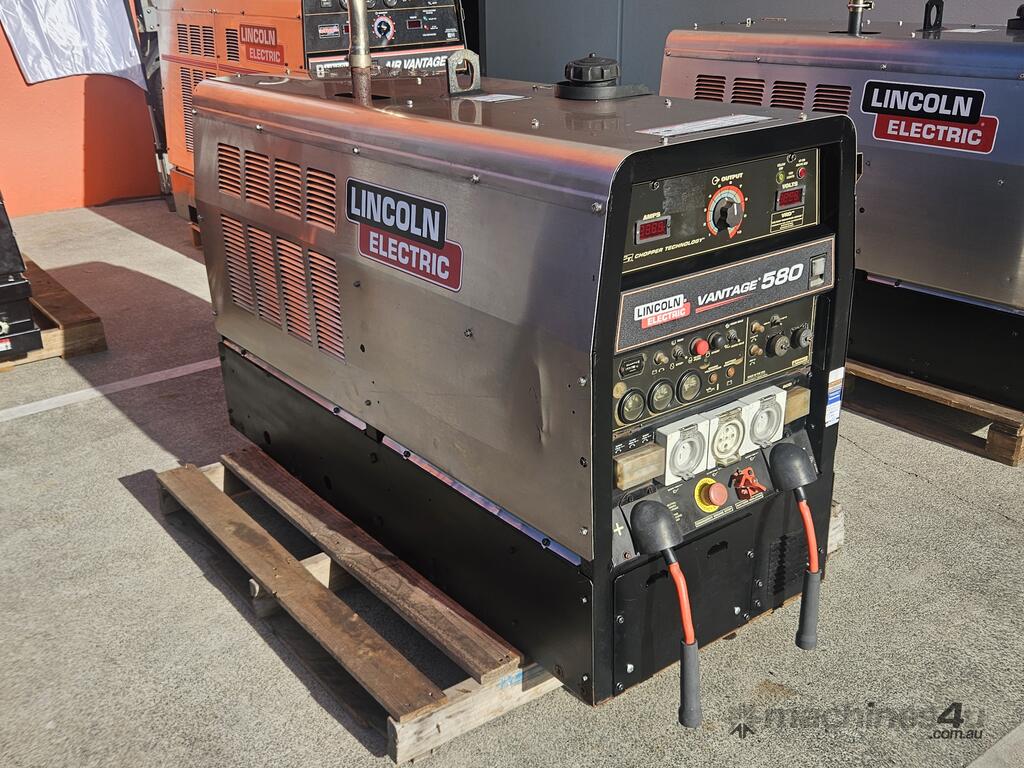

Used Lincoln Electric Vantage 580 Diesel Welder

In Stock, Made to order.

Used Vantage 580 4500 to 6000 engine hours.

• Engine fully serviced.
• Polished stainless panels and new decals.
• Install serviced radiator (Pressure tested, flushed and painted)
• New fan belt.
• Rotor MEG Checked.
• Electrical Test tag and test sheet.
• 1 hour load test at 100% duty cycle.
• Confirm good oil pressure after heavy load test.

3-month return to base parts and labour warranty.

Lincoln Vantage 580 (60HZ)
Specifications
Welding output: 500A 100% (Maximum output 580A)
Auxiliary power: 20KW Three Phase 415 50Hz, 6.9KW Single Phase 240V 50Hz.
Dimensions: 913H x 642W x 1524L 586KGS


Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST



Powerful. Dependable. Safer.

If you are looking for a rugged, reliable and capable welder for a demanding mining
or construction site, a dependable hire fleet or for a quick turnaround repair job, the
Vantage® 580 has all the power you need and the safety features modern standards
demand. New standard features include a battery isolator switch for safer
maintenance procedures and a engine stop button to quickly shut the Vantage® 580
down in the event of an emergency.
Simple controls and Chopper Technology® deliver the low maintenance, long service
life, easy operation and great arc performance every owner demands in these
environments.
This multi-process powerhouse features 500 amps at 100%, or 525 amps at 60%
duty cycle, tested at temperatures up to 40°C. Plenty of AC 240V & 415V auxiliary
power – this unit delivers 20,000 watts.
You can depend on legendary engine reliability from Perkins® and superior Lincoln
arc performance.

• Simple to operate
– Select one of five Process Modes, including CC-Stick, CC-Pipe, CC-Gouging,
Touch-Start™ TIG or CV Wire, and then dial in the desired output.
• Optimised CC-Stick mode
- CC-Stick mode is optimised for general purpose and E7018 low hydrogen
electrodes.
• Arc control adjustment
- Produces a soft, buttery arc or a more forceful, digging arc to suit your
requirements.
• Touch-Start™ DC TIG welding
- Provides easy arc starting that avoids tungsten contamination and the use of
high frequency.
• 20kVA of auxiliary power
- Able to power up to three inverter power sources to give you up to four
stick electrode welding arcs for higher productivity. 240V and 415V IP66
rated outlets.
• Digital Volt/Amp meters
- Built-in preset function makes it easy to precisely set your procedures.
• Arc gouging
- Arc gouging with up to 13mm carbons.
- New carbon arc gouging waveform delivers improved gouging
performance including VRD
• Full instrumentation
- Fuel, oil pressure, engine temperature gauges and hour meter keep
you on top of monitoring engine performance.
• Perkins® 404D-22T Turbo diesel engine
- 43 horsepower, liquid-cooled, 4 cylinder Perkins® engine, includes
automatic engine idler for greater fuel economy and reduced noise.
• VRD Device
- Factory-fitted, built-in voltage reduction device (VRD) offers additional
protection for the operator. The VRD operates in the CC mode reducing
the OCV to a safer
