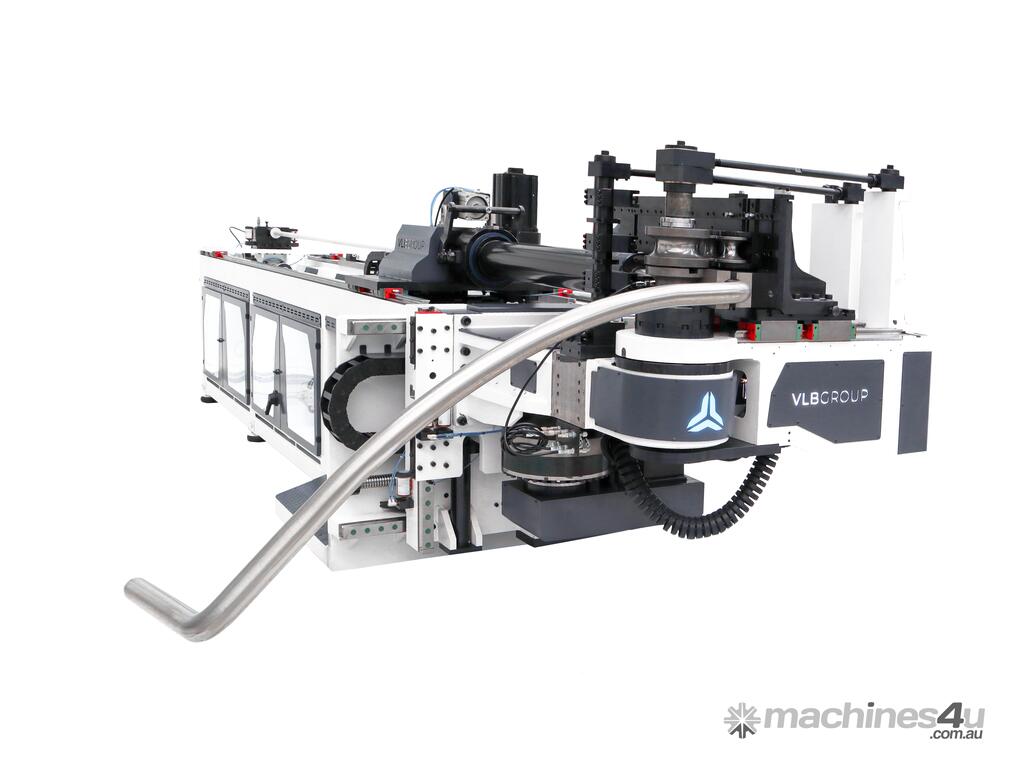

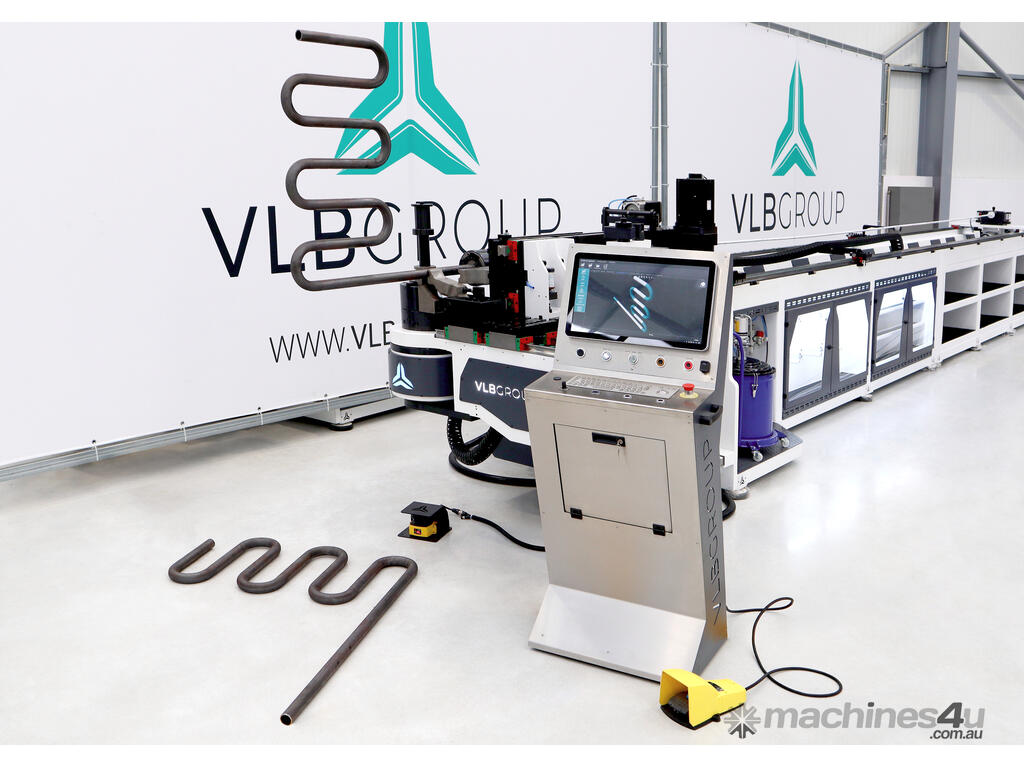

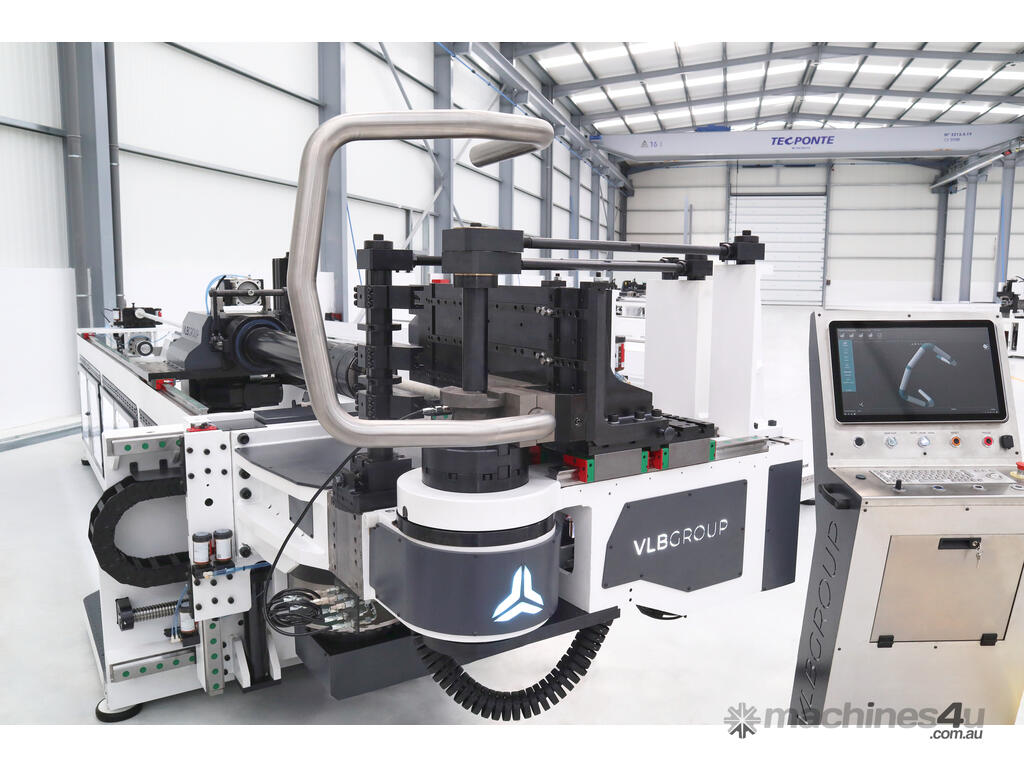

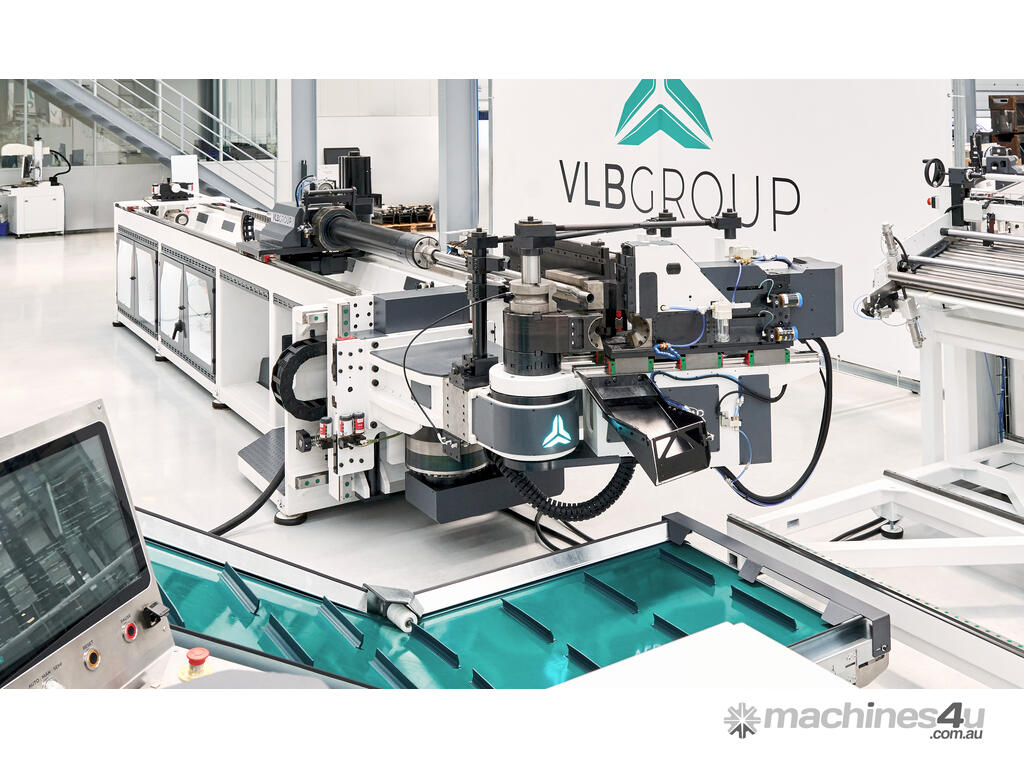

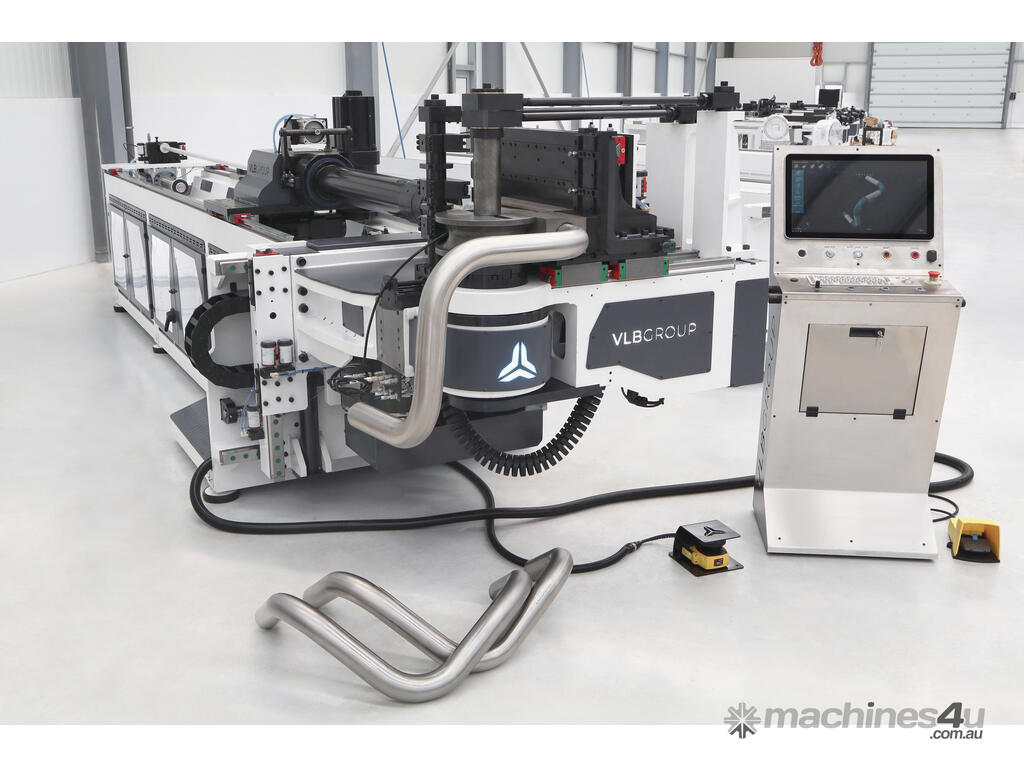

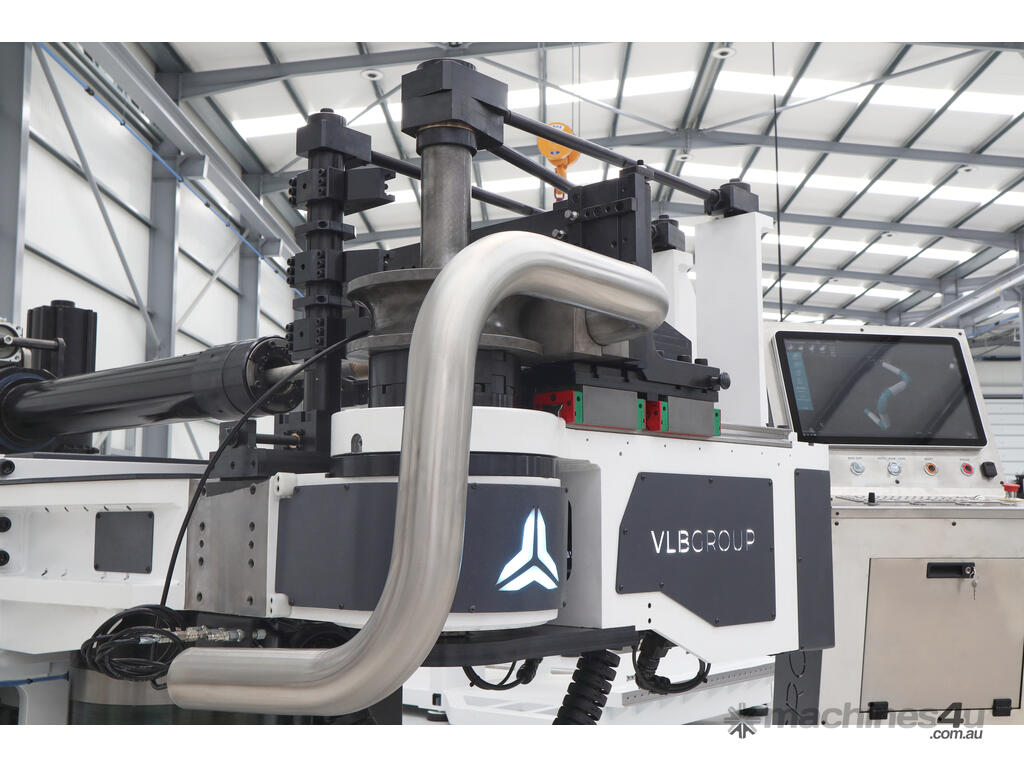

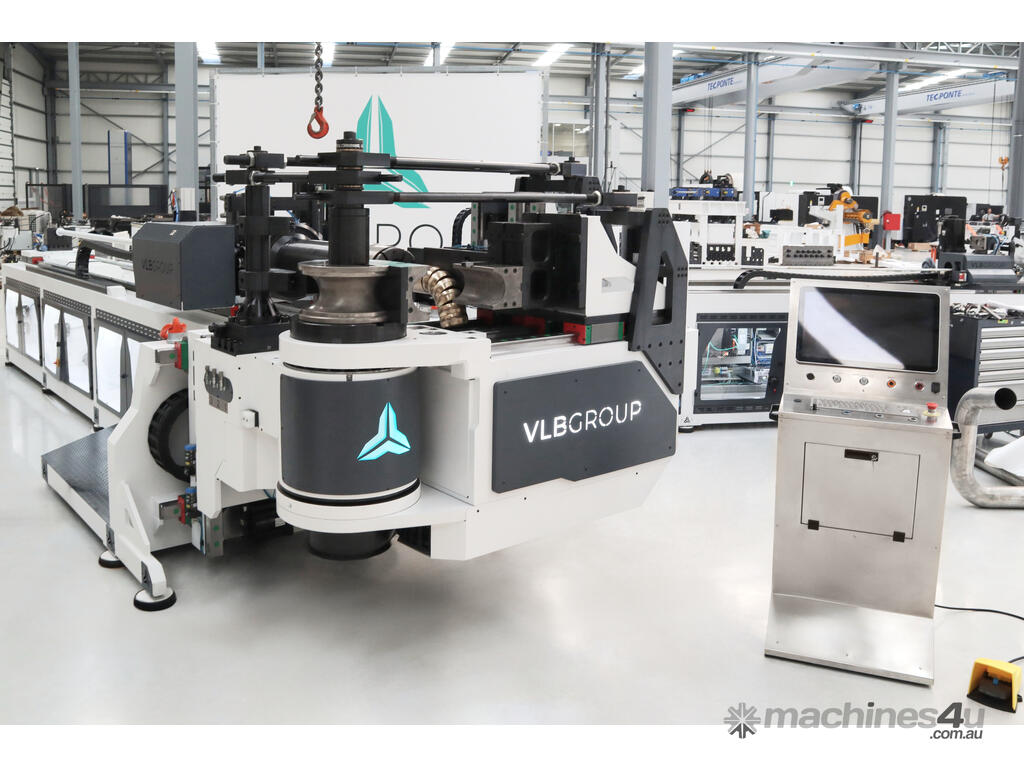

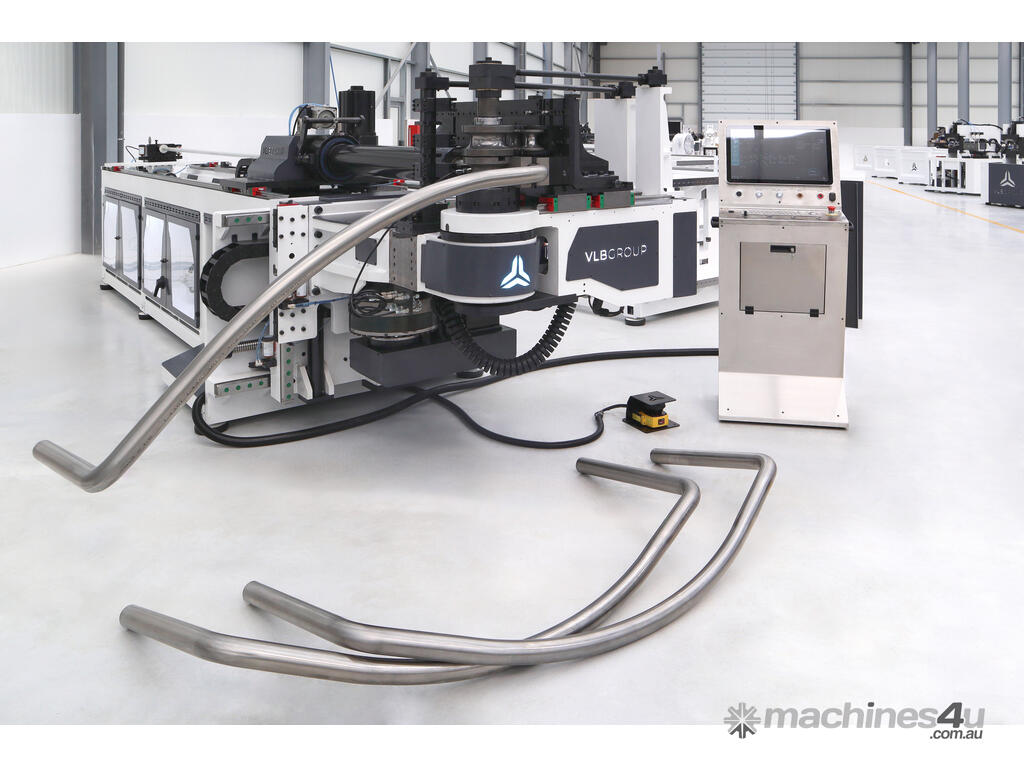

The VLB EB-CNC fully electric series tube benders are ideal for sectors that prefer speed, efficiency, high productivity and repeatability like Automotive, Furniture, Aerospace, HVAC or industries that require rapid tool changes.

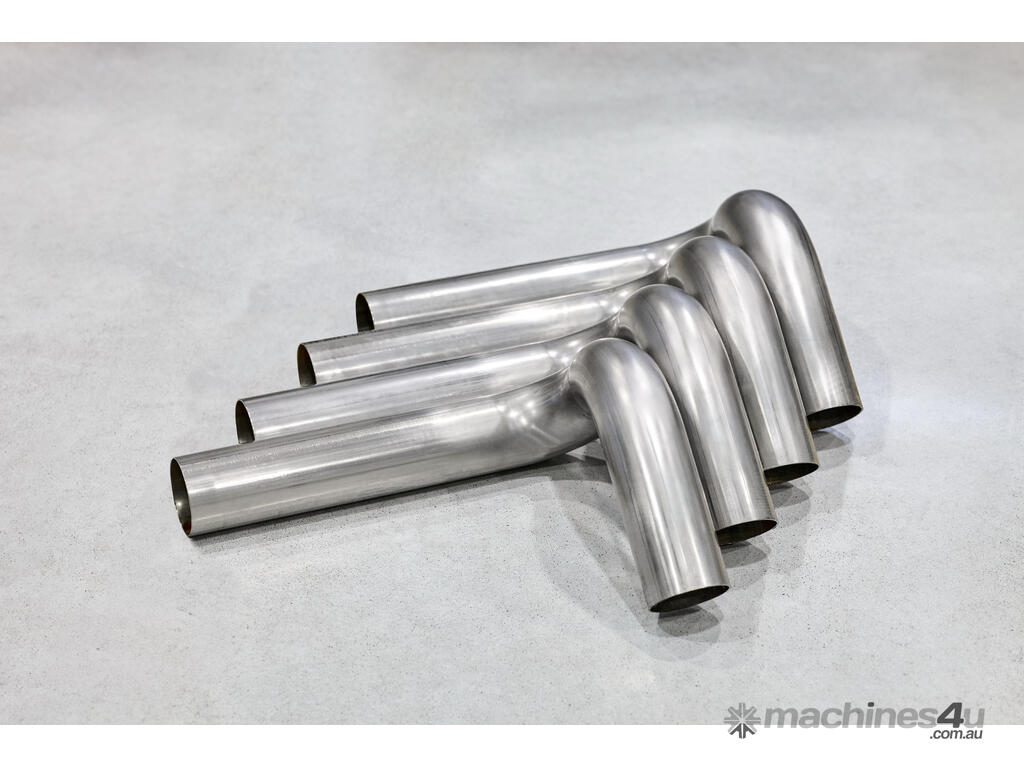

The EB Series electric VLB bending machines are equipped with the latest Electric Motion Technology. With up to 11 fully electric drive axis, pipes with a diameter of 6 to 83 mm can be bent. Equipped with a Booster System, it is possible to achieve radii up to 1D with reduced marks in the inner bend. The drives on all axis are optimized to reduce energy consumption and
increase speed, making these machines ideal for high-volume production batches that require high consistency.
MAIN FEATURES OF THE FULLY ELECTRIC CNC TUBE BENDERS | EB SERIES
› 100% electric drive of all 11 axis.

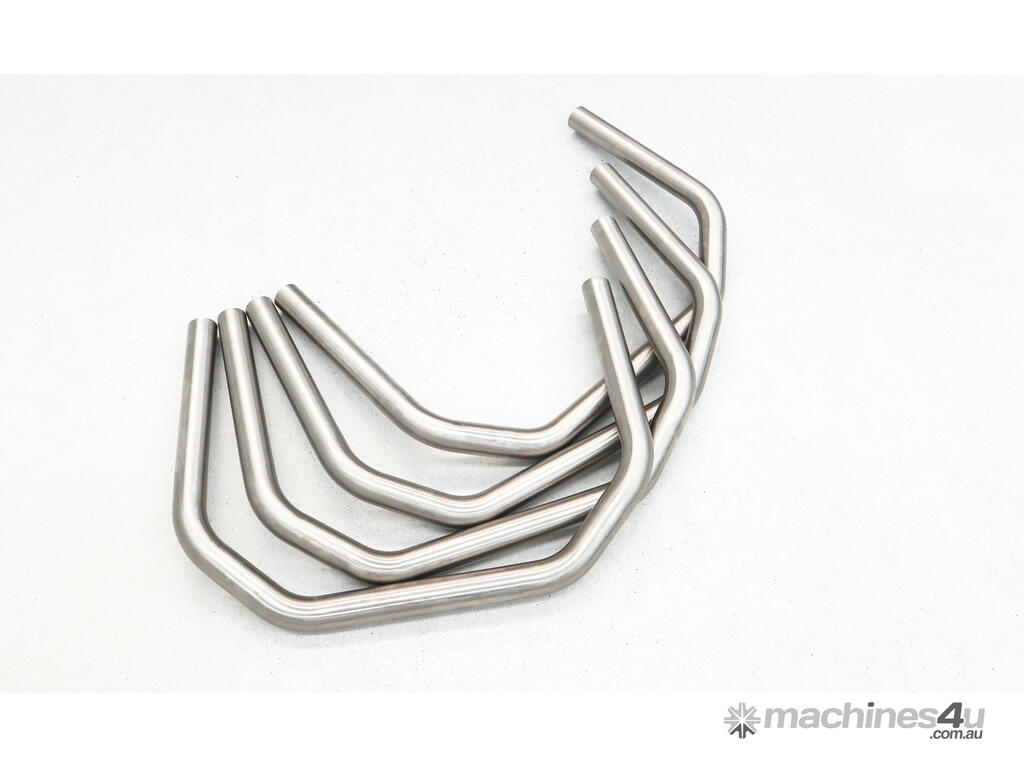

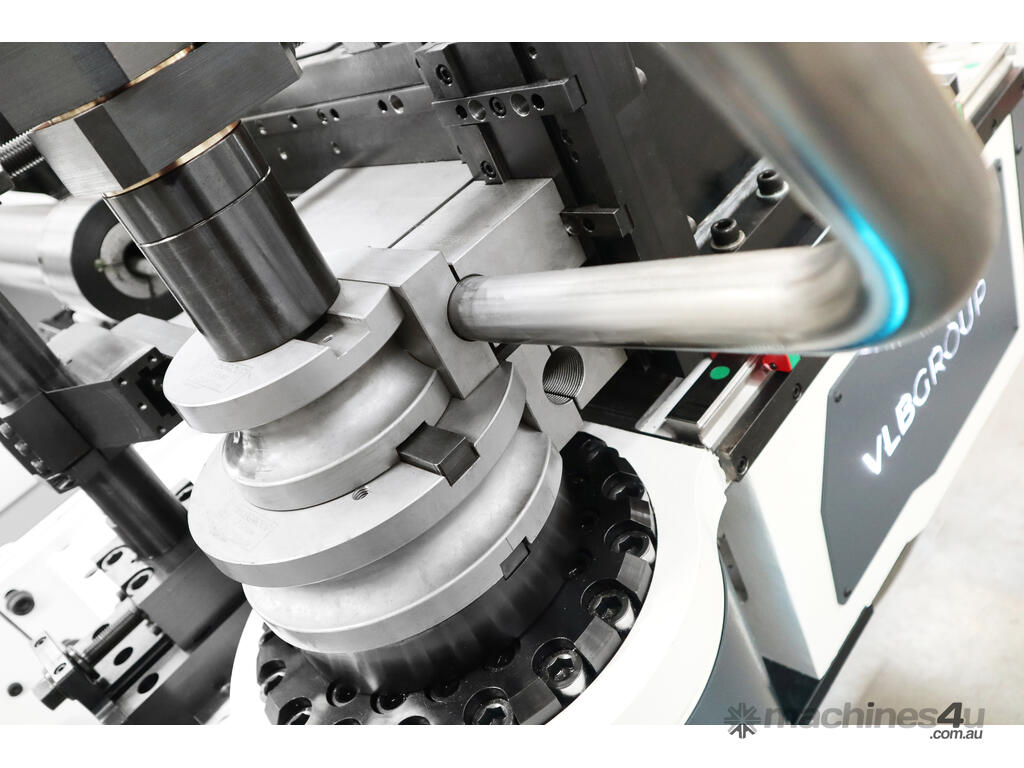

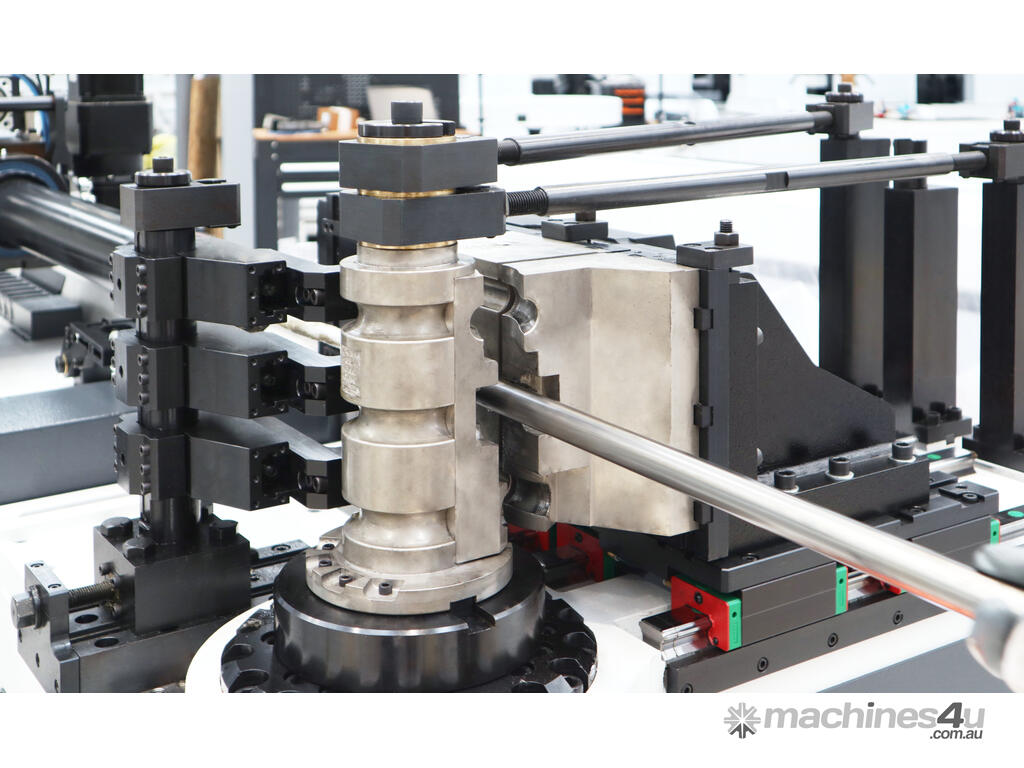

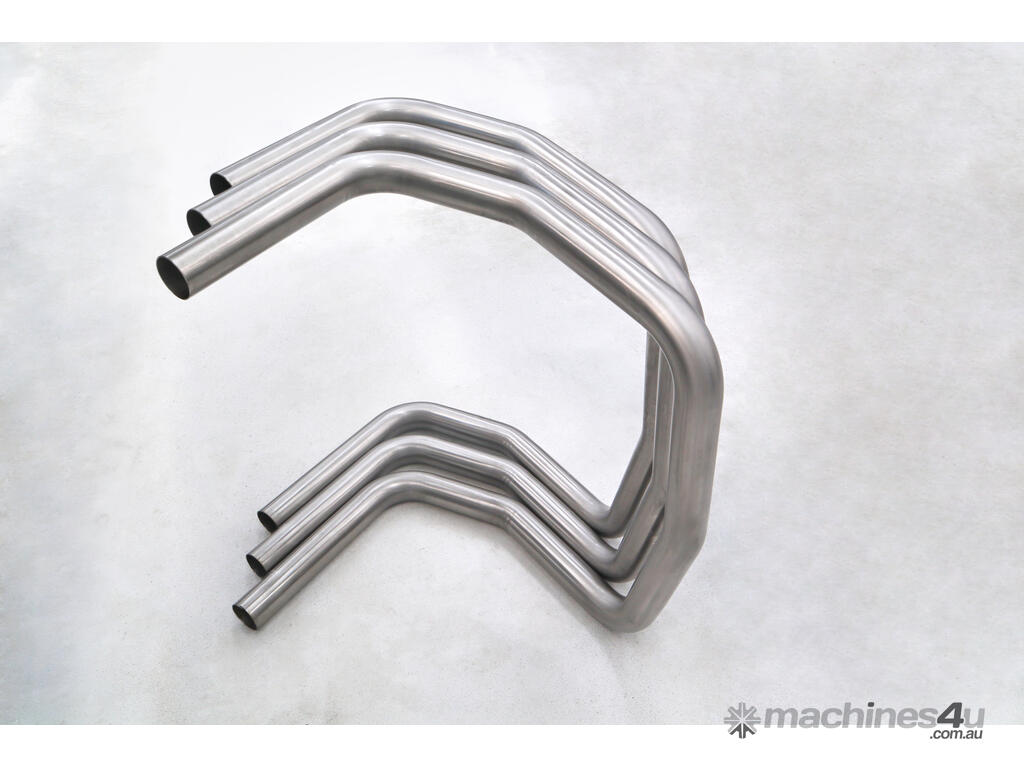

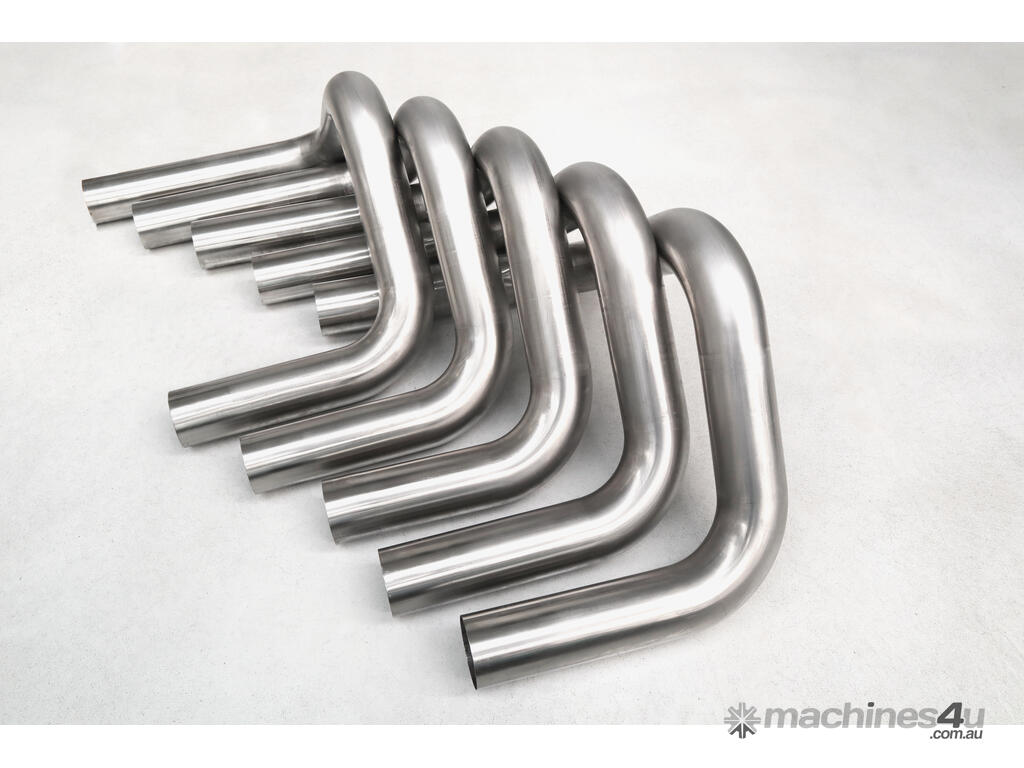

› Bending of multiple fixed and variable radii in the same cycle.

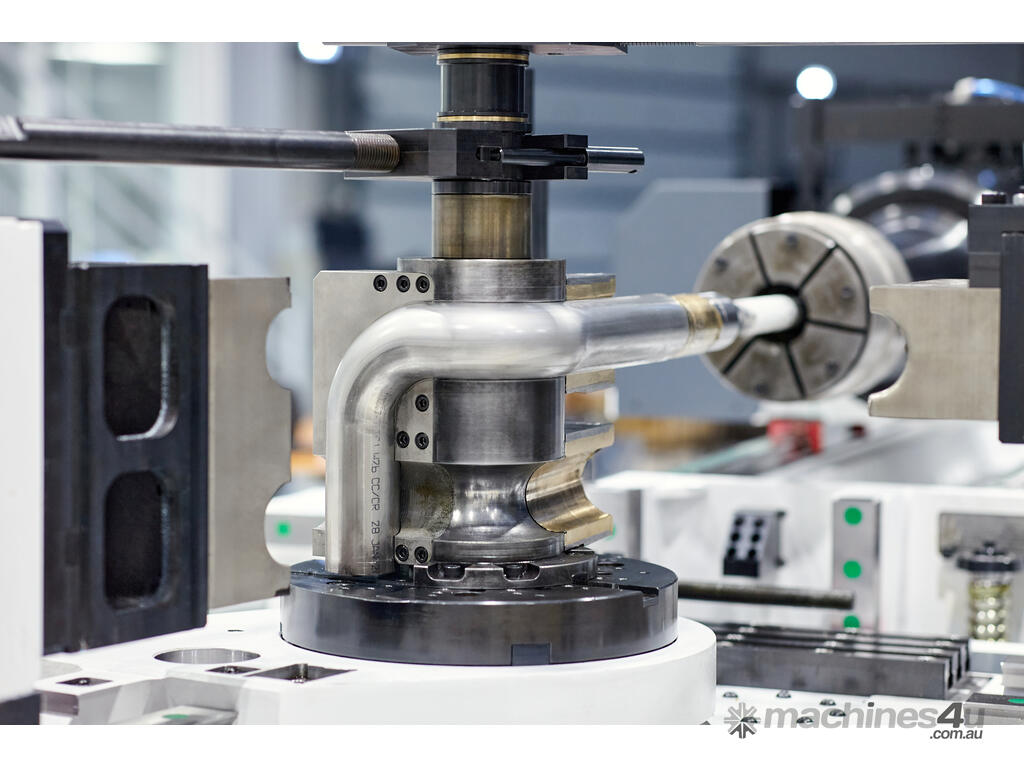

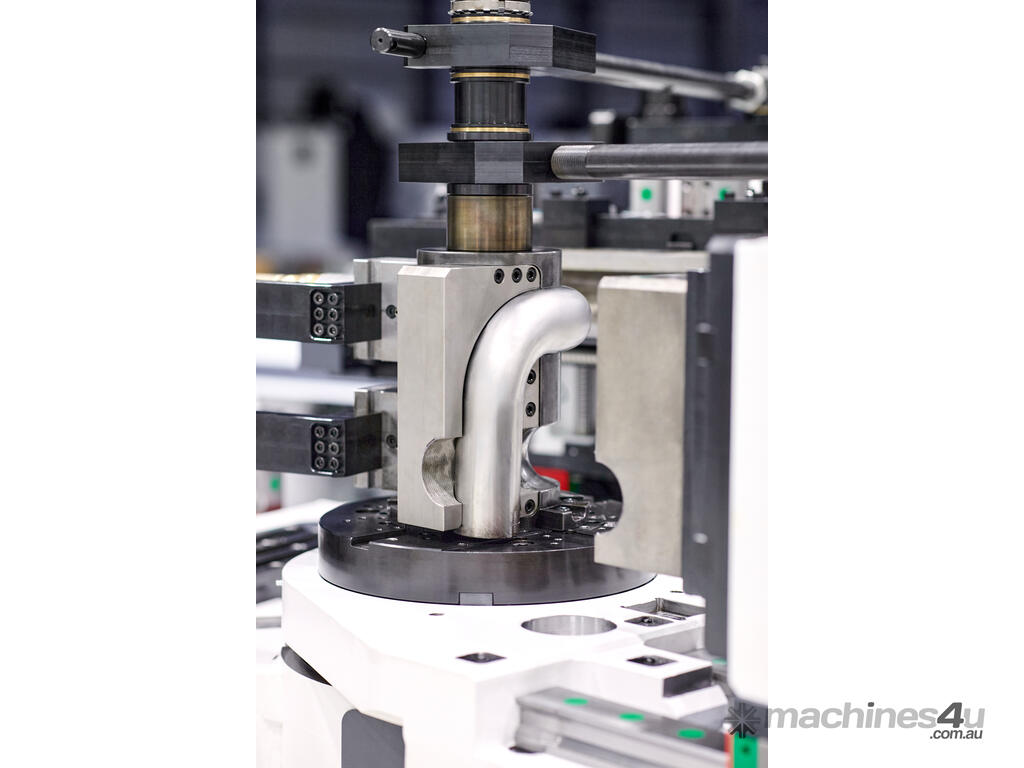

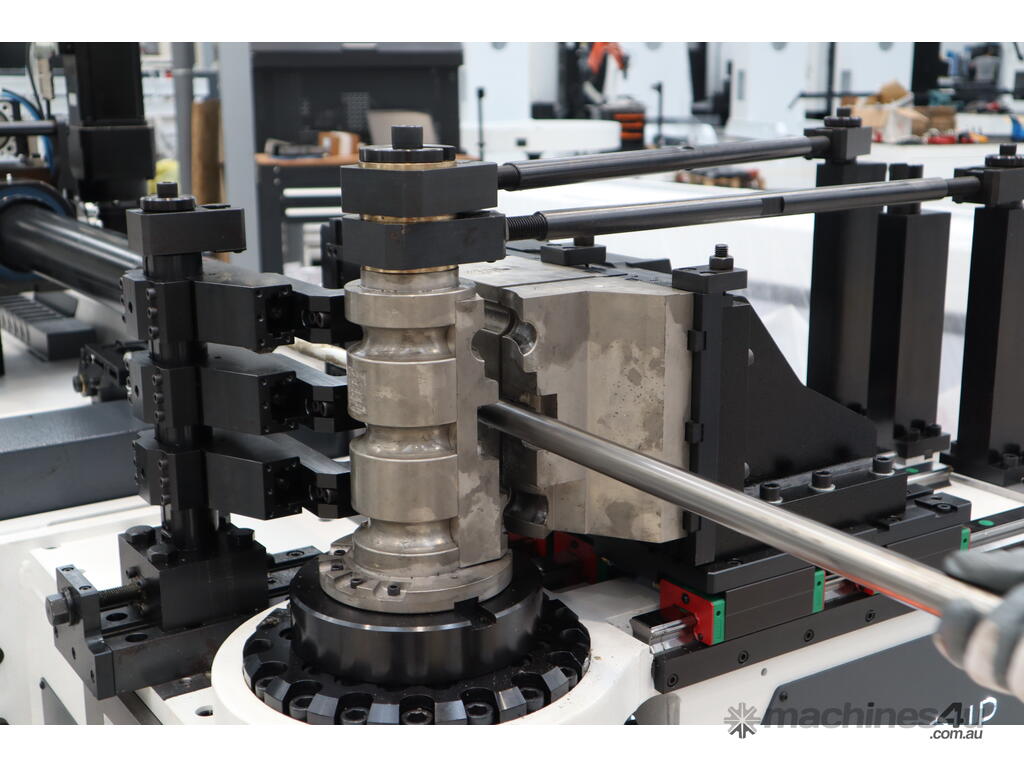

› Quick change of bending tool, without having to readjust.
› High production speed and low power consumption.

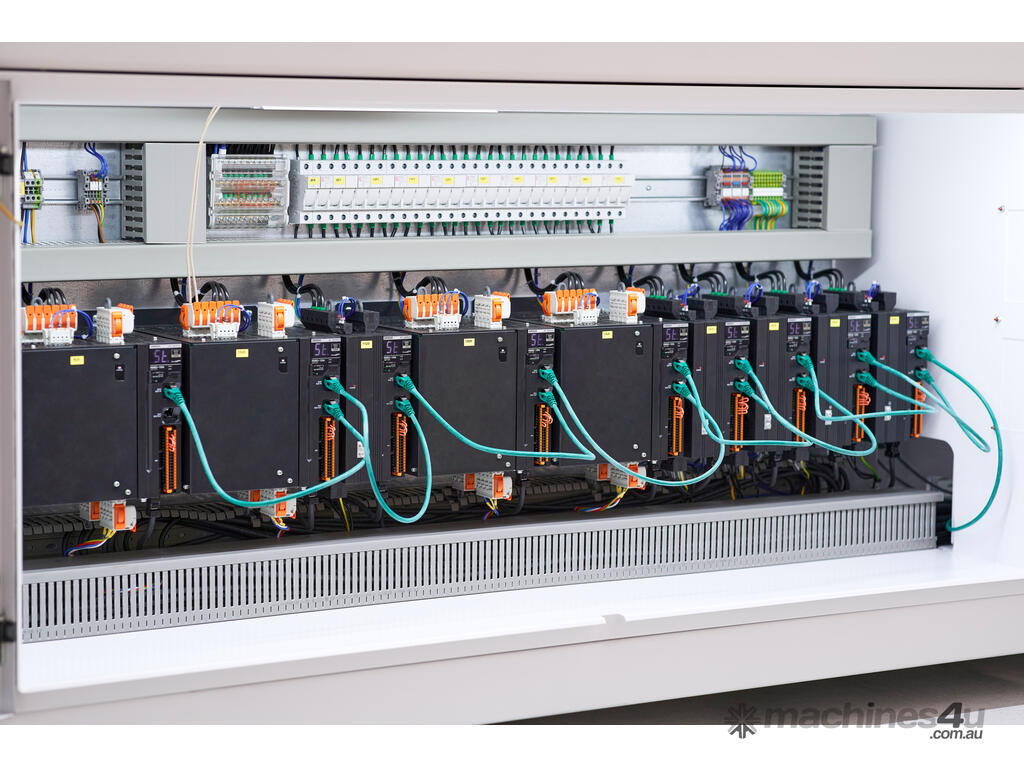

› Axis movements controlled by servo motors with absolute encoder feedback.
› Simplified synchronization and optimization of bending cycles.
› Compact and ergonomic design guarantees operating comfort.
› Low maintenance costs with preventive intervention warnings.
› Sensors that monitor the elastic behaviour of the material, compensate for the bending cycle and provide more precision
and less waste.
› Bend left or right, with a shorter change time.

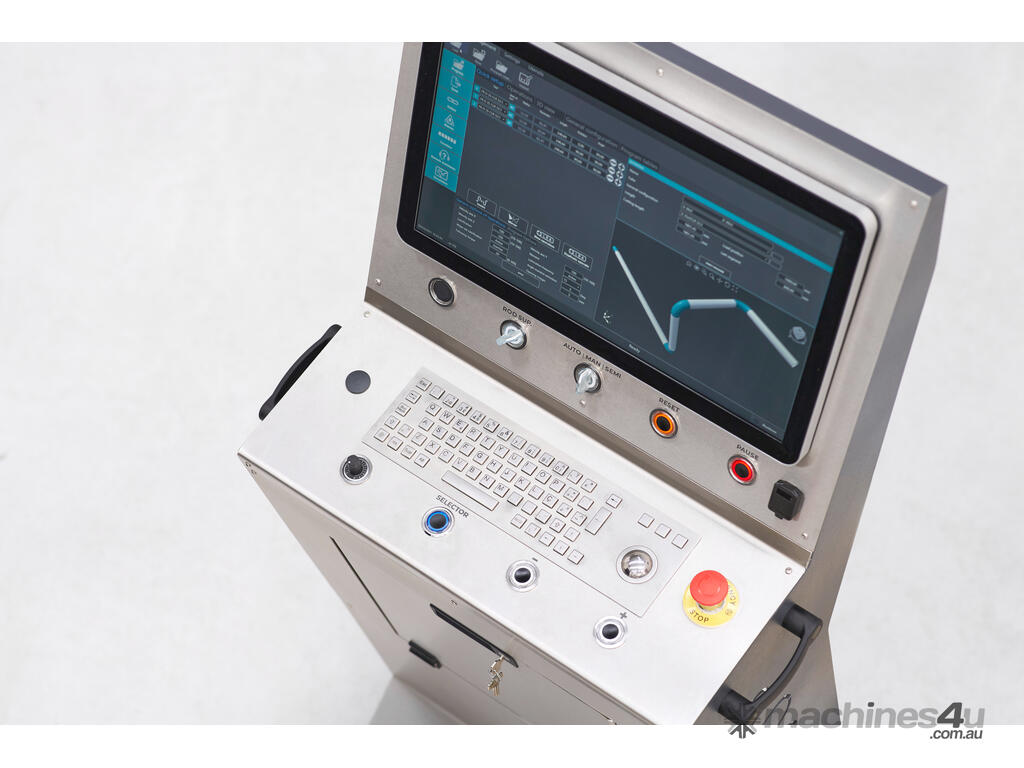

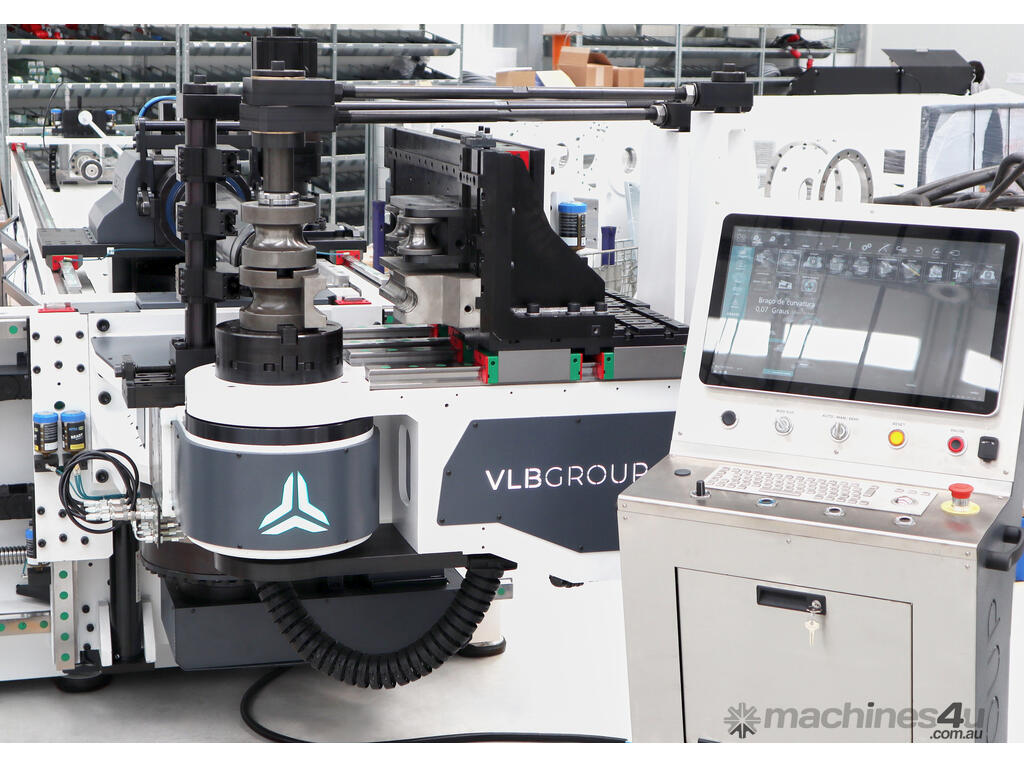

› Powerful and intuitive VLB 3D software with anti-collision simulation.
› Easily program or import fi les from the cloud or from the network
STANDARD CHARACTERISTICS EB-105 CNC EB-130 CNC EB-150 CNC
Steel Round Tube - Max Diam x Wall Thick 105 x 2.5 mm 130 x 3 mm 150 x 3 mm
CNC Controlled Axis 10/11 10/11 10/11
Maximum Bending Radius* 450 mm 420 mm 410 mm
Useful Tube Length Inside Collet (Stopper) 4000 mm 4000 mm 4000 mm
Axis’ Accuracy ± 0.05 ± 0.05 ± 0.05
Tube Loading Height 1300 mm 1350 mm 1410 mm
The full range of VLB tube benders are SOLD & SUPPORTED by Complete Machine Tools which has locations in Qld & NSW. We offer Australian wide support with our Australian based service techs. We are Aussie owned and run!
