The VLB EB-CNC fully electric series tube benders are ideal for sectors that prefer speed, efficiency, high productivity and repeatability like Automotive, Furniture, Aerospace, HVAC or industries that require rapid tool changes.

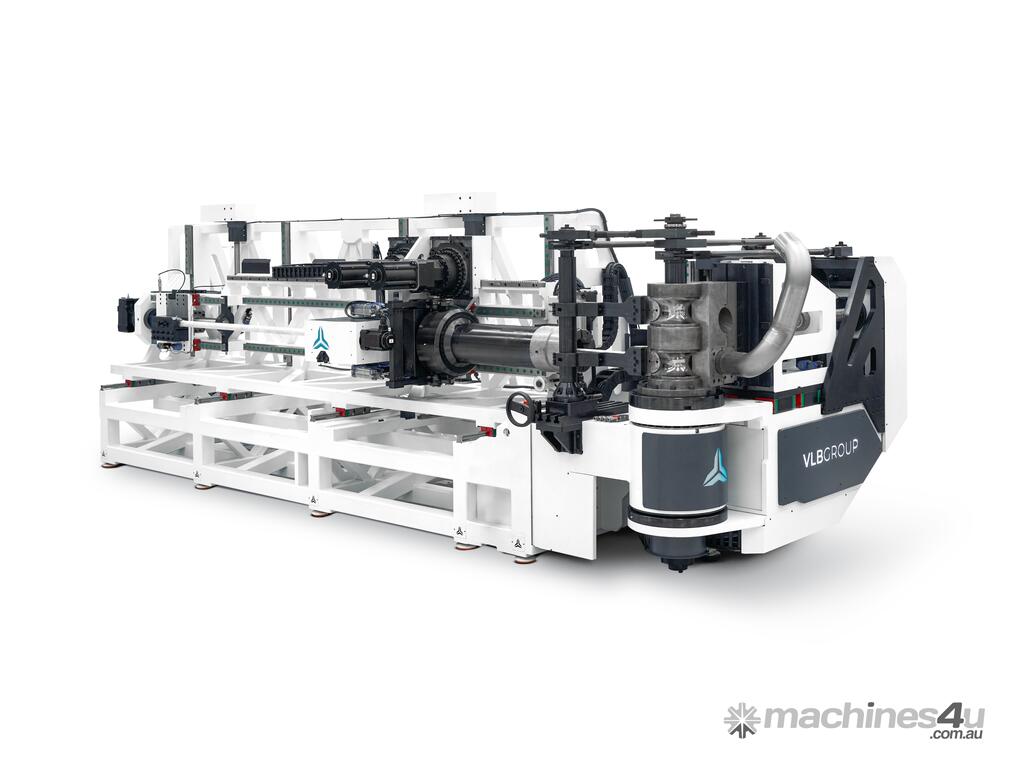

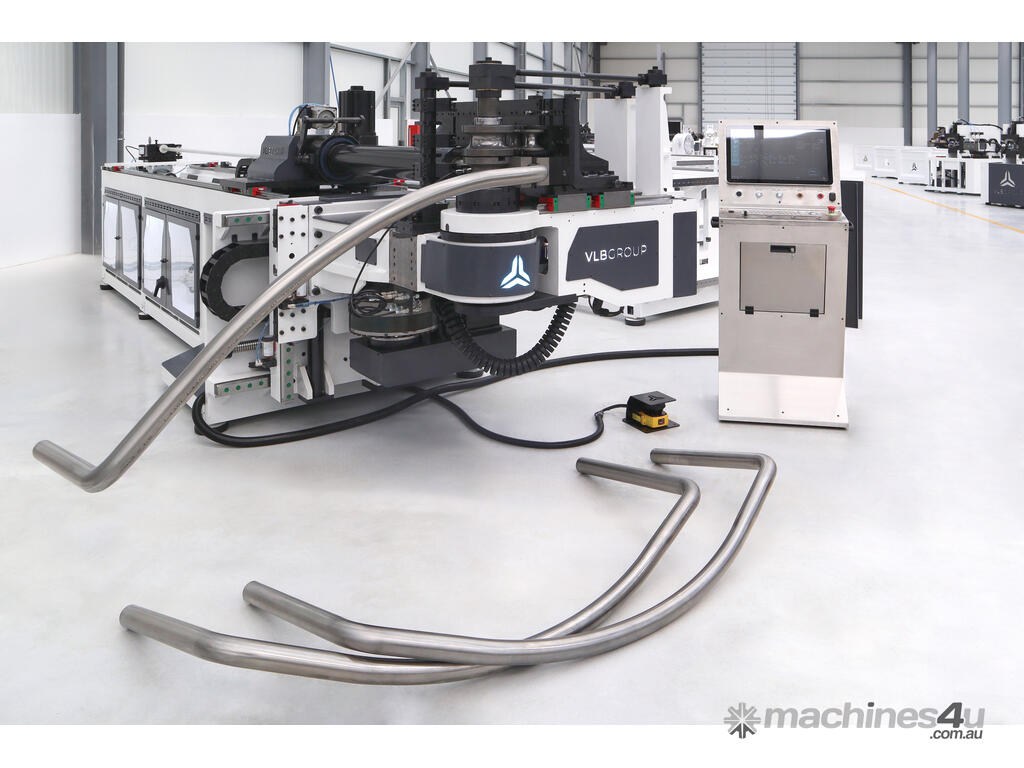

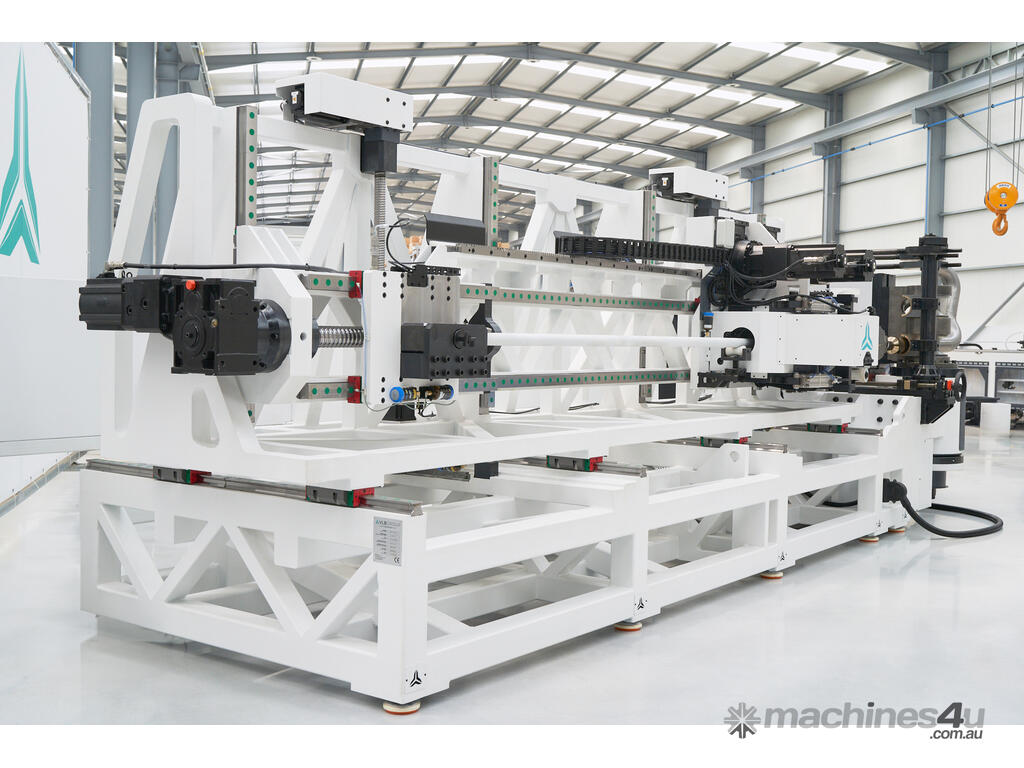

The EB HD-UD Series electric VLB bending machines are equipped with the latest Electric Motion Technology. To improve ergonomics, the vertical and horizontal movement has been transferred to the POB. With up to 13 fully electric drive axis, pipes with a diameter of 25 to 220 mm can be bent. Equipped with a Booster System, it is possible to achieve radii up to 1D with
reduced marks in the inner bend. The drives on all axis are optimized to reduce energy consumption and increase speed, making these machines ideal for high-volume production batches that require high consistency.
MAIN FEATURES OF THE FULLY ELECTRIC CNC TUBE BENDERS | EB HEAVY DUTY UP-DOWN SERIES
› 100% electric drive of all 13 fully axis.

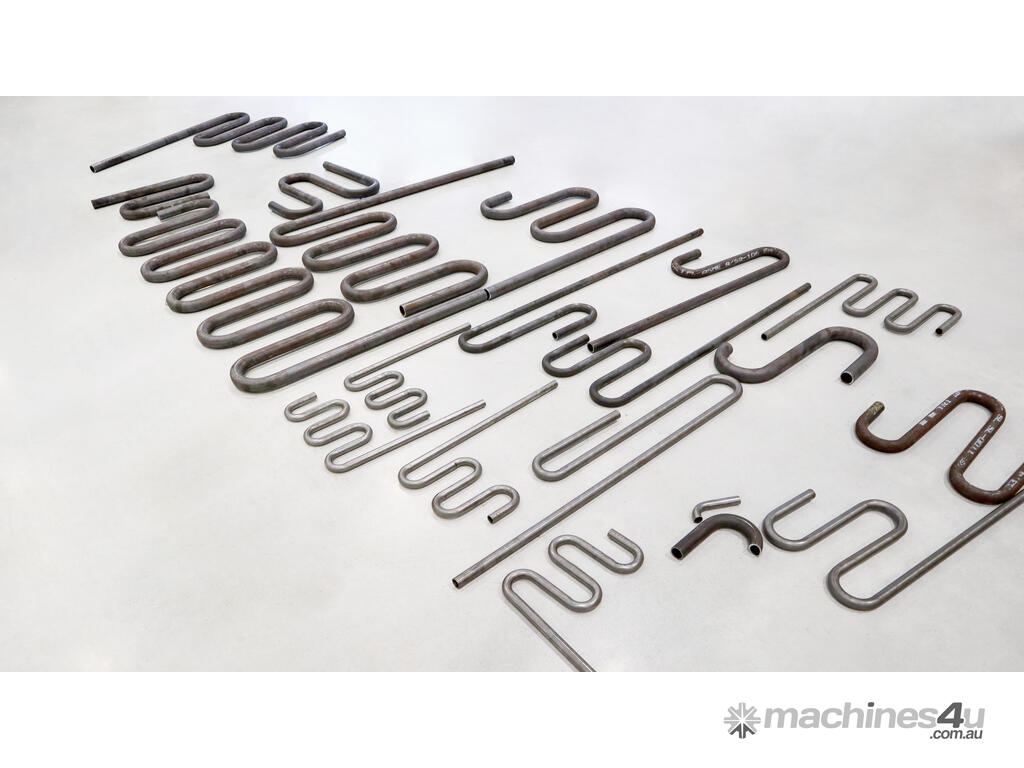

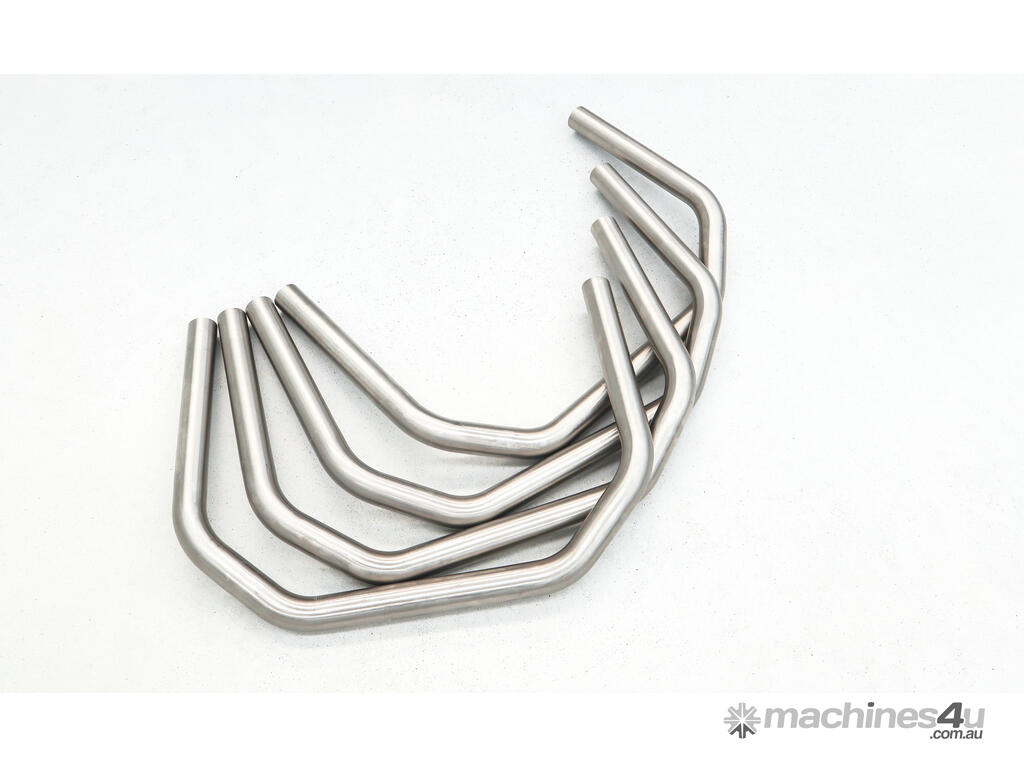

› Bending of multiple fixed and variable radii in the same cycle.
› Quick change of bending tool, without having to readjust.
› High production speed and low power consumption.

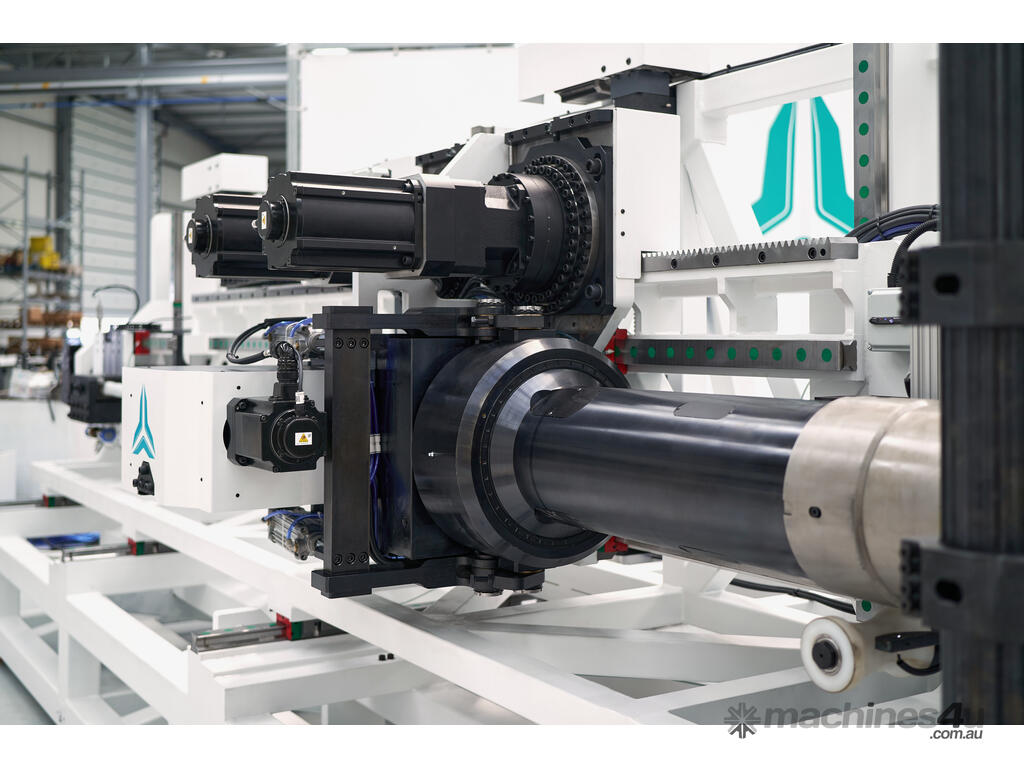

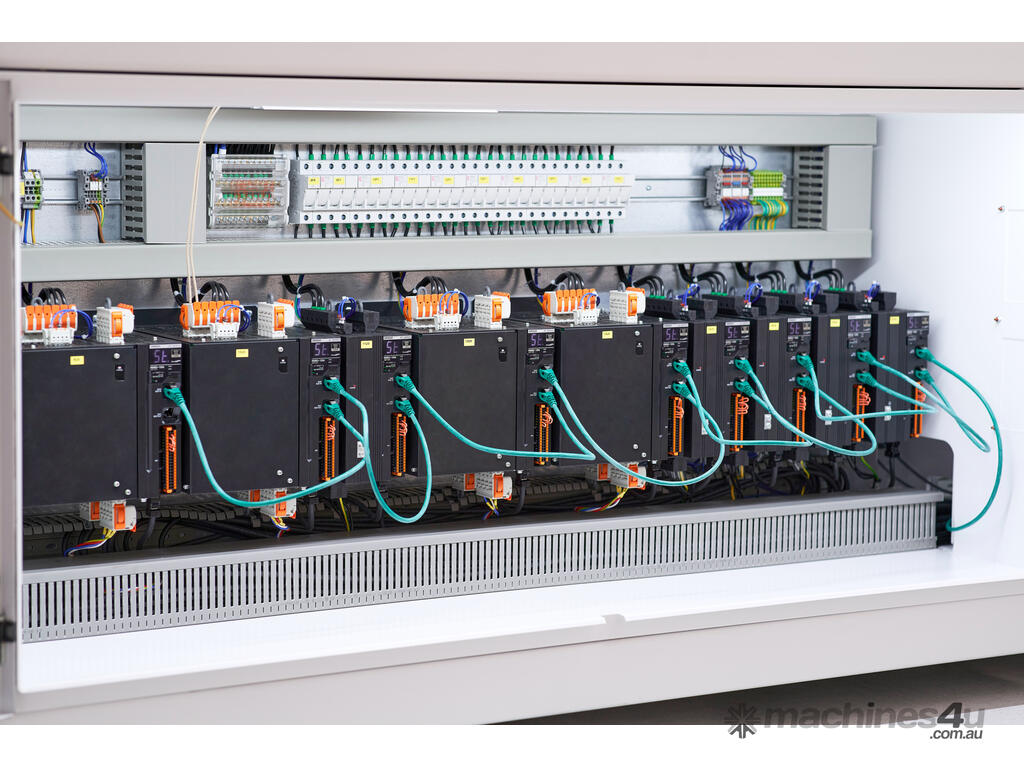

› Axis movements controlled by servo motors with absolute encoder feedback.
› Simplified synchronization and optimization of bending cycles.

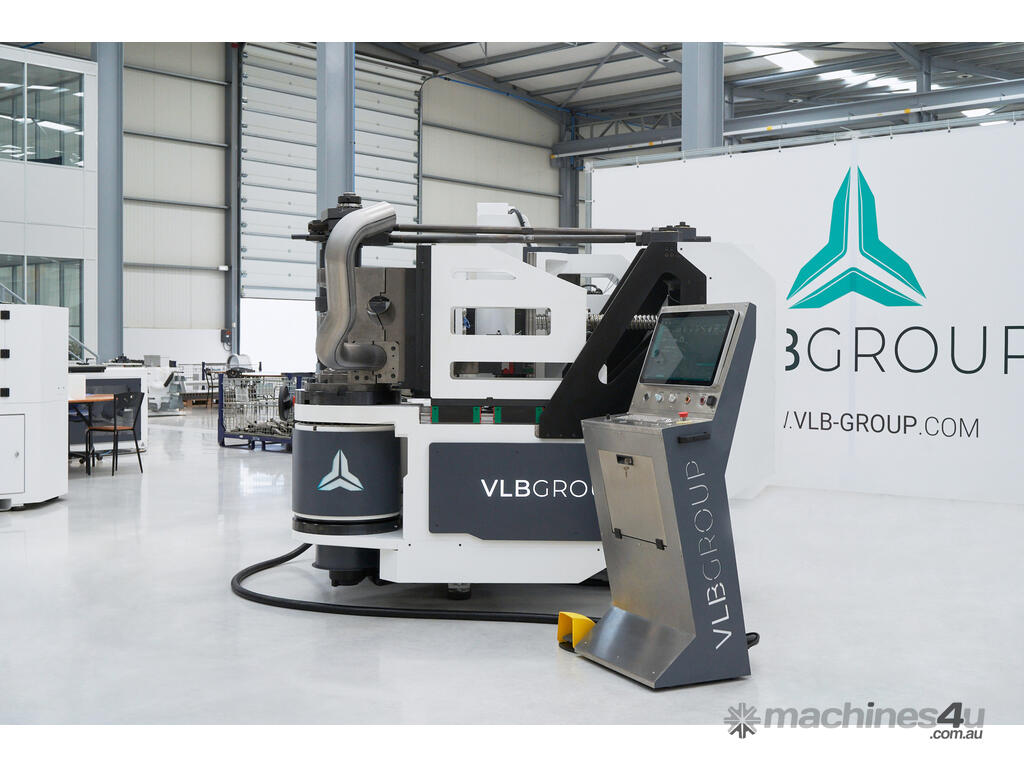

› Compact and ergonomic design guarantees operating comfort.
› Low maintenance costs with preventive intervention warnings.
› Sensors that monitor the elastic behaviour of the material, compensate for the bending cycle and provide more precision
and less waste.
STANDARD CHARACTERISTICS EB-150 HD EB-180 HD EB-220 HD
Steel Round Tube - Max Diam x Wall Thick 150 x 3 mm 180 x 3 mm 220 x 12 mm
CNC Controlled Axis 10/11 11 12/13
Maximum Bending Radius* 410 mm 700 mm 10000 mm
Useful Tube Length Inside Collet (Stopper) 2800 mm 4200 mm 6000 mm
Axis’ Accuracy ± 0.05 ± 0.05 ± 0.05
Tube Loading Height 1170 mm 1430 mm 1440 mm
The full range of VLB tube benders are SOLD & SUPPORTED by Complete Machine Tools which has locations in Qld & NSW. We offer Australian wide support with our Australian based service techs. We are Aussie owned and run!
