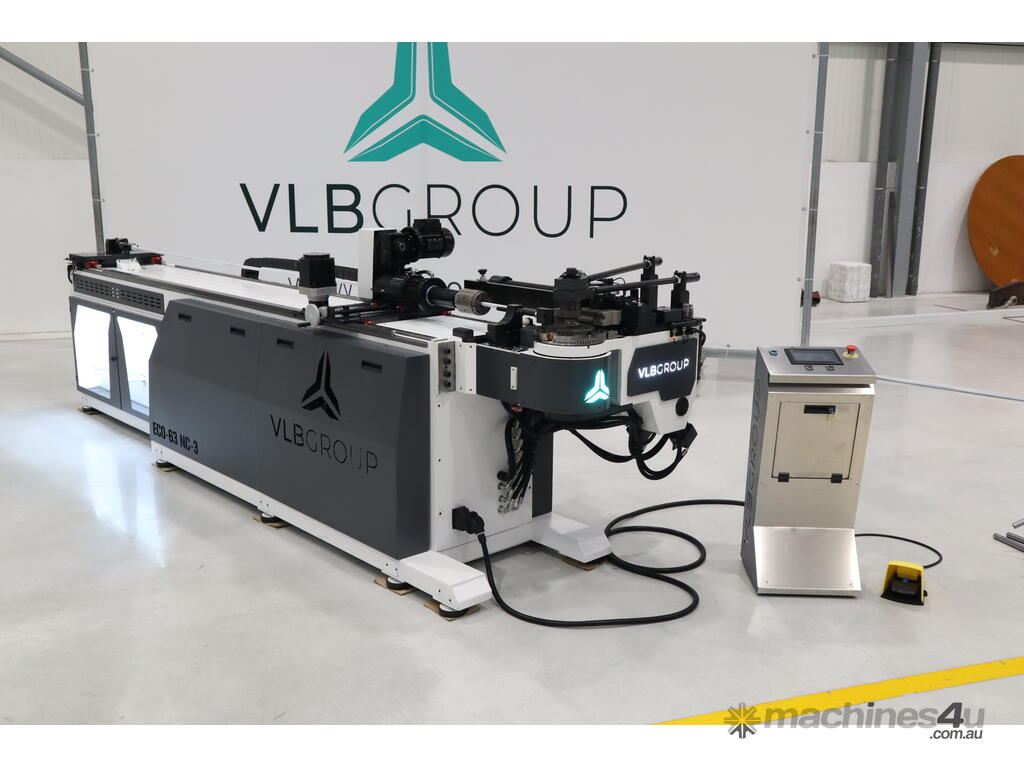

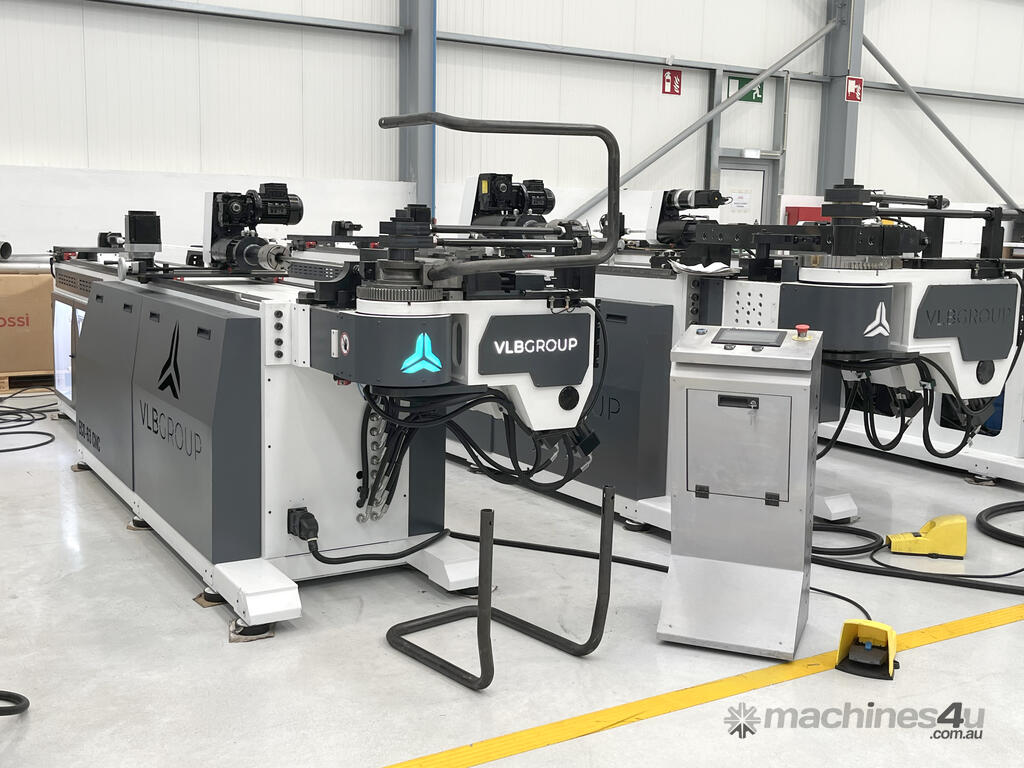

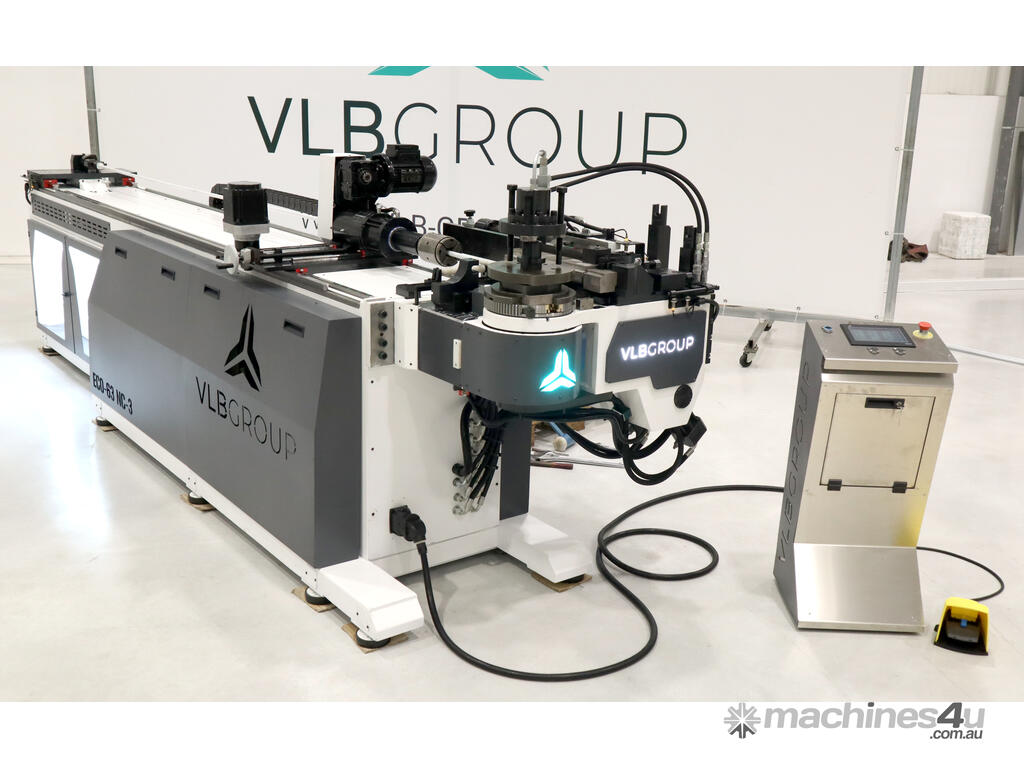

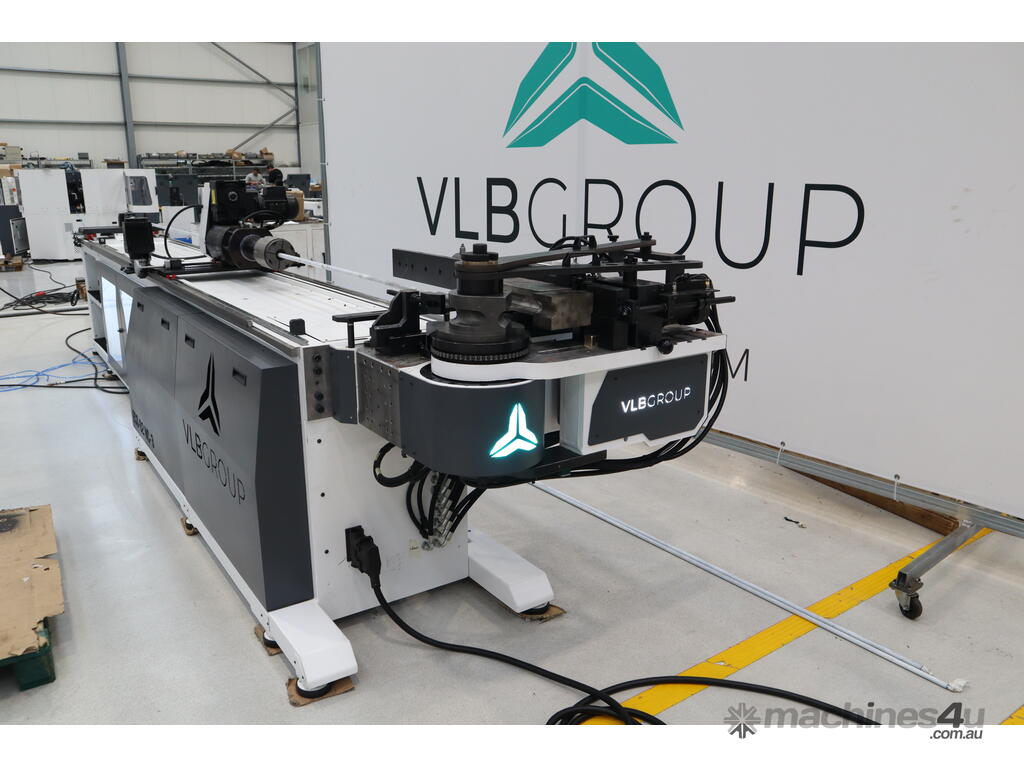

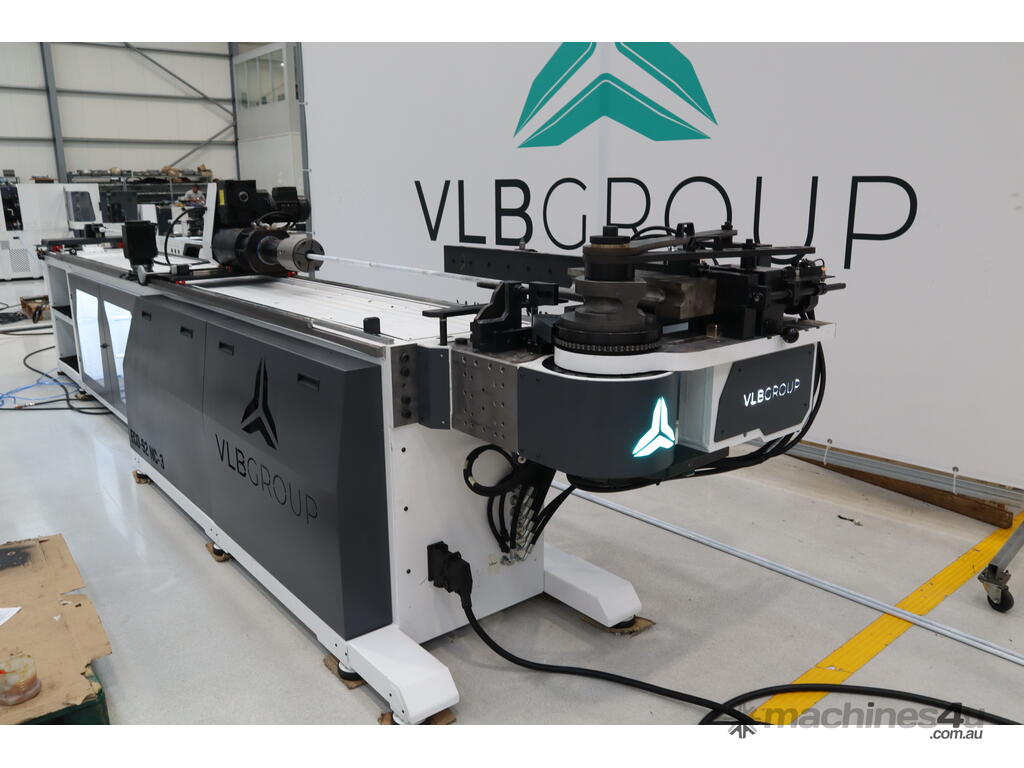

VLB MANDREL TUBE BENDER | ECO 92 NC3 | 92MM CAP | 3 AXIS | EUROPEAN MADE

The VLB mandrel ECO series tube benders are ideal for sectors that choose versatility and bending quality in terms of speed and productivity like Urban Furniture, Agriculture, Prototyping, Chemical Industry and Ship Repair. These machines are European made in Portugal offering extremely high quality finishes, performance and repeatability.

The bending machines of the ECO CNC series are easy to operate, robustly constructed and achieve excellent bending results.

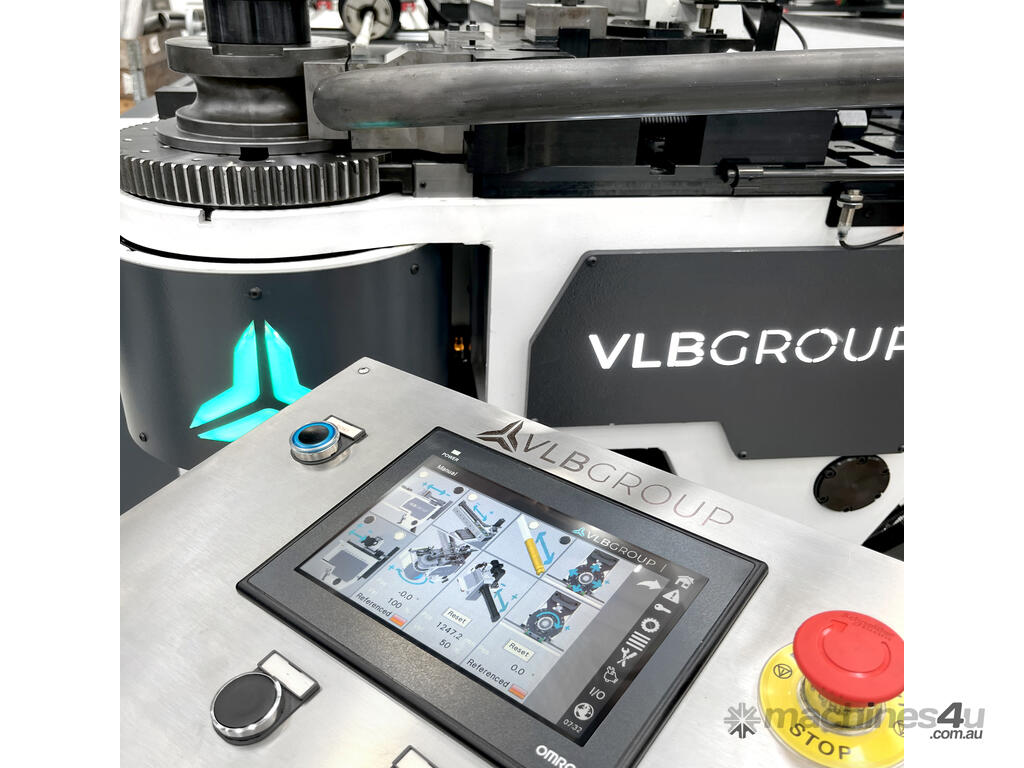

Entering a new bending program is very intuitive with the help of an advanced touch controller and the accurate and user friendly VLB 3D Software on the CNC. Additionally, there is also the VLB 2D software on the NC series. The program precisely controls the bend angle (Y-axis) rotation (Z-axis) and the feeding (If optioned up). The distance between the bends (X-axis) is configured using easily adjustable and very precise mechanical stops on the NC1

There are 4 machines in the ECO series of tube bending machines -

- ECO NC1 (Single axis control, bend angle) 2D
- ECO NC2 (Dual axis control, bending and rotation axis) 2D
- ECO NC3 (3 axis control, bending, rotation & feeding) 2D
- ECO CNC ((3 axis control, bending, rotation & feeding) 3D

MAIN FEATURES OF THE ELECTRIC CNC TUBE BENDERS | ECO SERIES

› Simple, durable, and with excellent bending results.
› Very intuitive programming of bending angle and rotation with industrial touch controller.
› Drive of bending and rotation of the tube partly electrically.
› Supporting hydraulic drive.
› Quick change of bending tool, with easy adjustment possibility.

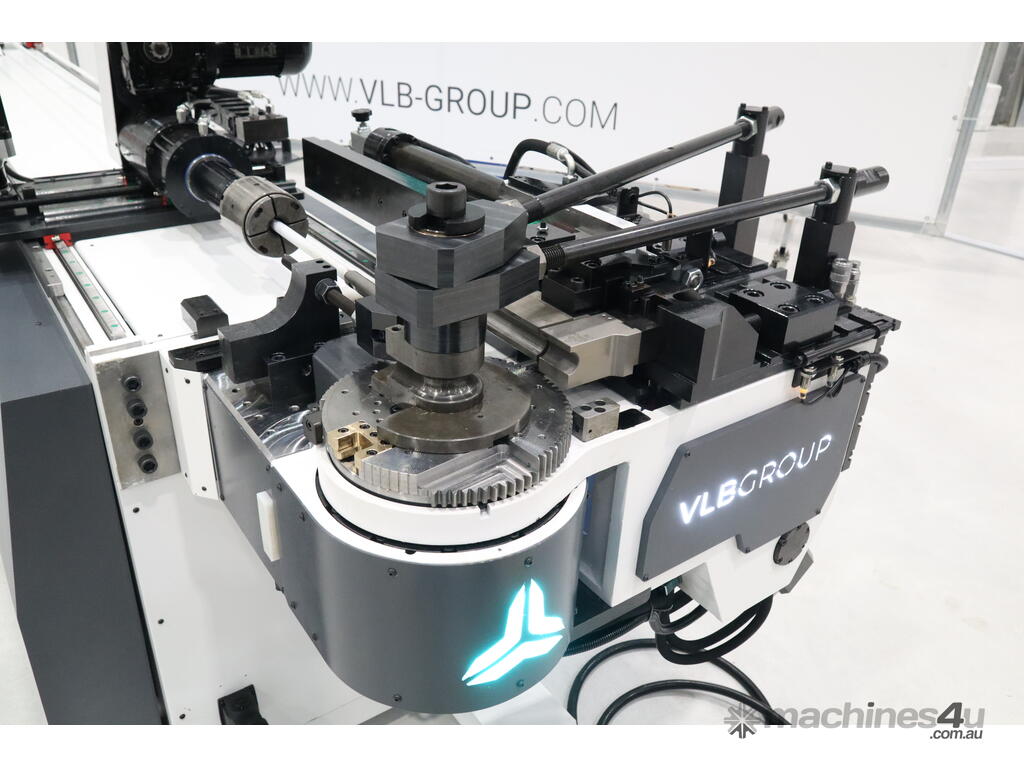

› Revolutionary clamping system, with a compact bending head.
› Powerful and low-maintenance bending machine with a reduced bending head increases the possibilities of complex bending work.
› Integrated tool cabinet with interior lighting.
› Compact and ergonomic design takes up little production space and improves operating and maintaining comfort.
› Hybrid electric hydraulic construction

STANDARD CHARACTERISTICS ECO35 ECO63 ECO92
Steel Round Tube - Max Diam x Wall Thick 35 x 2 mm 63 x 4 mm 92 x 4 mm
CNC Controlled Axis 1/2 or 3 1/2 or 3 1/2 or 3
Maximum Bending Radius* 135 mm 150 mm 225 mm
Useful Tube Length Inside Collet (Stopper) 3000 mm 3000 mm 3000 mm
Axis’ Accuracy ± 0.05 ± 0.05 ± 0.05
Tube Loading Height 1110 mm 1110 mm 1220 mm

The full range of VLB tube benders are SOLD & SUPPORTED by Complete Machine Tools which has locations in Qld & NSW. We offer Australian wide support with our Australian based service techs. We are Aussie owned and run!
