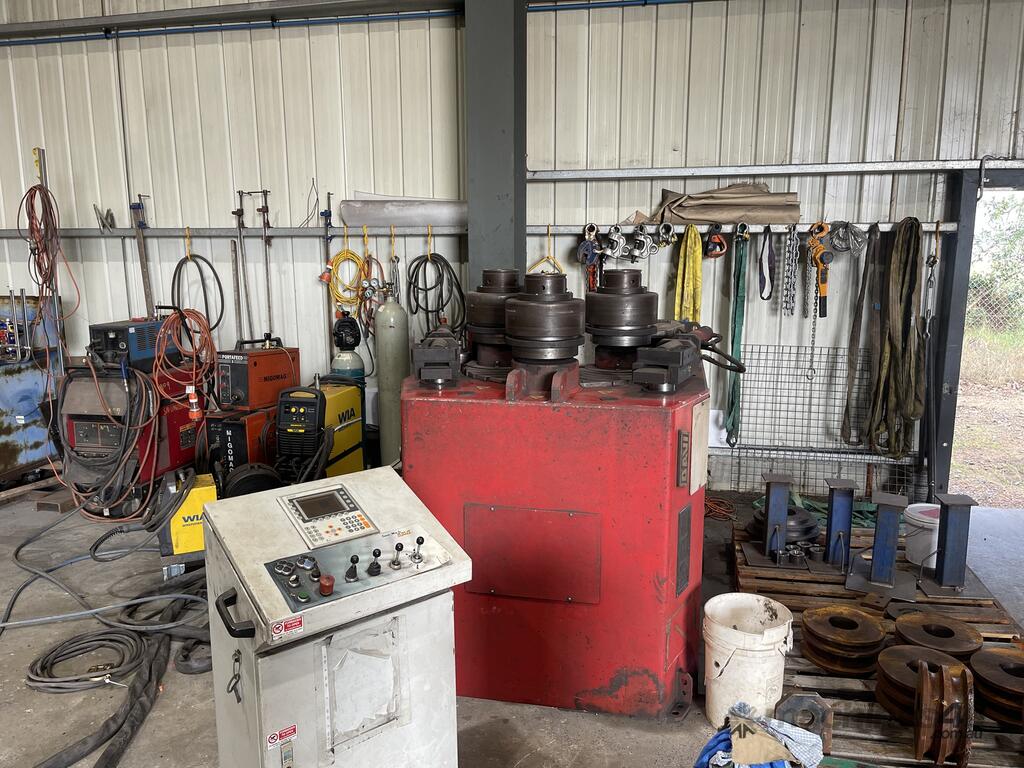

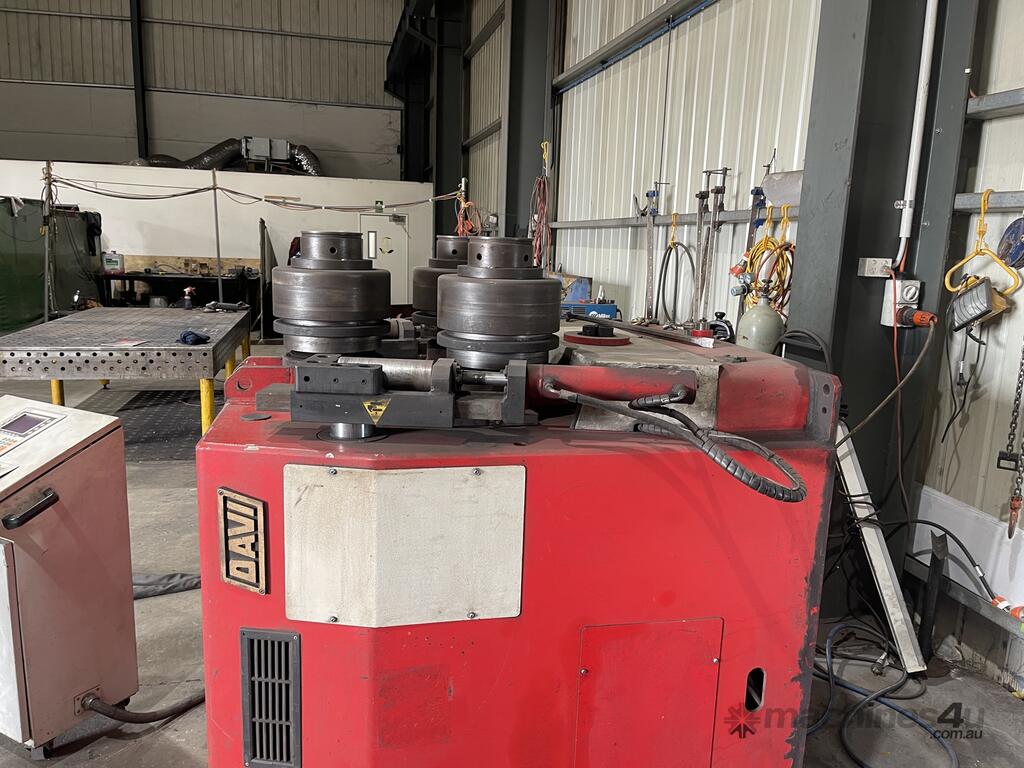

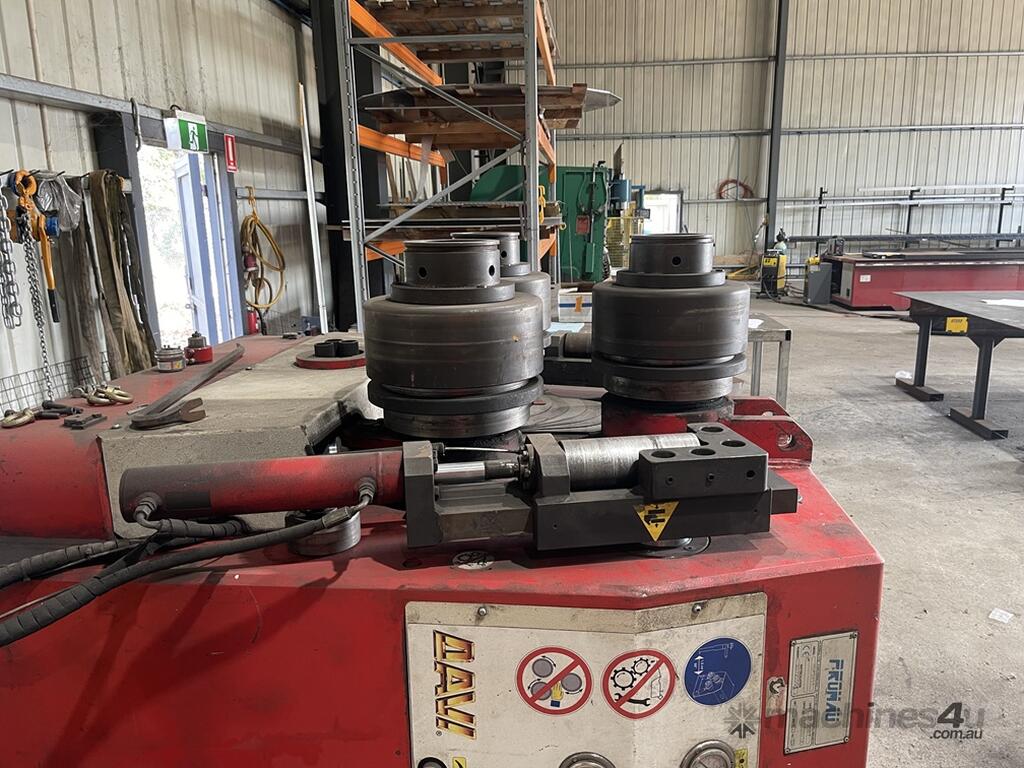

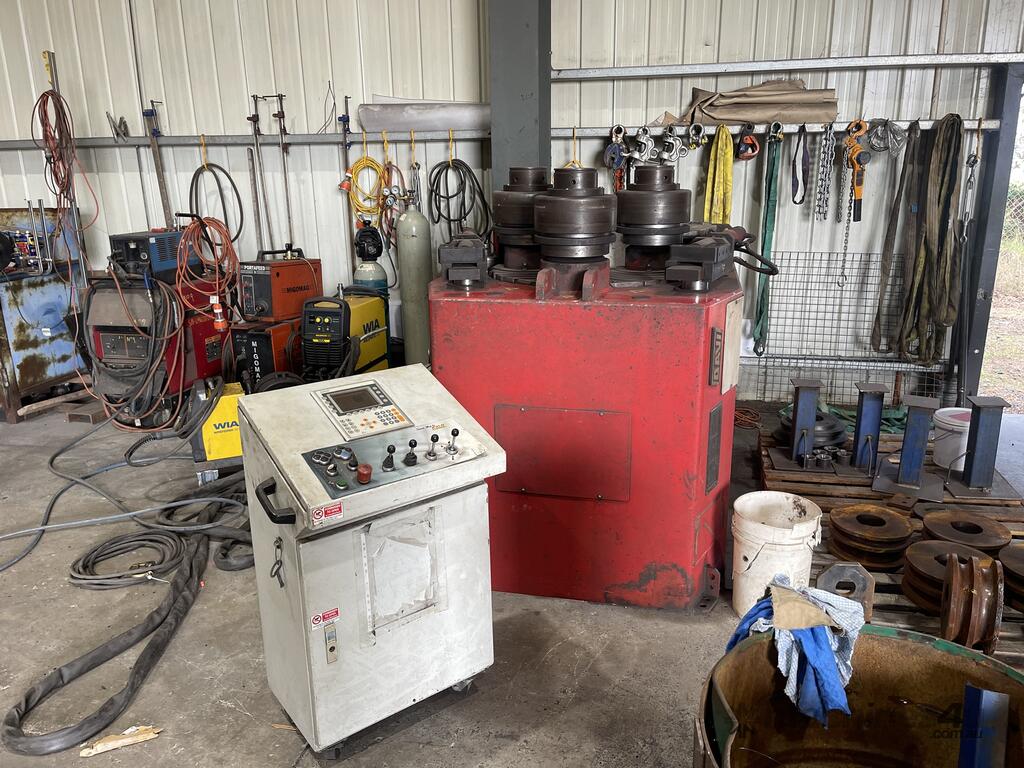

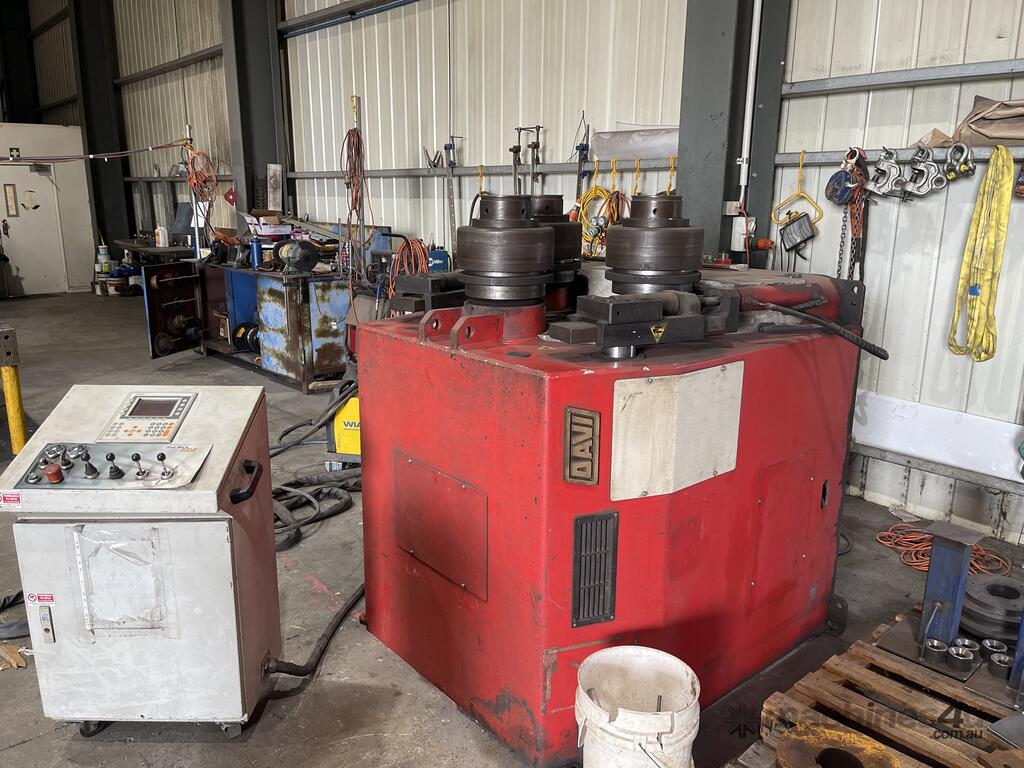

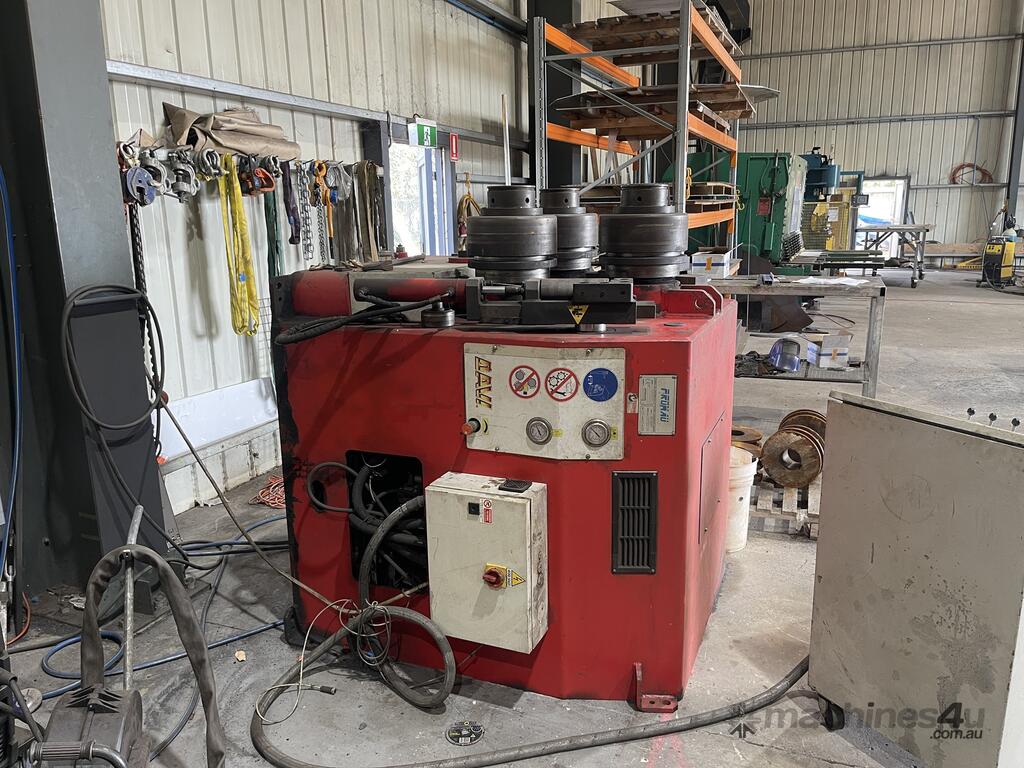

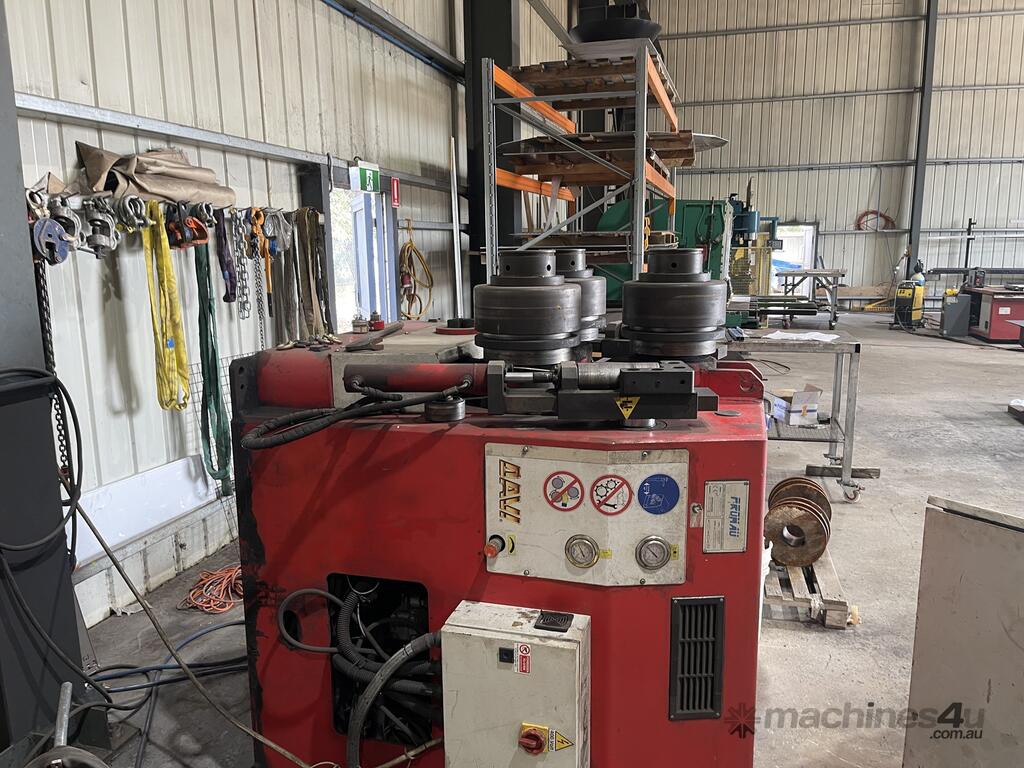

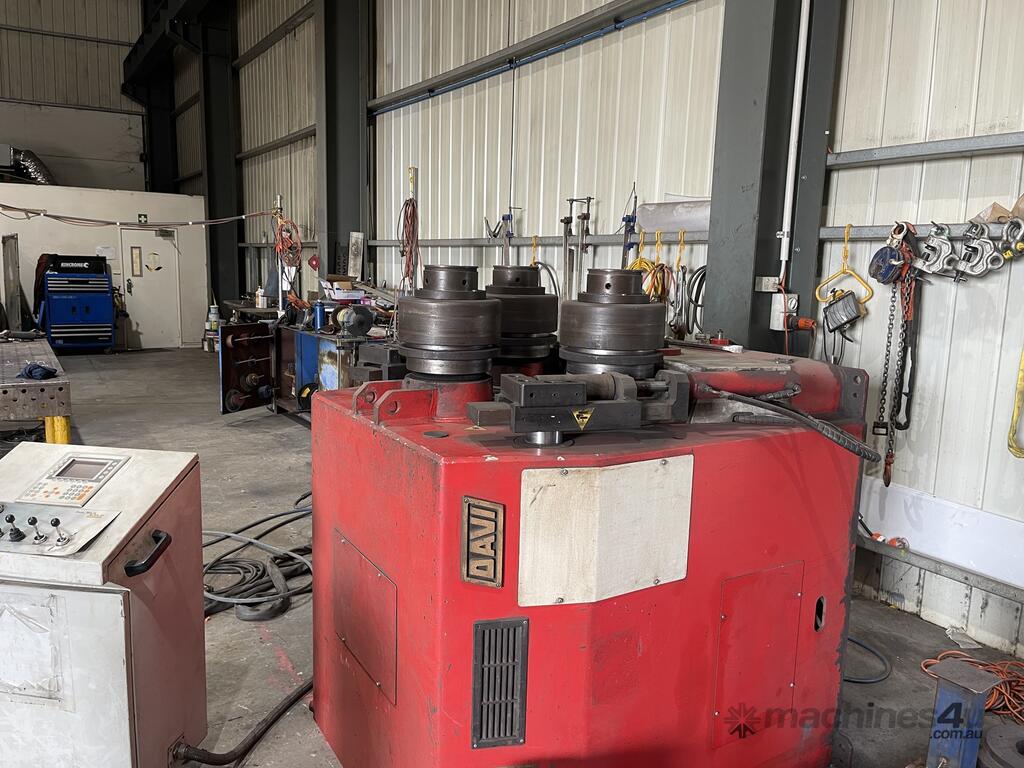

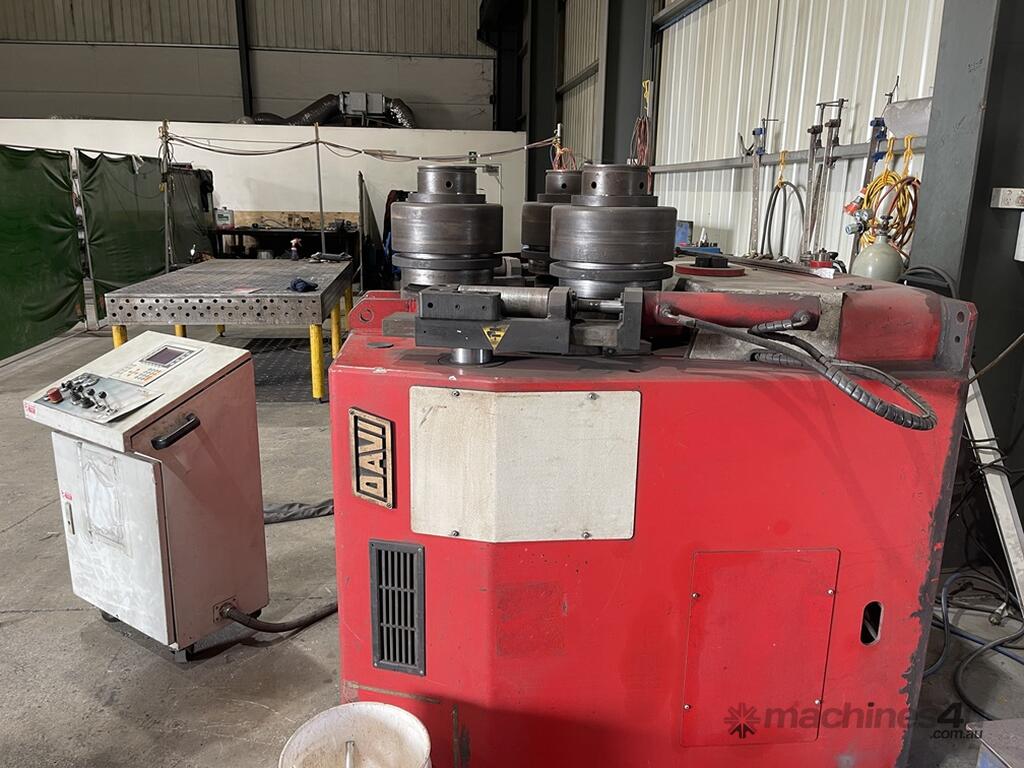

Model MCP 3211

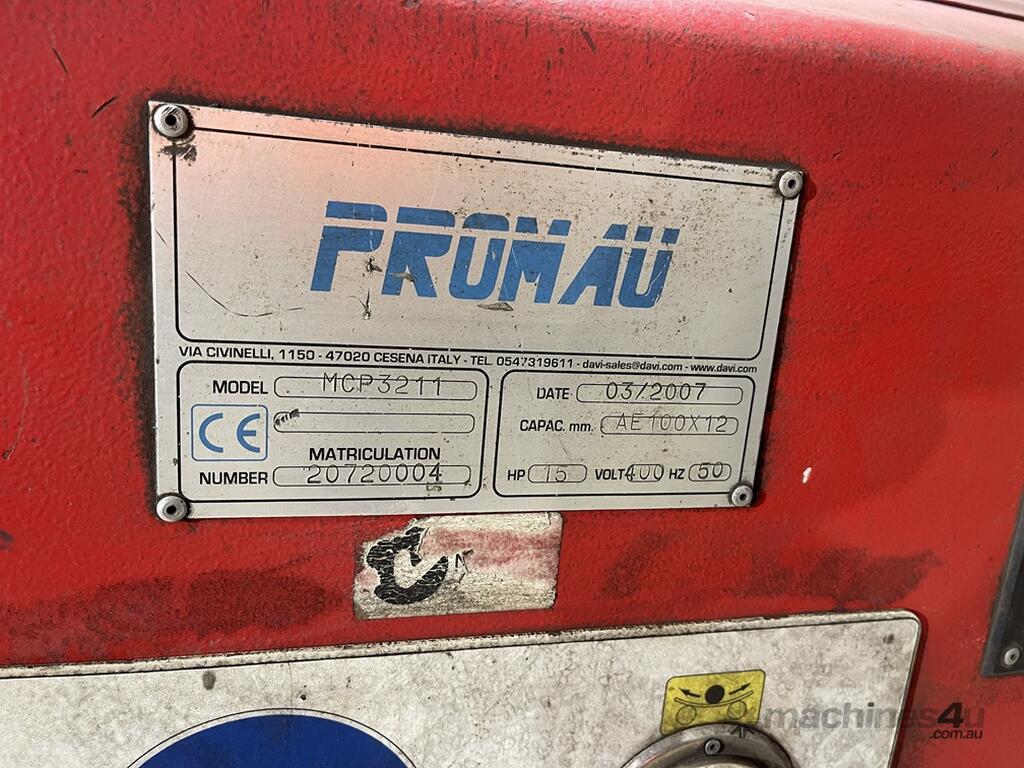

Serial Number 20720004 – 18 years old
Number of shafts/rolls 3
Shafts Type Vertical/Horizontal
Top Shafts Diameter 105 mm
Side Shafts Diameter 105 mm
Rolls Diameter (external) 310 mm
Powered Rolls All 3 rolls are powered as standard feature
Rolling Speed Up to 7 m/min
Installed Power HP 15 Power Supply 400 V., 50 Hz
Guiding Rolls Independent NOT tied on the side rolls
3 Independent motors for rolls rotation
3 Independent Hydr. Transmissions (one on each shaft)
Davi Universal Rolls allow to bend more type of section than
ever (including beams and channels)

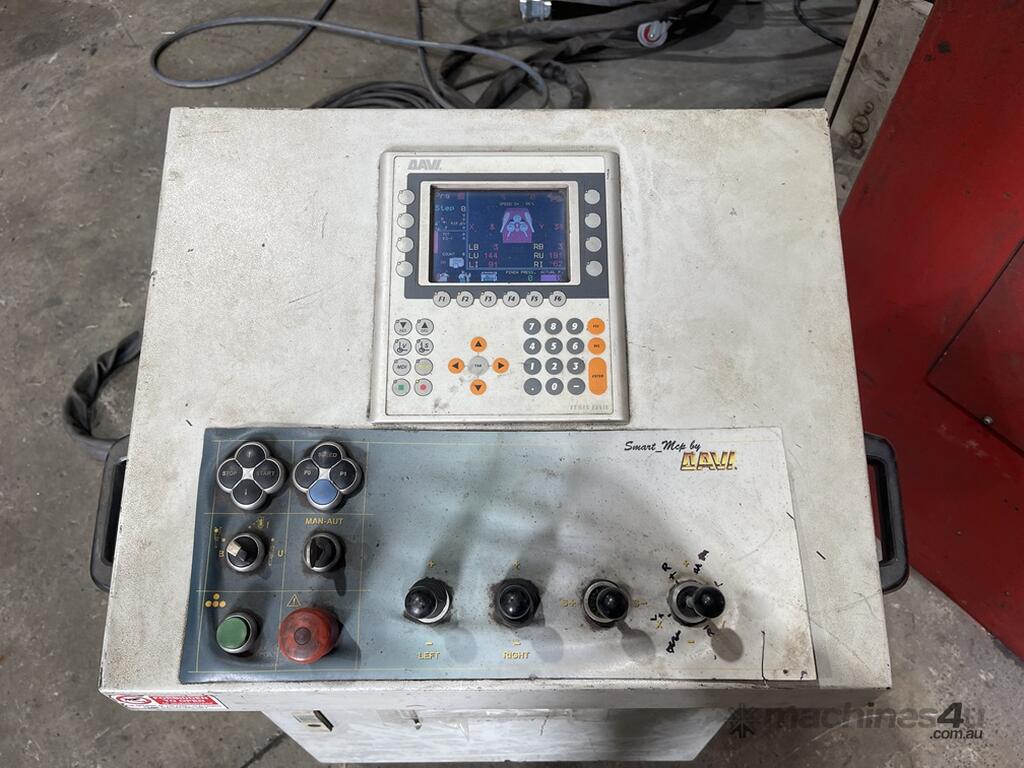

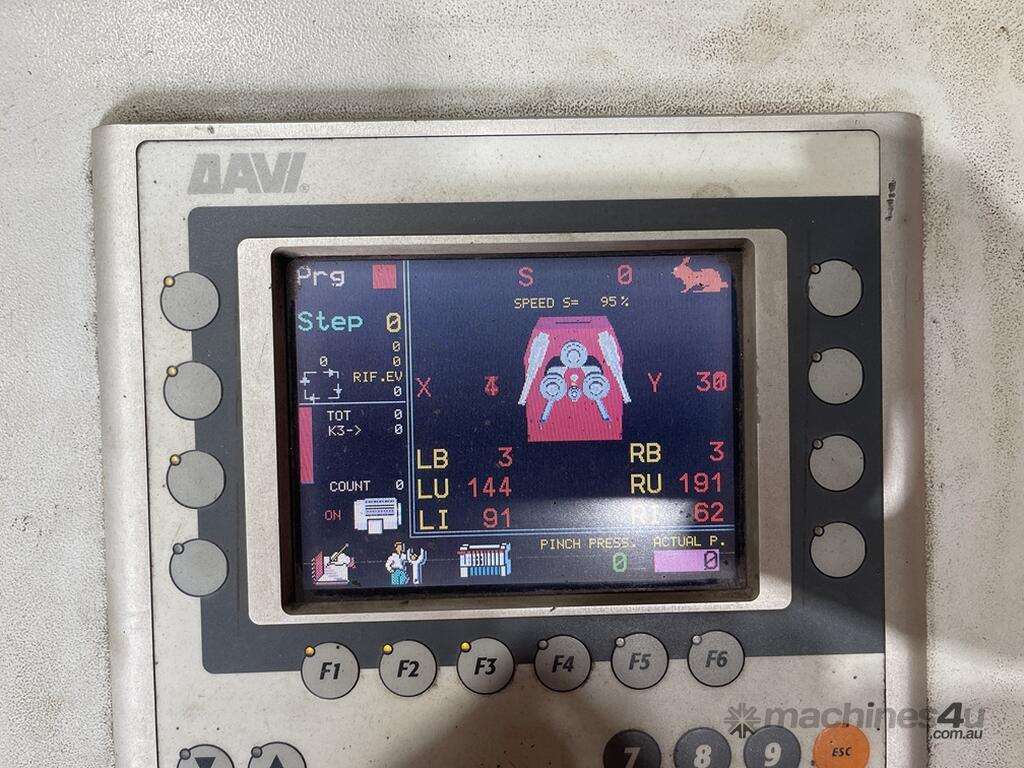

DAVI Smart CNC – all axis controlled by encoder

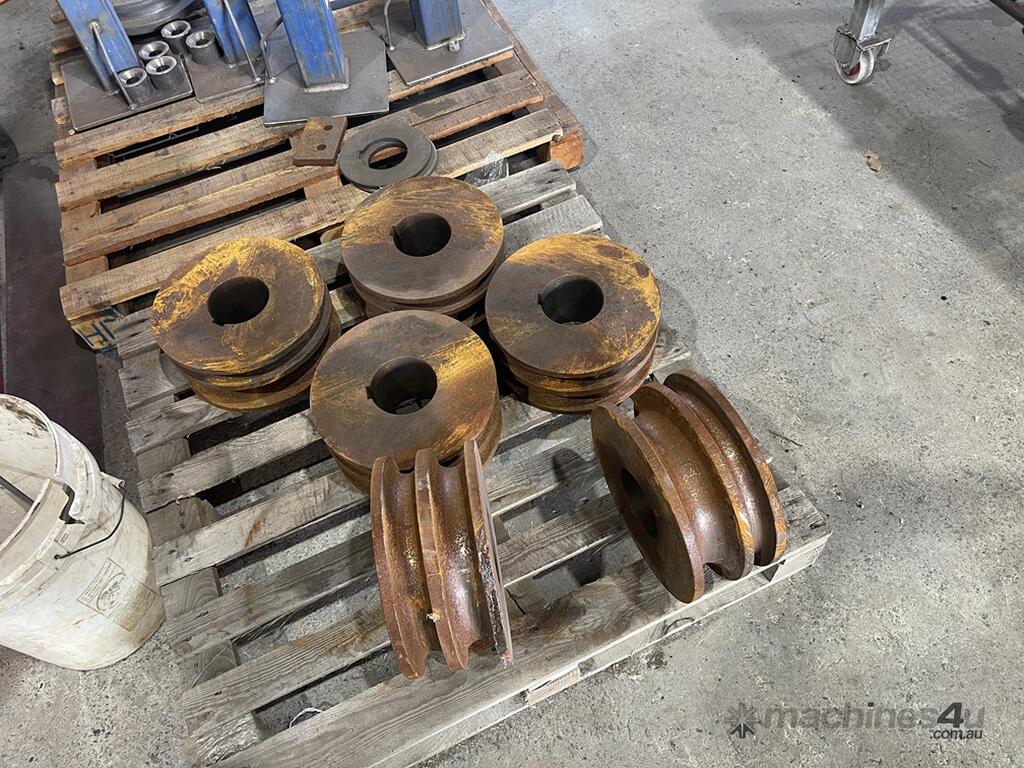

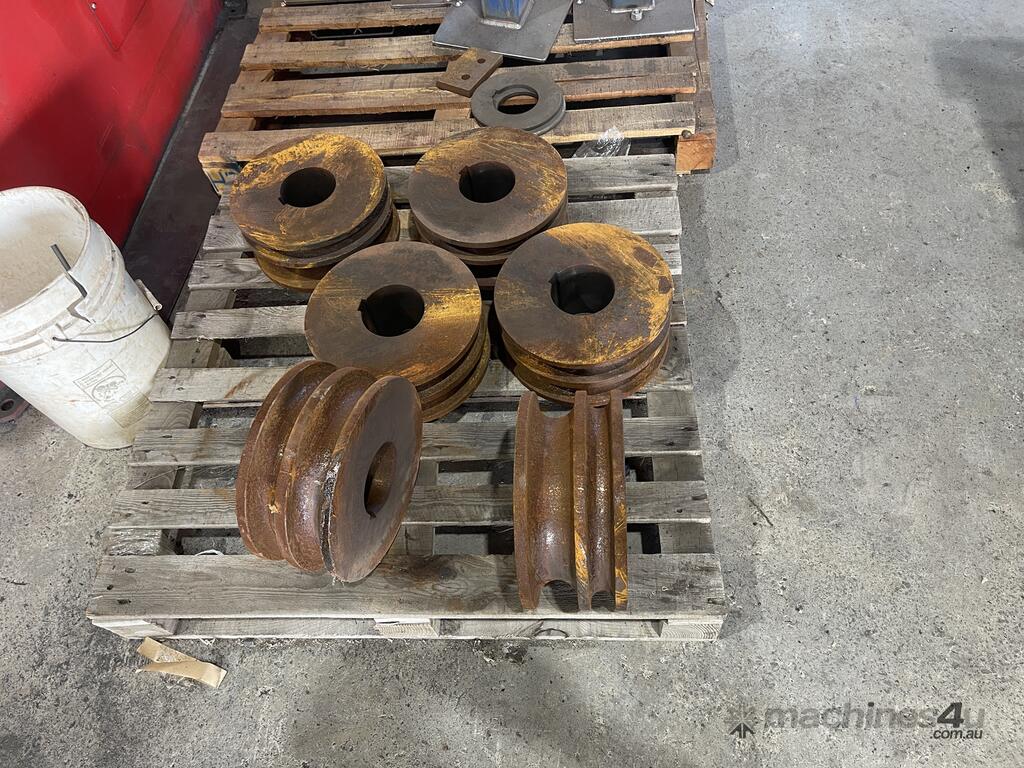

Tube dies set – 25 mm – 32 mm – 40 mm – 50 mm
With 22 years of specialised experience in DAVI’s Italian-designed plate and angle roll technology, Ottotech Services is the official DAVI agent and trusted service engineer for Australia and New Zealand. From sale to installation, commissioning, training and ongoing 24/7 support, we stand behind every machine we supply. When you invest in DAVI, you invest with confidence — backed by local expertise and exclusive representation you can rely on.
