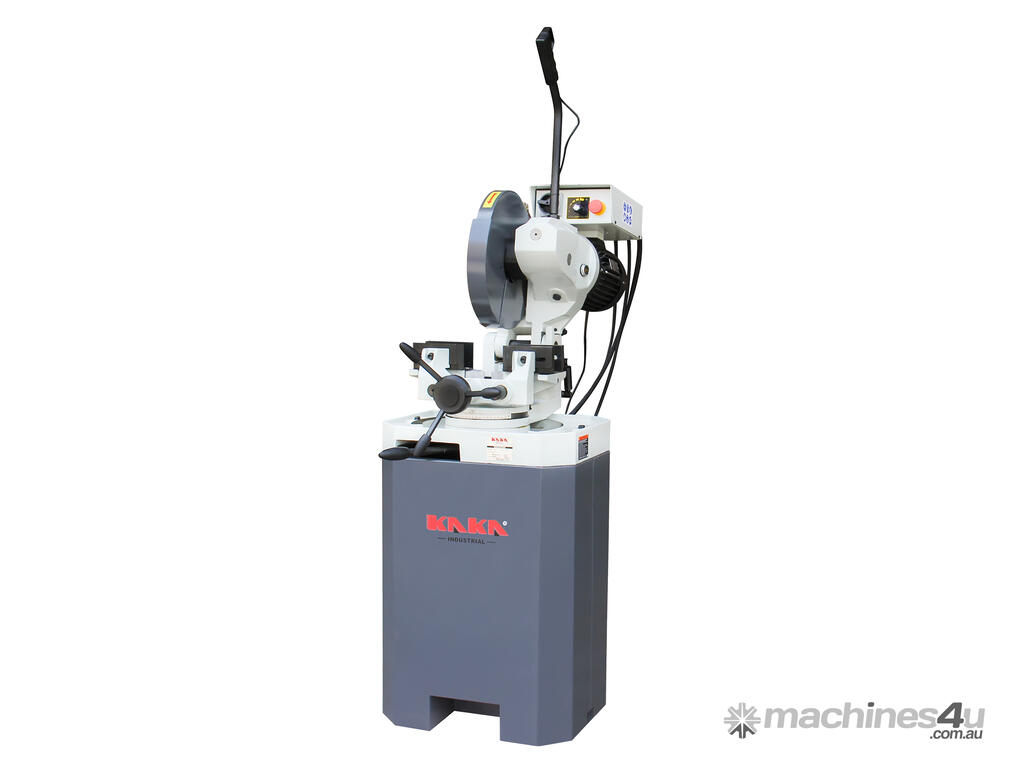

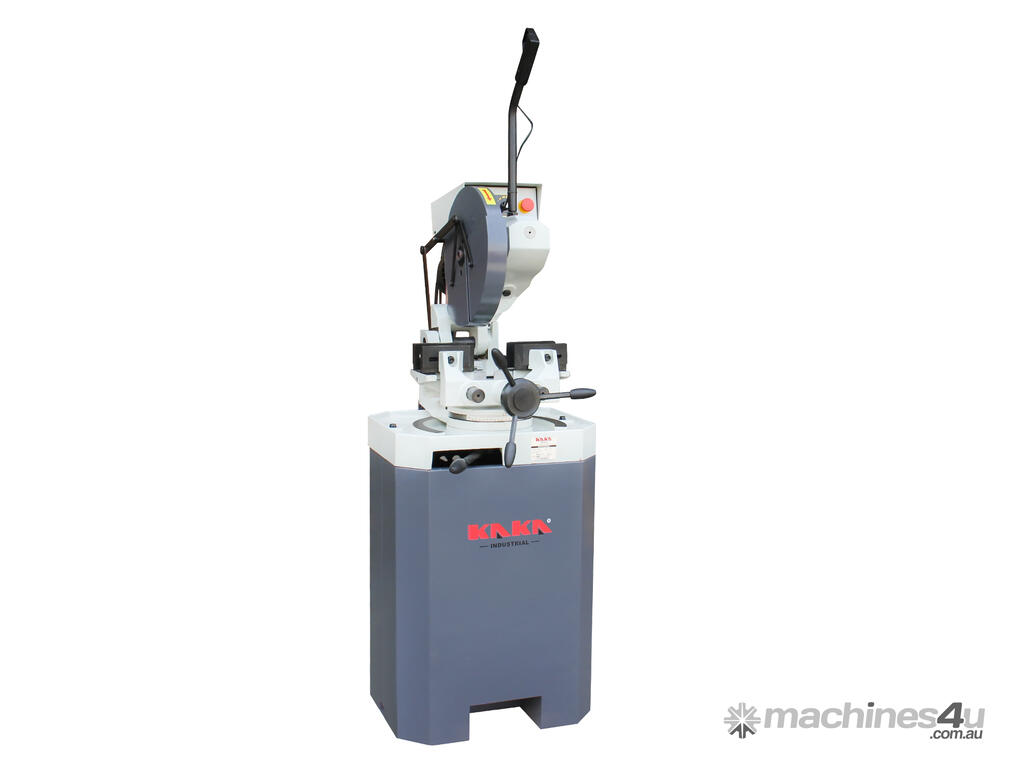

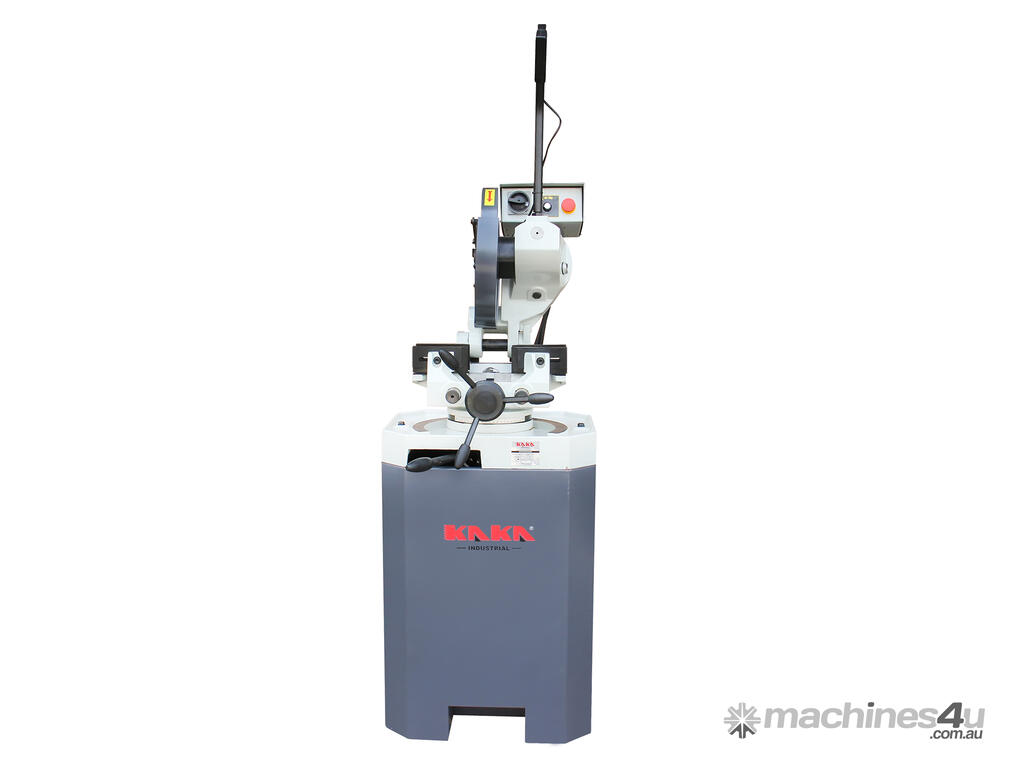

Kang Industrial Variable Speed Circular Saw CS-14V
The CS-14V is a manually operated circular cold saw, durability, low-maintenance design, and precision cuts on metals like mild steel, aluminum and non-ferrous profiles. The Gear Drive system delivery hight torque and long RPM for burr-free, heat-minimal cold cuts, ideal for weld prep and finish work. Drive by an inverter, the cold saw variable speed range from 20-41 rpm
Heavy-Duty Construction. Robust cast-iron frame and low-tolerance drive system ensure vibration-free operation and a service life with minimal upkeep
Variable Speed Cold Saw. Drive by an inveter, variable speed of 20-41 rpm for different materials
Versatile for Small Shops; Manual operation keeps it simple and affordable; dual speeds handle diverse materials without blade swaps.

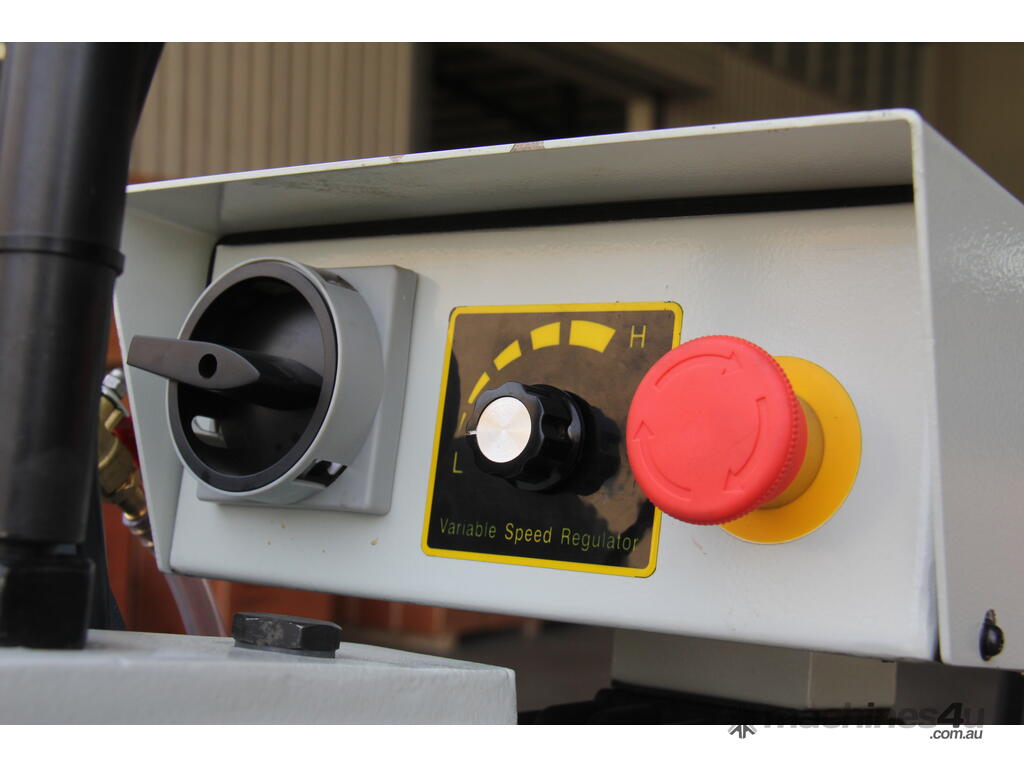

Safety-Focused Circular Saw. Enclosed blade guard, emergency stop, and pull-down arm for controlled feeds.
Coolant Integration. Built-in pump delivers flood lubrication, extending blade life on stainless and reducing chip adhesion.
Features
It runs on a 240V-50Hz-1PH motor, suitable for both industrial and home use.
A VFD inside, variable speed cutting circular saw

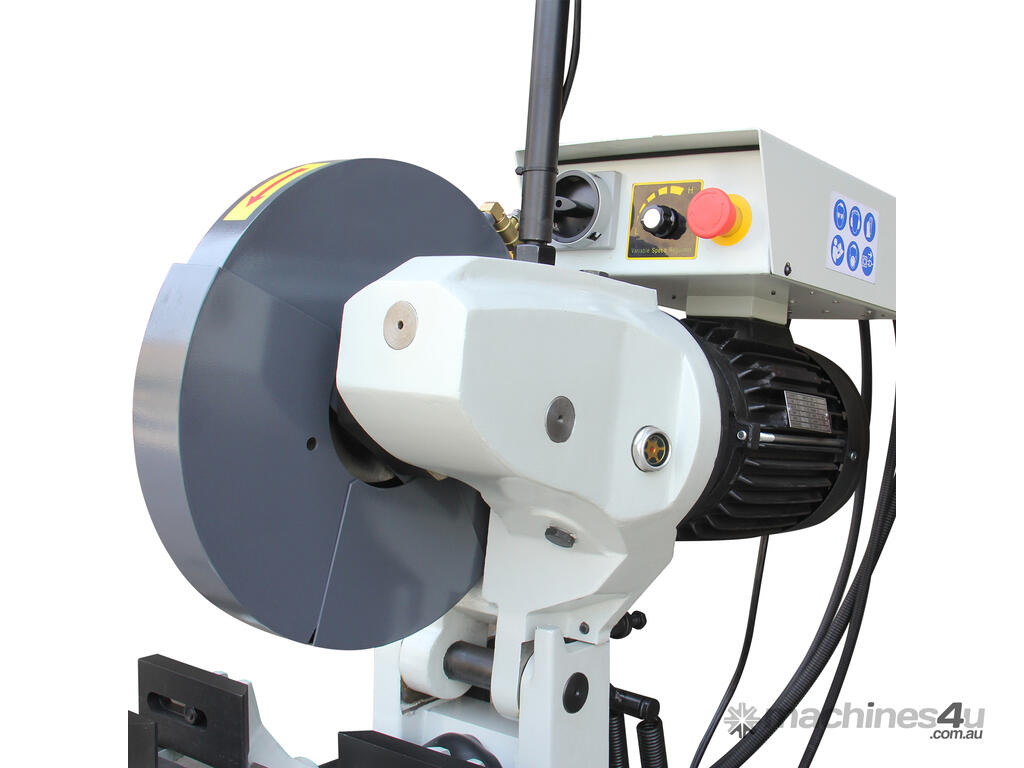

Gear drive band saw, and power transfer to the blade from the gearbox, powerful cutting
Quick action lock handle, which makes it easy to get angle cutting via a moving head
Built-in cooling system, lubricates and cool the blade when cutting

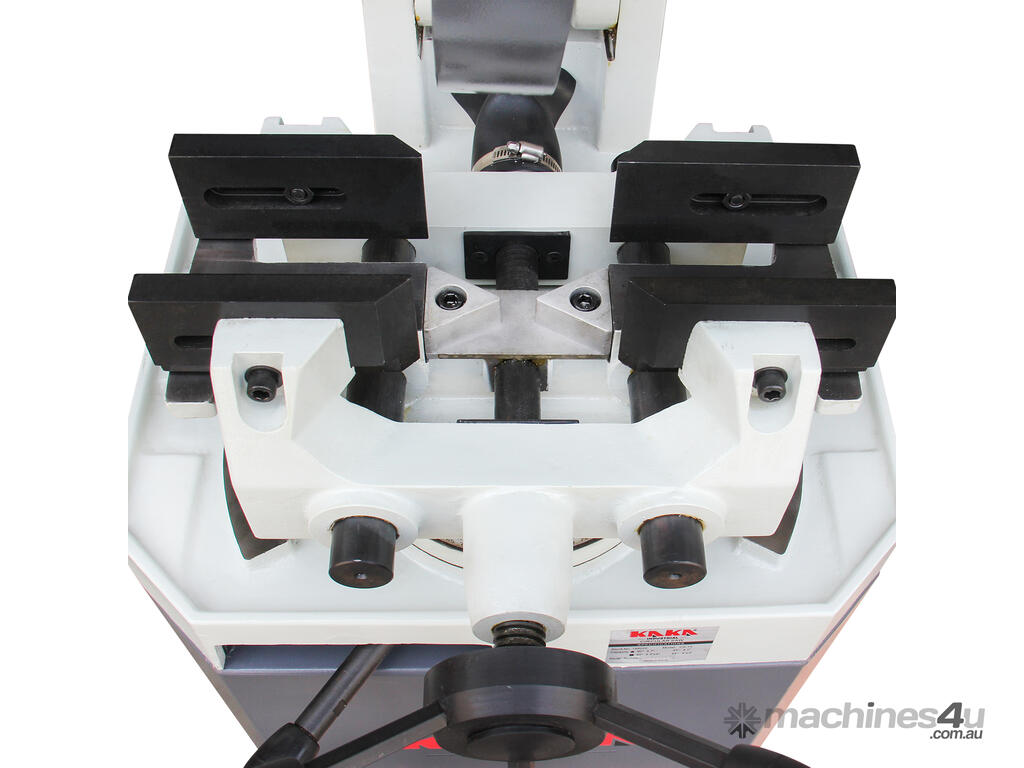

Double vise clamping, make sure the material is always at the center

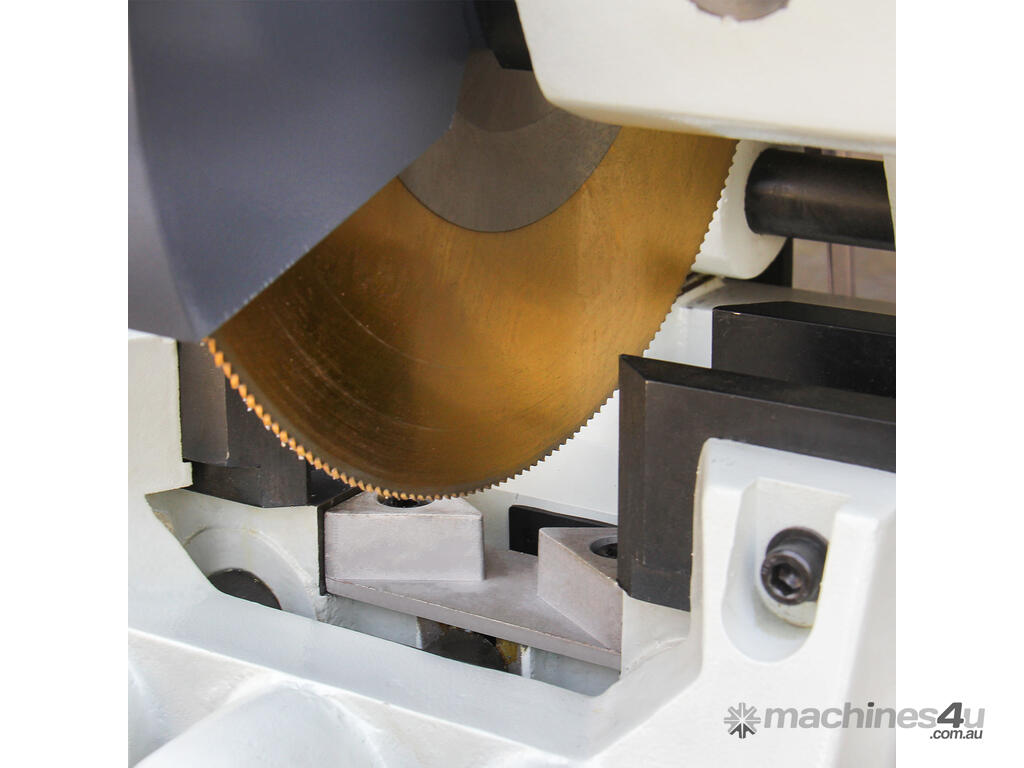

HSS Saw Blade (Pre-installed, 350mm OD )
Optional Coolant
Specifications
SKU 188029
Model CS-14V
Blade size 350 mm
Cut circular 90° 120 mm
Cut rectangular 90° 140x100 mm
Cut circular 45° 105 mm
Cut rectangular 45° 100x100 mm
Blade speed 18-36 rpm
Vice opening 145 mm
Motor power 1.1 kW
Drive Gear
Packing size
Body, 98x62x95cm
Stand, 78x60x50 cm
N.W./G.W. 236/270 kg
