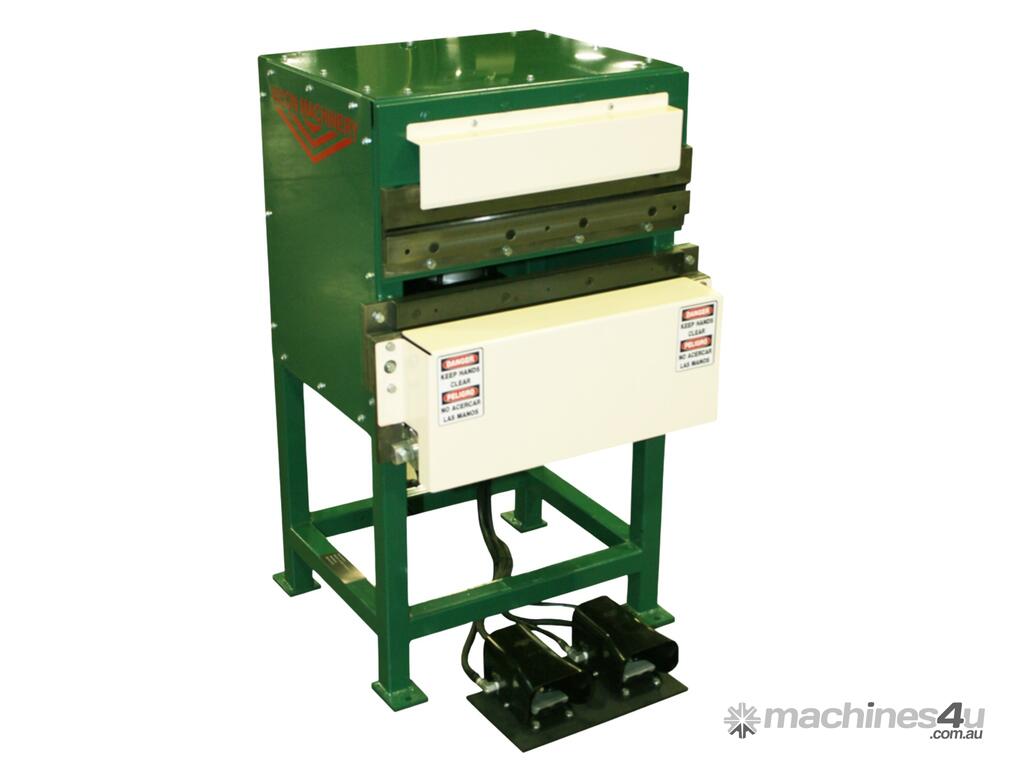

Vicon Cheek Bender for HVAC Fabrication

The Vicon Cheek Bender will form 1/4? and 7/16? male quarter edge flanges to the cheeks of your fittings.

An optional Button Punch lancing feature is available.

Ideal machine for the HVAC ductwork fabrication workshop.


UNIQUE FEATURES:

• Designed to form a 90 degree flange on either side of the unit (Optional punch button available)

• 18-gauge mild steel maximum capacity

• 24? wide bending capacity

• Foot pedal control

• Inclined face for ease of use and better ergonomics

• Open ended allowing formation on either side as well as longer flanges with additional cycles

• Welded tubular frame

• Replaceable, hardened wear plate for use with plasma cut edge

• Slideout gauge allows for 1/4? or 7/16? bend

Call Power Machinery on ( to enquire or learn more.
