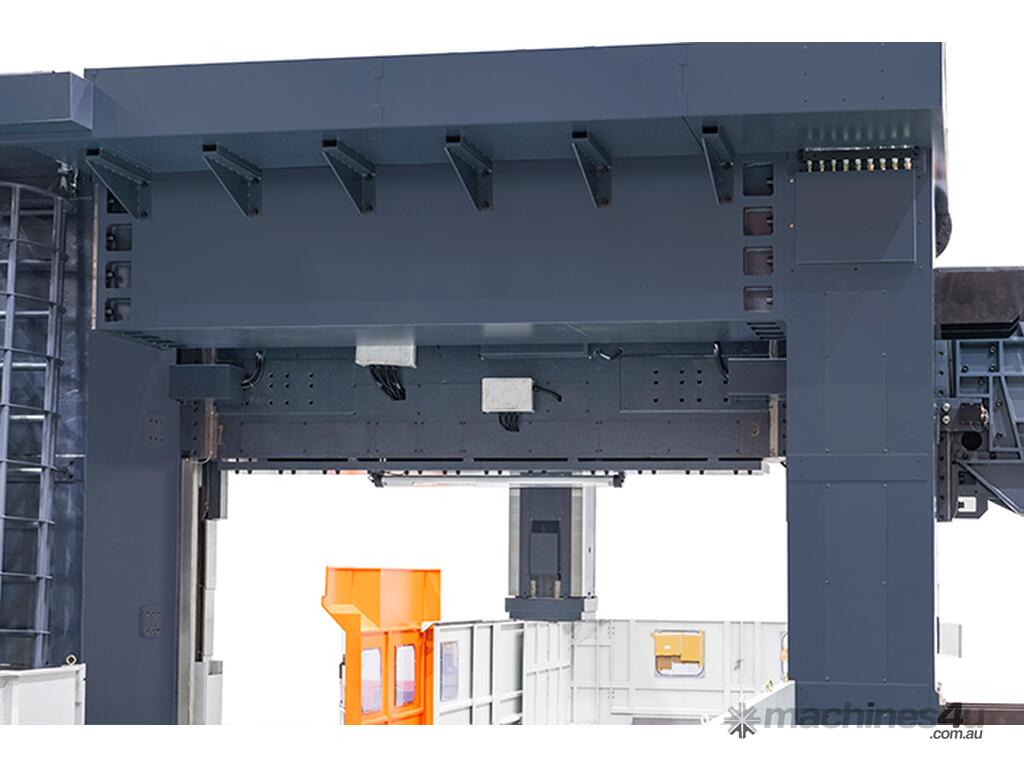

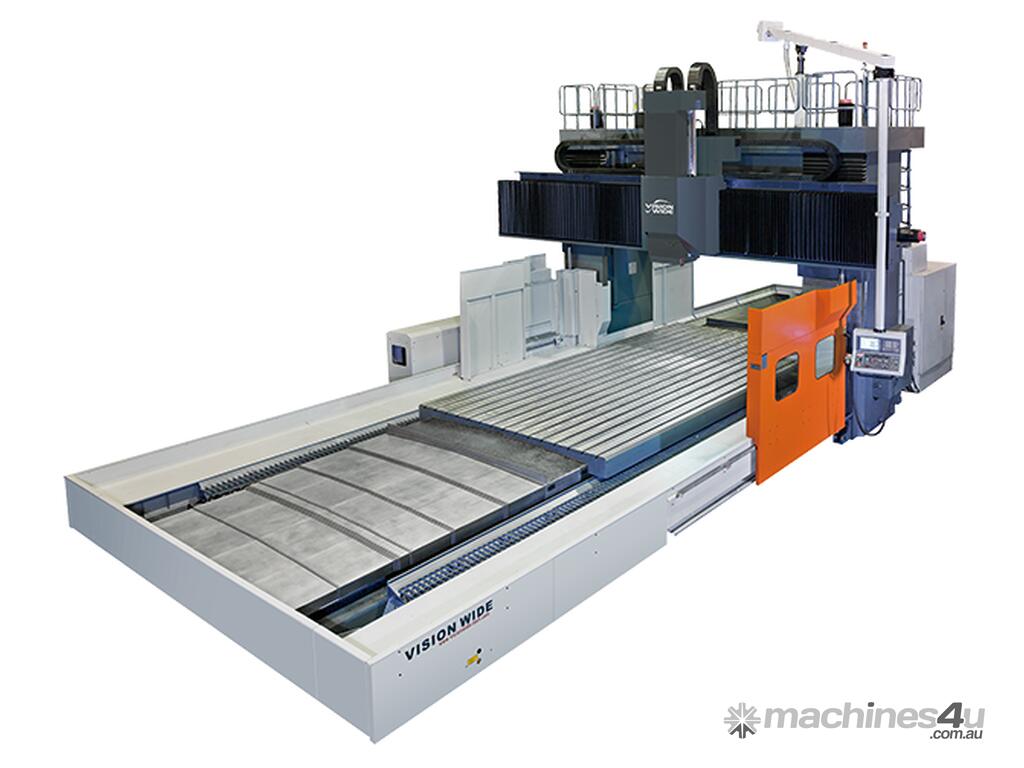

Vision Wide BM Series Beam Moving Double Column Machining Centre

The Vision Wide BM Series is a heavy-duty beam moving double column machining centre designed for large-scale, high-accuracy machining. Built for workshops machining long, heavy or complex components, the BM Series combines high structural rigidity with flexible multi-face machining capability.

This machine is well suited to energy, mining, transport, defence, and general heavy engineering applications where accuracy, stability and repeatability matter.

Key Features:

- Beam moving double column design for large-scale machining
- Dual servo-driven beam for smooth, balanced motion
- W-axis cutting capability for increased vertical machining range
- Full automatic 5-face machining with optional multi-angle heads
- High rigidity Meehanite cast iron structure with stress relief treatment
- Triple roller linear guideways on X-axis for improved stiffness and accuracy
- Wide column span to accommodate large workpieces
- High-torque gear or direct-drive spindle options

Machining Capacity:

- X-axis travel: approx. 4,100 to 10,100 mm (model dependent)
- Y-axis travel: up to approx. 4,200 mm
- Z-axis travel: up to approx. 1,400 mm
- W-axis travel: up to approx. 1,200 mm
- Maximum workpiece height: approx. 2.7 m

Why Choose the BM Series:

- Designed for heavy cutting and long components
- Excellent thermal stability and long-term accuracy
- Flexible configuration options to suit your application
- Backed locally by QMT Machinery – Global brands, backed by Aussie hands

Multiple configurations and options available.
Contact QMT Machinery to discuss the right BM Series model for your workshop.
