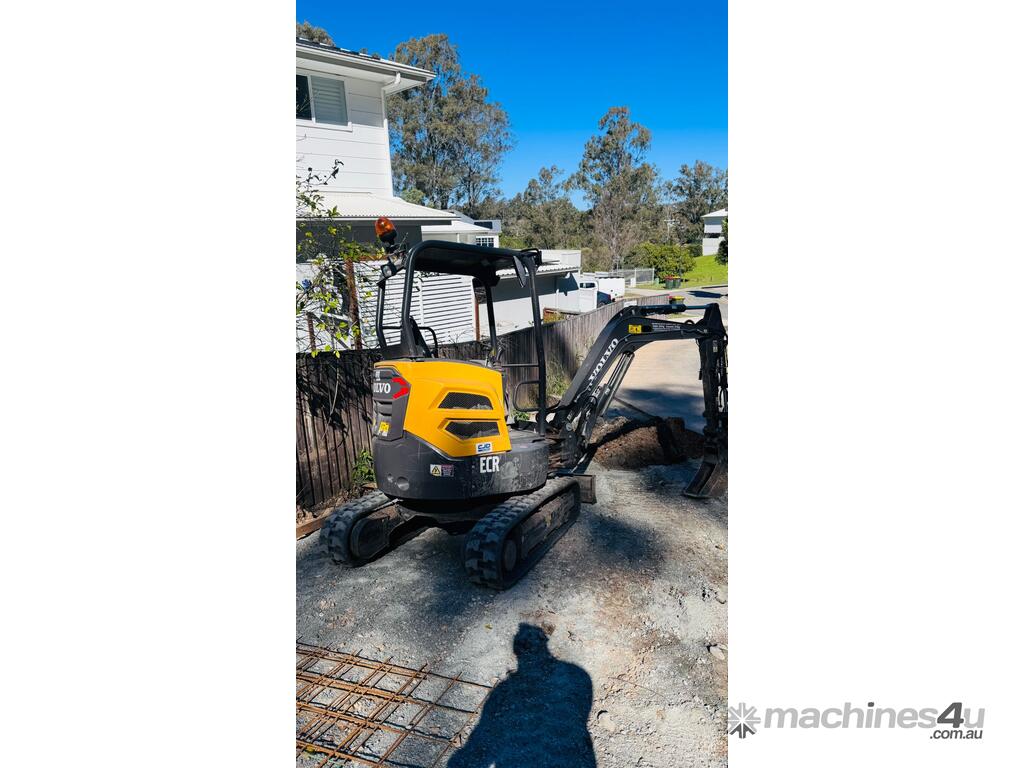

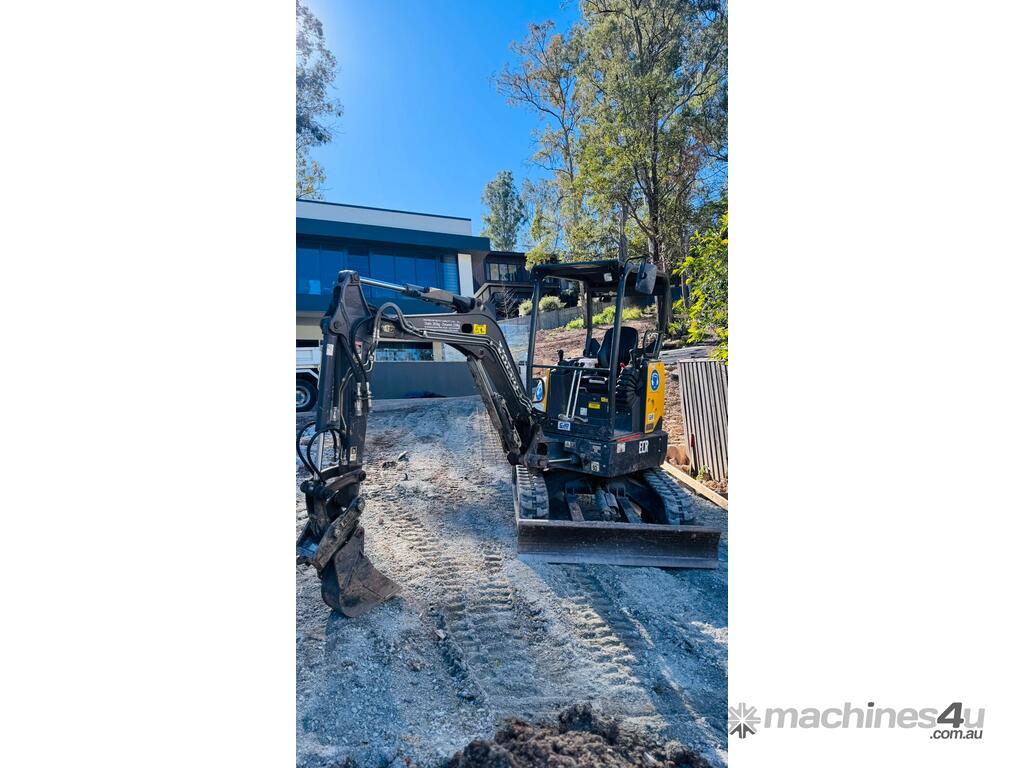

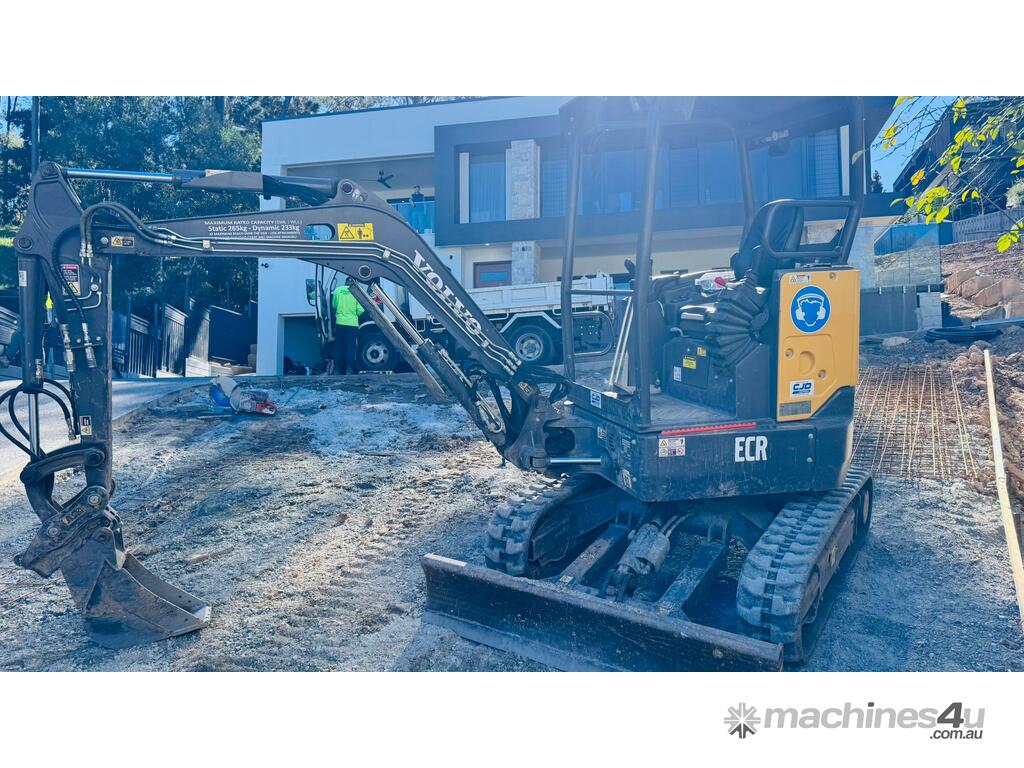

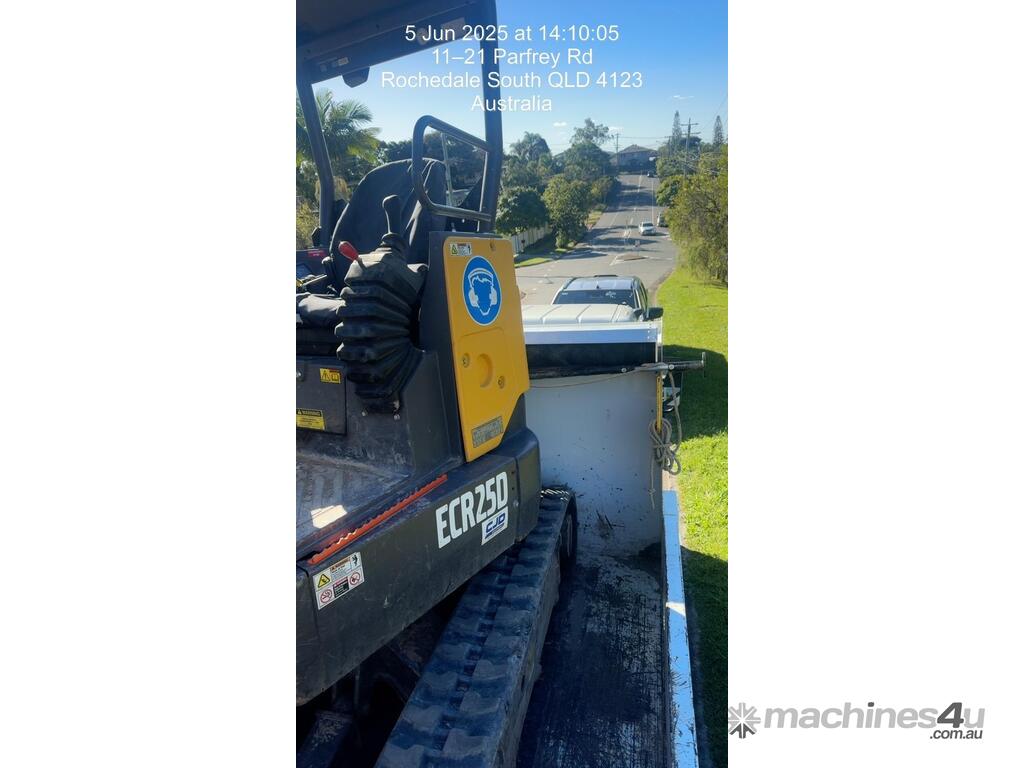

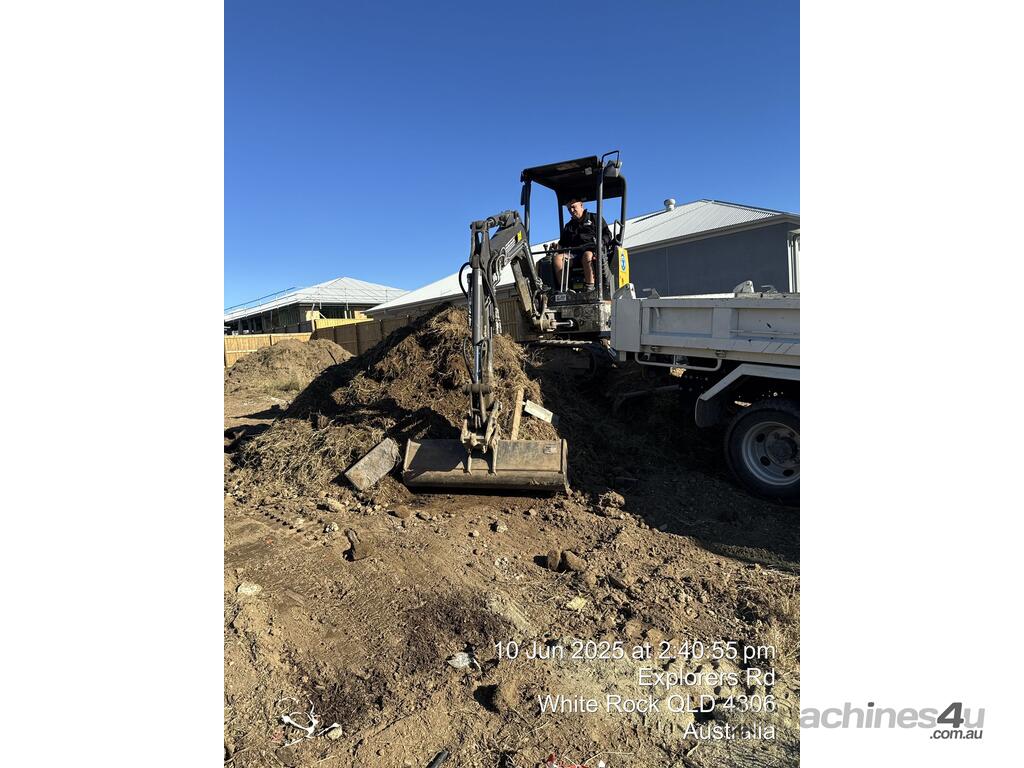

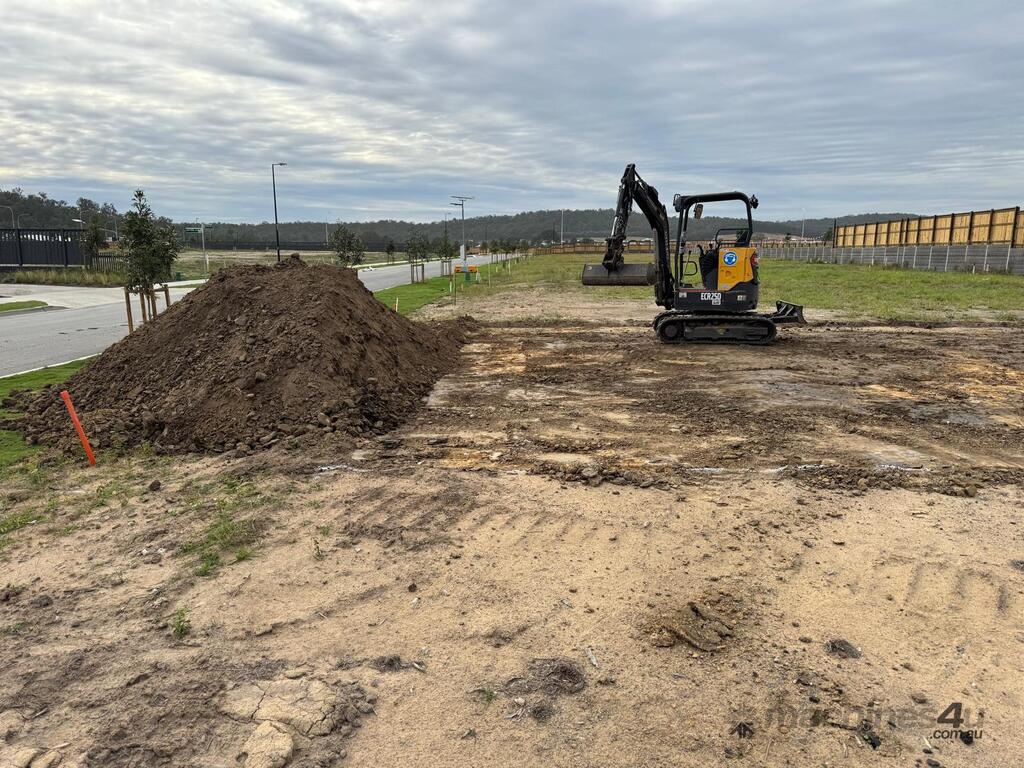

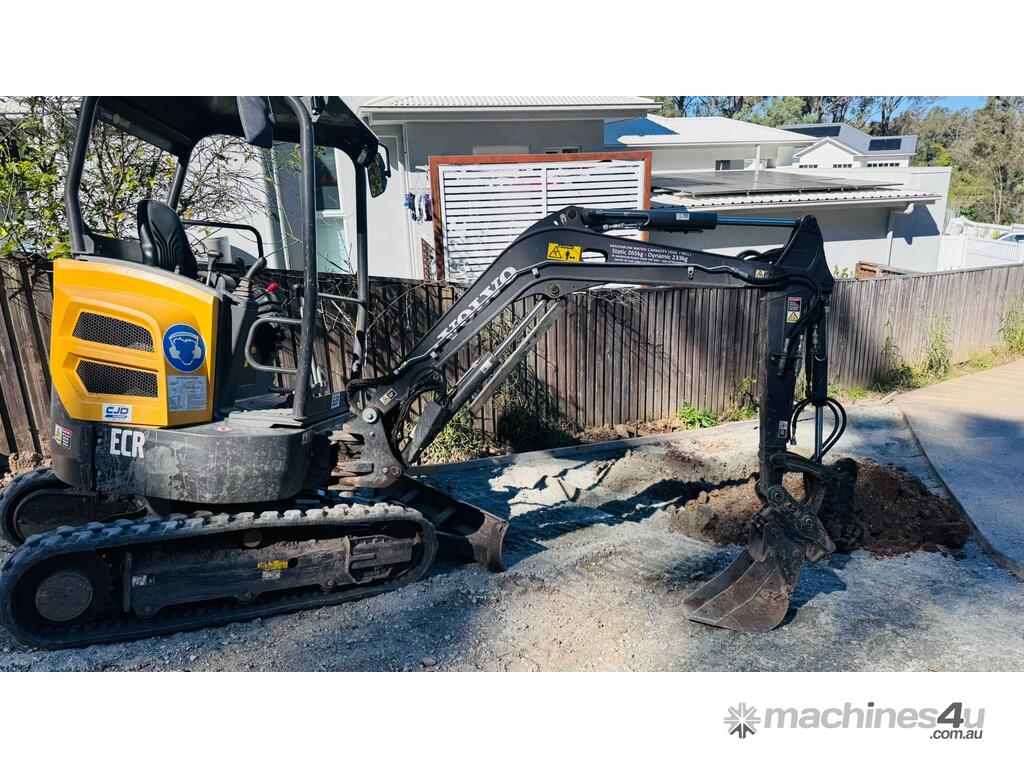

Volvo ECR 25D 2.5 Ton Excavator

Standard Machine Features
• Engine
- Volvo D1.1A direct injection diesel engine
- Max Power of 15.6kW2,400 RPM
(ISO3046-1)
- 2 stage air cleaning system
- Automatic return to idling system
- Auto Engine shutdown
- Adjustable low idle timer

Hydraulics
- Closed centre load sensing system with
load independant functions
- 1 x Variable displacement load sensing
pump 67 L/min
- 45 L/min 1
st Accessory circuit with
progressive finger-tip control
- 23 L/min 2nd Accessory circuit
- ISO power-assisted hydraulic controls
- Automatic 2 Speed travel
- ORFS (O-Ring Face Seal) technology of the
hydraulic connectors provides 100% leakfree joint
• Undercarriage
- Standard 250mm Rubber Track
- Long undercarriage for stability
- 4.5 Km/h Travel Speed
• Boom, Dipper & Dozer Blade
- Boom 2.05 m length
- Dipper arm 1.05 m length
- 1.55m dozer blade
- Safety Valves (craning valves) fitted to
boom, dipper and blade. Controlled
lowering

Canopy
- Reduced swing radius
- Auto Idle
- Multi-adjustable Operator’s fully-suspended seat
and console assembly
- 2 inch Seat belt
- ROPS and OPG1 On Top protective Canopy
structure
- Ergonomic armrests
- Left and right rear view mirrors
- Proportional control for boom offset and
auxiliary circuits
- Electrical Equipment
- Warning lights for hydraulic filter and air filter
restriction

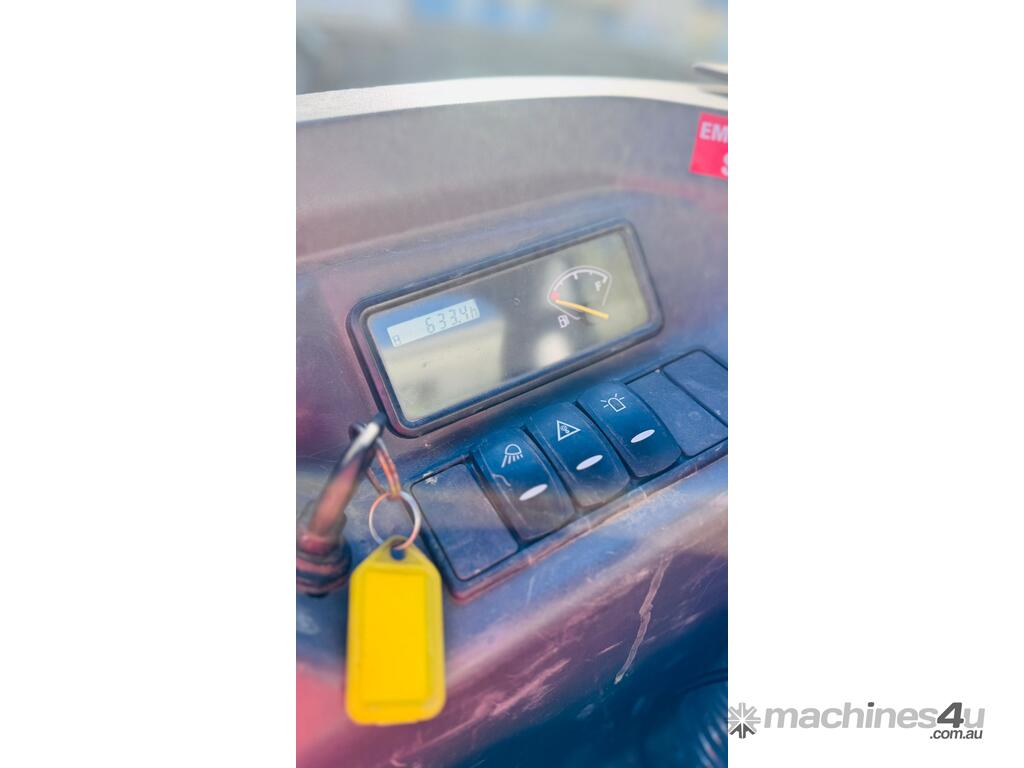

- Gauges: water temperature, fuel level
- Warning lights, coupled to an audible signal, in
the event of overheating or drop in oil pressure
- Water-resistant electrical connectors
- Rotating beacon and guard
- Other Equipment
-
Quick Hitch A2
Buckets

ADDITIONAL EQUIPMENT-included
• Hazard Id
• Volvo 300mm GP bucket
• Volvo 500mm GP bucket
• 200mm gummy bucket
• Ripper
• E-stop (1)
• Hydraulic quick hitch
• Volvo 1200mm Mud/BOE
• Oil sample bottles and pump
• Canvas seat cover
•
