Vortex HDV PAPR Respiratory Protection

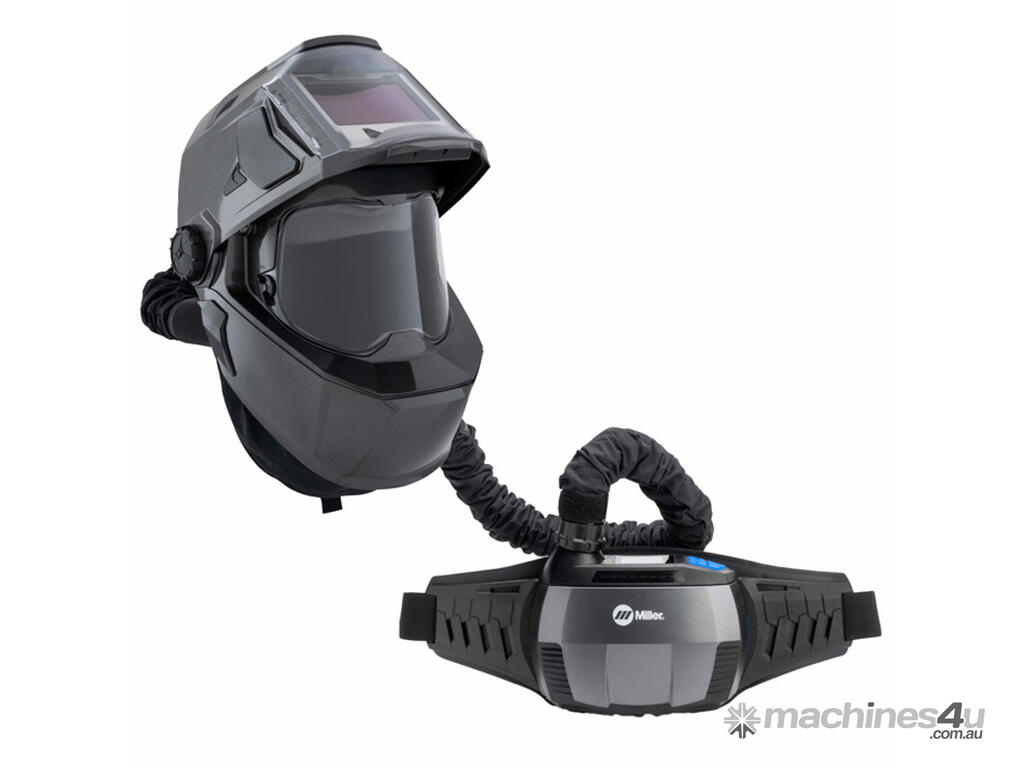

Miller's Vortex HDV PAPR system provides the next level of welding respiratory protection for the most demanding applications. Lightweight, it increases wearability and features 6 air distribution points and 3 cooling speeds to keep you cooler on the job. Plus, with Miller’s exclusive HDV Lens Technology and ClearLight™ Lens Technology, you’ll get a sharper, clearer, more detailed view with minimal distortion so that you can see more every time you weld.

PAPR Specification

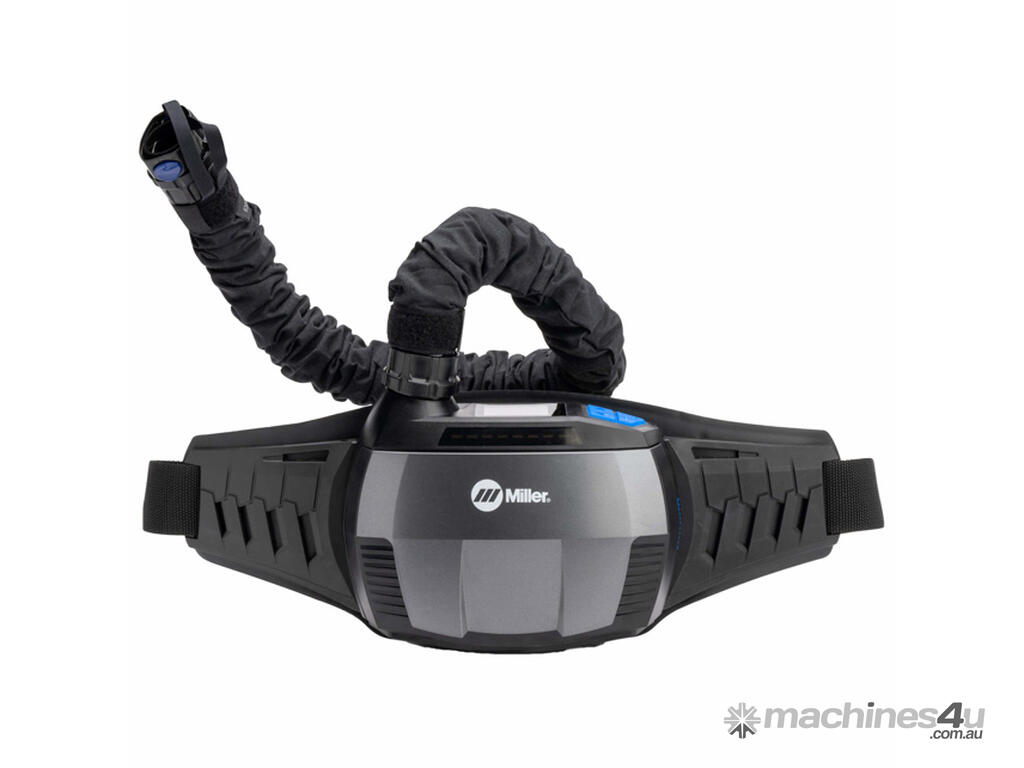

Size (Blower Assembly)

210 x 178 x 76mm

Weight (Blower Assembly, Filters, Belt Shoulder Straps and Battery)

1362g

Air Filter Assembly

Spark guard screen, foam prefilter, and particulate (HEPA) filter - down to 0.3 micrometers in size

Air Flow

Low Speed: 6.18+ CFM (175+ LPM)
Medium Speed: 6.89+ CFM (195 LPM)
High Speed: 7.59 CFM (215 LPM)

Operating Temperature

-5 to 55°c

Storage Temperature

-10 to 80°c

Battery Type

Rechargeable lithium 14.8V, 3A

Battery Charging Time

About 3 hours

Battery Life

500 charges - run time dependent on air flow rate and filter load

Belt Size

711 to 1397mm

Standards

AS/NZS 1716.2012

Protection Level

Class 2 particulate filter meets AS/NZ1716:2012 standards

Warranty

1 Year Warranty (Blower Unit)

Ultra HDV Helmet Specification
Viewing Area

97 x 60mm

Cartridge Size

114 x 120 x 9.5mm

Modes

X-Mode™?, Weld, Cut, Grind

X-Mode™?

Shade 8 - 12.5

Grind Mode

Shade 2.5

Cut Mode

Shade 5 - 8

Weld Mode

Shade 8 - 12.5

Switching Speed (Light to Dark)

1/25,000 sec

Delay Speed (Dark to Light)

0.1 - 1.0 sec

Arc Sensors

4

Optical Grade

EN379 1/1/1/2

Weight

709g

Power

CR2450 lithium battery and solar assist

On/Off Control

Automatic on, off after 45 minutes

Operating Temperature

-10 to 55°c

Australian Standards

AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1B (High Impact)

Warranty

4 Years (Auto-Darkening lens only)
