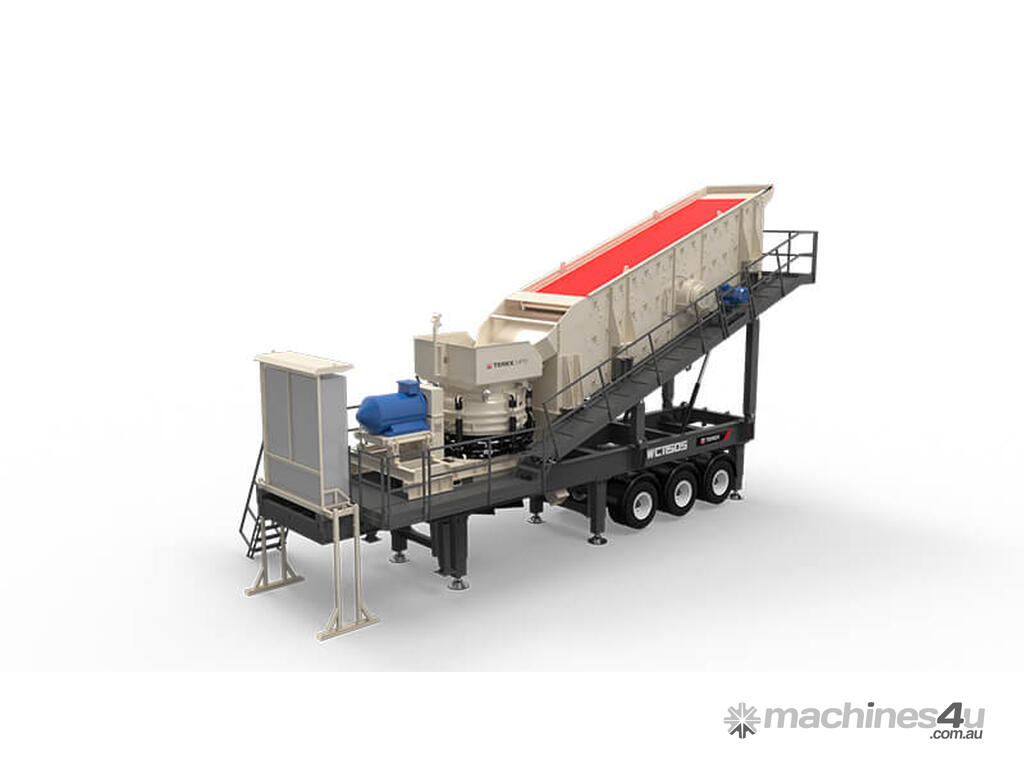

The Terex® MPS WC1150S Cone-Screen plant is a high performance, medium sized wheeled crushing-screening system. At the heart of the plant is the TC1150 cone crusher with hydraulic setting, tramp release & unblocking system. Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. Onboard screen allows for sizing product from a single plant. A level sensor over the cone crusher regulates the feed to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life & optimal product shape. Plants comes with added features for simple and easy installation of the plant.
Weight: 84,878 lbs
/ 38,500 kg
Transport Dimensions: 45'1"x9'3"x13'11" (LxWxH)
/ 13733x2804x4239 mm (LxWxH)
Working Dimensions: 42'11"x17'8"x24'4" (LxWxH)
/ 13072x5375x7409 mm (LxWxH)
Axles: 3 axles
/ 3 axles
Capacity: 165-320 tph
/ 150-290 mtph
