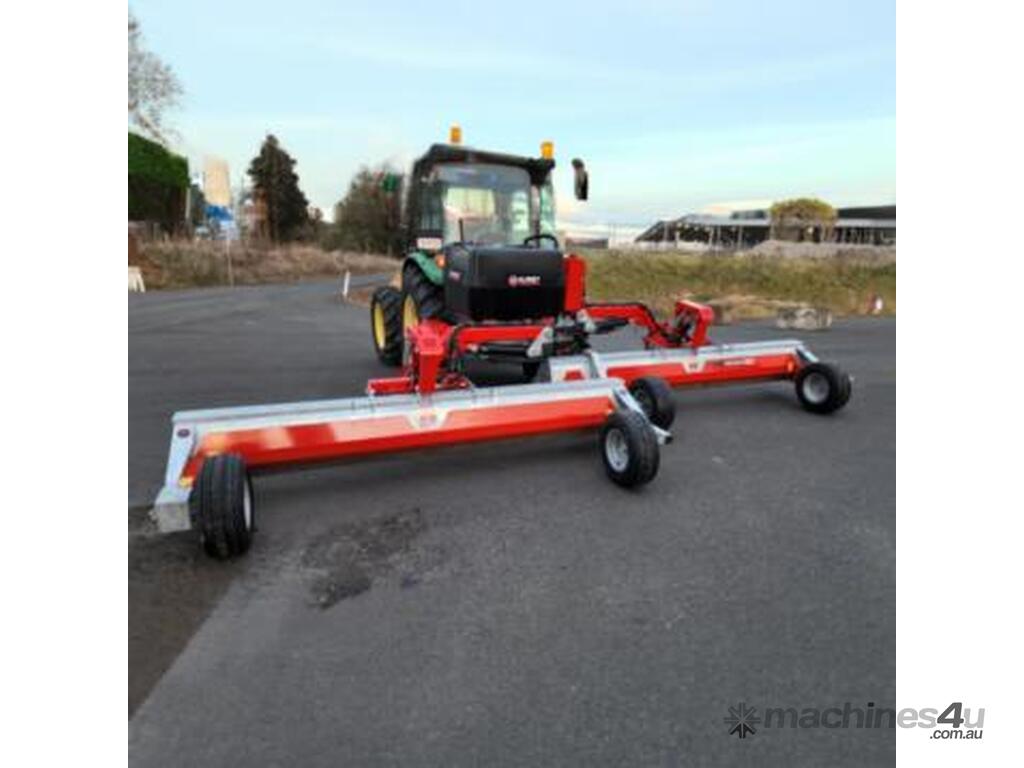

WEED X-TERMINATOR DUAL ROLLER WEED WIPER - 5.7 M 3PL WEED CONTROL MACHINE

Dual rollers offer the most cost effective solution to grassland weed control. Only weeds are targeted for massive savings on chemical and it’s eco-friendly.
Blaney have been pioneers in developing weed wiping technology which has become the most effective proven alternative to boom spraying, thanks to massive savings on chemical. By targeting only the weeds with herbicide, the grass and valuable clover are left untouched and grass growth rate is not affected. Weeds on grassland can be controlled effectively though weed wiping provided the weeds are taller than the grass.

Blaney have developed a range of revolutionary patented Weed Wipers to deal with the toughest of weeds. The tractor-mounted wipers, with contact widths from 3m-4,5m, offer a unique solution for weed control even across larger grassland areas.

Environmental Benefits
With no off spray, wildlife habitats and species-rich protected areas are less affected and it makes weed control healthier for you too.

For smaller applications or if you can’t access your ground with your tractor why not try our ATV Weed Wipers towed models manufactured by, available in 2.4m widths with flotation tyres as standard to tackle those wetter areas tractor can’t reach!

CHEMICAL APPLICATION
Automatic weed detection & chemical application
Blaney Agri offer an innovative weed detection system, ensuring all you have to do is fill your tank and drive, and you will have no more need to guess when, where and how much chemical to apply. It is all done for you.

The weed detection system automatically activates the system to apply the optimum amount of chemical to the rollers, only when weeds are present, leaving you free to concentrate on driving while saving chemical.

This unique chemical control system allows you to regulate the chemical application rate for different weed densities to reduce costs while maximising weed kill.

Unique Atomisation Technology

Through considerable development time and investment, Blaney Agri has discovered a process of unique atomisation technology, where chemical is applied in the form of microbubbles that attach themselves to the open fibre rollers without bursting.

Upon contact with the weeds, the microbubbles burst and provide a better stem coverage than the standard chemical film approach.

ROLLERS
Long fibre synthetic rollers
Absorbent long fibre rollers ensure less drips and optimum chemical retention and application.

Synthetic fibre rollers offer maximum chemical resistance and do not rot.

Dual rollers

Dual rollers rotate in opposite directions for optimum chemical application and quick kill. Dual rollers help achieve up to 100% kill rates, without the need to wipe in the other direction, to save time and chemical.

The 1st contra-rotating roller lifts the weed and applies chemical to the sensitive underside, rather than the waxy surface for faster kill rates.

The 2nd roller acts to separate out clumps of weeds for better application. Chemical is applied to the primary roller, while the second roller absorbs any excess to minimise drips.



Blaney Agri weed wiper double roller
IN-CAB CONTROLS & SYSTEM DIAGONOSTICS
In-cab Controls & System Diagnostics
Fully electronic in-cab controls allow you to operate each section independently, all from the comfort of your tractor seat. Depending on the width of the weed wiper, the controls will control either 1, 2 or 3 wings.

System Diagnostics offers an easy troubleshooting aid, taking the fear factor out of the electronic system.

weed licker chemical control
UV PROTECTED TANK
Blaney Agri offers a durable UV protected spray tank to hold the water/chemical mix. It is positioned on a raised frame to allow for easy inspection of the tank
contents without having to leave the cab.

The 3m wipers come with a 100l tank as standard (shown above) with the option to upgrade to a 230l tank. The weed wipers 4.5m wide and above come with a 230l tank as standard, with an updated tank retaining system.

weed wiper sprayer tank
ACCESS STEPS
The image below shows the fold away steps which can be folded out for easy access when filling the tank. wipeout2-steps_drawer
PUMP
It comes equipped with a high capacity pump and is equipped with pressure relief.
High capacity
Fully submersible
Four chamber pump
Creates more pressure
Creates finer droplets
More accurate coverage
Auto cut-out switch
Steady pressure for less waste
The pump is cleverly concealed for protection from the elements and any unwanted knocks.

High capacity pump for weed sprayer
HEIGHT ADJUSTMENT
The Weed Wipers have an infinitely adjustable height range from 140mm to 500mm, depending on the tractor linkage. Hydraulic height adjustment is a feature on the 4.5m models and above, for quick and easy repositioning to suit grass and weed height. It is on the 3m model.
SPRING SUSPENSION
An innovative spring suspension system allows for floating over ground contours for accurate and effective weed kill. The machine can compensate for steep undulations, difficult to control in wider widths. Wipeout 2 570 spring suspension
FOLD-UP DESIGN
The Blaney Agri Weed Wipers 4.5m, 5.7m or 6.6m wide all feature an innovative fold up design, for safe road travel and easy travel between fields
TYRES / GROUND DRIVE
The weed wipers are equipped with wide profile tyres to minimise tracks and surface damage in wet areas and tight turning circles.
The Weed Wipers follow the contours of the ground for effective chemical application. Multiple units are designed to pivot for successful wiping even on undulating land.

ground driven weeed licker
PIVOTING HEADSTOCK
The innovative pivoting headstock allows the machine to better follow field boundaries (must be lifted at headlands).


3PT LINKAGE
The range of weed wipers features standard category 2 three-point linkage. Category 1 and 3 are optional.
The tractor-mounted weed wipers are ideal for use on outlying fields since they can be lifted on the linkage to allow you to drive between fields easily, without having the weed wiper rollers engaged and turning.

ROAD LIGHTING
Taillights, indicators and brake lights are incorporated into the machine for safe road travel.
SERVICE ACCESS
Multiple access points for quick and easy servicing of chemical atomisers.
