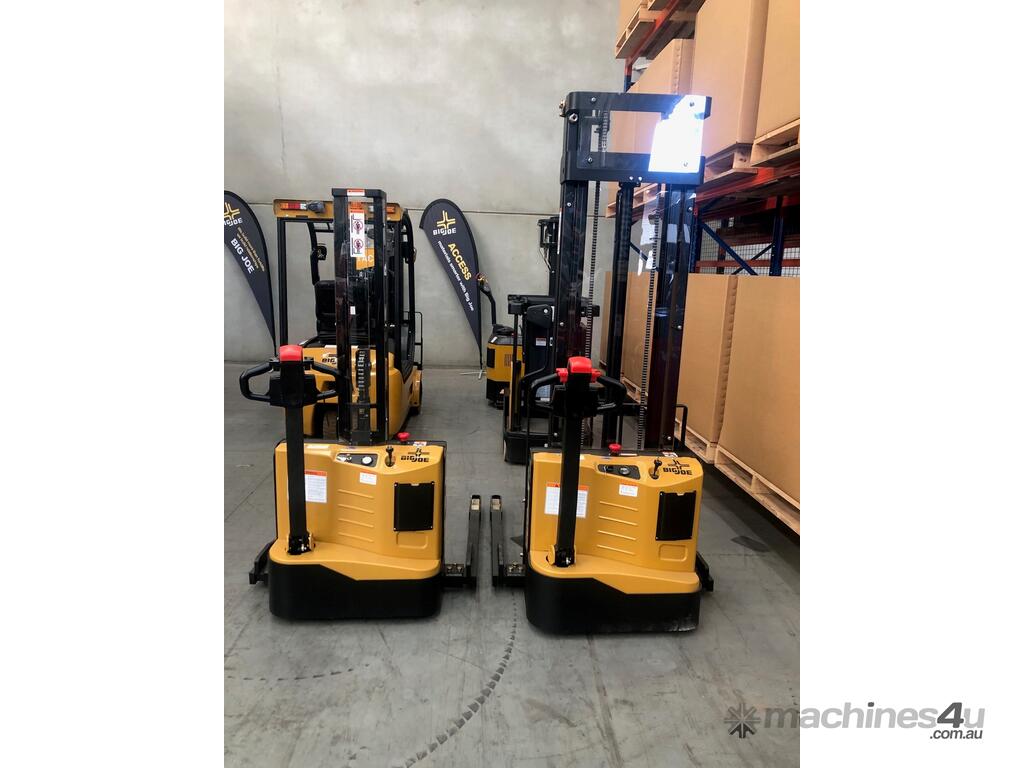

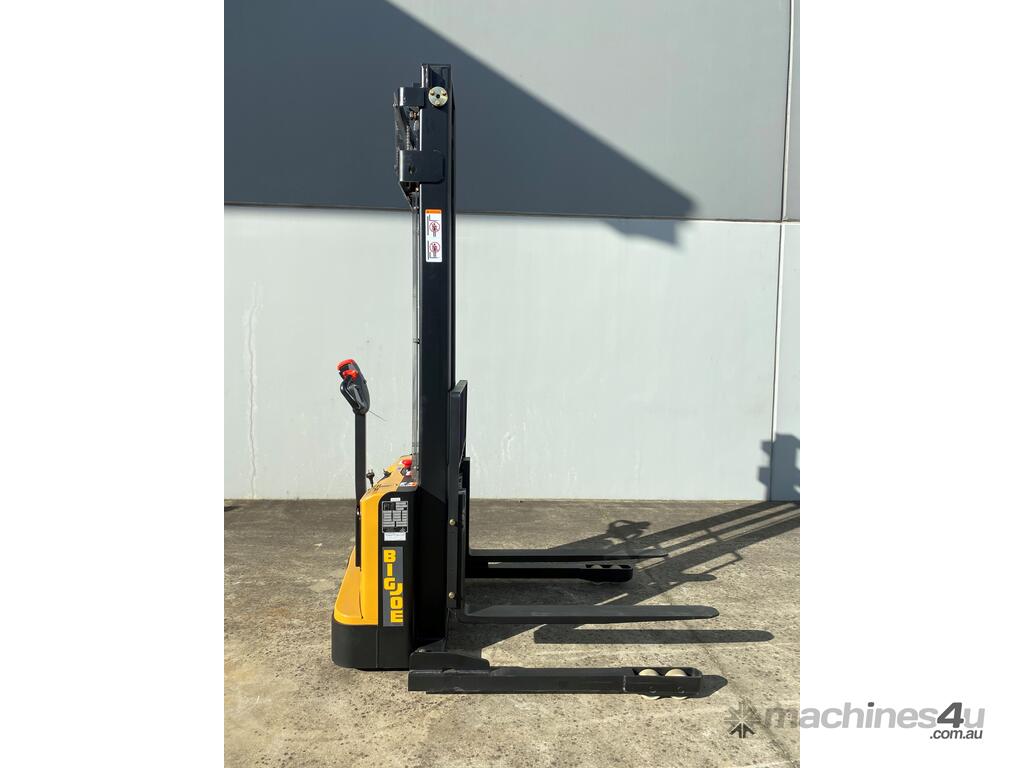

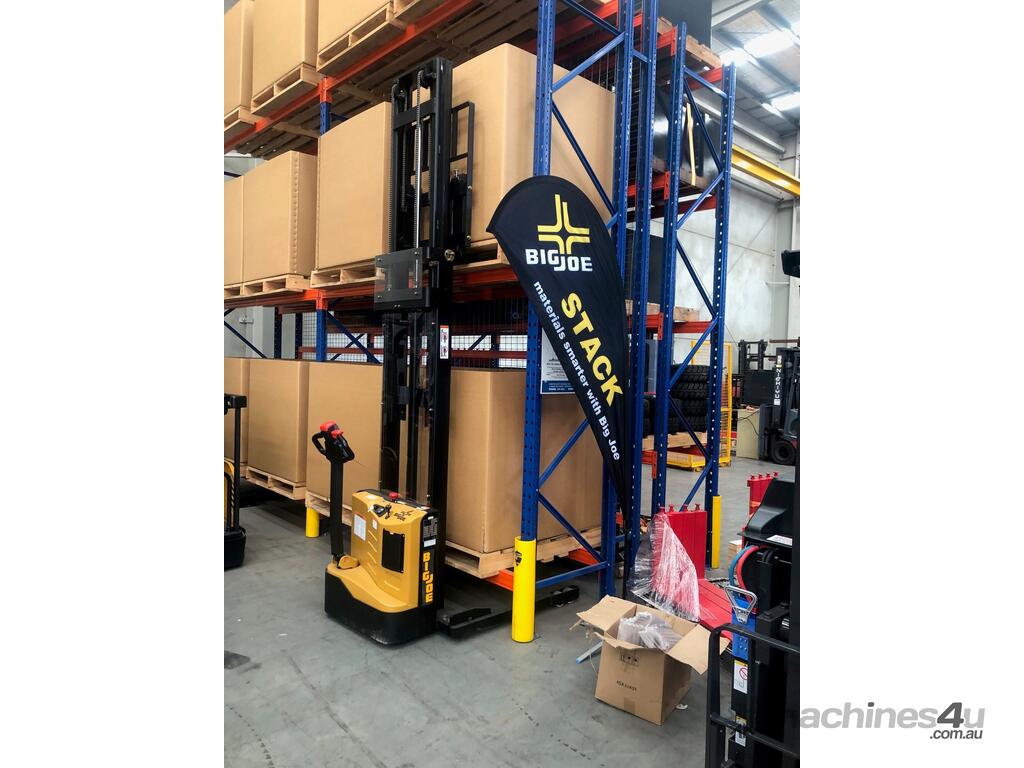

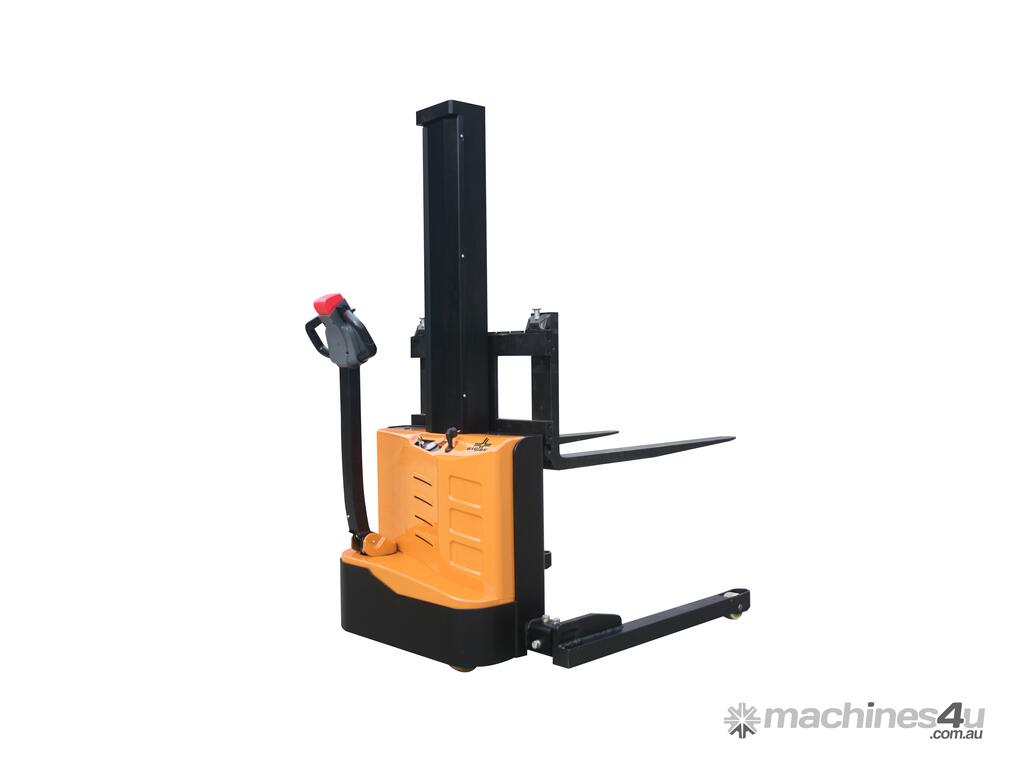

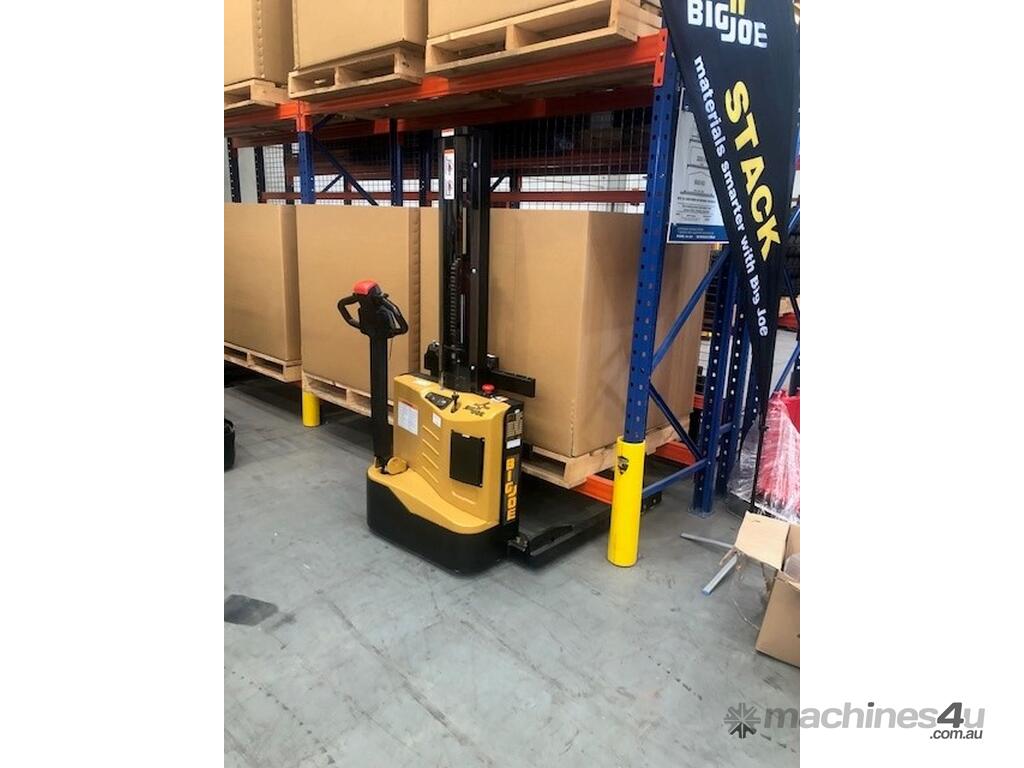

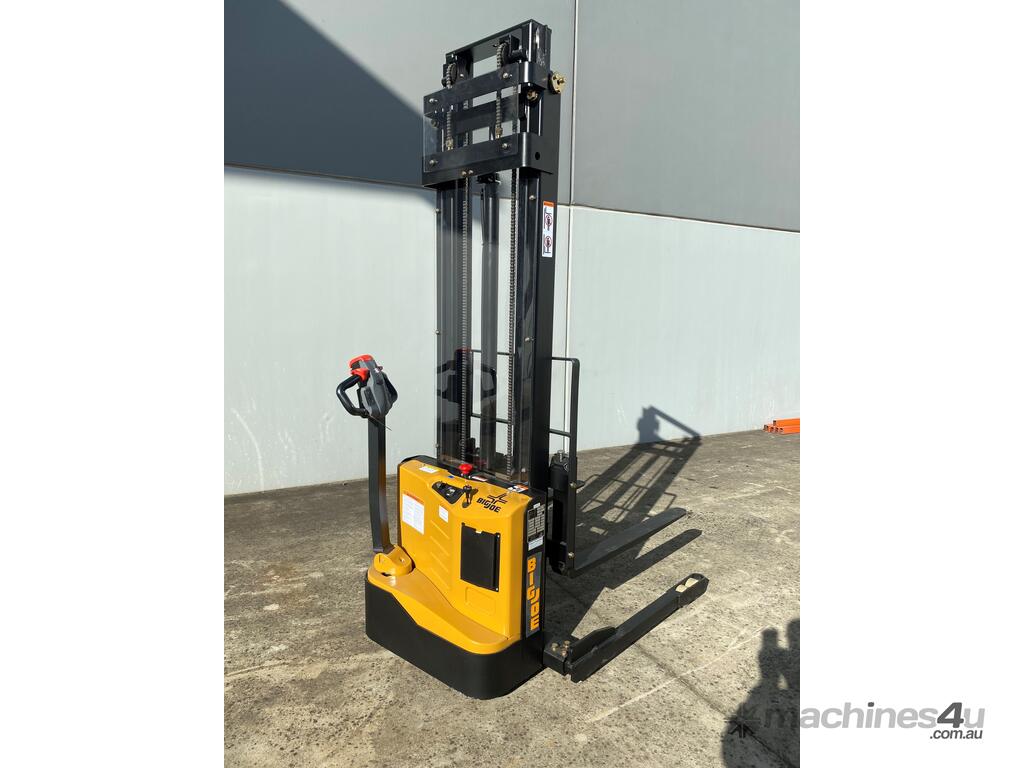

Walkie stacker self-propelled

TILLER ARM CONTROLS
Offset steering arm provides excellent line
of sight for operators. Right angle stacking
in aisles as narrow as 1600mm.
Travel, lift, and lower functions are located
in the ergonomic operator handle. All operator
controls are accessible without having
to lift the hand from the handle.
Angle grips are designed to allow easy
operation with either hand. Wrap around
guard, reversing switch, thumb control,
and horn are standard. Low mounted tiller
arm offers excellent operator comfort and
minimum steering effort.
FRAME AND MAST
All steel construction welded rigid steel
chassis for added durability. Adjustable
forks on ITA style carriage. Forks are adjustable
from 204mm to 750mm OD. Standard
fork is 1070mm long x 100mm wide x 33mm thick

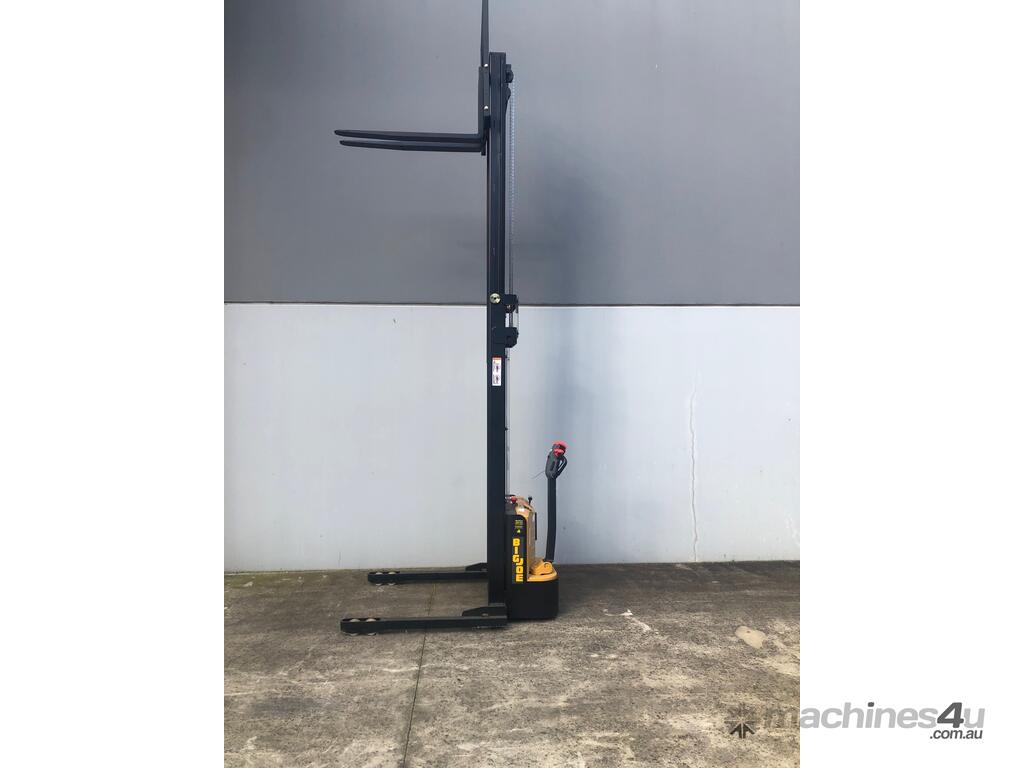

S22-62 non-telescoping mono mast with
single lifting chain, adjustable mast rollers.
Chrome plated lift cylinder provides
smooth lift/lower operation and long life.

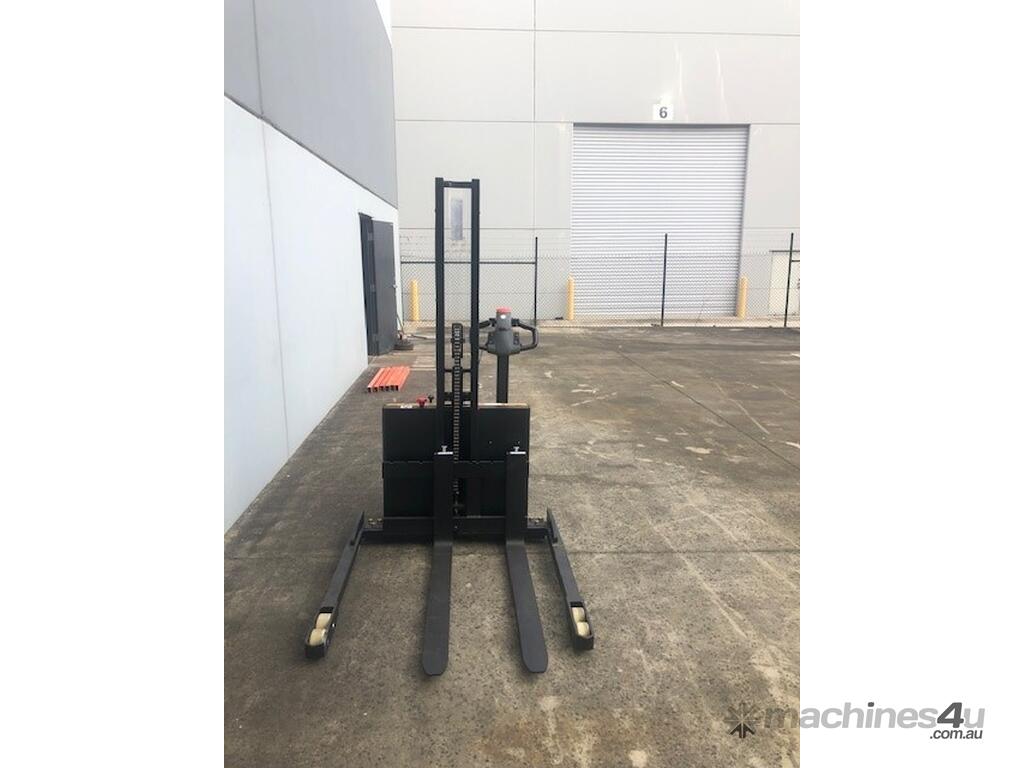

Three inch wide adjustable straddle legs
for ease of operation in racked aisles. Four
position adjustment allows for preset
outrigger dimensions to fit various sized
pallets. Straddle leg inside dimension (ID)
can be set at 965mm to 1270 in 100mm increments.
Fully enclosed wheel guard and flush
mounted axles prevent wheel and axle
damage during normal use.
SERVICEABILITY
Removable one piece power head cover
allows for easy maintenance.
OPTIONAL BATTERY UPGRADE
? 85AH available on model S22-62
? Hand held remote lift & lower control
box with 3’ coiled cord
TWO STAGE MAST

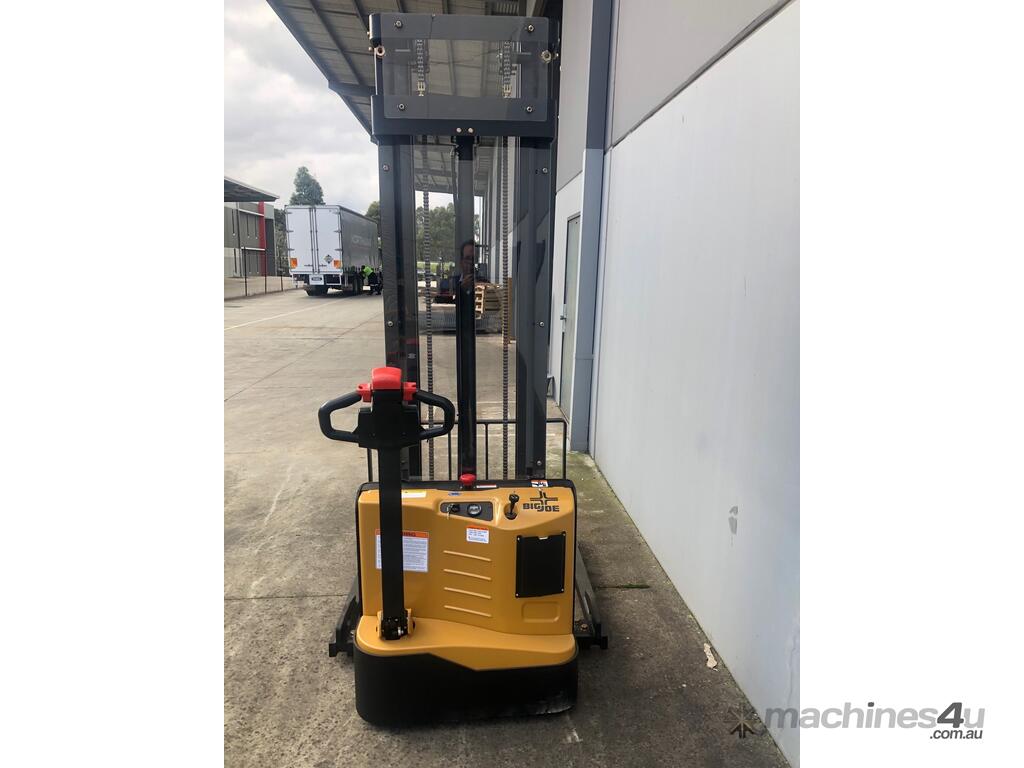

S22-96/135 telescoping high visibility mast
and inner rail, clear view Plexiglas mast
guard, dual lifting chains, adjustable mast
rollers. Chrome plated lift cylinder provides
smooth lift/lower operation
