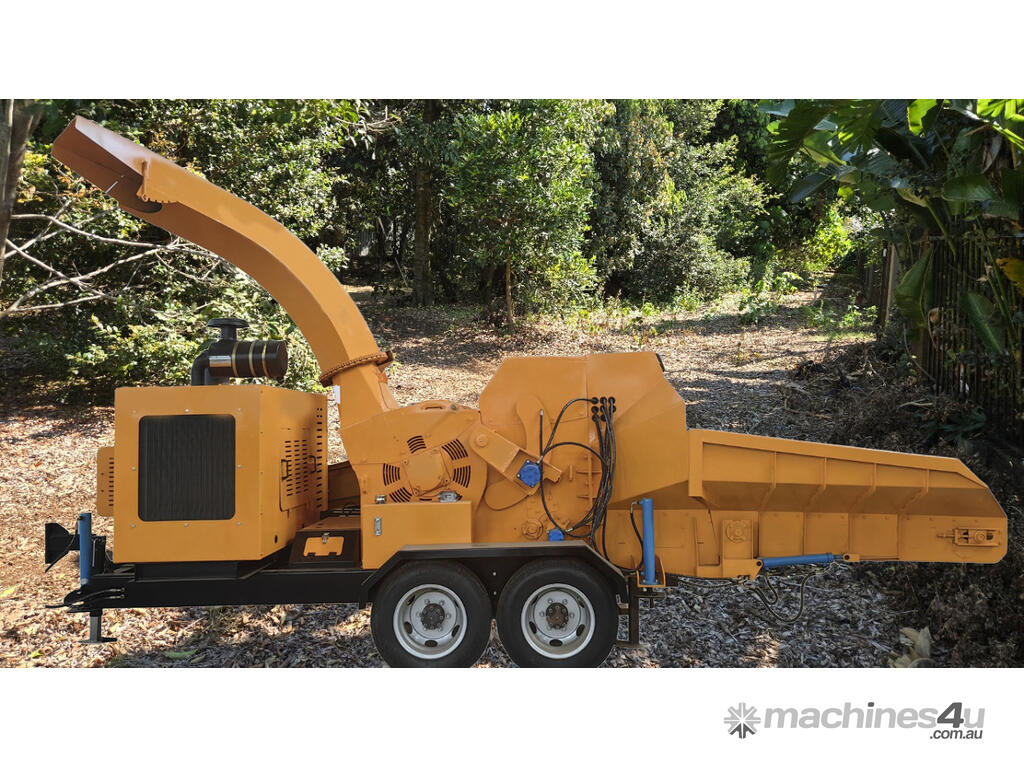

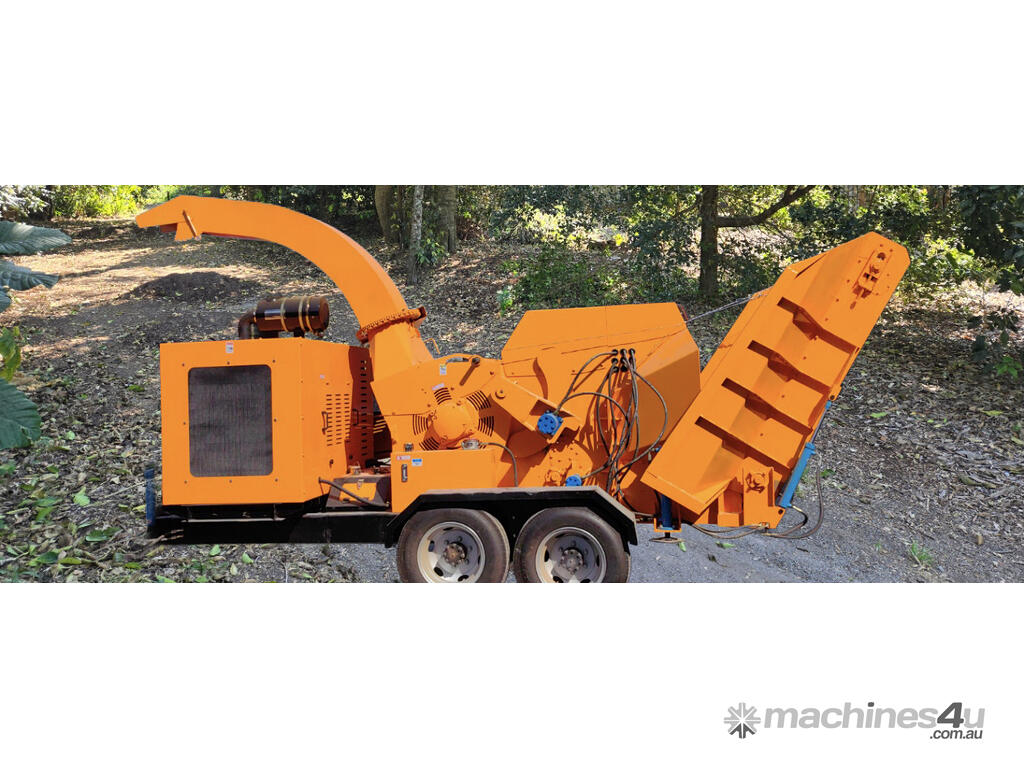

Wheel or Track Mounted 200mm Drum Wood Chipper

Wood Chipper
Model VIC-D100W
Maximum Feed Diameter 100mm
External Dimensions L2300xW1300xH1800
Overall Dimensions L2400xW1380xH1150
Production capacity 1-2Ton/Hour
Engine Changxin 32HP 22Kw Diesel

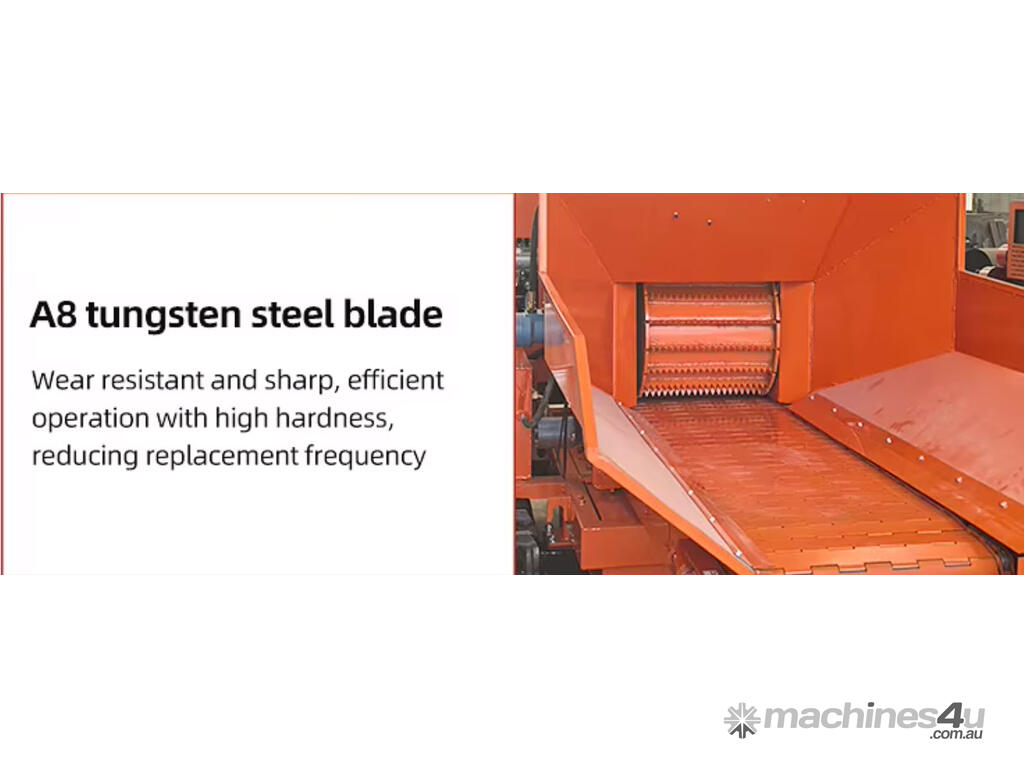

Number of Blades H12 Metal ,4 moving blades, 1 static blade
Battery 12V 120AH
Feed Roller Diameter 280mm
Fuel Tank Capacity 20L
Hydraulic Oil Capacity 35L
Feeder Tray Dimension 600*400mm
Feed Throat Dimension 300*200mm
Feed Gear Forward-reverse-stop three-speed manual control

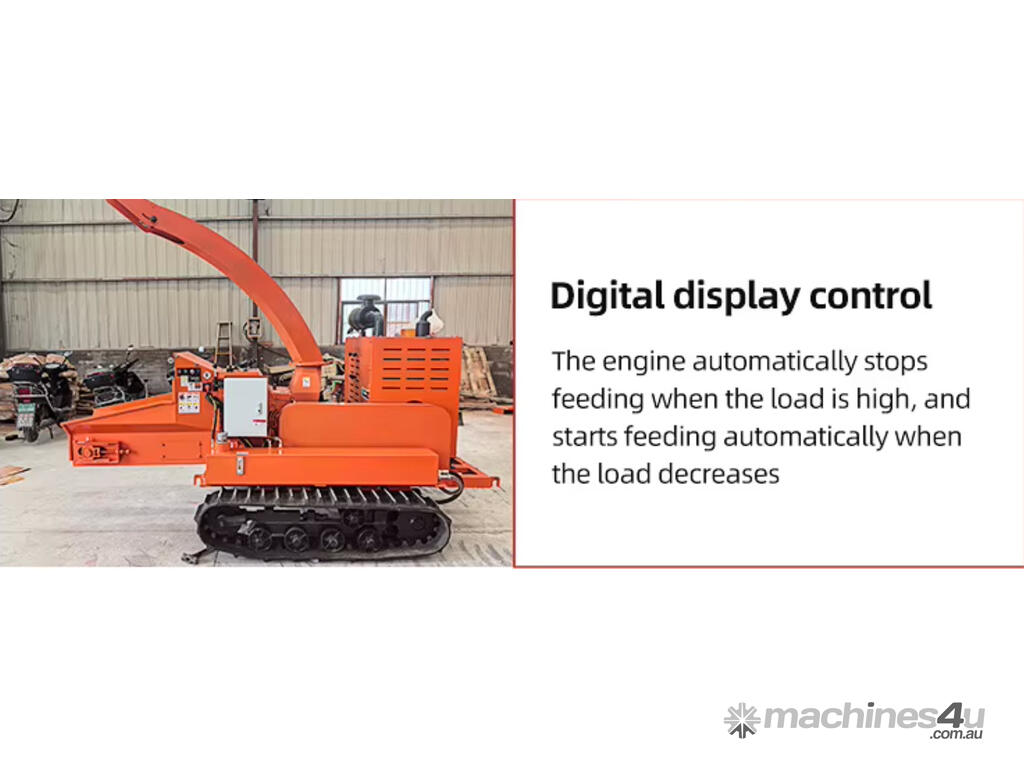

Intelligent Feed System Engine speed display, when the engine load is high, feeding will stop automatically, when
the load is reduced, feeding will start automatically, automatic and manual switching with
one button, the action range can be freely set

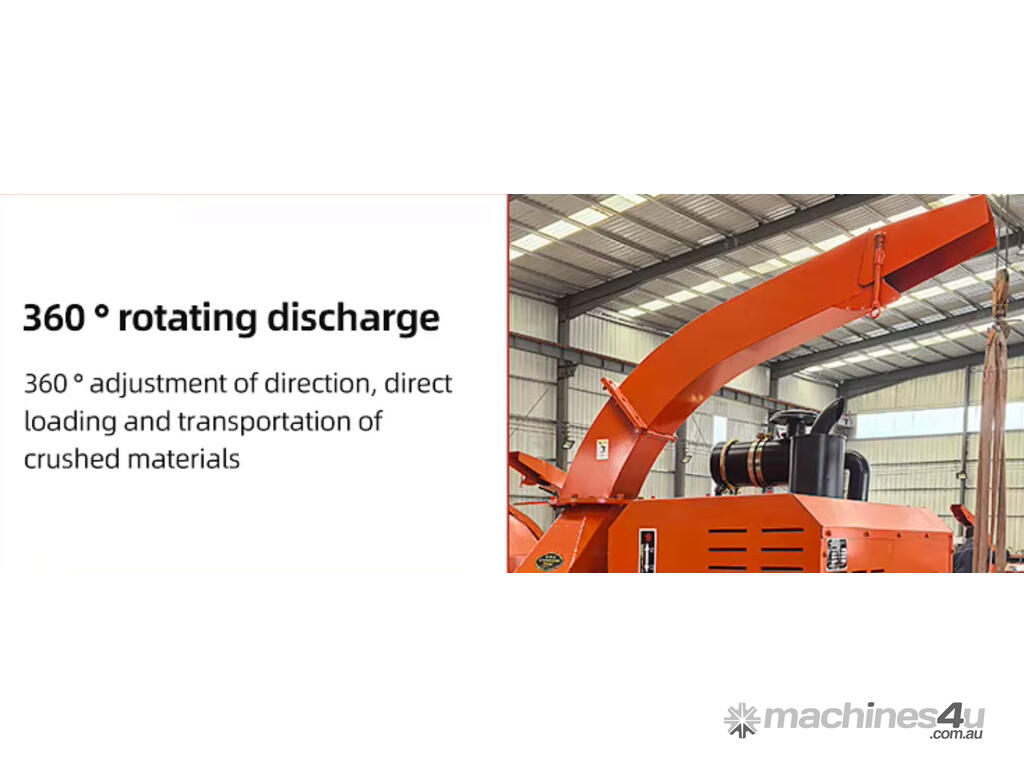

Outlet 360-degree rotating quick adjustment device, discharge height adjustment
Other Configurations Tail light, feed light, folding hand jack, adjustable towing height.
Weight 860kg-1000kg
