Wheelchair Lift with Fold Web Platform

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.
It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

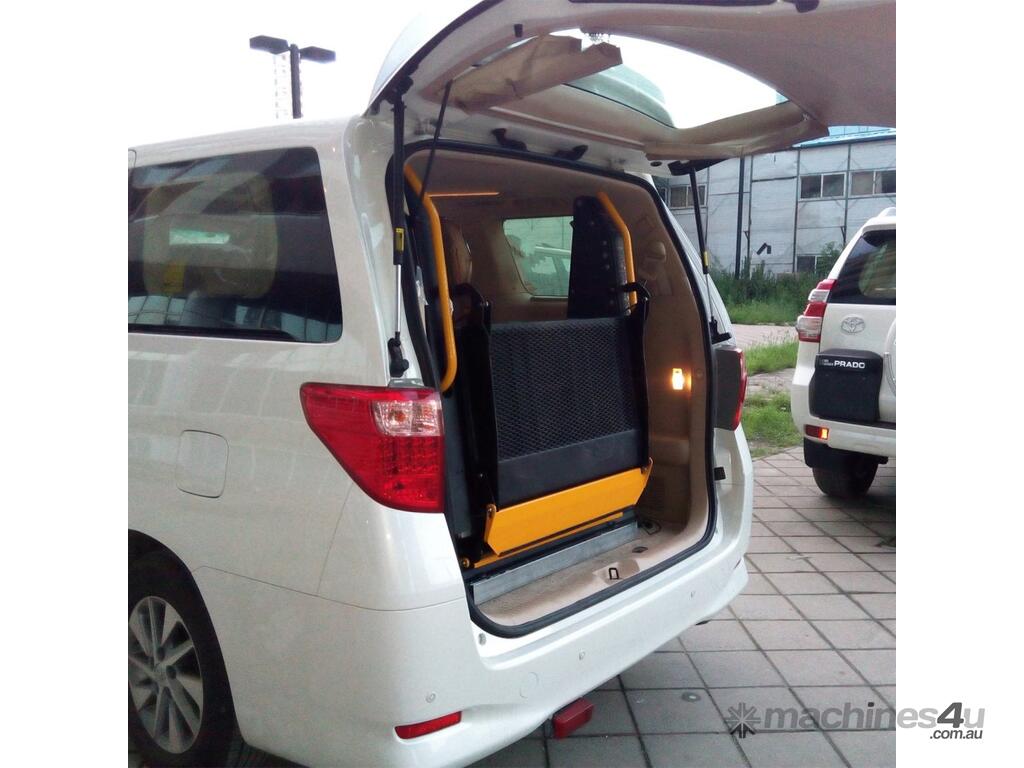

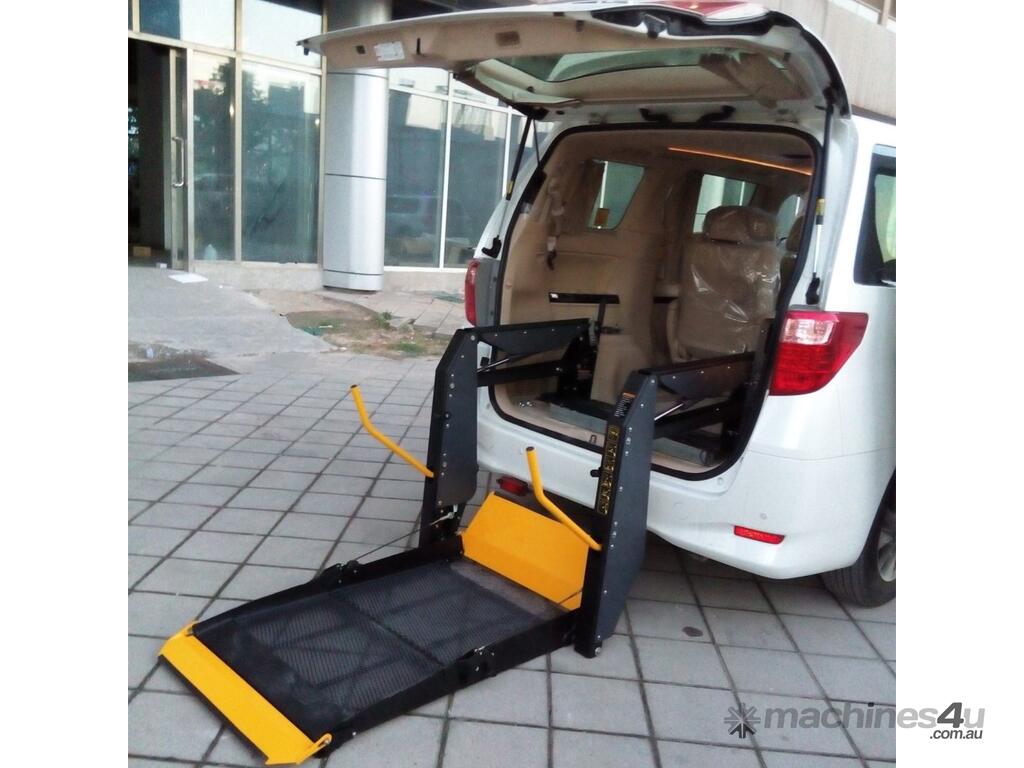

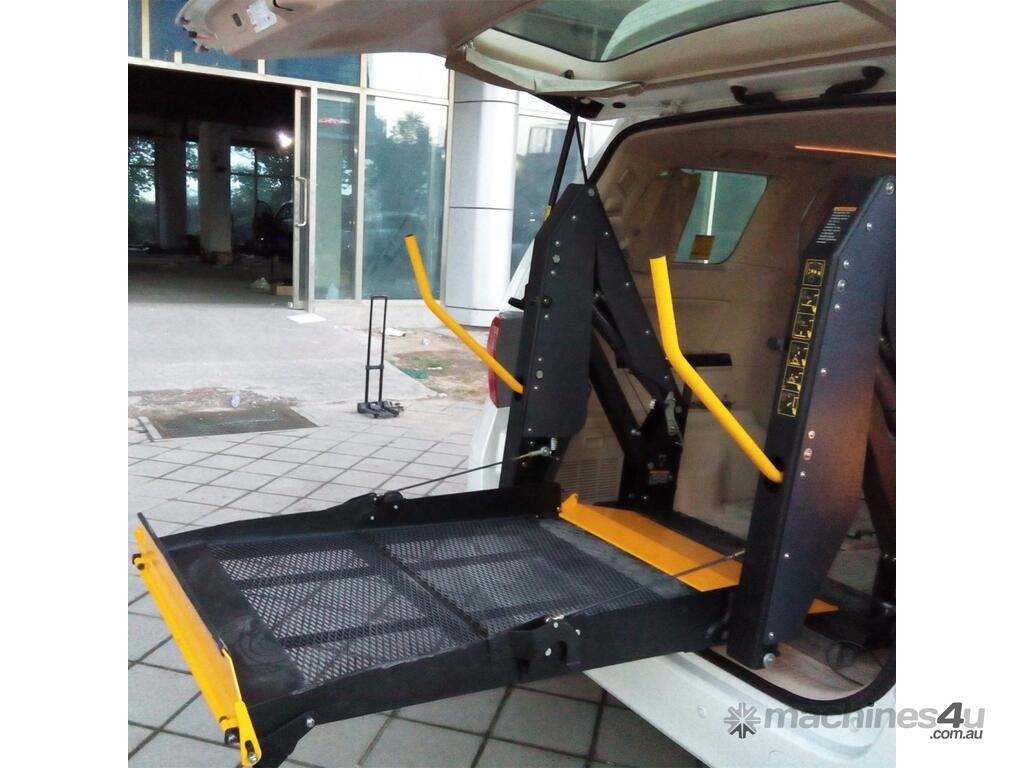

This wheelchair lift can be installed at the rear door or side door. Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic. This lift is operated by a wired remote control .
It also can be operated manually for emergency.


Features:
1.Anti-skid platform provides additional safety;
2.Mechanical auotomatic front and rear roll stops;
3.Warning sound during working;
4.Powerful hydraulic system ensures smooth and stable movements;
5. Equip with handrails to offer increased comfort and security;
6.Manual backup function: in case of no power, this lift can be operated manually
7.Self-locking device;
8.pass low temperature test;
9.pass loading capacity test;
Specification:
Item No: JETDWL880U-1150
Volatge: 12Vdc or 24Vdc;
Power: 500W;
Loading capacity: 350kg;
Lifting height: 880mm;
Package size:1250*520*1420mm

**** Ramp images displayed are a representation of the ramp type or style – They may not be the specifications of the ramps listed on this page****
