Wood Edge Bander 550

Our all new Wood Edge Banding Machine - 550

With us, this is what you get:

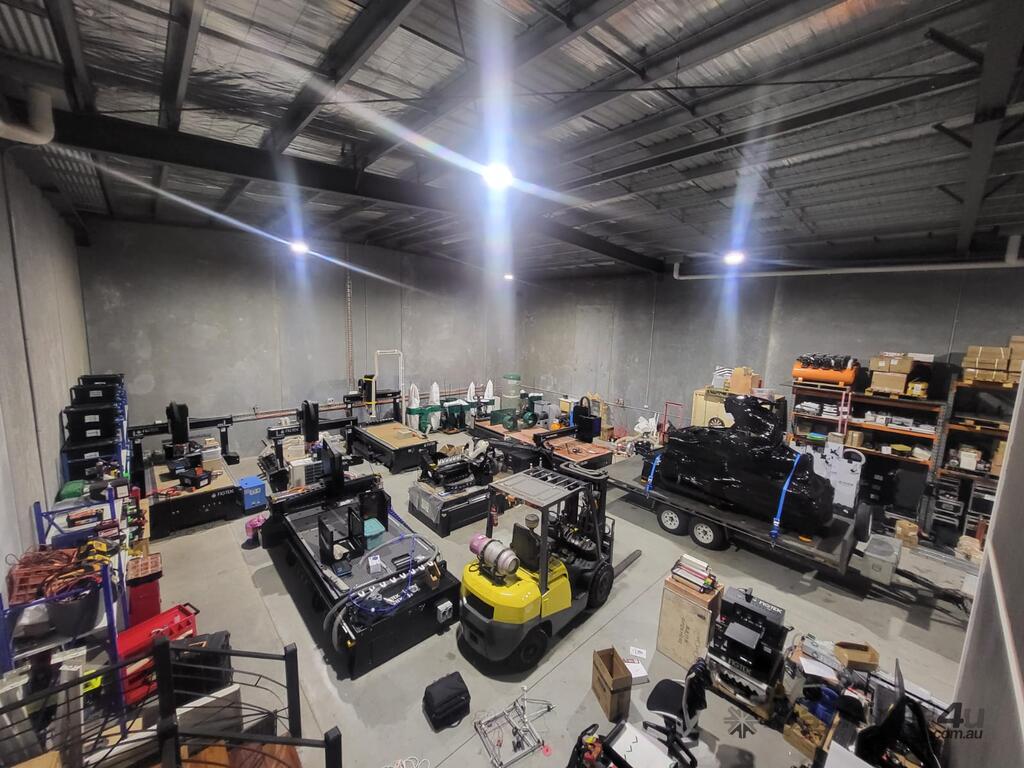

Access to a physical location
Welcome to visit our factory anytime during business hours
More than happy to show you the machines in person

Here's what it comes with:

Machine size: 6700 x 850 x 1520mm
Banding tape thickness 0.4-3mm
Banding tape width: 12-65mm
Work-piece thickness: 10-60mm
Work-piece length: ?100mm
Work-piece width: ?50mm
Heating power: 1.8kw
Feeding motor power: 3.7kw
Glue spreading motor power: 0.75kw
End trimming motor power: 0.5kw*2
Rough trimming motor power: 0.75kw*2
Fine trimming motor power: 0.75kw*2

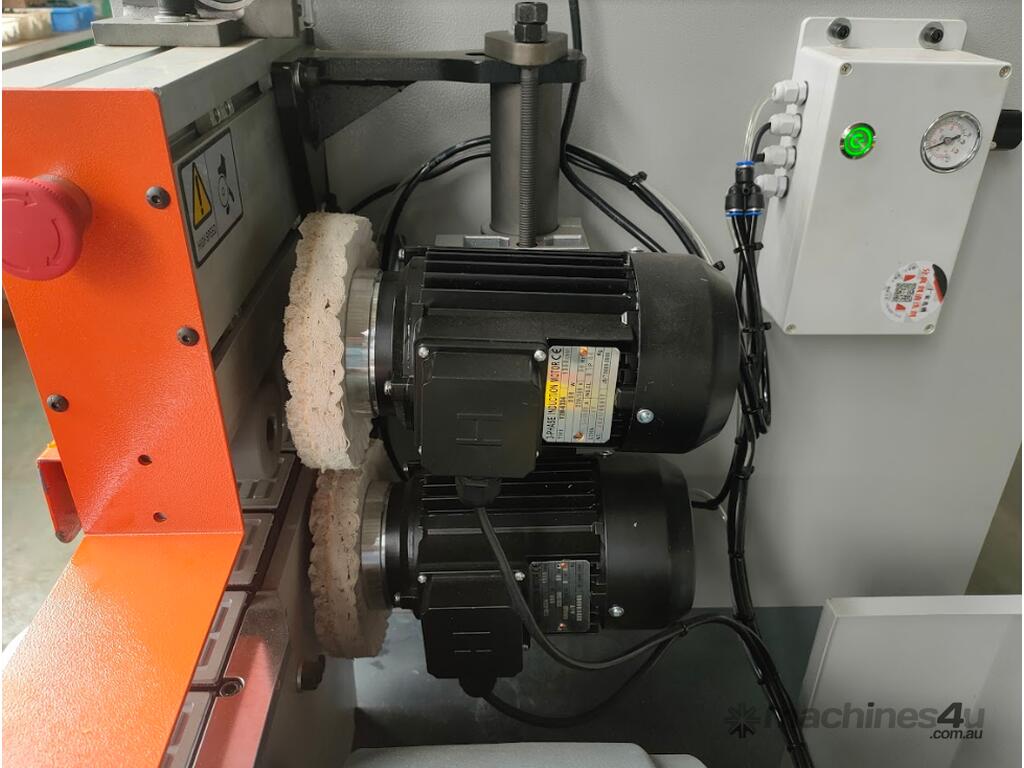

Polishing motor power: 0.37kw*2
Feeding speed: 10-23m/min
Air pressure: 0.8Mpa

Features :
Guided multi-functional control interface with pneumatic control
Pre-milling, gluing, end cutting, rough trimming, fine trimming, corner rounding, scraping, buffing and other processes.
Digital Temperature control

Advantages:
Preheated board to get a better gluing effect
Non-stick material glue pot. Easier to clean without leaving any residue
High quality industry grade bearings
4 irregular pinch rollers which press the band firmly to the plate
Automatic Oiling System
Air Cylinder and throttle valve - Longer life span with less noise
Dust proof plate setting along the whole process of edge banding
Auxiliary pinch roller for narrow boards ensuring stable edge banding even for a panel with 4cm width
6 edged knife for finer trimming - smoother cutting surface
Linear guideway ensuring no abrasions

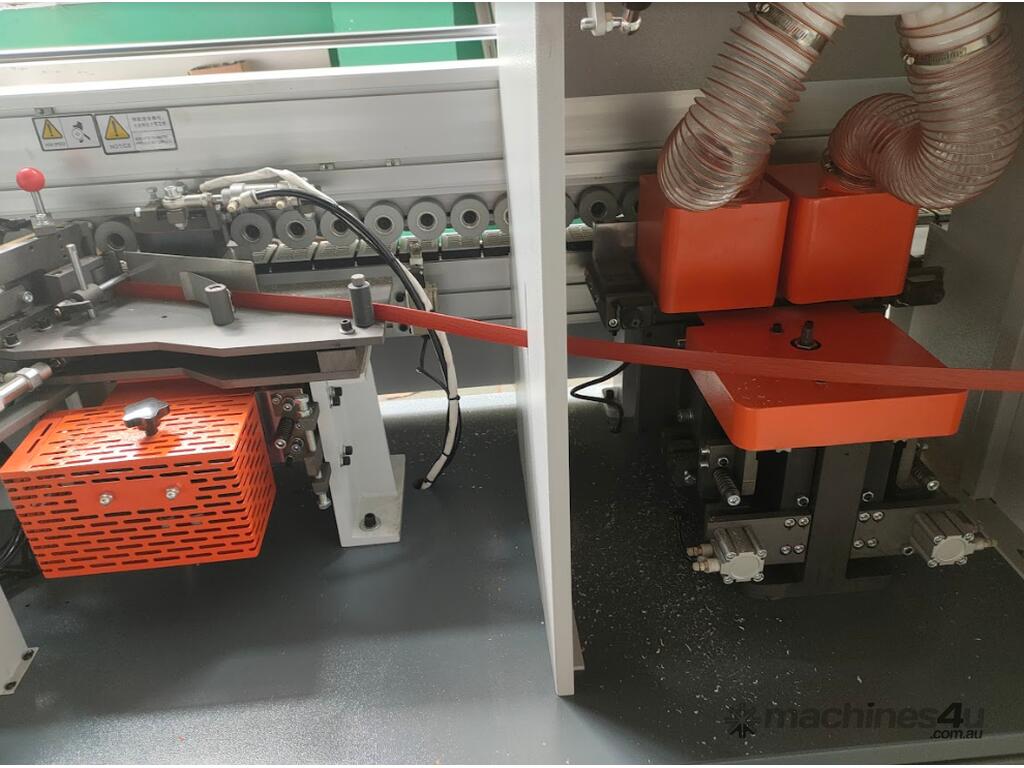

Pre-Milling (Extra*)
• Pre-milling equipment with double trim blades works on the waved effect that is caused by precise saw.

Glue:
• The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more sold conglutination.

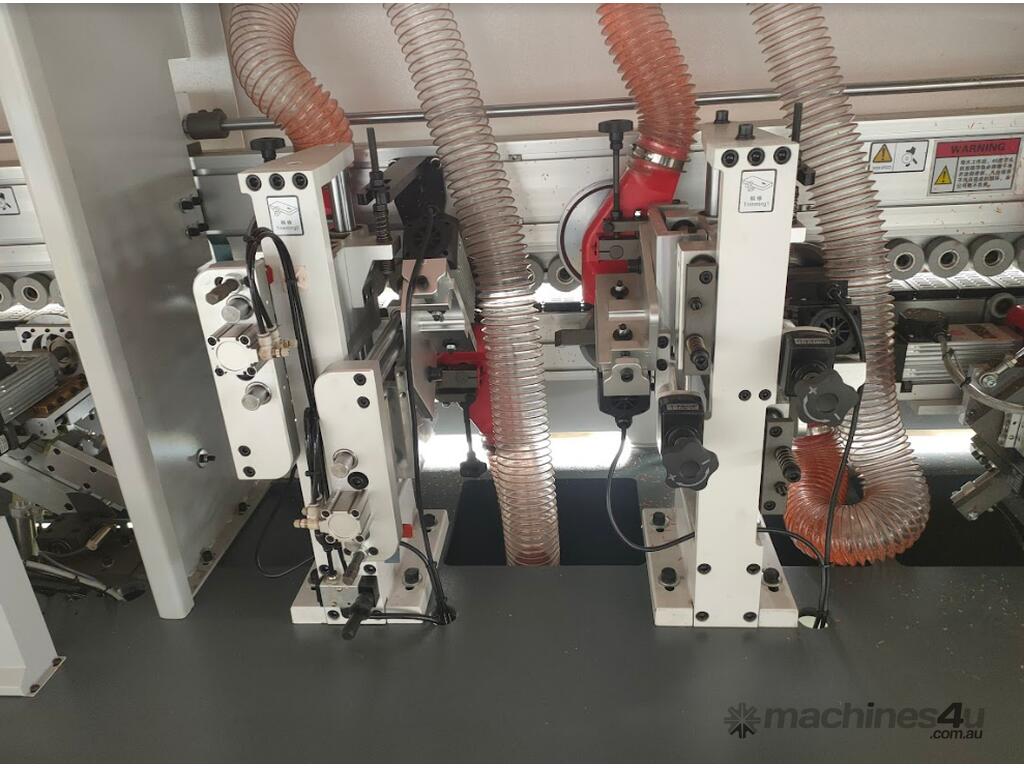

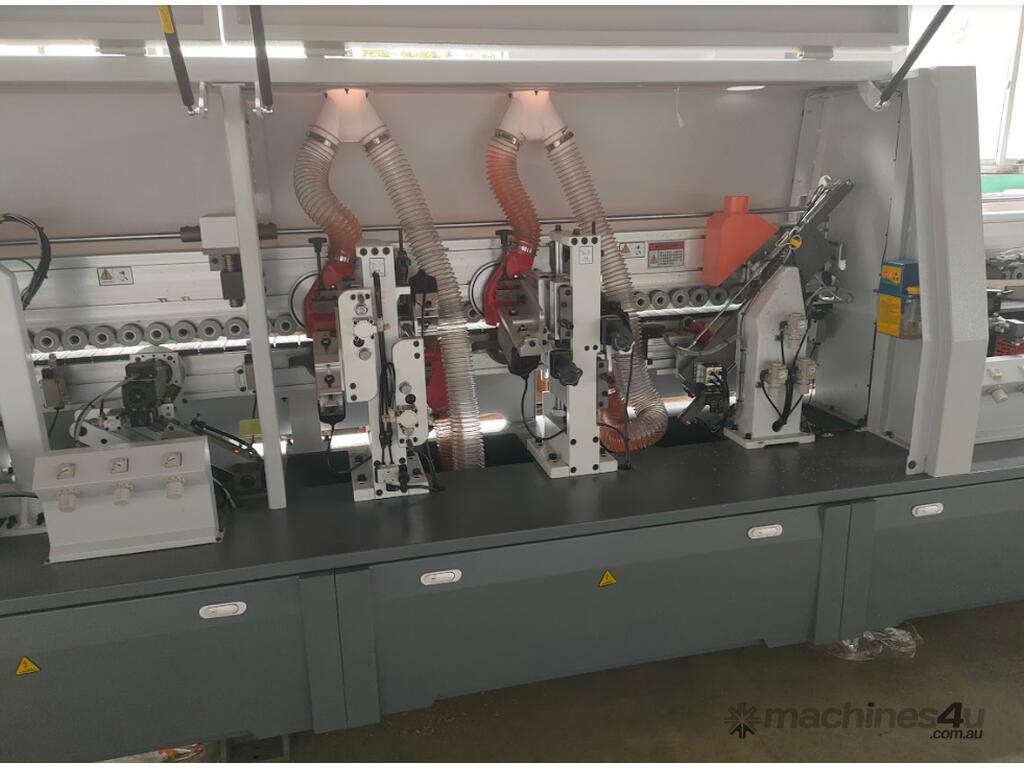

Rough and Fine Trimming Unit, with two individual high frequency motors, trim the exceeding edge on the top and the bottom side of the panel, ensure the top and the bottom side of the edge are smooth and even.

What services we provide?
• We offer installation and training
• We deliver machines anywhere in Australia
• We also commission it to ensure the machine is performing as it should at your factory.
• We also ensure calibration is done
• We train and up-skill you on how to use the machine

Why Buy Our Edge Banding Machine?
• Australian Local Support
• Only the best quality parts used
• Engineers with over 15 years of experience
• Custom built to your specifications
• 3-year Australian warranty - If installation package is chosen
