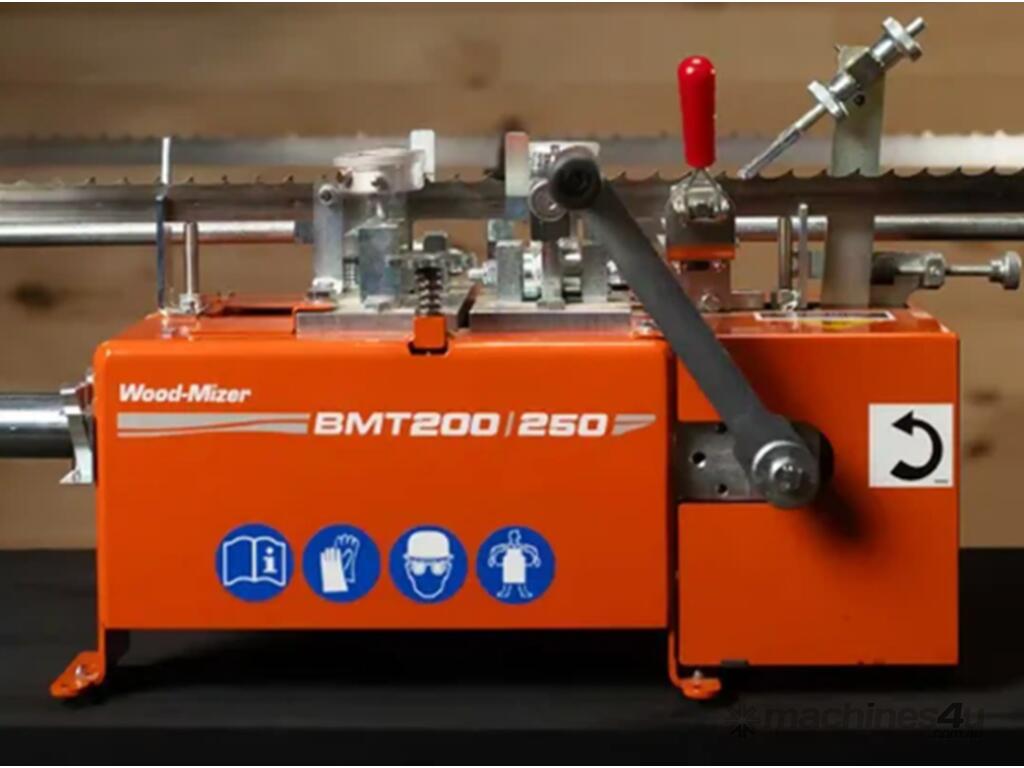

Wood-Mizer BMT200 Manual Dual Tooth Setter

This simple-to-use crank handle sets two teeth per revolution with the same precision and accuracy as the BMT250.

Set both sides of your blade at the same time easily with the manual BMT200 toothsetter, which will help you extend your blade’s sharp life and get the most accurate cut of timber. The BMT200 is designed for affordable blade tooth setting. One turn of the crank sets two teeth and moves the blade forward at the same time.

The BMT200 handles 25mm-75mm blades, can set from 13mm to 32mm tooth spacing, and can finely adjust tooth space indexing. The gauge precisely measures the set in each tooth to ensure your tooth set is accurate and ready to cut like a new blade again.


Features
Manual hand crank operation
Adjustable pushers for precise tooth set
Adjustable tooth space indexing for 13 mm – 32 mm toothspacing
Blade height adjustment knobs for 25 mm – 76 mm wide blades
Dial Indicators for accurate measurement of tooth set
Easy to install blade & clamping mechanism

Benefits
Tooth setter gauge for calibration included
Efficiently sets both sides

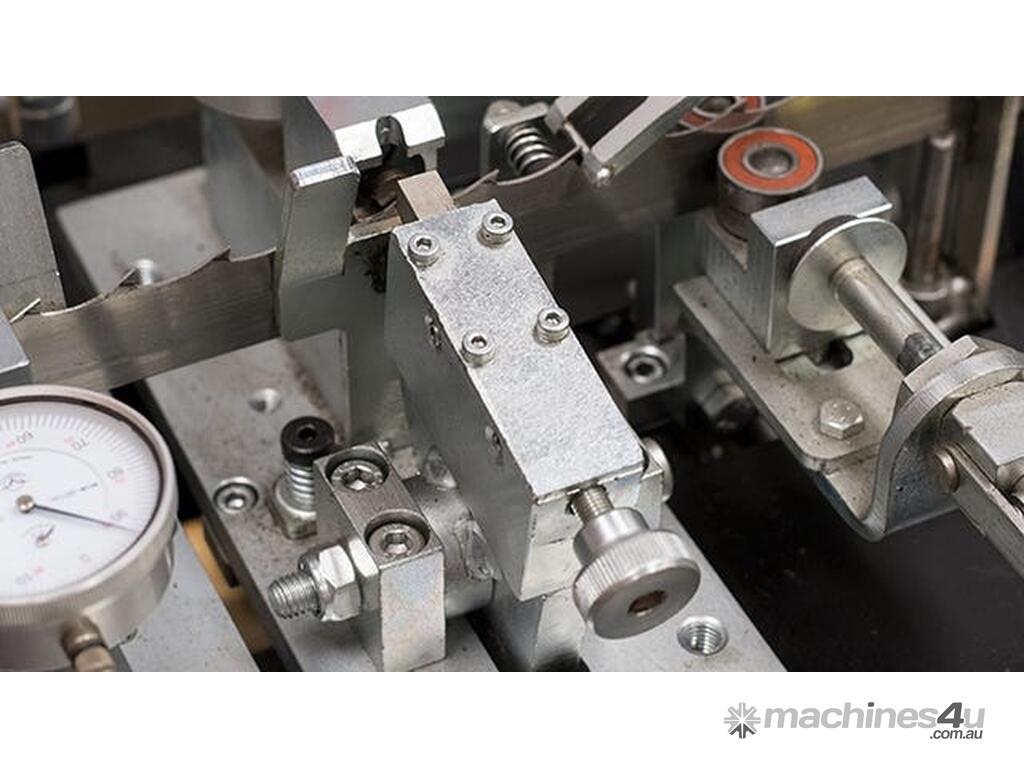

Adjustable Pushers
For precise tooth setting.

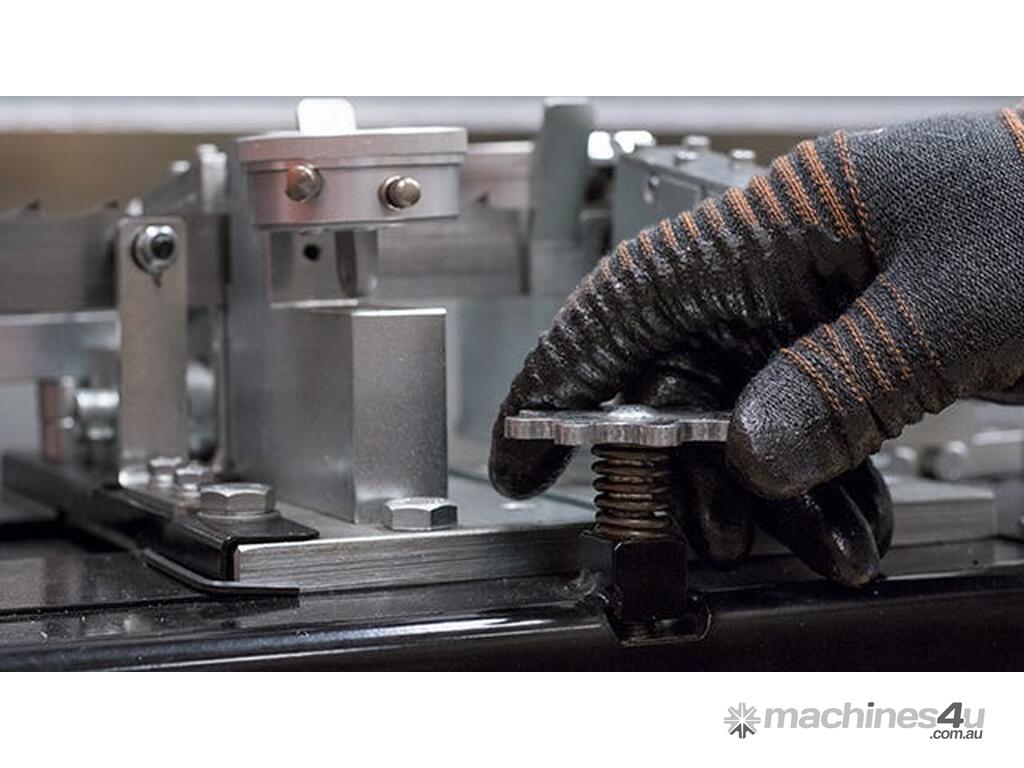

Blade Height Adjustment Knob
Adjust up/down single knob and insert pins for 25mm - 76mm wide blades.

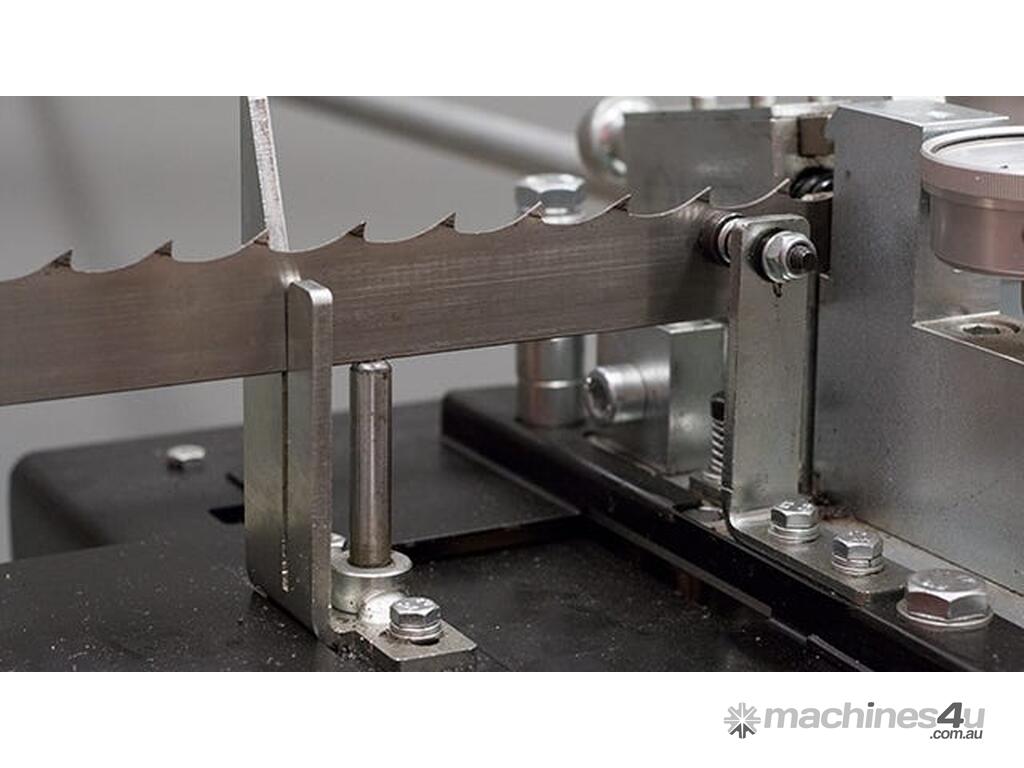

Blade Height Adjustment Pins
Adjust up/down single knob and insert pins for 25mm - 76mm wide blades.

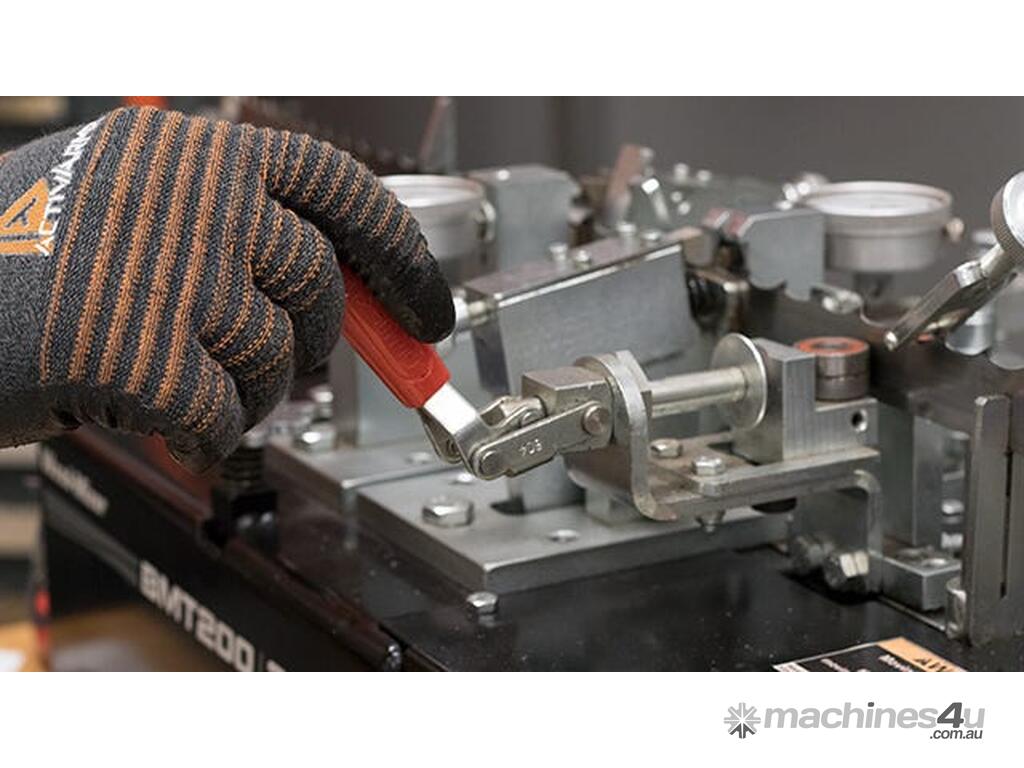

Clamping Mechanism

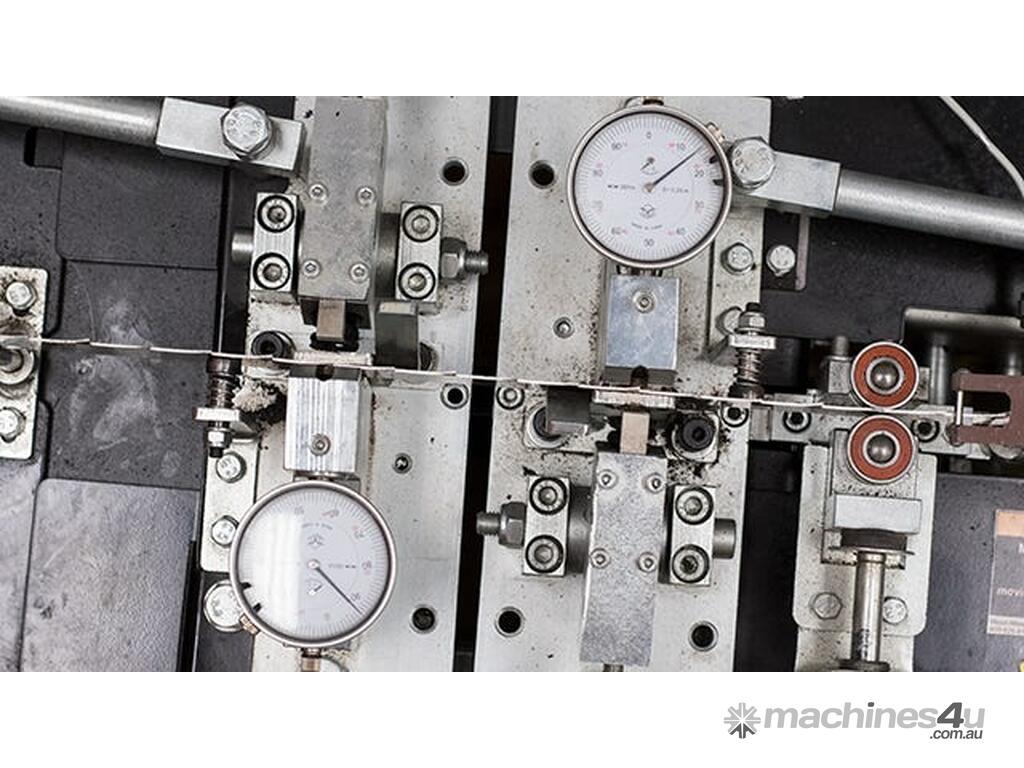

Dial Indicators
Measure tooth set.

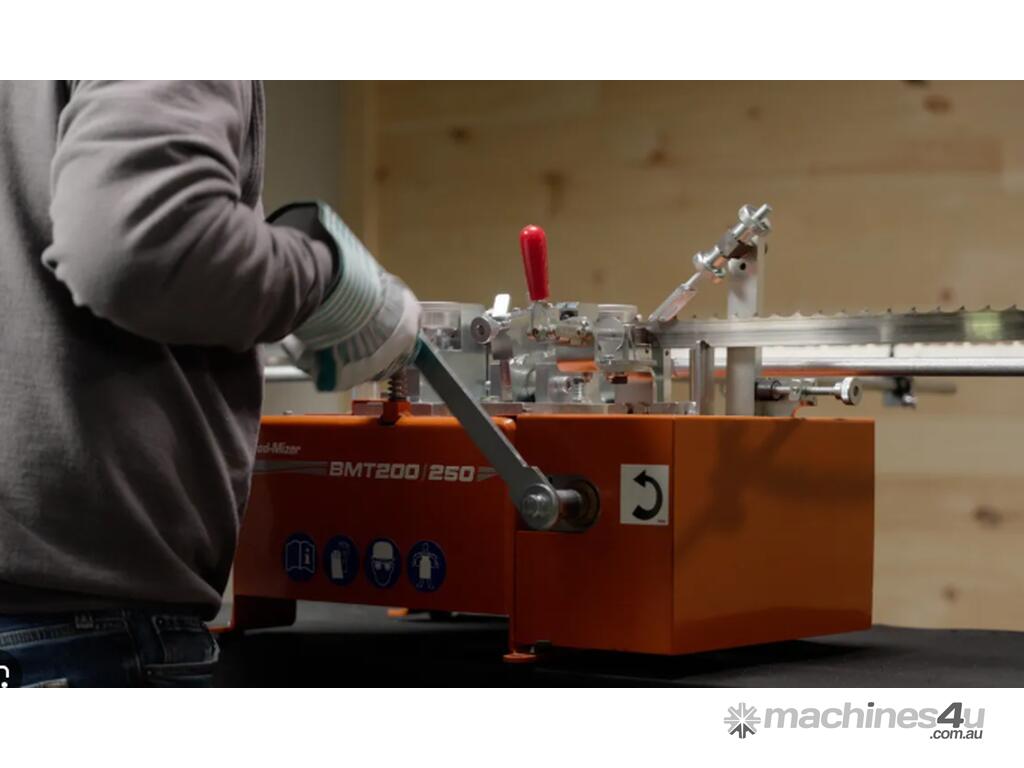

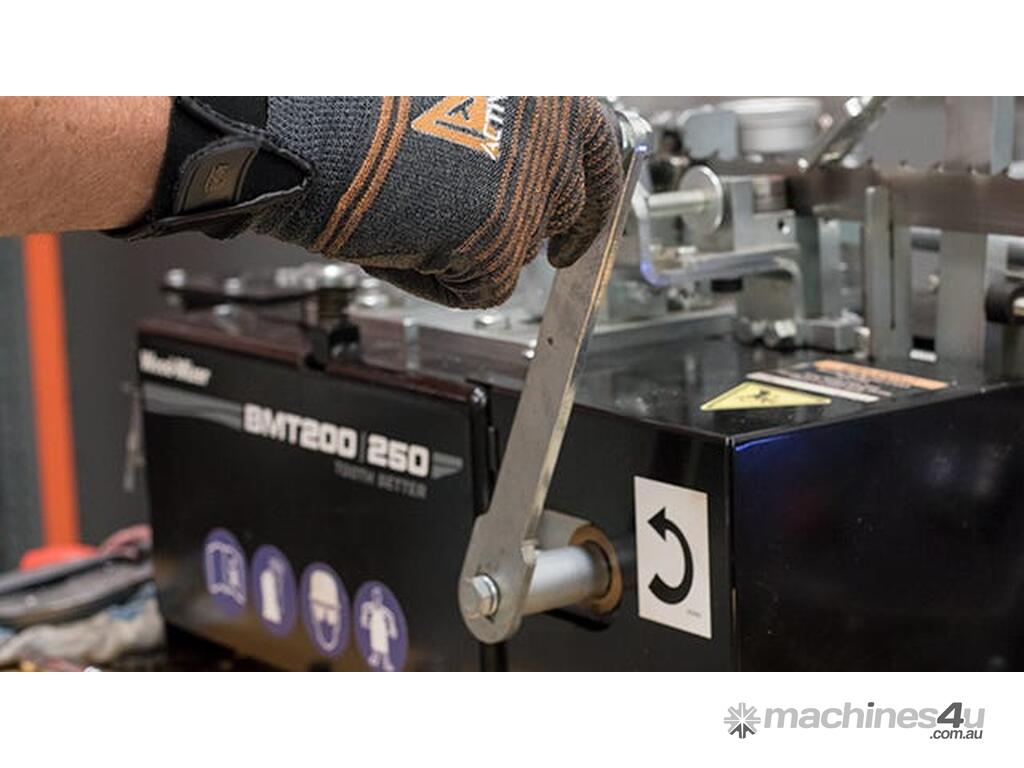

Manual Hand Crank

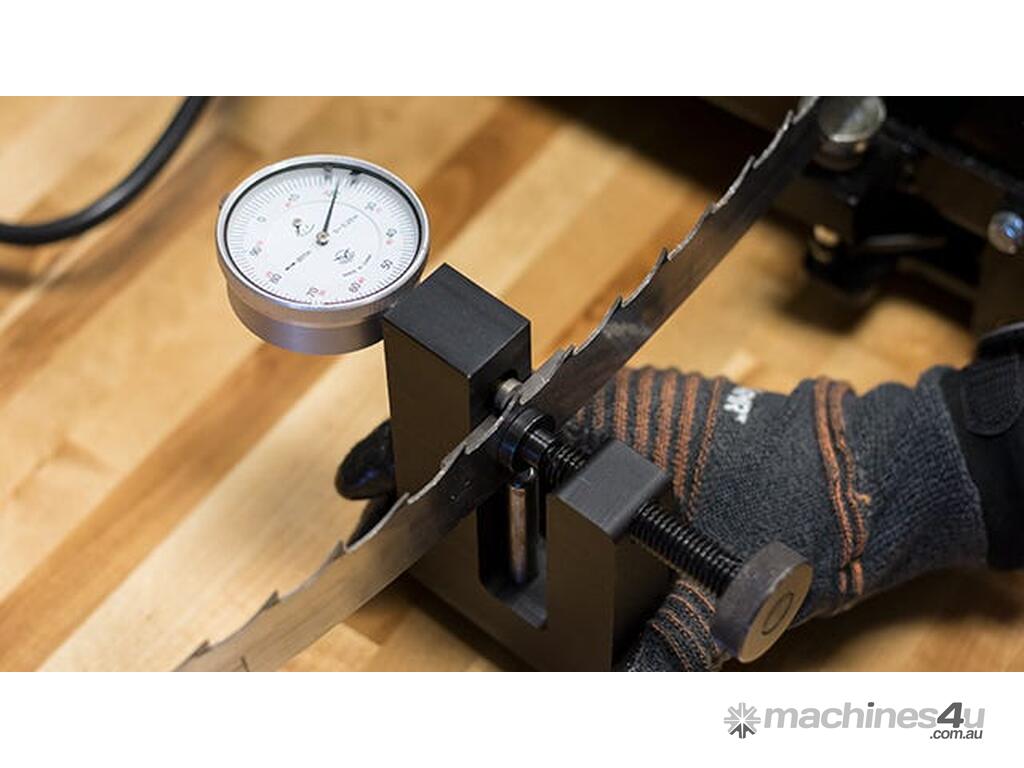

Tooth Setter Gauge
Included for consistent and accurate setting.


Specifications
FEATURES & OPERATION
Tooth Set Gauge 2 Tooth Set Gauges (On Machine)
Blade Support 3 Support Arms with Adjustable Blade Brackets
Adjustments Set point, Indexing, Blade Widths
Blade Advancement Manual Crank Handle
Blade Widths 25 - 75 mm (1 - 3")

DIMENSIONS & REQUIREMENTS
Safety Standards CE
