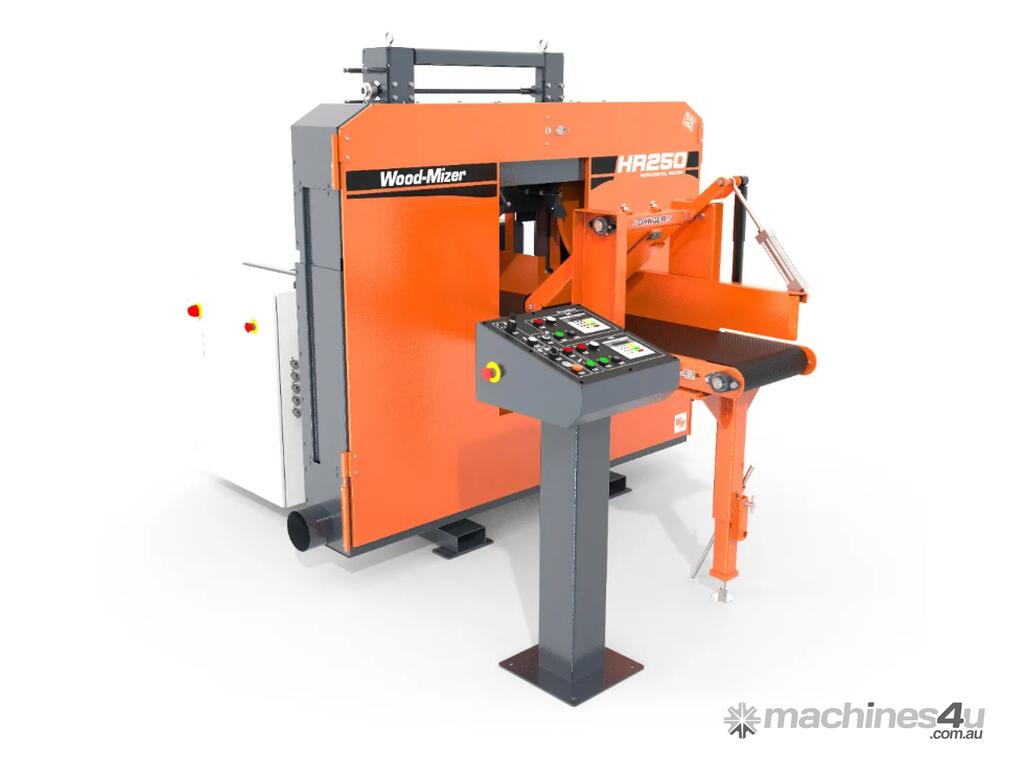

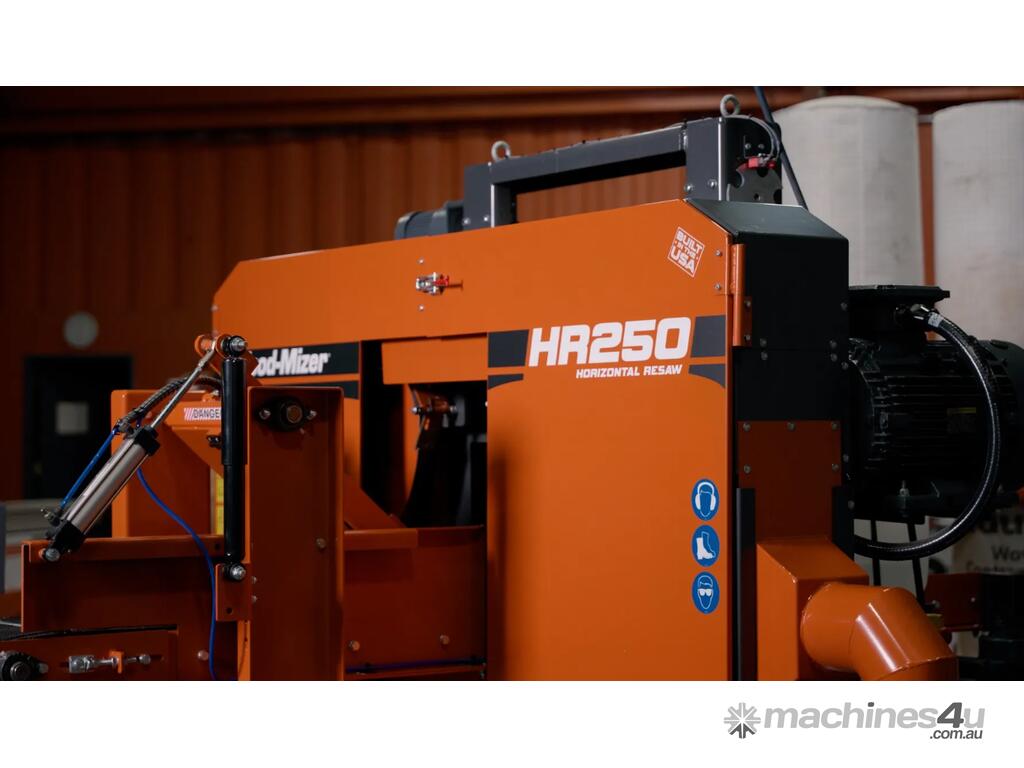

Wood-Mizer HR250 Double Head Resaw

This compact, twin blade horizontal resaw is the best in its class and takes your lumber operation to the next level. Saw 16” wide x 12” high material into two or three pieces with each pass. Complete with a Performance Package, this Made in the USA resaw includes high performance blade guide rollers and Setworks on a remote operator control stand that you can position for safe and convenient operation.

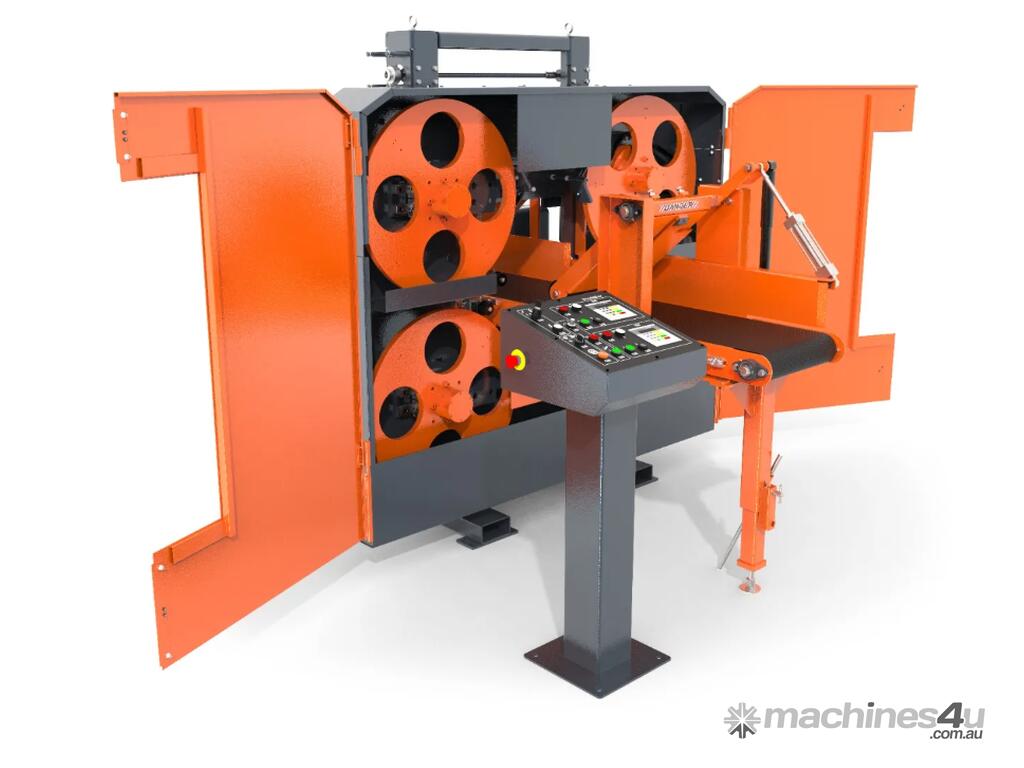

Designed for high-production lumber and pallet board operations, the HR250 features two horizontal bandsaw blades within one compact head which is ideal for resawing cants, boards, or reclaimed material into two or three pieces with each pass. Powered by two 25HP (18kW) saw wheel motors and two 2HP (.75kW) gear box motors, the HR250 is built to last with heavy-duty construction, premium components, and 28" (710mm) diameter dynamically balanced steel band wheels.

Operation

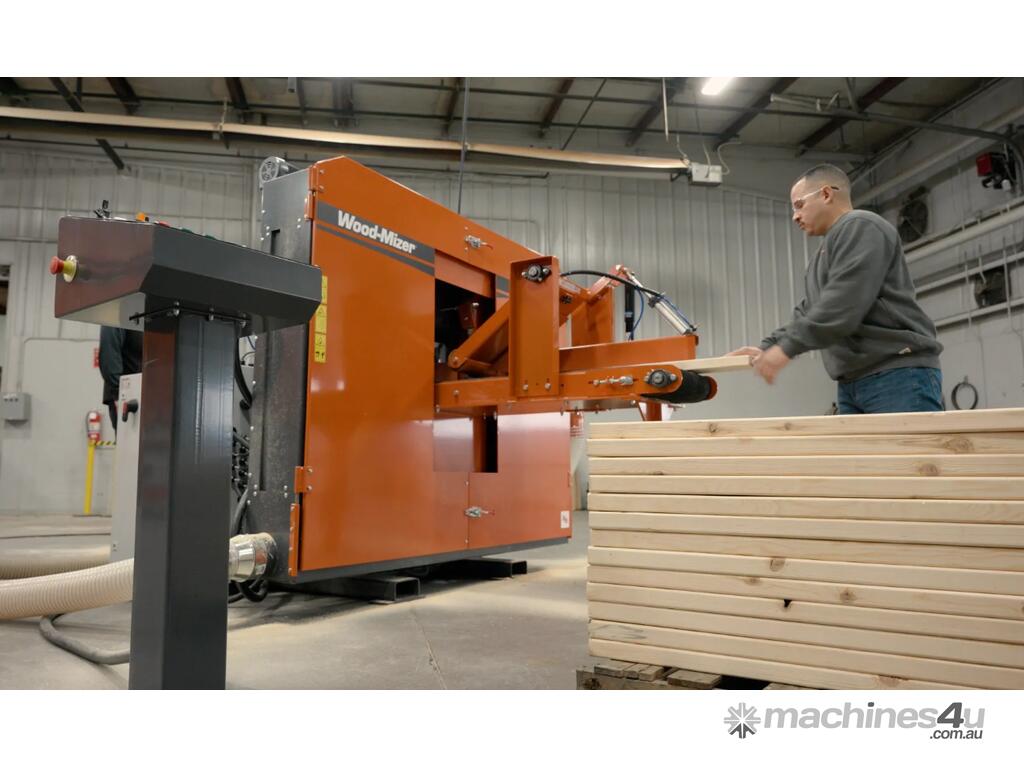

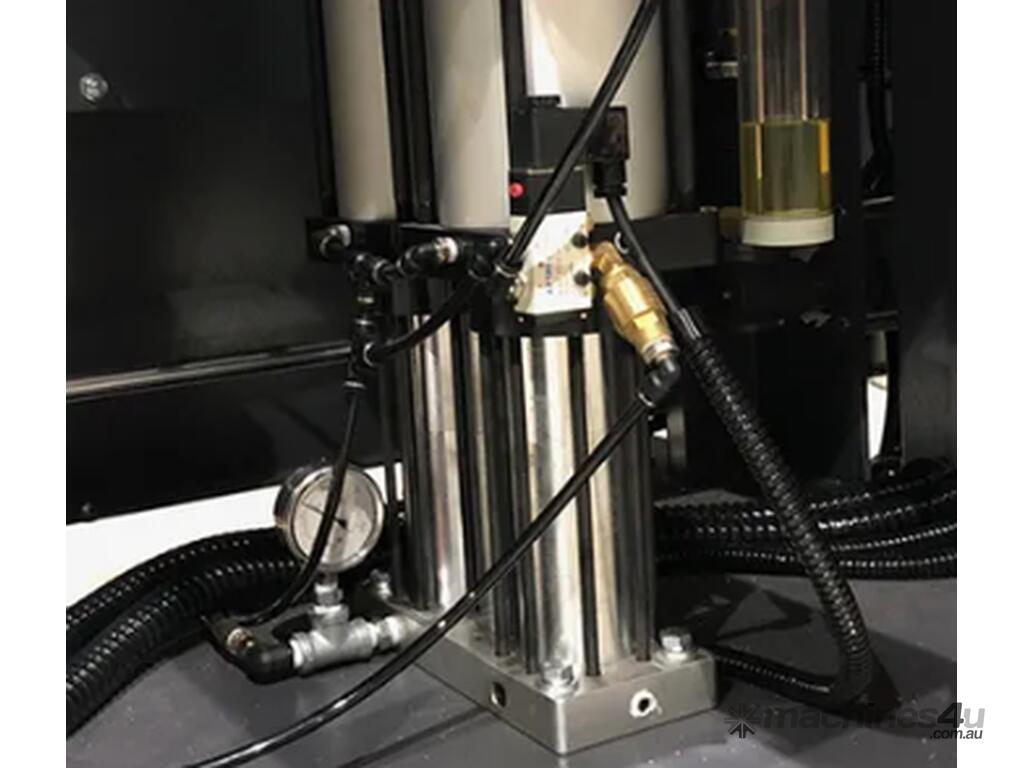

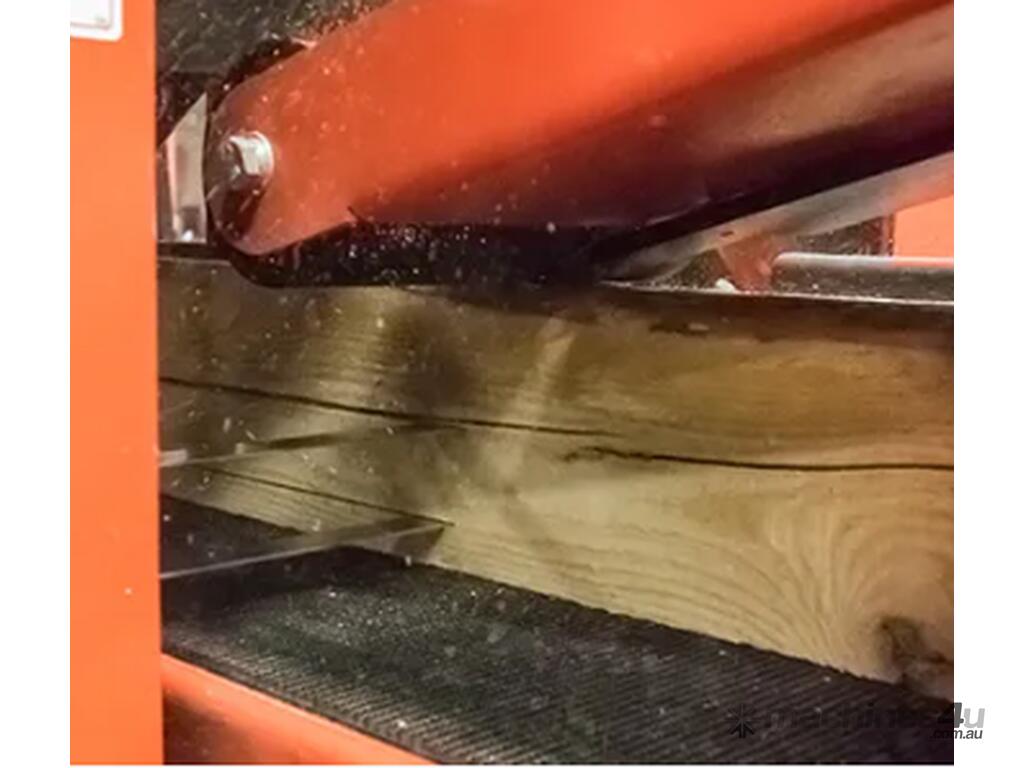

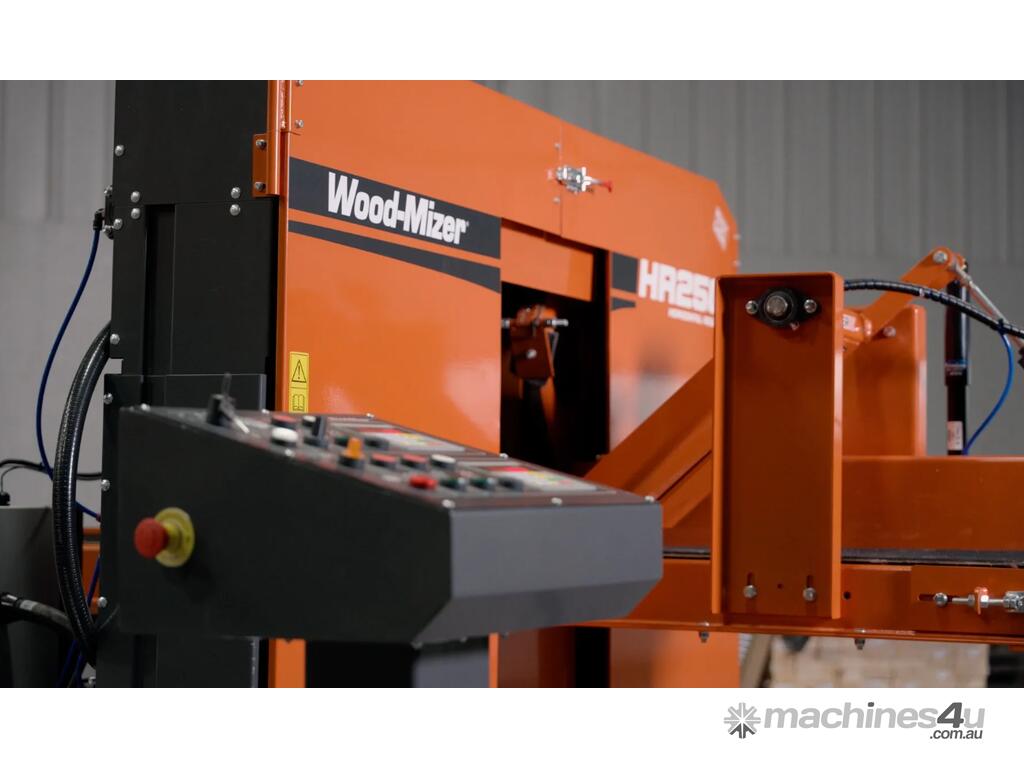

Control panel setworks with digital blade position controls ensure accurate height positioning of the saw wheels when setting cut thickness. Each blade has its own setworks panel and is controlled and run independently using the digital controls or manual up/down buttons. Once the blades are adjusted for the cut, the blade is engaged and material is fed through the machine. Cants and boards up to 16” wide and 12” high are placed onto the rugged, electric driven conveyor belt with a variable feed adjustment from 0 – 90 feet (0 - 27 meters) per minute for optimal processing of various sized and type of material. Pneumatic hold down rollers and an idle top roller keep material secure as it moves through the machine. Material is continually fed through the machine until processing is complete. Blade tension is automatic and controlled by an air-over-oil hydraulic system in order to maintain proper tensioning for longer blade life.



Features

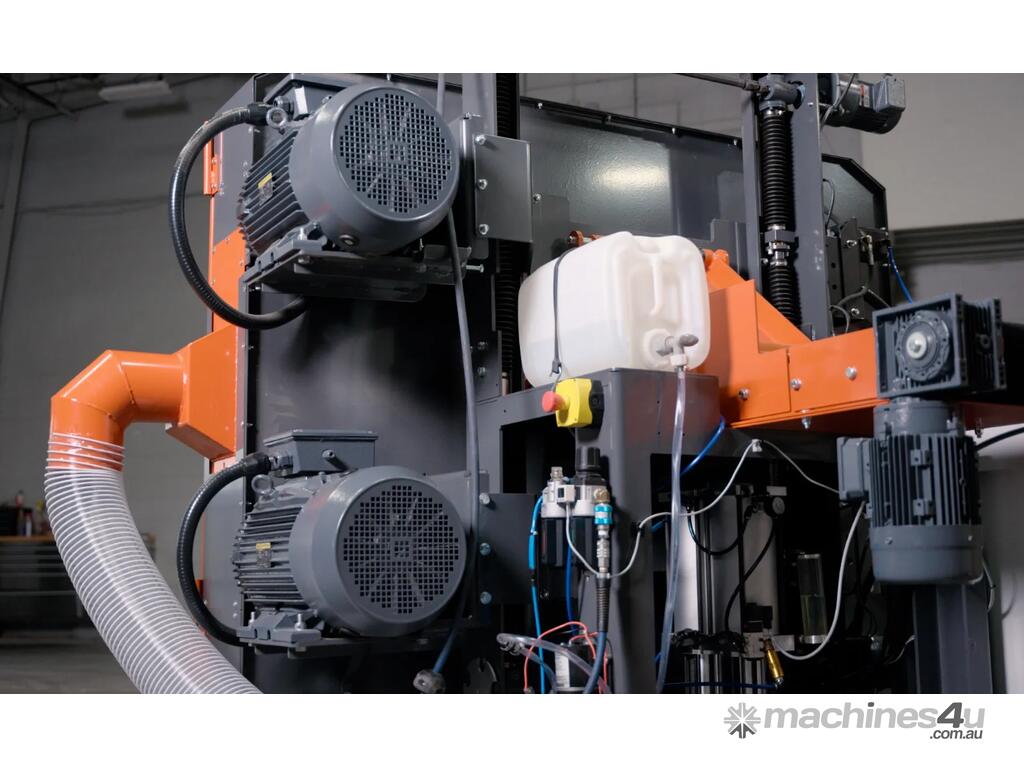

25HP (18kW) saw wheel motors and 2HP (1.5kW) gearbox motors
Two independently controlled saw blades within one compact head
Setworks with digital blade position controls in imperial/metric

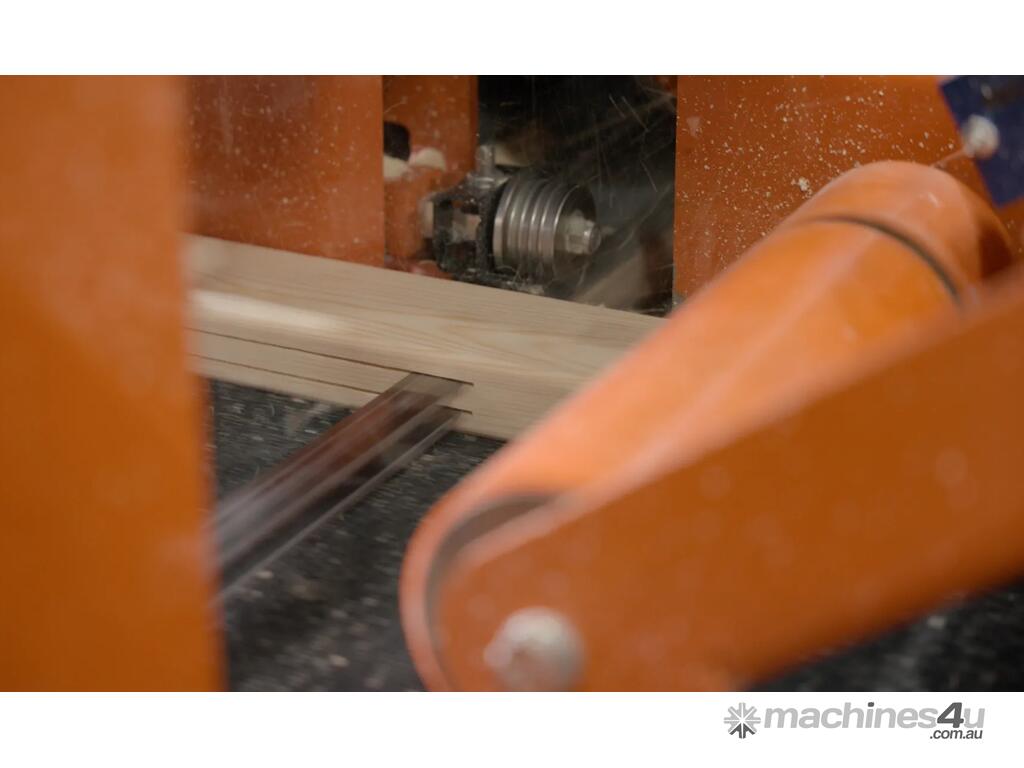

Durable blade guide rollers provide smooth operation
16" wide x 12” high capacity
0 – 90 ft/min (0 – 27 m/min) variable feed
Pneumatic hold-down top rollers

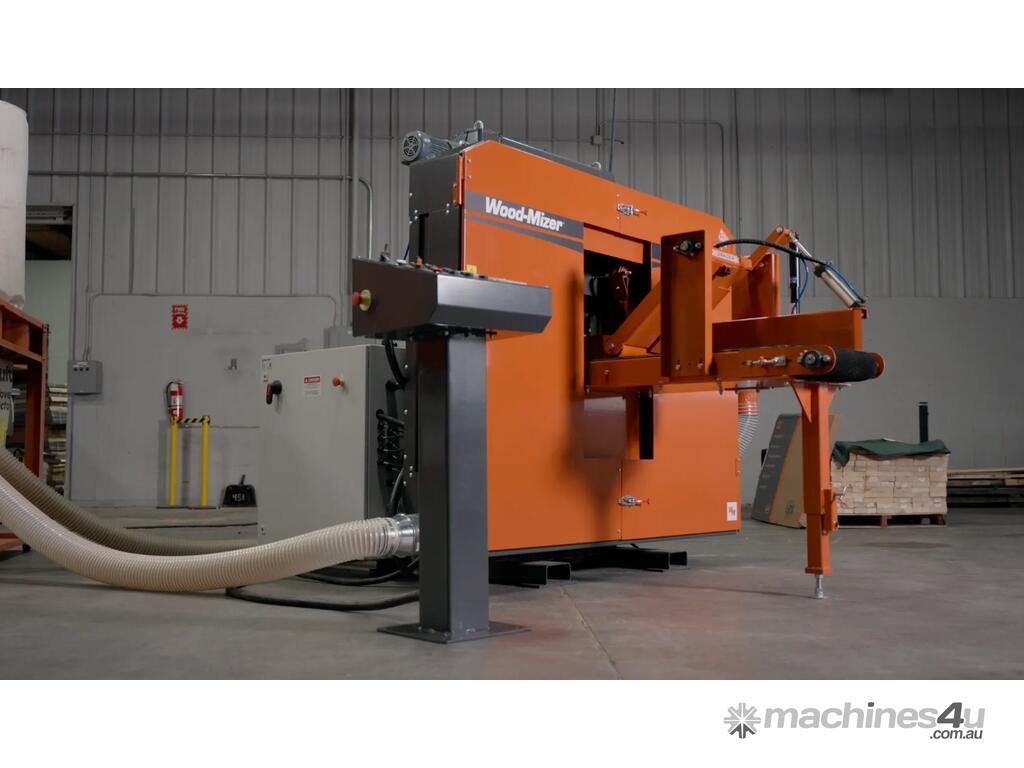

The HR250 super horizontal band resaw ships on a single pallet, can be set up in 2 – 4 hours, and is easily moved with a forklift for layout flexibility in any production line. With a 1 year warranty, the HR250 resaw is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment.


Power Selections:
25HP (18.6kW) 3PH 460V/60Hz Electric

Cutting Capacities:
Max Cant Width 16"
Max Cant Height 305mm (12")
Max Cant Length N/A

Blade:
Blade Length 4,544mm (178")
Blade Guides Style Rollers
Blade Wheel Diameter 710mm (28")
Blade Wheel Type Steel, dynamically balanced
Blade Thickness 1.07 mm (0.042") 1.4mm (.055")
Blade Width 25.4 - 35 mm (1" - 1 1/2")

Head Features & Options:
Number of available cutting heads 2
Head Configuration Horizontal Stacked Heads
Controls Configuration Standalone Control Station
Feed System & Operation
Feed Speed 0-27 m/min (0-90 ft/min)
Feed System Rubber Conveyor Belt
Machine Dimensions & Requirements
Delivery Methods Pallet
Width 95 3/8"
Length 107 5/8"
