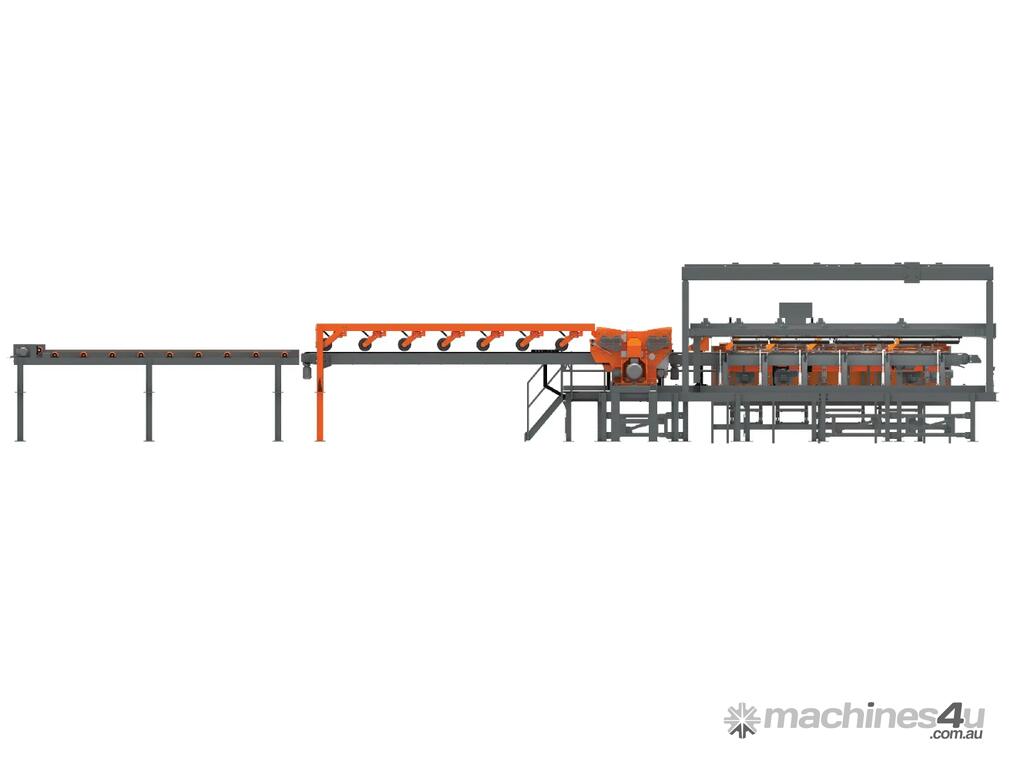

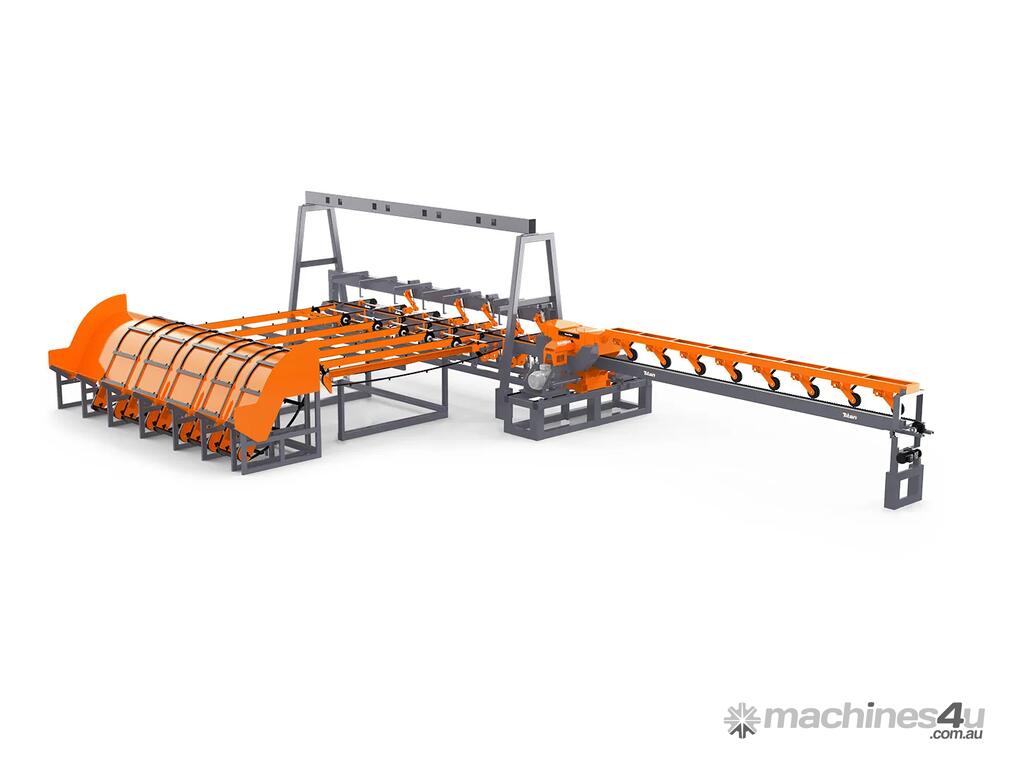

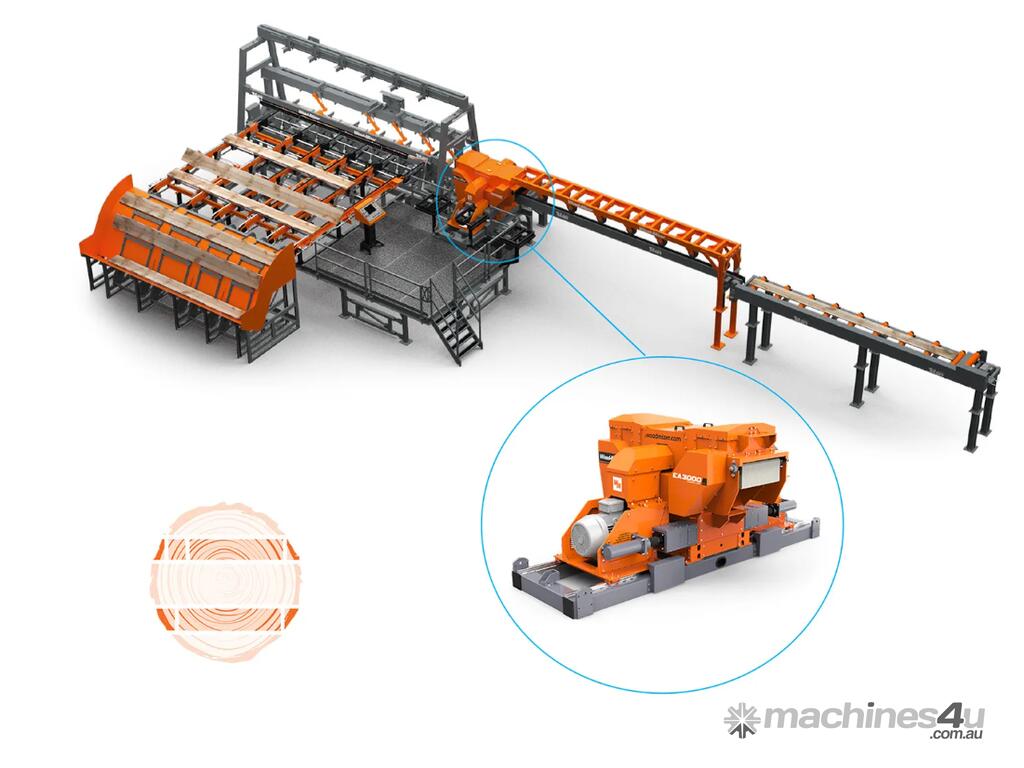

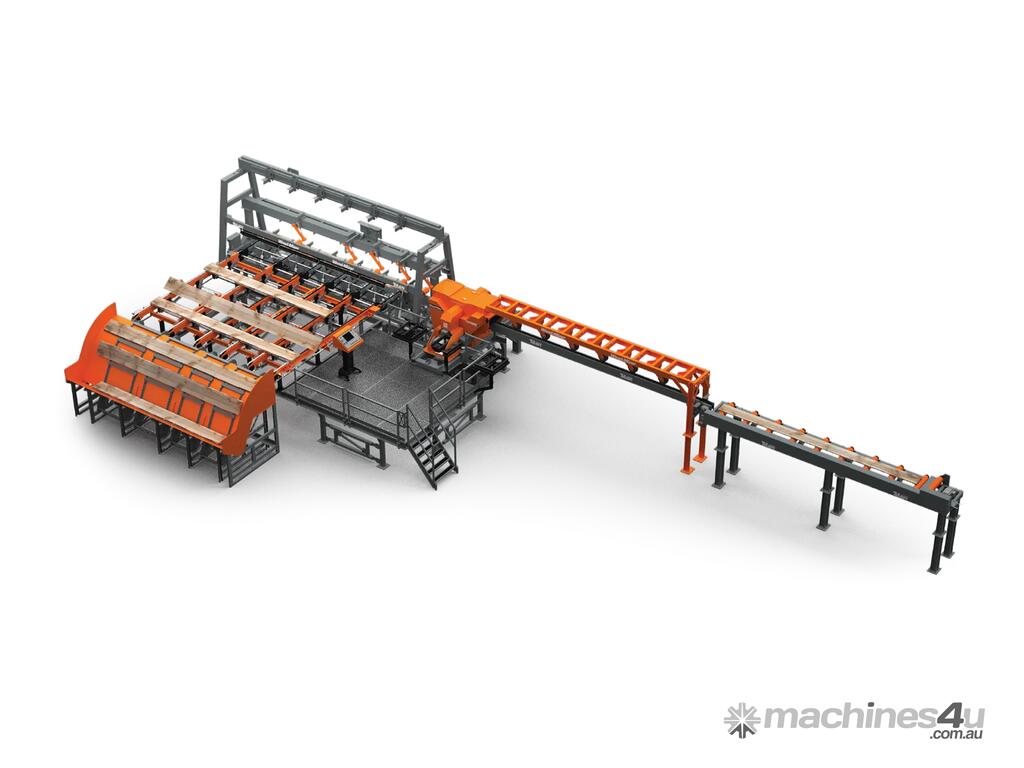

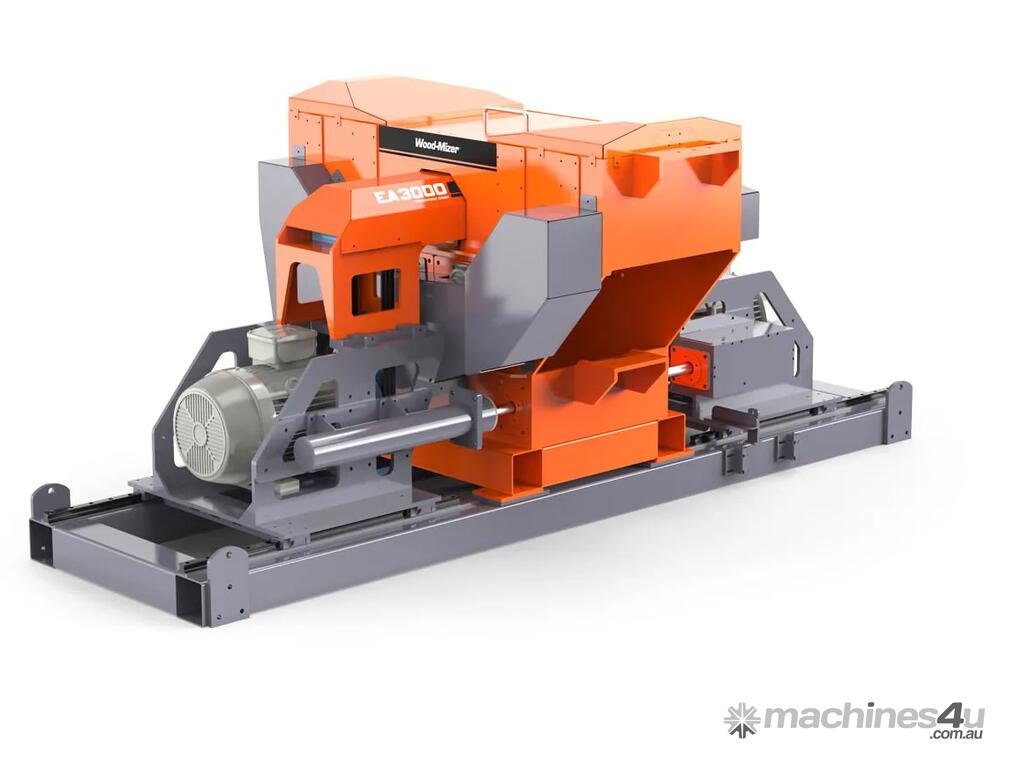

Wood-Mizer Optimising Edger

High Throughput TITAN Edger with Board Scanning

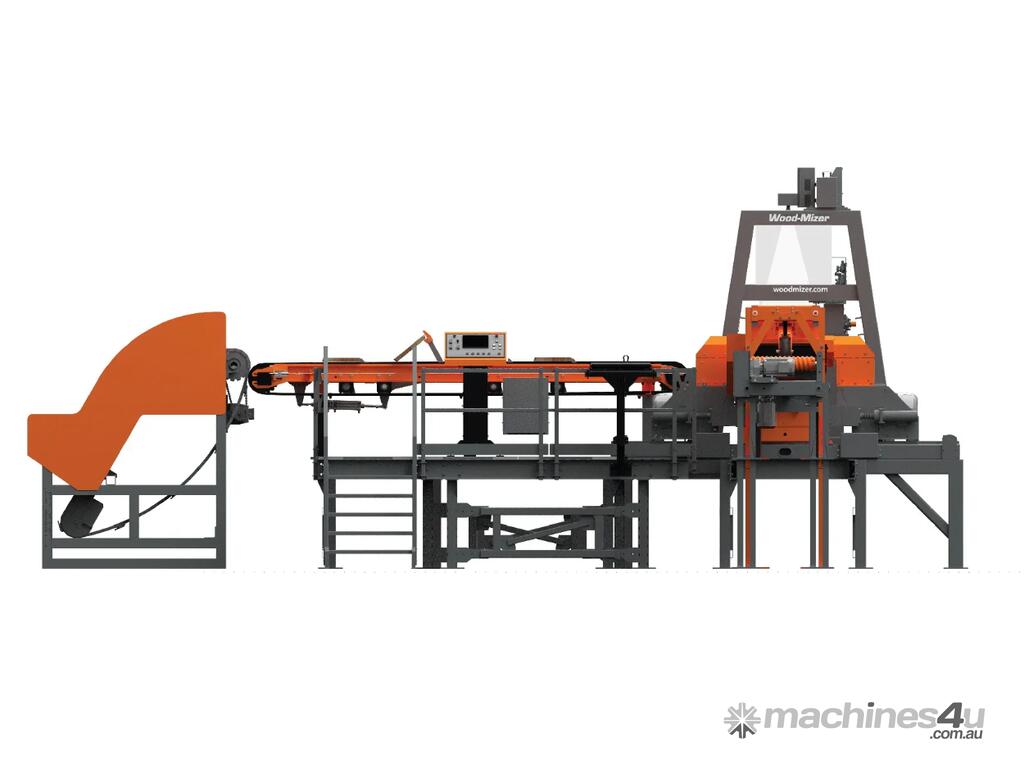

The Automated Edger uses optical scanning technology to achieve high precision and low waste edging of boards. The entire edging process is automated with each board being positioned and then scanned.

The Automated Edger uses optical scanning technology to achieve high precision and low waste edging of boards. The entire edging process is automated with each board being positioned and then scanned. The profile of each board is analyzed by a computer, which decides on the best product to maximize recovery. Decisions are based on both volume recovery and product value.

The V-AE is capable of handling up to 12 boards per minute at 6.7 m or 15 boards per minute at 3.4 m . It is the ideal machine to edge boards coming from the resaw. Electric servo sizing system achieves any width of cut without complication.

Parallel PLC / computer control systems allow the machine to be switched over to manual mode with a single button. Online support allows our technicians to dial into your machine to troubleshoot it remotely.

Overall, the Automated Edger is a simple, robust and automated solution to your edging needs.

Features:

Optical scanning on the run

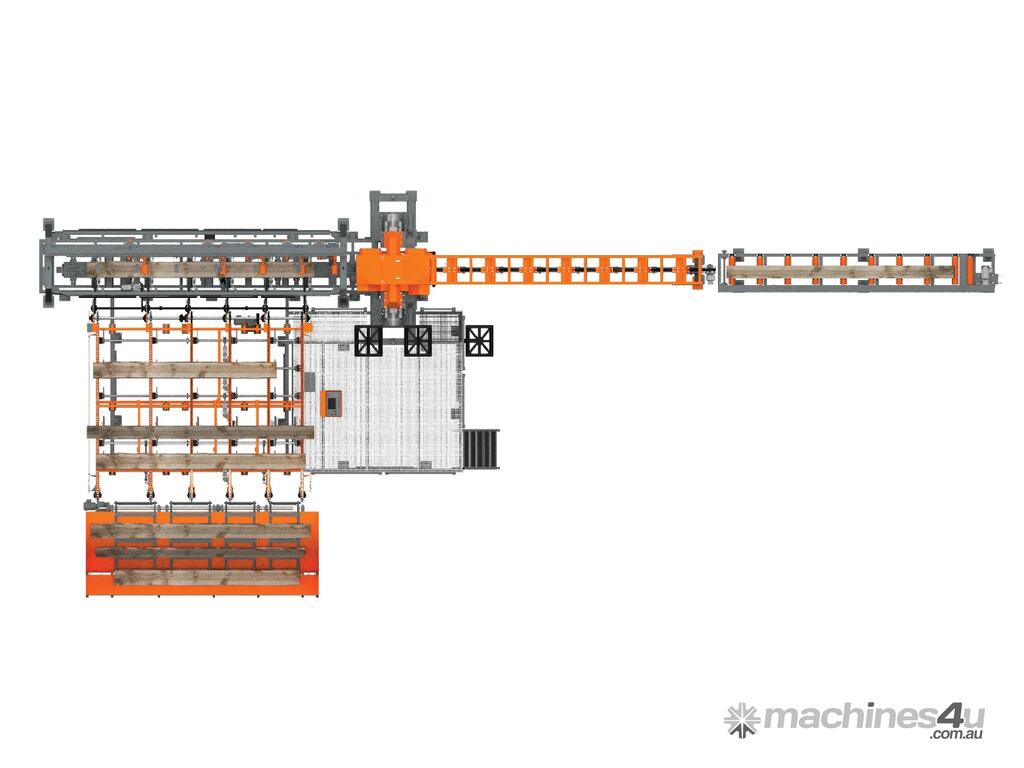

Short footprint
Can be fed from both sides
Unscrambler and infeed included
Easy to use windows interface

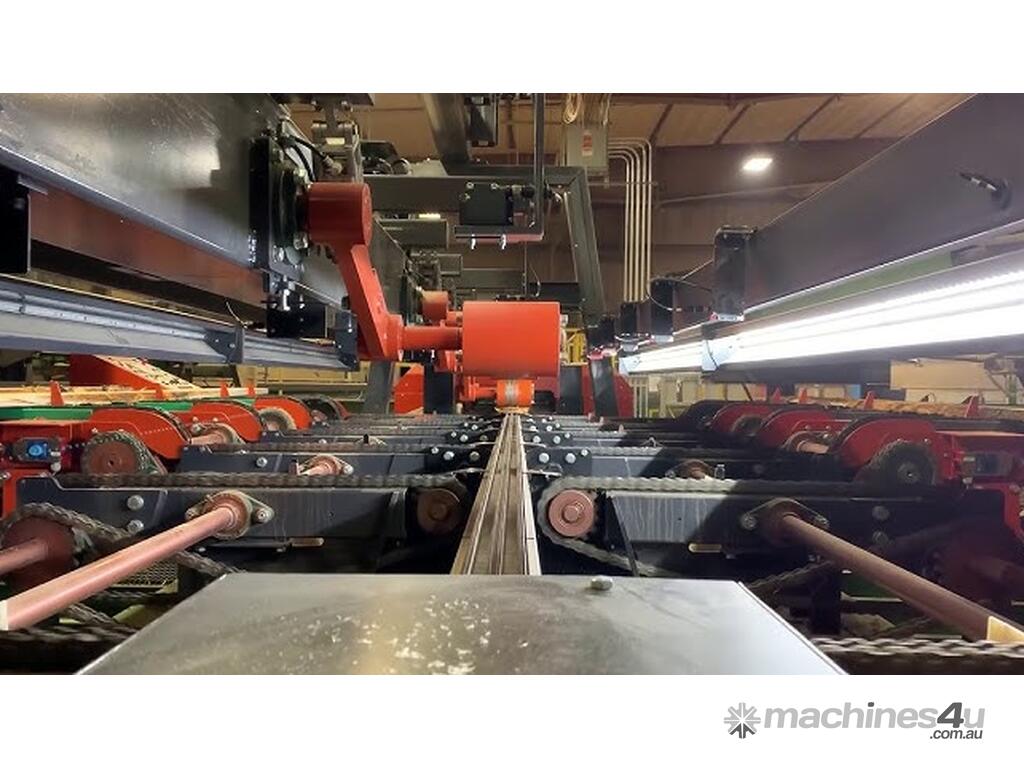

Mechanised material handling for fast, accurate board alignment

Power Selections:
30kW electric
45kW electric

Cutting Capacities:
Min Width of Cut 40 mm (1.5”)
Max. Material Thickness 75mm (3")
Production Rate 1-25 boards/min (average)

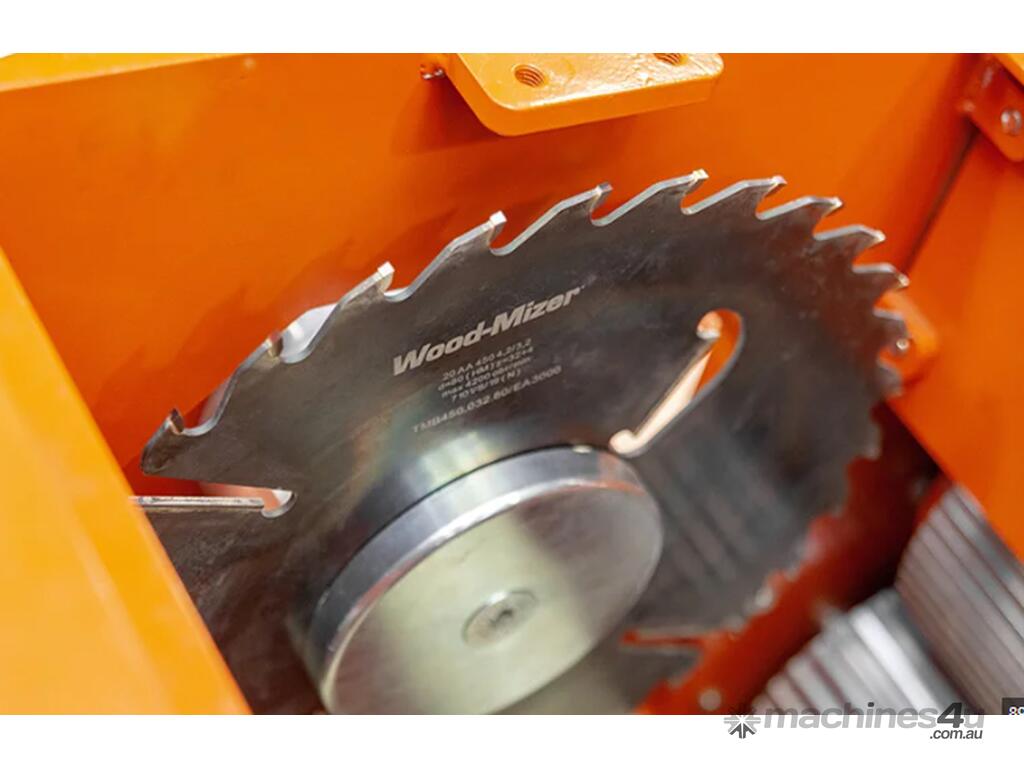

Blade:
Number of Blades: 2
Blade Diameter: 450 mm (17 1/2")
Blade Kerf: 5 mm (0.195”)
Blade Adjustment Method: Electric Servo
Blade position: Two Centered Blades

Feed System & Operation:
Feed Speed 150 - 250m/min (500 - 820ft/min)
Board Alignment: Automated mechanical board alignment

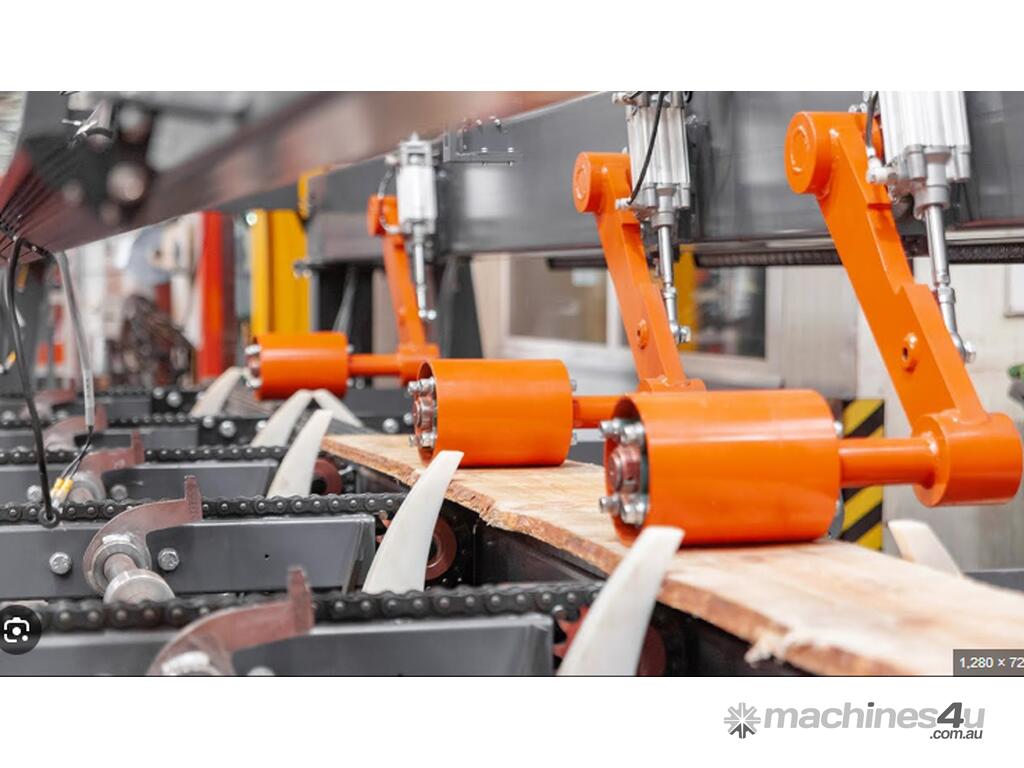

Material Hold-down: Powered Pneumatic Roller Hold-downs
Feed Motor: 11kW (15HP)
Scanning: Optical Material Scanner System
Operator Controls: Stationary Control Station
Options: In-line or transverse board scanning
