Wood Planer WDP-5520, 500mm Thicknesser with Helical Spiral Cutterhead, 240V Woodworking Machine

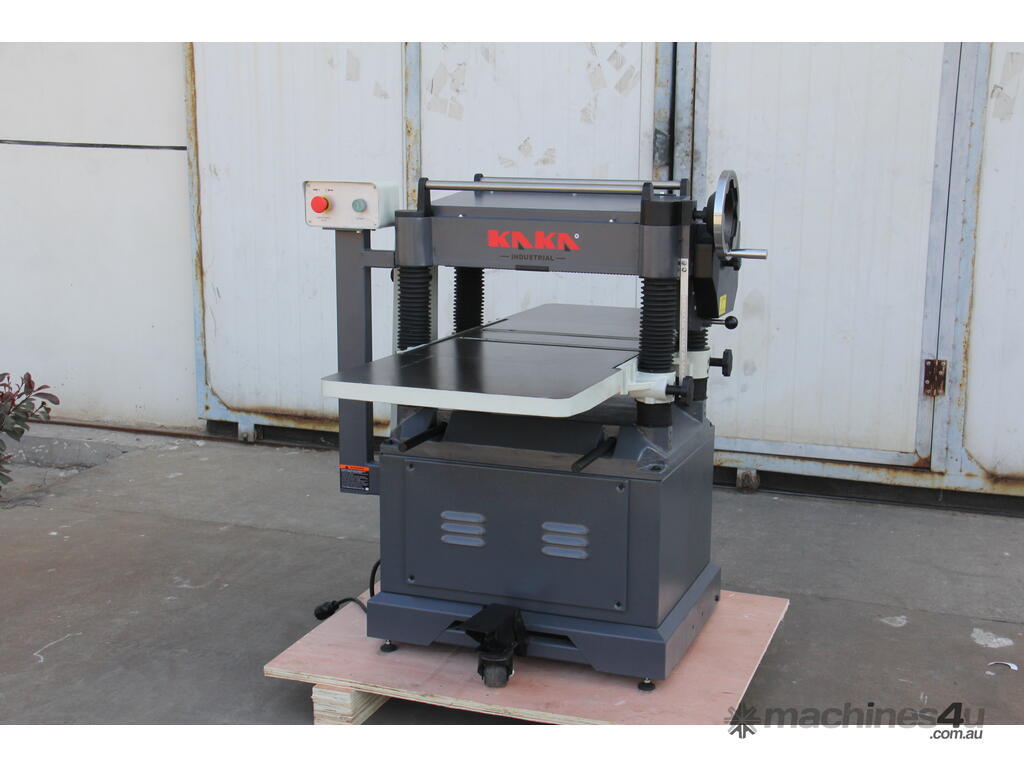

Wood Thicknesser WDP-5520 C/W Spiral Cutterhead

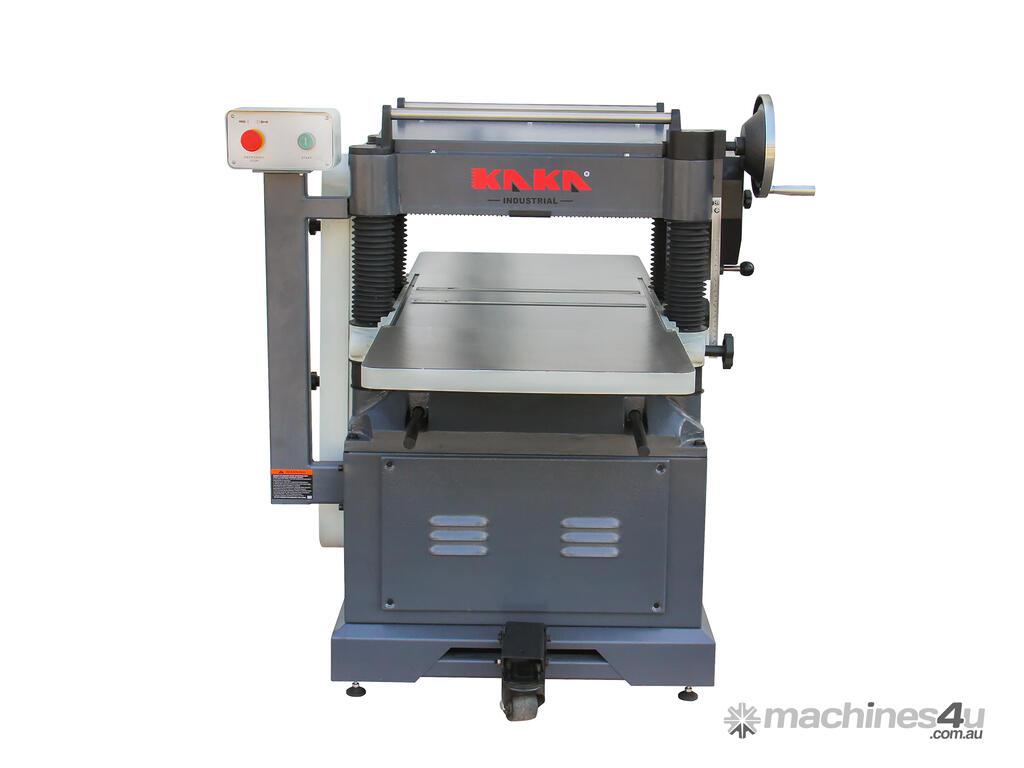

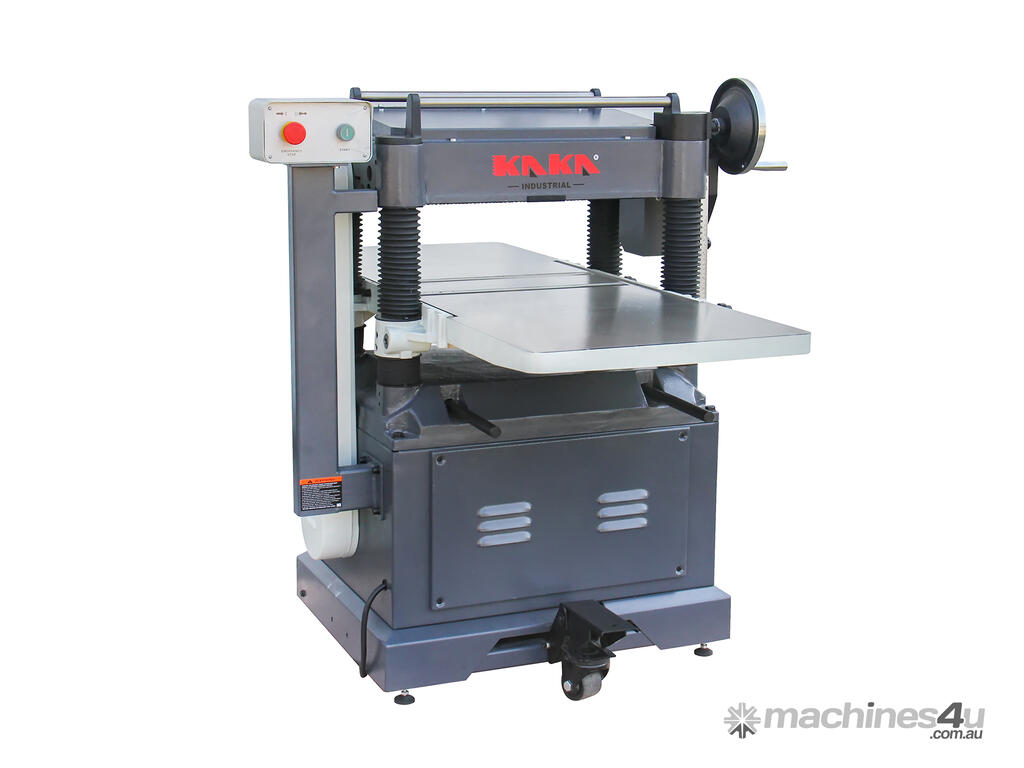

The WDP-5520 is a heavy-duty 20" (508mm) thicknesser/planer. It's built for professional and serious hobbyist woodworkers, featuring a premium helical (spiral) cutterhead with 98 indexed carbide inserts for superior finish quality, reduced noise, and minimal tear-out—especially on figured or interlocking Australian hardwoods like jarrah, blackwood, or Tasmanian oak. Available in single-phase 3HP (240V) configurations (perfect for Australian workshops with standard powerlet), it runs at 4,800 RPM with a two-speed gearbox offering feed rates of 30 rpm or 40 rpm for optimal control over different timbers.

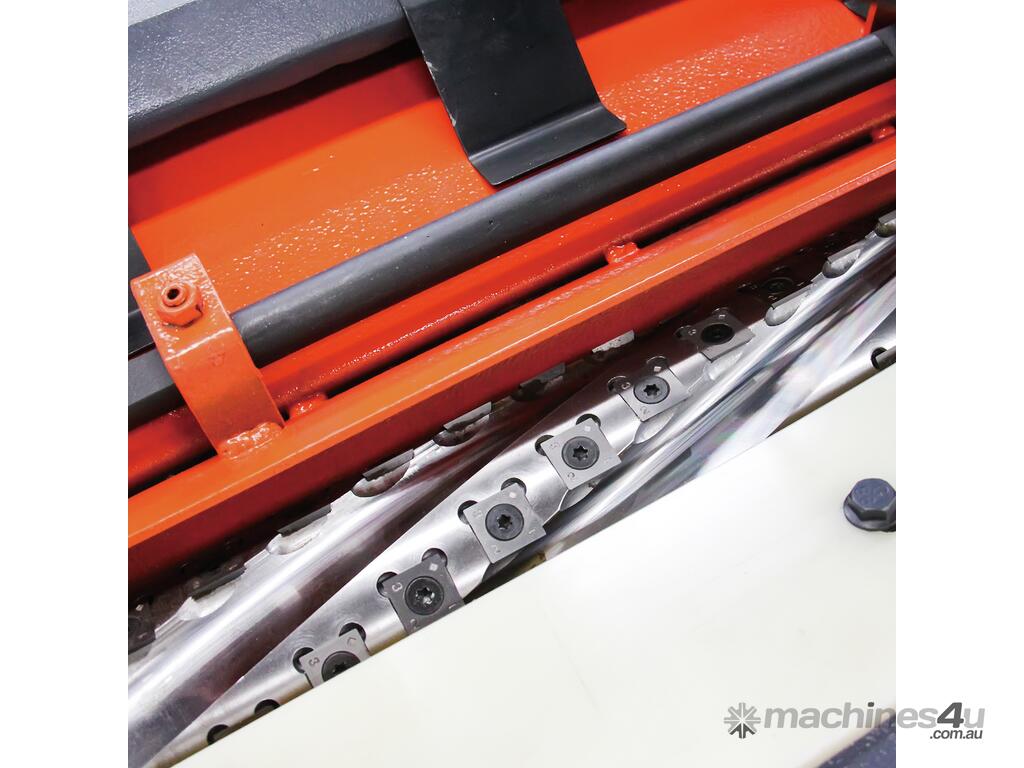

Helical Cutterhead Excellence. The 98 carbide inserts (14x14x2mm) deliver exceptionally smooth, quiet cuts with far less tear-out and chatter than straight-knife planers, reducing sanding time and improving finish quality right off the machine.

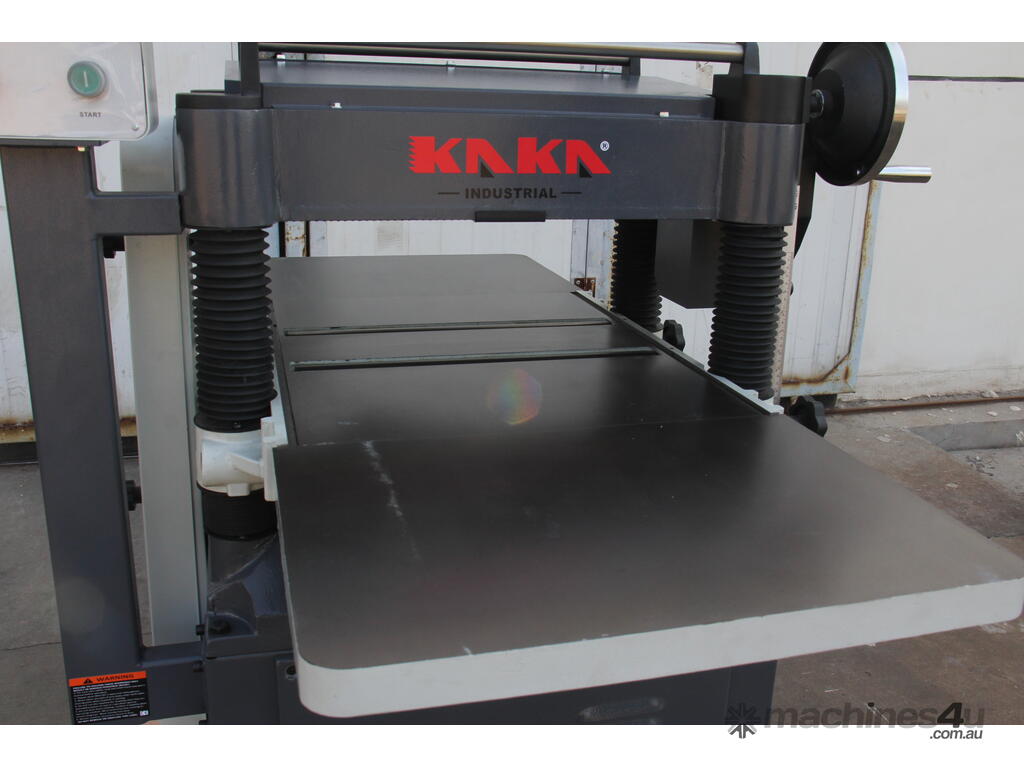

Heavy-Duty Build Wood Thicknesser. Massive cast iron tables/extensions handle large, heavy slabs or rough-sawn stock without snipe or deflection, while the four-post system ensures precision at any height, ideal for furniture makers, boat builders, or slab work in variable Aussie humidity.

User-Friendly & Efficient. Two-speed feed, quick-change indexed inserts (no full sharpening needed), adjustable rollers, and large dust port integrate seamlessly with standard Australian extractors — promoting cleaner, healthier workspaces and faster workflow.

Feature

3 HP Powerful motor runs on 240V Power

Max. cut 500x200 mm timber

Max. cutting depth up to 3 mm

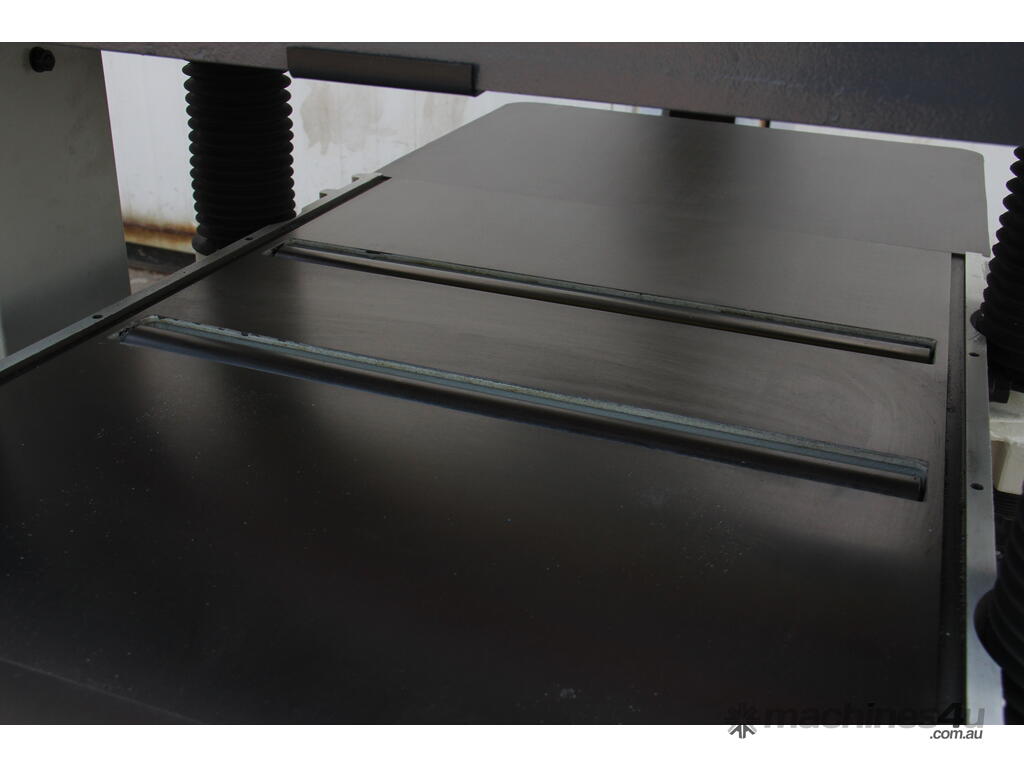

Heavy cast iron table raises and lowers on four precision-ground columns

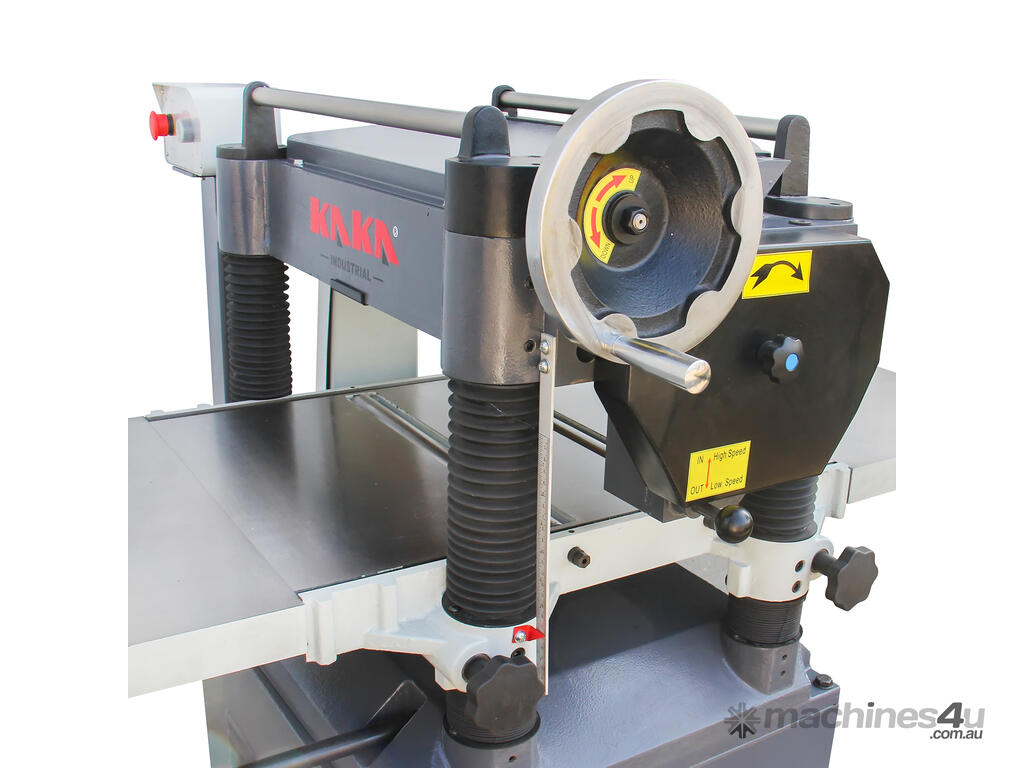

Two feeding speed 30rpm, 40 rpm

Cutterhead speed up to 4800 rpm

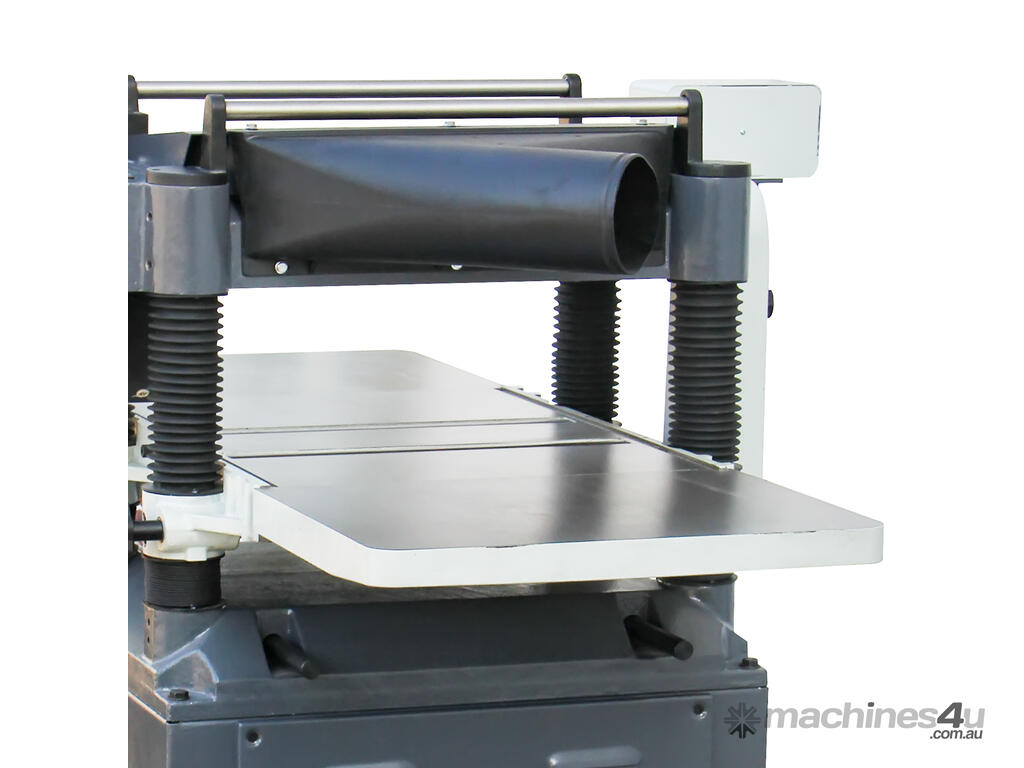

100mm dust port, could use Kang Industrial Dust Collector DC900

Specifications
SKU 473060
Model WDP-5520
Max. cutting width 500 mm
Cutting thickness 5-200 mm
Max. cutting depth 3 mm
Cutterhead type Spiral cutterhead
Cutterhead speed 4800 rpm
Insert size type 14x14x2 mm, 98 indexable carbide
Feed rate 30 rpm, 40 rpm
Motor power 2.2 kW
Table size with extensions 1410x508 mm
Packing size 109x87x125 cm
N.W./G.W. 380/450 kg
