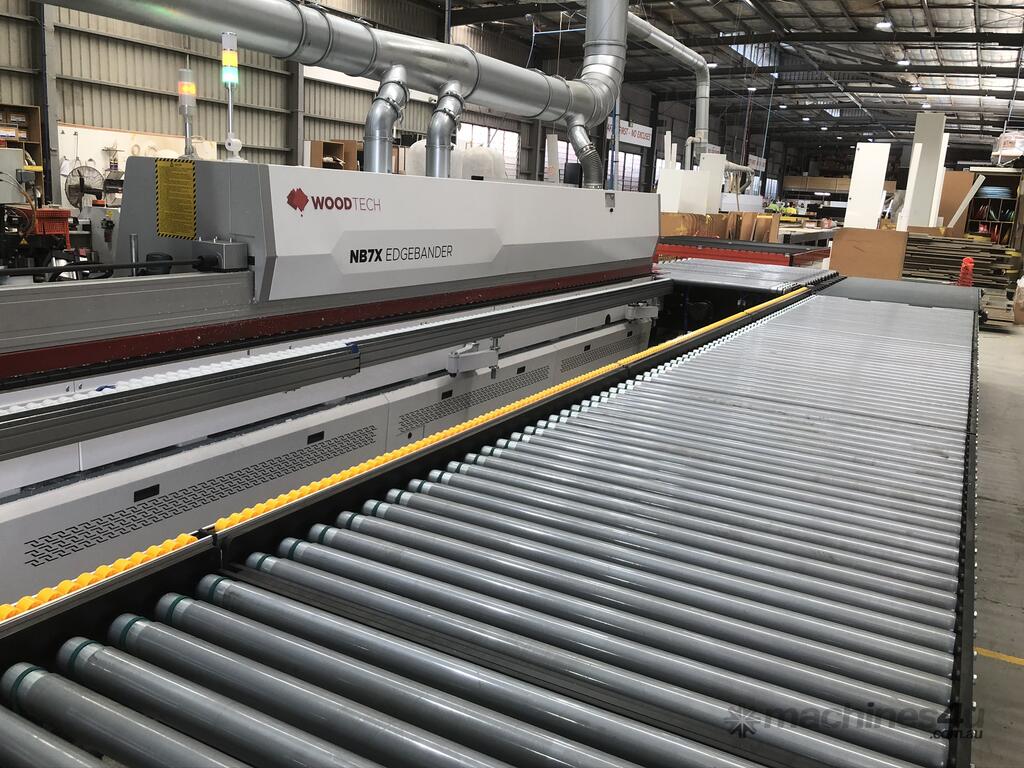

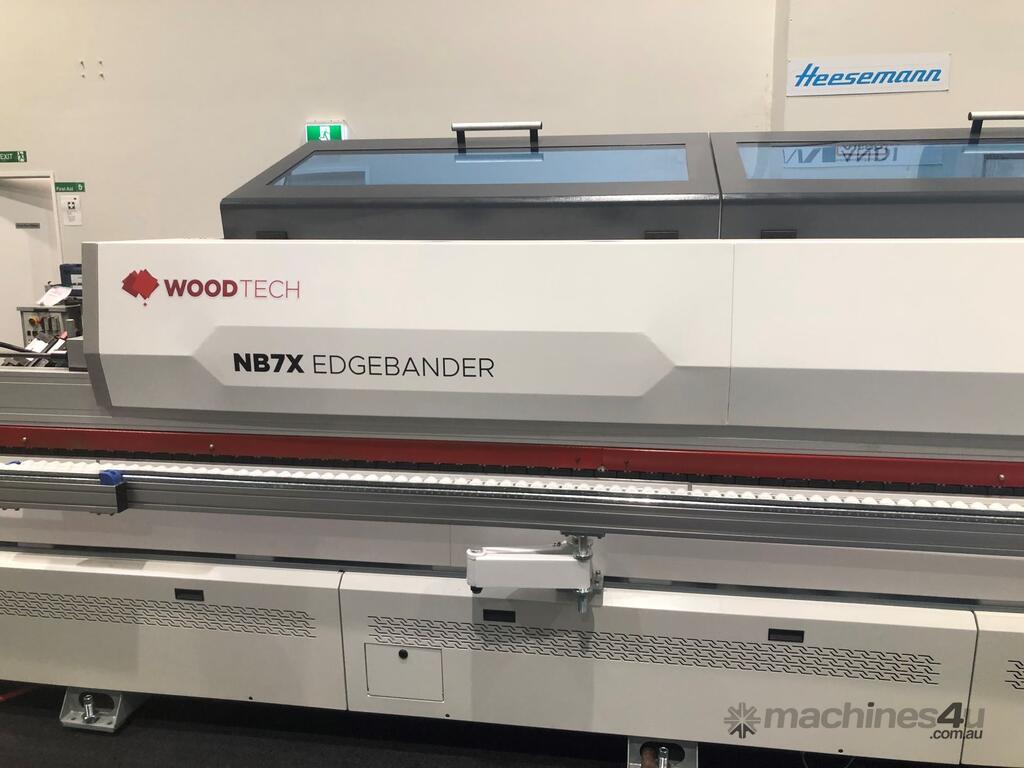

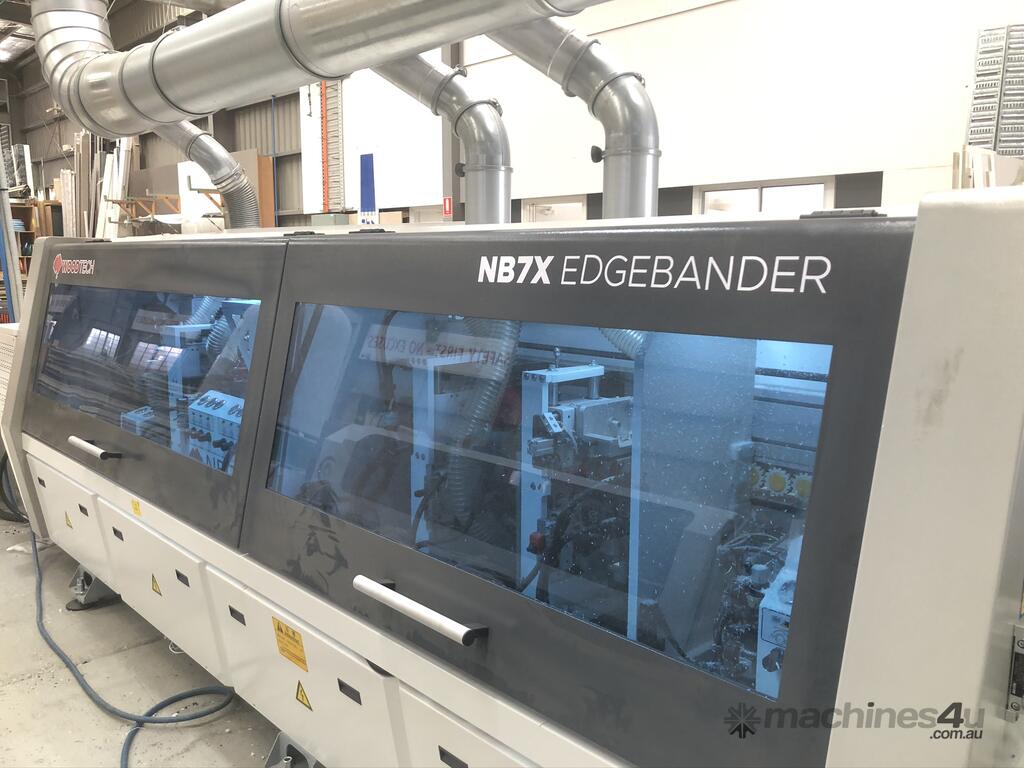

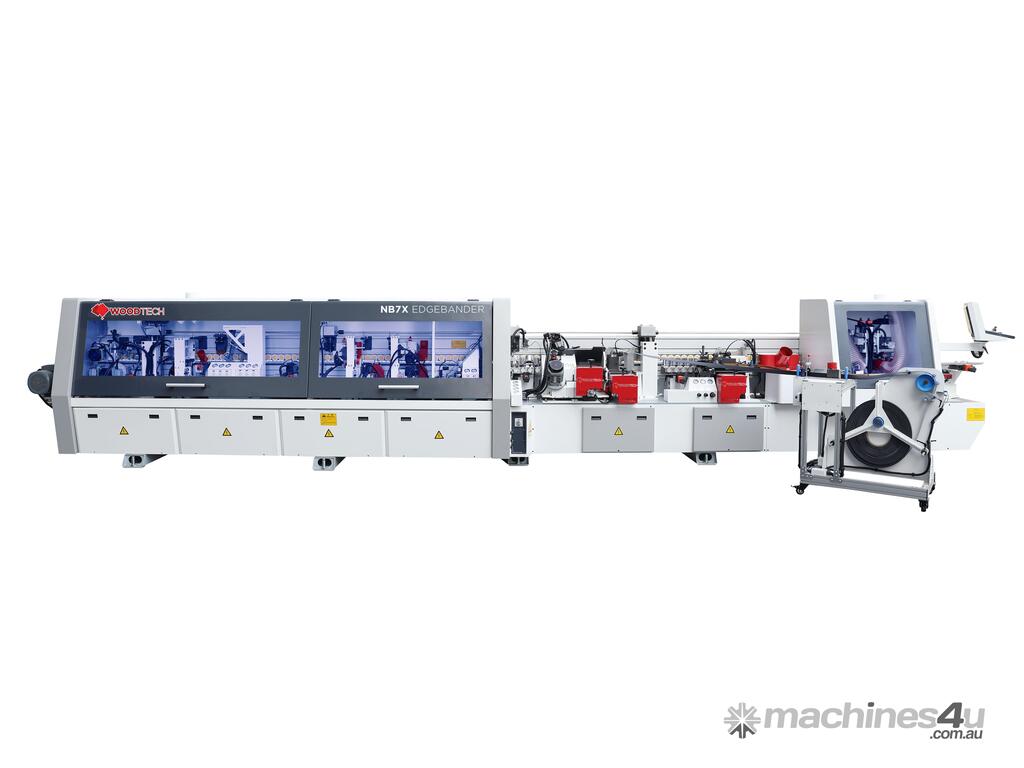

Wood Tech NB7X Edgebander - 45° Bevel & Straight Combination Machine

For an everyday edgebander with the ability to create both 45° bevels and straight edges, the NB7X Combination Edgebander makes this possible. A switch of a button can alternate between bevel and straight edges, with no additional setup time or disruption to your operation. Featuring twin
diamond cutters, twin glue station, plus a twin tape coil magazine, the NB7X is brimming with features. Edgebanding everyday plus creating new product lines, the Wood Tech NB7X steps up.

DISTINCTIVE FEATURES
• Upper pressing device: helical tooth pressing material, numerical control height adjustment, digital positioning display.
• Tool conveyor chain, semi-circular guide rail
• The upper pressing portion and the base portion are connected by a column on the fuselage, and the bridge structure can bear.

HIGHLIGHTS
• Touchscreen Controller
• Straight pre-milling
• Tilt pre-milling
• Panel pre-heating
• Grooving on tape
• Gluing on straight side
• Gluing on bevel side
• Edge tape preheating
• Pressurised pollers
• High speed trimming
• Rough trimming
• Fine trimming
• Corner rounding
• Profile scrapers
• Glue scrapers
• Cleaning sprays
• Buffing


CONTROL SYSTEM
10" industrial PLC Touchscreen programable controller

TOP PRESSURE BEAM
Motorised top presser beam for ease of panel thickness adjustment. The beam consists of helical rollers which guarantees precision and allows the panel to run on the trackpads guaranteeing uniform pressure of the panel being processed.

SAFETY DEVICE
The equipment complies with relevant national
standards. The cylinder limits the spacing of the feed plates to protect the normal operation of each component. Ultra-thick protection of the workpiece, the conveyor belt will stop when the plate thickness exceeds the current sealing plate thickness.

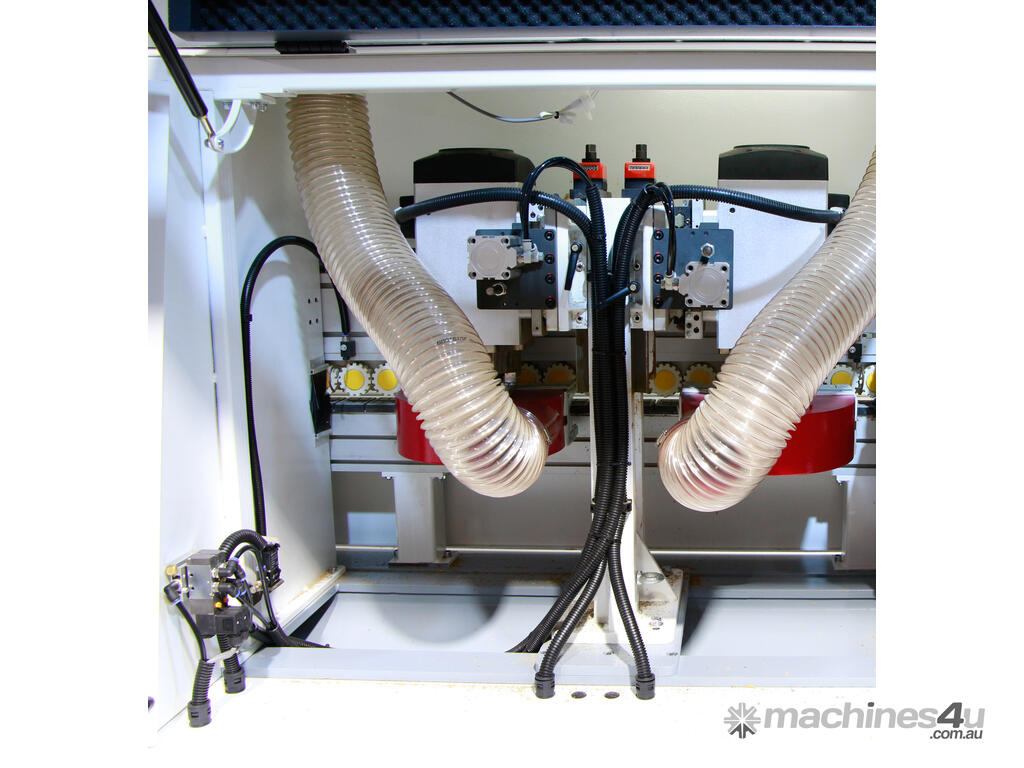

STRAIGHT PRE-MILLING UNIT
High-frequency motors with 90° Diamond Tooling equipped.

TILT PRE-MILLING UNIT
Diamond 45° moulding cutter that performs the mitred profile.

EDGETAPE GROOVING DEVICE
Horizontally machines a rebate in the rear of PVC, ABS and Wood in order to
create a clean ‘fold’. The unique cutter profile delivers the flat/curve groove
shape it requires. Servo feeding for accurate precision.

VERTICAL QUICKMELT GLUEPOT
Gluepot application for straight 90° edge.

ANGLED QUICK MELT GLUEPOT
Gluepot application for profiled angle edge.

TAPE PRESSURE ROLLER UNIT
The mechanism consisting of a straight face wheel and a bevel face wheel. When pressing the straight edge plate, the bevel face wheel moves forward and avoids the bevel face wheel.
When pressing the bevel face plate, the bevel face wheel moves forward and avoids the bevel face wheel.

DOUBLE SAW END TRIMMING UNIT
One unit is dedicated to the front of the workpiece while the other is dedicated to the rear of the workpiece, each column runs on a linear guide tracing the panel at 90° to the adjacent edge.
0-15° blade tilting for 1st & 2nd pass. Sawblades included.

TOP & BOTTOM ROUGH TRIMMING UNIT
One unit is dedicated to the Top while the other is dedicated to the Bottom of the
panel. Motor can be adjusted in the Angle from 0° - 5° to suit the profile. Equipped with independent vacuum hood. Cutters included.

FINE TRIMMING UNIT
Fine milling cutter block used to perform radius up to 2mm on the panel. Equipped with independent vacuum hood. Cutters included.

DOUBLE MOTOR CORNER ROUNDING UNIT
Fine milling cutter block used to perform radius up to 2mm on the
panel. Cutters included.

RADIUS SCRAPING UNIT
unit for PVC-ABS edge tapes up to 2mm, it removes ripples generated by previous machining’s thus improving surface finishing. Built with high-strength steel structure to grant absence of vibrations.
Equipped with electronic pneumatic control blower and independent dust collection
device. Tooling equipped.

FLAT GLUE SCRAPING UNIT
Finishing unit for removing excess glue from the panel to ensure the quality of the finish. Built with high-strength steel structure to grant absence of vibrations. Equipped with rotating vertical and side copying devices allowing perfect positioning of tools with respect to the edge to be processed Knives included.

BUFFING UNIT
Used for longitudinal edge polishing of workpiece
Cleans the edges of the workpiece and remove excess glue

PANEL SUPPORT
The panel support extends to support feeding of panels while ensuring panels arrive and travel through the workstations evenly and perfectly aligned. Large coil holder feed unit: up to 800mm diameter rolls. Automatic Hood unlocking only opening after machine is stopped.

SPECIFICATIONS
Panel thickness: 9 - 25mm
Panel width: min. 120mm inclined, 150mm straight
Edge tape thickness (all inclined): 0.4mm – 1.5mm
Edge tape thickness (partial inclined): 0.4mm - 3 mm
Feed speed: 14 – 18 m/min
Minimum panel size: ?150mm × 120mm
Machine Power: 14kw
Dust Collection: 7 x 125mm Diameter Exits
Pneumatic power: 6 bar
Weight: 5000 Kg
Dimensions of machine: 9950mm 1930mm
Power supply: 35kw
