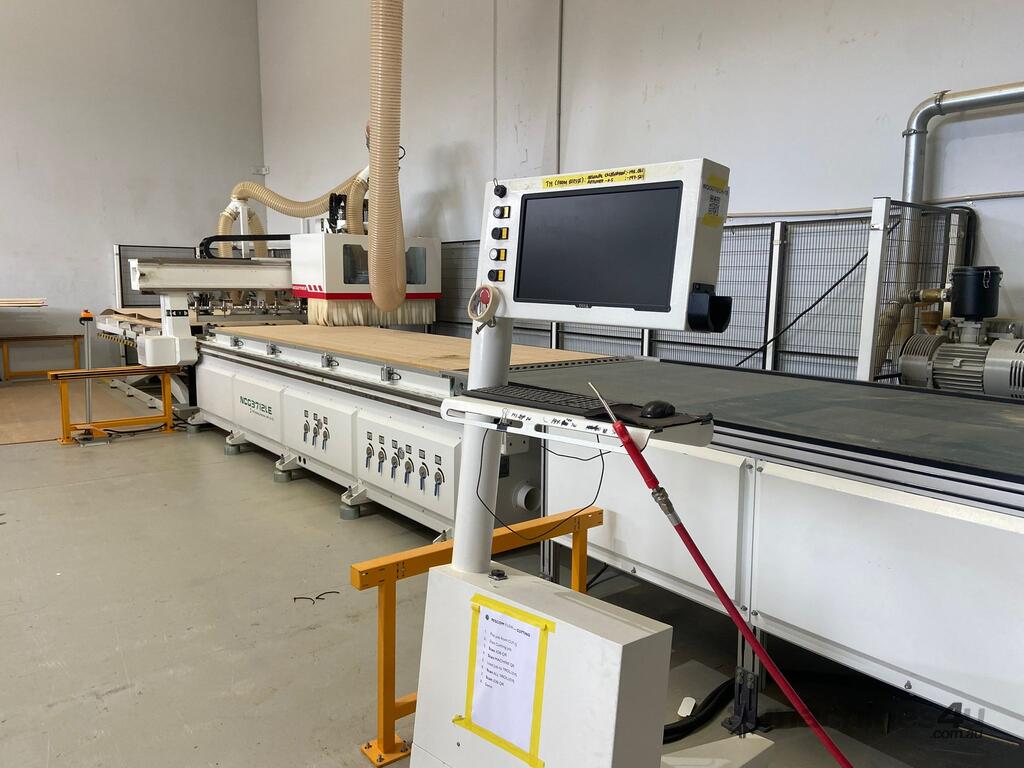

NCG3712 Load / Inload CNC automatic panel loading system for sale. This unit is 2023 plated and designed to streamline production for CNC machining centres in cabinet making, joinery, and furniture manufacturing.
Machine Features
• Gantry-type structure suitable for nested-based manufacturing
• Scissor lift table with automatic height control

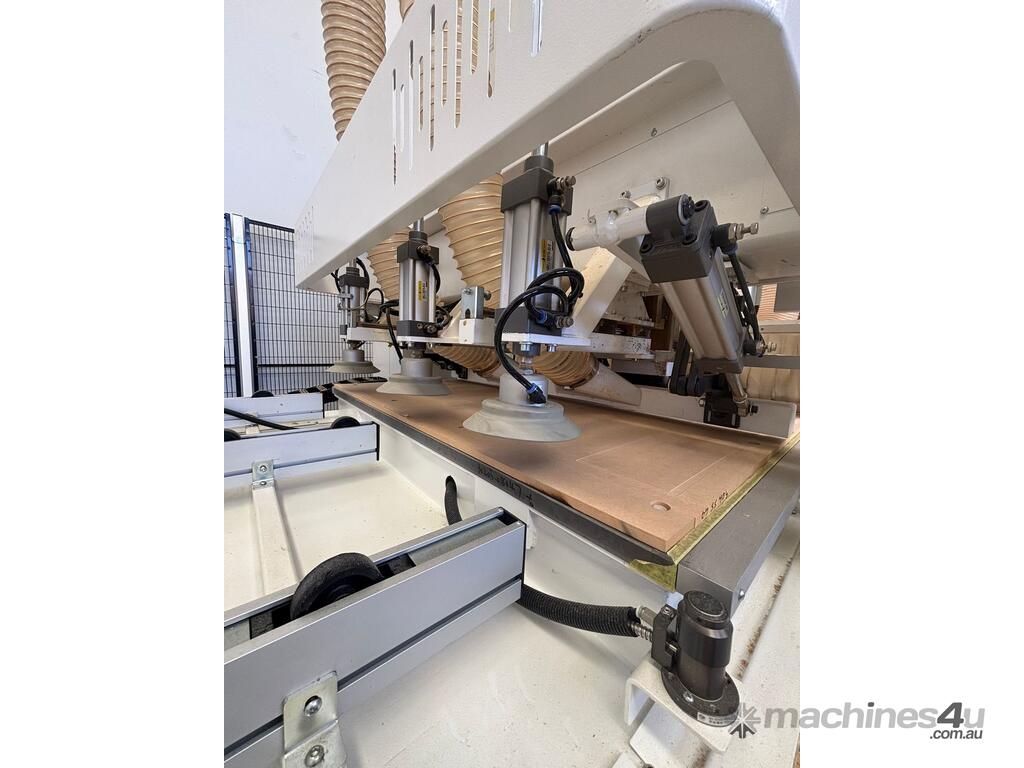

• Vacuum loading system
• Y alignment system to square the loaded sheet on the CNC table
• 3.6m x 1.2m Multi-zoned vacuum table

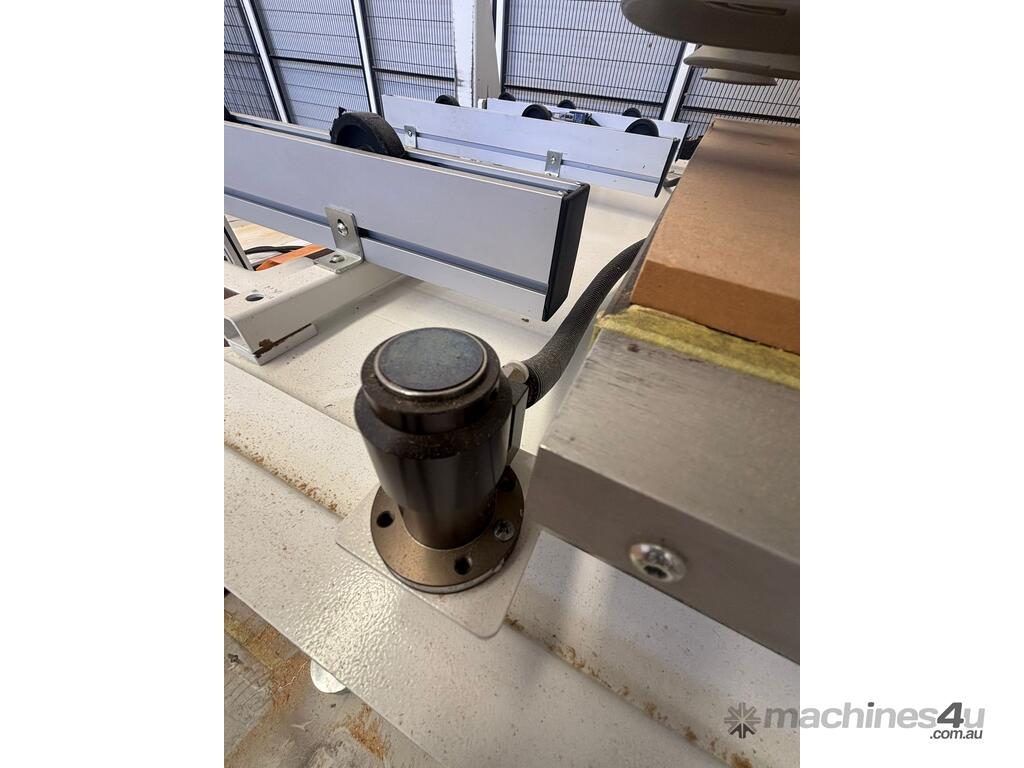

• Tool touch-off system
• Automatic lubrication system
• 1 × 12kw Electrospindle (router head) with ISO30 connection

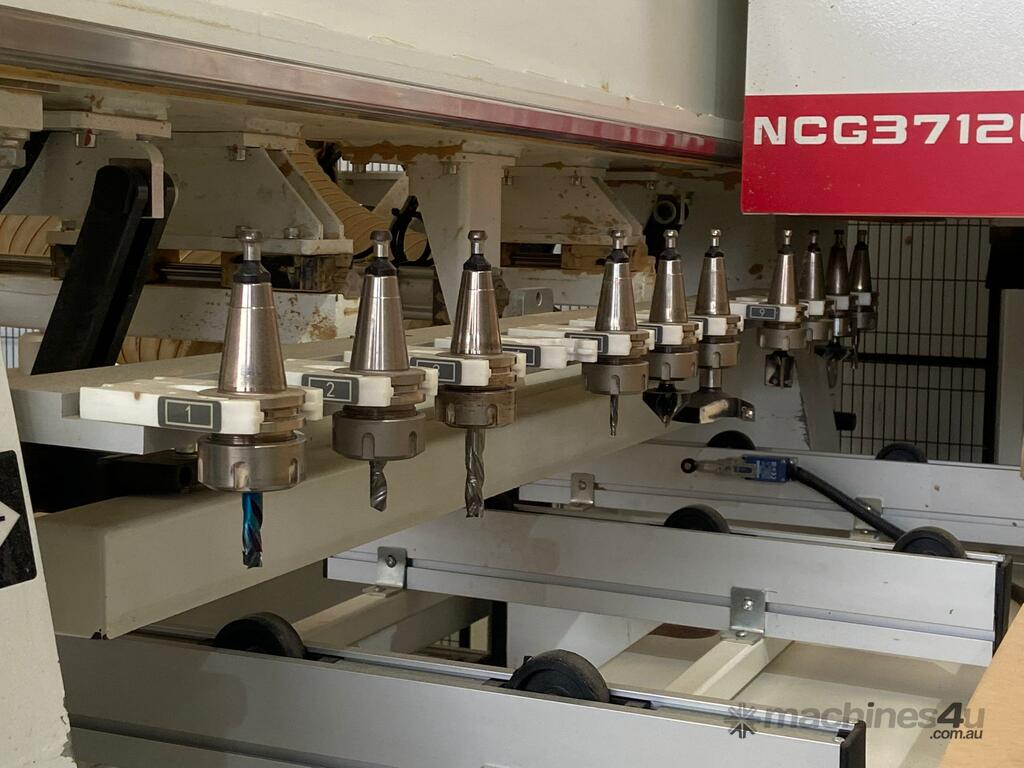

• 12-position automatic tool changer
• 10 x vertical drill head
• Unloading push-off bar with dust extraction
• Front and rear pop-up stops / bars to assist with the load and unload of the sheet
• Powered outfeed conveyor
Vacuum System

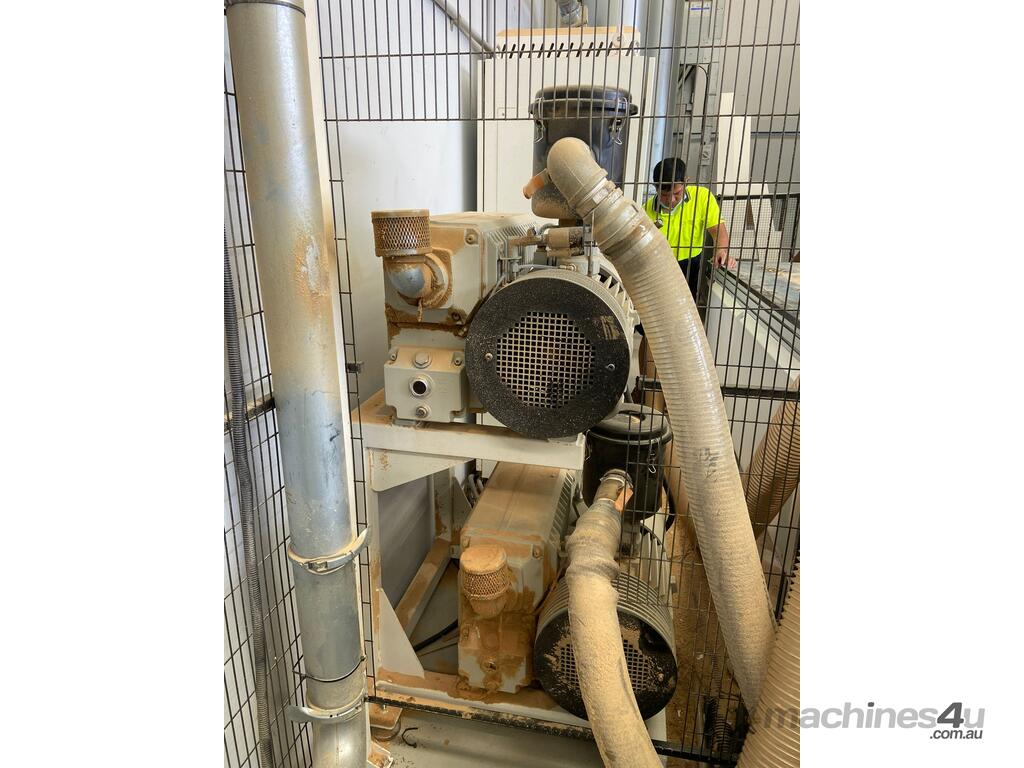

• 2 × 300 m³ Oil Vacuum pumps
Control System
• Windows PC
• Syntec Control
Safety
• Safety fence with interlock door
• Photoeye beams in front of machine
Inspection welcome. Contact for more information or to arrange viewing.
Selling due to factory upgrade.
Location Hemmant QLD
Note: Dust Extraction with Duct & Flex also Available at an additional cost.
