Wood Working Machine WM-3020, Table Saw, Jointer/Plander, Thicknesser, Milling & Drilling Woodwork

KANG Industrial Wood Working Machine WM3020

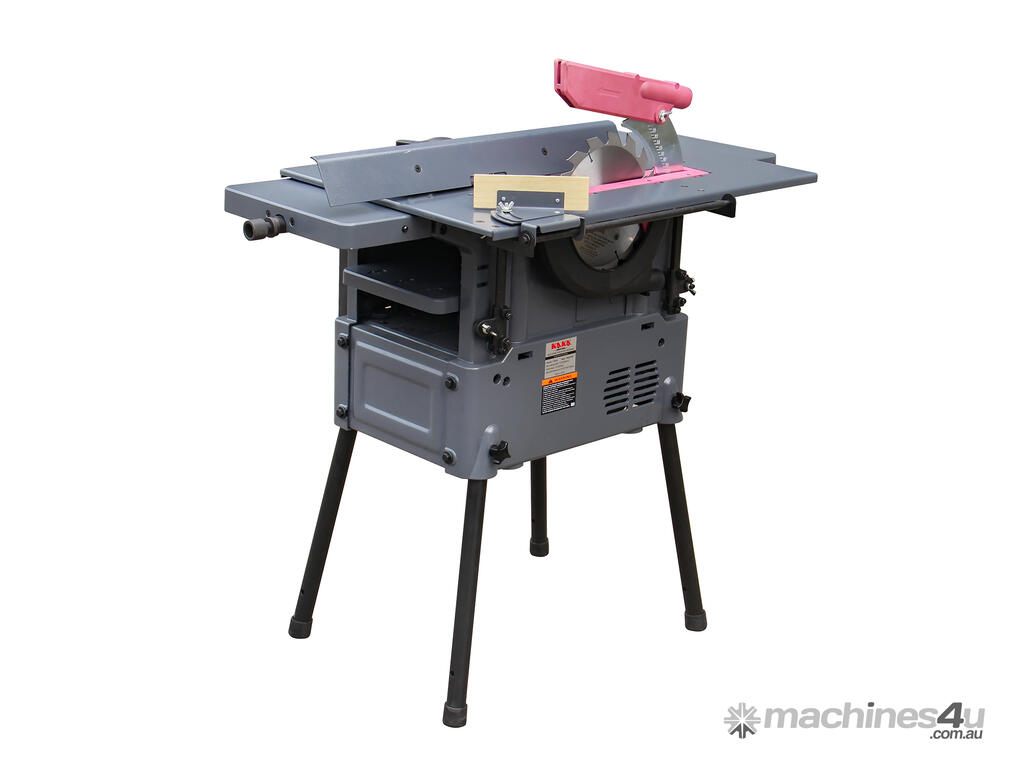

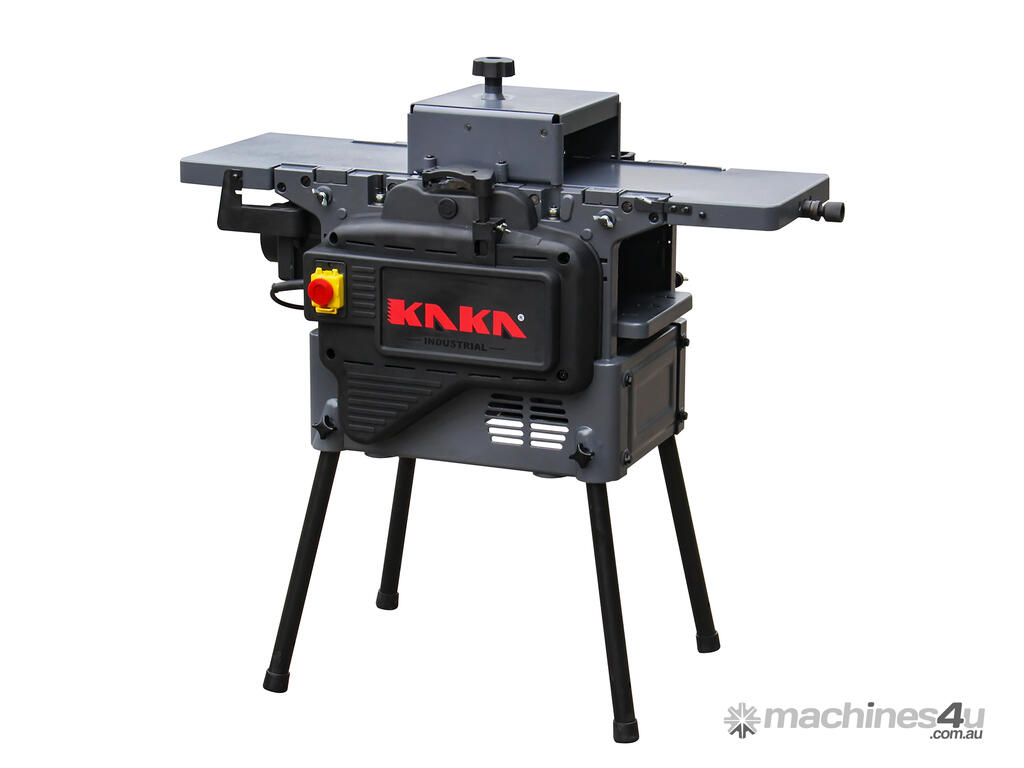

The KANG WM3020, 2200W Multifunctional Woodworking Machine is a powerful 5-in-1 combo station that replaces a full workshop of separate tools. Designed for serious DIYers, hobbyists, small cabinet makers and home workshops, this compact yet robust machine combines a table saw, jointer/planer, thicknesser, router/milling table and drill/mortiser, all powered by a single 2200W asynchronous motor.

Ultimate Space & Cost Saver Woodworking Machine. One machine does the job of 5 separate tools (table saw + jointer + thicknesser + router table + drill press). Ideal for the garages, sheds, or small workshops where space is at a premium.

Powerful Yet Clean Operation. 2200W motor handles tough timbers effortlessly, while the built-in dust port connects to standard shop vacs, helping meet dust extraction preferences and keeping your lungs (and workshop) cleaner.

Versatile for Every Project. Rip, crosscut, plane, thickness, route decorative profiles, mortise joints or drill, everything from furniture making, decking, cabinetry, renovations and custom woodworking.

Features

The 2.2 kW powerful motor runs on 240V power

Multifunctional purpose, thicknessing, sawing, planing, milling, and drilling

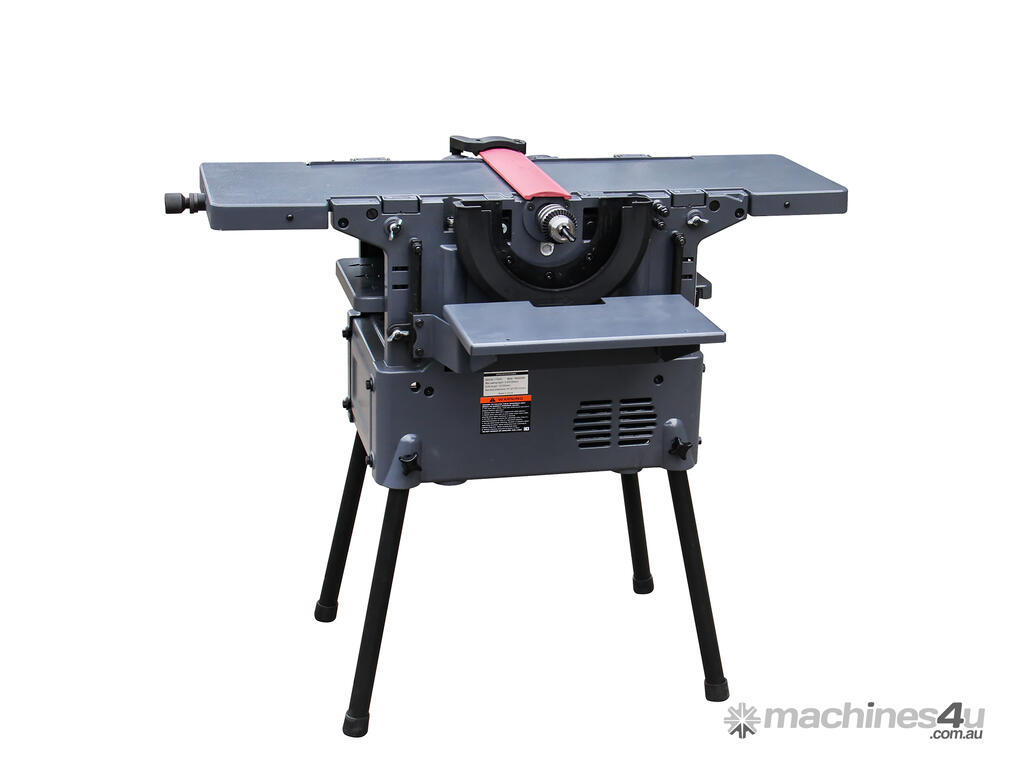

Standard table for drilling and milling purposes

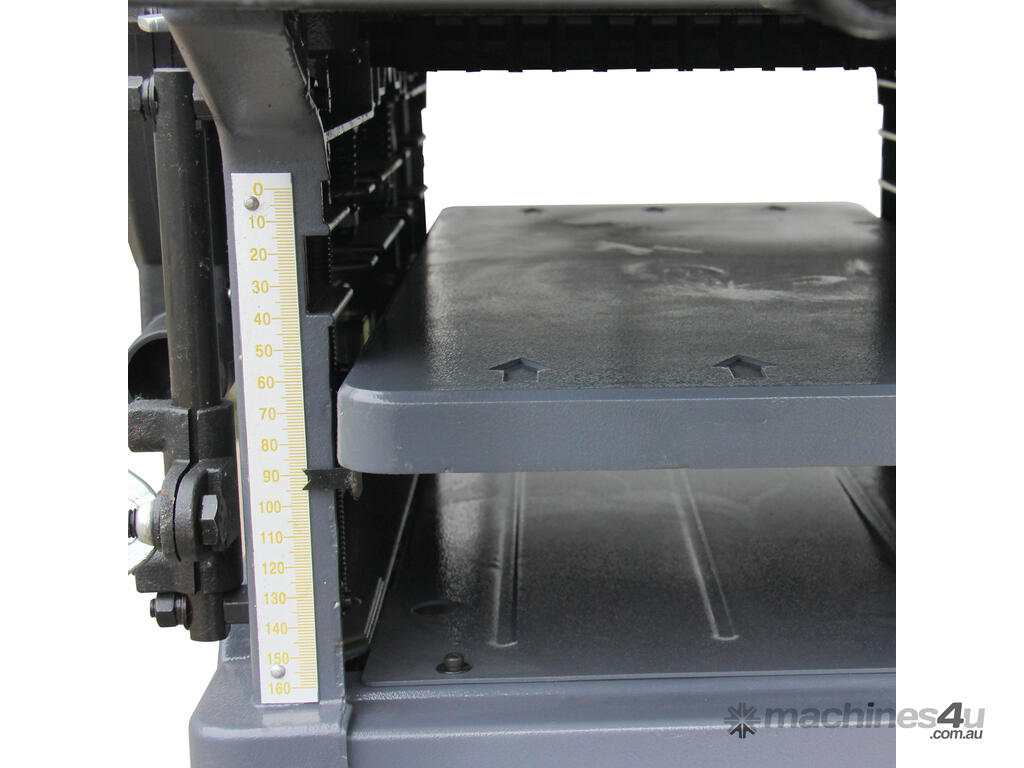

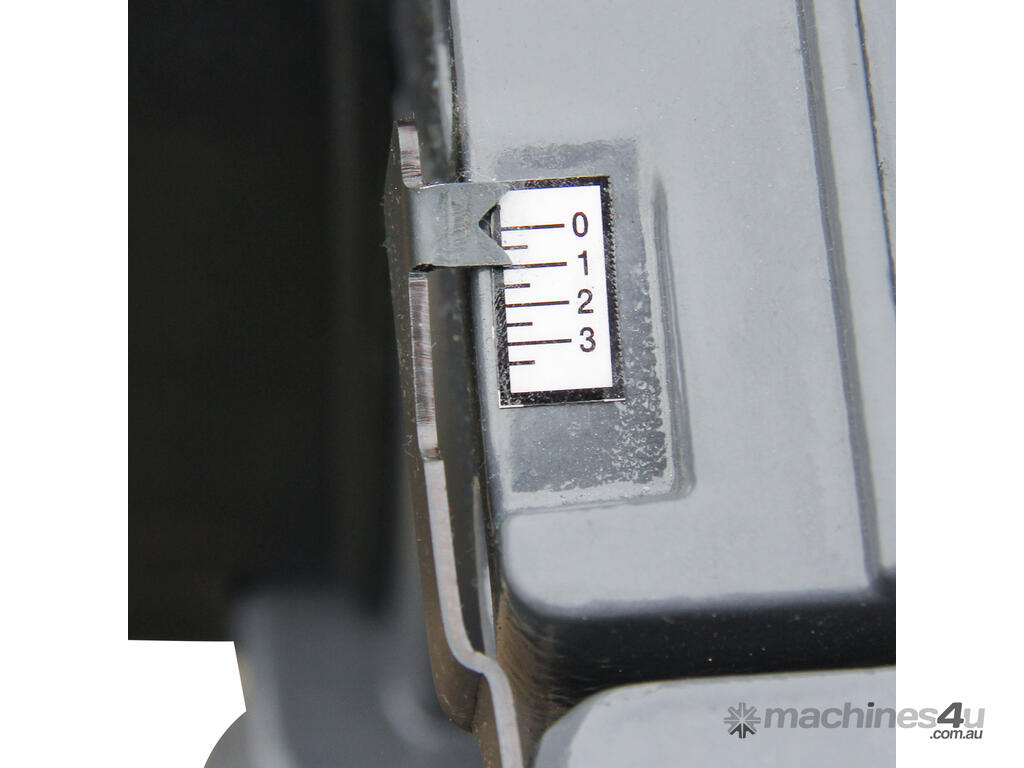

Thicknesser with a scale to show the position

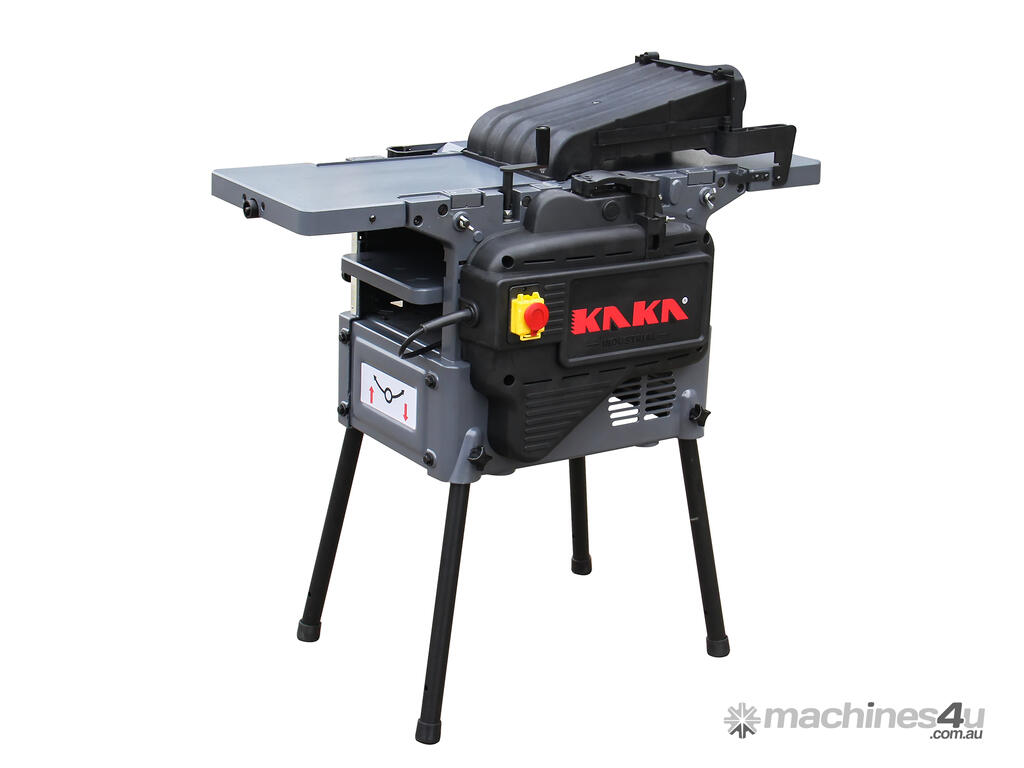

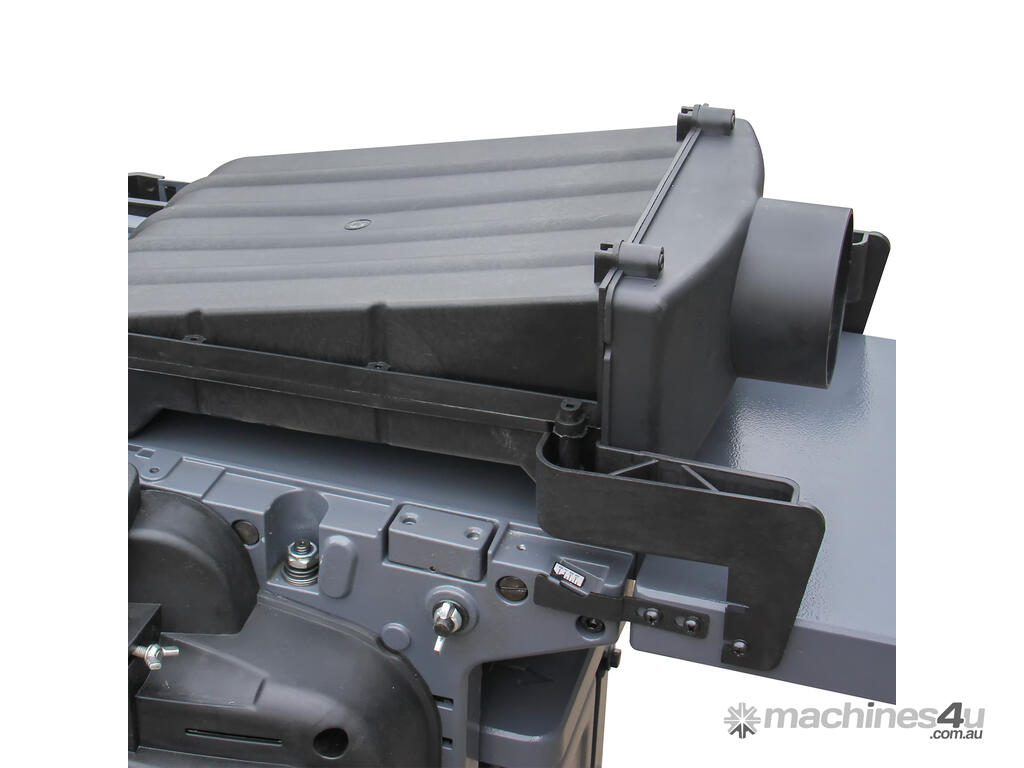

The Planer function has a cover with a dust port to contact the dust collector, keeping your workspace clean

Specifications
SKU 170004
Model WM-3020
Max. One-way planning thickness 250 mm
One way of planning depth 0-3.5 mm
Max. sawing depth 85 mm
Max. planning thickness with clamping device 250 mm
Max. thickness of clamped object 60 mm
Range of cutting planning angles 0-45°

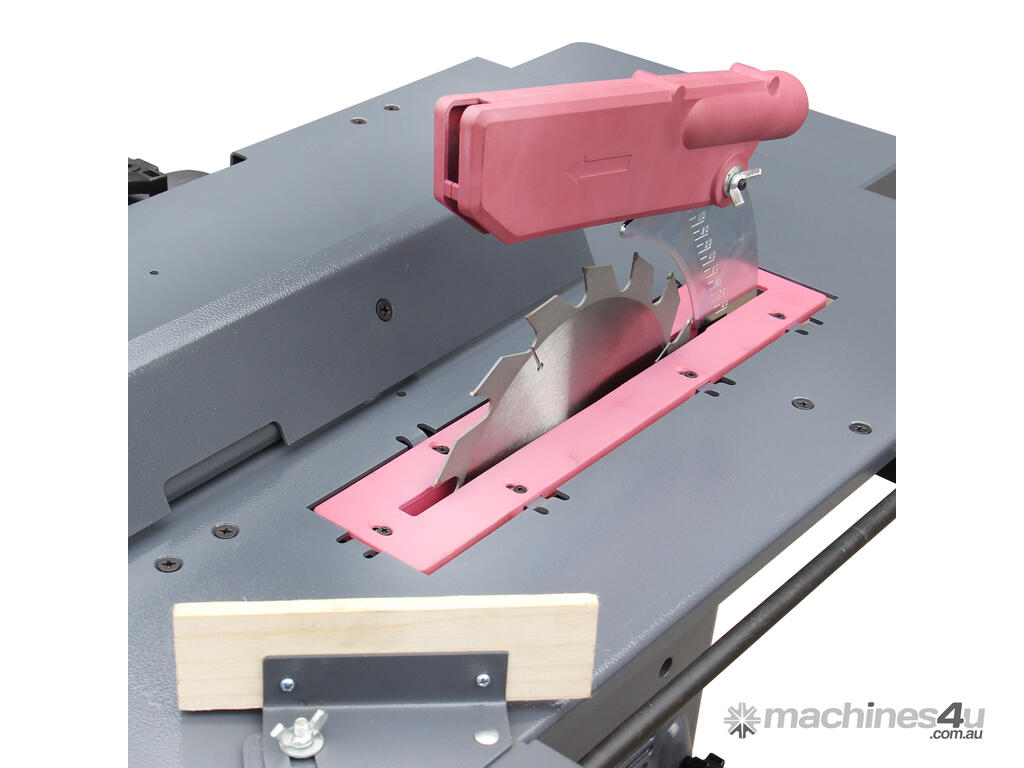

Saw blade dia. 250 mm

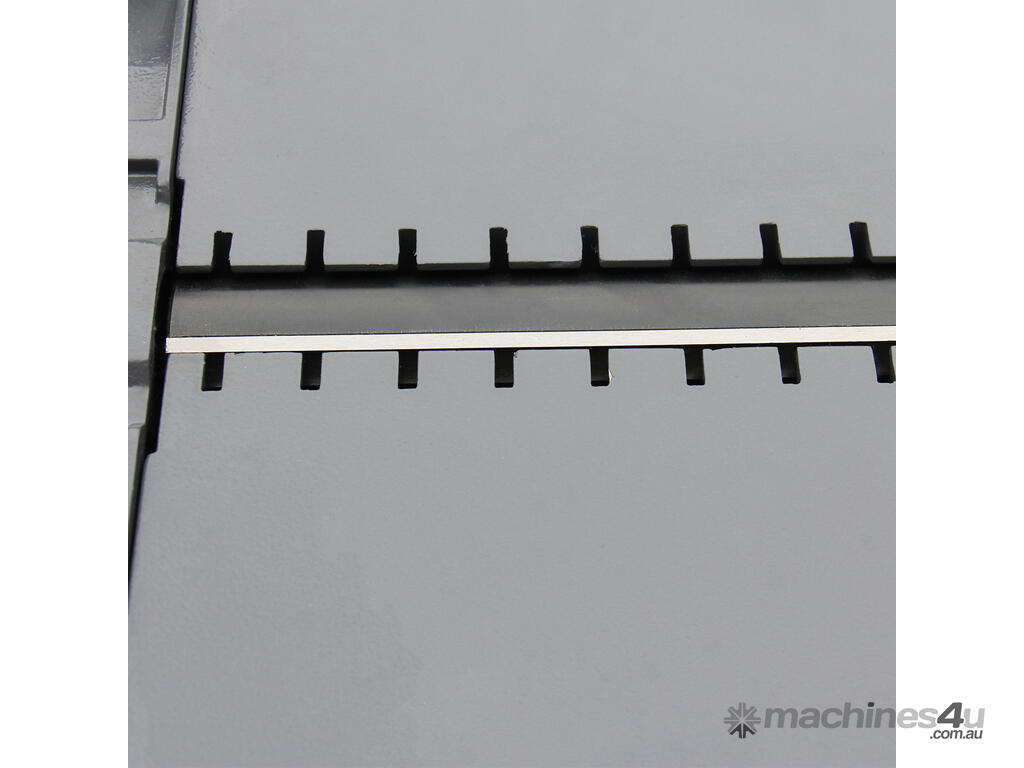

Quantity of knives 2 pcs
Knife length 250 mm
Saw table dimensions 750x510 mm
Planning table size 1000x318 m
Milling/Drilling table size 370x200 mm
Rated idle RPM 5500 revs/min
Rated idle power 2.2 kW
Motor type S6-40
Packing size 105x53x55 cm
N.W./G.W. 78/92 kg
