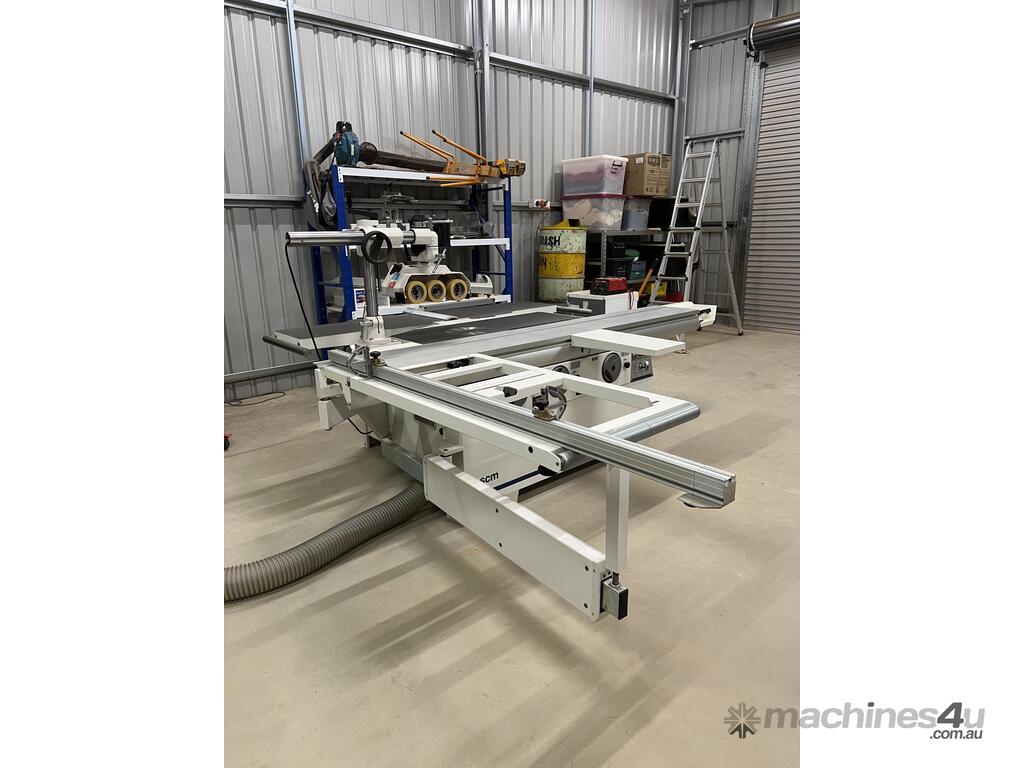

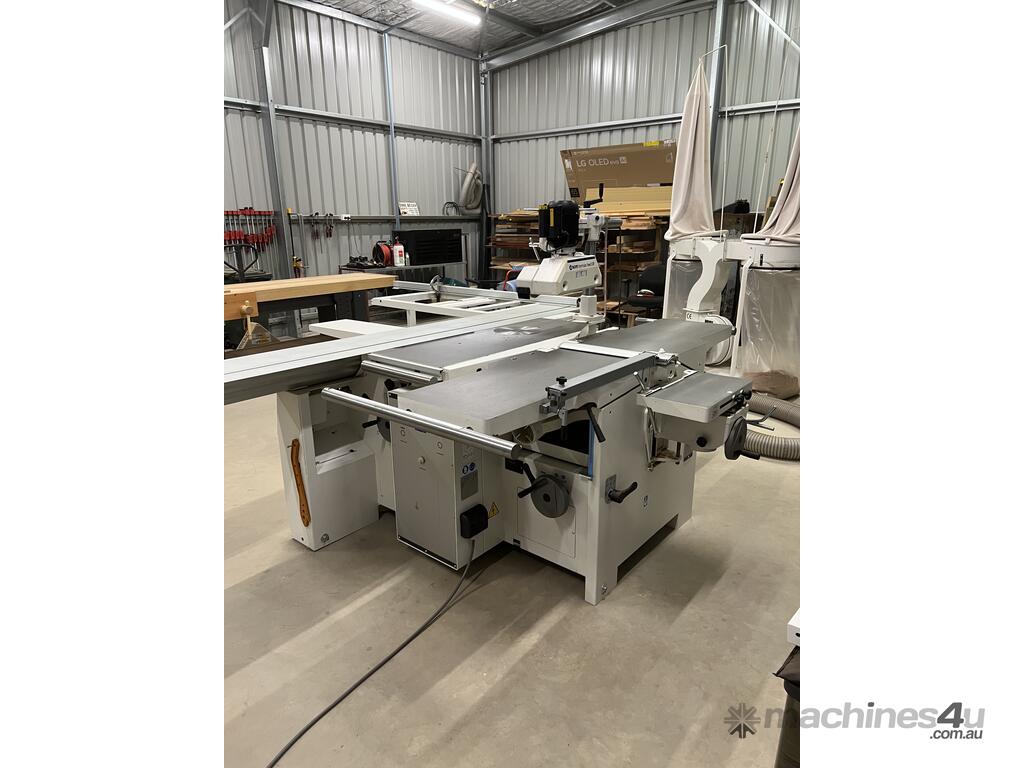

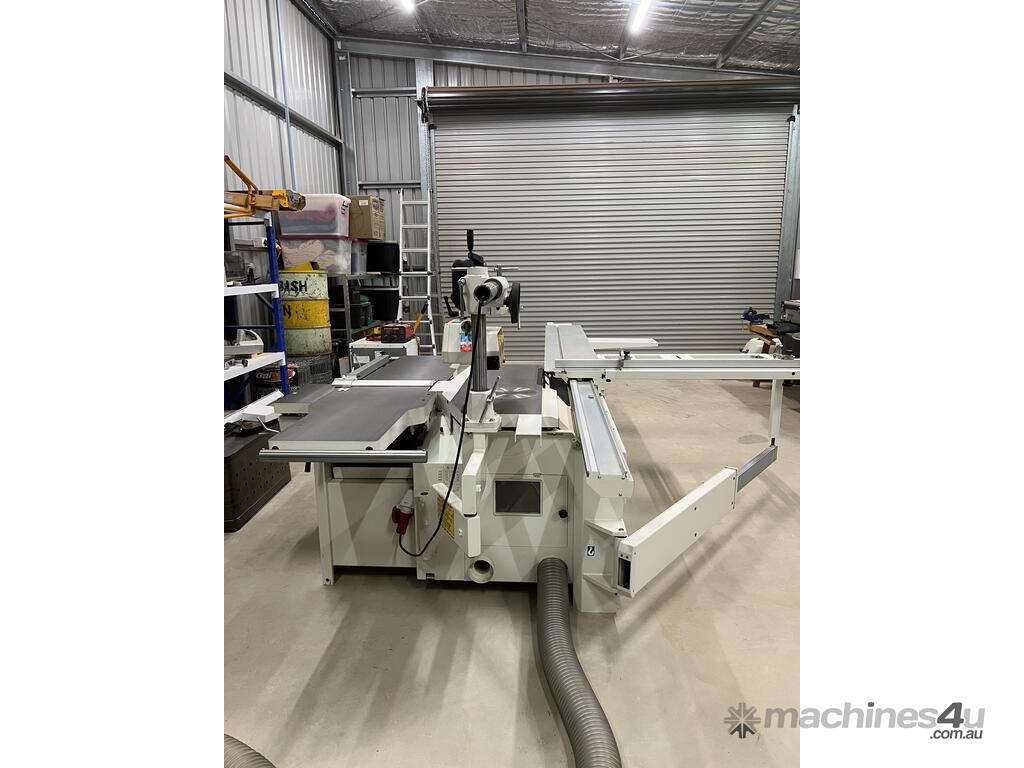

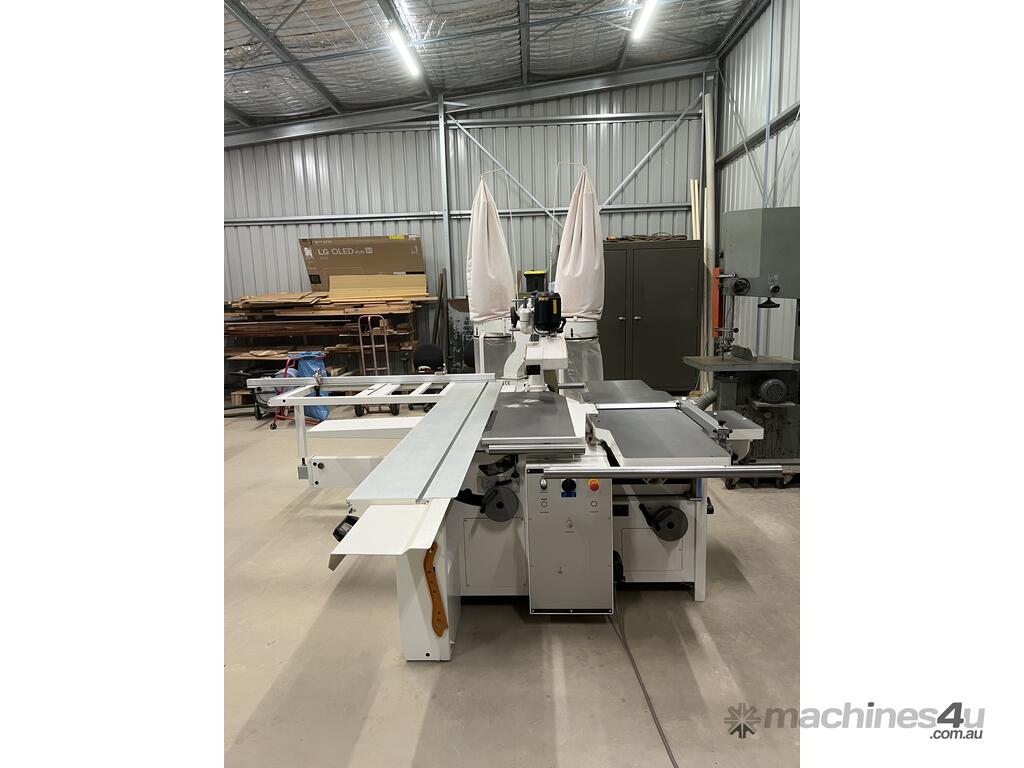

Three-Phase SCM Universal Combination Machine, in excellent condition, manufactured in 2021 (still the current model), with many optional extras. This is a heavy-duty machine that would suit a serious woodworking hobbyist or a small woodworking shop. Plus a three-phase Holytek twin bag dust extractor model SF003F, also in excellent condition.

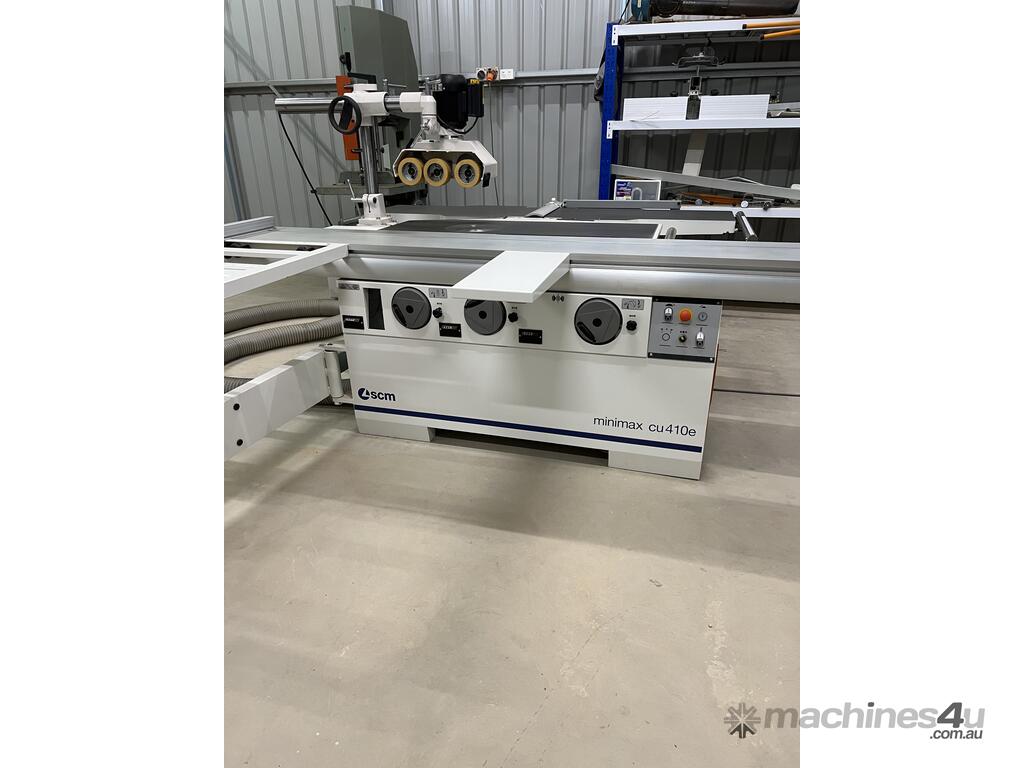

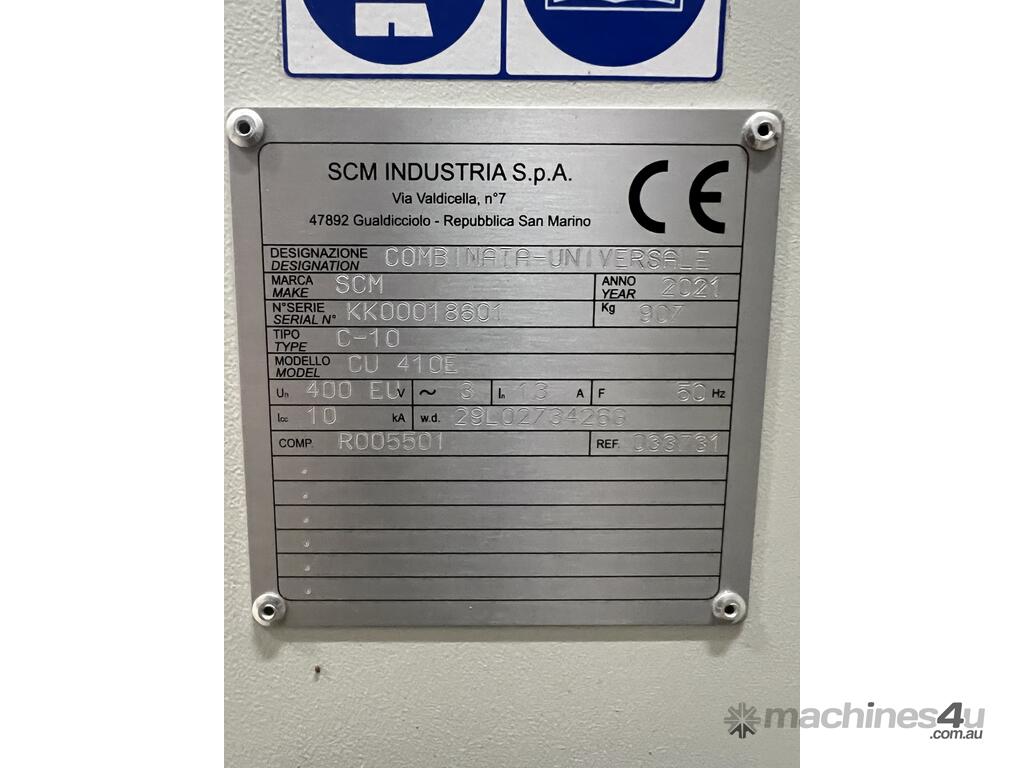

Technical features CU 410ELITE
PLANER/THICKNESSER

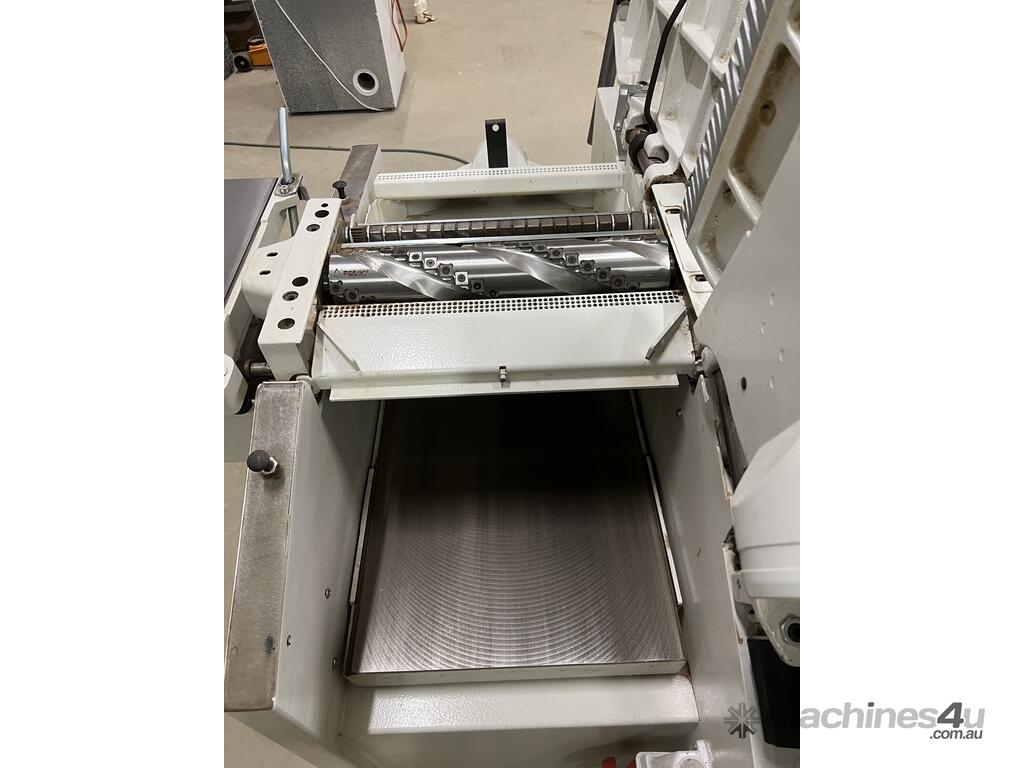

Xylent spiral knife cutter block with 3 series of knives
Working width 410mm
Cutter block diameter 87mm
Max stock removal 5mm
Surfacing tables' total length 2000mm
Thicknessing table dimensions 423x775mm
Thicknesser working height 3-230mm
Min working length 160mm
CIRCULAR SAW
Cast iron work table dimensions 1250x430
Blades tilting 90-45
Max saw blade diameter with scoring blade installed 315mm
Max saw blade projection from table at 90/45 (100mm/71mm)
Scoring blade diameter 100mm
Max squaring stroke 2600mm
Cutting width on parallel fence 900mm
SPINDLE MOULDER (Tiltable 90-45)
Max useful spindle length 90mm
Spindle moulder speeds (RPM) 3500/6000/8000/10,000
Max tool diameter when profiling 210mm
Spindle moulder shaft 30mm
Spare spindle for router bits
ELECTRIC MOTORS
3 Three-Phase 5kw(6.6hp) 50Hz motors
Scoring blade motor 0.75 hp
CAST IRON MORTISER UNIT
Worktable dimensions 470x230mm
Vertical stroke 110mm
Transversal stroke 160mm
Longitudinal stroke 120mm
Exhaust hood diameter 120mm
POWER FEED UNIT 415V

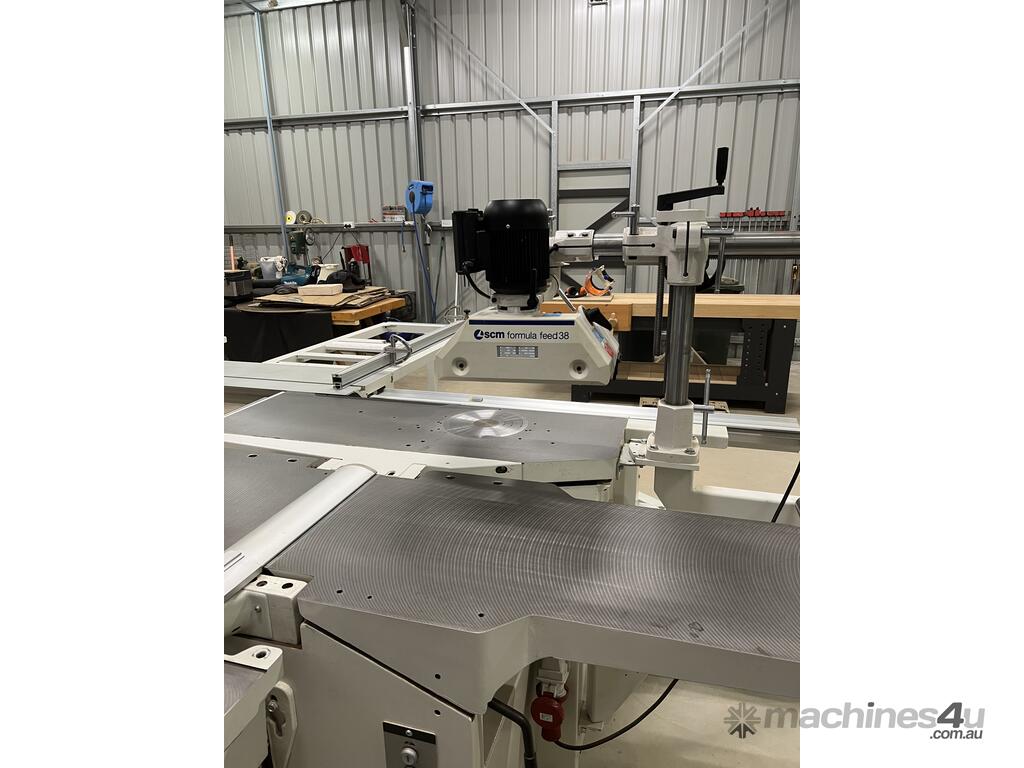

SCM Formula Feed 38 power fed unit
-with swing support arm
8 speeds forward and reverse

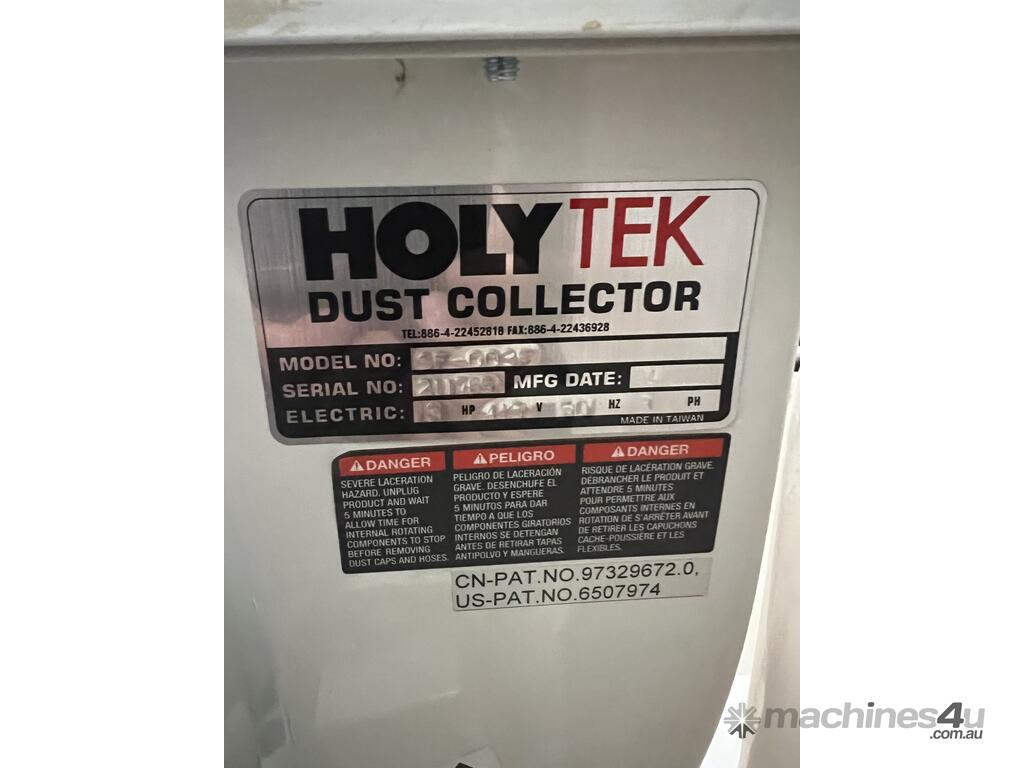

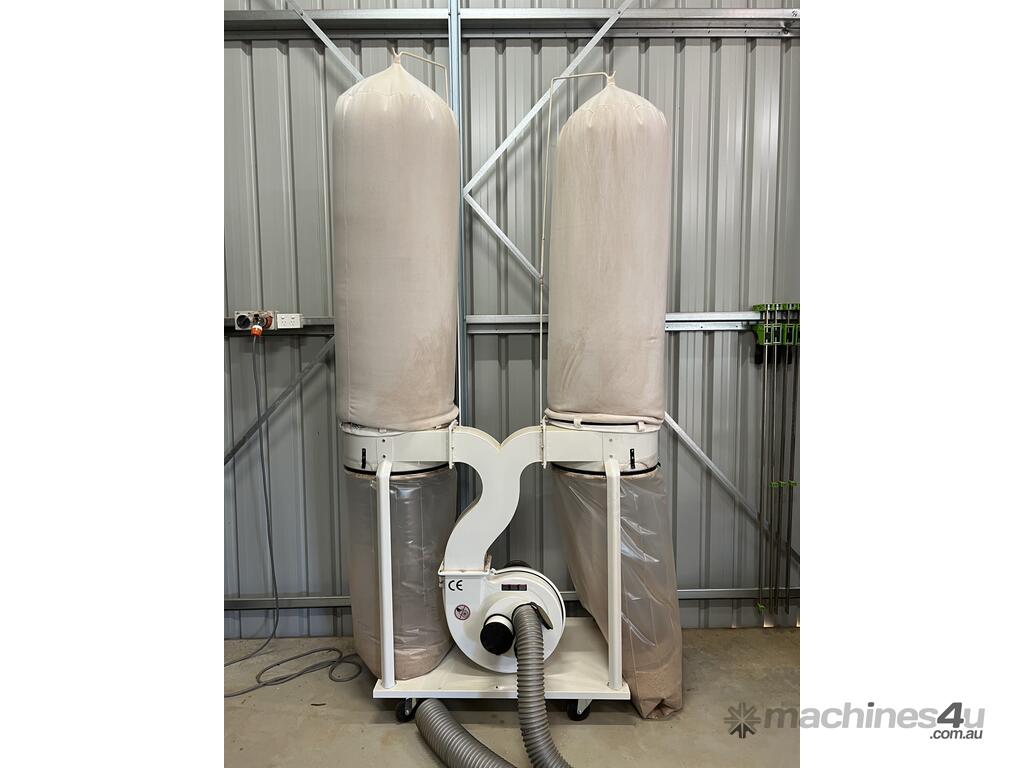

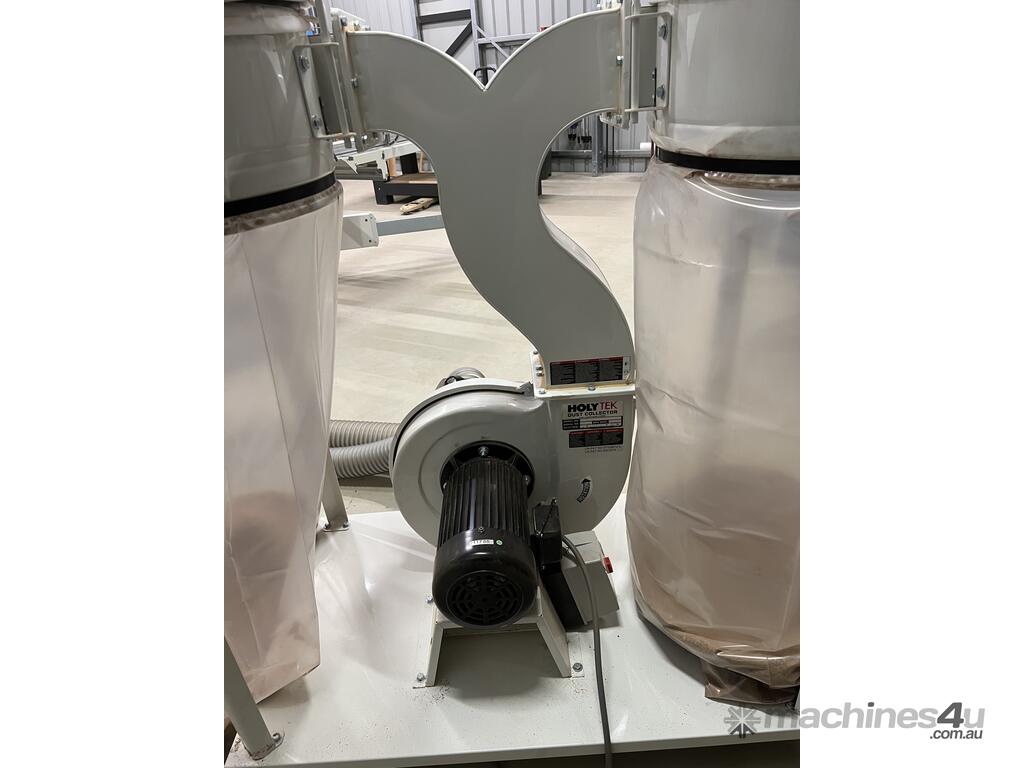

DUST EXTRACTION UNIT
Holytek-SFOO3F
2x510mm diameter bags
Motor size 3hp 415V
