Woodworking Mortising Machine MS-36127, 3/4HP WoodWorking Chisel Morticer

Kang Industrial Wood Mortising Machine MS-36127

The KANG MS-36127 is a robust benchtop hollow-chisel mortising machine built for serious woodworkers who demand precision, power, and versatility in mortise-and-tenon joinery. With a powerful 3/4 HP motor and heavy cast-iron construction, it cuts clean, square mortises quickly and accurately in hardwoods and softwoods alike.

More Power for Tough Jobs. The 3/4 HP motor delivers extra torque to power through dense hardwoods like jarrah, blackwood, or spotted gum without bogging down.

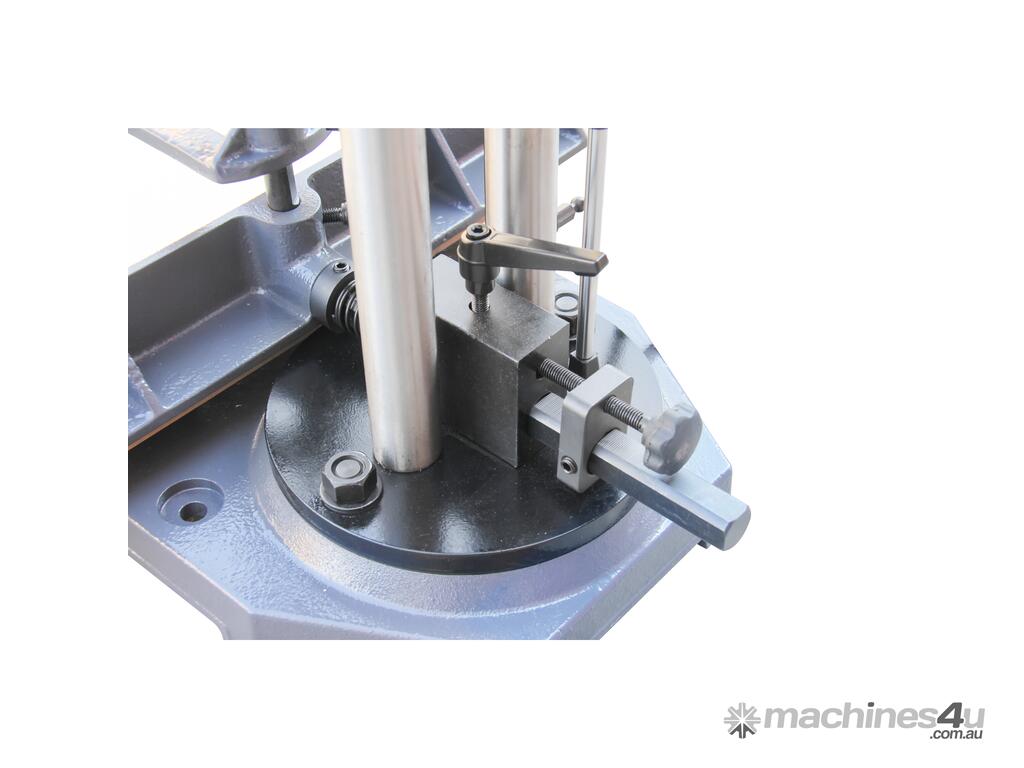

Unique Swivelling Base Mortiser. Rotate the entire head for easy mortising on the ends of long rails or boards, a major advantage for door frames, table legs, and large projects that other benchtop mortisers can't handle as easily.

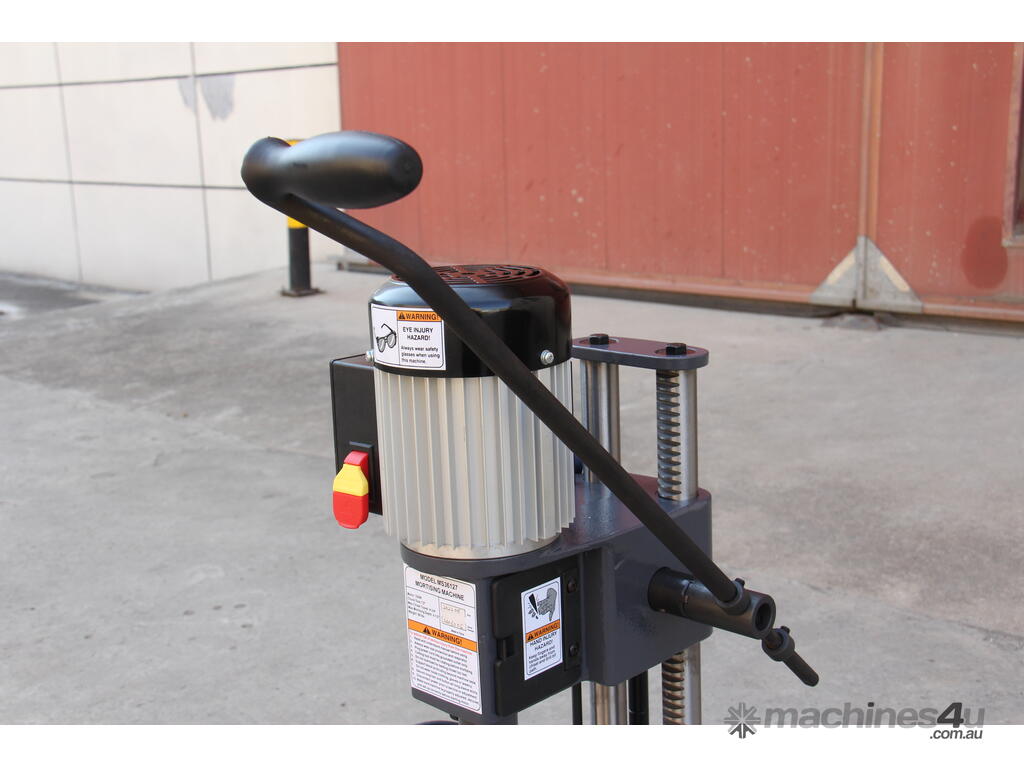

Smoother, Less Fatiguing Operation. Gas spring return provides controlled, soft head release, while the extra-long handle gives outstanding leverage and reduced effort during repetitive cuts.

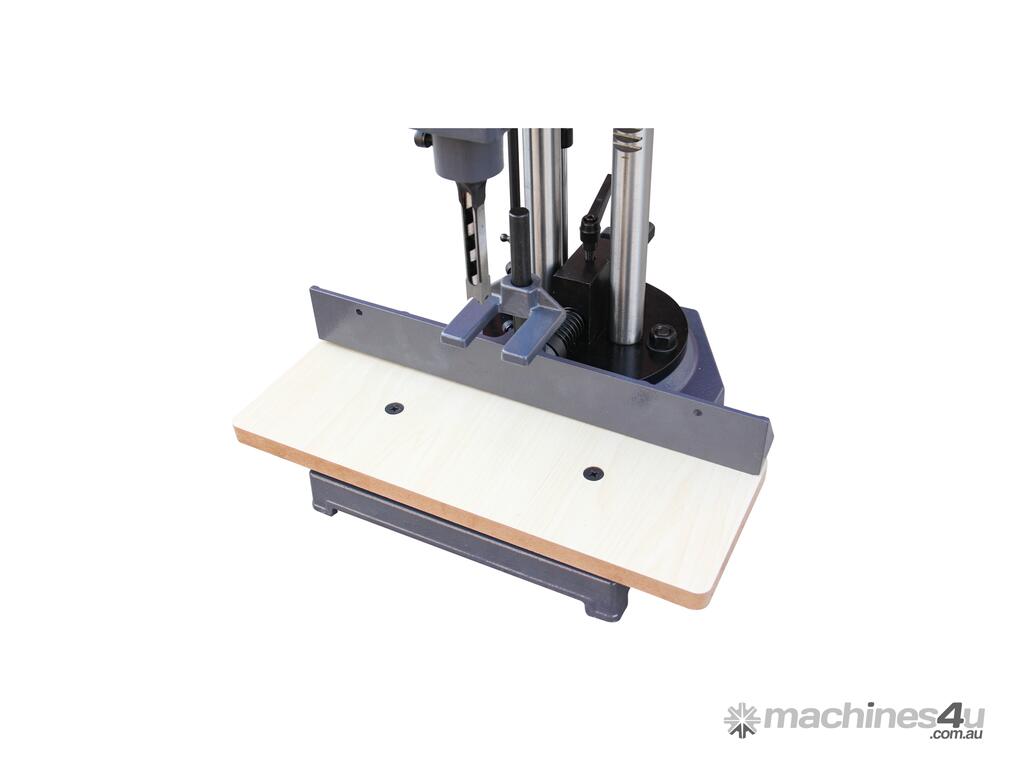

Rock-Solid Precision & Stability. Twin hardened-and-ground columns, heavy cast-iron build, and micro-adjustable fence with strong hold-down ensure square, tear-out-free mortises with minimal vibration or wood movement.

Generous Mortising Capacity. Handles thicker stock up to 187mm and deeper mortises up to 114mm, giving you more flexibility for furniture and joinery work.

Ready-to-Use Convenience. Comes with a 1/2" chisel, 8-piece tool holder, and quick-adjust depth stop with positive stops for fast, repeatable setups. The 1/2" chuck accepts standard chisels without modification.

Features

Solid cast iron structure, rugged and high-quality Chisel Morticer

The dovetail guides and gas cylinder move smoothly and easily

Easy set depth stop to make repeating mortising

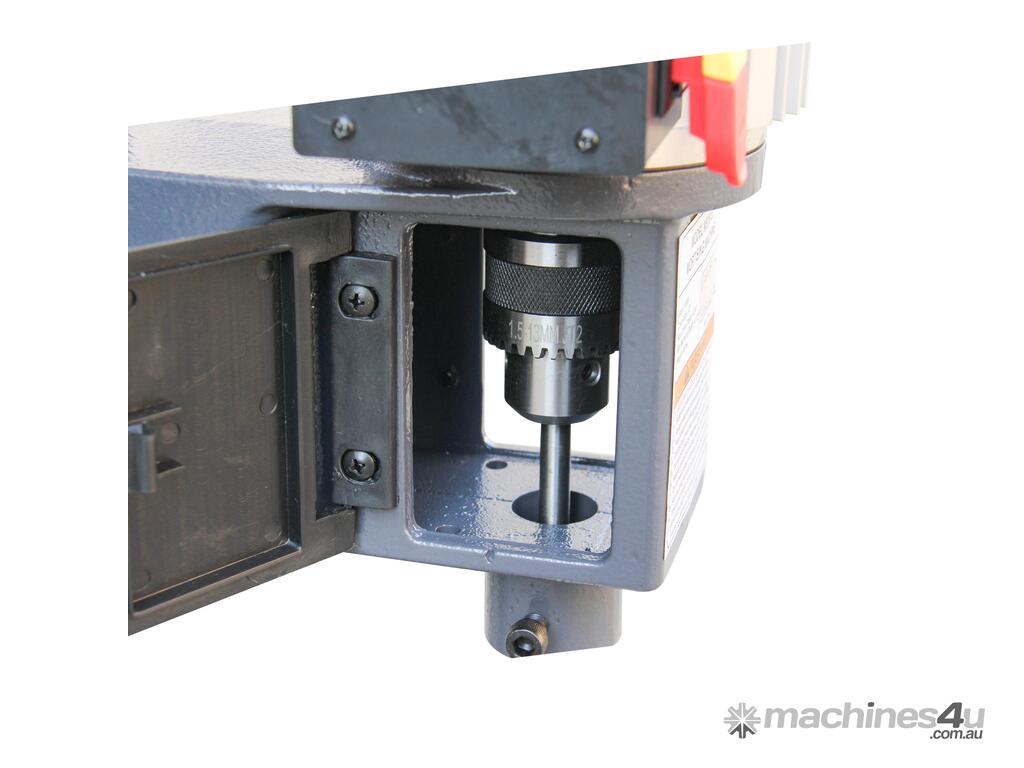

With an 8-piece tool holder, easy two-door chuck access

JT#2 Spindle


Specifications
SKU 462202
Model MS-36127
Motor 3/4HP
Spindle speed 2880 RPM
Spindle taper JT #2
Chuck size 12.7mm
Maximum stock width 203 mm
Maximum stock thickness 187 mm
Maximum motorising depth 114 mm
Maximum chisel travel 120 mm
Collar size 16 mm
Table size 152x406x19 mm

Packing size

Body: 66x43x36 cm
Stand: 33x41x15 cm

Weight

Body: 30 kg
Stand: 10 kg
