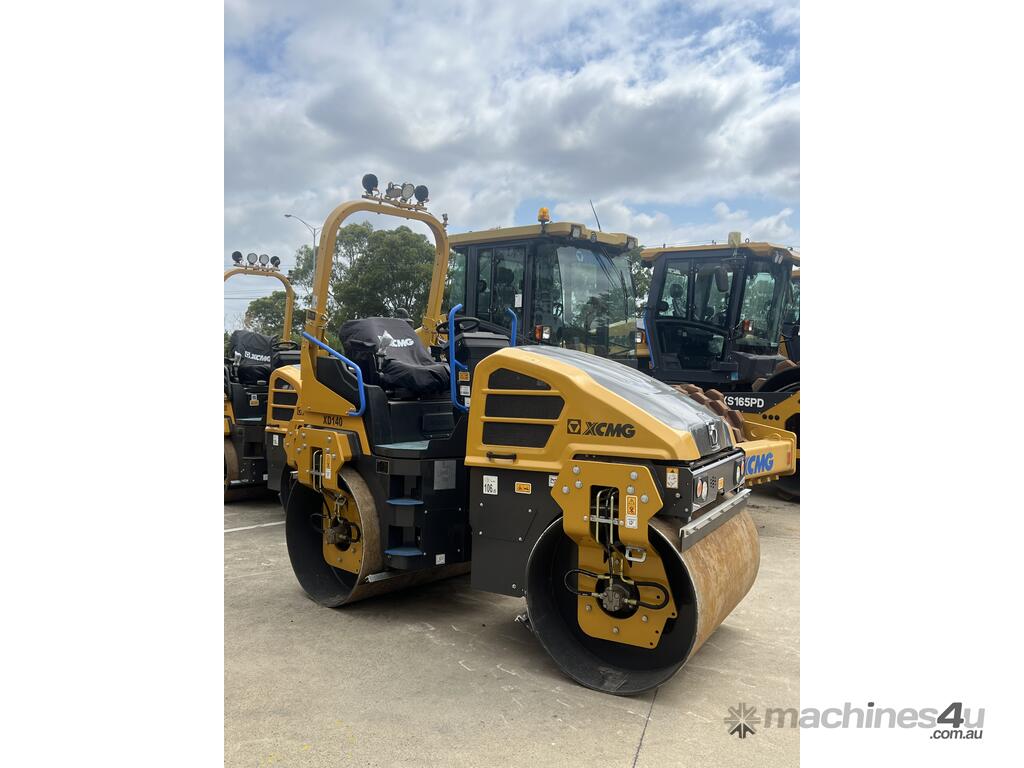

XCMG XD140 Double Drum smooth Roller

Compact dual drum vibratory roller designed for efficient compaction of soil and asphalt in narrow areas such as sidewalks, parking lots and residential roads. Also suitable for stable soil layering, making it an ideal compaction solution for municipal maintenance and high-speed pipe maintenance work.

KEY BENEFITS
-60Hz high-frequency vibration with 920mm large-diameter drums for improved compaction quality
-Large-capacity water tank with interval-controlled sprinkling for prolonged operation
-Two-wheel drive + large displacement provides strong driving torque and climbing ability
-Drum & articulated frame designed to be maintenance-free throughout the life cycle
-Sliding operation mechanism for more convenient edge compaction

SPECS & INCLUSIONS
-Operating weight: 4,300 kg (max operating 4,400 kg)
-Static linear load: 15/21.59 N/cm
-Operating speed: 0 – 12 km/h
-Gradeability: 30%
-Minimum turning radius (outer): 4,100 mm
-Minimum ground clearance: 350 mm
-Wheel base: 1,950 mm
-Vibration frequency: 53 / 60 Hz
-Nominal amplitude: 0.5 mm
-Excitation force: 42 / 53 kN
-Drum width: 1,380 mm | Drum diameter: 920 mm
-Engine model: V2403
-Emission: EU Stage III / China IV
-Rated power: 34.1 kW 2400 rpm
-Fuel tank: 55 L | Water tank: 280 L
