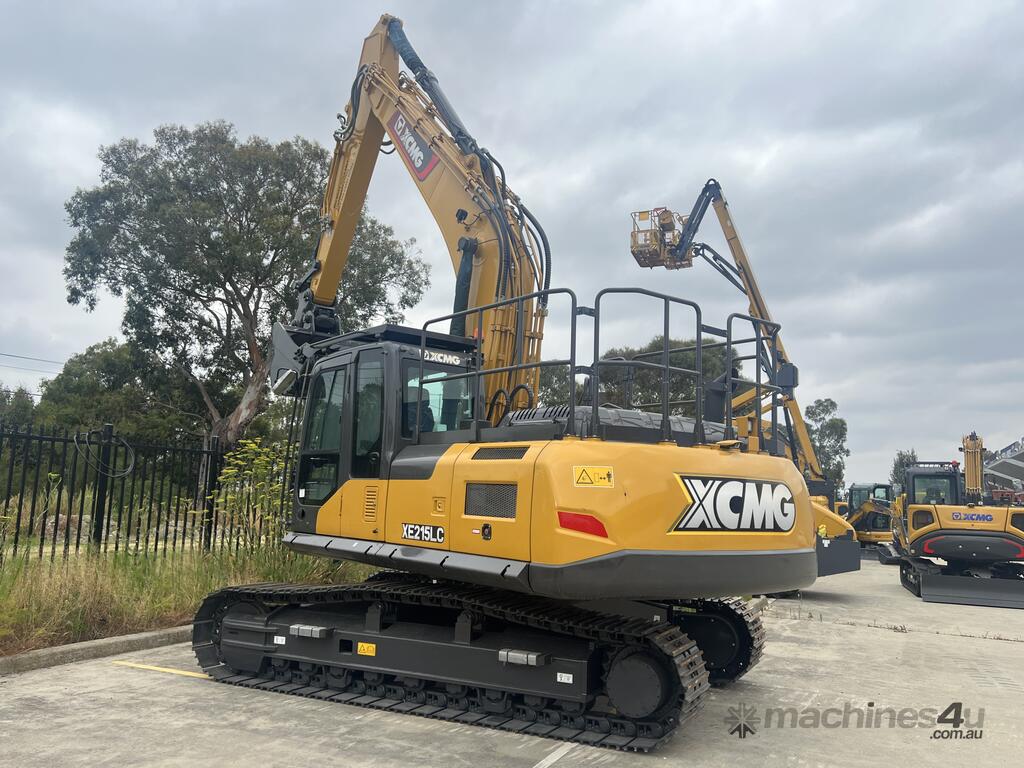

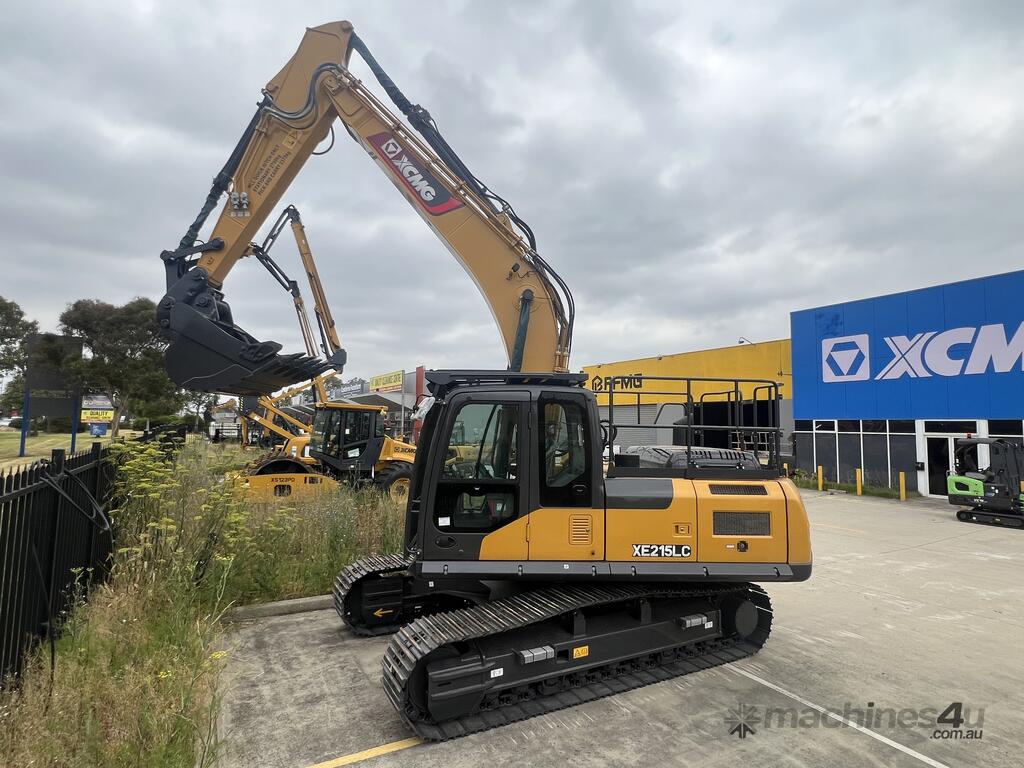

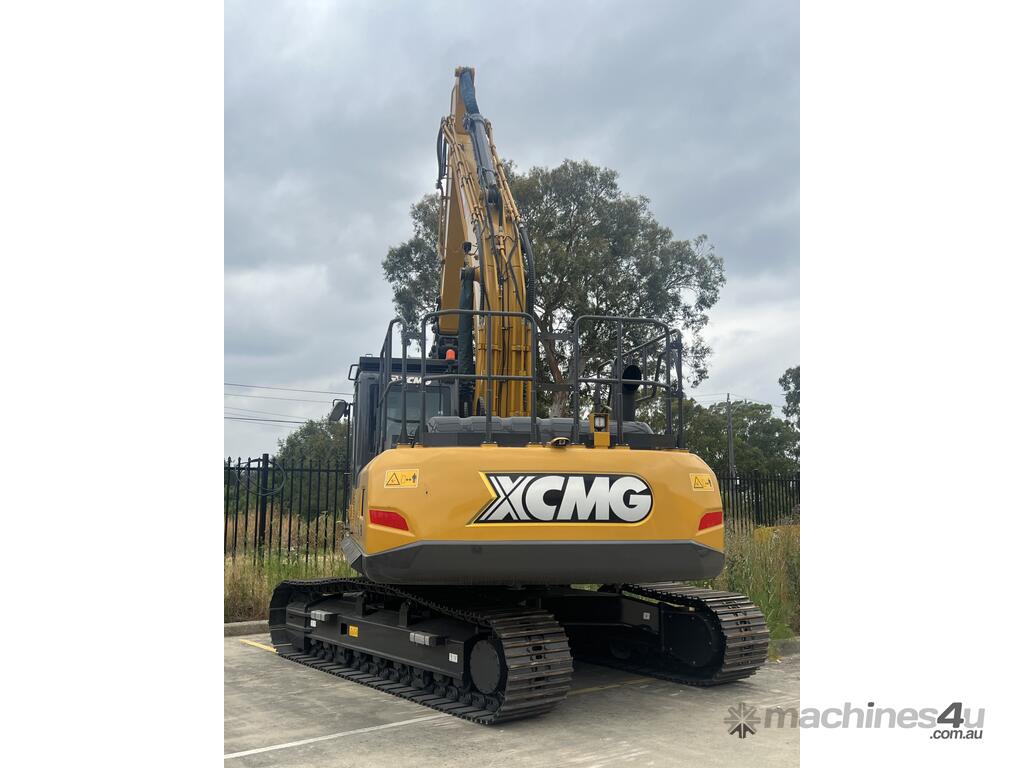

XCMG XE215LC Excavator

Heavy-duty 23.5T crawler excavator powered by a high-performance Cummins engine, built for productivity and durability on civil construction, bulk earthworks and quarry applications. Featuring upgraded large-flow hydraulic pumps, advanced electric-controlled hydraulic system, and strong undercarriage for demanding Australian job sites.

KEY BENEFITS

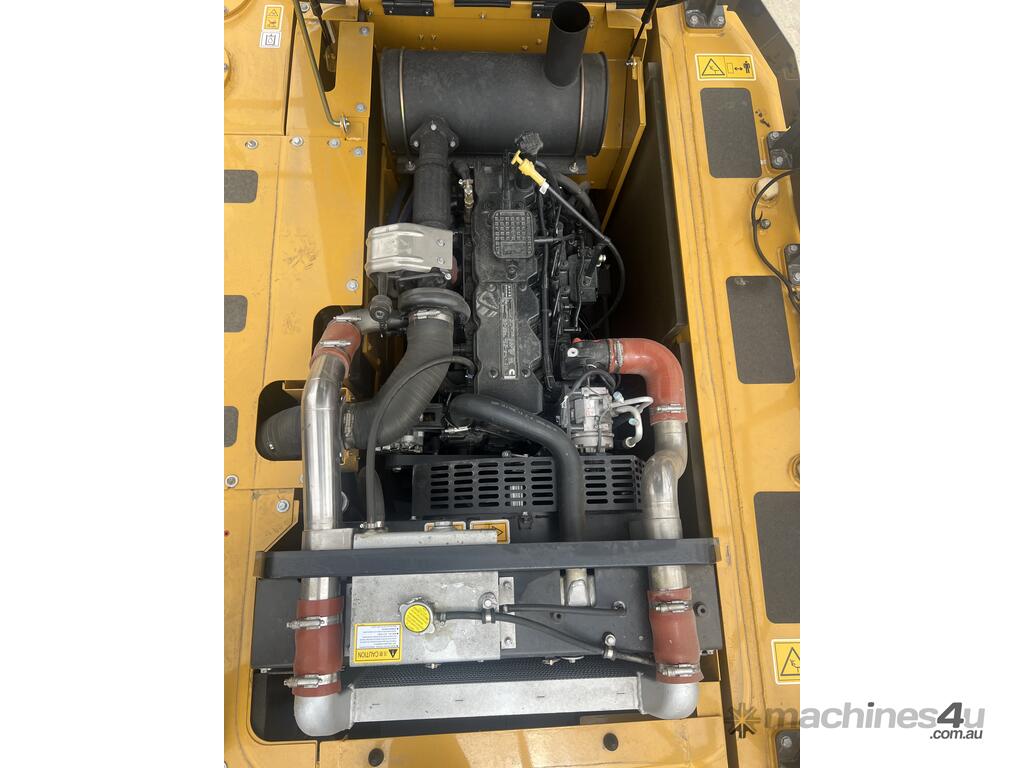

-Cummins QSB7 turbo diesel engine, Tier 3 compliant
-Rated power 135 kW / 2050 rpm for high productivity
-Upgraded electric-controlled positive hydraulic flow system for smoother, more precise operation
-Large flow main pumps 2 × 230 L/min for fast cycle times
-Multi-mode control: economy (N-mode), efficiency (P-mode), lifting mode etc. for different job conditions
-Strong structure: reinforced boom/arm/undercarriage components for long service life

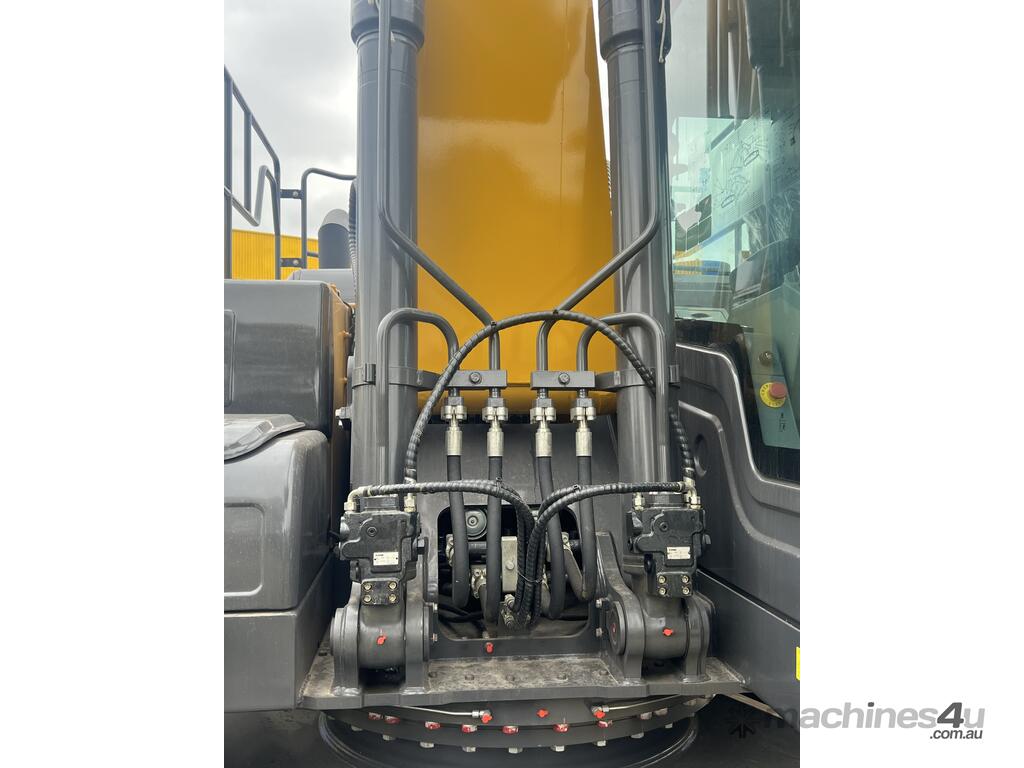

-Safety & convenience: emergency stop switches, auxiliary piping AUX1/AUX2, guards, reflective tape etc.

SPECS & INCLUSIONS
-Operating weight: 23,500 kg
-Engine: Cummins QSB7 (6.7L) Rated power: 135 kW / 2050 rpm
-Max torque: 740 N·m / 900–1600 rpm
-Standard bucket capacity: 1.05 m³ (strengthened bucket)
-Optional buckets: 1.2 m³ earthwork / 0.9 m³ rock
-Hydraulic system: dual variable pumps, main flow 2 × 230 L/min
-Main relief pressure: 34.3/37 MPa
-Travel speed (H/L): 6.0 / 3.3 km/h
-Swing speed: 11.8 r/min
-Gradeability: ? 35°
-Bucket digging force: 149 kN
-Arm digging force: 111 kN
-Maximum tractive force: 184 kN
-Track shoe width: 600 mm triple grouser shoes (standard)
-Fuel tank capacity: 400 L
-Hydraulic tank: 190 L

Located in Melbourne – demo available

Finance, delivery & attachment options available on request
