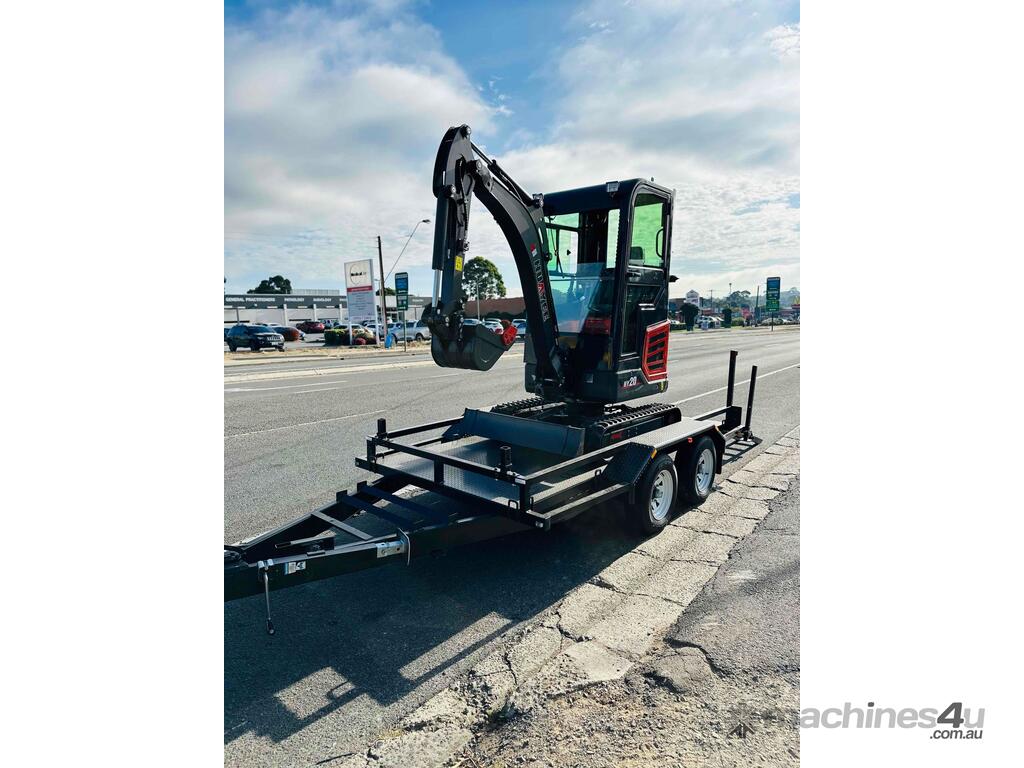

2 TON OPERATING WEIGHT
DUAL SPEED CONTROL

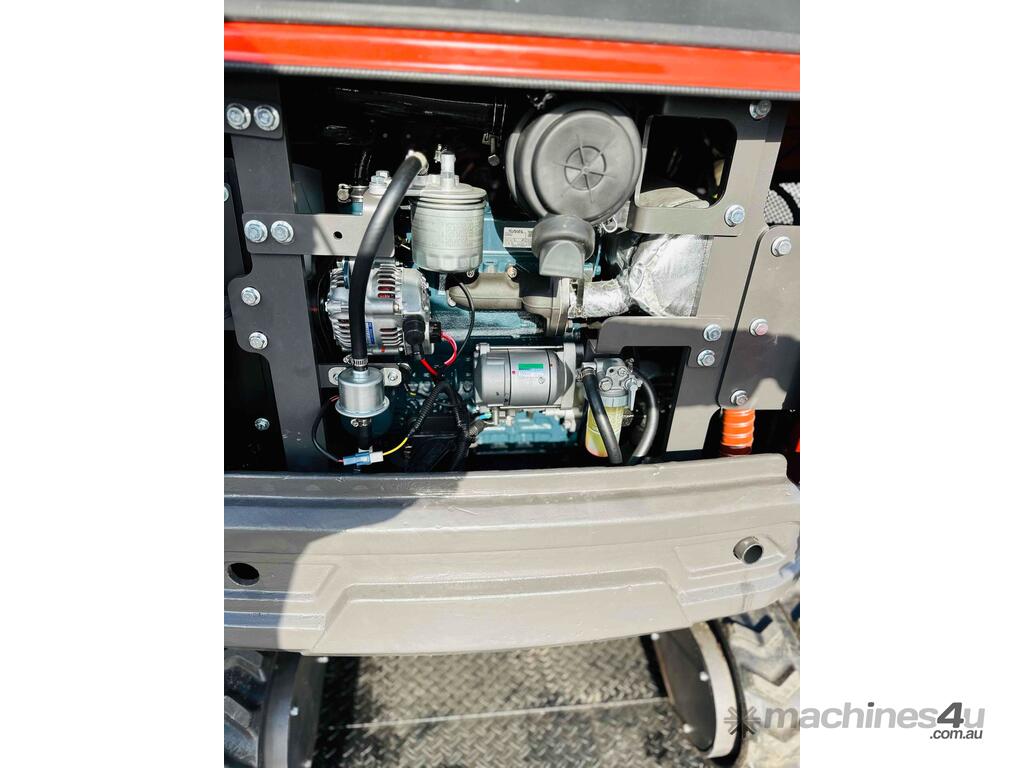

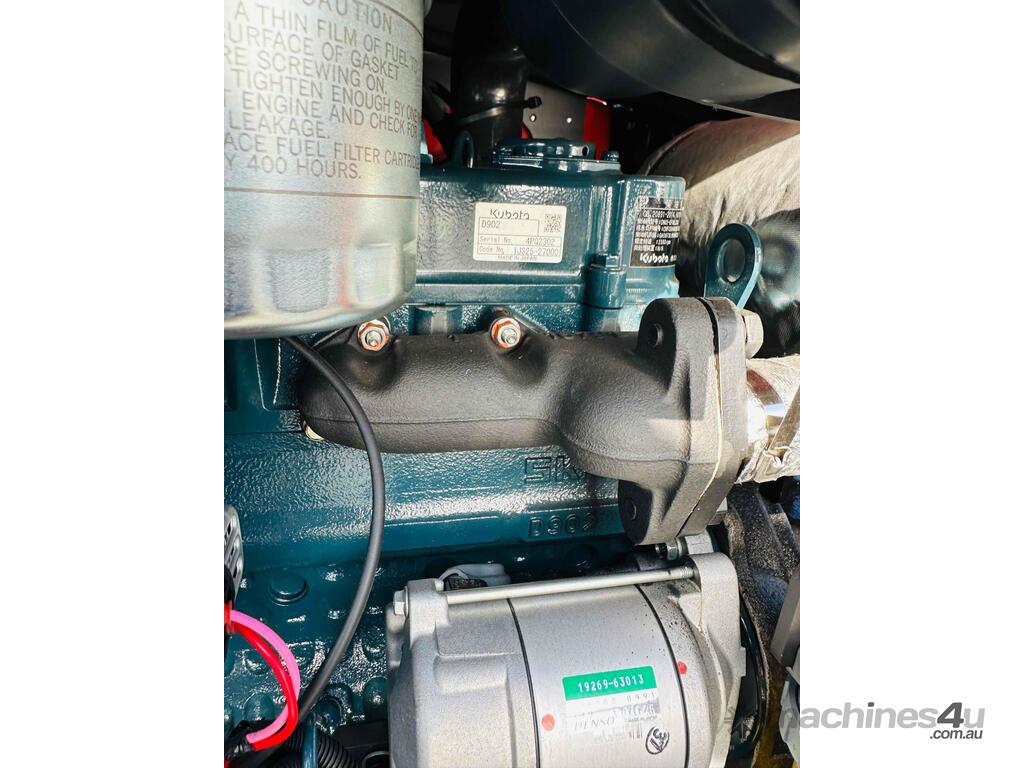

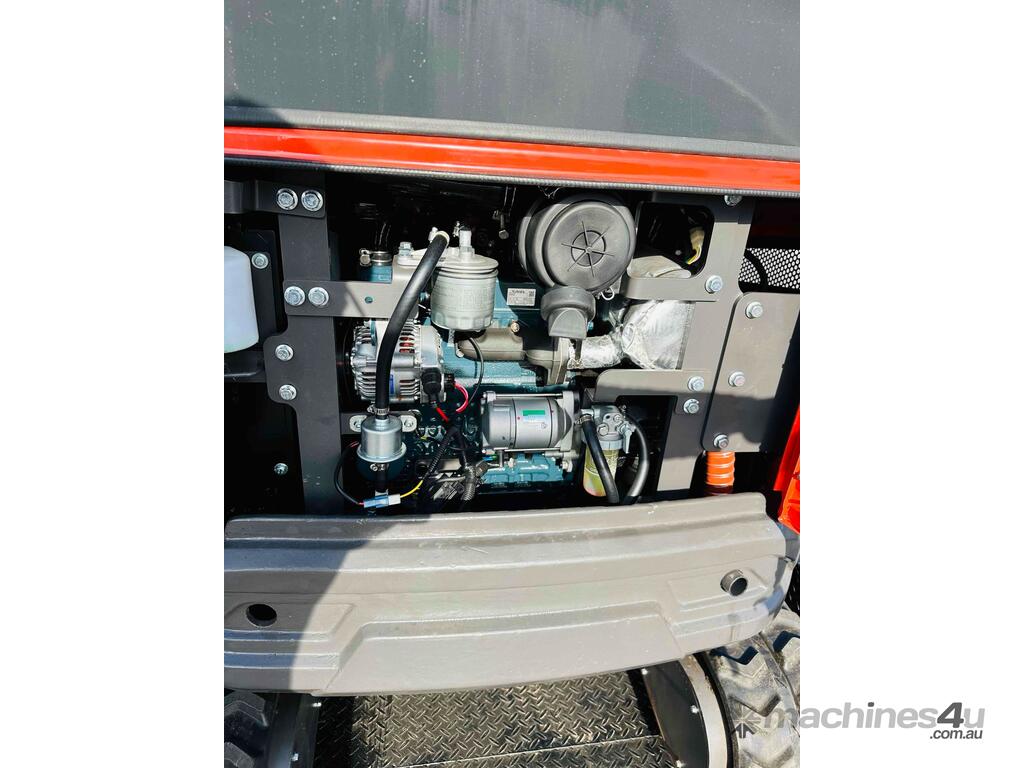

KUBOTA ENGINE D 902

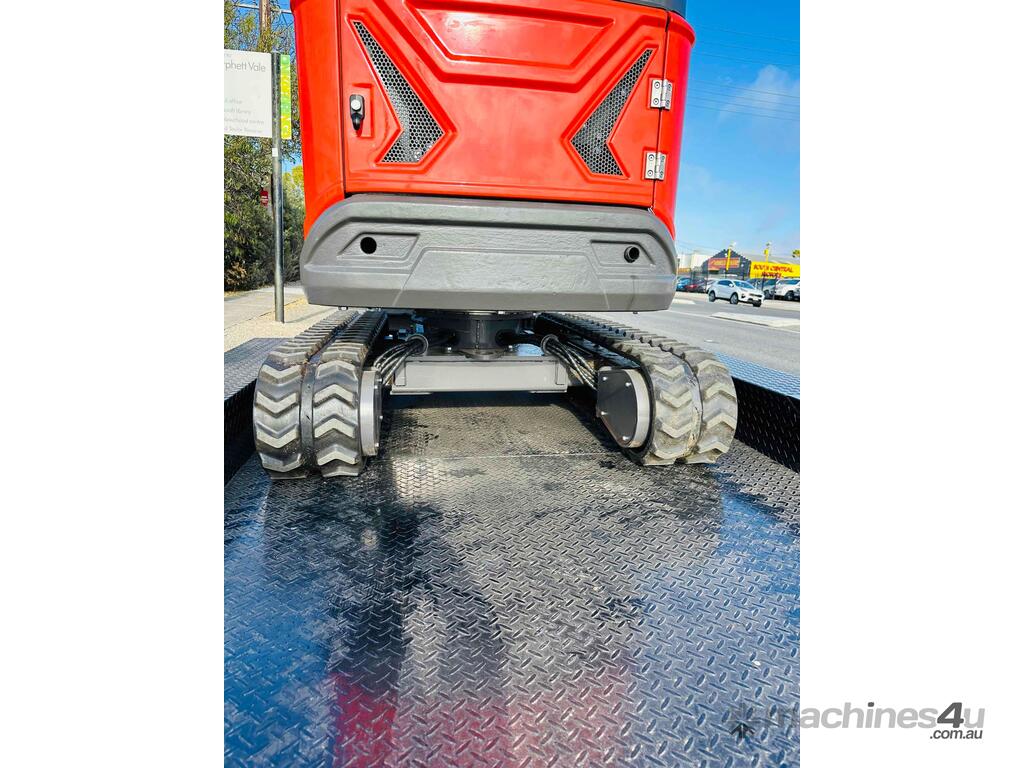

EXPANDABLE TRACKS (Telescopic Tracks)

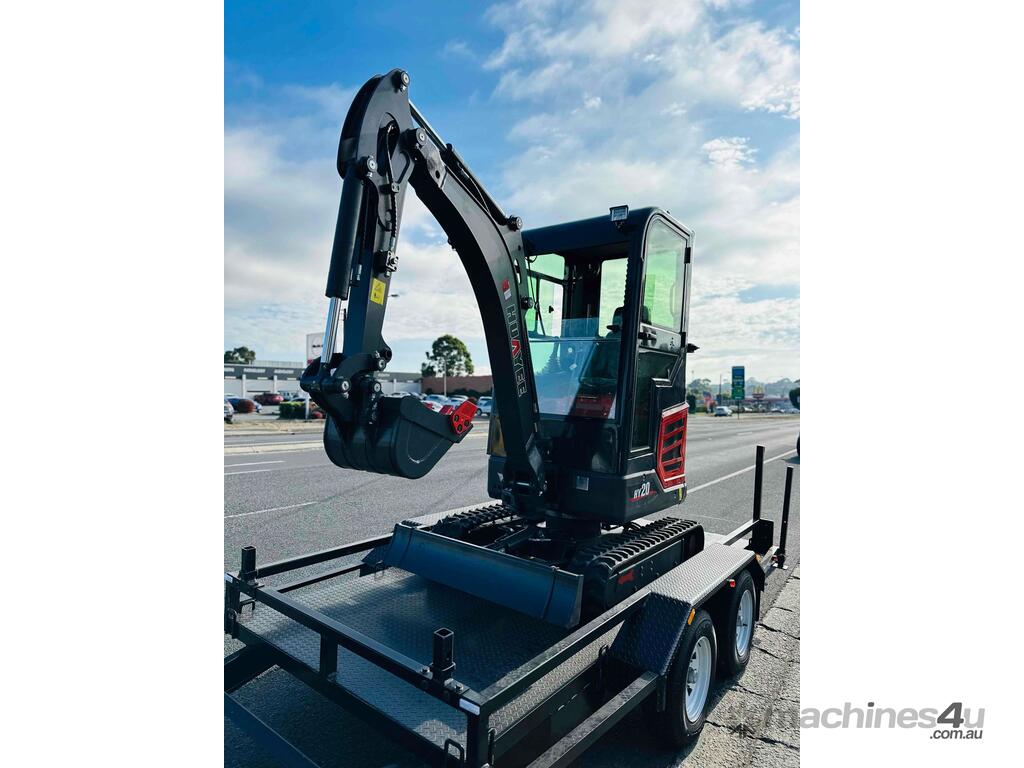

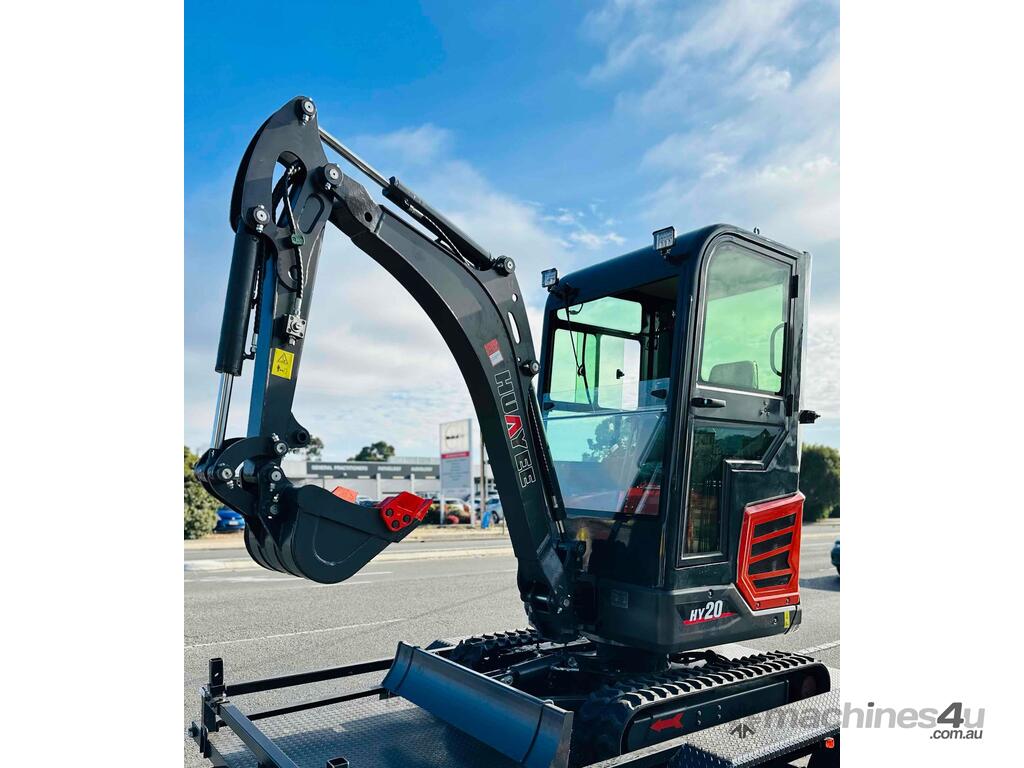

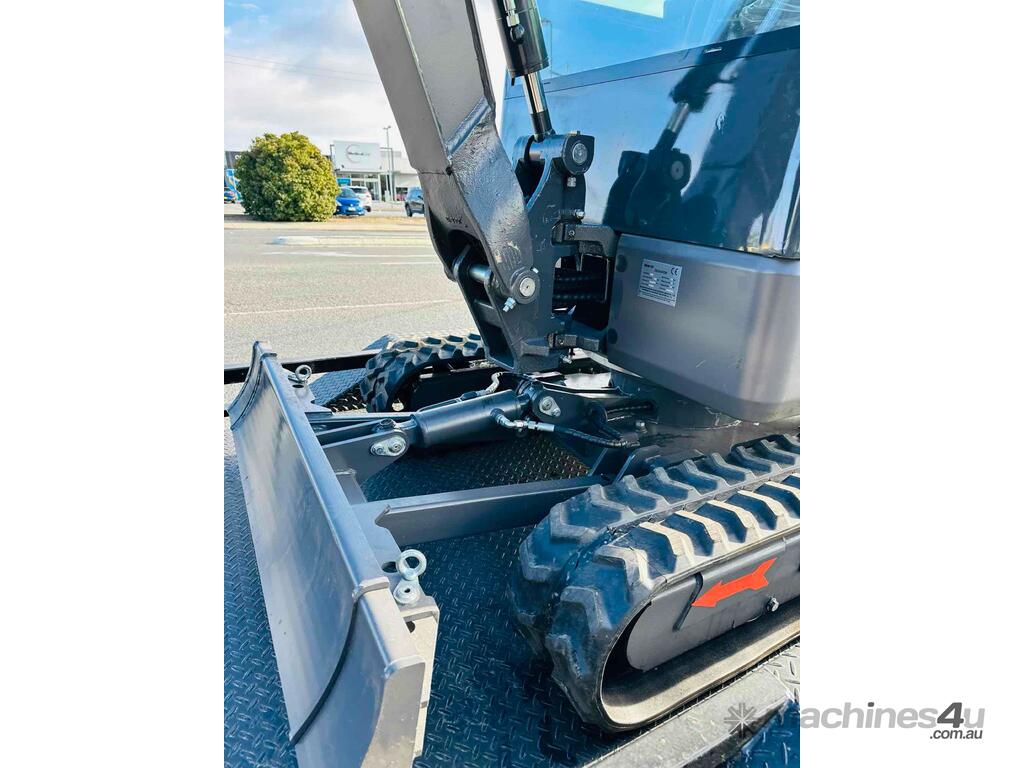

SWING BOOM

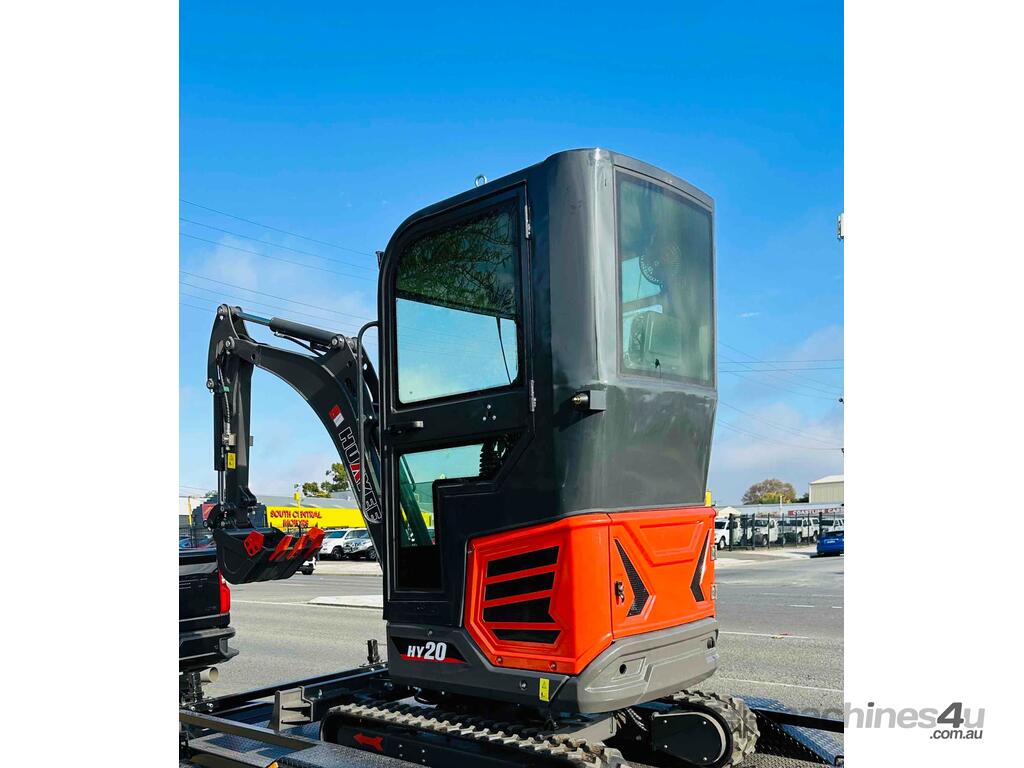

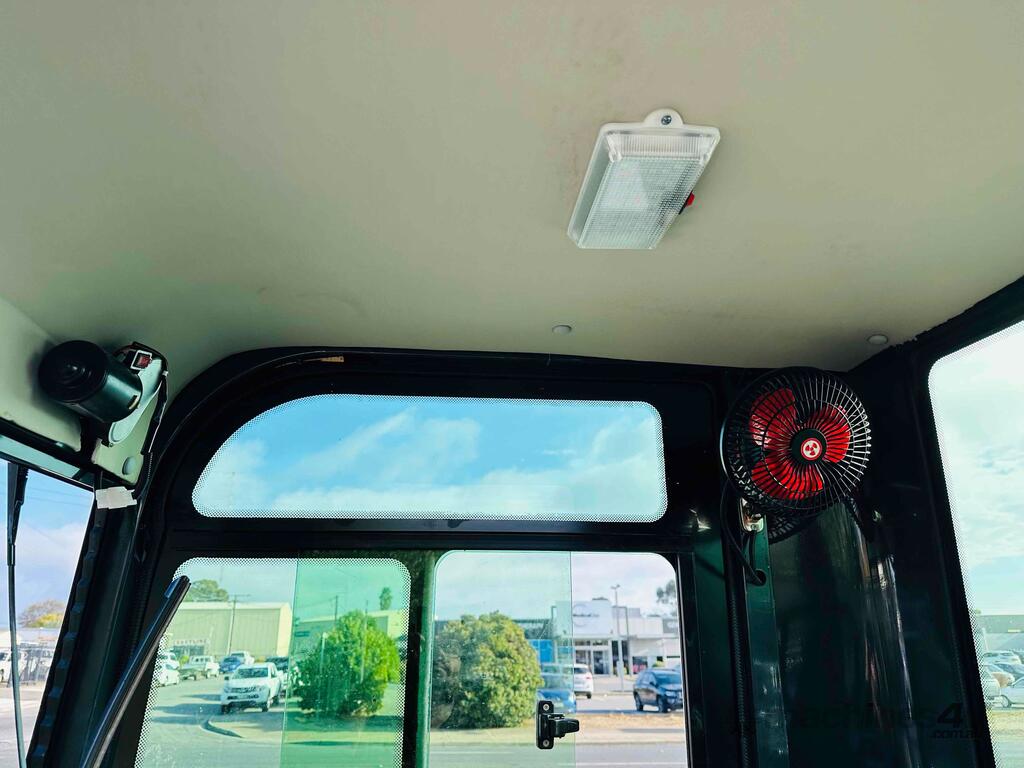

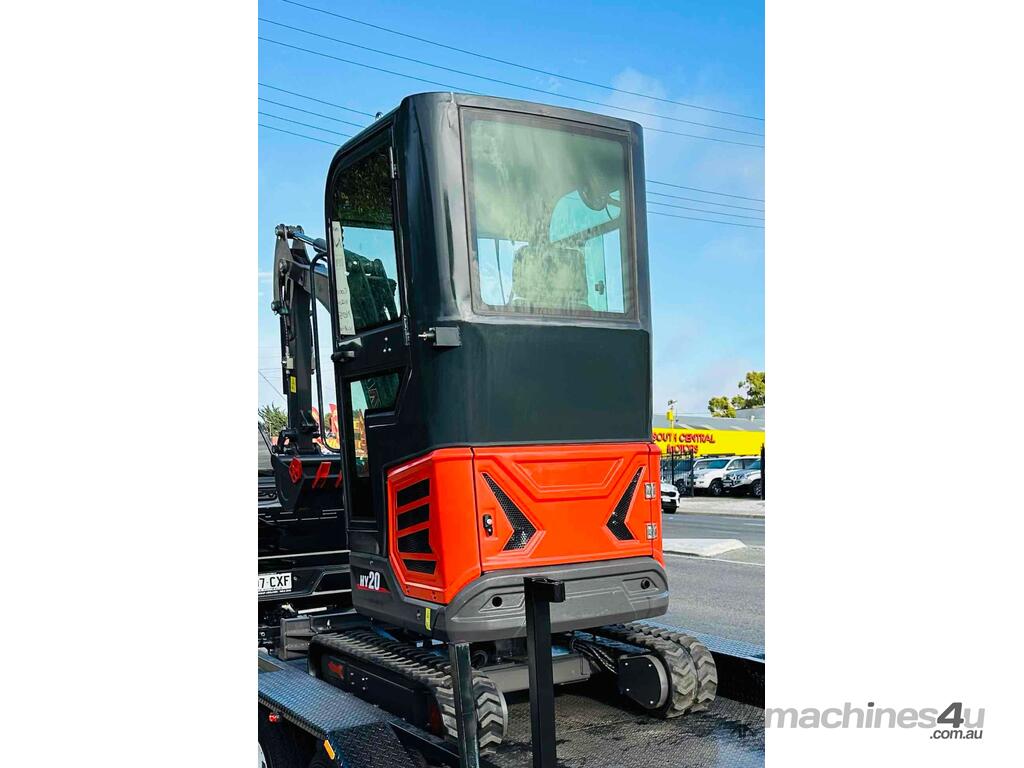

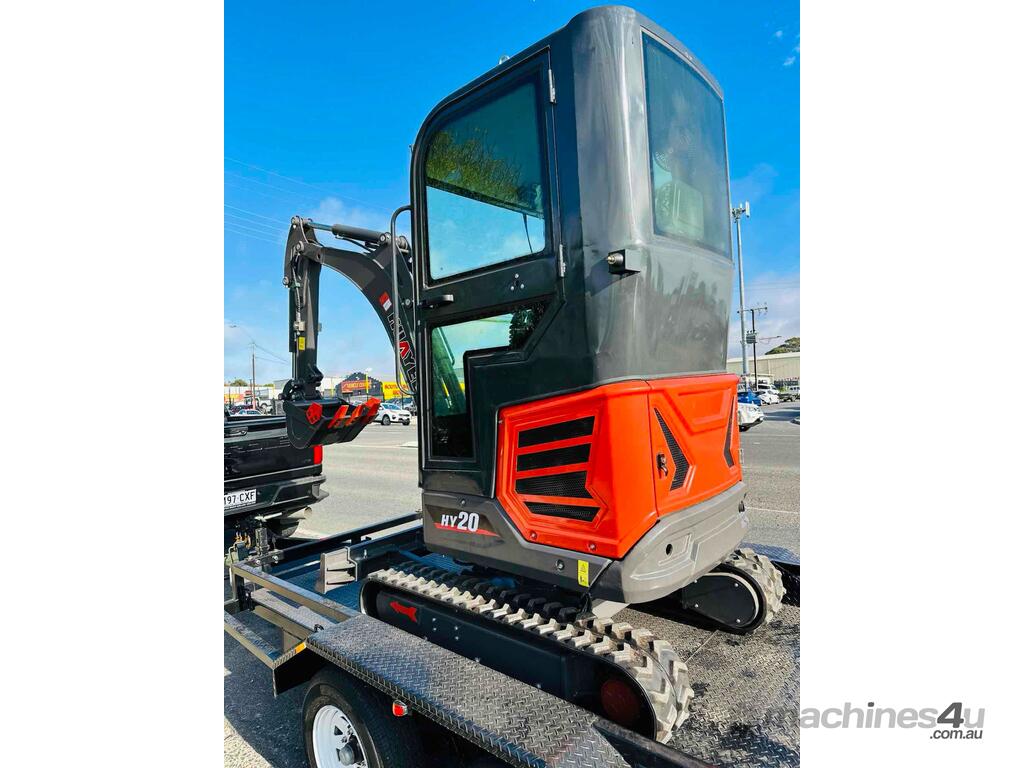

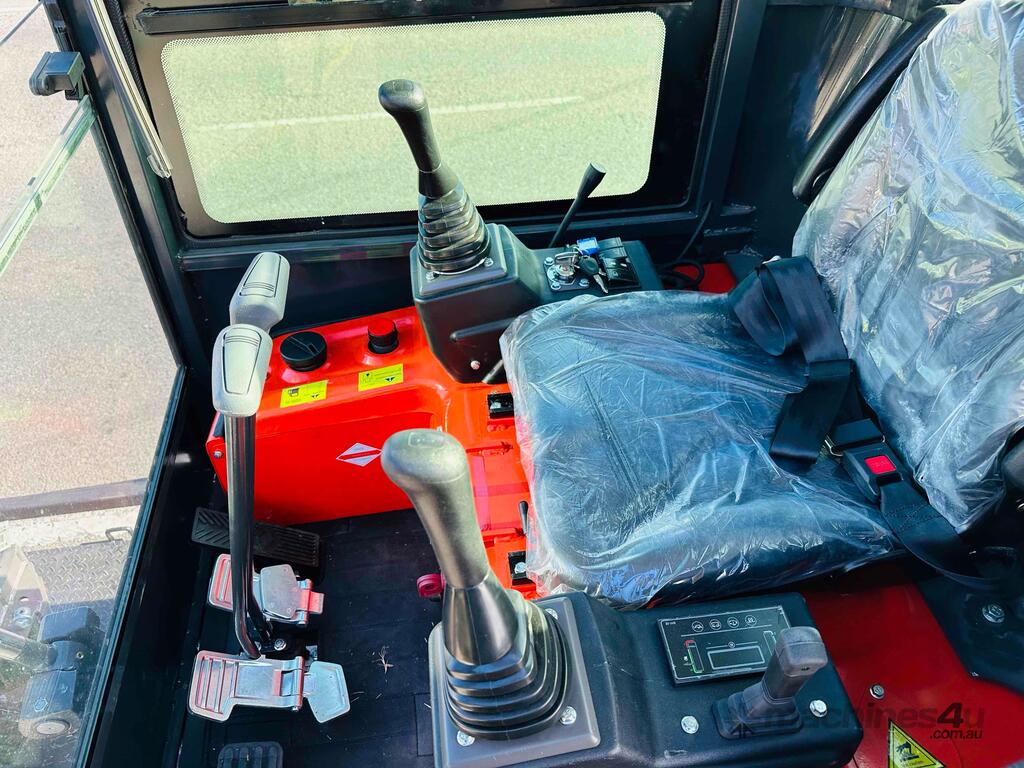

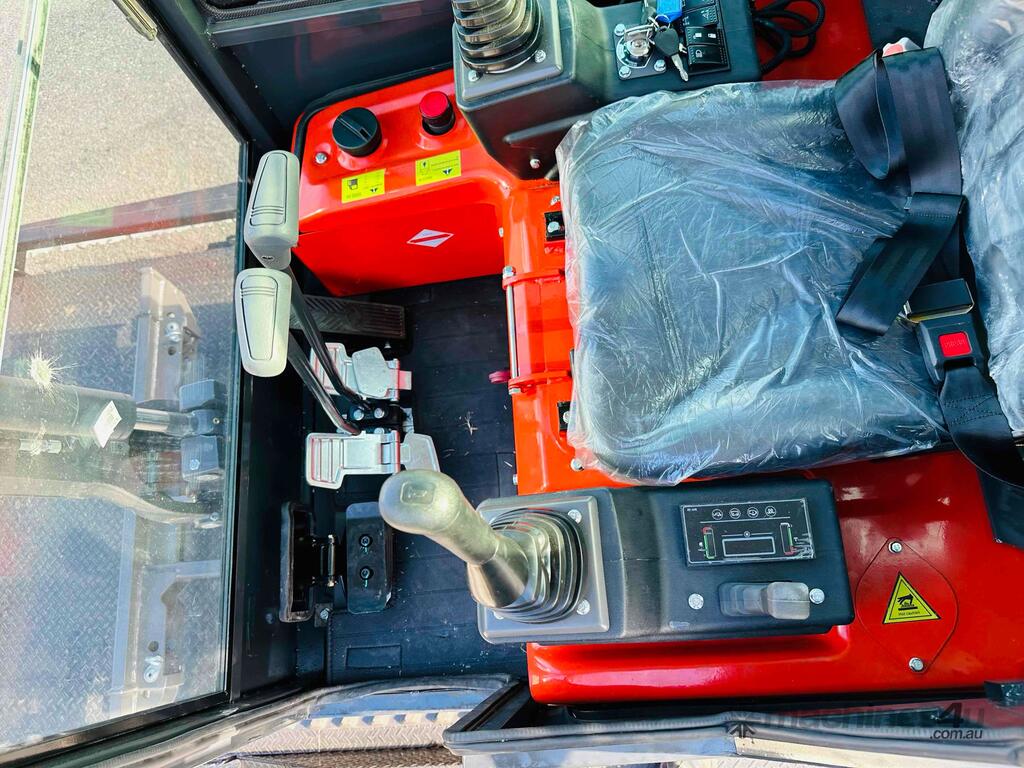

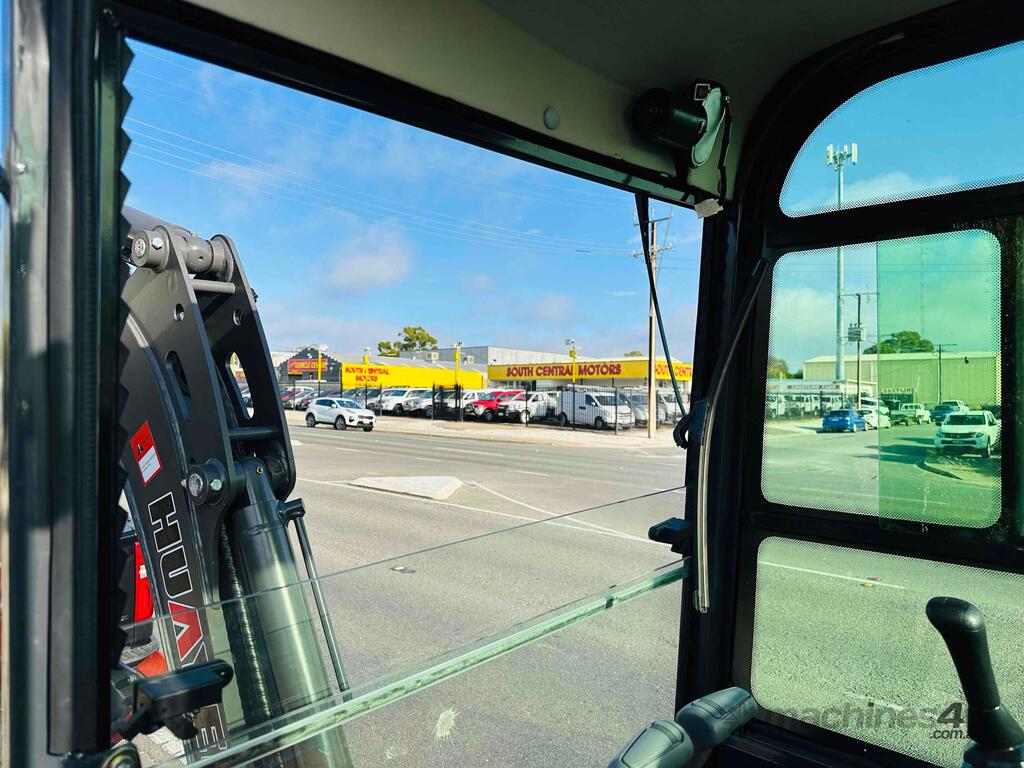

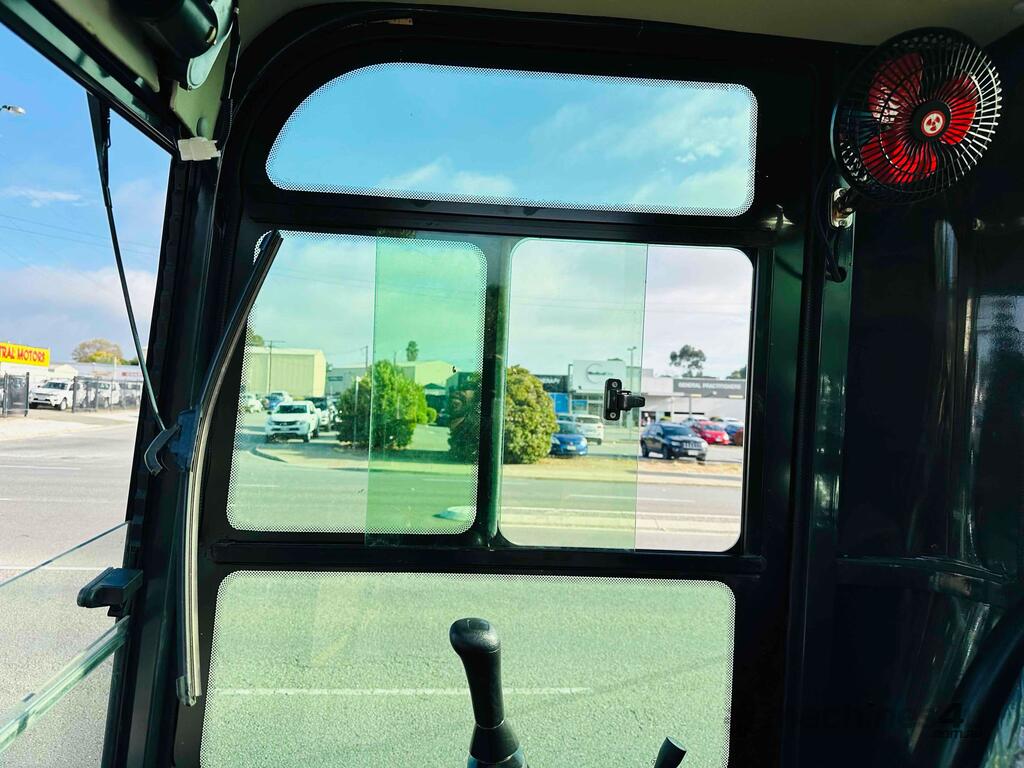

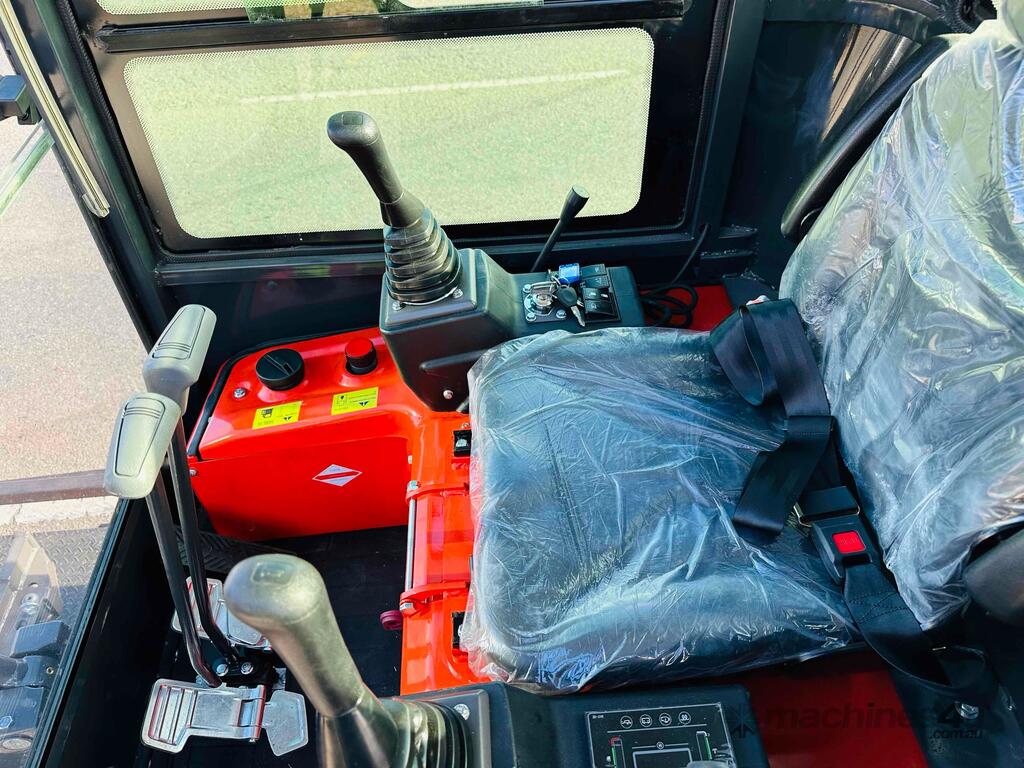

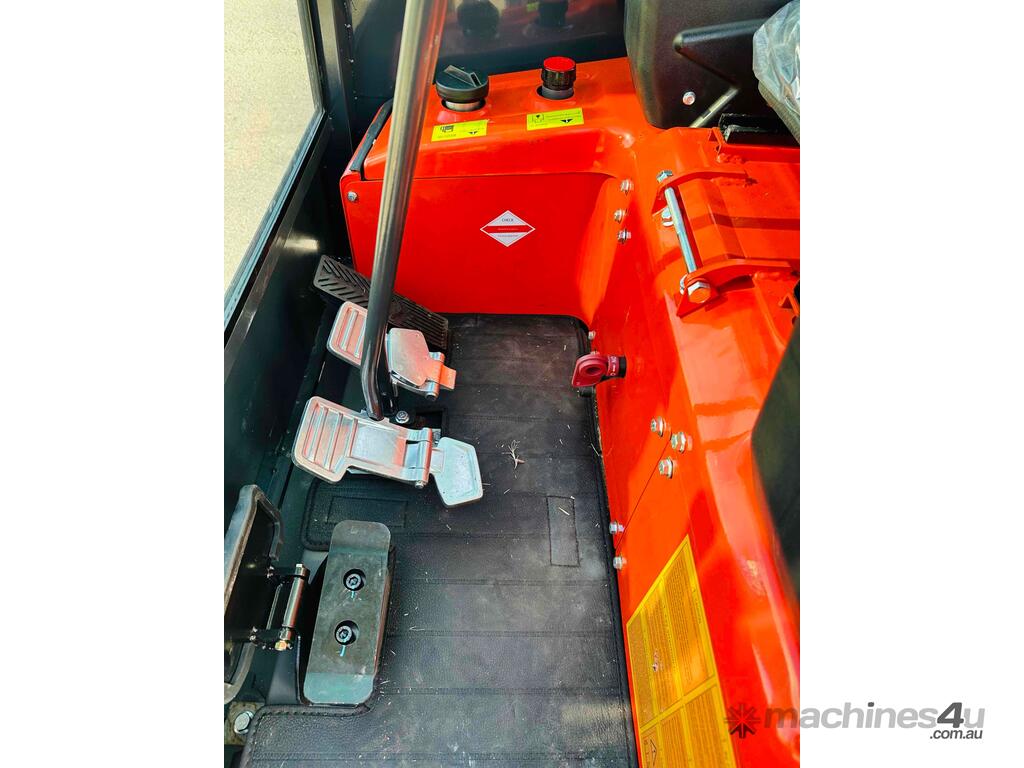

ENCLOSED CABIN
PRODUCT INFORMATION Here are the key specifications for this product model.
Engine model
KUBOTA D722
Rated power. 10.2KW
Maximum digging height. 0 m m Maximum unloading height. 0 m m Maximum digging depth. 2120mm Maximum vertical boom digging depth. 1535mm
Maximum digging distance
0 m m Max.
Digging distance on the ground
3570mm
Min.radius of gyration of the front section
1660mm
Min.radius of gyration at the rear end. 715mm
Operating Weight. 2000kg
Overall Dimension( LxWxH). 3300*1110*2360mm
Bucket Capacity. 0.04m'
Dozer blade width(extend/retract). 990/1240mm
Dozer blade height. 270mm
Track center distance. 883mm
Boom height. 2635mm
Standard track shoe width 230mm
Track length. 1450mm
Wheel spacing. 1120mm

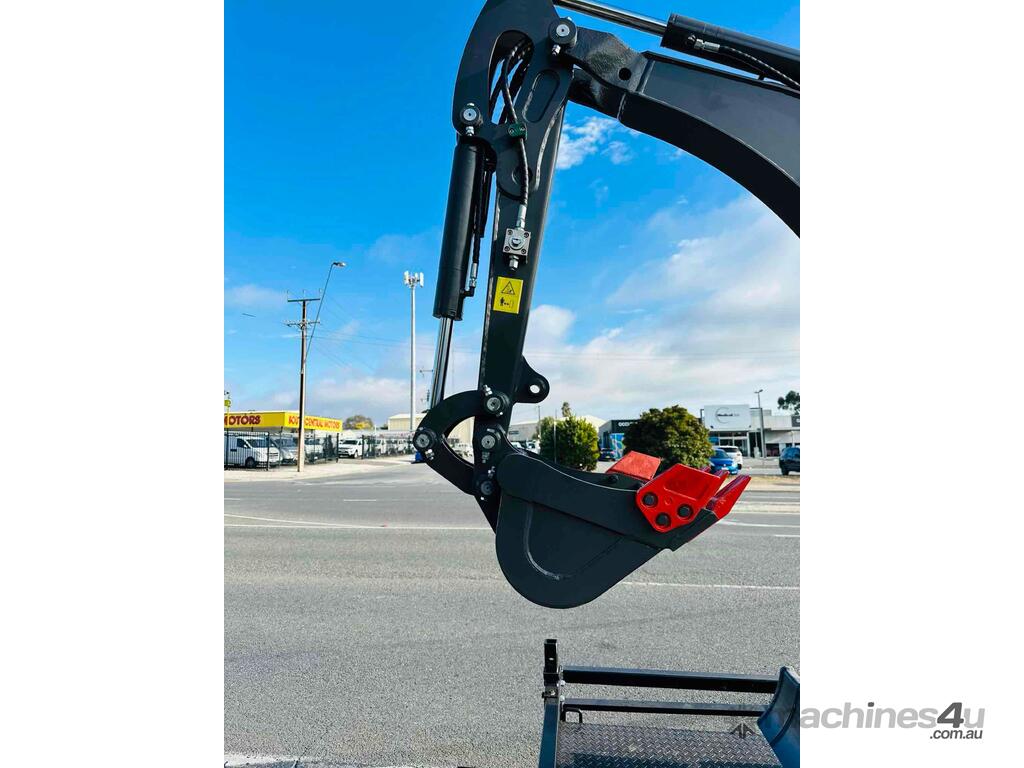

Standard bucket width (with/without side teeth). 440/400 mm
Gradeability. 58(30)°
