The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

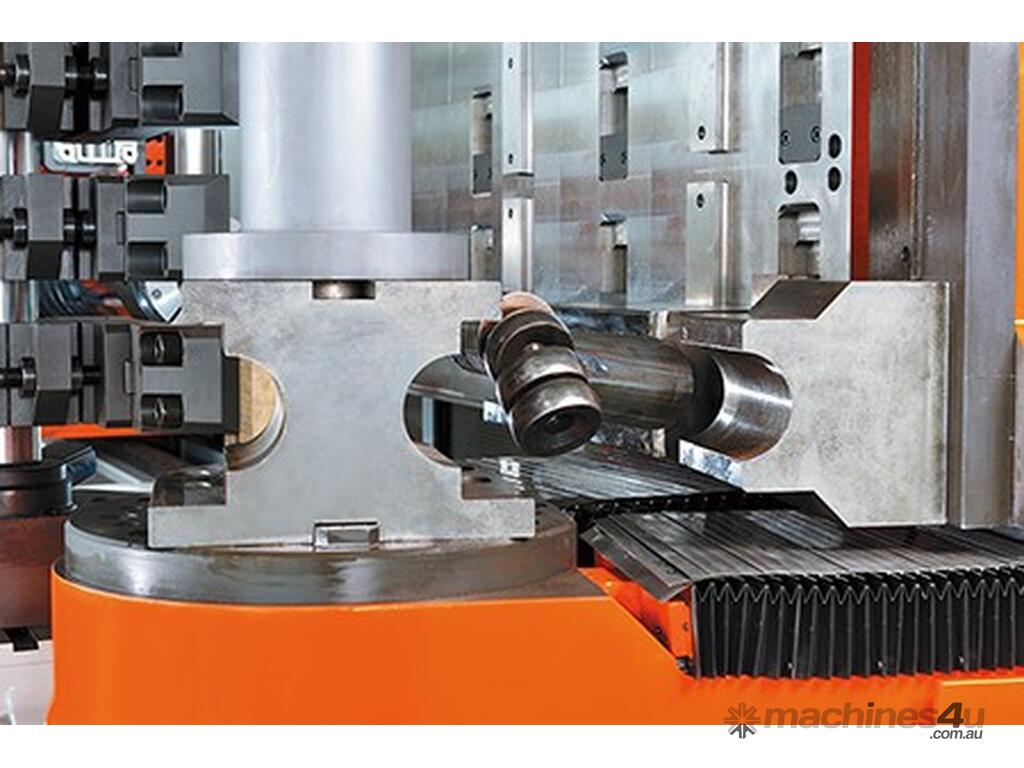

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine
SPECIFICATION
Model CNC131MS-AE
Specification 131
Max. Tube O.D. Bending Capacity (mm) ? 130
Max. Tube Wall Thickness (mm) 5
Material MILD STEEL
CLR 400
Max. Bending Radius Difference (mm) 150
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 3000
Manufacture Speed
Tube Feeding Speed (mm/sec) 837
Tube Rotation Speed (°/sec) 506
Tube Bending Speed (°/sec) 62.5
Repeatability
Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 16355
Operating Height (mm) 1238
Machine Length (mm) 7531
Machine Width (mm) 2704
Machine Height (mm) 2198
