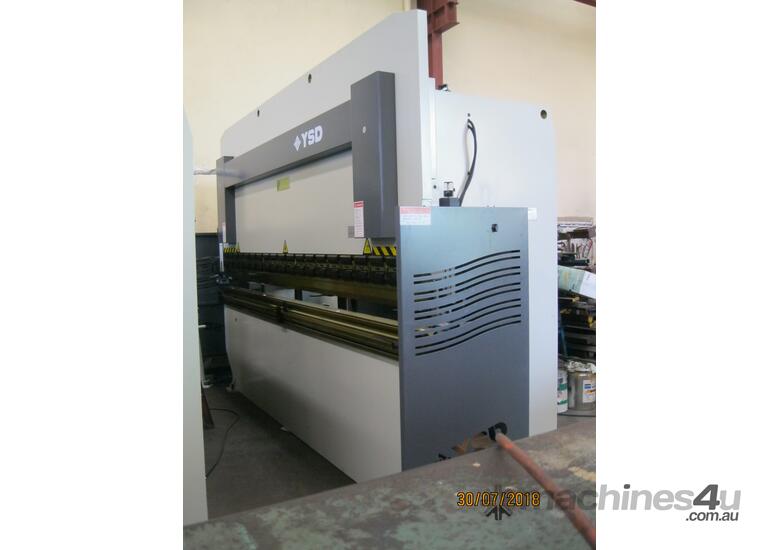

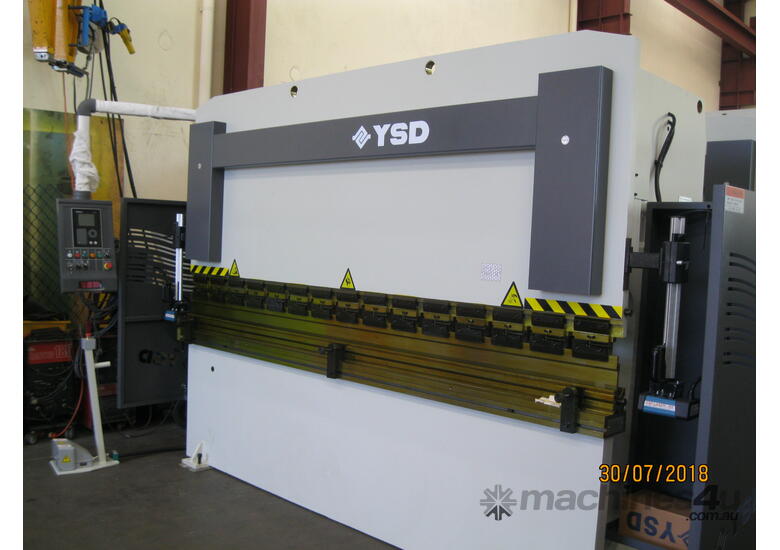

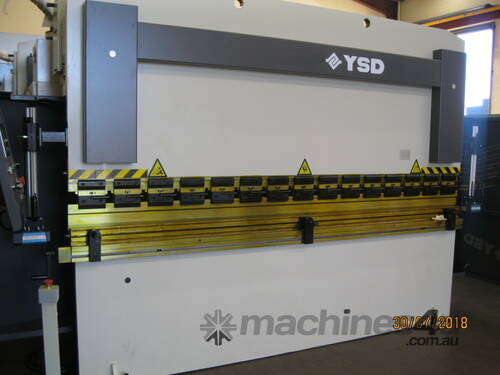

4000mm x 165ton
Delem 2 Axis DA41S Programmable Controller. (Belgium)
Ball Screw Power Operated Back gauge is fitted as standard with Servo Motor
Quick Change Clamps
Crowning Table for Anti Deflection
YSD are made under Technology Licence for LVD Belgium.
Fitted with Italian DSP Laser Guards
Power Operated Servo Motor Mechanical Depth Gauge for Angle Control, with high displacement speed and setting accuracy up to 0.01mm.
The motor-pump unit is mounted to reduce vibration and ensures a low noise level.
The bed base has inbuilt crowning system to eliminate table deflection thus ensuring parallel bending.
Standard Features
Mono Block floor type frame
Overload protection built into the hydraulic system
Parallelism control of the ram by well proven compensation mechanism
Infinitely adjustable pressure (Tonnage)
Stroke length control with adjustable stop
Emergency stop provided
Controls available:
Upper dead point of stroke
Pressure
Brake switch
Fast approach
Slow bend
Fast return
Front sheet supports with adjustable stops

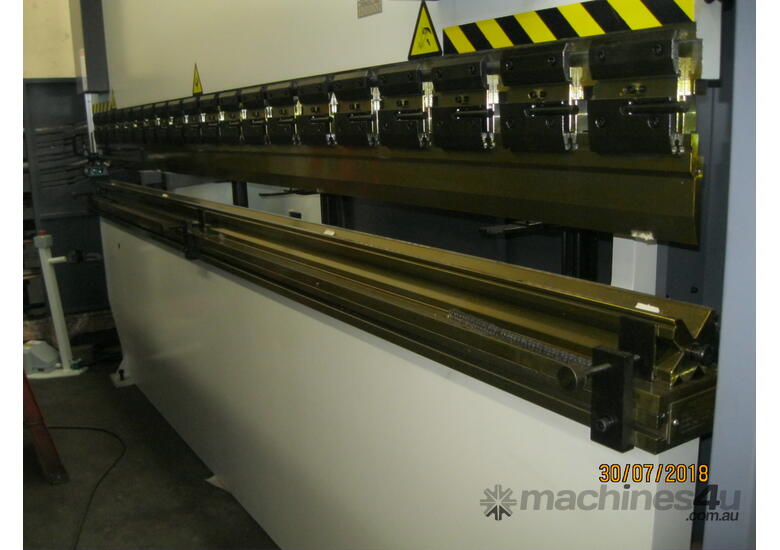

Multi-Vee bottom die block and full length top knife tool
Roving foot pedal control
Strong, rigidly welded construction, stress relieved mono-block structure
Full pressing capacity over the whole bending operation
Mechanical depth setting with synchronised stop in each cylinder - increments 0.01mm
Electro hydraulic control system ensures ease of operation by foot switch
Optional Extra
Can be retrofitted with Australian CNC Controller, Touch Screen, Colour Graphics.
All Prices and Specifications are subject to change
