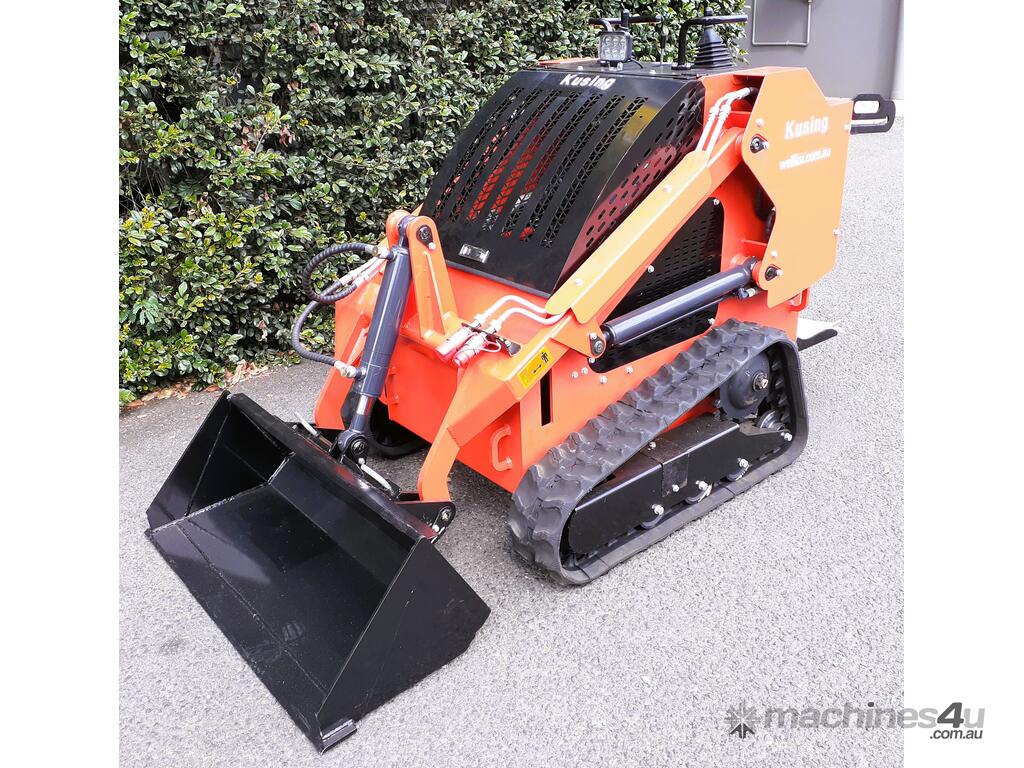

Yanmar Powered Mini Track Loader

REDUCED FROM $29000 inc. GST

The new Kusing Tracked Hydraulic Mini Loader comes standard with the conventional type 1m wide scoop bucket.
This versatile machine can also be fitted with optional Forks, Auger & Excavator attachments.
Complete with a tool kit provided, any of the 4 attachments can be easily swapped over on the jobsite without lengthy down times. This robust little unit comes with a genuine 3 cylinder water cooled Yanmar engine renowned for its reliability and has been popular throughout the world for decades.
This premium built mini loader is just one of many new construction machines we will be introducing in the coming months.
Please visit our showroom to view all of our machinery categories including our Kusing industrial diesel generators which are competitively priced throughout Australia & South Pacific regions including PNG.

Features:

• Variable speed forward & reverse
• Centrifugal clutch steering
• Hydraulic lift & bucket tilt operations
• Heavy duty monoconstruction steel chassis
• Heavy duty 1 metre wide bucket
• Ground Clearance 150mm
• Heavy duty steel belted rubber tracks
• Optional attachments available – Forks + backrest / Excavating buckets / Hydraulic Auger / Rock Breaker / Mower /
Trencher
• Easy connect dry break hydraulic fittings
• LED Headlight
• 12V Electric Start
• Genuine Yanmar Engine
• Emission Standards EUR 5

Specifications:

Make & Model Kusing SLM-T460V
Engine Make & Model Yanmar 3TNV80F-SDWB
Engine Output & Displacement 17.8KW / 639cc Indirect Injection
Engine Type 3 Cylinder 4 Stroke Inline Diesel
Bore & Stroke 80 x 84 mm
Fuel Tank Capacity 10 Litres
Maximum Carry Weight 400kg
Rated Carry Weight 300kg
Maximum Lift Height to bucket pin 1.9 metres
Maximum Height Unloading Angle 34 Degrees
Operating Speed Capacity 0-6 km/hour
Fuel Consumption Est. 3.7 L/hr 2500RPM
Engine Oil Specification 15W/40
Engine Oil Capacity Est. 9 Litres
Hydraulic Oil Specification ISO 46 Synthetic
Hydraulic operating pressure 17-21BAR
Noise Level 65DBA
Bucket Capacity 0.12m3
Bucket Dimensions 100W x 37H x 44D cm
Track Width 18cm
Dimensions 218L x 104W x 133H cm
Shipping Dimensions 120L x 106W x 145H cm
Weight 1200kg
Shipping Weight 1220kg

12 months/1000 hour parts replacement warranty.
