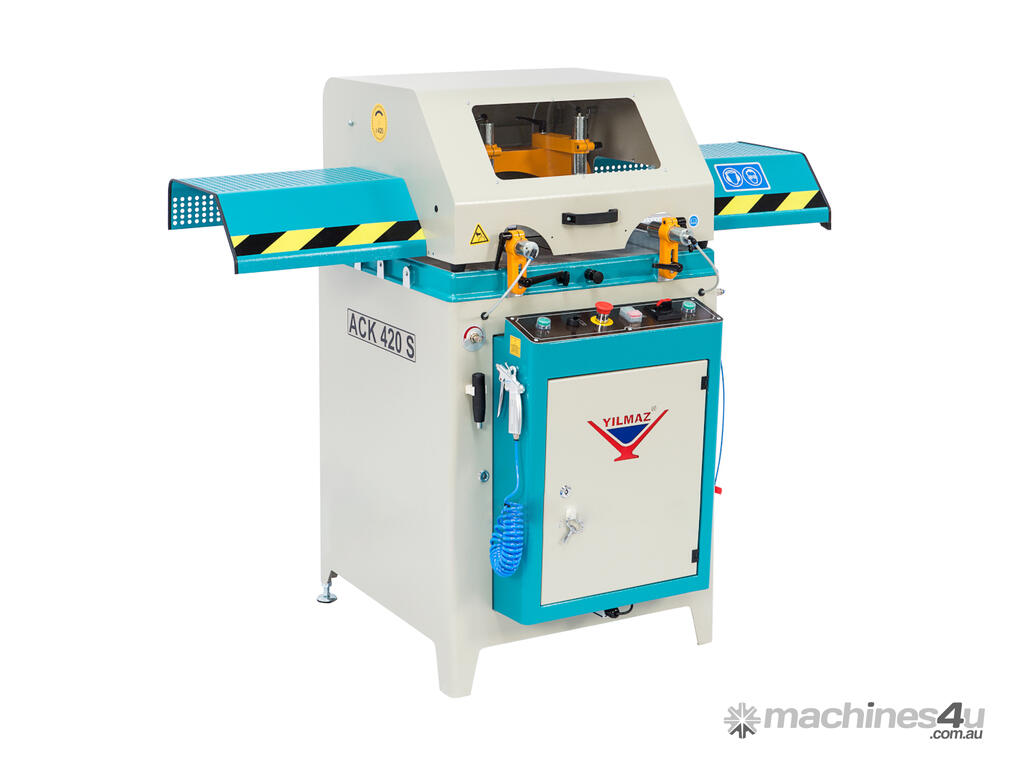

The Yilmaz ACK420NPS Aluminium Up-Cut Mitre Saw with it’s large capacity and safety features is the ideal replacement for ageing drop saws for those who wish to see an immediate improvement in safety and efficiency.
Technical features
420mm Diameter Blade

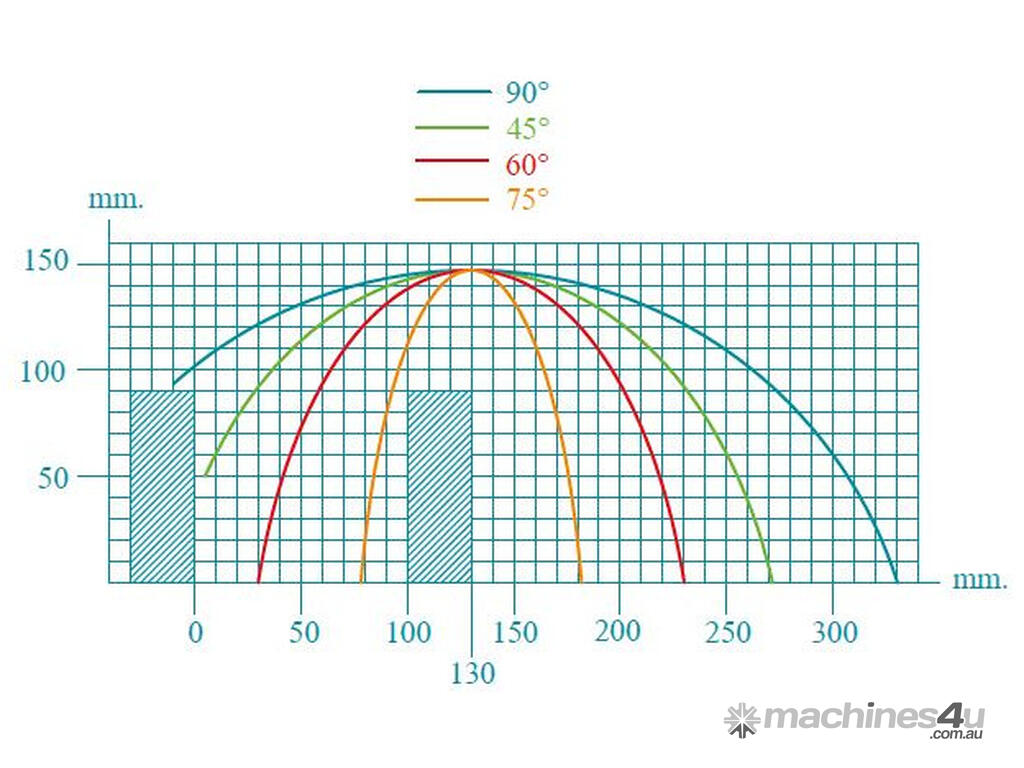

Up to 140mm High Cutting Capacity
200mm Wide Cutting Capacity 90°
140mm Wide Cutting Capacity 45°
50mm Wide Cutting Capacity 75°
2.2kW (3HP) 3 Phase

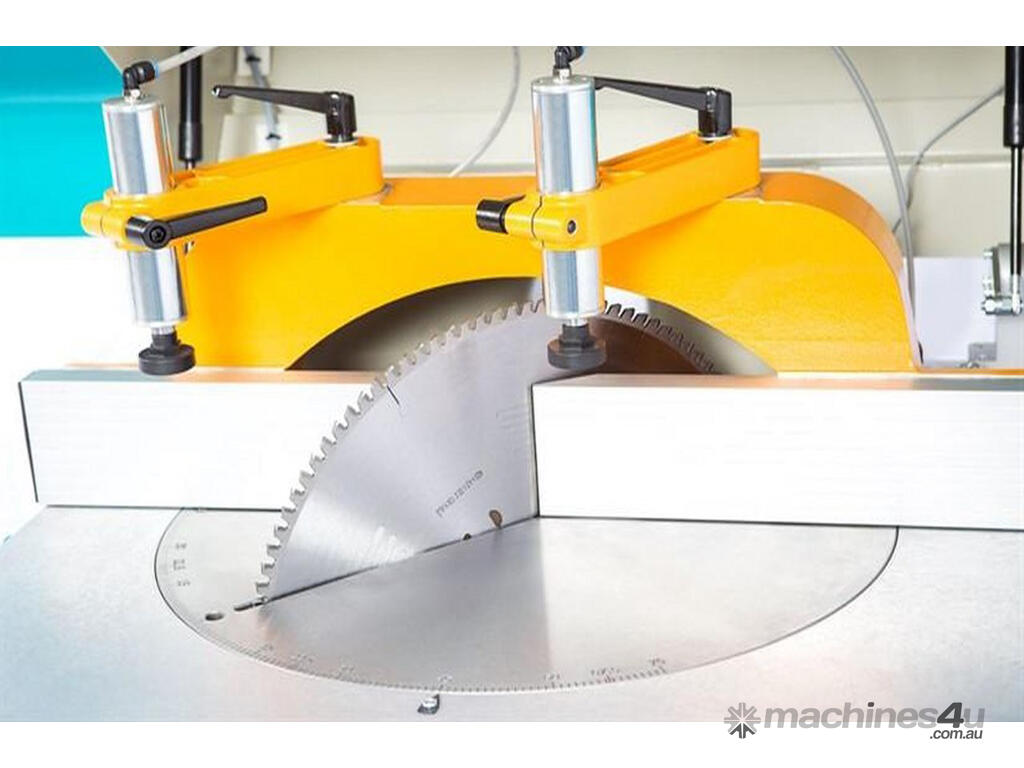

2 Vertical Pneumatic Clamps
2 Horizontal Pneumatic Clamps
Hydro Pneumatic blade feed with variable feed rate
2 Hand safety operation
Spray mist blade lubrication
Air duster gun

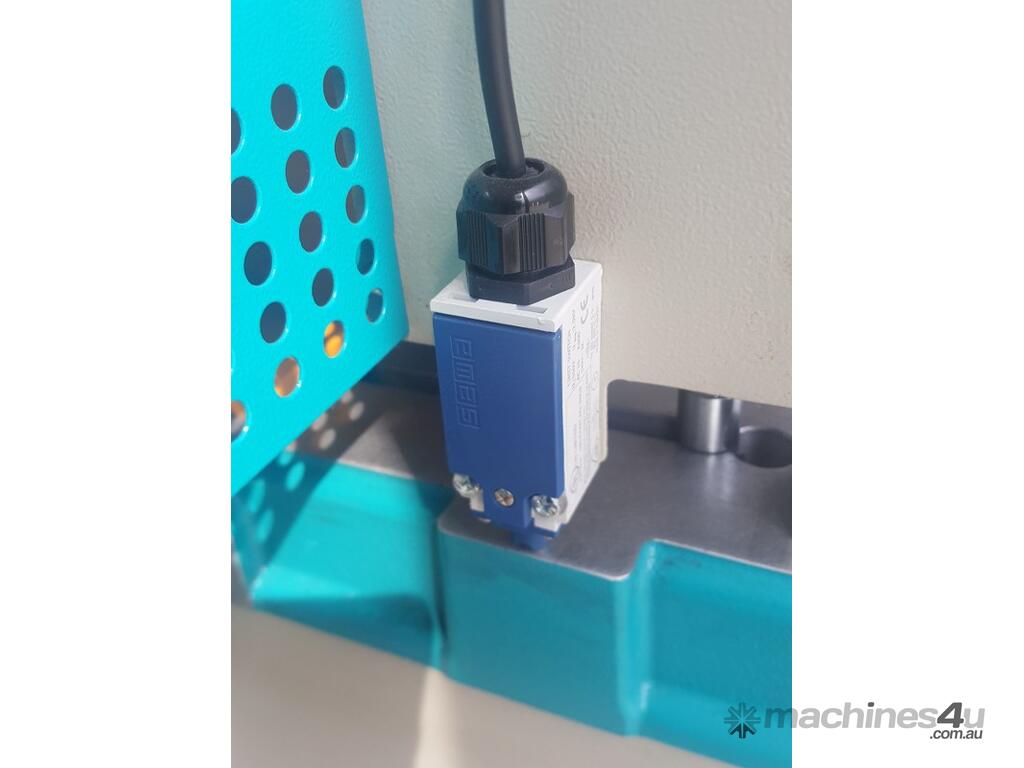

Electrical cutout on hood and blade access panel
LED light in hood

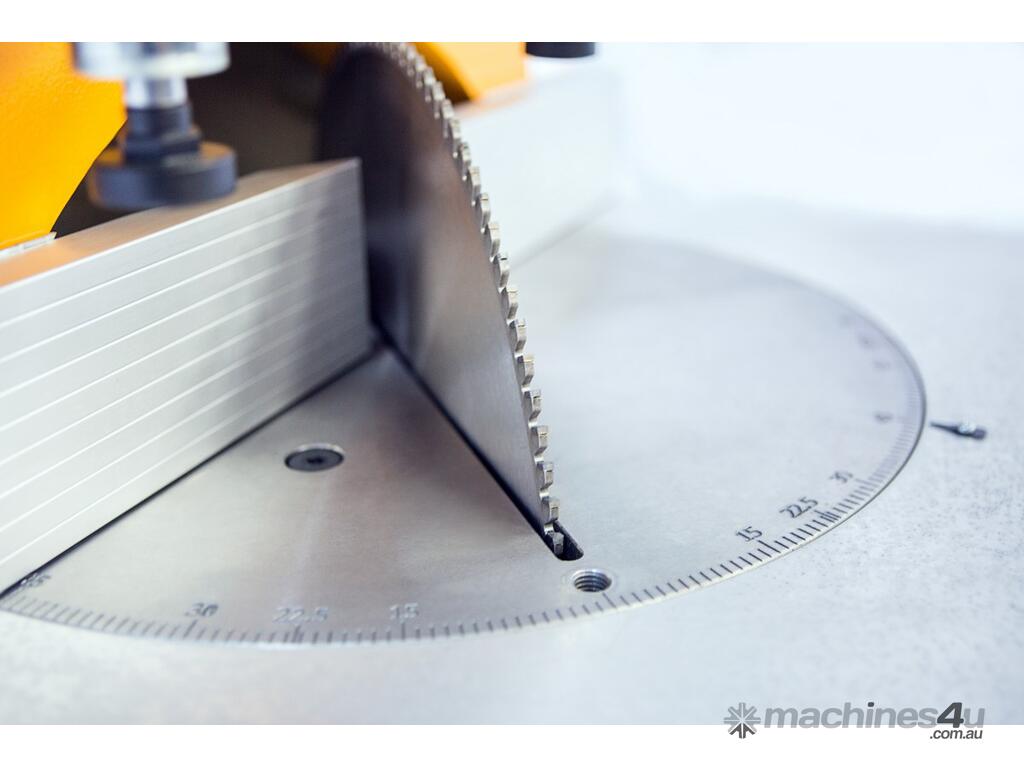

420mm 120T Saw blade included
Additional information
Weight: 260kg
Dimensions: 86 × 98 × 150 cm
