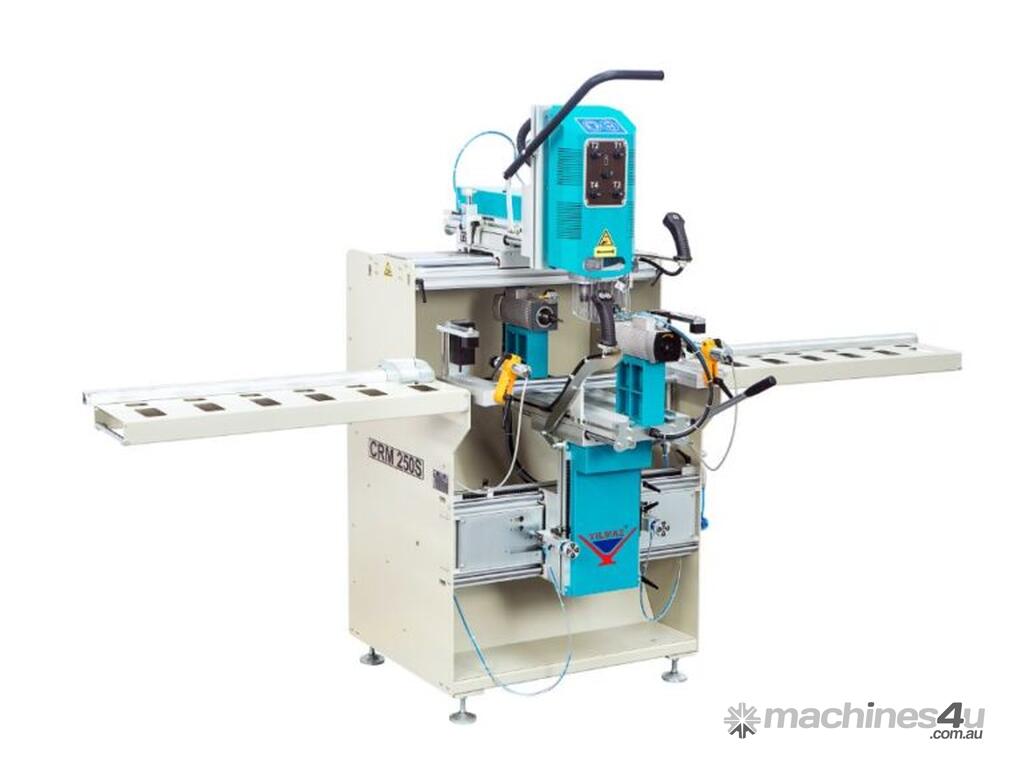

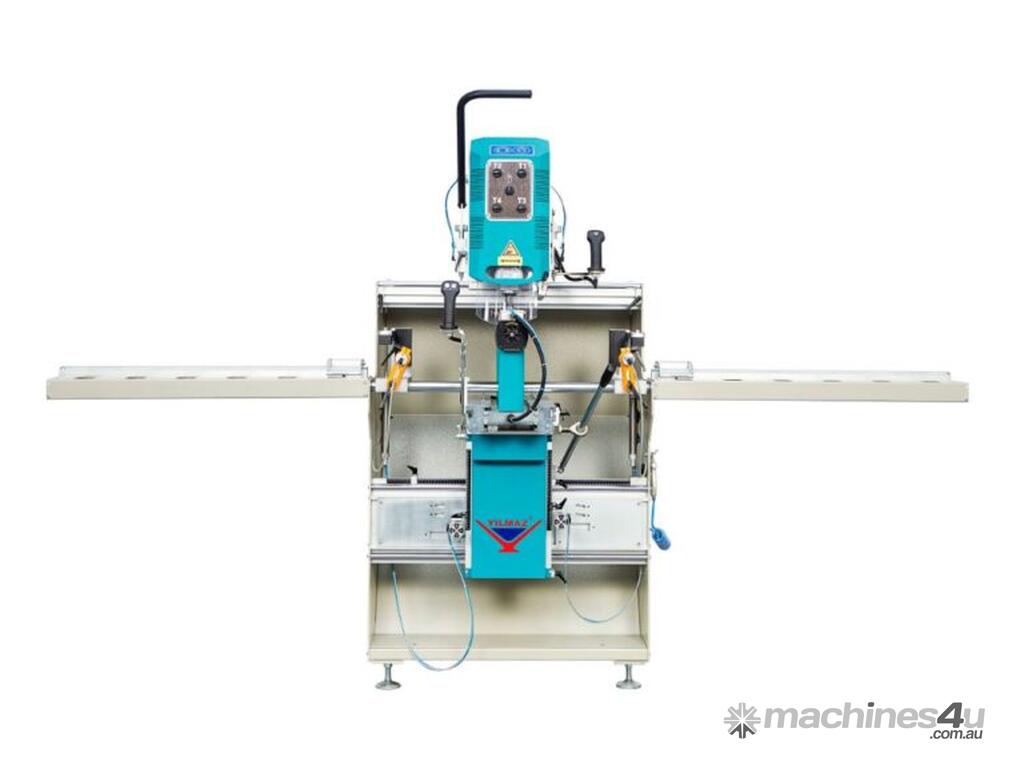

The Yilmaz CRM250S Copy Router for Aluminium and uPVC, access 3 sides of your Aluminium or uPVC Profile quickly and easily.

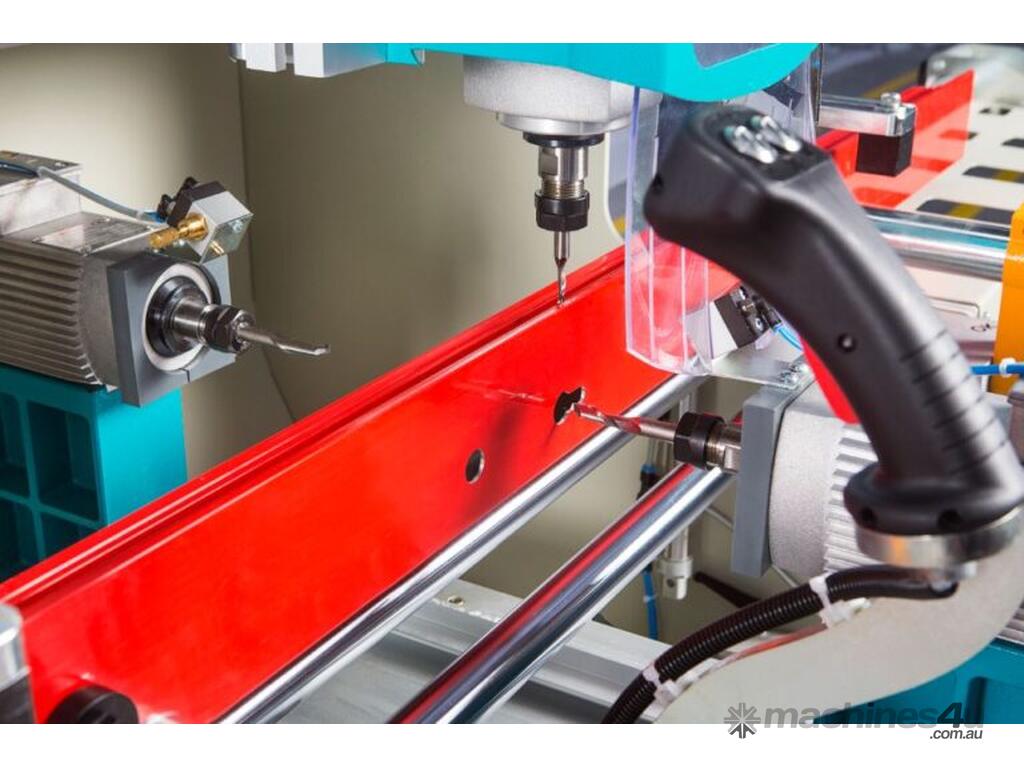

With 4 Pneumatic Copy Pins, the Luna CRM250S can machine all 3 surfaces of your extrusion without unclamping the piece during the routing operation.
Technical
3 x 1.1kW 240V Motors – 15Amp Plug

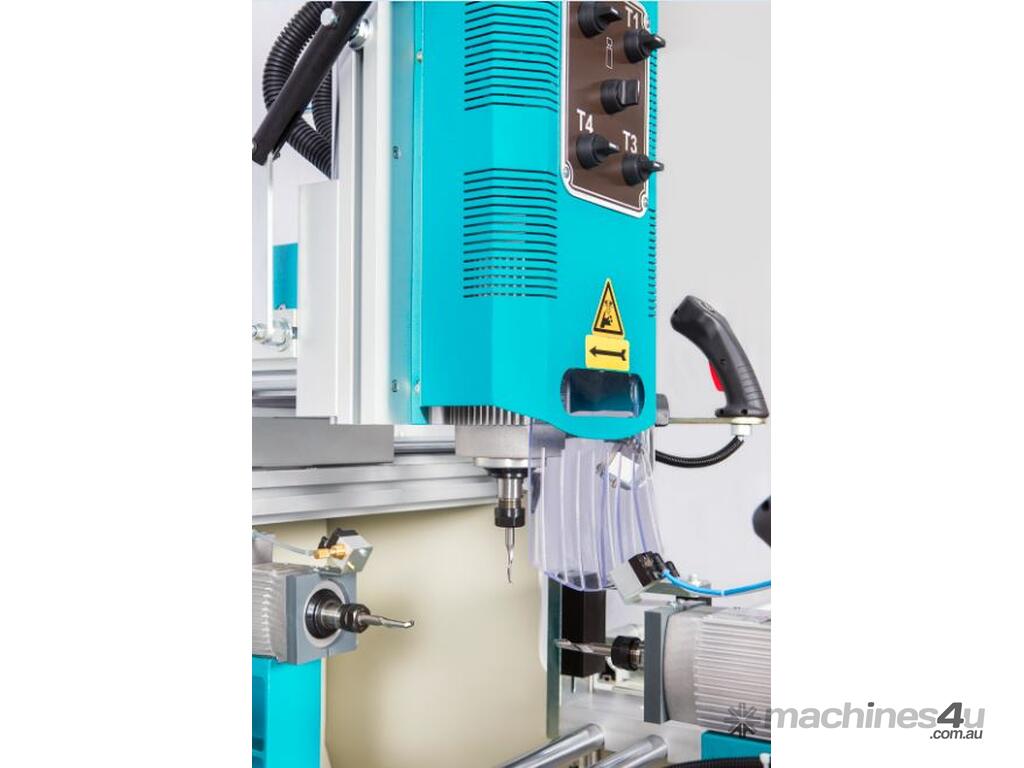

Equipped with variable speed spindle adjusted by inverter and potentiometer (from 2800 to 12000 rpm)
Maximum Slot X-Axes 650mm x 350mm
Maximum Slot Y-Axes 180mm x 230mm
Maximum Slot Z-Axes 170mm x 150mm
8mm ER Series Collet
Four Pneumatic Clamps
Pneumatic spray mist lubricator
Air duster gun
Copy router operations on 3 axes.

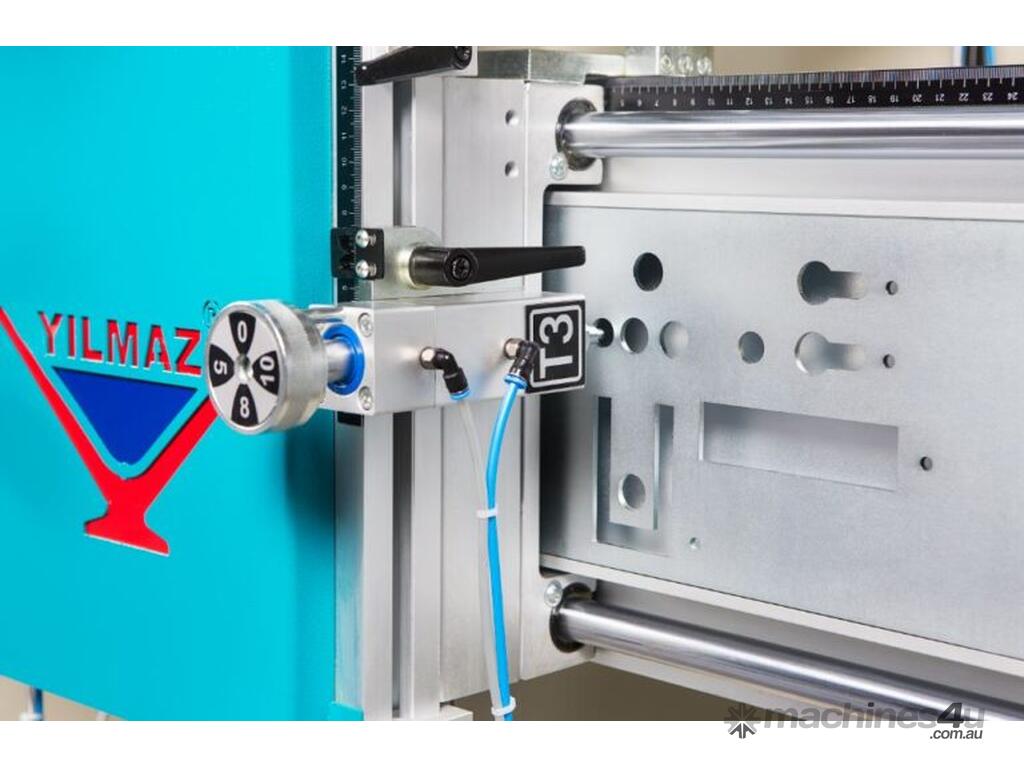

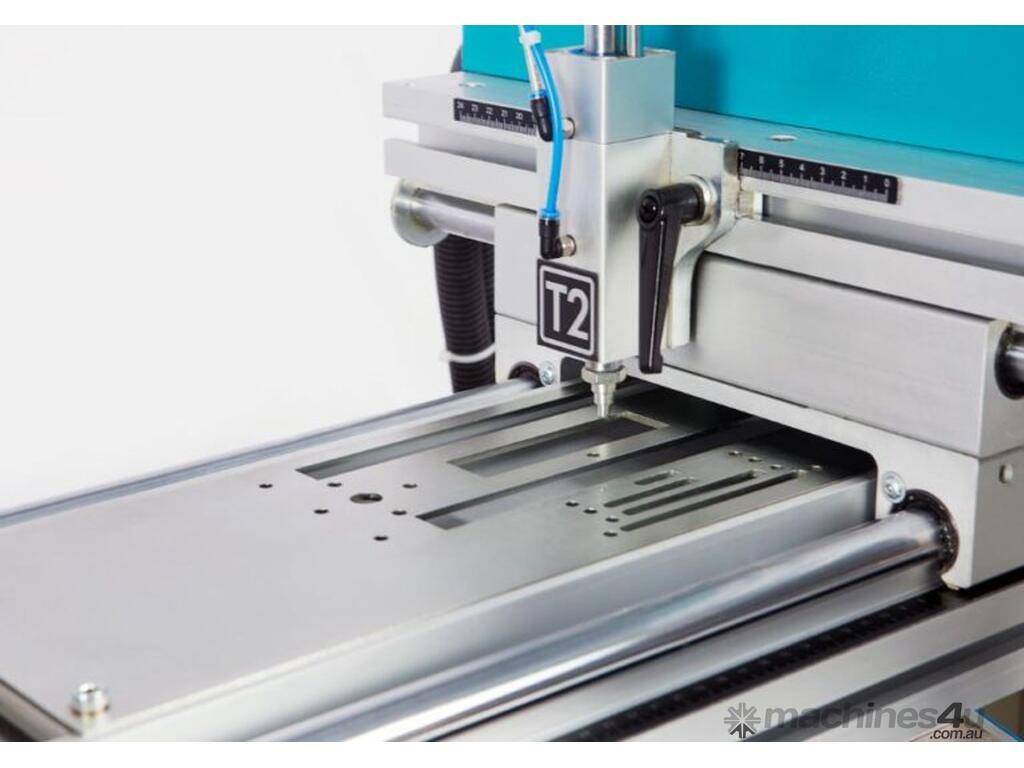

Quick and easy adjustment of the tracer pins.
Additional Information
Weight : 380 KG
Dimensions : 100 x 105 x 182 cm
