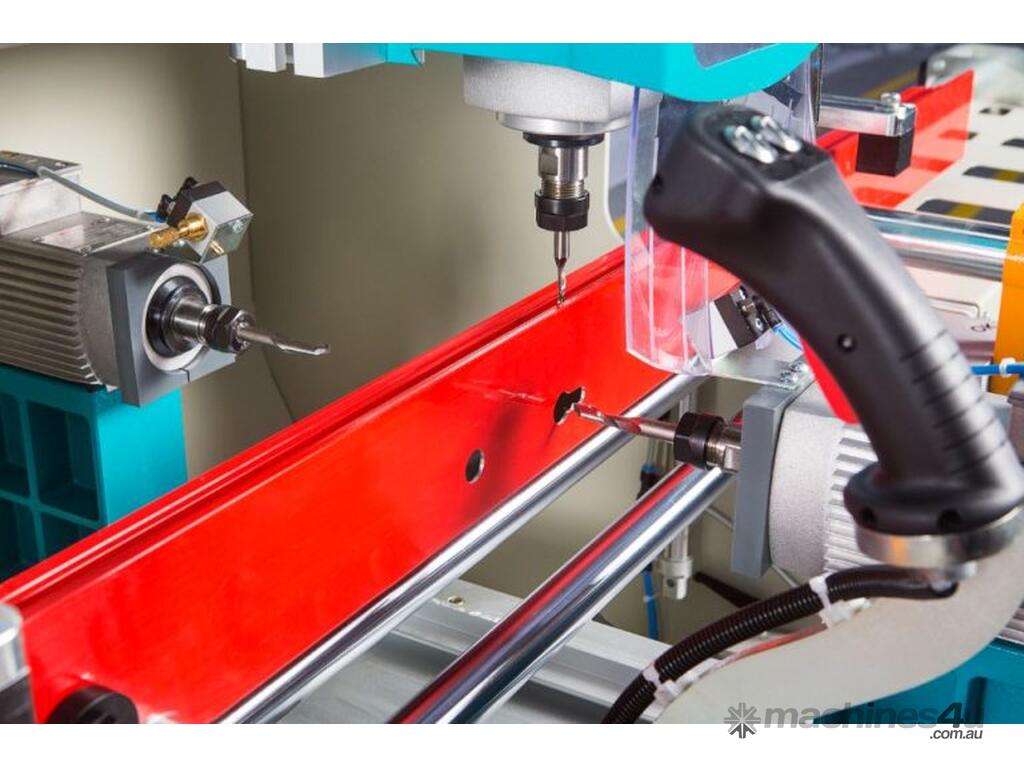

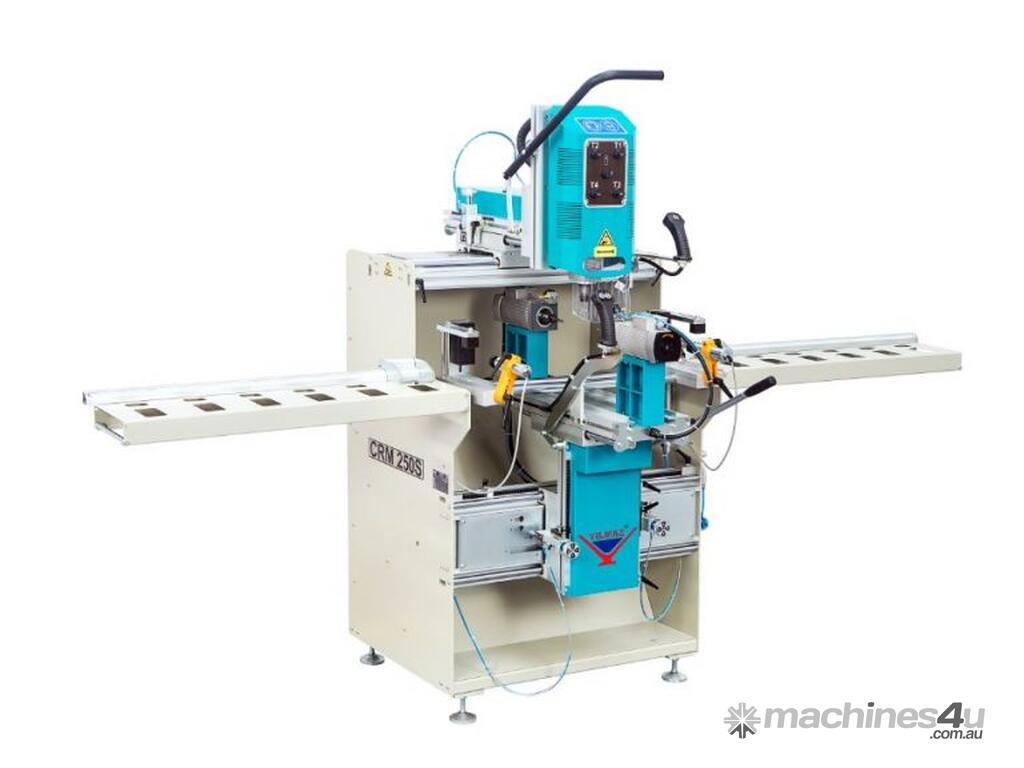

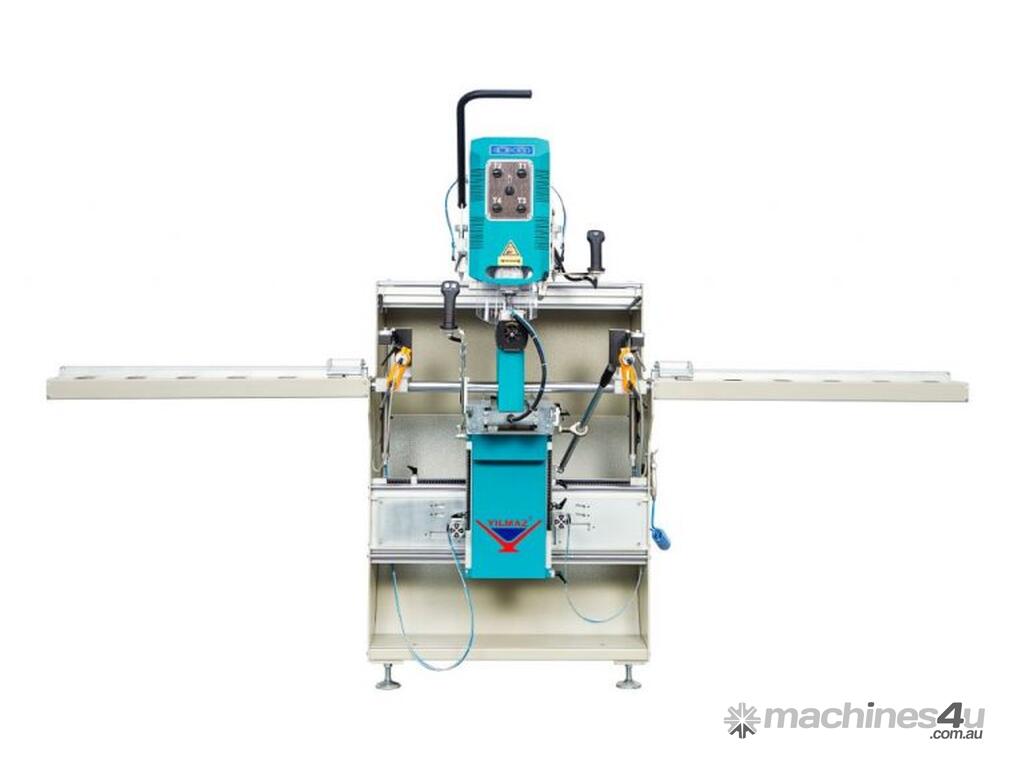

Introducing the CRM250S Copy Router for Aluminium and uPVC, access 3 sides of your Aluminium or uPVC Profile quickly and easily.

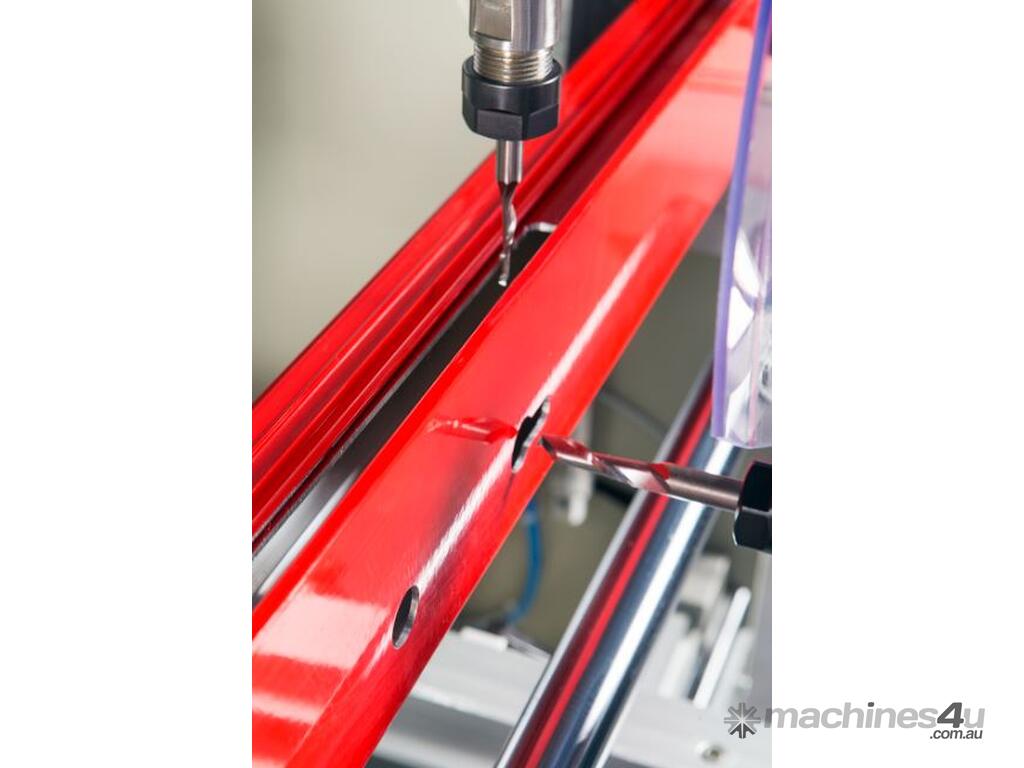

With 4 Pneumatic Copy Pins, the Yilmaz CRM250S can machine all 3 surfaces of your extrusion without unclamping the piece during the routing operation.

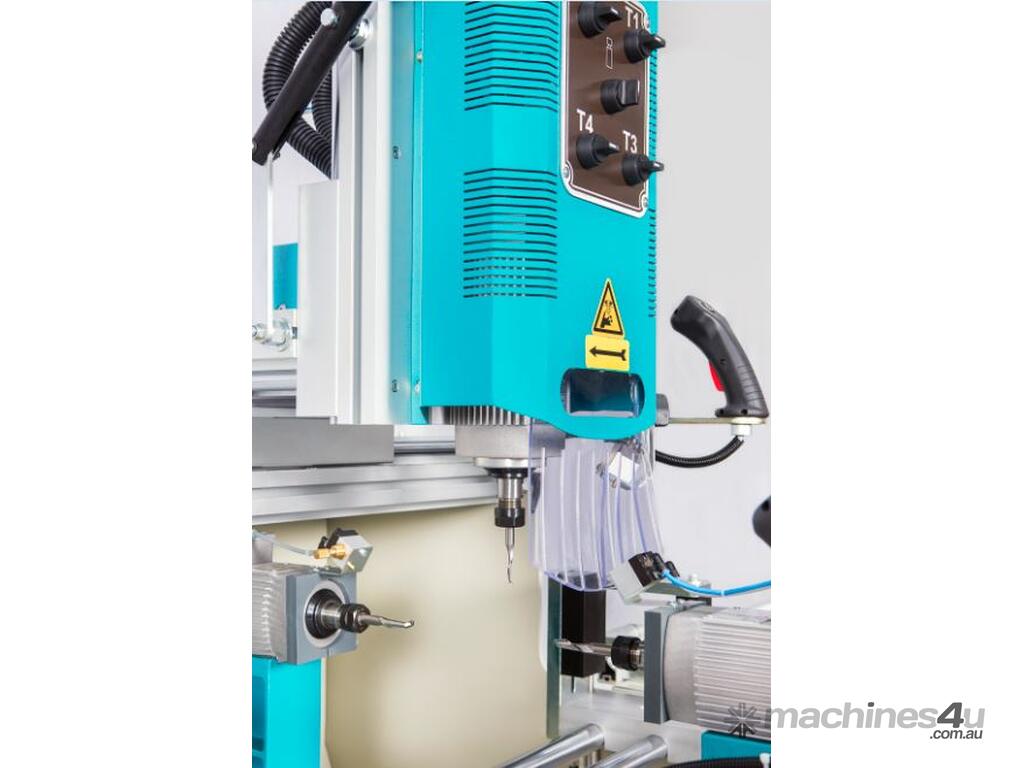

The Yilmaz CRM20S also features a powerful 1.1KW variable speed motor, from 2800rpm to 12000rpm, which means it is capable of routing steel up to 2mm thick when a special mill cutter is used.

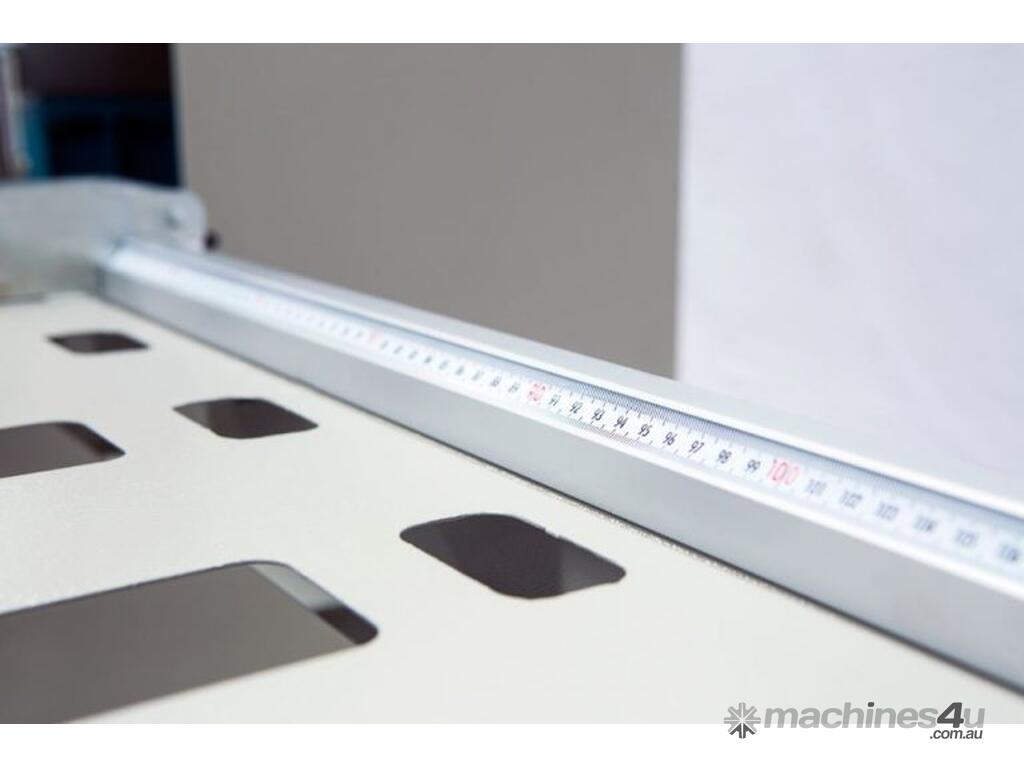

Also included are 2 x integrated roller tables with measuring stops.
Specifications
3 x 1.1kW 240V Motors – 15Amp Plug
Equipped with variable speed spindle adjusted by inverter and potentiometer (from 2800 to 12000 rpm)
Maximum Slot X-Axes 650mm x 350mm
Maximum Slot Y-Axes 180mm x 230mm
Maximum Slot Z-Axes 170mm x 150mm
8mm ER Series Collet

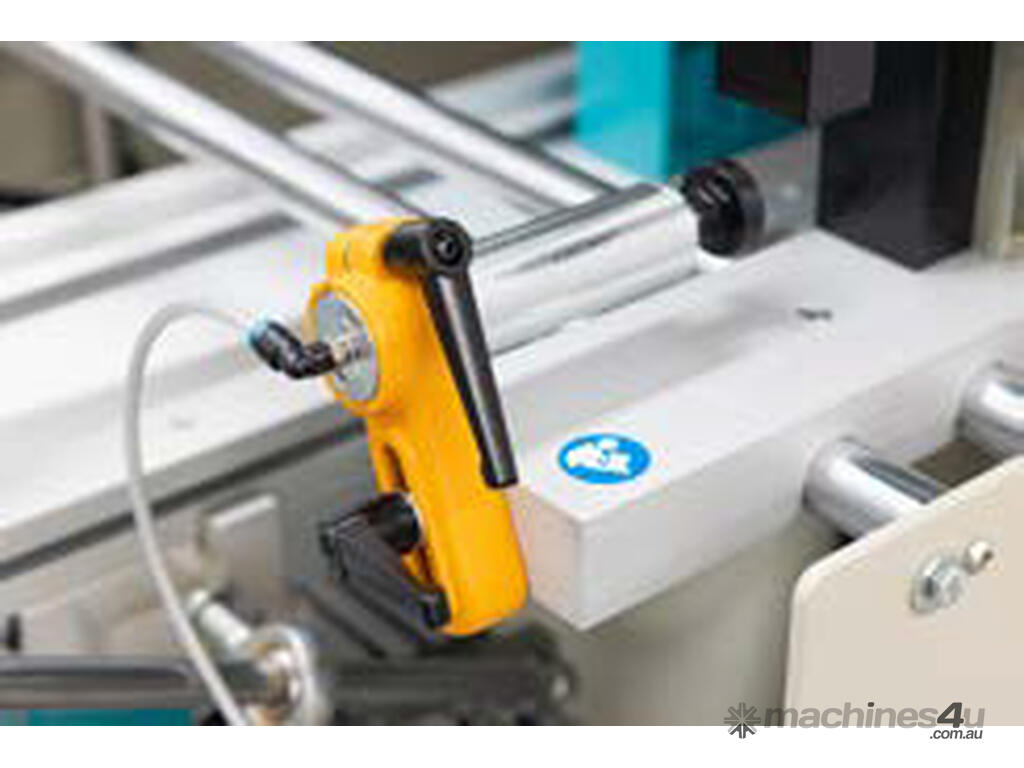

Four Pneumatic Clamps
Pneumatic spray mist lubricator
Air duster gun

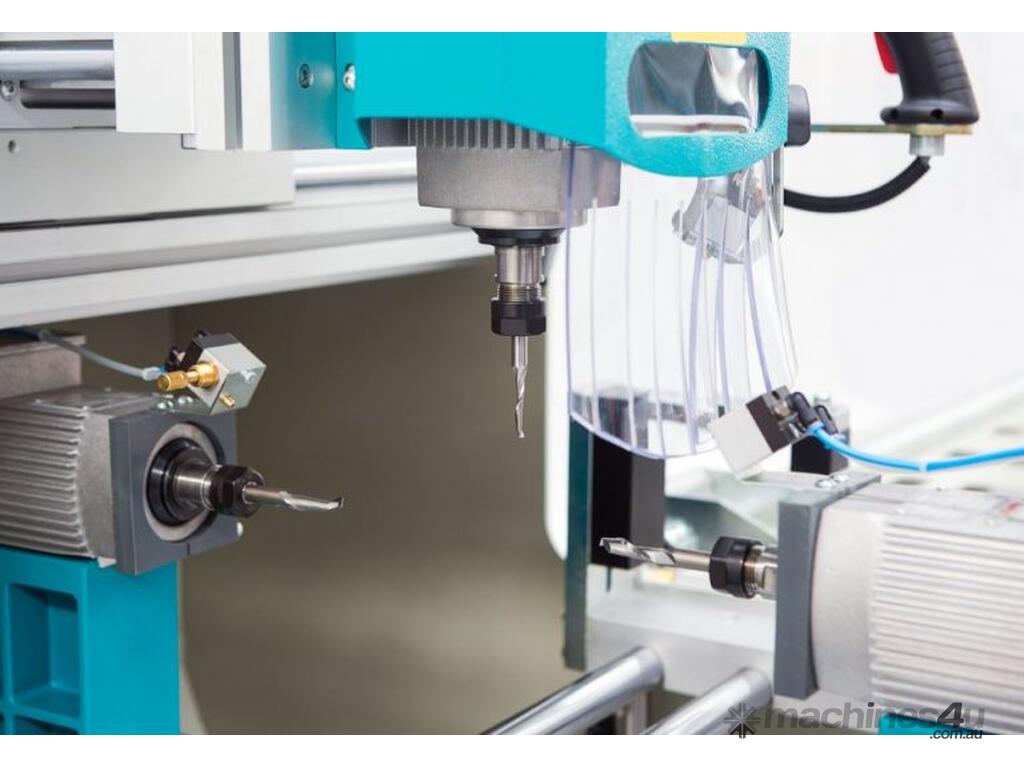

Copy router operations on 3 axes.

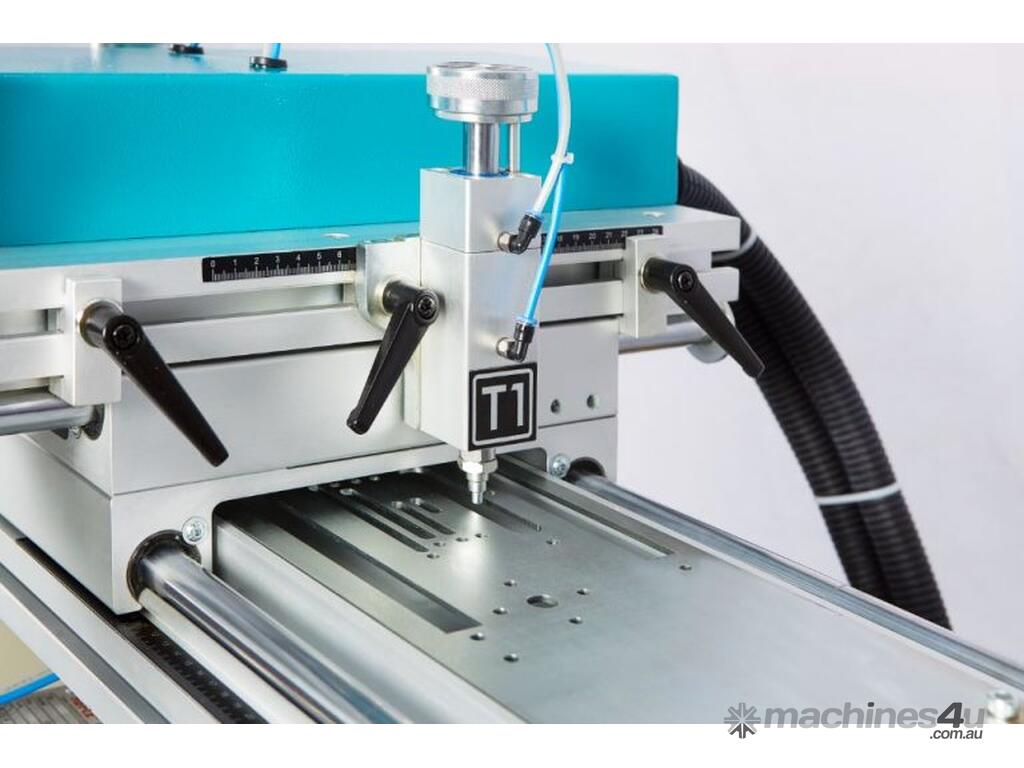

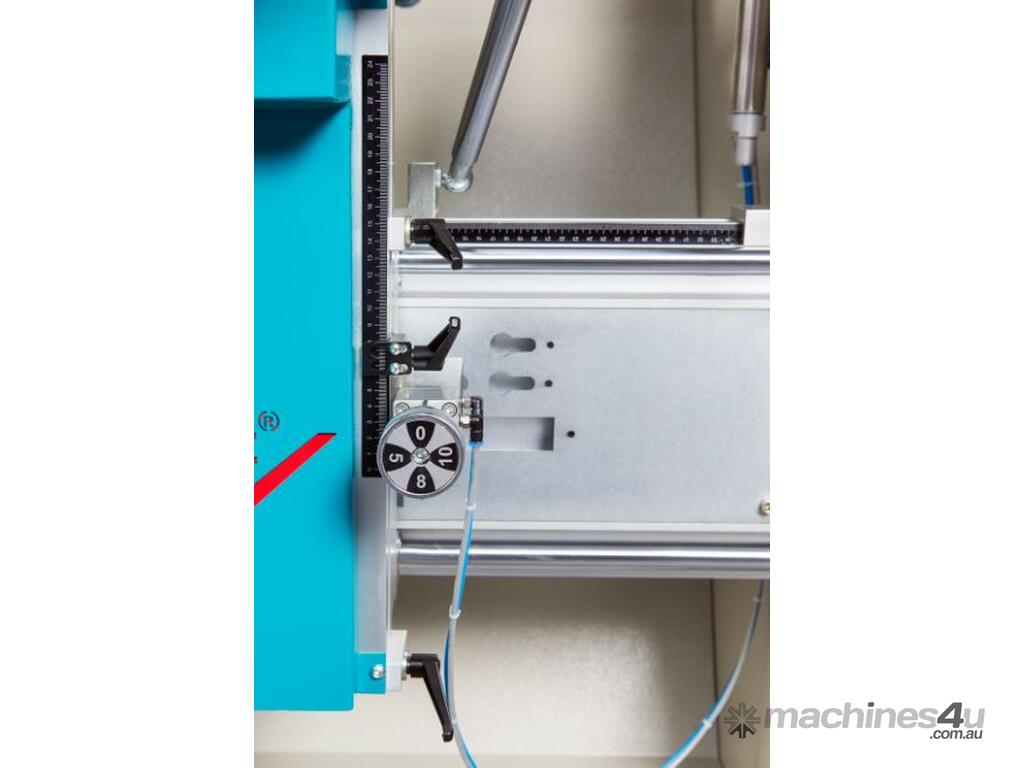

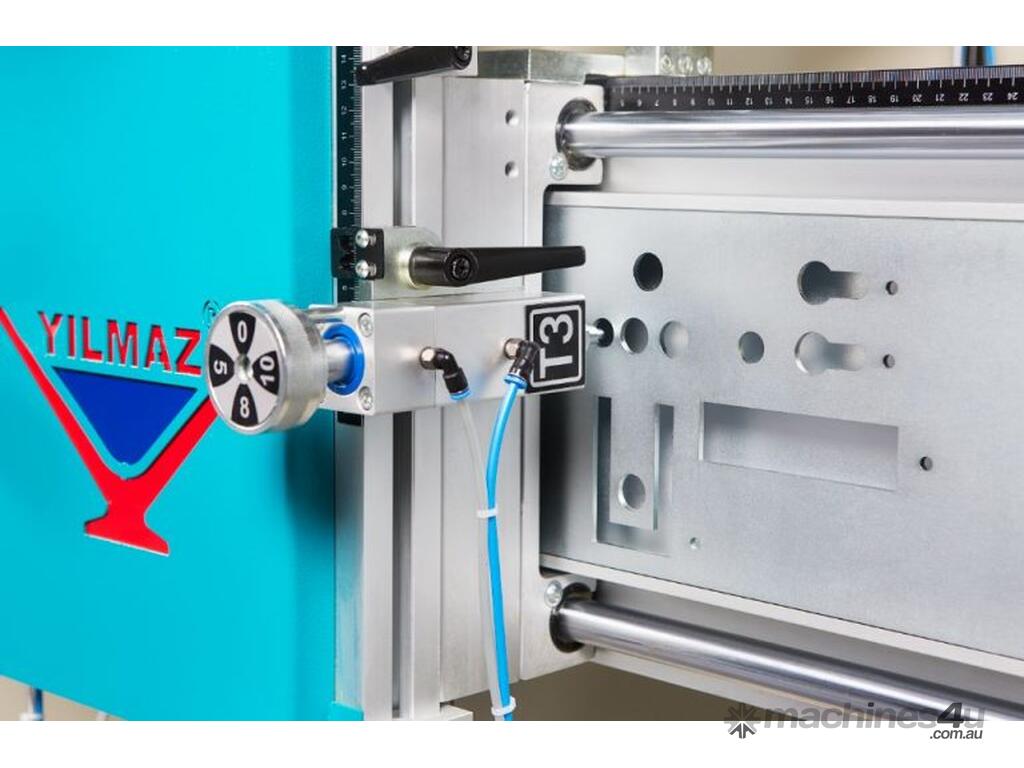

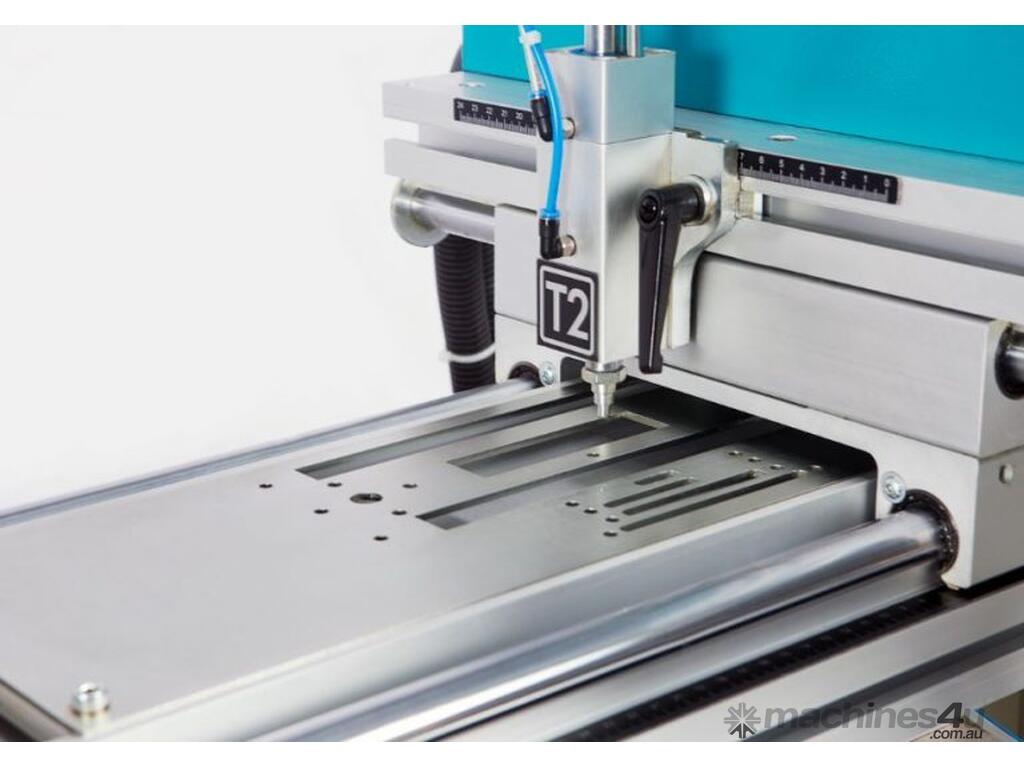

Quick and easy adjustment of the tracer pins.
