Replace expensive punch tools

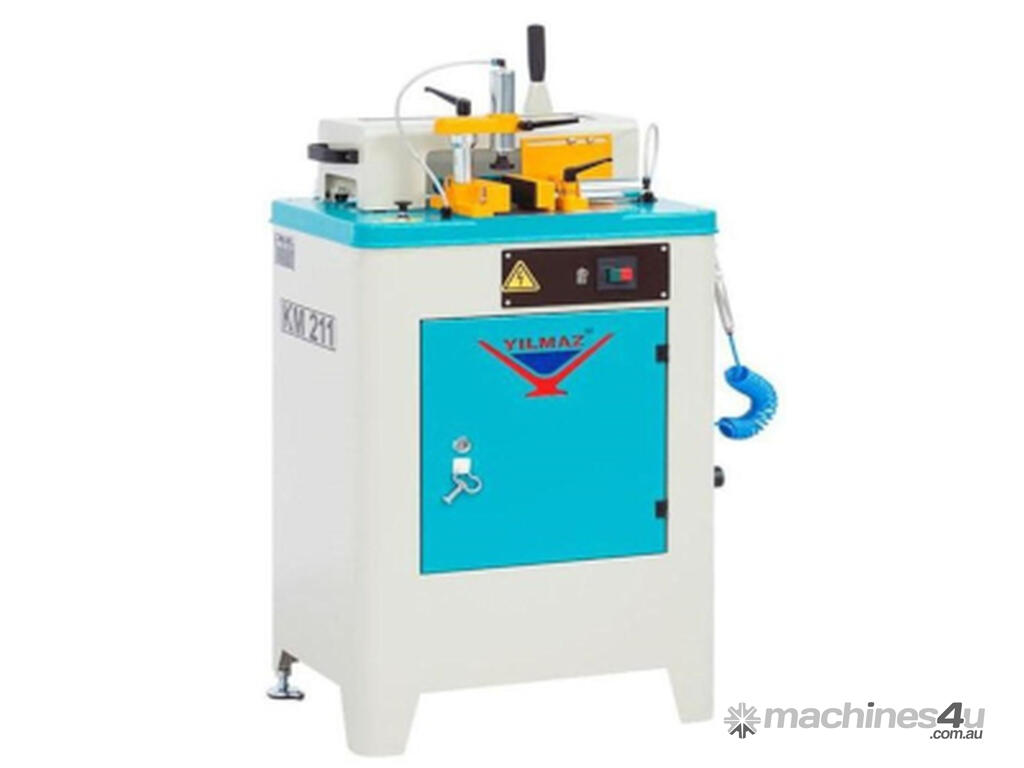

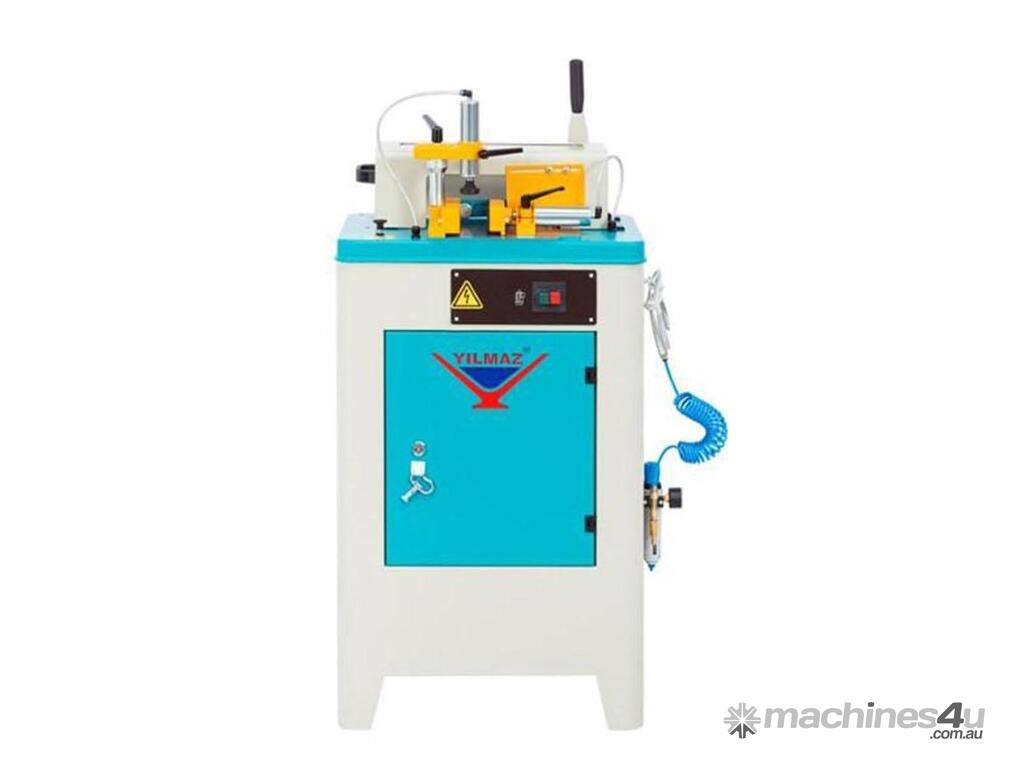

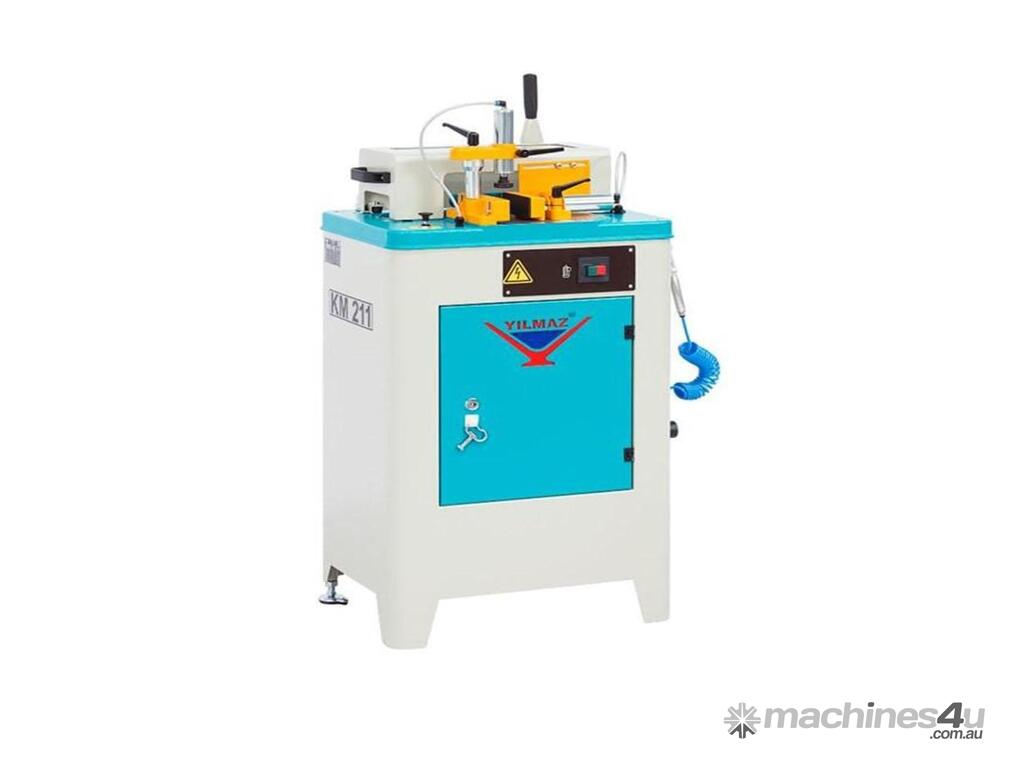

Yilmaz KM211P Manual End Miller is ideal for slotting and/or notching the ends of aluminium and uPVC profiles. The Yilmaz Endmilling Machine has many uses in the production of butt joint or rebated joint frames. The advantage of this machine is its versatility as cutters for the machine can be quickly changed for different profile machining operations.
The Yilmaz KM211PS/1 is our go to end mill. With a powerful 0.8kW 240V motor it’s suitable for a range of end milling or notching applications up to 60mm deep in aluminium and uPVC profiles.
Maximum stroke 230mm
Max milling length 150mm
Max milling depth 60mm
Max milling height 110mm
Max cutter diameter 160mm
Cutter bore 30mm
Motor 1.2kw (1.6HP) 240V Single phase
Spindle Speed 3000 rpm
Weight 95kgs
Standard Features

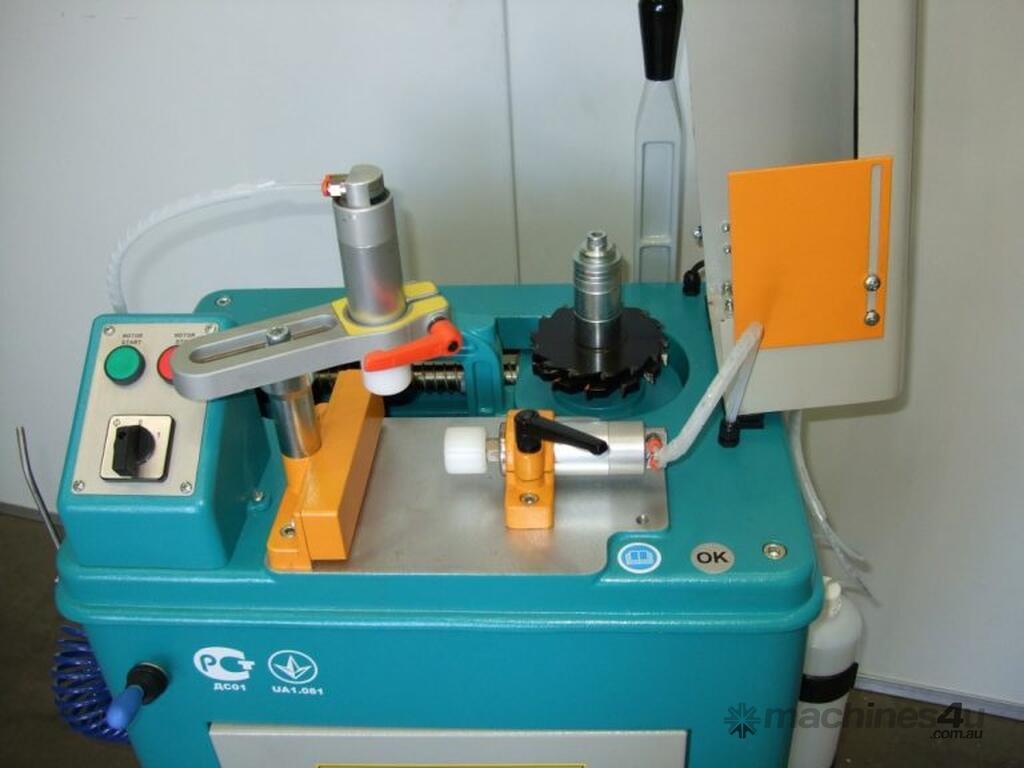

Motor carriage slide on two linear bearing rods
Manual cutter feed

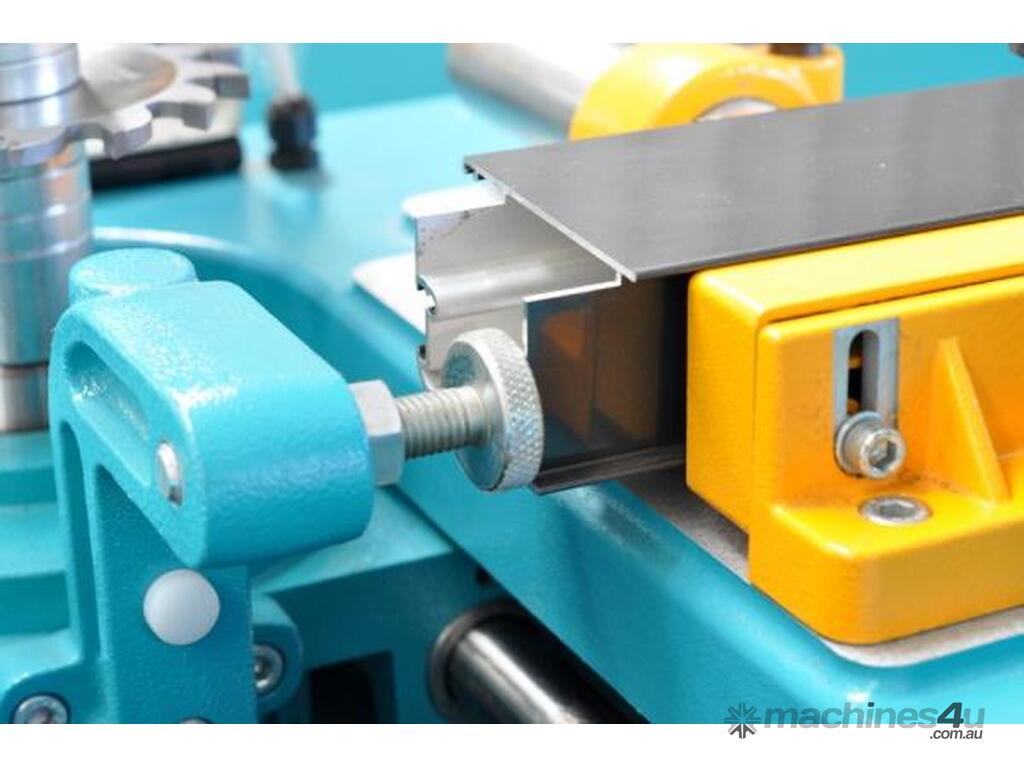

Squaring fence

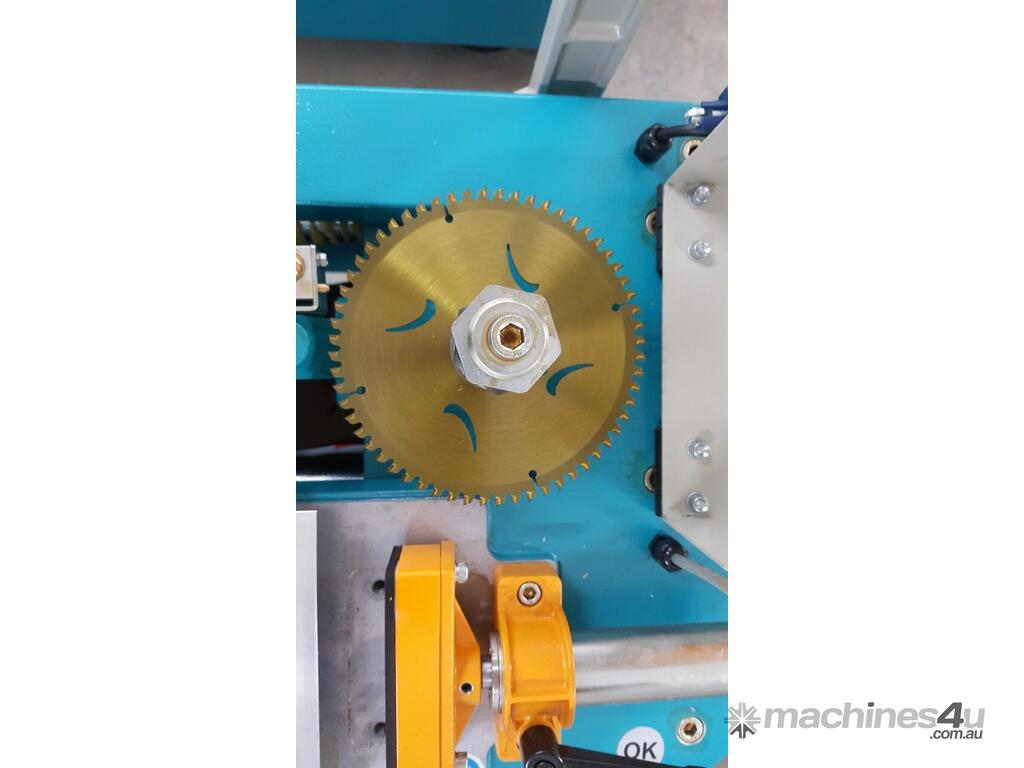

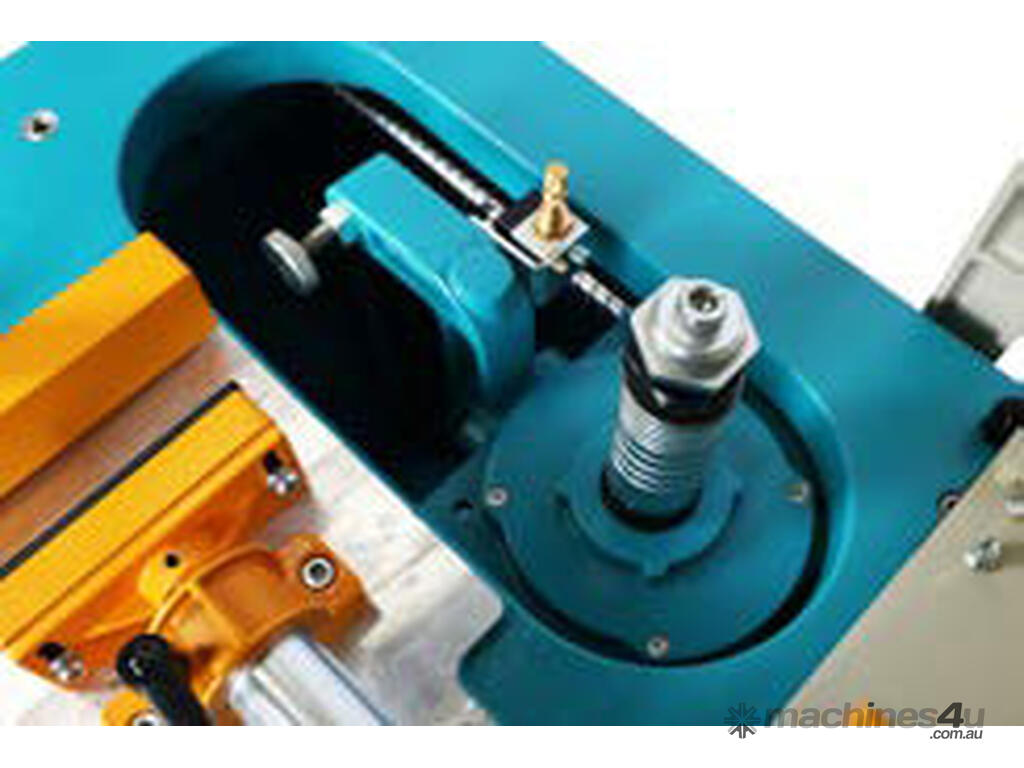

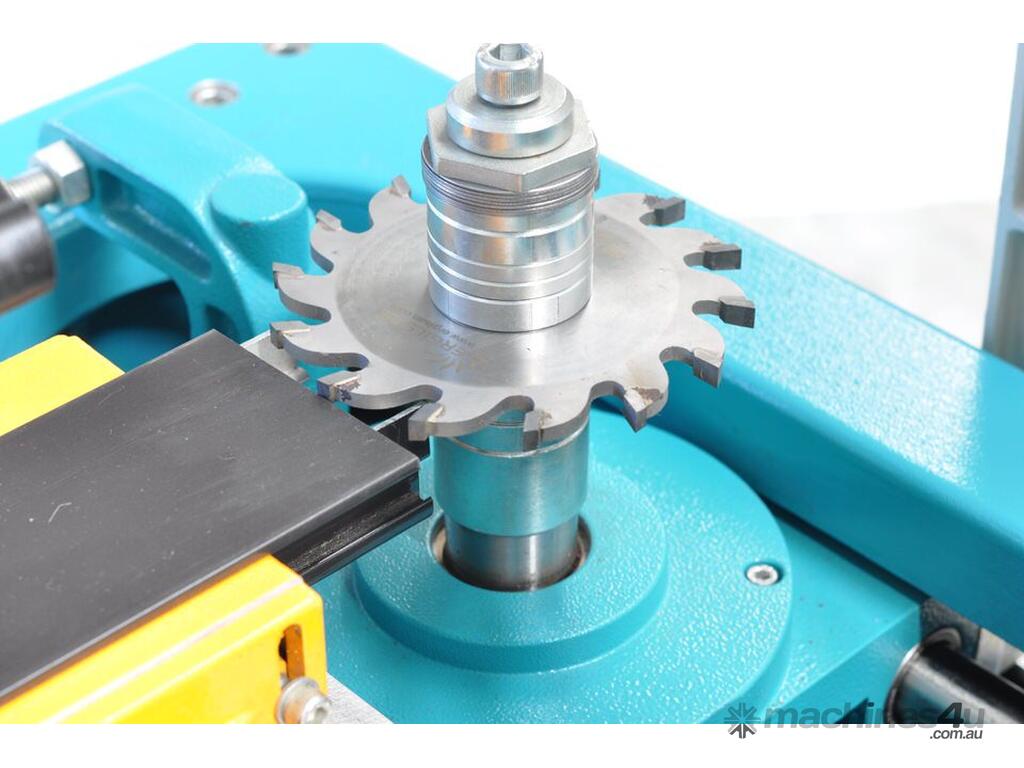

Manual change of cutters & spacers on fixed arbor

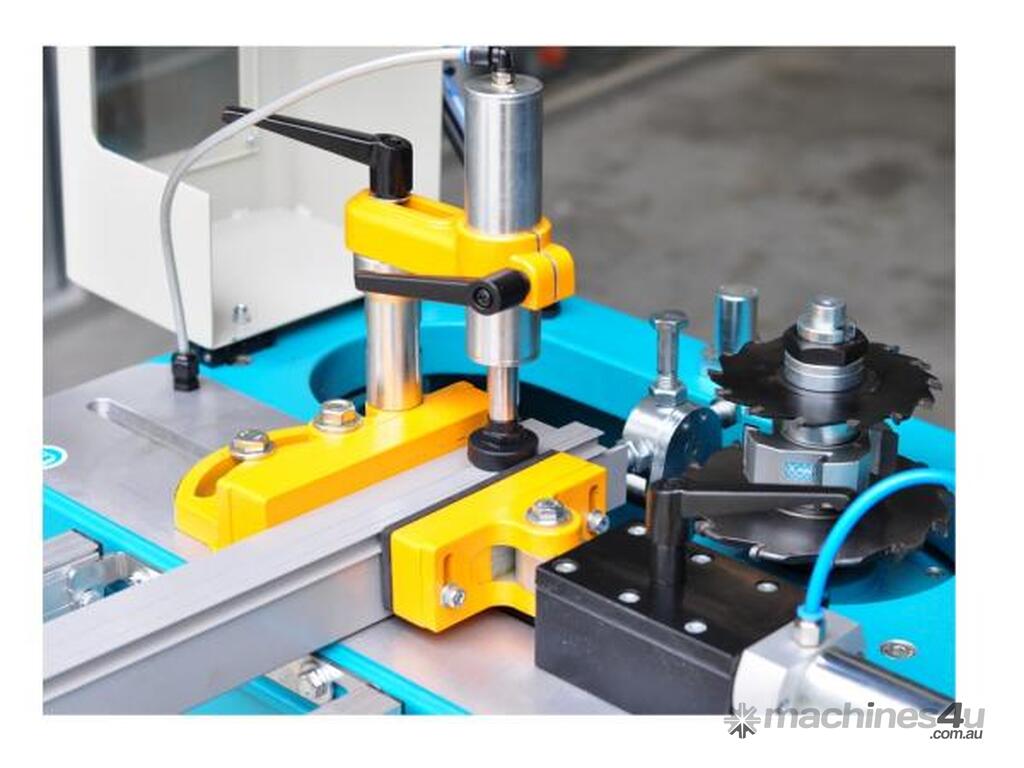

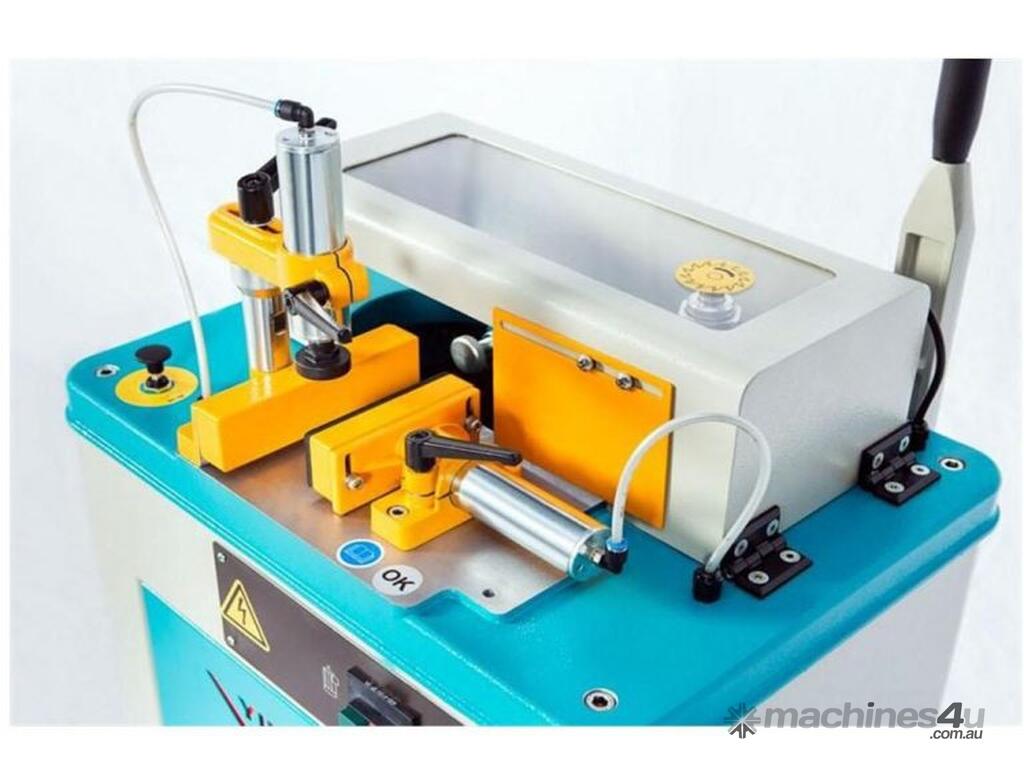

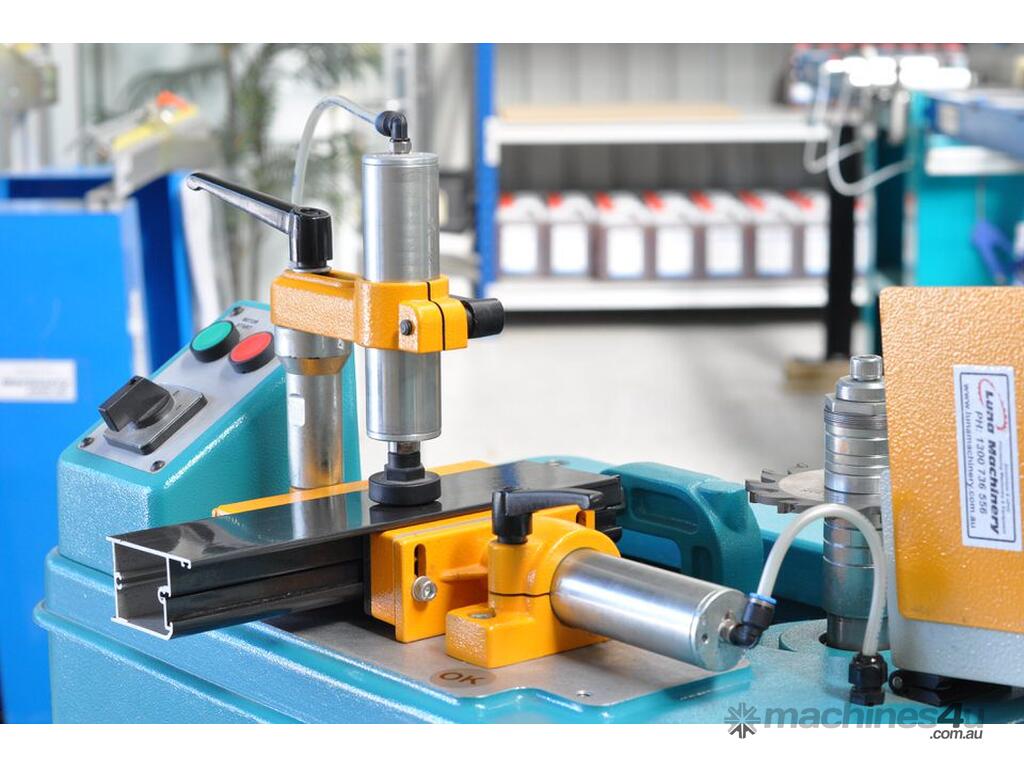

Pneumatic clamps 1 x Horizontal & 1 x Vertical
Pneumatic spray mist lubrication
Adjustable depth stop

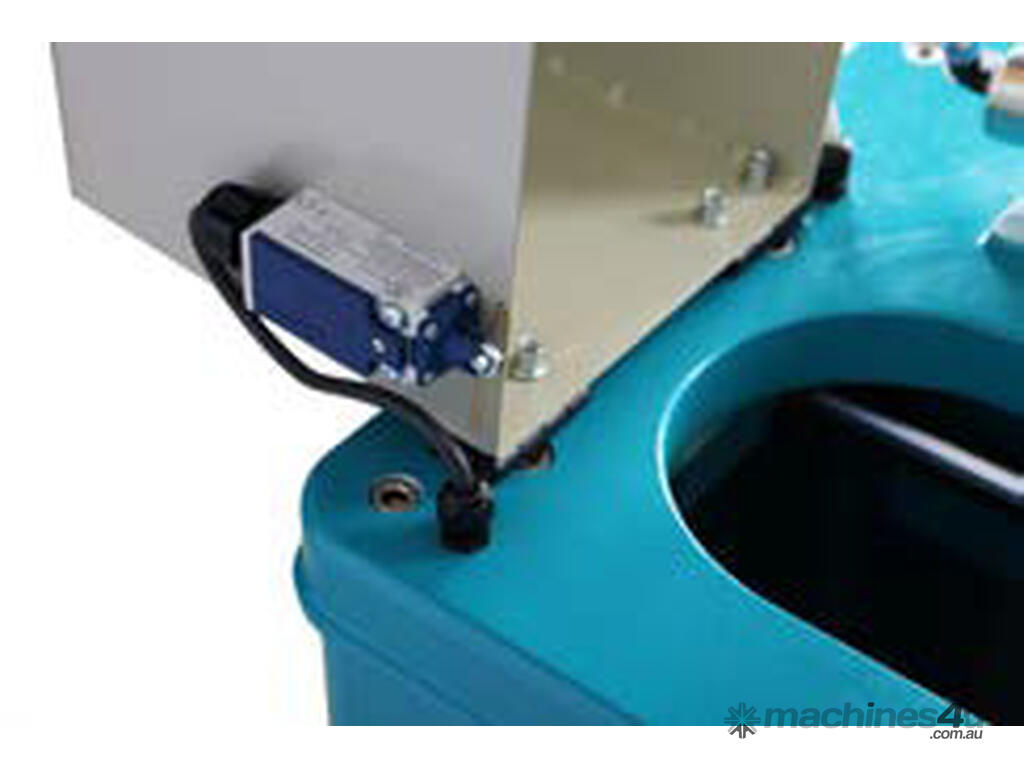

Hinged cutter guard with safety interlock to motor
Angled base for swarf evacuation
Air duster gun

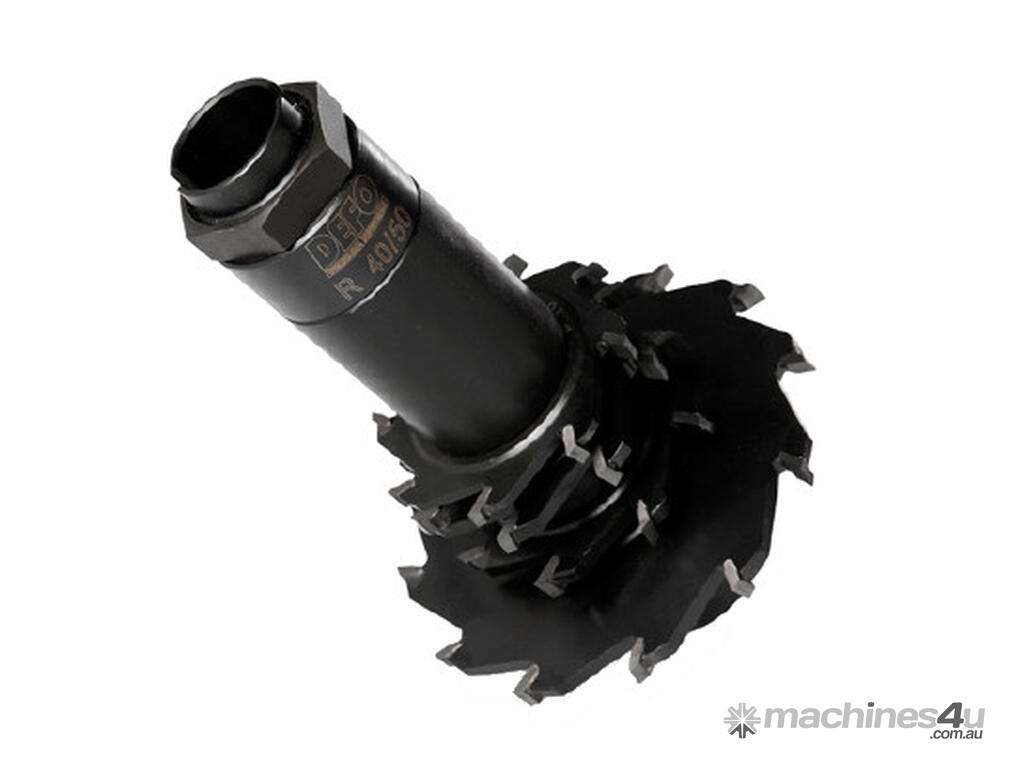

End mill cutters not included
Made in Europe
