Yilmaz Semi Automatic End Mill - *MADE IN EUROPE*

Replace expensive punch tools

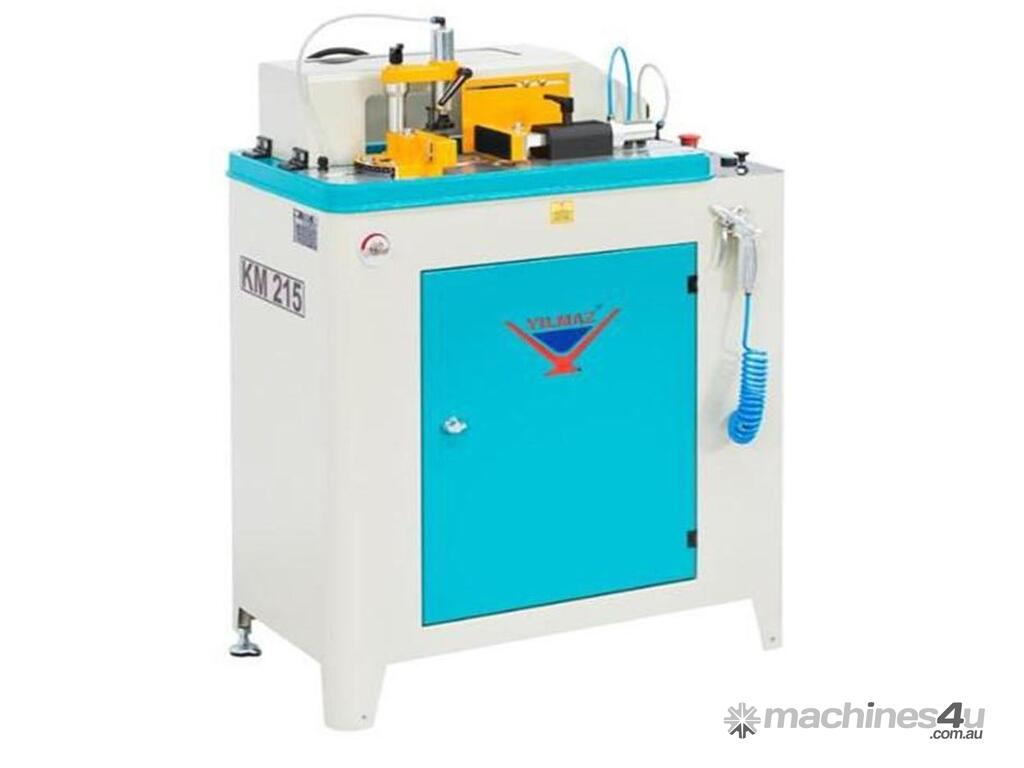

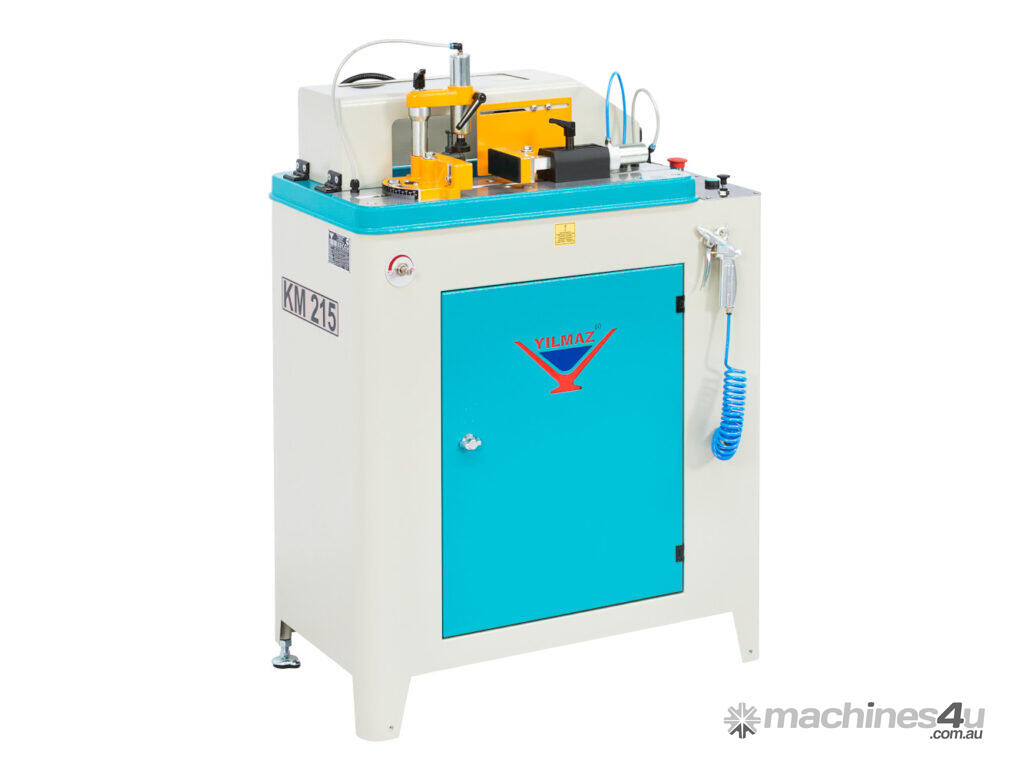

Yilmaz KM215P Semi Automatic End Miller is ideal for slotting and/or notching the ends of aluminium and uPVC profiles. The Yilmaz End-milling Machine has many uses in the production of butt joint or rebated joint frames. The advantage of this machine is its versatility as cutters for the machine can be quickly changed without the need for tools by using the quick release system fitted to the spindle. Cutter stacks can be made to suite various profiles and when combined with the EM215's quick tool change super fast and efficient processing of profiles is possible. The EM215 is also equipped with hydro pneumatic cutter feed system which maintains consistent cutter feed throughout the machining operation.

The Yilmaz KM215APS/3 Semi Automatic End Mill, with its powerful 1.2kW motor can handle almost all your notching and end milling needs.

The quick change arbour and 4 position depth stop makes it easy and fast to change from one operation to another.

The fully enclosed hood, with electrical safety cut-out switch also makes it extremely safe and easy to use.

Maximum stroke 280mm
Max milling length 200mm
Max milling depth 60mm
Max milling height 110mm
Max cutter diameter 160mm
Cutter bore 30mm
Motor 1.2kw (1.6HP) 415V 3 phase
Spindle Speed 3000 rpm
Weight 115kgs

Standard Features
Motor carriage slide on two linear bearing rods

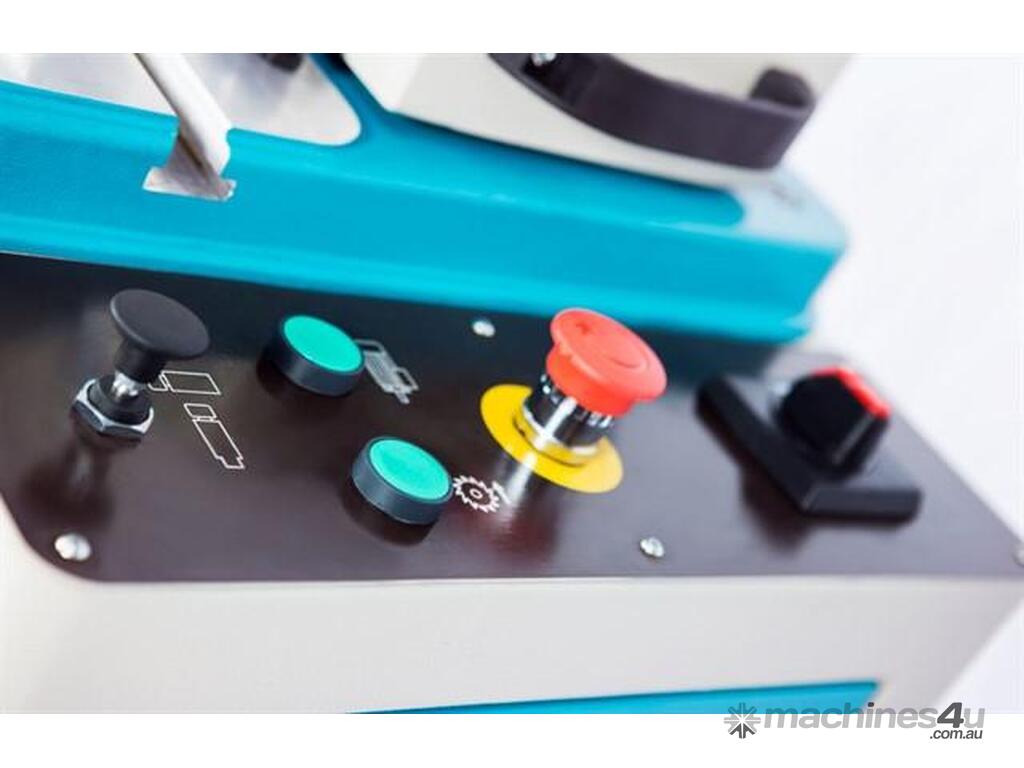

SEMI AUTOMATIC feed with two hand safety control

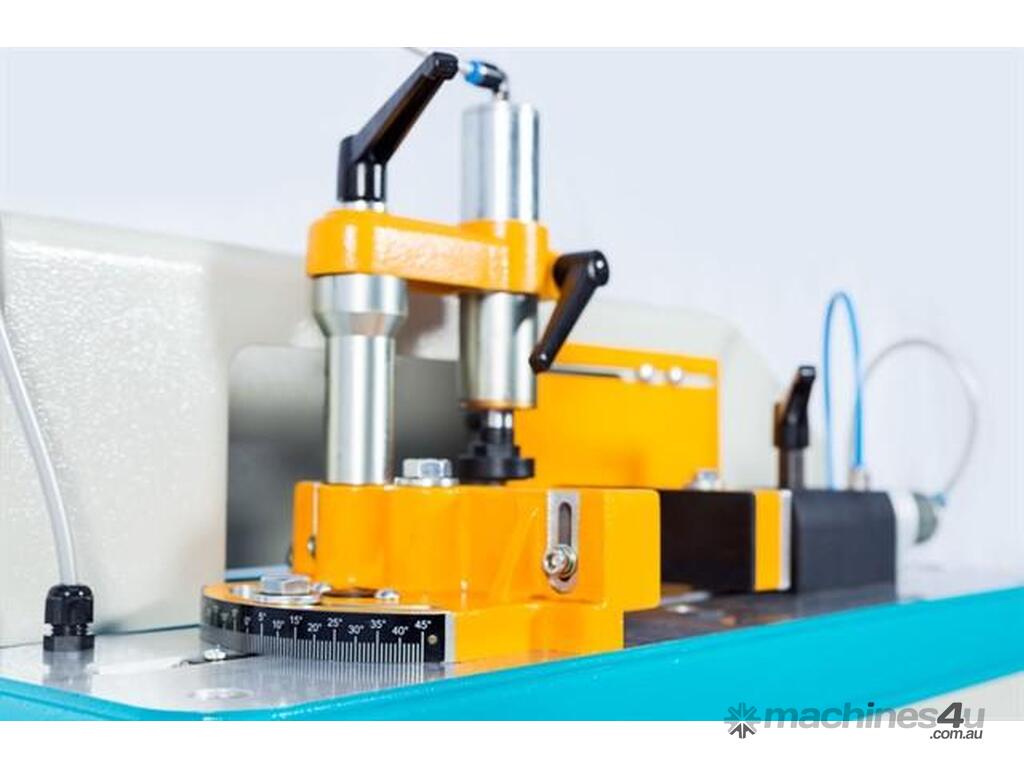

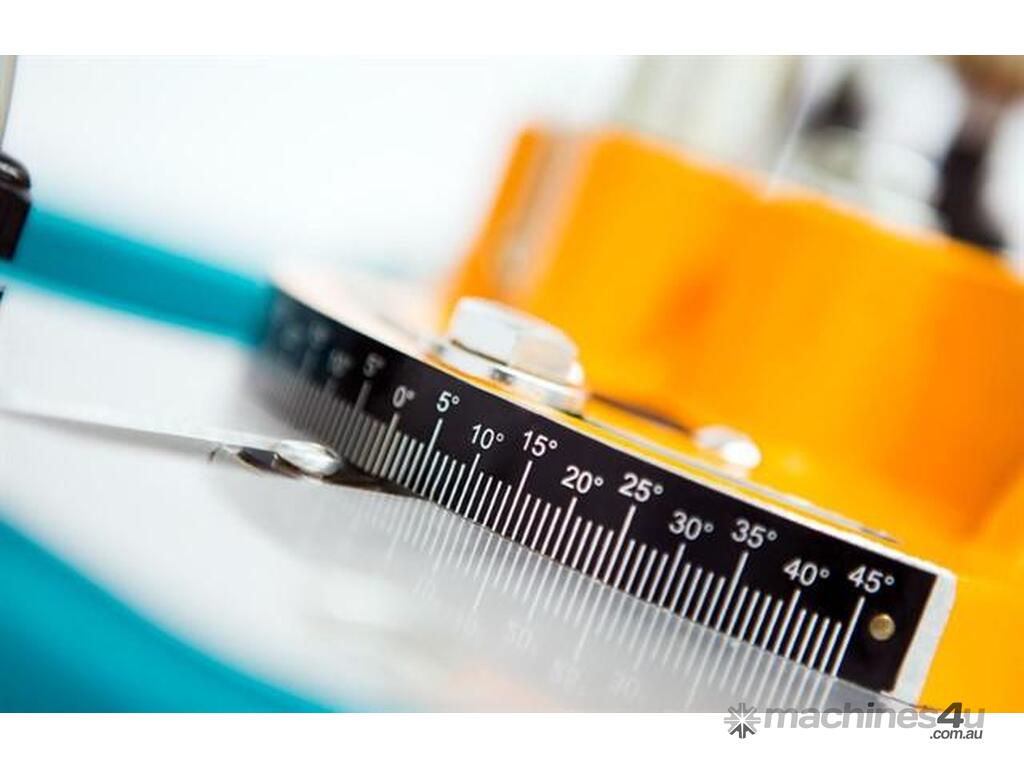

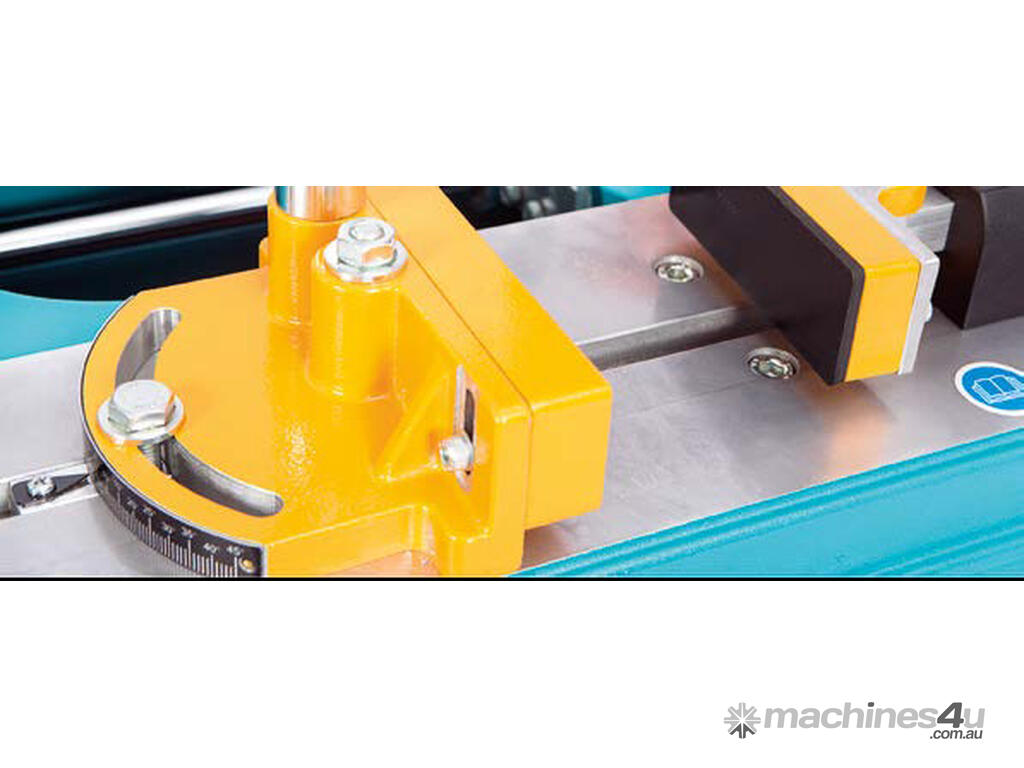

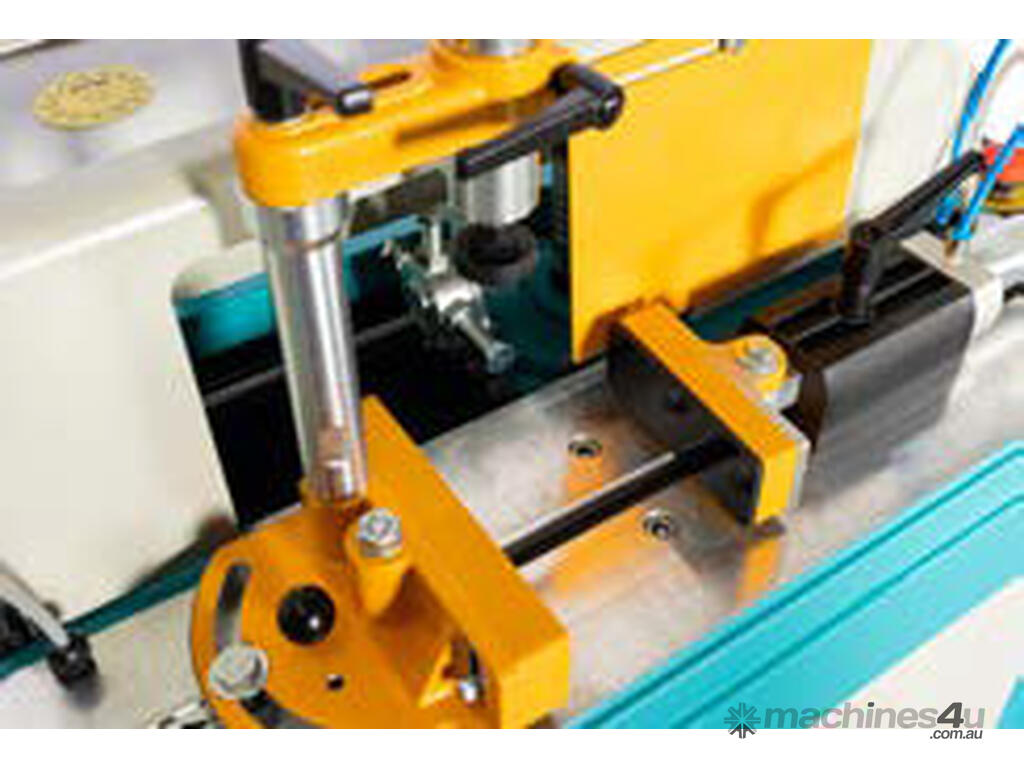

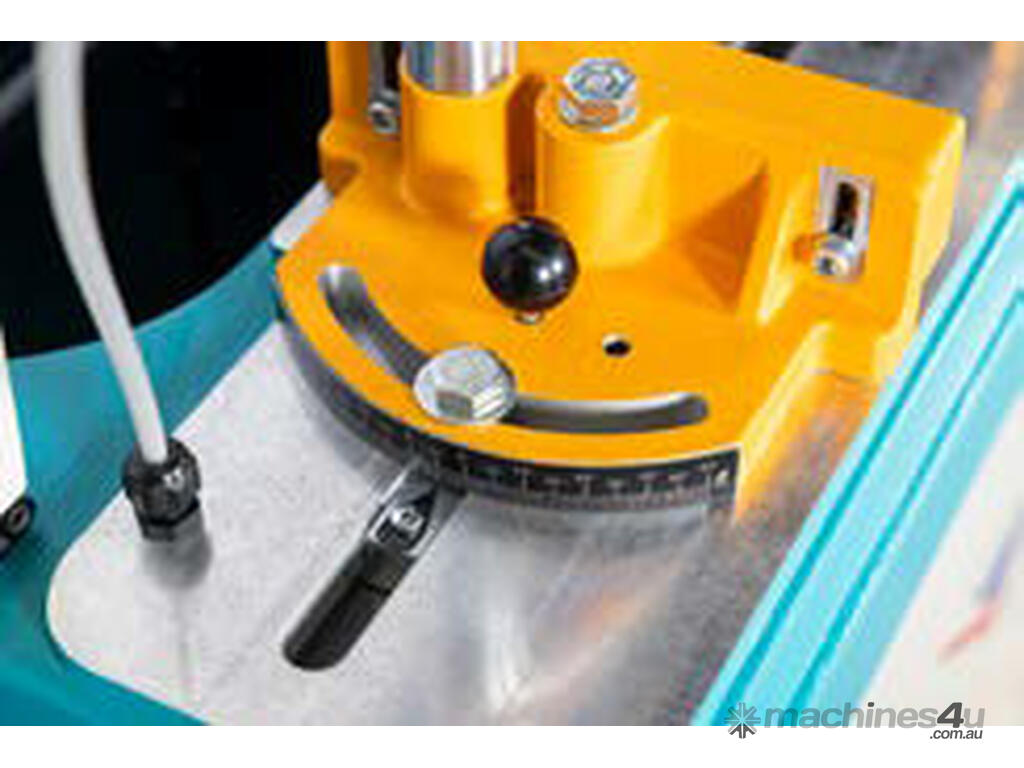

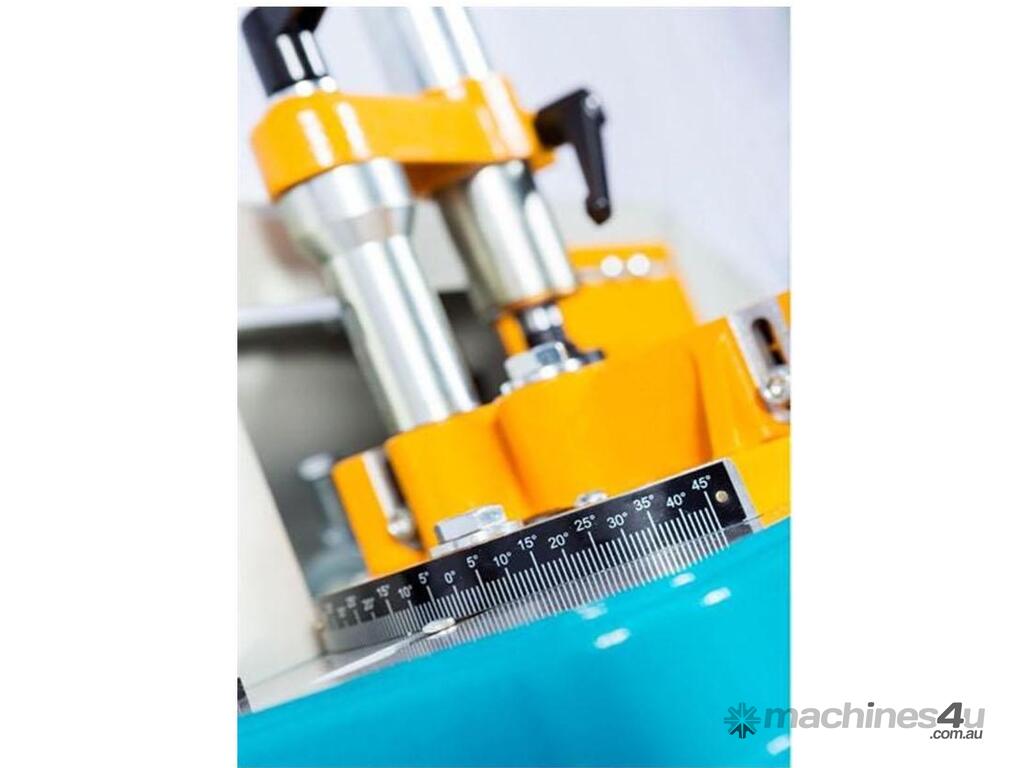

Squaring fence with mitre facility

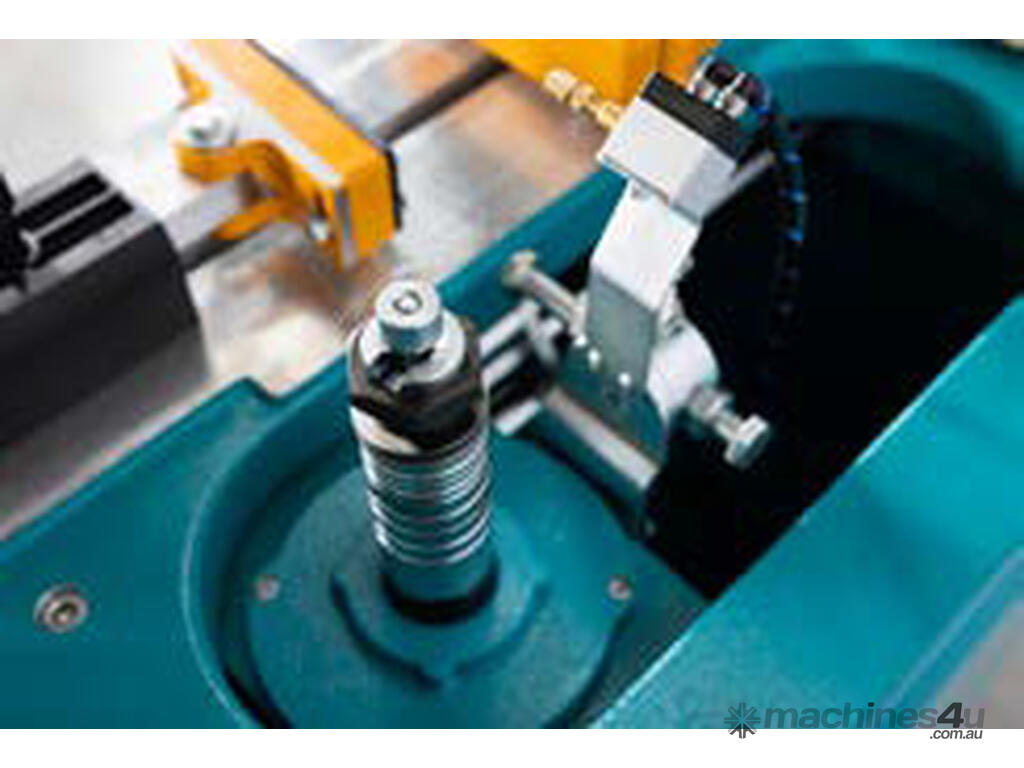

Pneumatic push button for quick change of cutter arbour

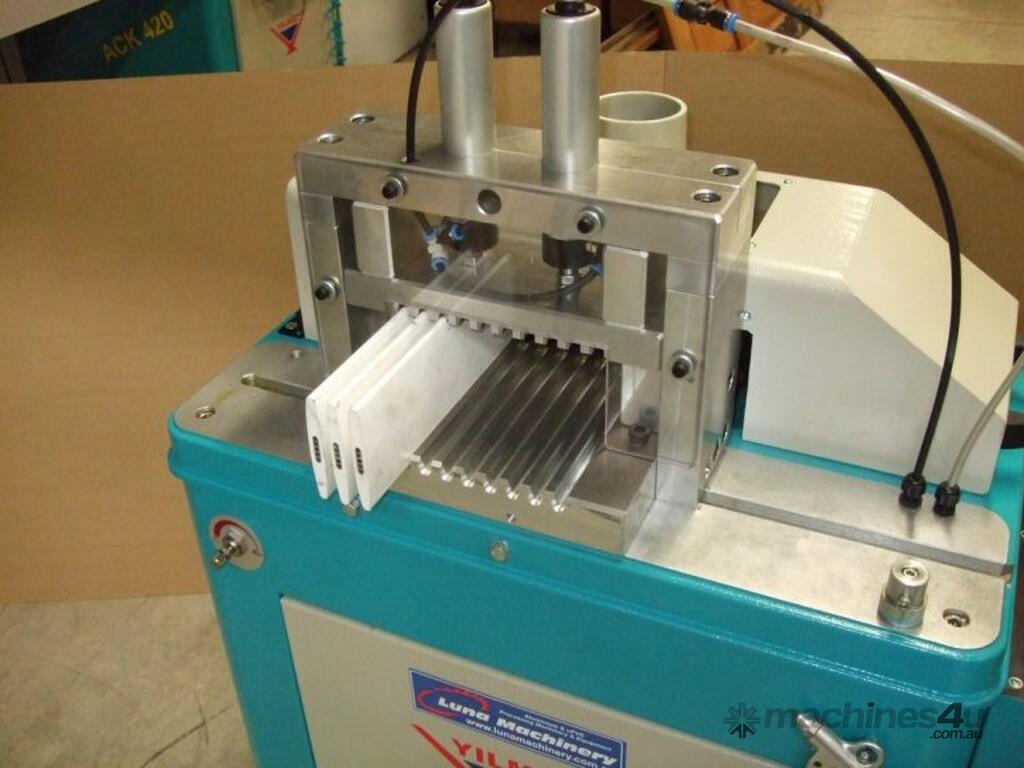

Pneumatic clamps 1 x Horizontal + 1 x Vertical with safety lock on
Pneumatic spray mist lubrication
Four (4) position adjustable depth stop turret
Hinged cutter guard with safety interlock to motor
Angled base for swarf evacuation
Air duster gun & Air Filter/Lubricator/Regulator fitted

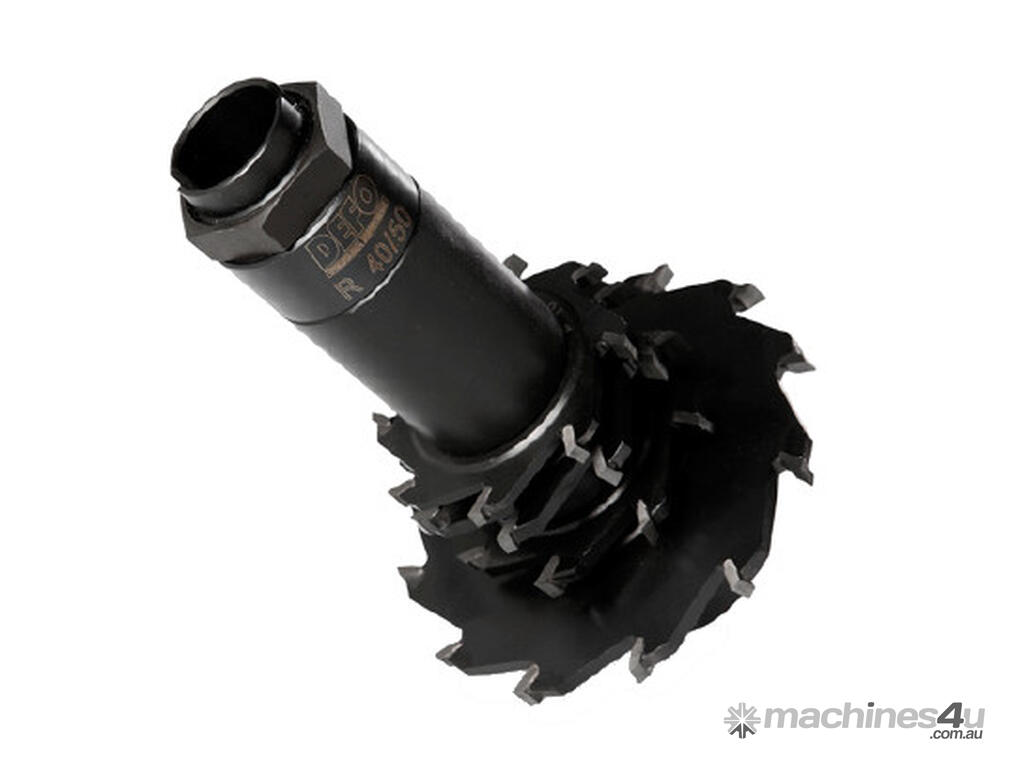

One (1) cutter arbour
End Mill Cutters not included
Made in Europe
