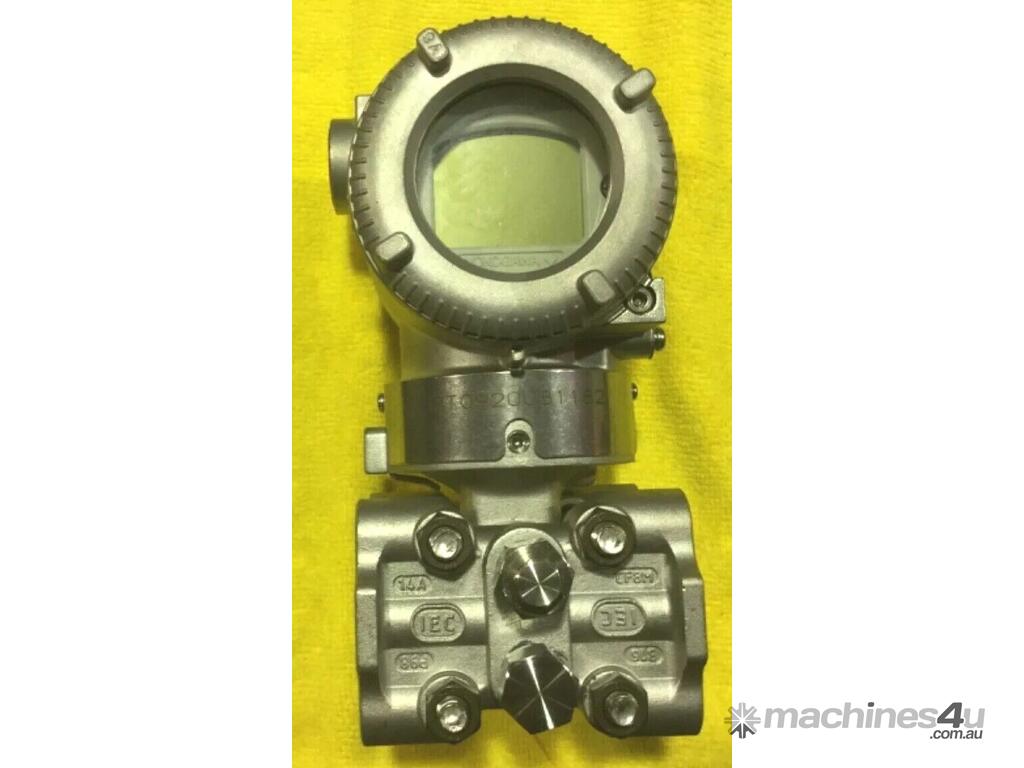

EJX430A-EAS4G-92AEB/SU21/01/M11/T01 Pressure transmitter
Supply 10.5 - 30 (42) VDC
Output 4 - 20mA DC
Maximum Working Pressure 3.5MPa
EJX430A: Gauge Pressure transmitter
E: 4 to 20 mA with digital communication(HART 5 protocol)
A: 0.03 to 3.5 MPa (4.3 to 500psi)
S: 316L SSt process connector
4: 1/2" NPT female process connector
G: 316L Stainless steel bolts & nuts
9: installation is horizontal piping and left hand side high pressure
2: ASTM CF-8M stainless steel amplifier housing
A: G1/2 female, 2 electrical connections and 316SST blind plug
E: digital indicator with range setting switch (push button)
B: 304SST 2" pipe mounting bracket
