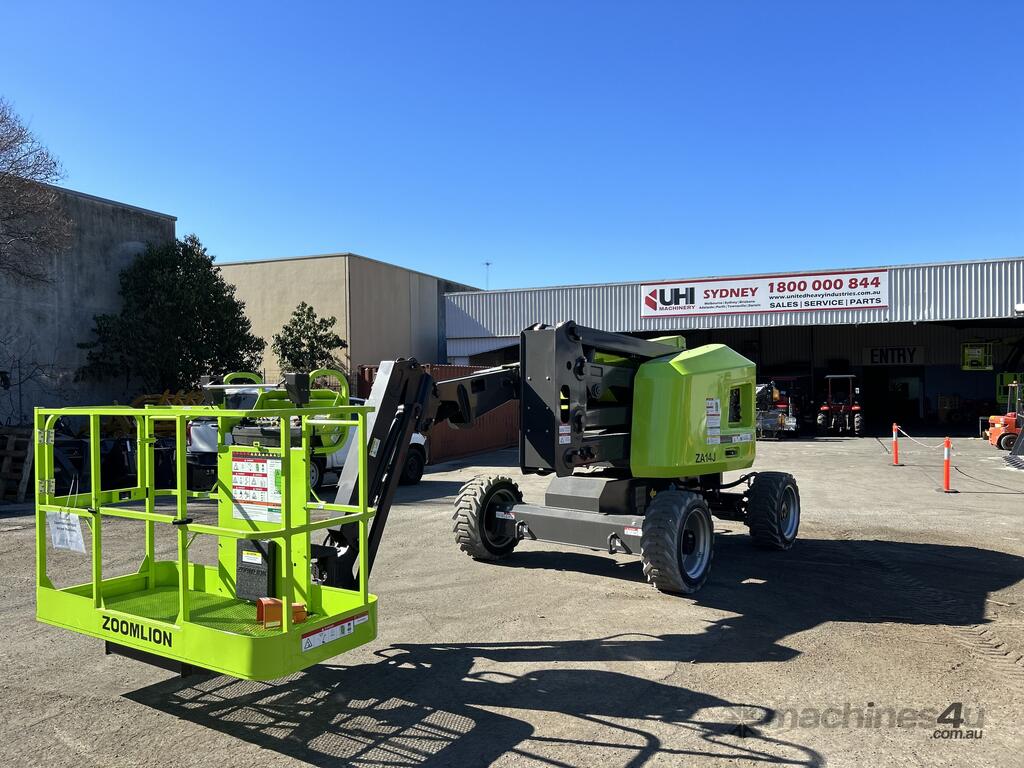

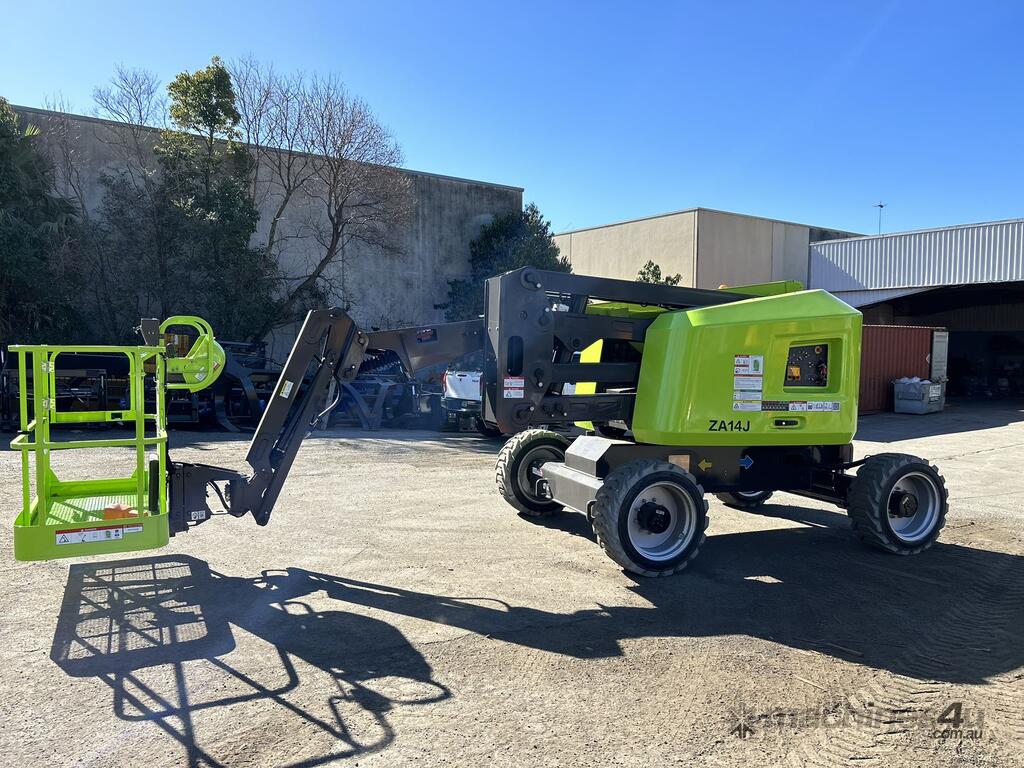

ZOOMLION 46FT Kubota Engine Articulating Boom Lift

This is your best buddy for working at heights!

Featured with:
Built-in multiple pressure control levelling systems to enhance stability!

Precise load sensing system to improve overload safety operations!

Integrated with rotary reducer to enhance rotation stability!

Hostile Kits are available for dusty working environments!

***Reachability
Work Height 15.80m
Platform Height 13.80m
Horizontal Outreach 8.30m
Up and Over Height 7.55m
A - Stowed Length 6.57m
B - Stowed Width 2.30m
C - Stowed Height 2.27m

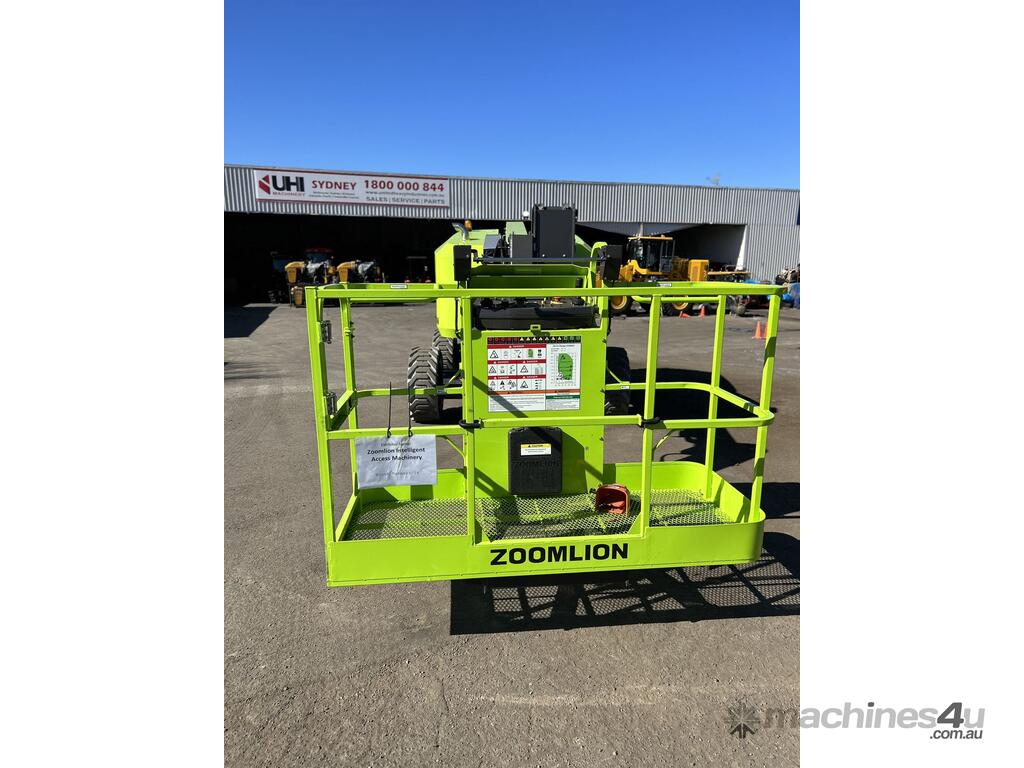

D - Platform Length 1.83m
E - Platform Width 0.76m
F - Wheelbase 2.36m
G - Ground Clearance 0.42m

***Mobility and Stability
Platform Capacity 300kg
Drive Speed 6.8km/h
Gradeability 45%(24°)
Axles Oscillation 0.1m
Turning Radius (Inside) 2.06m
Turning Radius (Outside) 4.78m
Turntable Swing 355° non-continuous
Platform Rotation ±90°
H-Tail Swing 0
Max. Wind Speed 12.5m/s

***Power system

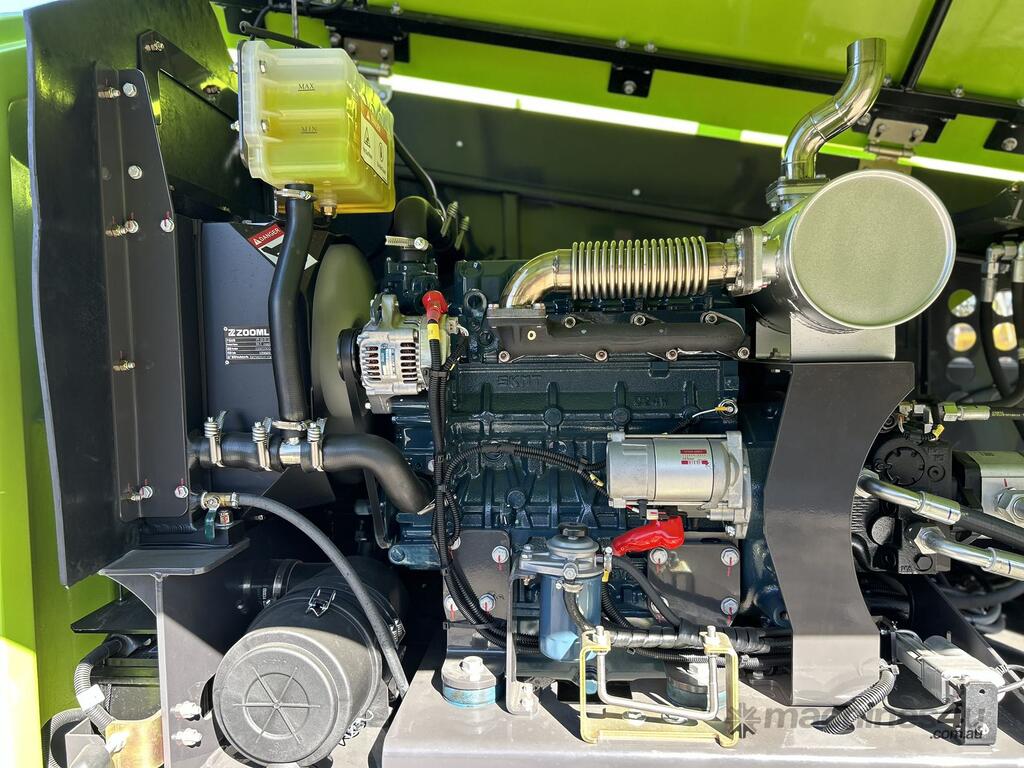

Diesel Engine Kubota V2403 36kw/2600rpm

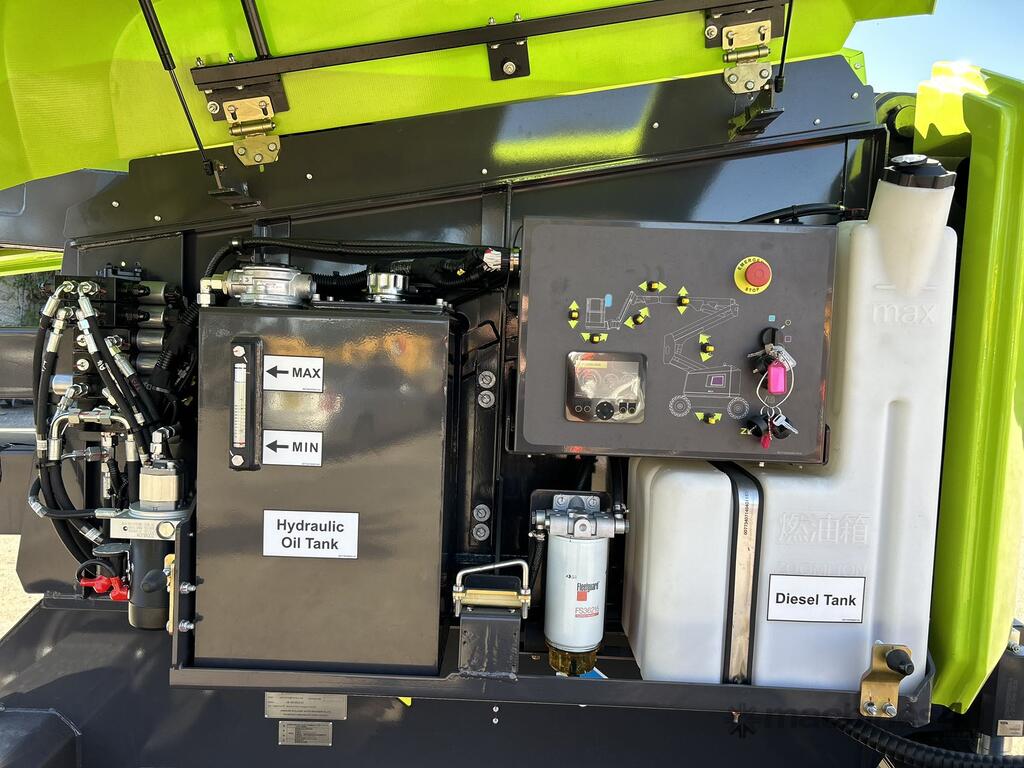

Fuel Tank Capacity 65L
Auxiliary Power 12V
Control Voltage 12V
Hydraulic System Capacity 150L
Hydraulic Tank Capacity 76L
