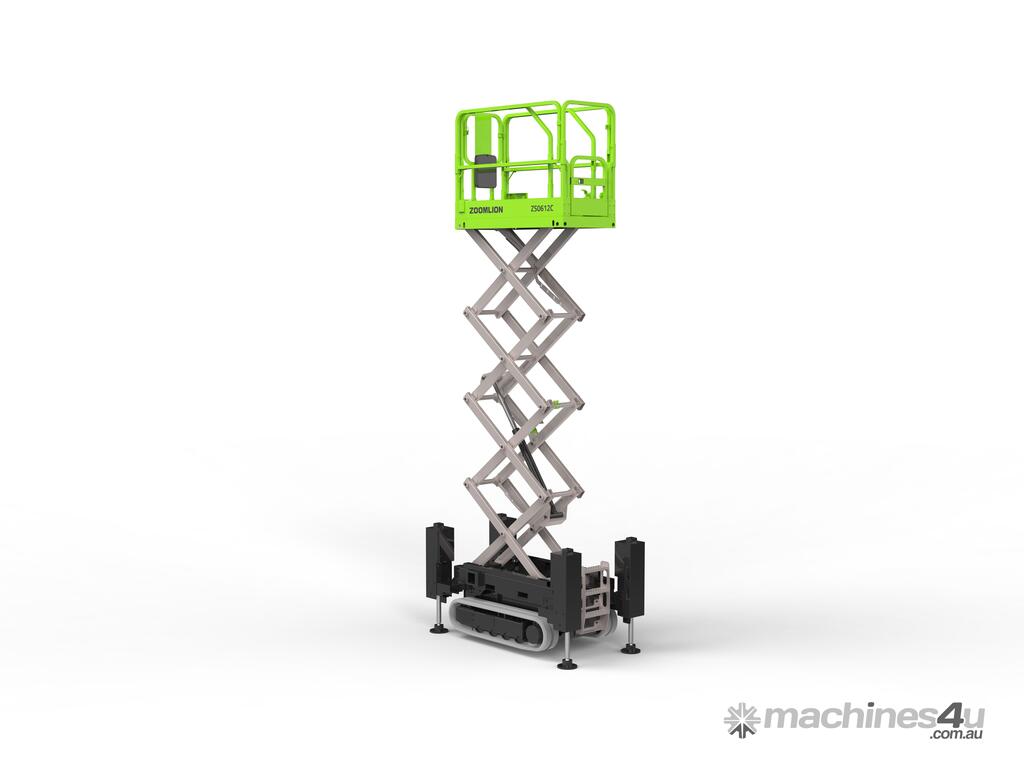

ZOOMLION ZS0612C Crawler Scissor Lift

CRAWLER SCISSOR LIFT
ZS0612C
Comply with CE Standard

High Performance

-Rubber crawler for small ground pressure and great obstacle crossing ability

-Pivot steering with good maneuverability

-Simple single joystick control for steering and walking

-Click-to-level, simple to operate


Cost Effectiveness

-Knuckles lubrication-free and maintenance-free

-AC motor full lifecycle maintenance-free

-Drawler battery tray, easy to maintain


Intelligent Connectivity

-Emergency lifting arm, easy to service



Standard Features

-Proportional controls

-All motion alarm

-Fold-down handrails

-Flashing beacon

-Self-closing entry gate

-Load sensing system



Work Height 25ft 7in 7.8m
A Platform Height-Elevated 19ft 5.8m
B Platform Height-Stowed 3ft 8in 1.13m
C Platform Length 5ft 5in 1.65m
D Platform Width 2ft 5in 0.74m
Platform Extension 2ft 11in 0.9m
E Overall Height (Rails Up) 7ft 5in 2.27m
Overall Height (Rails Down) 6ft 2in 1.88m
F Overall Length 7ft 2in 2.19m
G Overall Width 3ft 9in 1.15m
H Ground Clearance 3in 0.08m
Gross Weight 4188lb 1900kg
Platform Capacity 510lb 230kg
Capacity on Deck Extension 250lb 113kg
Max. Number of Workers 2 2
Drive Speed (Stowed) 1.25mph 2km/h
Drive Speed (Raised) 0km/h 0km/h
Turning Radius 0in 0m
Drive Motor 24V/2×2KW
Up/Down Time 20/24s
Gradeability 30% (17°)
Max. Working Slope (Lateral/Vertical) 12°/7°
Drive Rear Wheels Rear Wheels
Brake Rear Wheels Rear Wheels
Battery 4×12V/240Ah
Charger 24V/30A
