ZOOMLION ZS1212HD Scissor Lift - 13.80m Work Height & 350kg Platform Capacity

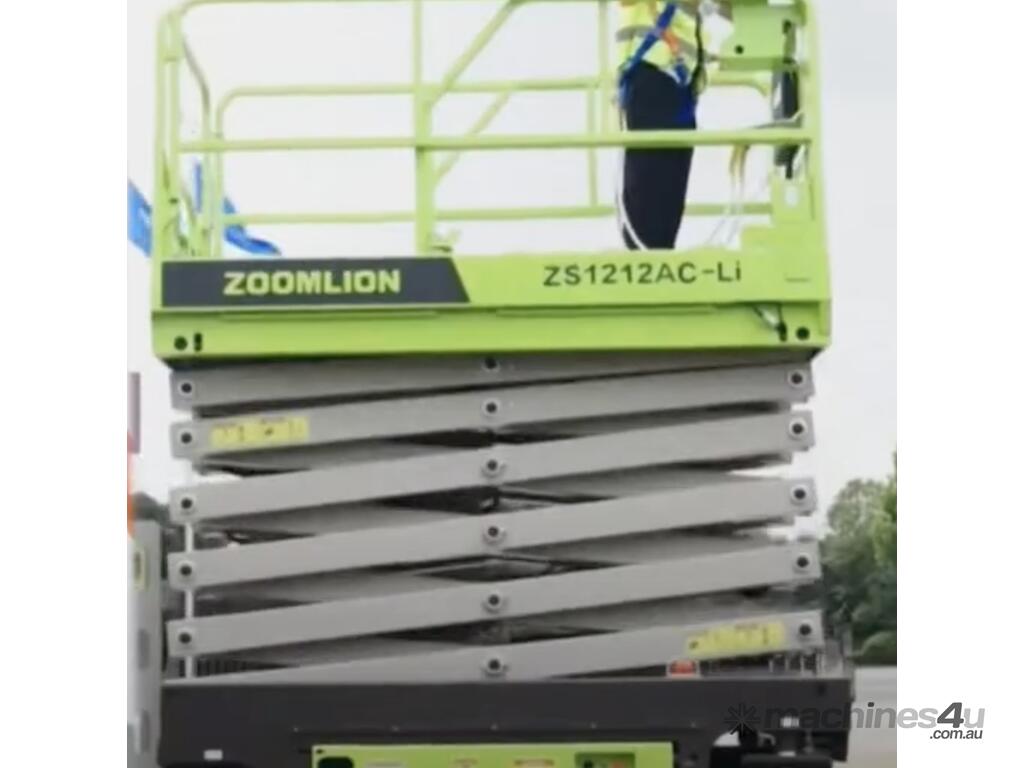

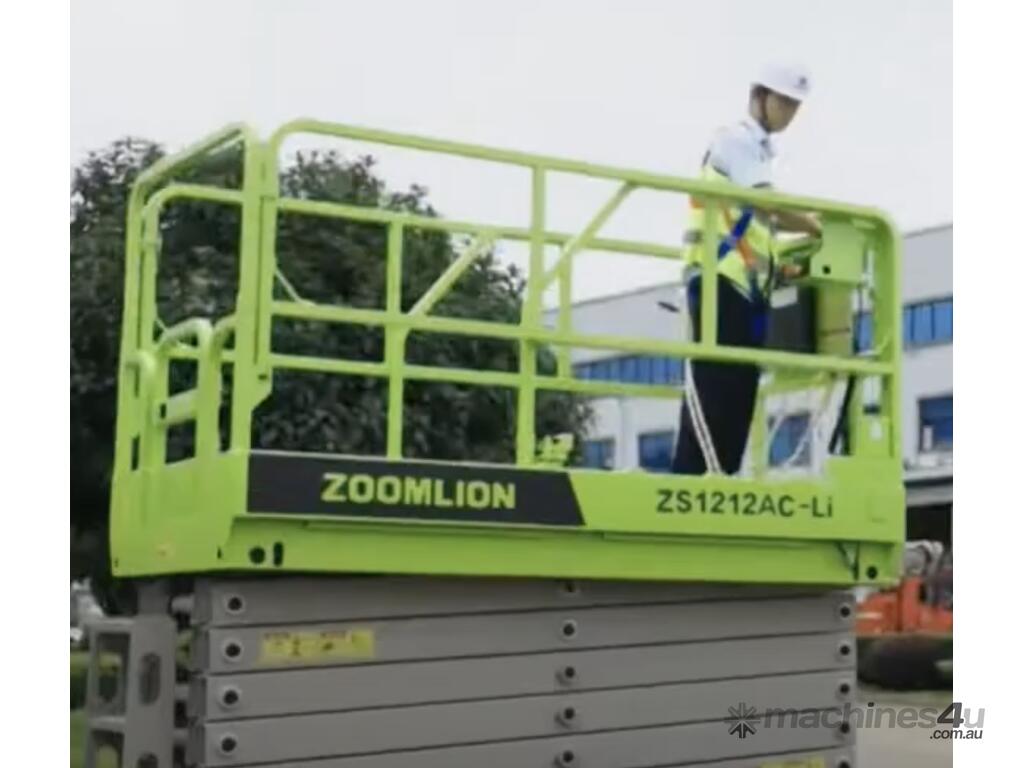

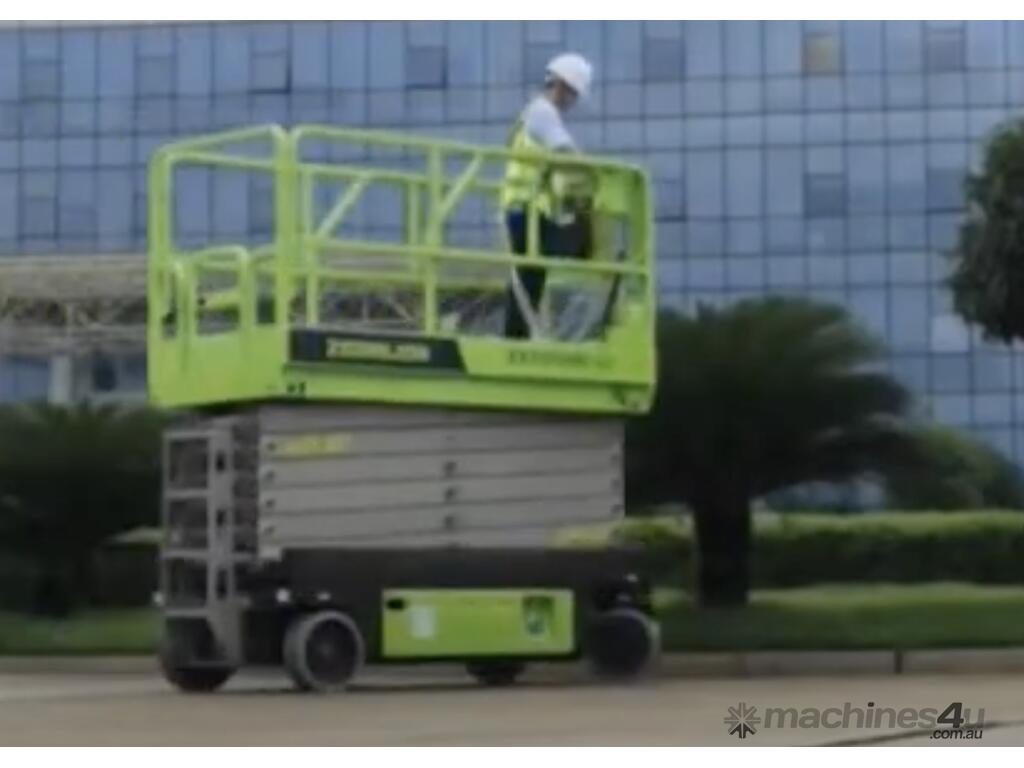

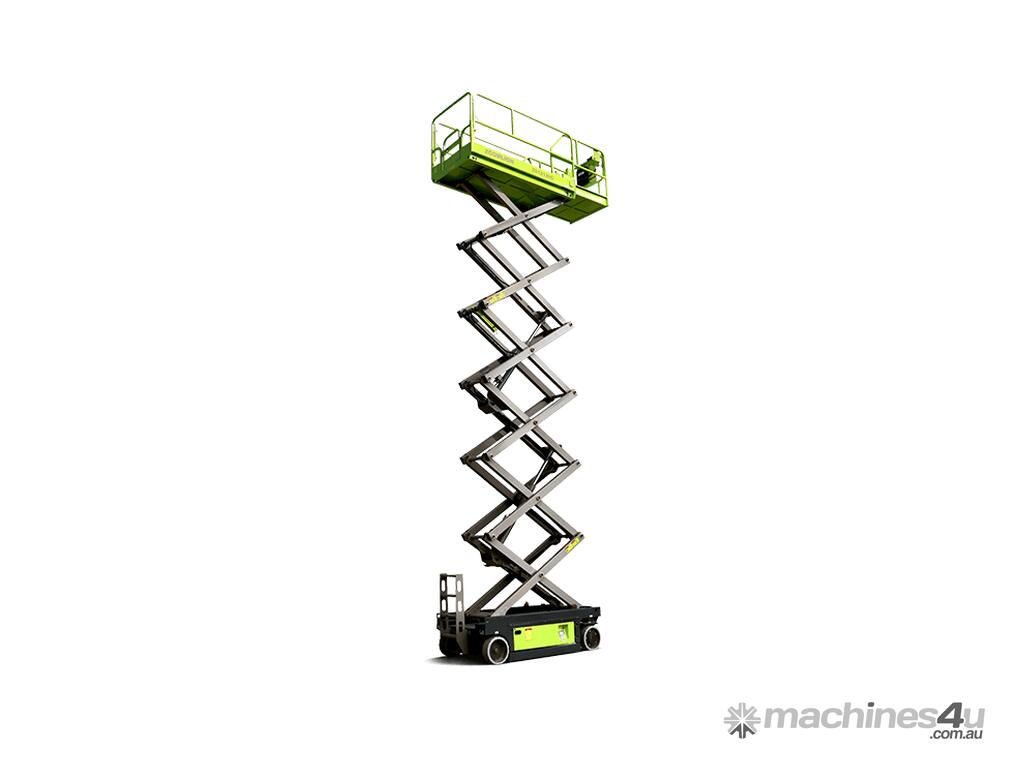

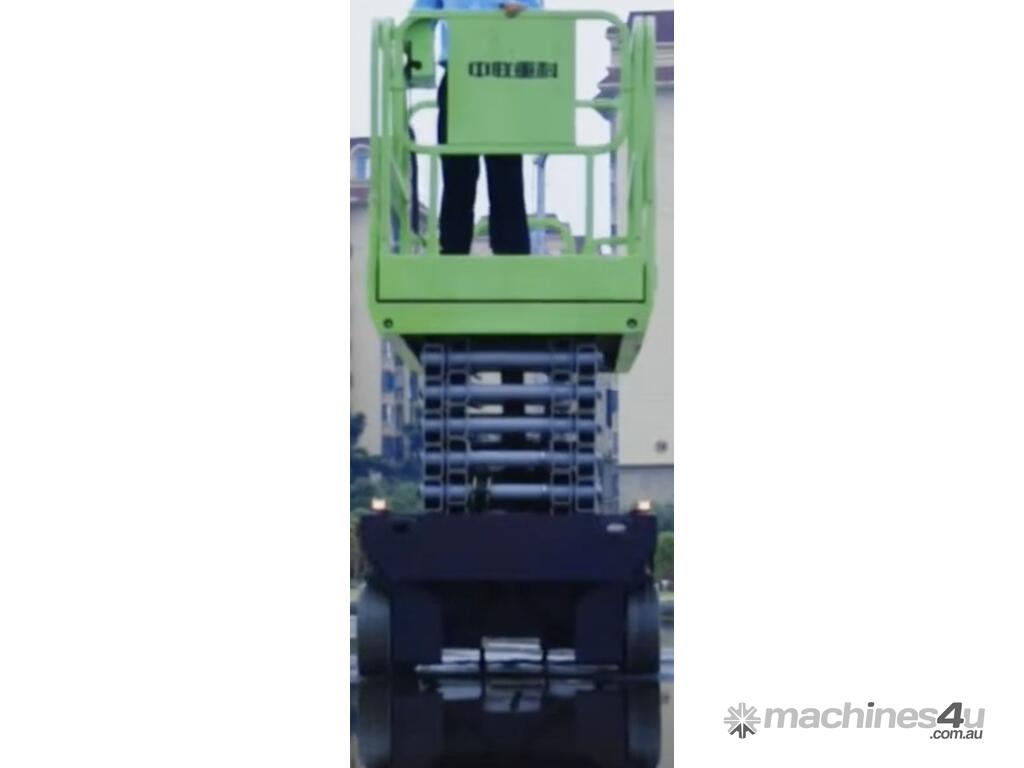

ZOOMLION ZS1212HD Scissor Lift.
Eco-friendly scissors feature cutting-edge driving system with high-quality batteries

ADVANTAGE INTRODUCTION
Cost Effectiveness
- Optimized design increases 20% more duty cycles with longer runtime
- Precision control for stable operation
- Large ground clearance (Pothole Protection retracted), great trafficabilitv

Easy Maintenance & Service
- Common components and modular design, easy to maintenance

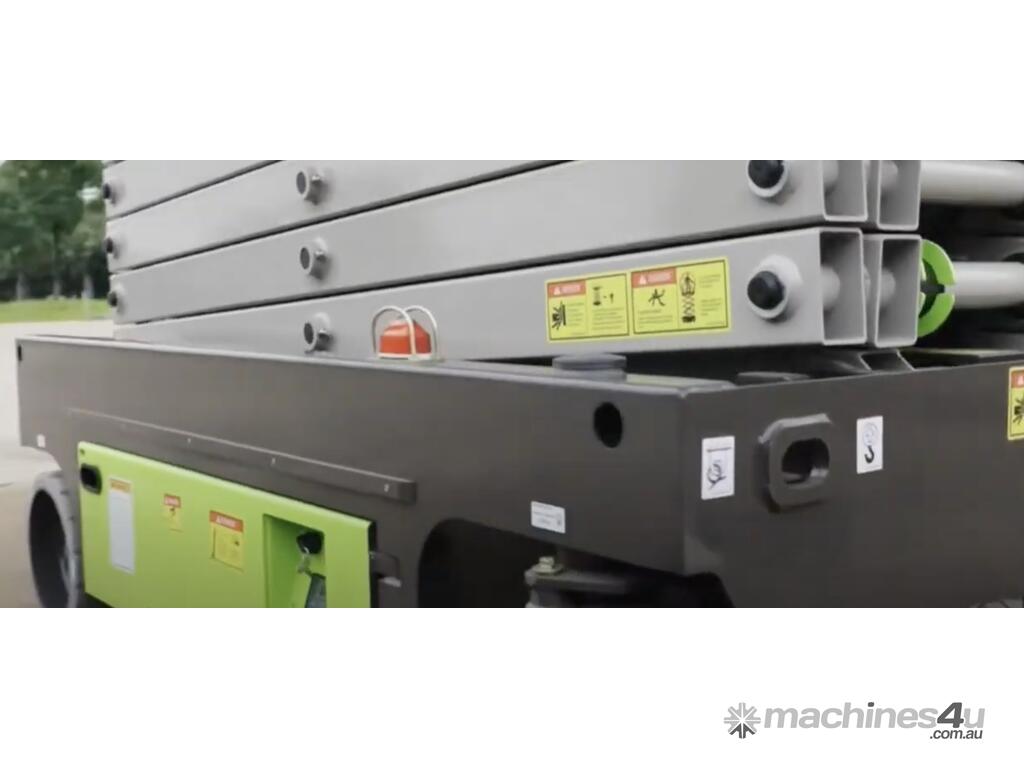

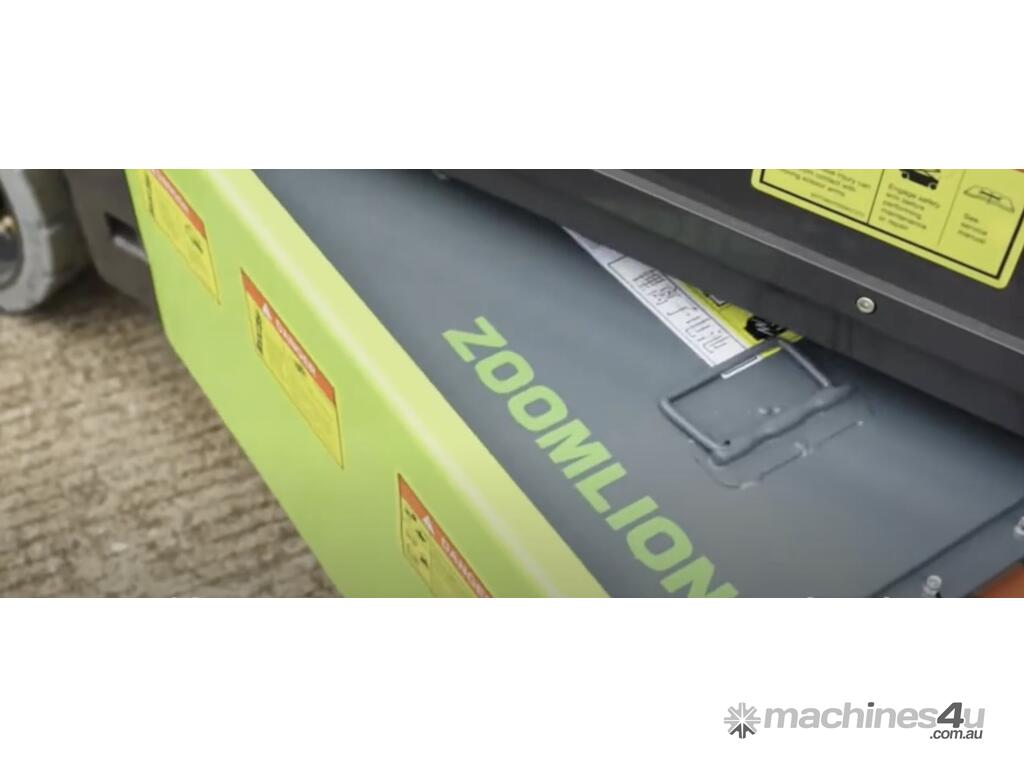

- Bilateral swing-out trays battery & hydraulicl, simple to service
- Robust & build to last, reliable and safe

Size
Work Height: 13.80m
A - Platform Height-Elevated: 11.80m
B - Platform Height-Stowed: 1.52m
C - Platform Length: 2.30m
D - Platform Width: 1.12m, Platform Extension: 0.91m
E - Overall Height (Rails Up): 2.66m, Overall Height (Rails Down): 2.13m
F - Overall Length: 2.49m
G - Overall Width: 1.15m
H Wheelbase: 1.85m
I - Ground Clearance (Stowed): 0.11m
J - Ground Clearance (Raised): 0.02m

Performance
Platform Capacity: 350kg
Capacity on Deck Extension: 113kg
Max. Number of Workers: Indoor: 2
Drive Speed (Stowed): 3.5km/h
Drive Speed (Raised): 0.8km/h
Turning Radius (Inside): 0.1m
Turning Radius (Outside): 2.2m
Up/Down Drive Motor: 24V/4.5KW
Up/Down Time: 62s/42s
Gradeability: 25%(14 degrees)
Max. Working Slope (Lateral/Vertical): 1.5 degree/3 degrees
Control: Proportional Control
Drive: Front Wheels
Brake: Rear Wheels
Tire: 381mmx127mm

Power
Battery: 4x6V/220Ah (HOPPECKE), 4x12V/270Ah (QUIMO)
Charger: 24V/30A

Weight
Gross: 3000kg

Features
Standard
- Proportional controls
- All motion alarm
- Fold-down handrails
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Active pothole protection system
- Hour meter
- Forklift pockets
- Horn
- AC power to platform
- Drivable at full height
- Scissor maintenance prop
- Charging protection system
- Extension deck (unidirectional)
- Autobrake system
- On-board diagnostic
- Emergency stop button
- Over tilt protective system
- Maintenance-free battery
- Load sensing system

Option
- Airline to platform
- Platform work lights
- Overhead protection bar
