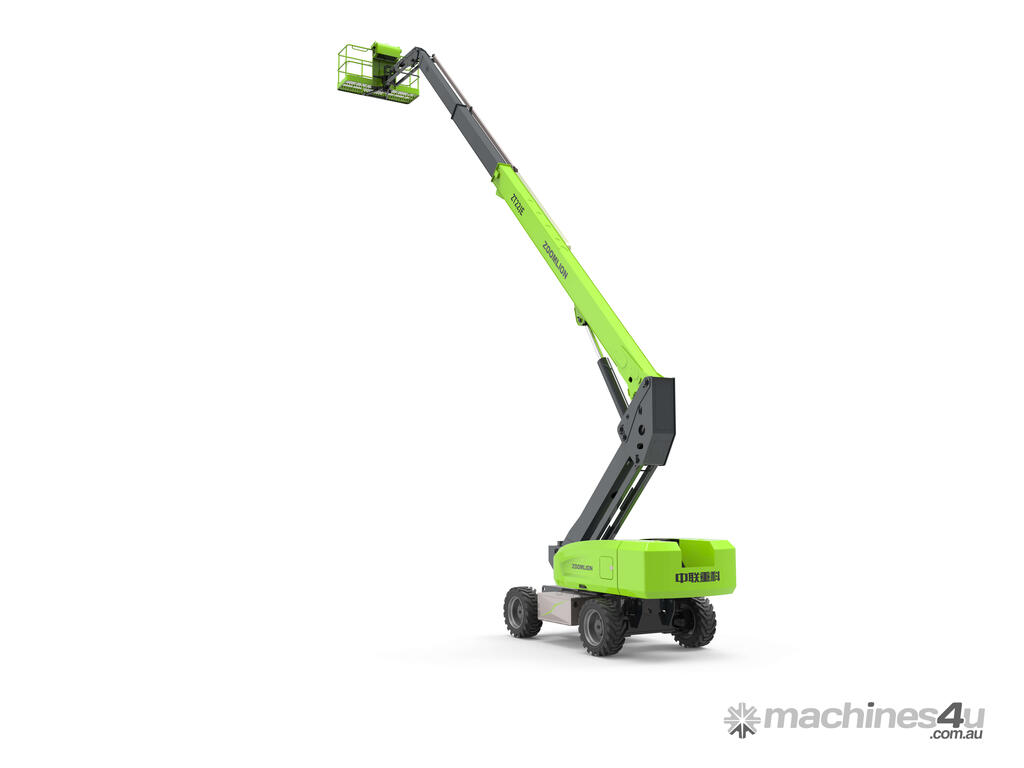

ZOOMLION ZT22JE Electric Telescopic Boom Lift

ZOOMLION ZT22JE Electric Telescopic Boom Lift.
Lithium-powered telescopic boom lifts, with 80-volt lithium battery that can be fully charged within 7 hours, are purpose-built for indoor applications with quiet, emission-free and cost-efficient solutions.

ADVANTAGE INTRODUCTION
- Customized lithium-ion battery features green, environmental protection, lownoise and zero-emis-sion, ideal for construction and plant maintenance.
- lithium-ion batteries combined with excellent energy management systemprovide longer running time.
- Low-temperature regenerative current control and power self-adaptive control effectively improve the safety of Li-ion battery and greatly prolong the batteries service life of at least 10%.
- Provide a variety of standard charging plugs and 10A/16A/32A multi-power optional charging mode featuring strong charging adaptability.
- Brand-new appearance with lightweight GFRP composite material hood and integrally formed coating features anti-corrosion, heat preservation, aging resistance and easy cleaning.
- Assembled large-opening component box, open-close hood, and a variety of reserved inspection holeseasy to service.
- Accurate and efficient traveling AC drive systemprovides strong power and stable control.Gradeability reaches 45% and motor ismaintenance-free for its lifttime.

Size
Work Height: 24.40m
Platform Height: 22.40m
Horizontal Outreach: 17.9m
A - Stowed Length: 10.3m
B - Stowed Width: 2.49m
C - Stowed Height: 2.76m
D - Platform Length: 2.44m
E - Platform Width: 0.91m
F - Wheelbase: 2.52m, Tread: 2.49m
G - Ground Clearance: 0.41m


Performance
Platform Capacity (Unrestricted/Restricted): 300/454kg
Drive Speed (Stowed): 5.5km/h
Gradeability: 45%(24degrees)
Turning Radius (Inside): 2.72m
Turning Radius (Outside): 5.58m
Turntable Swing: 360degreescontinuous
Platform Rotation: ±90degrees
Tail Swing: 1.61m
Jib Rotation: 130degrees (-55degrees~75degrees)
Max. Wind Speed: 12.5m/s

Power
Charger: 5KW/80V
Drive Motor: 4.2KW
Lifting Motor: 21KW
Auxiliary Power: 12V DC
Hydraulic Tank: 120L

Tire
Type: 355/55-24.5 Foam-filled Tires, 355/55 D625 Solid Tires

Weight
Gross: 13200kg

Features
Standard
- Horn
- Proportional control
- All motion alarm
- Flashing beacon
- Self-closing entry gate
- Emergency descent system
- Emergency stop button
- Auto-leveling system
- On-board diagnostic system
- Tilt protection system
- Oscillating axle
- Load sensing system
- 4.3' Led display
- Swing-out engine tray

Option
- Platform work light
- Anti-collision device
- AC power to platform
