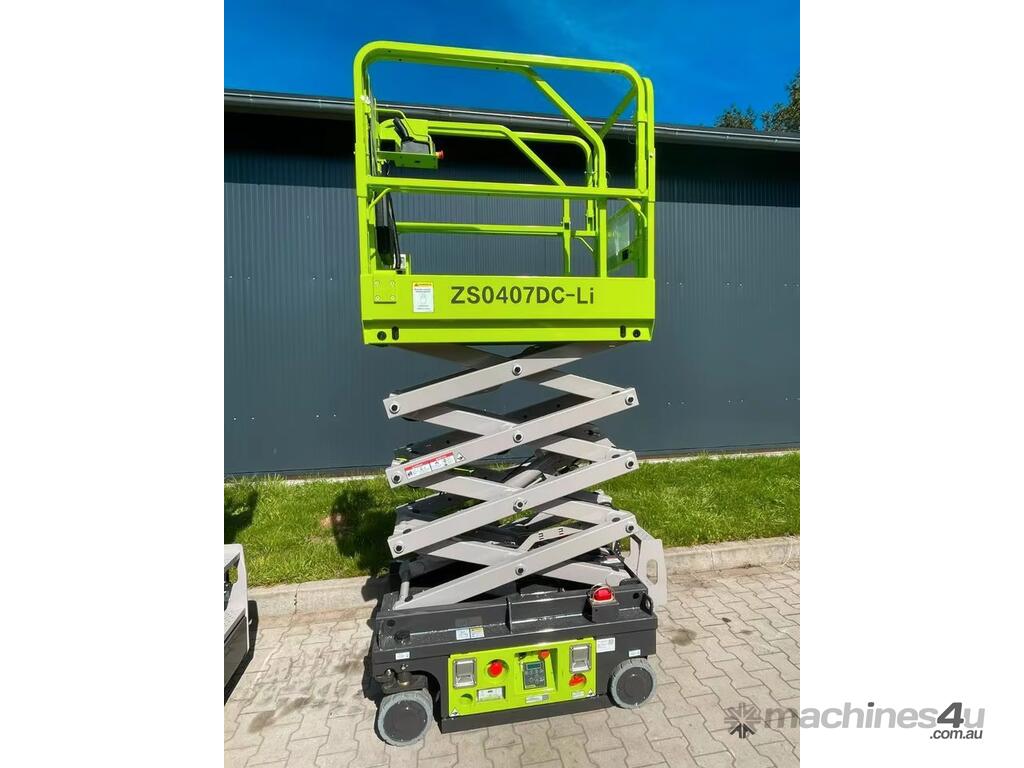

ZS0407DC-Li Scissor Lift (4m Platform Height )

High Performance

Efficient electric direct drive system

Compact dimensions ideal for low and tight access applications

Lightweight only1975lb/895kg

Climbing up 30 percent grade slopes in a stowed position


Work Height 6.5m/5.6m
A - Platform Height-Elevated 4.5m/3.6m
B - Platform Height-Stowed 0.95m
C - Platform Length 1.29m
D - Platform Width 0.7m
Platform Extension 0.6m
E - Overall Height (Rails Up) 2.05m
Overall Height (Rails Down) 1.7m
F - Overall Length 1.44m
G - Overall Width 0.76m
H - Wheelbase 1.05m
I - Ground Clearance (Stowed) 0.06m
J - Ground Clearance (Raised) 0.017m
Battery 72Ah Li-ion
Charger 24V/15A
Platform Capacity 240kg
Capacity on Deck Extension 100kg
Max. Number of Workers Indoor 2/ Outdoor 1
Drive Speed (Stowed) 4km/h
Drive Speed (Raised) 0.8km/h
Turning Radius (Inside) 0.4m
Turning Radius (Outside) 1.6m
Lifting Motor 24V/1.2KW
Drive Motor 24V/0.45KW
Up/Down Time 23/25s
Gradeability 30%(17°?)
Max. Working Slope Lateral 1.5°/Vertical 3°
Control Proportional Control
Drive Rear Wheels
Brake Rear Wheels
Tire Solid Tire
