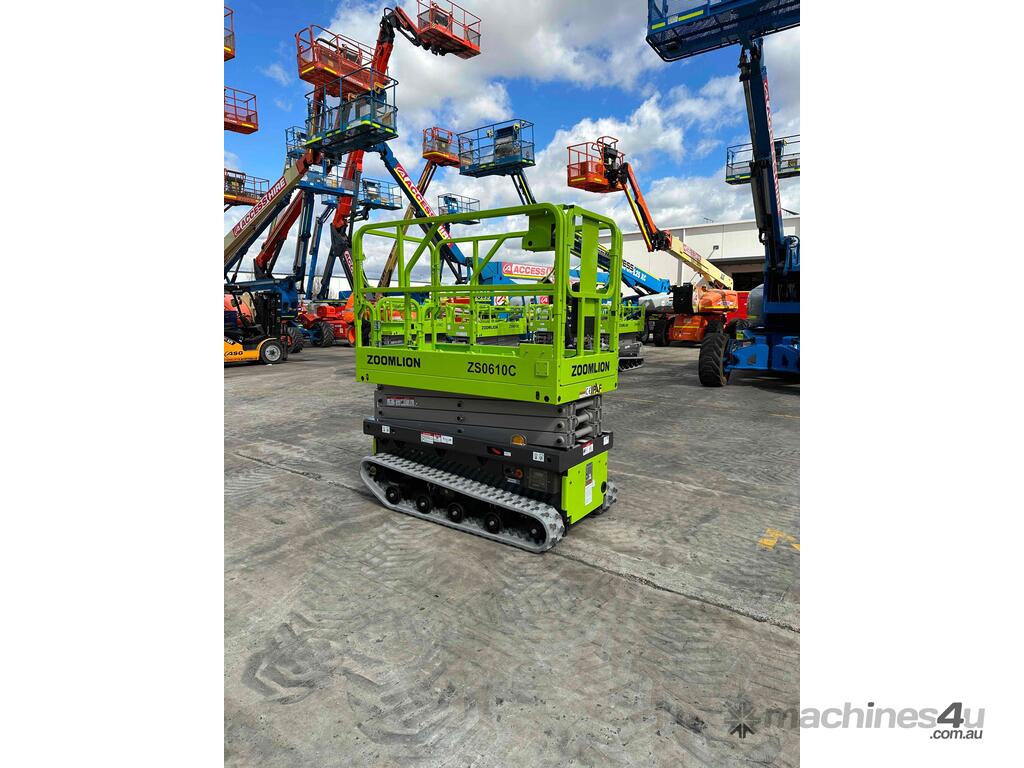

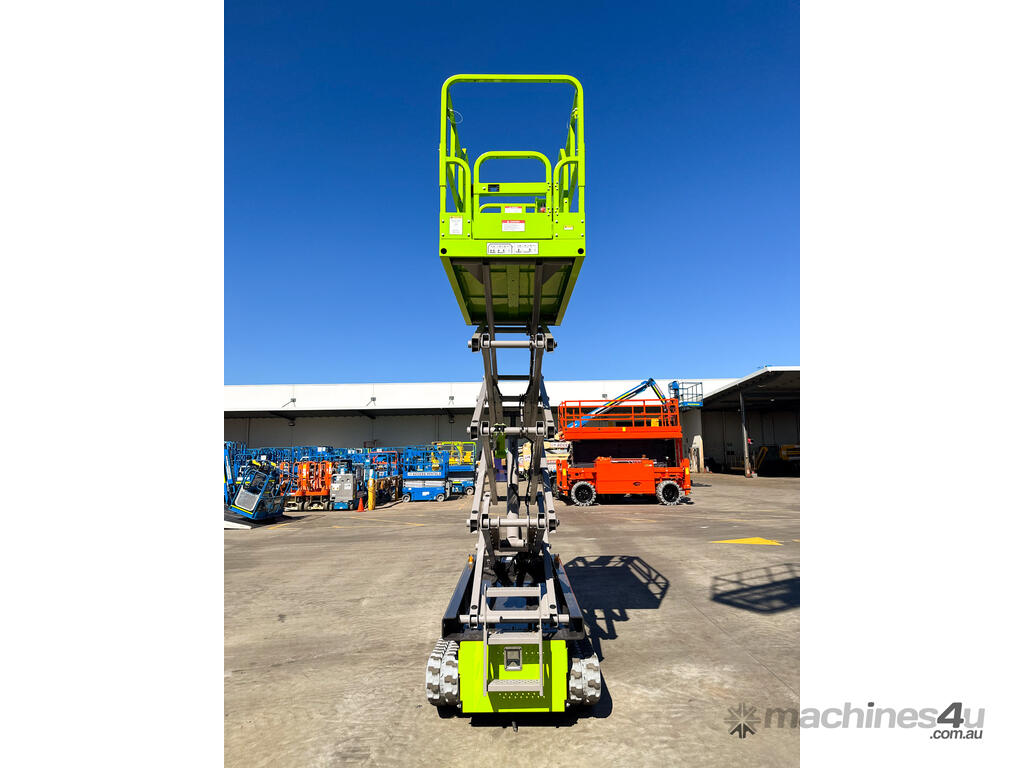

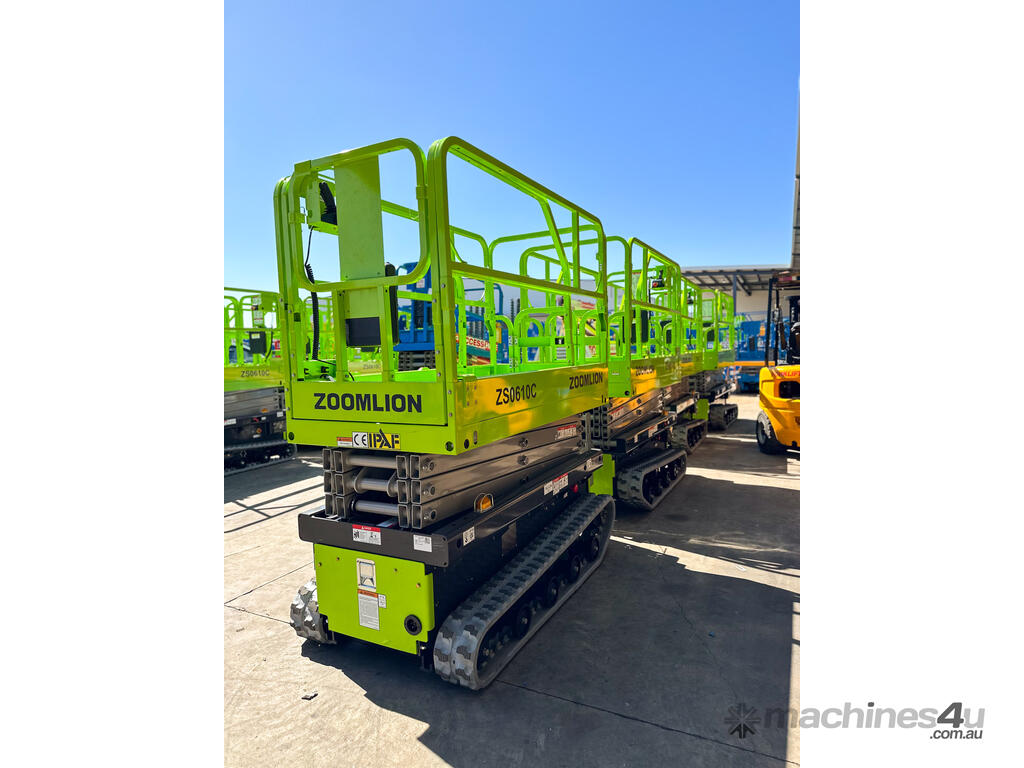

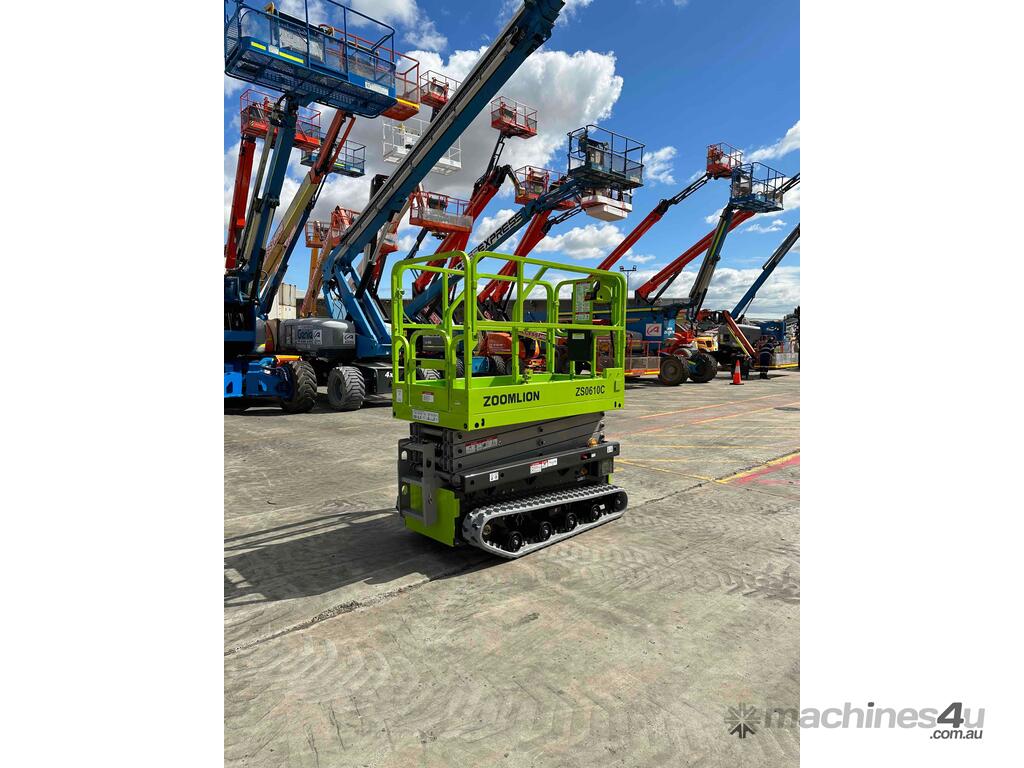

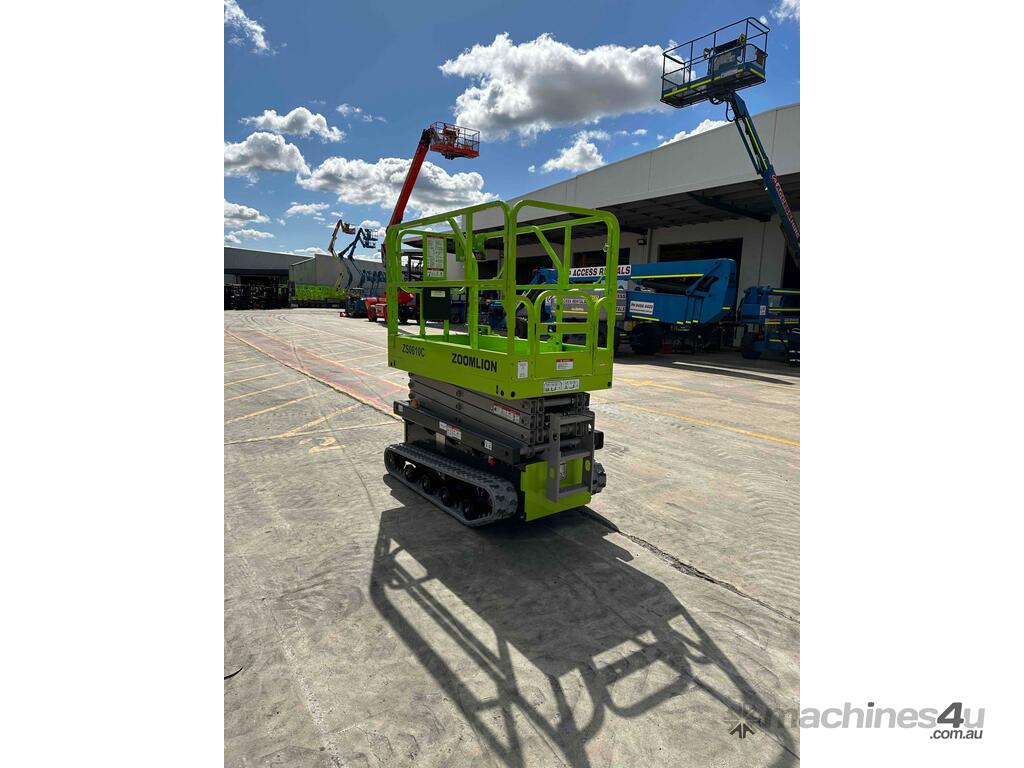

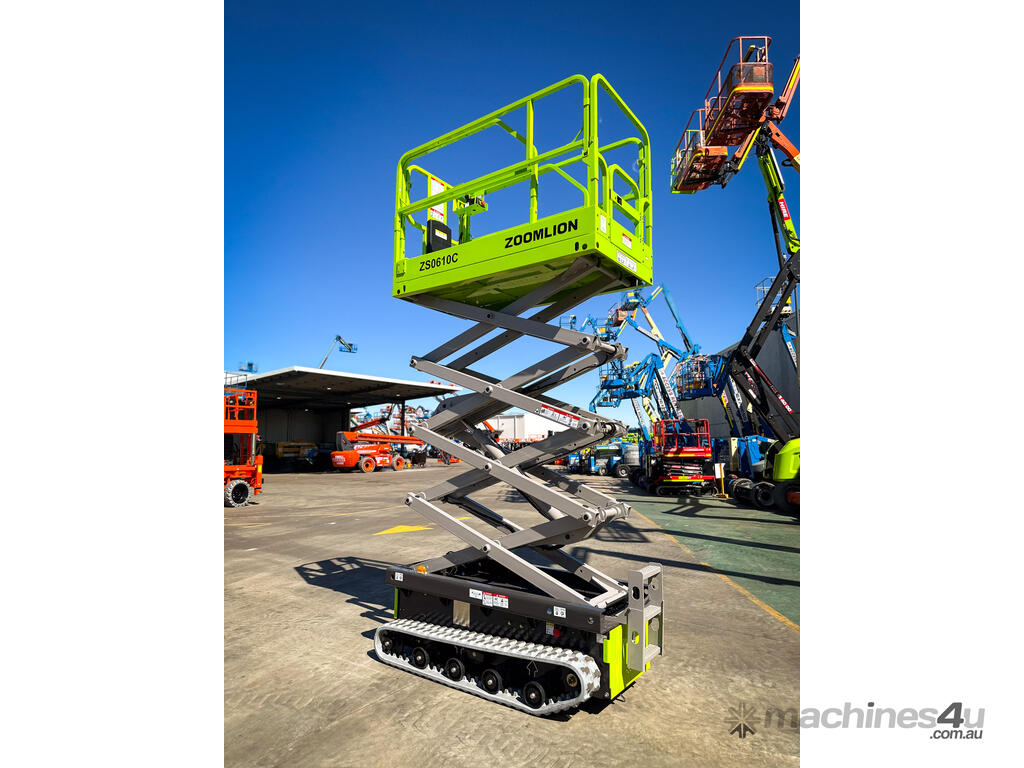

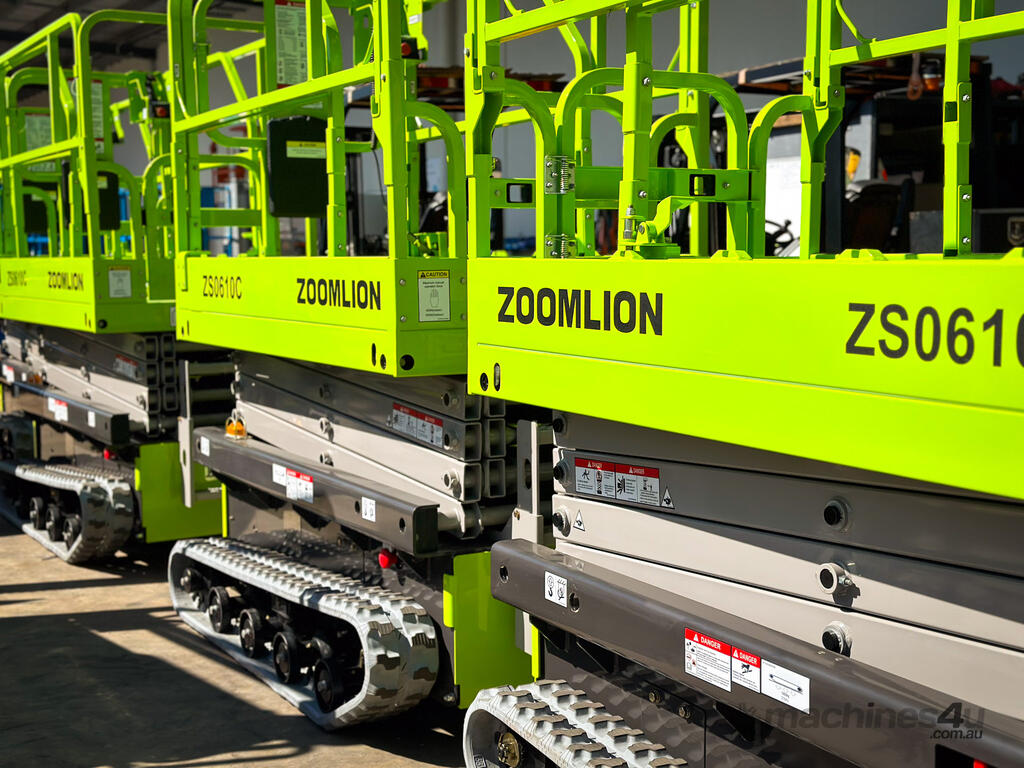

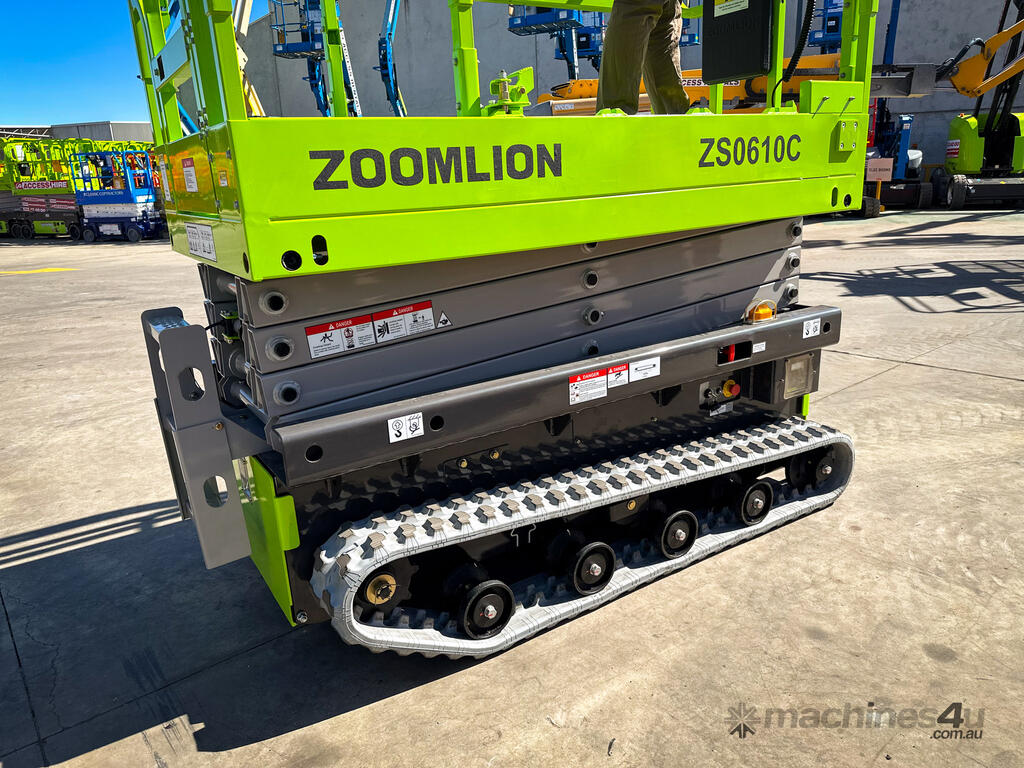

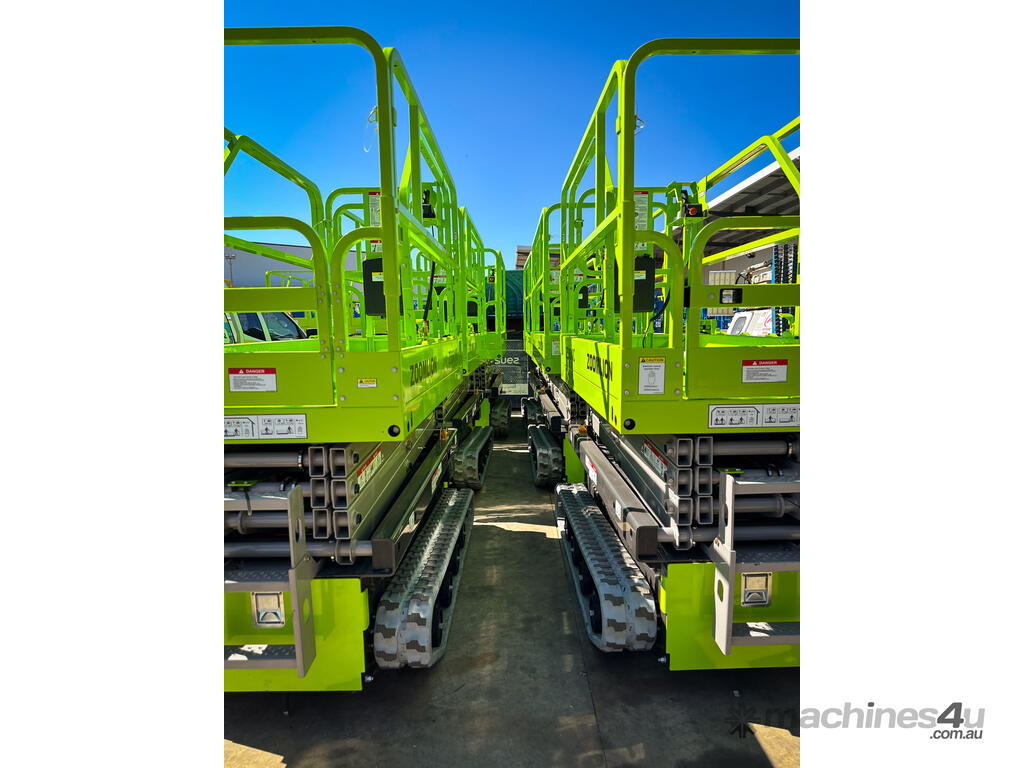

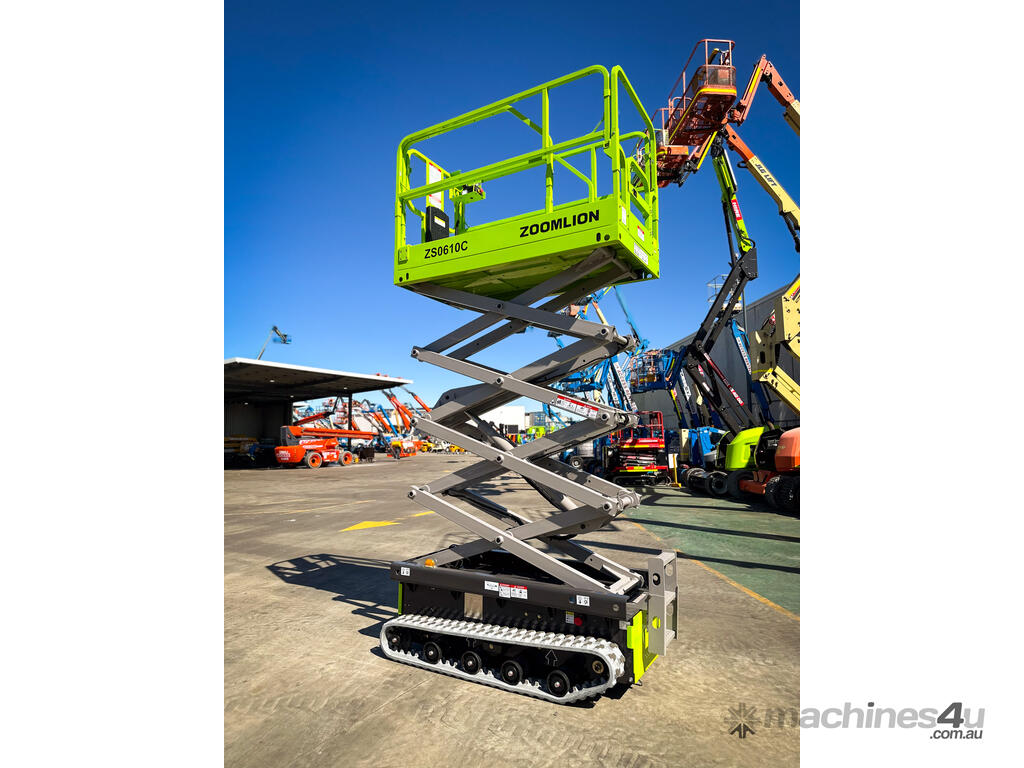

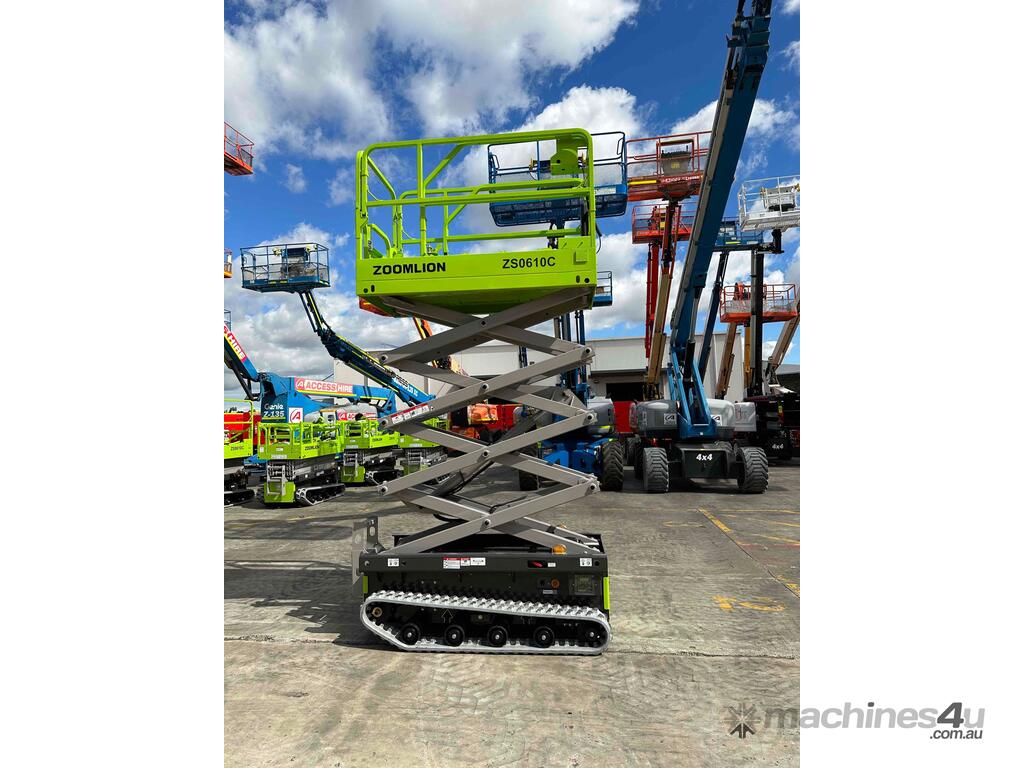

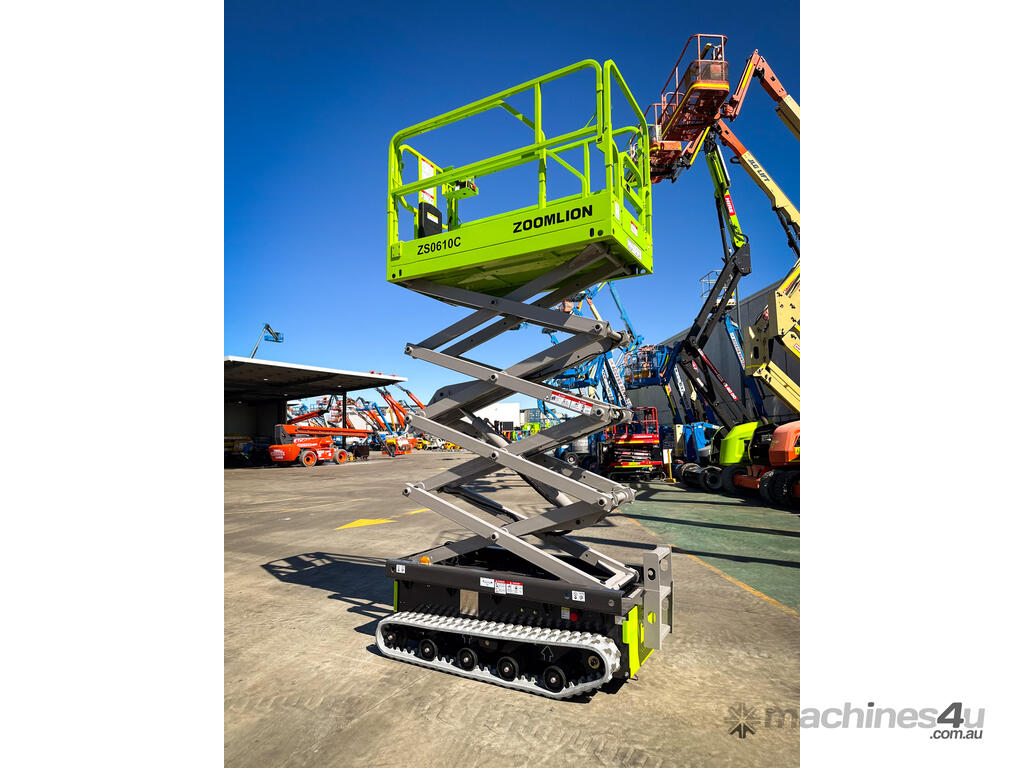

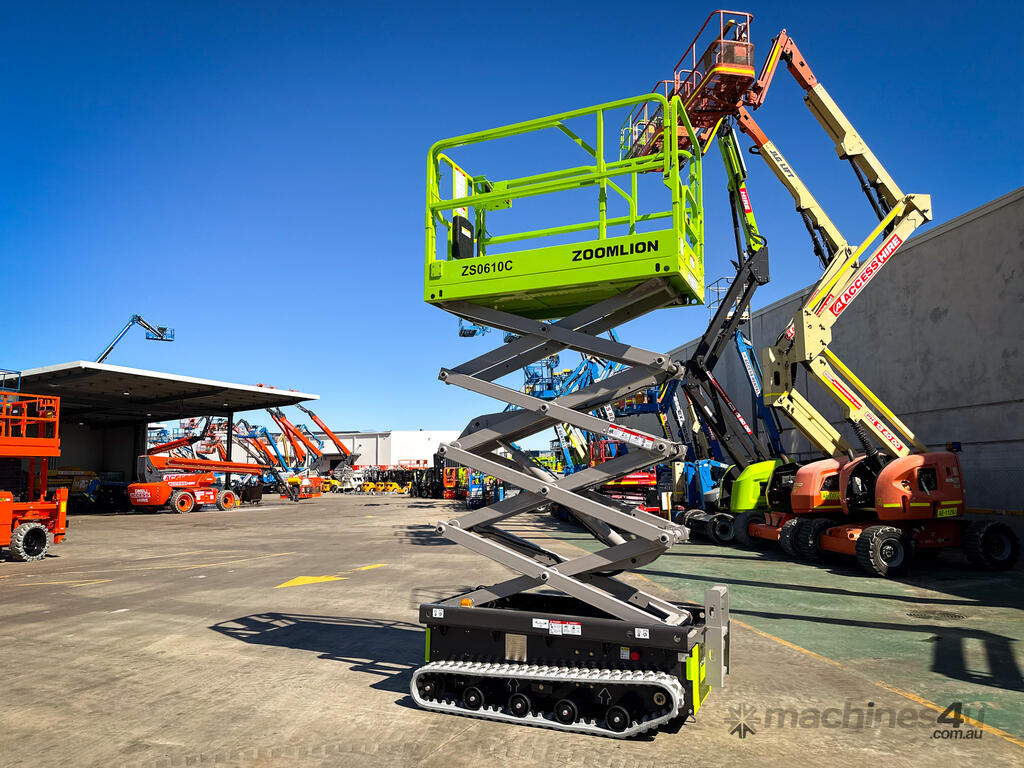

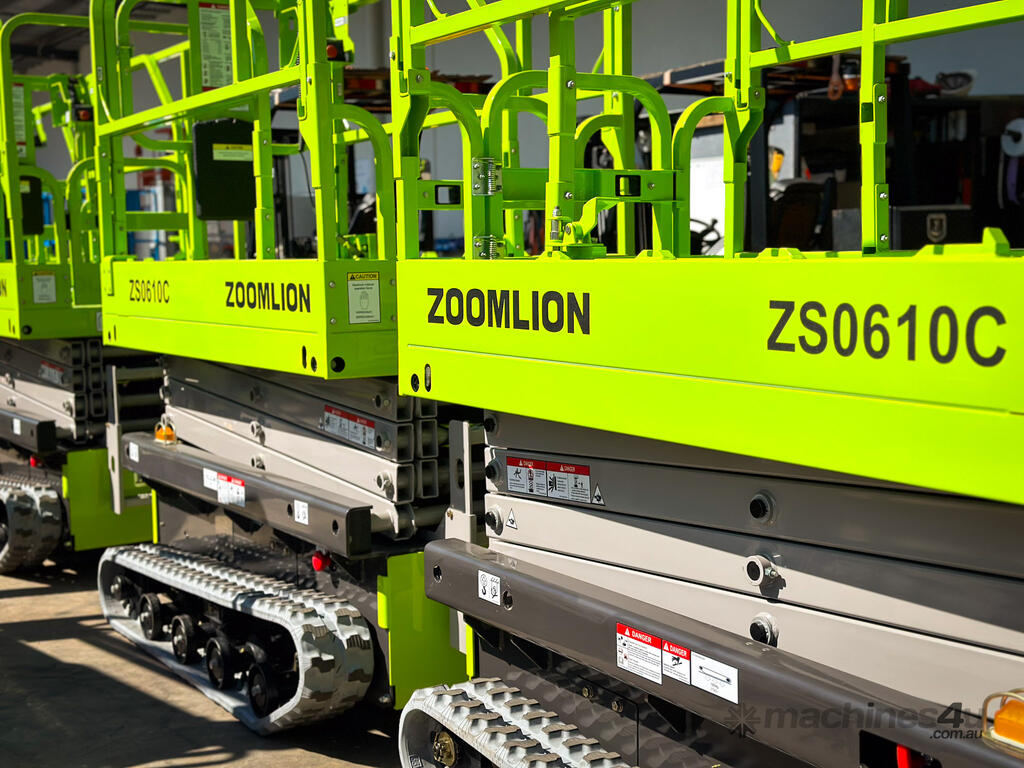

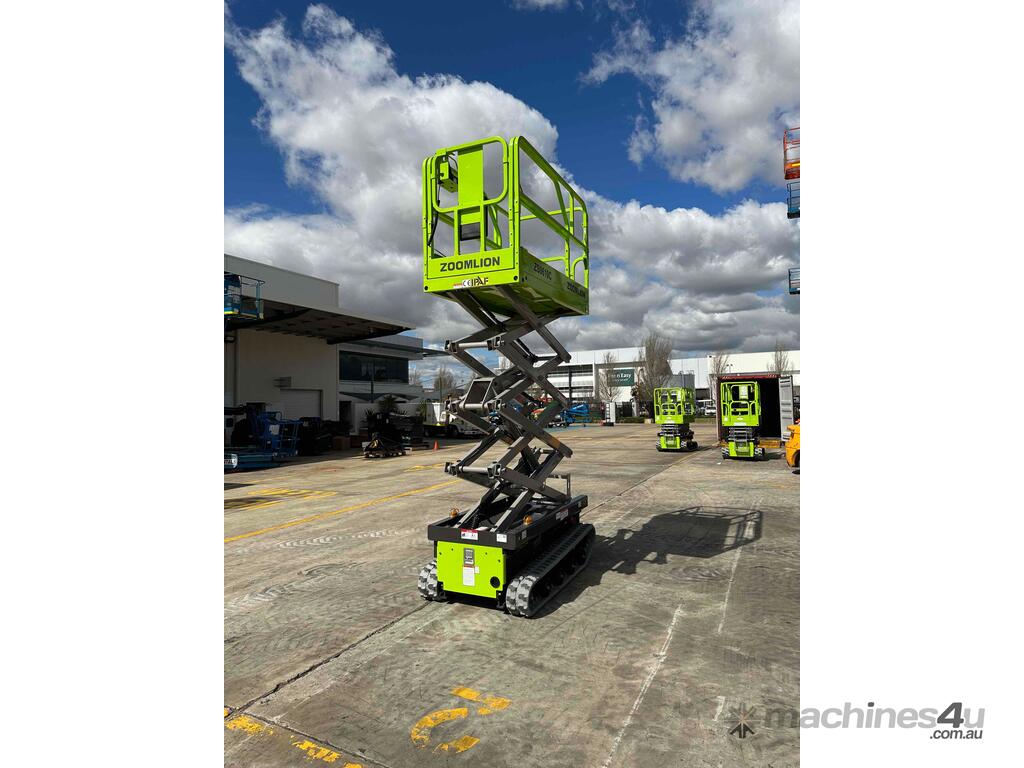

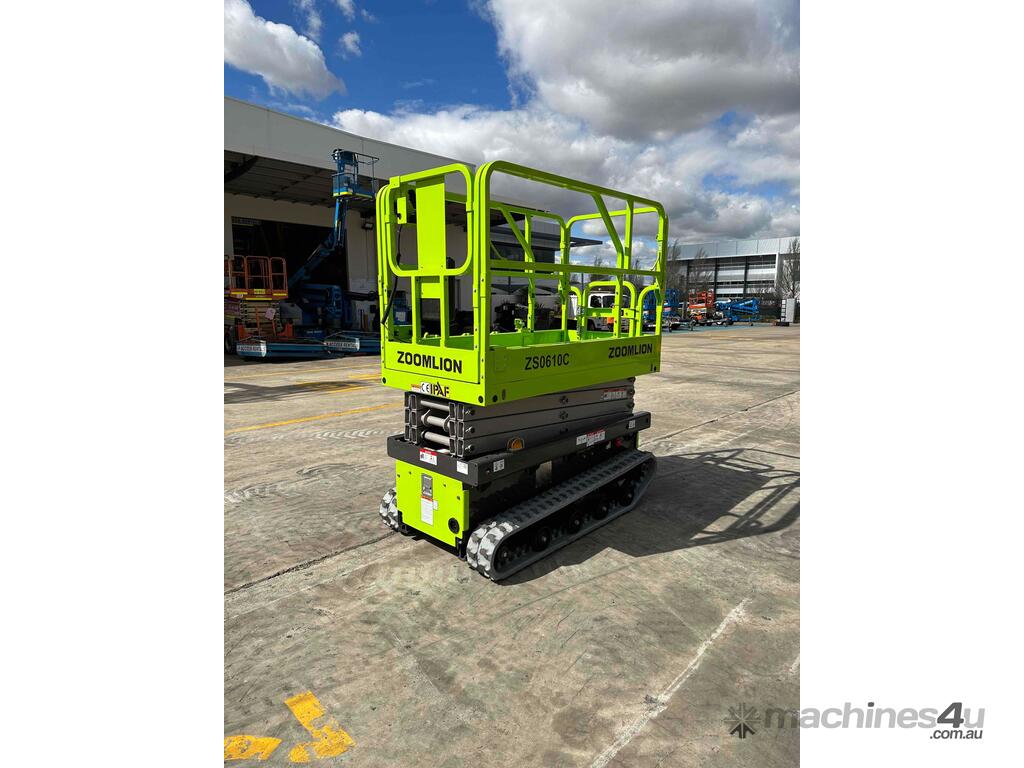

The ZS0610C is a compact 28ft electric scissor lift designed for indoor and outdoor access where stability and precise elevation are required. It offers a working height of 28ft 11in (8.80m), a platform height of 22ft 4in (6.80m), and a 250kg lift capacity. With a 3ft (0.91m) deck extension and a 1.94m × 0.95m platform, it provides practical space for tools and materials. Rear-wheel electric drive and 30 percent gradeability deliver smooth movement across level or slightly uneven surfaces.
Features:
- Platform Height: 22ft 4in (6.80m) / Working Height: 28ft 11in (8.80m)

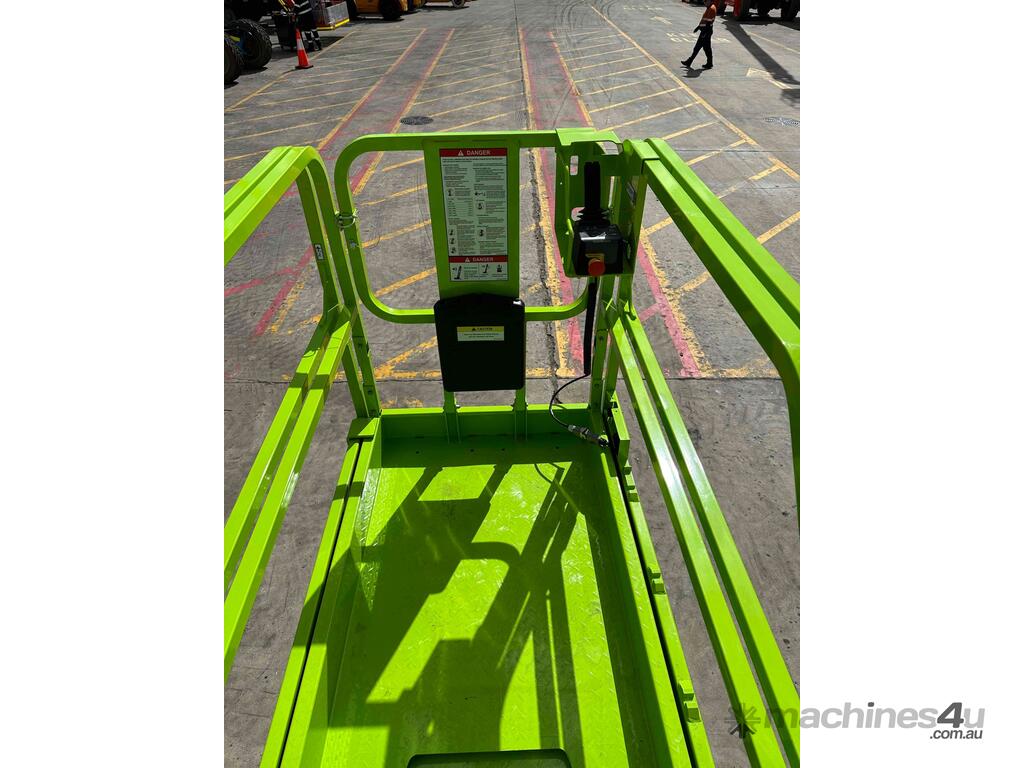

- Platform Size: 1.94m × 0.95m
- Deck Extension: 0.91m
- Capacity: 250kg
- Capacity on Extension: 113kg
- Max Workers: 2
- Drive Speed: 1.25mph (2km/h) stowed
- Gradeability: 30 percent
- Max Working Slope: 2° lateral / 2° vertical
- Turning Radius: Zero
- Drive: Rear wheel
- Drive Motor: 24V / 2 × 1.8kW
- Up/Down Time: 34s / 30s

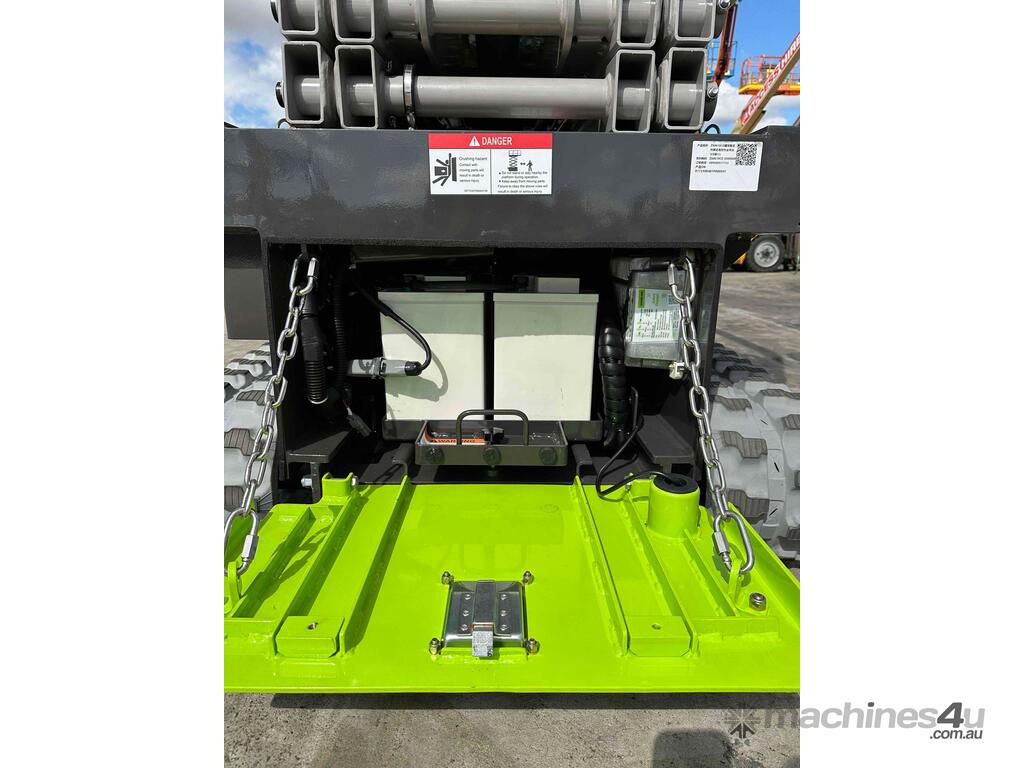

- Battery: 4 × 6V 220Ah
- Charger: 24V / 30A
- Weight: 1700kg
Applications:
- Maintenance and electrical work
- Warehouse and indoor access
- Commercial fit-outs
- Light construction and facility operations
