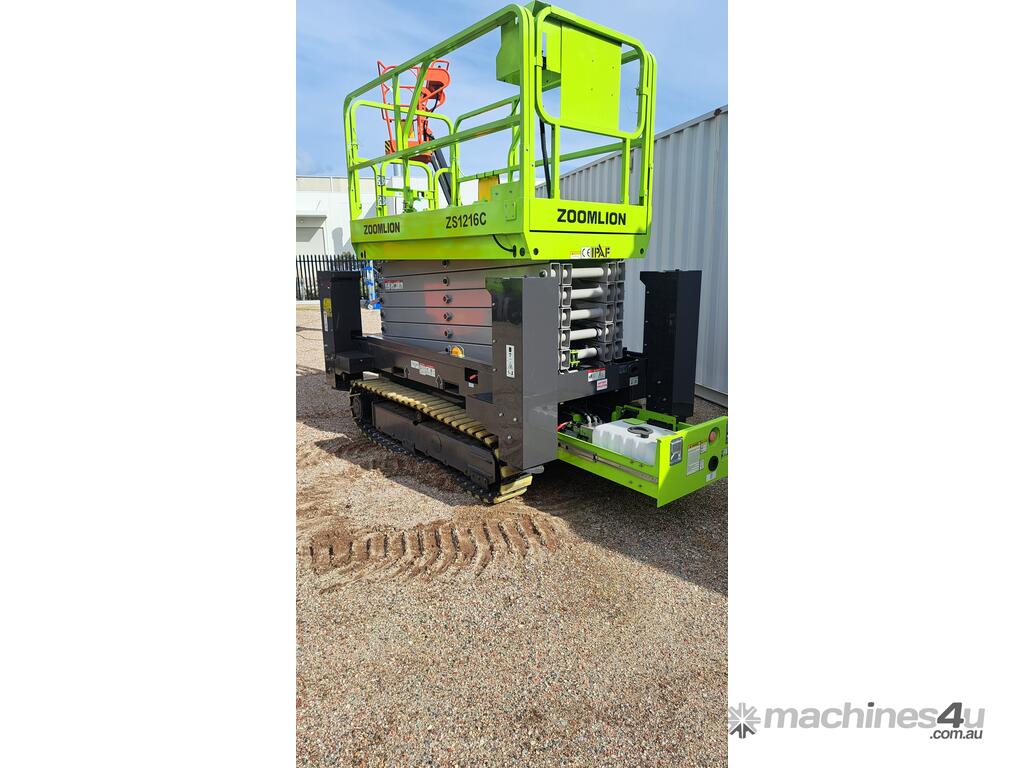

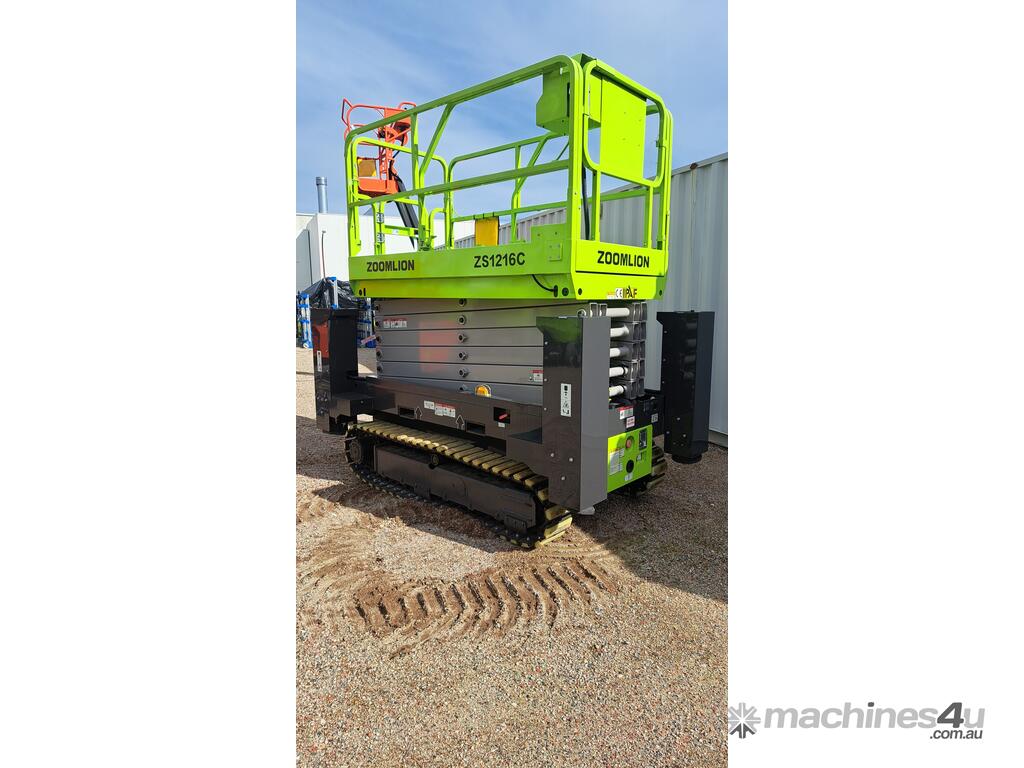

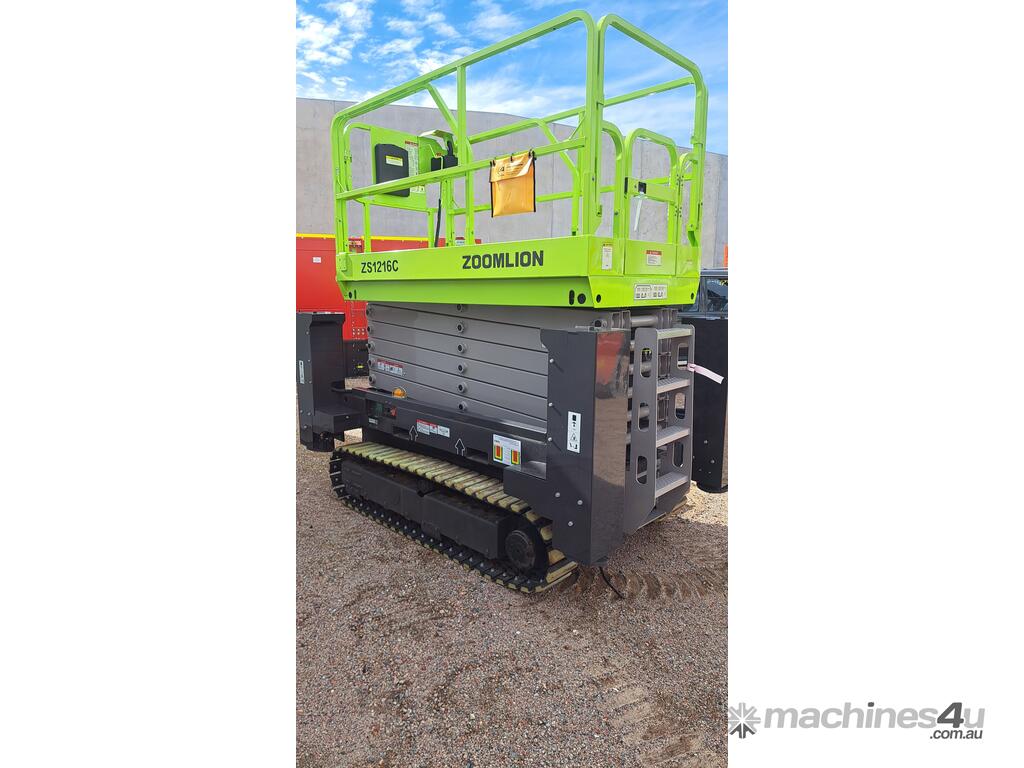

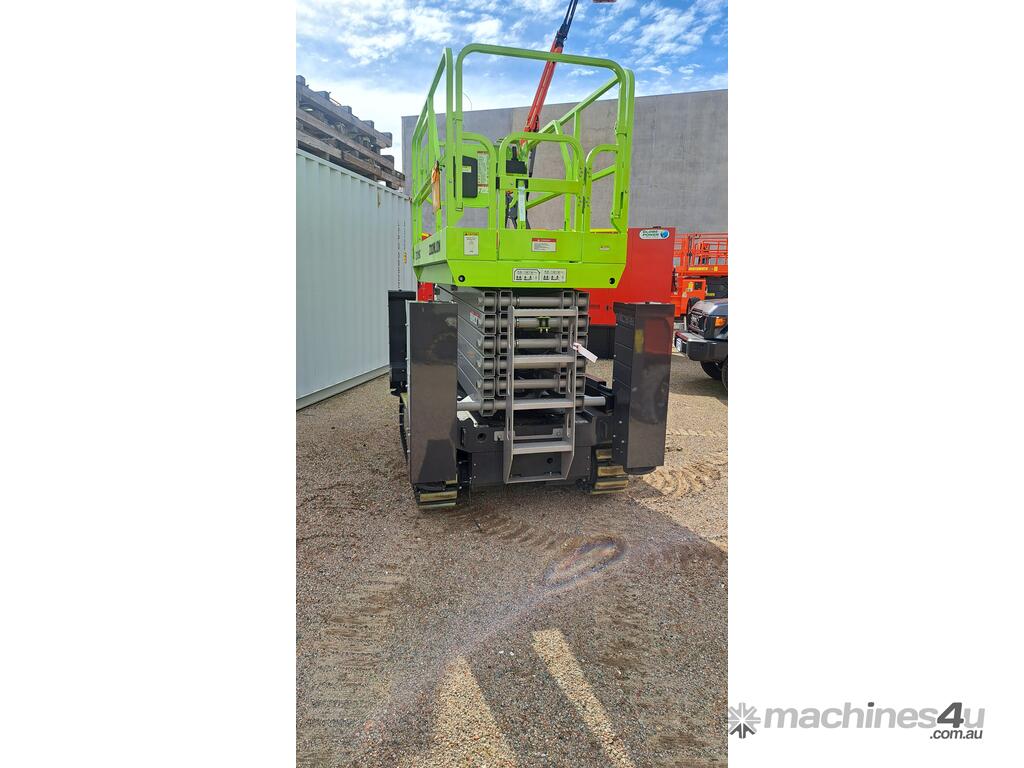

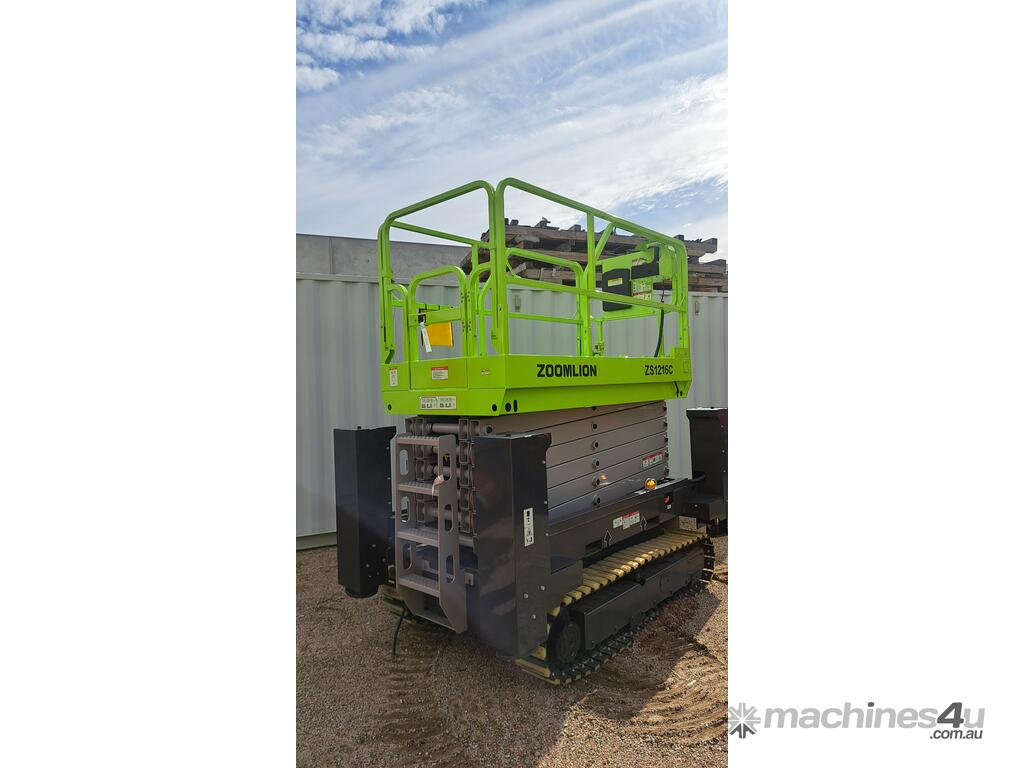

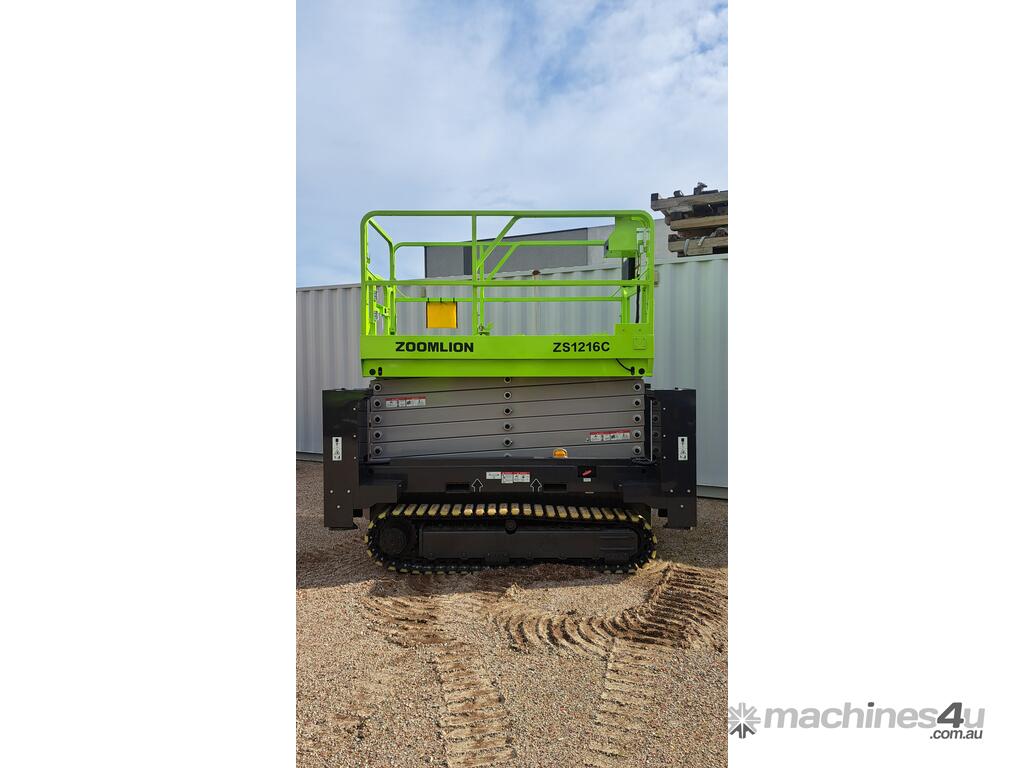

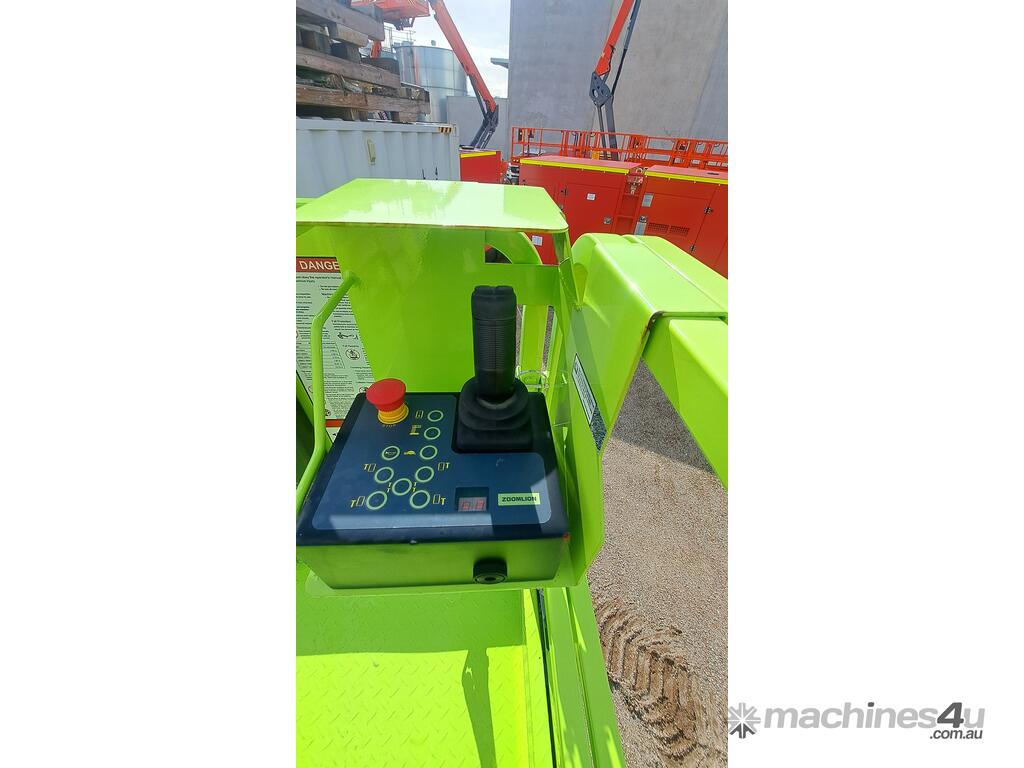

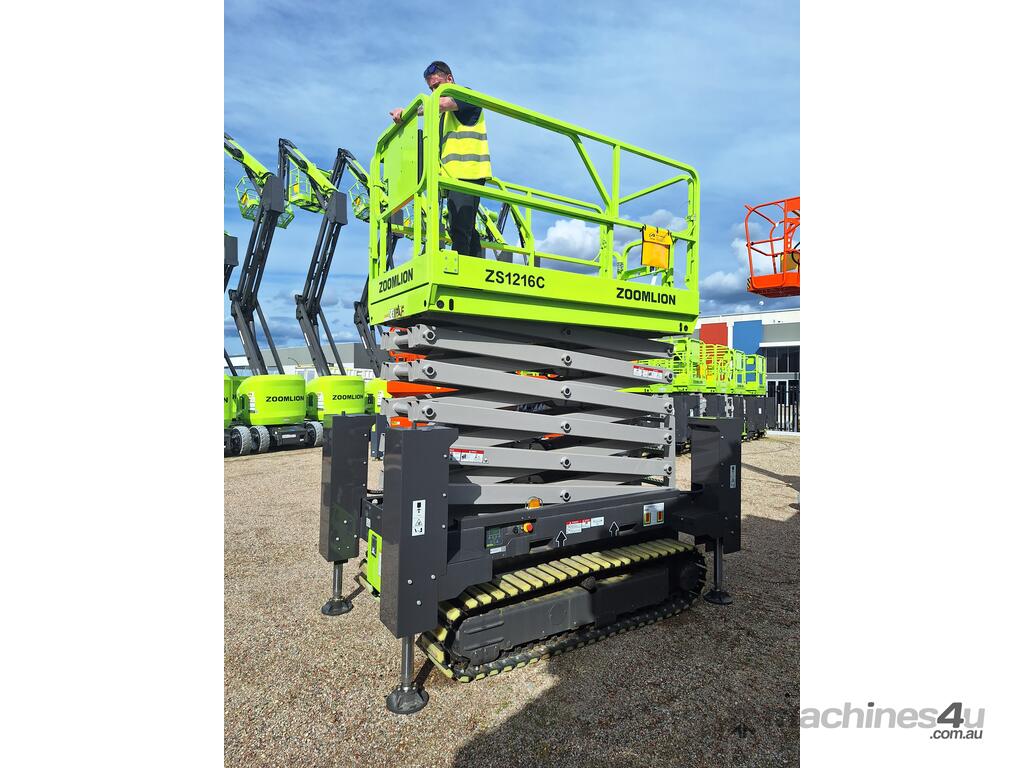

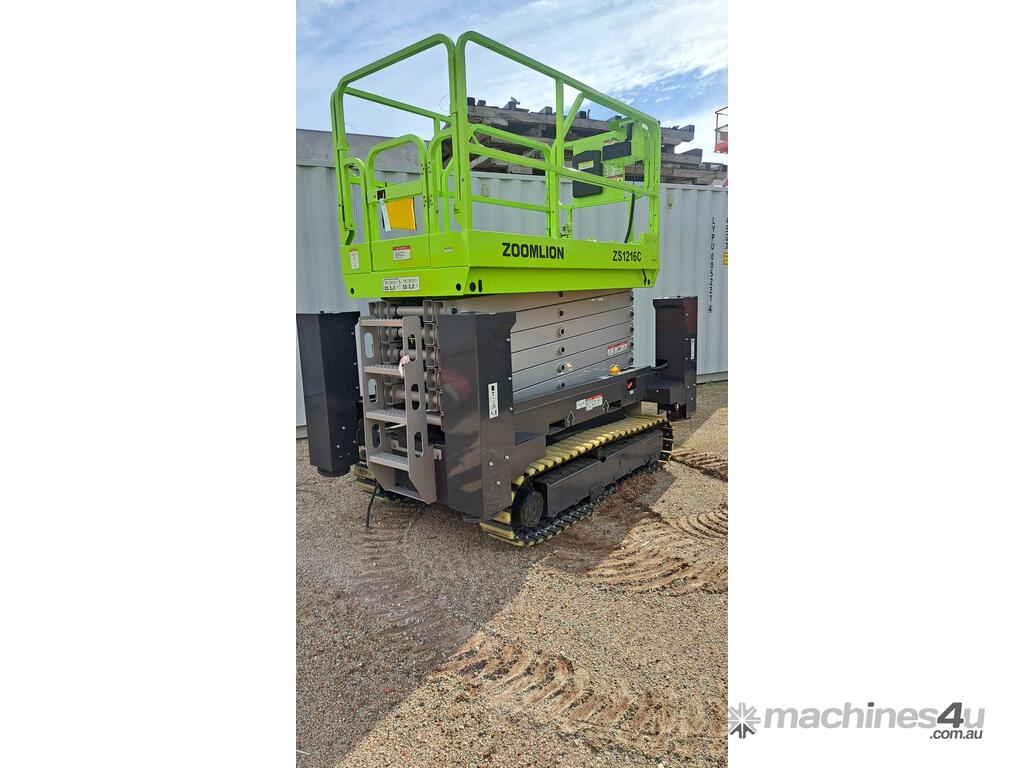

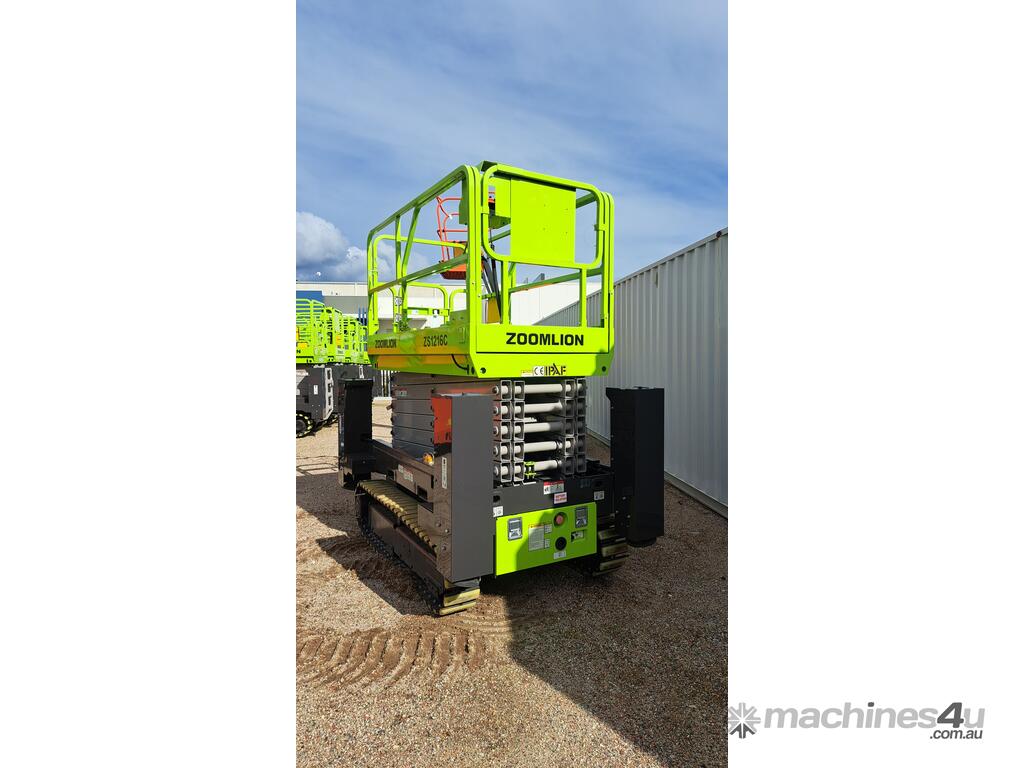

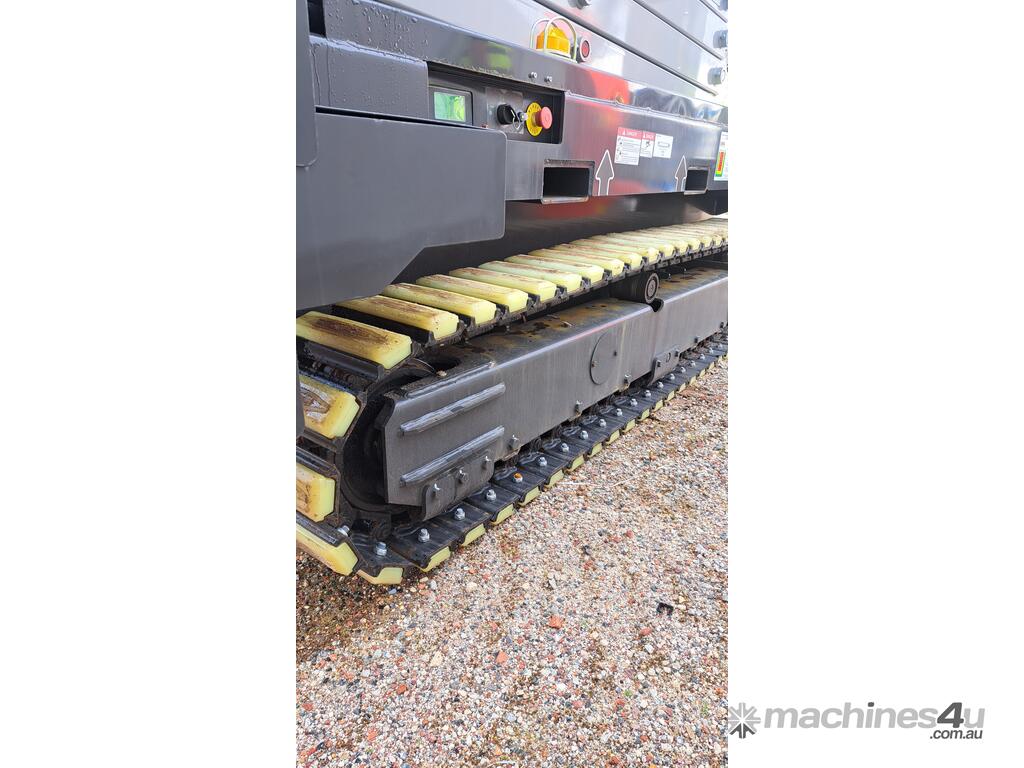

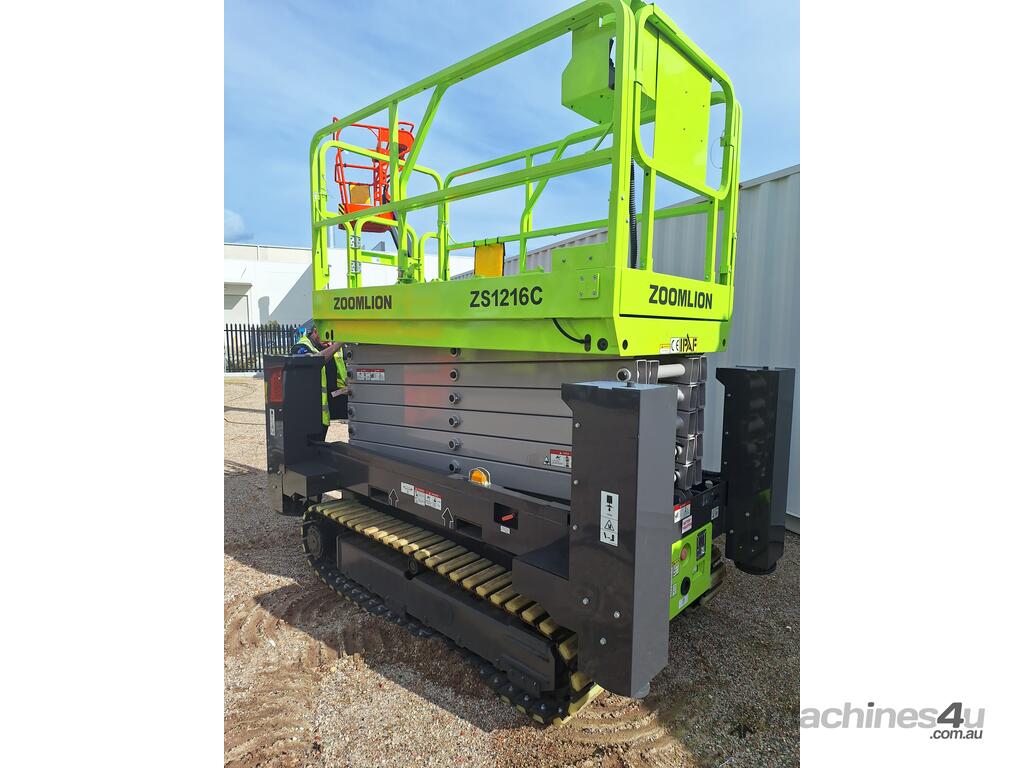

The ZS1216C is a 38ft electric tracked scissor lift designed for rough-terrain access where stability and traction are essential. It delivers a working height of 45ft 3in (13.8m), platform height of 38ft 9in (11.8m), and a 350kg lift capacity for safe elevated work. The 1.6m wide tracked undercarriage provides strong grip on uneven ground while maintaining low ground pressure for softer surfaces. Dual rear-wheel drive motors and proportional controls provide smooth performance during elevated and stowed travel.
Features:
- Platform Height: 38ft 9in (11.8m) / Working Height: 45ft 3in (13.8m)
- Platform Size: 7ft 7in × 3ft 7in (2.3m × 1.1m)
- Deck Extension: 3ft (0.91m)
- Capacity: 350kg (770lb)
- Capacity on Deck Extension: 113kg (249lb)
- Drive Speed: 1.25mph stowed / 0mph raised
- Gradeability: 30%
- Max Working Slope: 2° lateral / 3° vertical
- Ground Clearance: 6in (0.15m)
- Drive: Rear-wheel electric
- Turning Radius: Zero

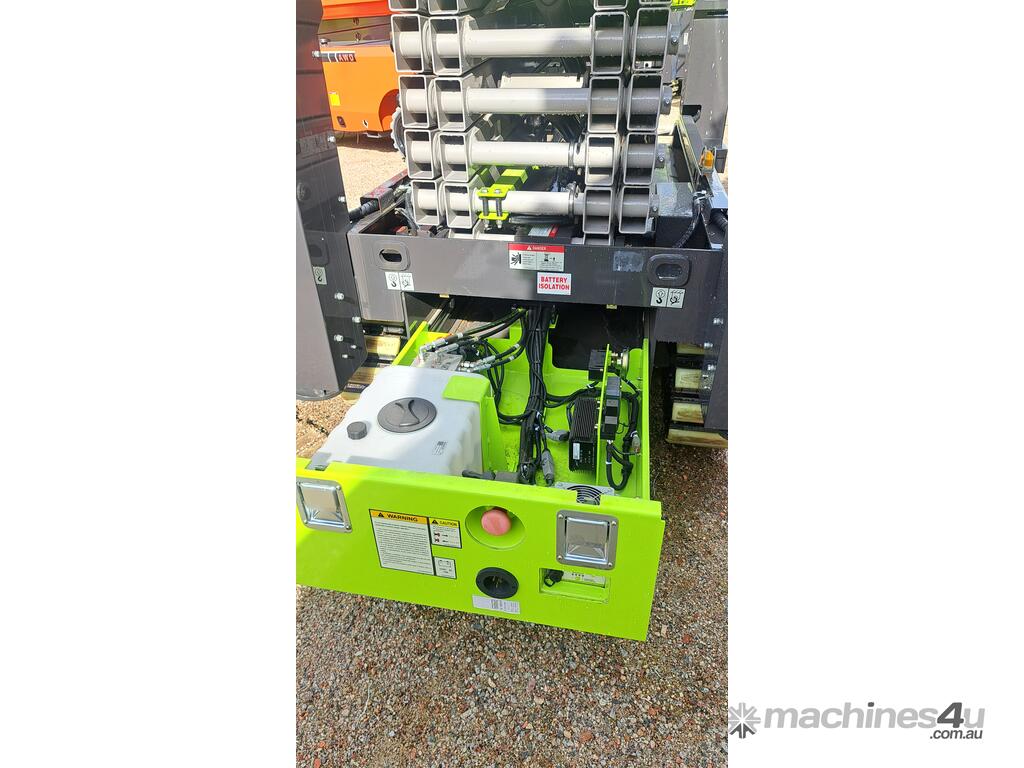

- Battery: 8 × 6V 170Ah (HOPPECKE) or 8 × 6V 180Ah (QUIMO)
- Charger: 48V / 35A
- Weight: 3,750kg
Applications:
- Construction access on uneven sites
- Maintenance on sloped or soft ground
- Industrial, infrastructure, and civil works
- Indoor/outdoor elevated work requiring tracked stability
