Zoomlion ZA14J Articulated Boom

300kg platform capacity for higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safety operations

Integrated with rotary reducer to enhance rotation stability

Hostile Kits available for dusty working environment

Deadweight Lowering System for smooth operation and energy efficiency

Size
METRIC / IMPERIAL
Work Height 15.80m
Platform Height 13.80m
Horizontal Outreach 8.30m
Up and Over Height 7.55m

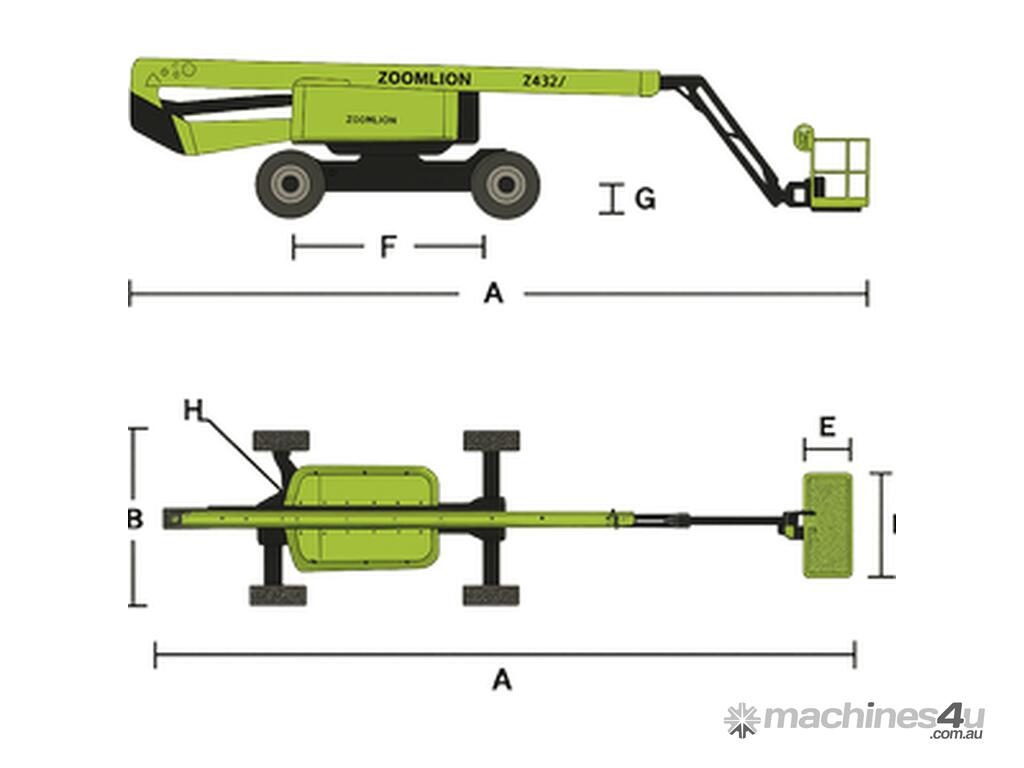

A – Stowed Length 6.57m
B – Stowed Width 2.30m
C – Stowed Height 2.27m
D – Platform Length 1.83m
E – Platform Width 0.76m
Jib Length 1.24m
F – Wheelbase 2.36m
G – Ground Clearance 0.42m

Performance
METRIC / IMPERIAL
Platform Capacity 300kg
Drive Speed 6.8km/h
Gradeability 45% (24°)
Axles Oscillation 0.1m
Turning Radius (Inside) 2.06m
Turning Radius (Outside) 4.78m
Turntable Swing 355° non-continuous
Platform Rotation ±90°
H–Tail Swing 0
Max. Wind Speed 12.5m/s

Power
METRIC / IMPERIAL
Diesel Engine Kubota V2403 36kw/2600rpm / EU V
Fuel Tank Capacity 65L
Auxiliary Power 12V
Control Voltage 12V
Hydraulic System Capacity 150L
Hydraulic Tank Capacity 76L
Drive 4WD

Tire
Weight
METRIC / IMPERIAL
Type 315/55 D20 Foam-filled Tires, 33×12-20 Solid Tires
