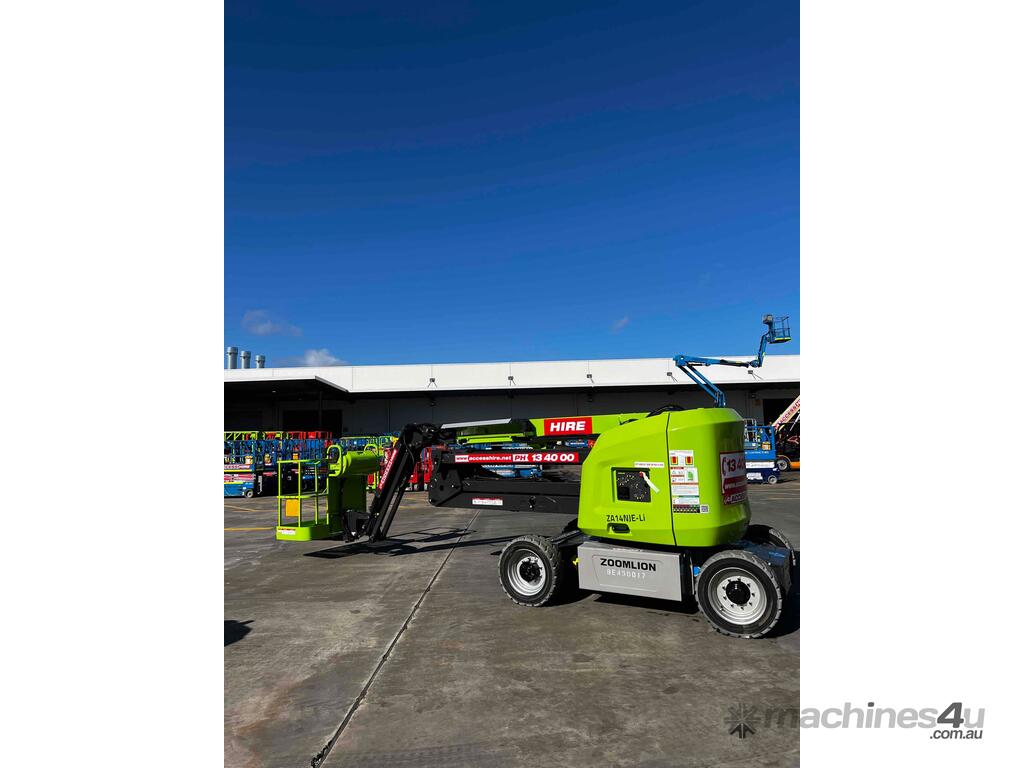

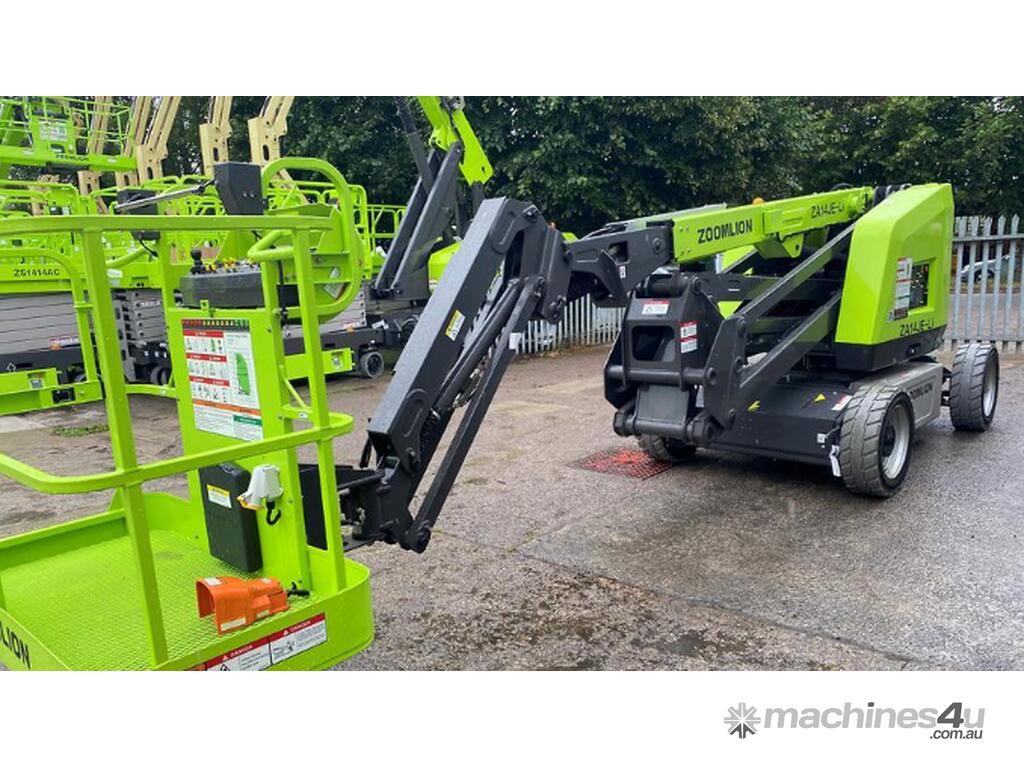

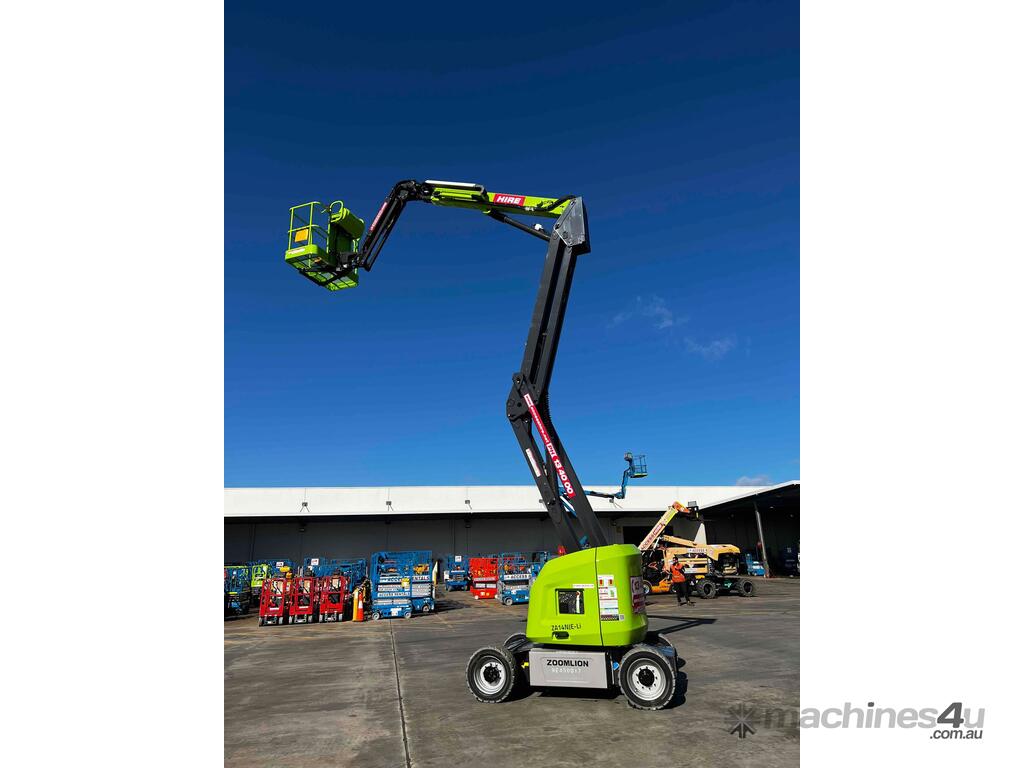

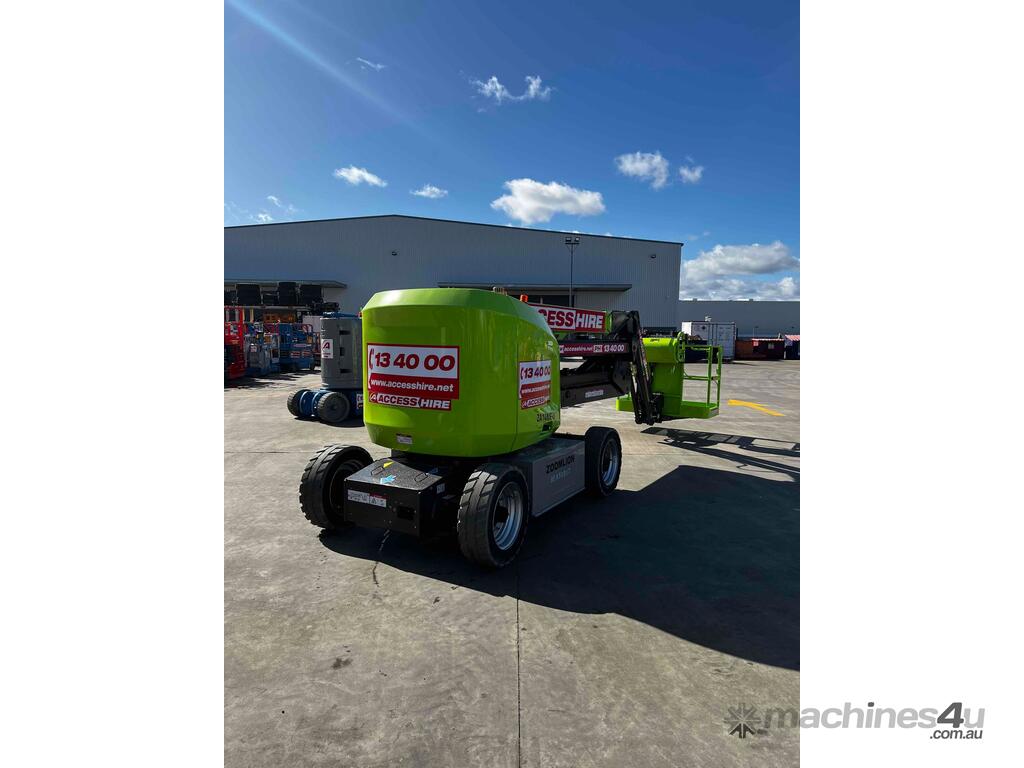

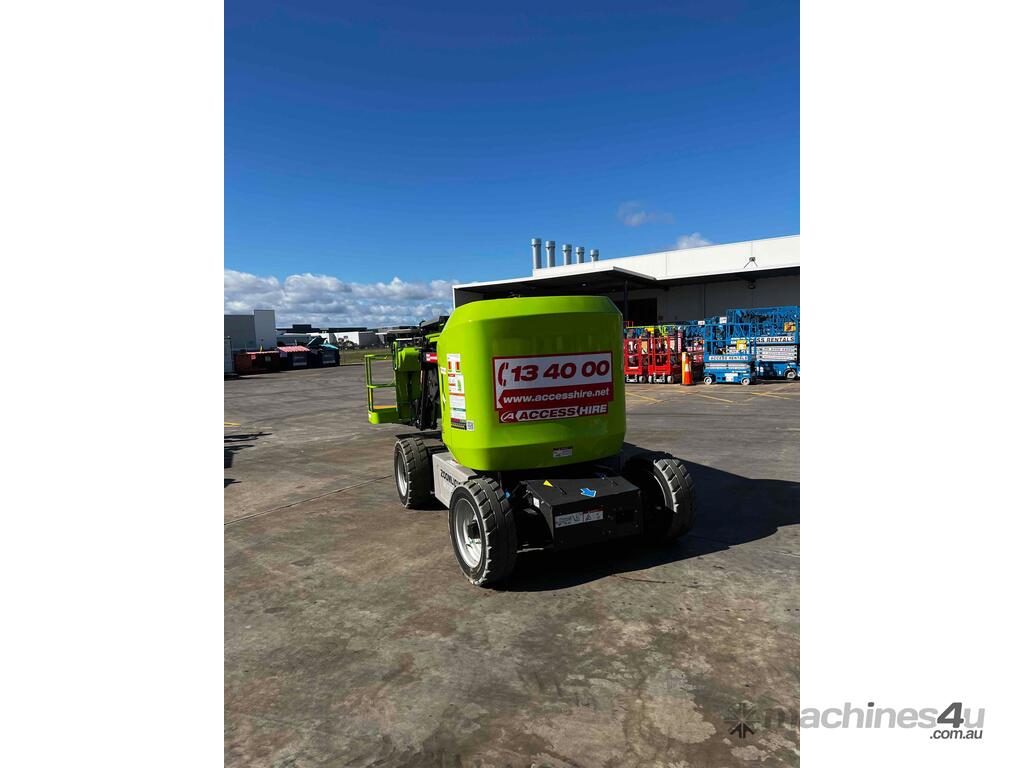

The Zoomlion ZA14NJE-Li is a 45 ft fully electric articulating boom lift built for productivity, efficiency, and sustainability. With a maximum working height of 16 m and a horizontal outreach of 7.41 m, it provides excellent versatility for construction, maintenance, and industrial access applications.
Powered by a 49 V / 315 Ah lithium-ion battery, the ZA14NJE-Li delivers extended operating hours, zero emissions, and low noise making it ideal for both indoor and outdoor use. The advanced AC drive motors offer smooth, proportional control, reliable performance, and reduced maintenance.

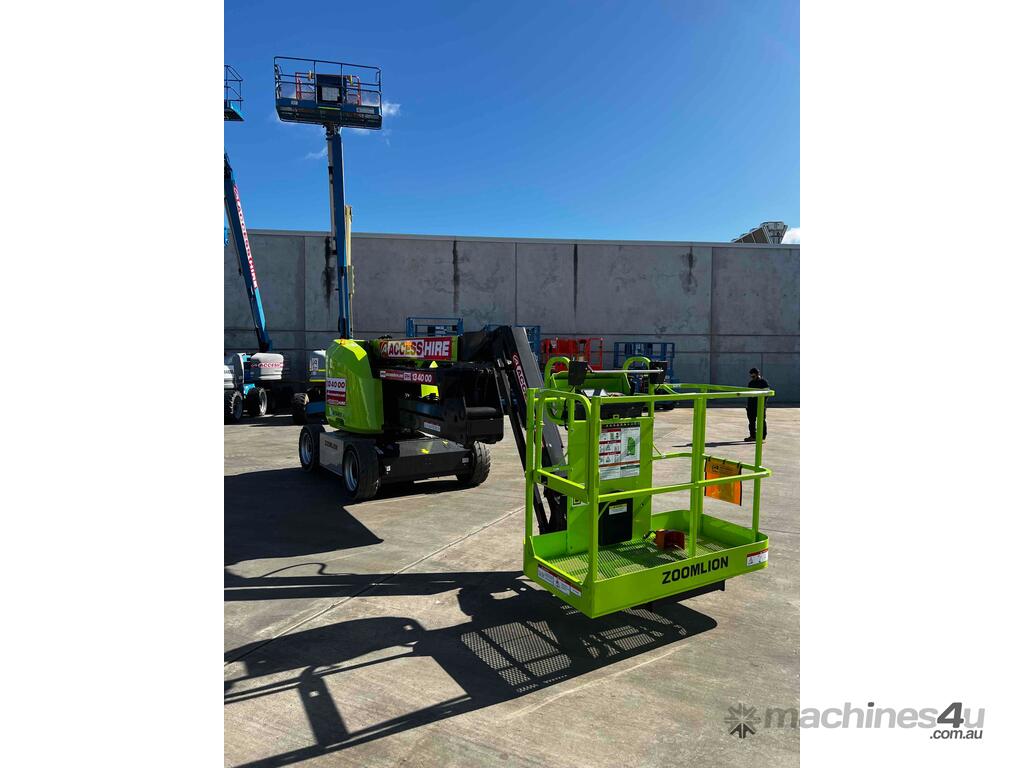

The lift supports a 230 kg platform capacity with 360° non-continuous turret rotation and 180° platform rotation, allowing precise positioning even in confined spaces. Its compact 1.75 m width, 5.4 km/h travel speed, and 30% gradeability enable efficient operation across uneven terrain.
With features such as a self-levelling platform, tilt protection, and energy-efficient lithium technology, the ZA14NJE-Li combines eco-friendly operation with the robust performance expected from Zoomlion’s next-generation access equipment.
Features
- Working height: 16 m (52 ft 6 in)
- Platform height: 14 m (45 ft 11 in)
- Horizontal outreach: 7.41 m (24 ft 3 in)
- Lift capacity: 230 kg (2 occupants + tools
- Power source: 49 V / 315 Ah lithium-ion battery
- Drive speed: 5.4 km/h
- Gradeability: 30%
- 360° turret rotation (non-continuous)

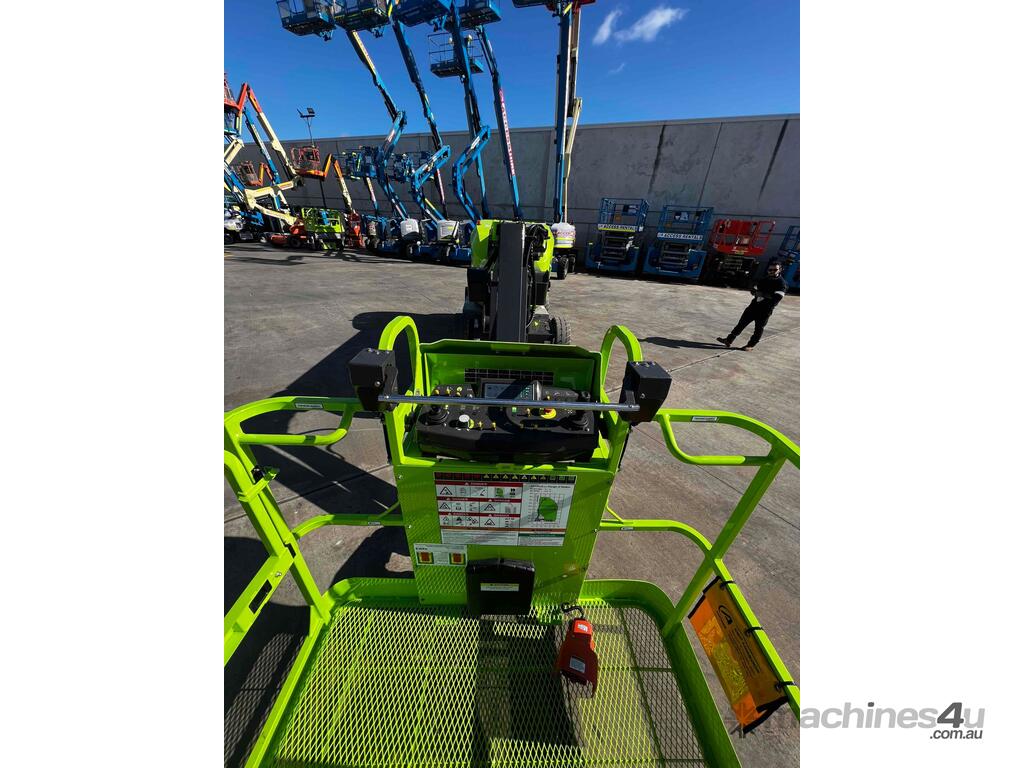

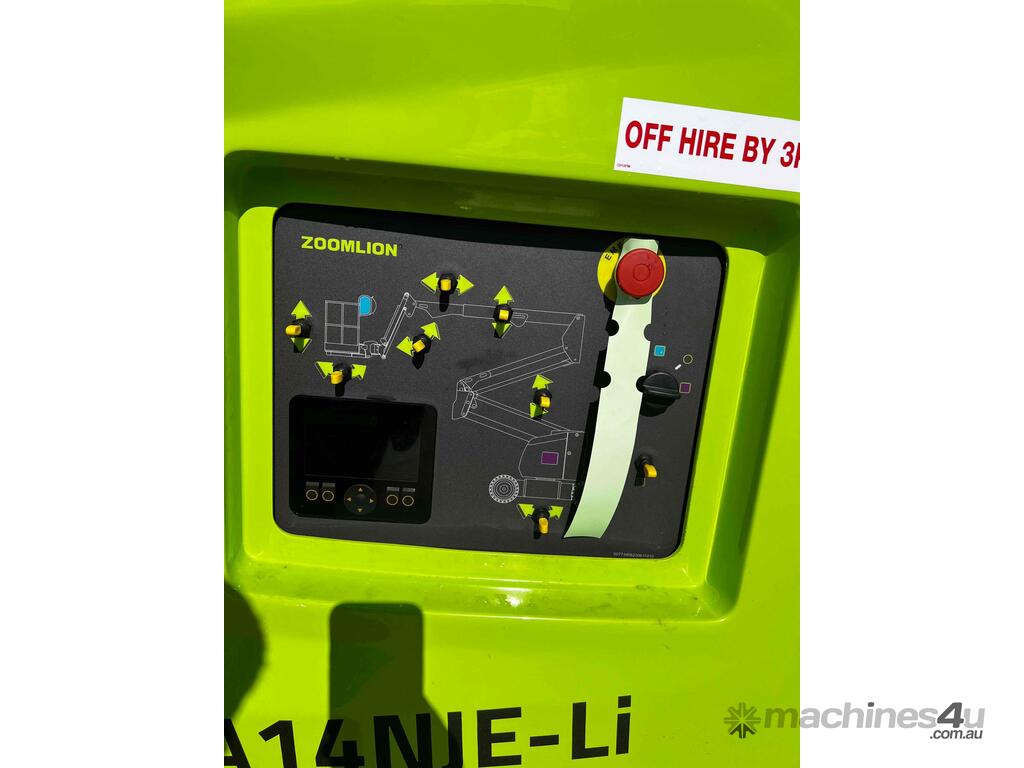

- 180° platform rotation with proportional joystick control
- Compact width: 1.75 m for tight access

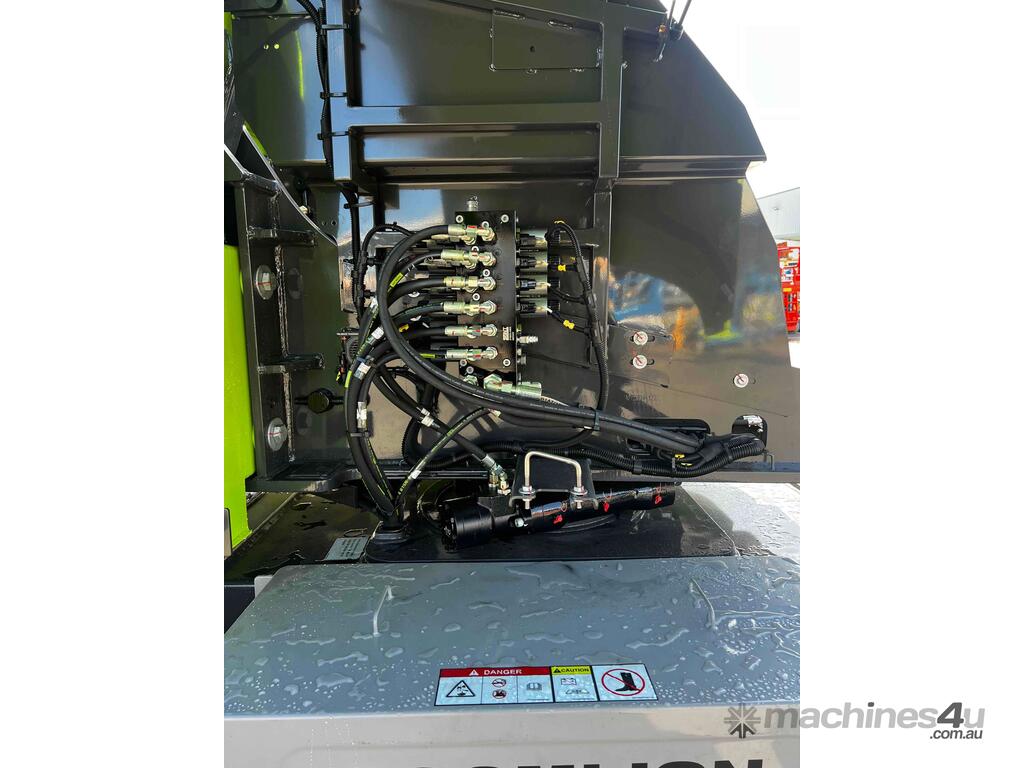

- Hydraulic tank capacity: 38 L

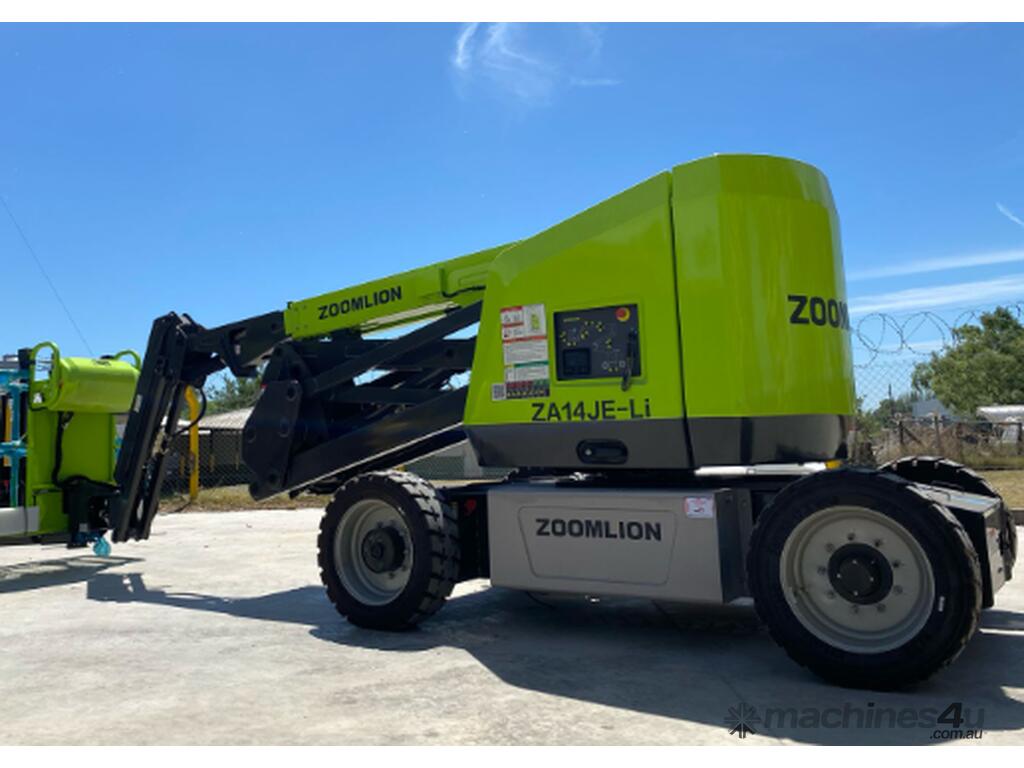

- Tyres: 250/75 D15 foam-filled
- Zero-emission, quiet operation for indoor and outdoor use
Applications
- Indoor and outdoor maintenance and construction
- Facility and plant operations
- Infrastructure and utilities
- Industrial installations
- Zero-emission and noise-restricted work environments
