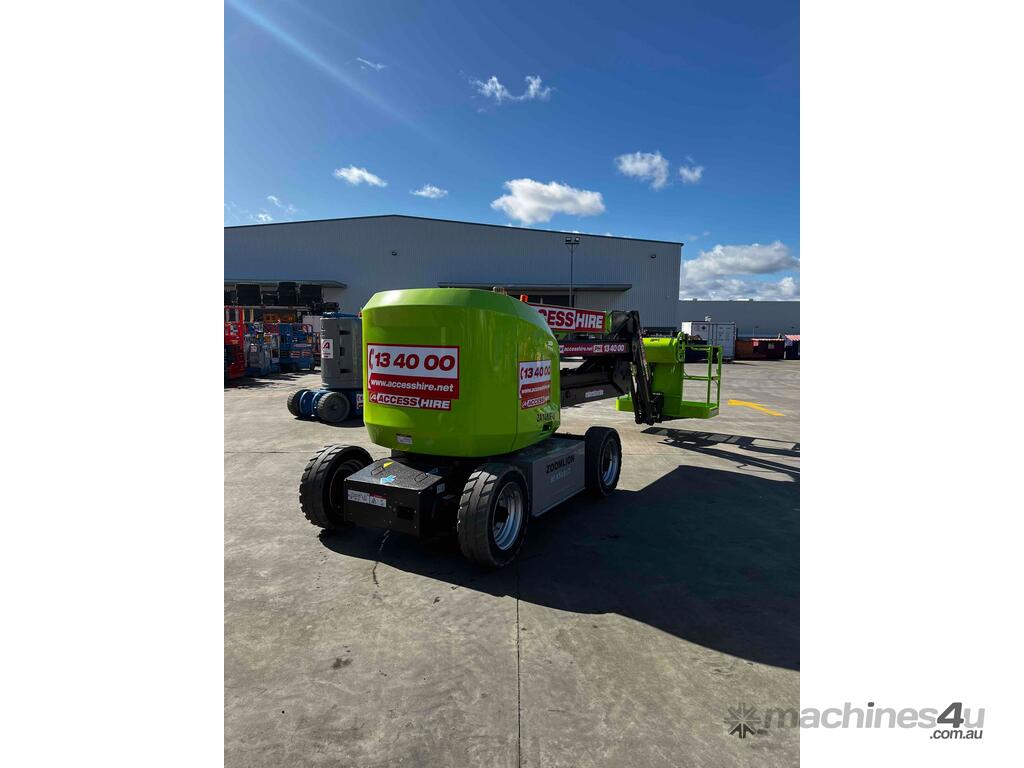

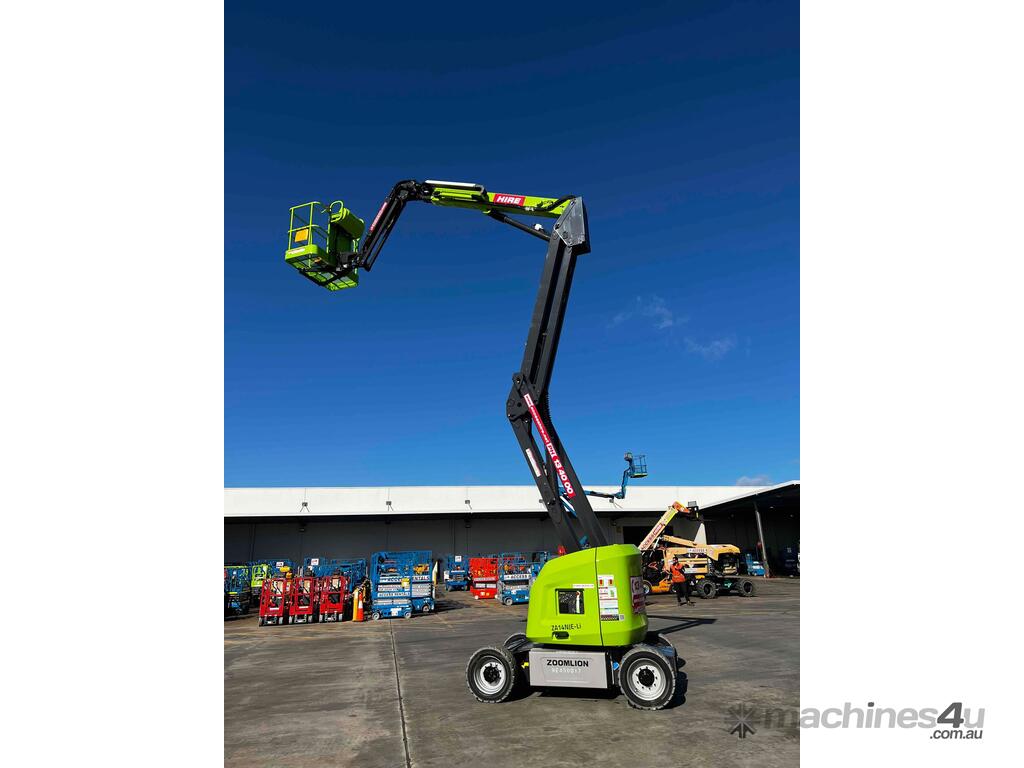

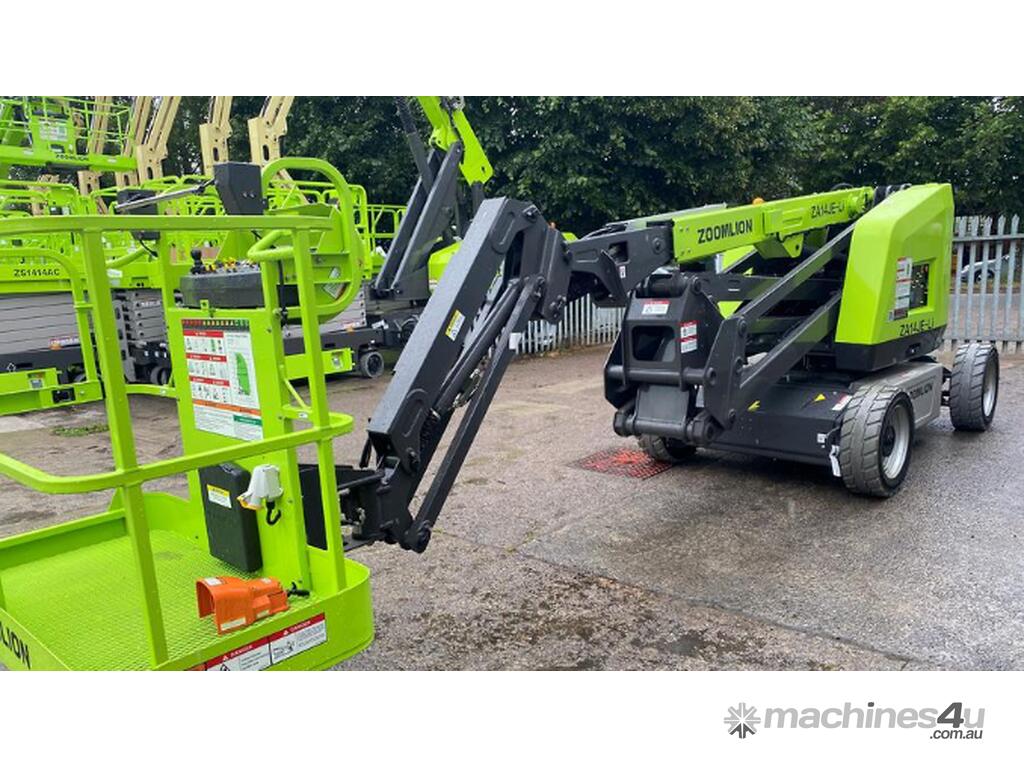

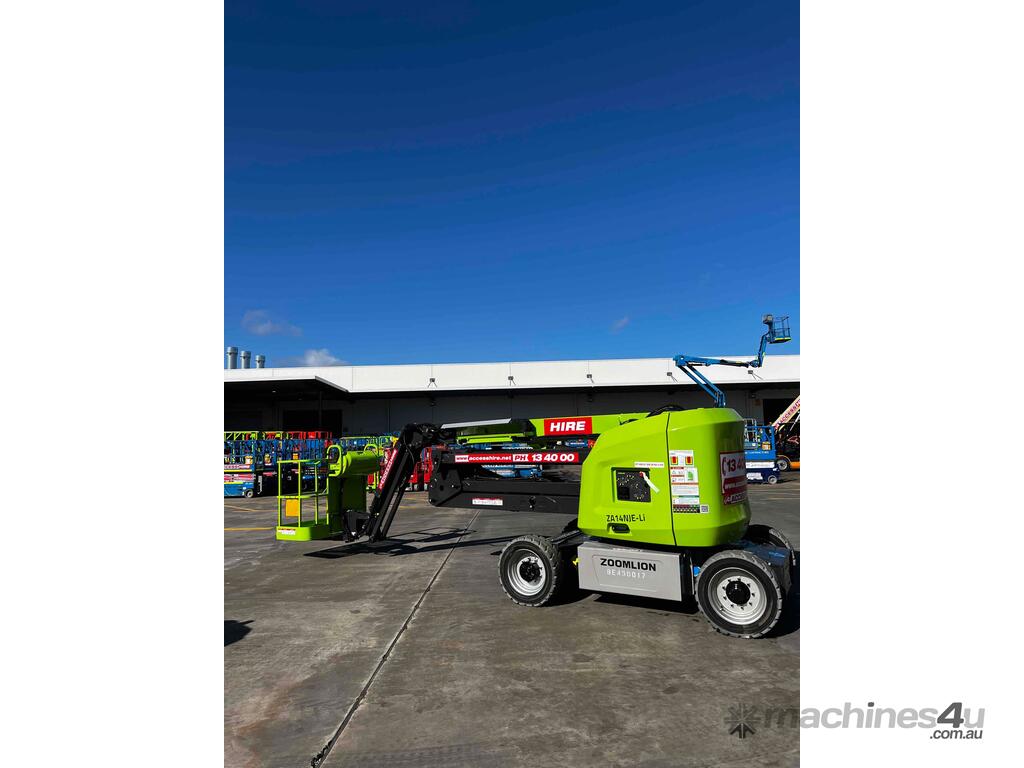

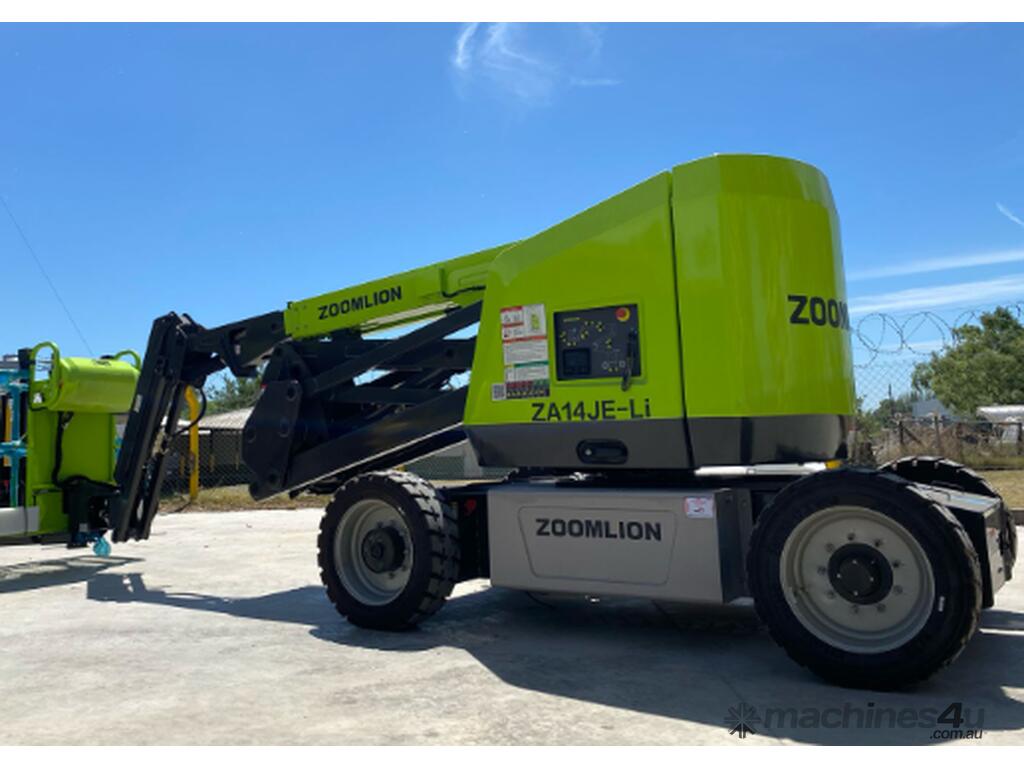

The Zoomlion ZA14NJE-Li is a 45 ft fully electric articulating boom lift built for productivity, efficiency, and sustainability. With a maximum working height of 16 m and a horizontal outreach of 7.41 m, it provides excellent versatility for construction, maintenance, and industrial access applications.
Powered by a 49 V / 315 Ah lithium-ion battery, the ZA14NJE-Li delivers extended operating hours, zero emissions, and low noise — making it ideal for both indoor and outdoor use. The advanced AC drive motors offer smooth, proportional control, reliable performance, and reduced maintenance.
The lift supports a 230 kg platform capacity with 360° non-continuous turret rotation and 180° platform rotation, allowing precise positioning even in confined spaces. Its compact 1.75 m width, 5.4 km/h travel speed, and 30% gradeability enable efficient operation across uneven terrain.
With features such as a self-levelling platform, tilt protection, and energy-efficient lithium technology, the ZA14NJE-Li combines eco-friendly operation with the robust performance expected from Zoomlion’s next-generation access equipment.
Features
- Working height: 16 m (52 ft 6 in)
- Platform height: 14 m (45 ft 11 in)
- Horizontal outreach: 7.41 m (24 ft 3 in)
- Lift capacity: 230 kg (2 occupants + tools)
- Power source: 49 V / 315 Ah lithium-ion battery
- Drive speed: 5.4 km/h
- Gradeability: 30%
- 360° turret rotation (non-continuous)

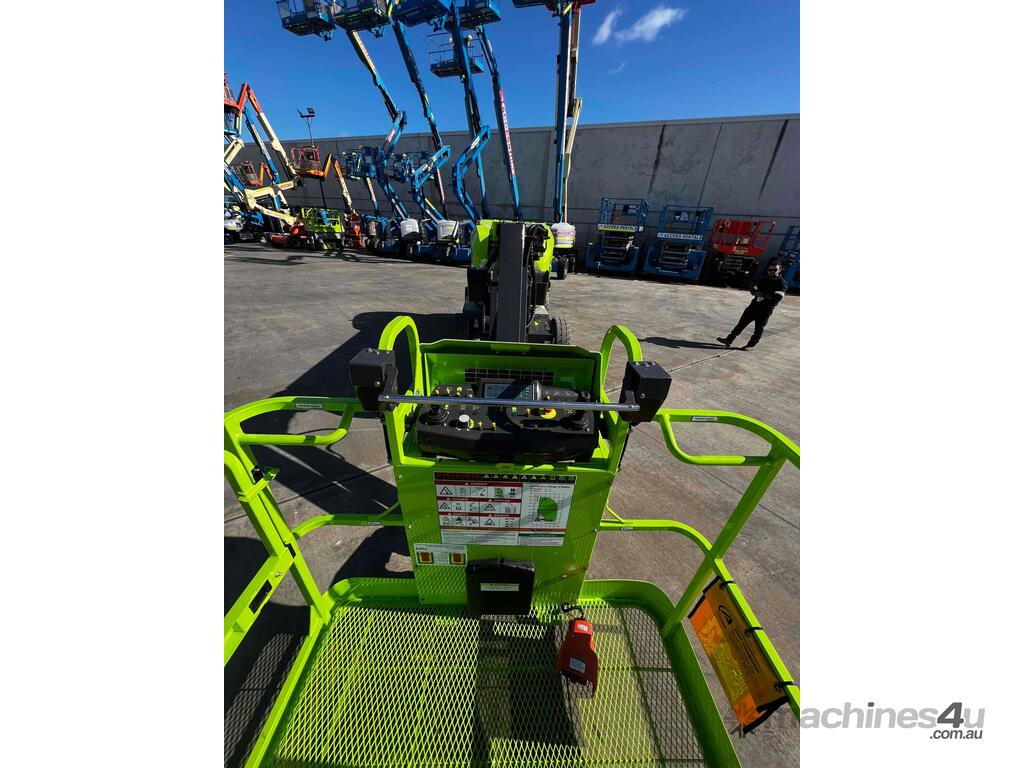

- 180° platform rotation with proportional joystick control
- Compact width: 1.75 m for tight access
- Hydraulic tank capacity: 38 L
- Tyres: 250/75 D15 foam-filled
- Zero-emission, quiet operation for indoor and outdoor use
Applications
- Indoor and outdoor maintenance and construction
- Facility and plant operations
- Infrastructure and utilities
- Industrial installations
- Zero-emission and noise-restricted work environments
