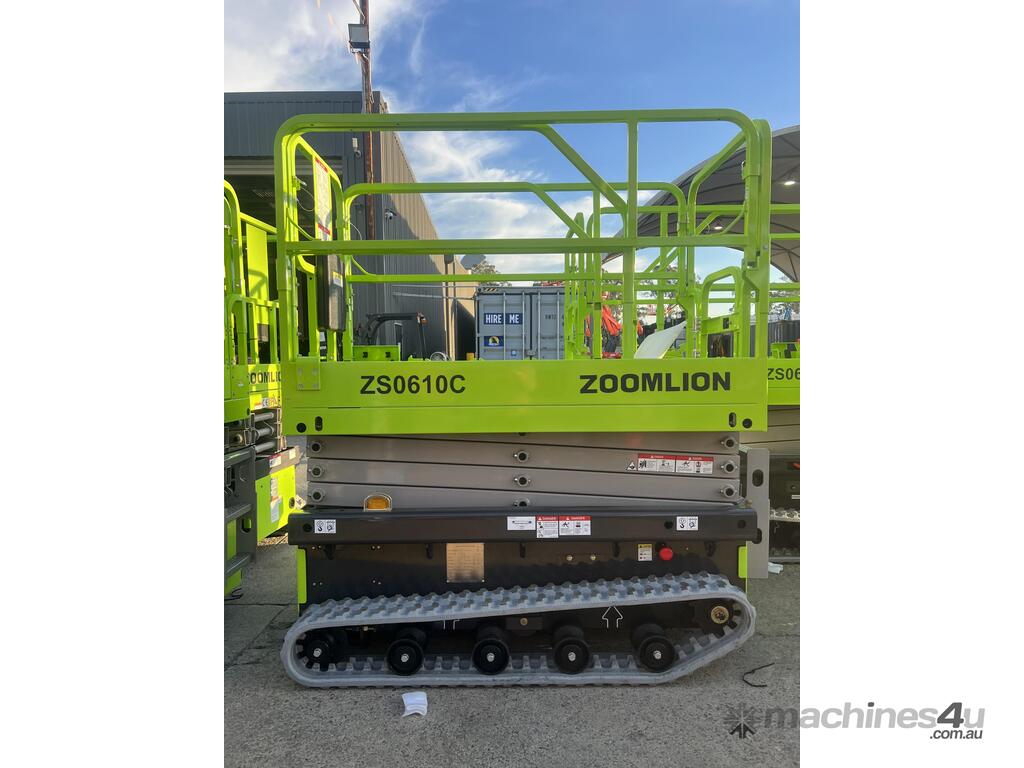

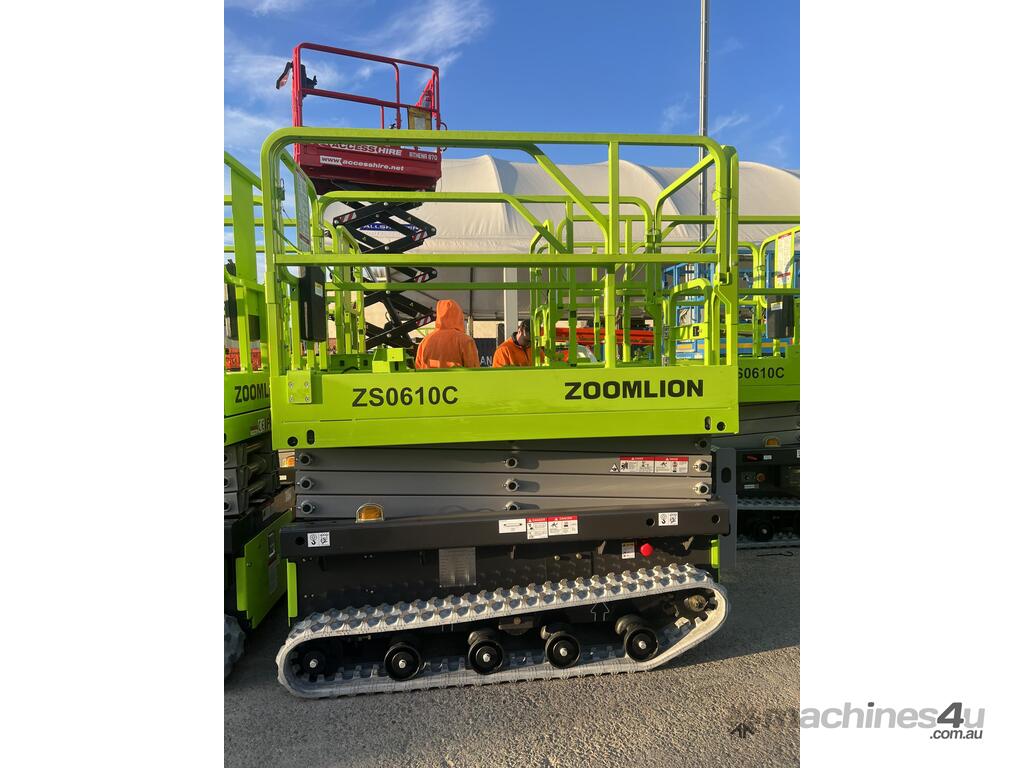

The Zoomlion ZS0610C is a compact and reliable 22 ft electric tracked scissor lift designed for both indoor and outdoor work on firm, level surfaces. With a platform height of 22 ft 4 in (6.80 m) and a working height of 28 ft 11 in (8.80 m), it provides safe elevation for two occupants. Its 250 kg platform capacity and 0.9 m extension deck make it ideal for handling tools and materials efficiently. Powered by a 24V/2×1.8 kW drive motor and 4×6V/220Ah HOPPECKE batteries, this model delivers long-lasting performance with fast charging and zero emissions—perfect for low-noise, clean environments.
Features:
- Platform Height: 22 ft 4 in (6.80 m) for a working height of 28 ft 11 in (8.80 m)
- Capacity: 250 kg (550 lb), supports up to 2 workers
- Power Source: 24V/2×1.8 kW electric drive motor with 4×6V/220Ah HOPPECKE batteries
- Platform Extension: 0.9 m (3 ft) slide-out deck
- Compact Size: 1.05 m wide for access in tighter spaces
- Drive Speed: 2 km/h (stowed)
- Gradeability: 30% for ramps and inclines
- Weight: 1,700 kg
Applications:
- Indoor and outdoor maintenance projects
- Electrical, lighting, and installation work
- Warehouse and logistics operations
- Construction fit outs in retail and commercial spaces
